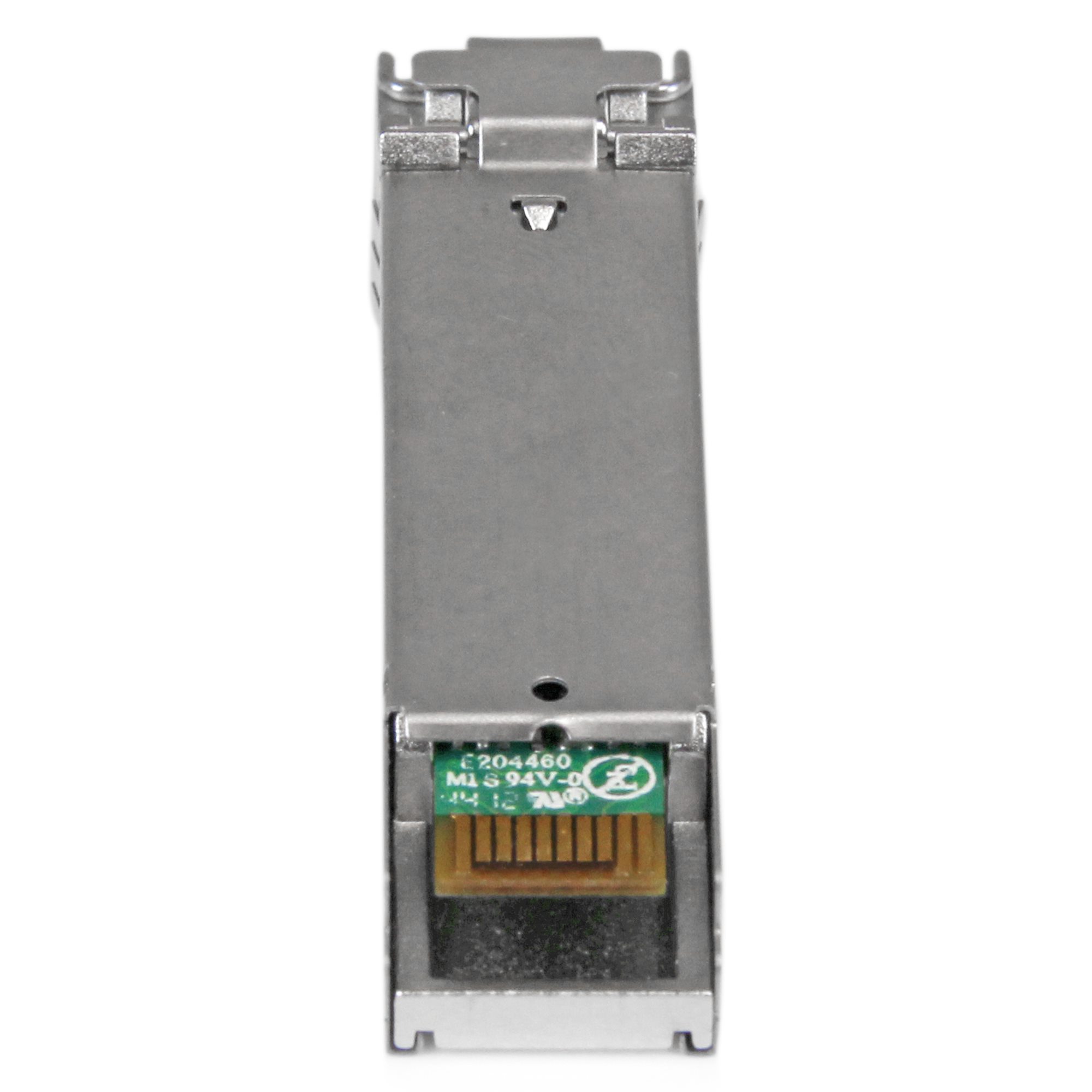

StarTech.com Cisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module - 1000BASE-SX~Cisco Meraki MA-SFP-1GB-SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM Cisco Me
Roll over image to zoom inClick to Open expanded view
Model: MASFP1GBSXST
EAN: 65030868655

StarTech.com Cisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module - 1000BASE-SX~Cisco Meraki MA-SFP-1GB-SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM Cisco Me

Manufacturer:
StarTech.com
StarTech.com Cisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module - 1000BASE-SX~Cisco Meraki MA-SFP-1GB-SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM Cisco Me
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

StarTech.com Cisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module - 1000BASE-SX~Cisco Meraki MA-SFP-1GB-SX Compatible SFP Module - 1000BASE-SX - 1GbE Multimode Fiber MMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM Cisco Meraki MS225, MX400, MS250. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 3381761 h. Power consumption (typical): 1 W. Compliance certificates: RoHS, Certification: CE, FCC, UR. Width: 13.7 mm, Depth: 56.6 mm, Height: 12.5 mm
  • 100% CISCO MERAKI MA-SFP-1GB-SX COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MX84 and others
  • TECHNICAL SPECS: 1000BASE-SX / 1 Gbps / Multi Mode (MMF) / LC Connector / 850nm / Digital Diagnostic Monitoring (DDM) / Distances up to 550m (1804ft)
  • TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
  • WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
  • THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.

Product Properties

  • Model
  • MASFP1GBSXST
  • EAN
  • 65030868655
  • Bullet points
  • Point
  • 100% CISCO MERAKI MA-SFP-1GB-SX COMPATIBLE
    TECHNICAL SPECS
    TESTED FOR OEM HOST COMPATIBILITY
    THE IT PRO’S CHOICE
    WORKS WITH MSA COMPLIANT SWITCHES
  • Certificates
  • Certification
  • CE, FCC, UR
  • Compliance certificates
  • RoHS
  • Features
  • Hot-swap
  • Yes
  • Housing material
  • Aluminium
  • Mean time between failures (MTBF)
  • 3381761 h
  • Product colour
  • Silver
  • Logistics data
  • Country of origin
  • China
  • Harmonized System (HS) code
  • 85369010
  • Master (outer) case height
  • 200 mm
  • Master (outer) case length
  • 305 mm
  • Master (outer) case width
  • 257 mm
  • Products per master (outer) case
  • 100 pc(s)
  • Operational conditions
  • Operating relative humidity (H-H)
  • 5 - 95%
  • Operating temperature (T-T)
  • 0 - 70 °C
  • Storage temperature (T-T)
  • -40 - 85 °C
  • Packaging content
  • Quantity per pack
  • 1 pc(s)
  • Packaging data
  • Package depth
  • 94 mm
  • Package height
  • 33 mm
  • Package weight
  • 42 g
  • Package width
  • 119 mm
  • Performance
  • Digital Diagnostics Monitoring (DDM)
  • Yes
  • Duplex system
  • Full
  • Fiber optic connector
  • LC
  • Interface type
  • SFP
  • Maximum data transfer rate
  • 1250 Mbit/s
  • Maximum transfer distance
  • 550 m
  • Multi-mode fiber (MMF) supported
  • Yes
  • Networking standards
  • IEEE 802.3z
  • SFP transceiver standard
  • SX
  • SFP transceiver type
  • Fiber optic
  • Wavelength
  • 850 nm
  • Power
  • Power consumption (typical)
  • 1 W
  • Weight & dimensions
  • Depth
  • 56.6 mm
  • Height
  • 12.5 mm
  • Weight
  • 14 g
  • Width
  • 13.7 mm
