Description

StarTech.com DK31C3MNCRUE. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 60 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Data transfer rate: 10 Gbit/s, HD type: 5K Ultra HD, Maximum digital resolution: 5120 x 2880 pixels. AC input voltage: 100 - 240 V, Input current: 2.37 A, Output voltage: 20 V. Width: 80 mm, Depth: 210 mm, Height: 32 mm

Product Properties

Manufacturer
StarTech.com

Model
DK31C3MNCRUE

EAN
65030898133

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 70 °C

Other features

Chipset
Synaptics - VMM5320, Realtek -RTS5420, Parade - PS8469, Parade - PS8468, Parade - PS8805, Parade - PS8803, VIA/VLI - VL822 Realtek - ALC5686, VIA/VLI - VL211, Realtek - RTL8153B

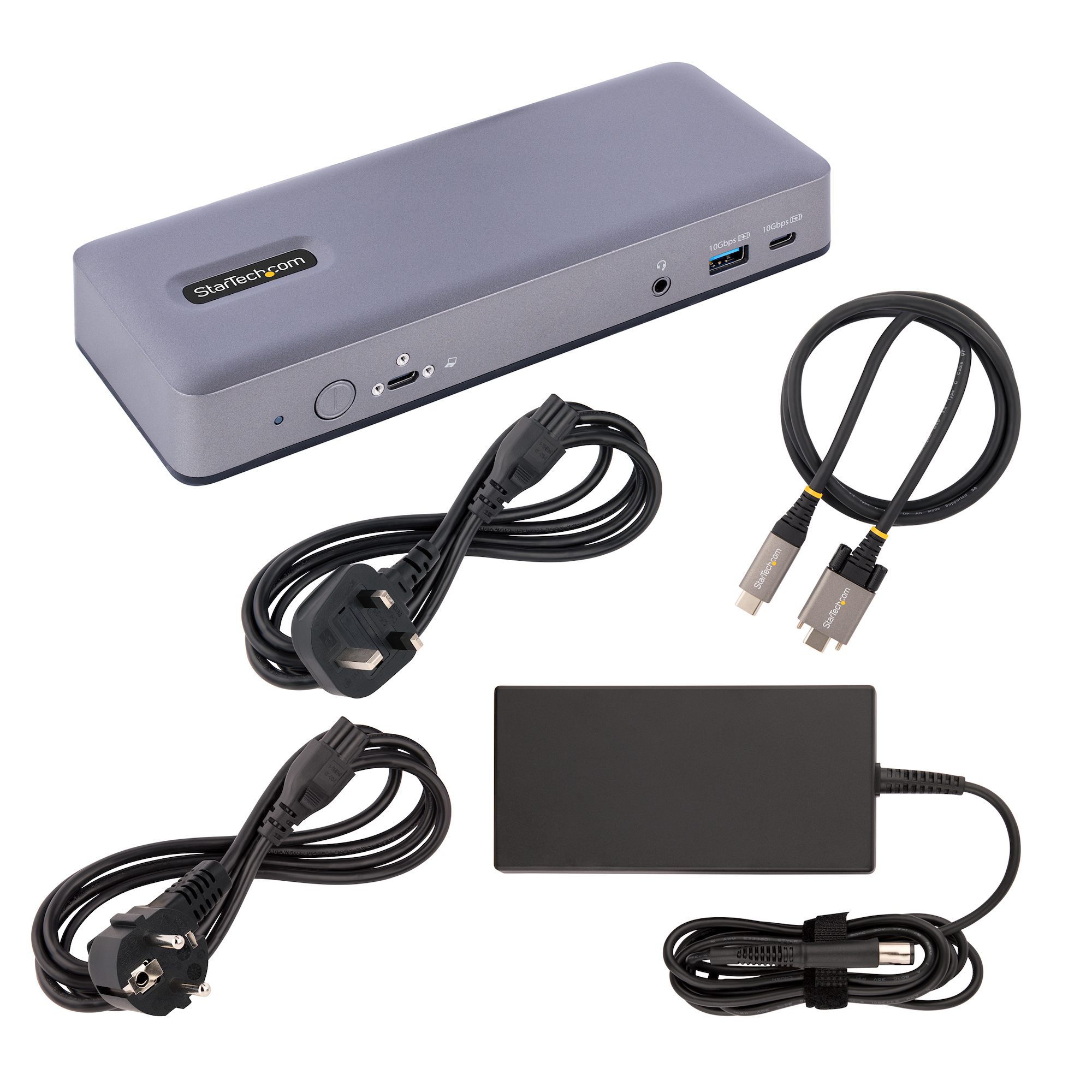

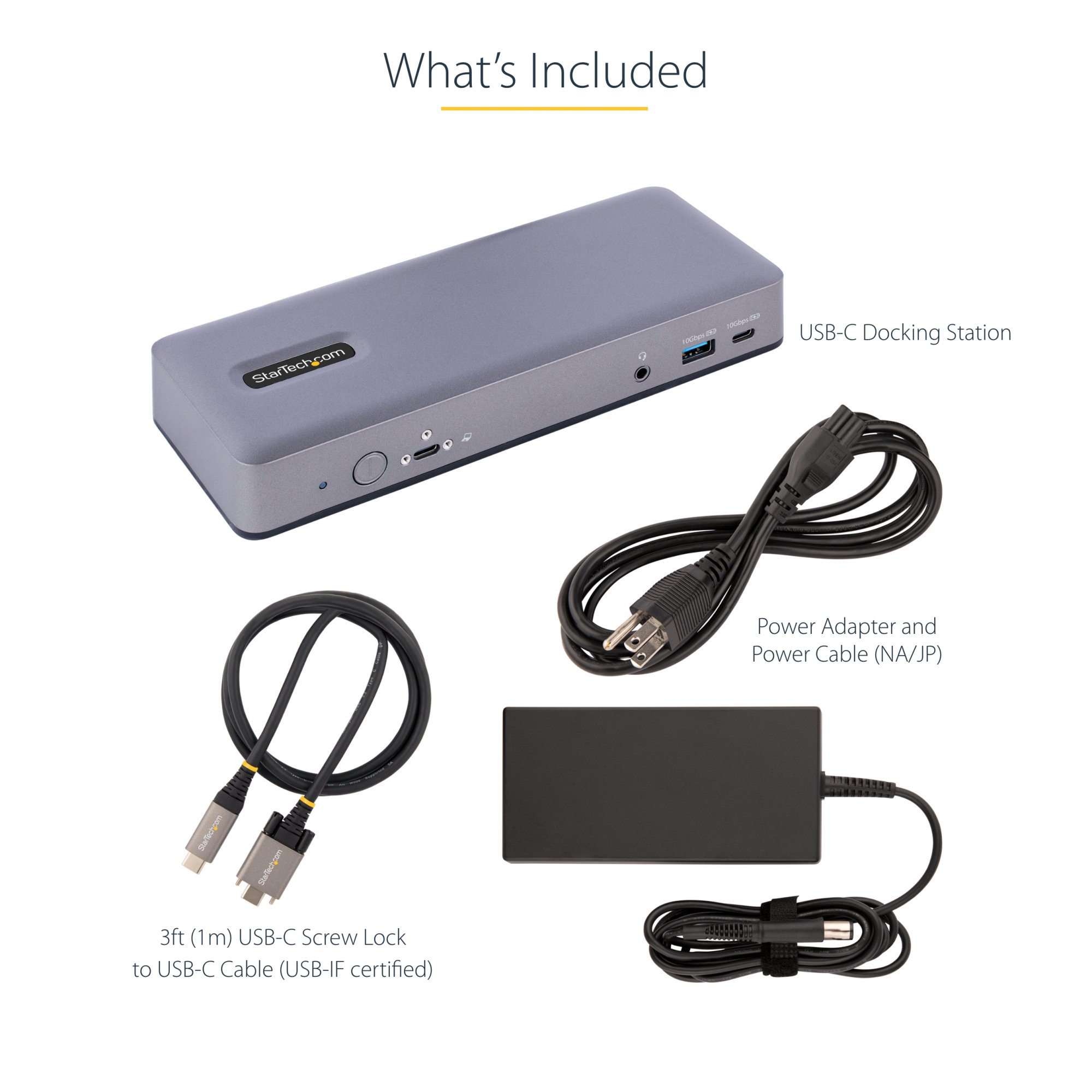

Packaging content

AC adapter included
Yes

Cables included
USB Type-C to USB Type-C

Quick start guide
Yes

Performance

Cable lock slot
Yes

Cable lock slot type
Kensington

Data transfer rate
10 Gbit/s

HD type
5K Ultra HD

LED indicators
Network, Power

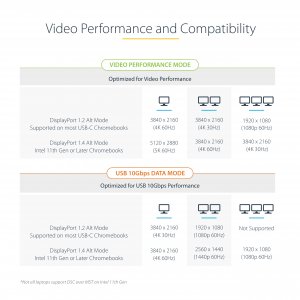

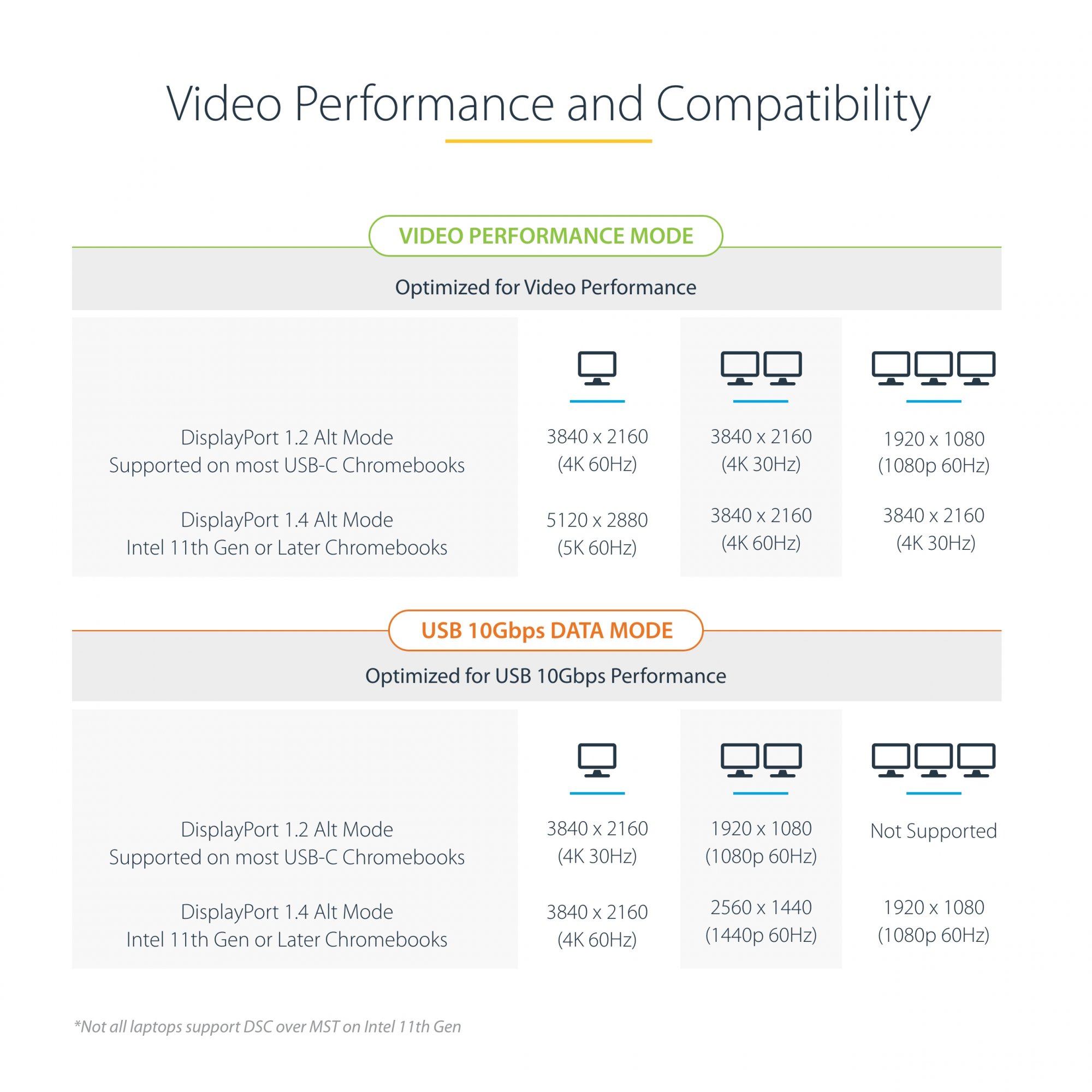

Maximum digital resolution
5120 x 2880 pixels

Maximum refresh rate
60 Hz

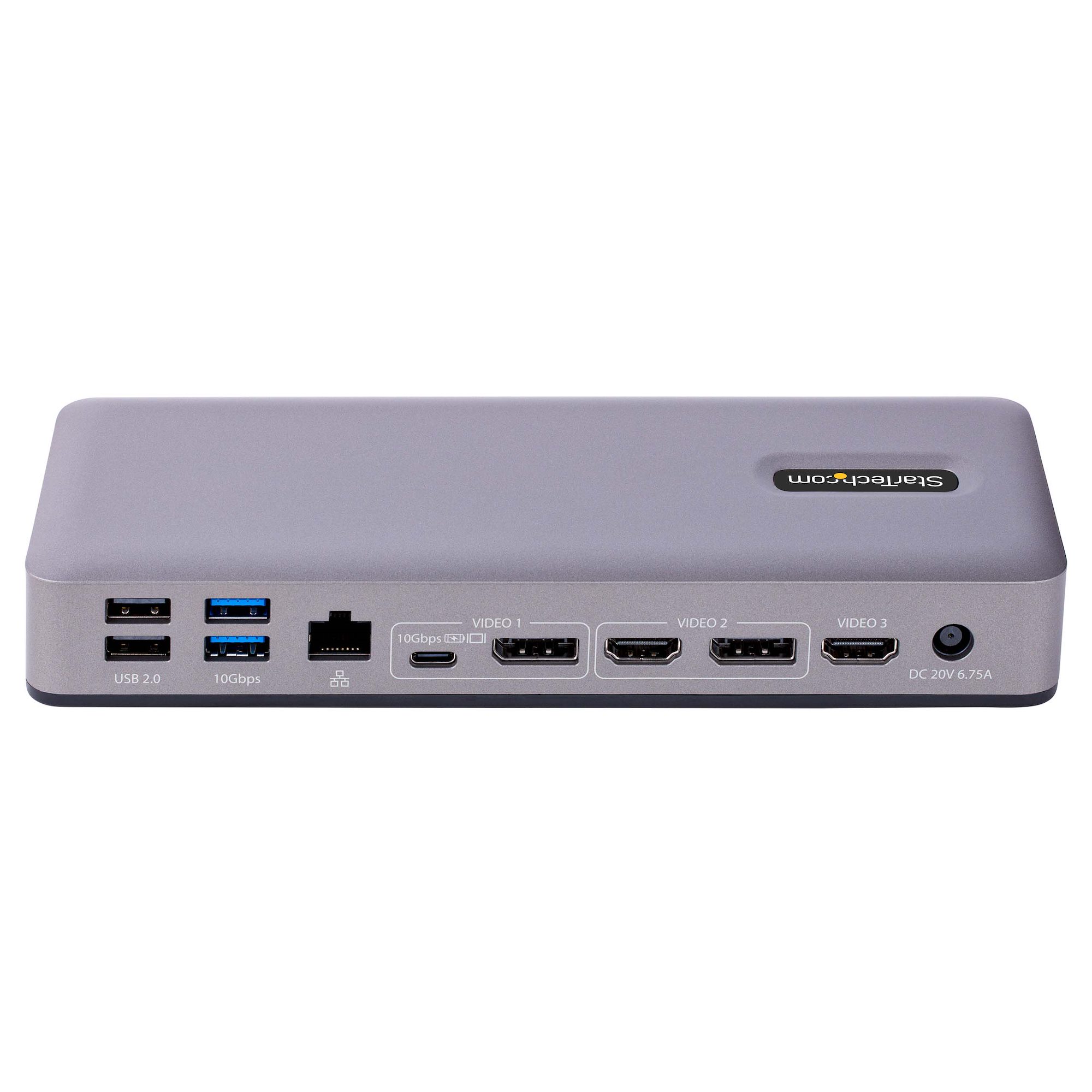

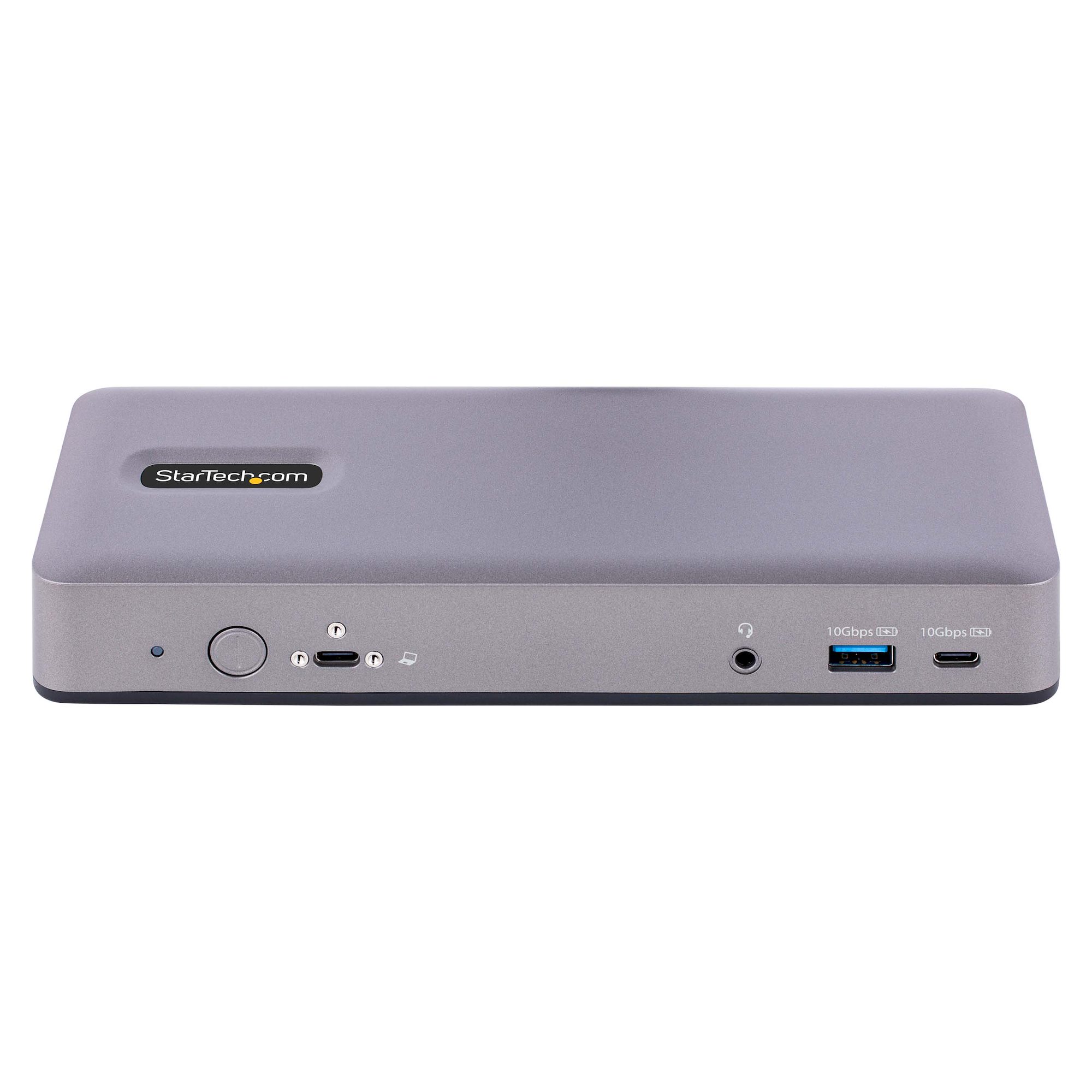

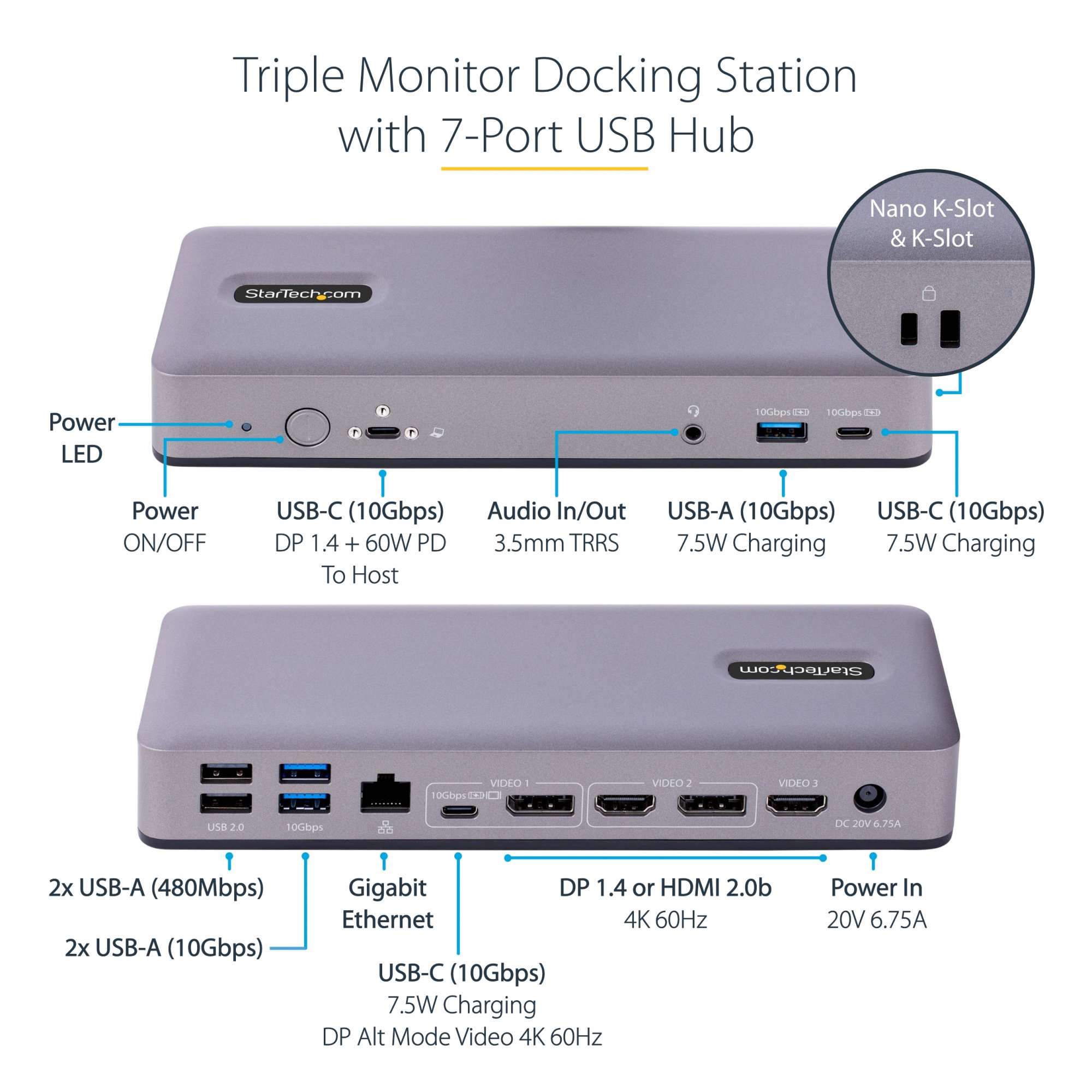

Ports & interfaces

Combo headphone/mic port
Yes

Connectivity technology
Wired

DisplayPort version
1.4

DisplayPorts quantity
2

HDMI ports
2

HDMI version
2.0b

Headphone connectivity
3.5 mm

Headphone outputs
1

Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 2.0 ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

USB Power Delivery (USB PD)
Yes

USB Power Delivery revision
3.0

USB Power Delivery up to
60 W

USB Type-C DisplayPort Alternate Mode
Yes

Power

AC input voltage
100 - 240 V

Compatible power plug types
EU, UK

Input current
2.37 A

Output current
6.75 A

Output voltage
20 V

Power consumption (typical)
135 W

Sustainability

Sustainability compliance
Yes

Technical details

Compliance certificates
CE, RoHS

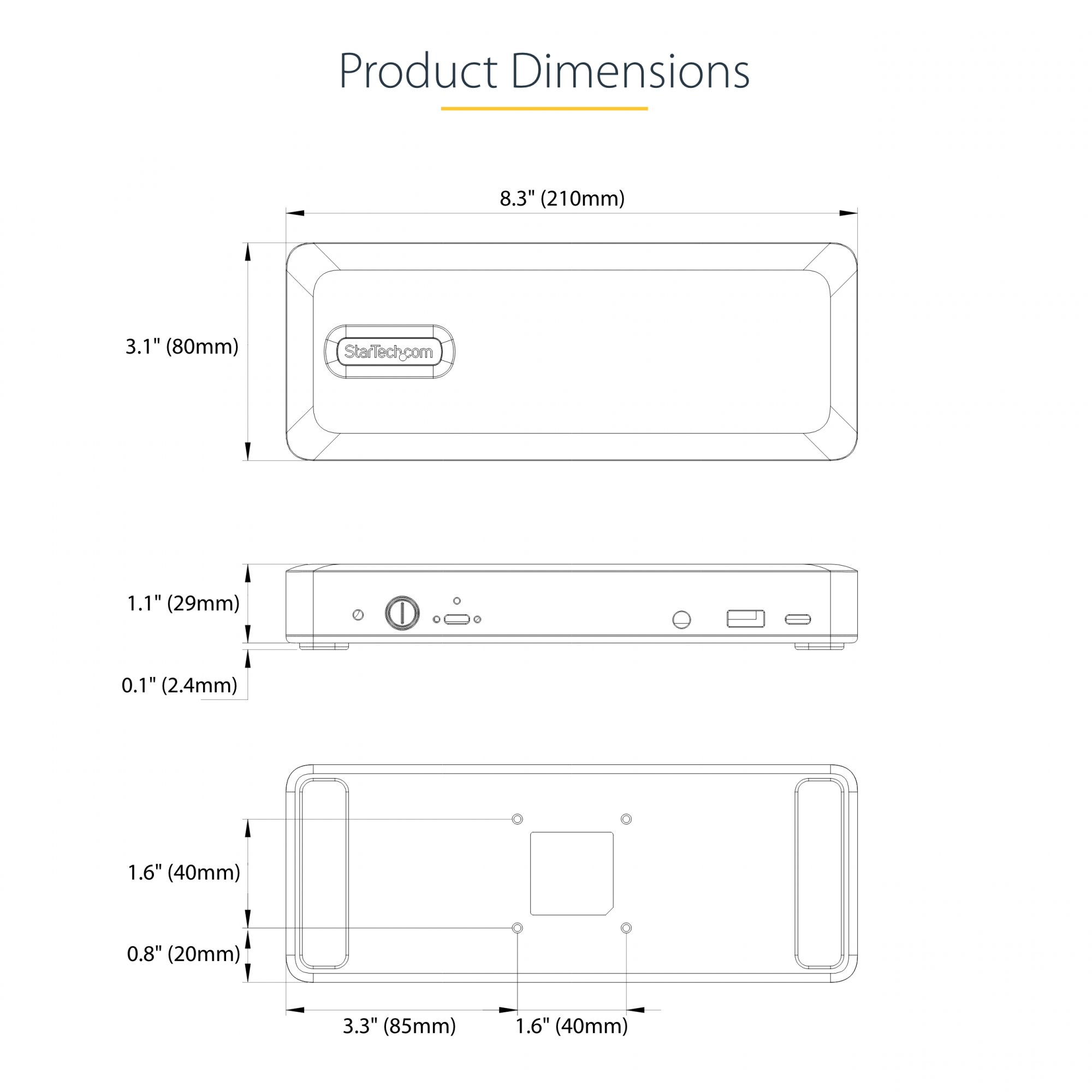

Weight & dimensions

Depth
210 mm

Height
32 mm

Width
80 mm

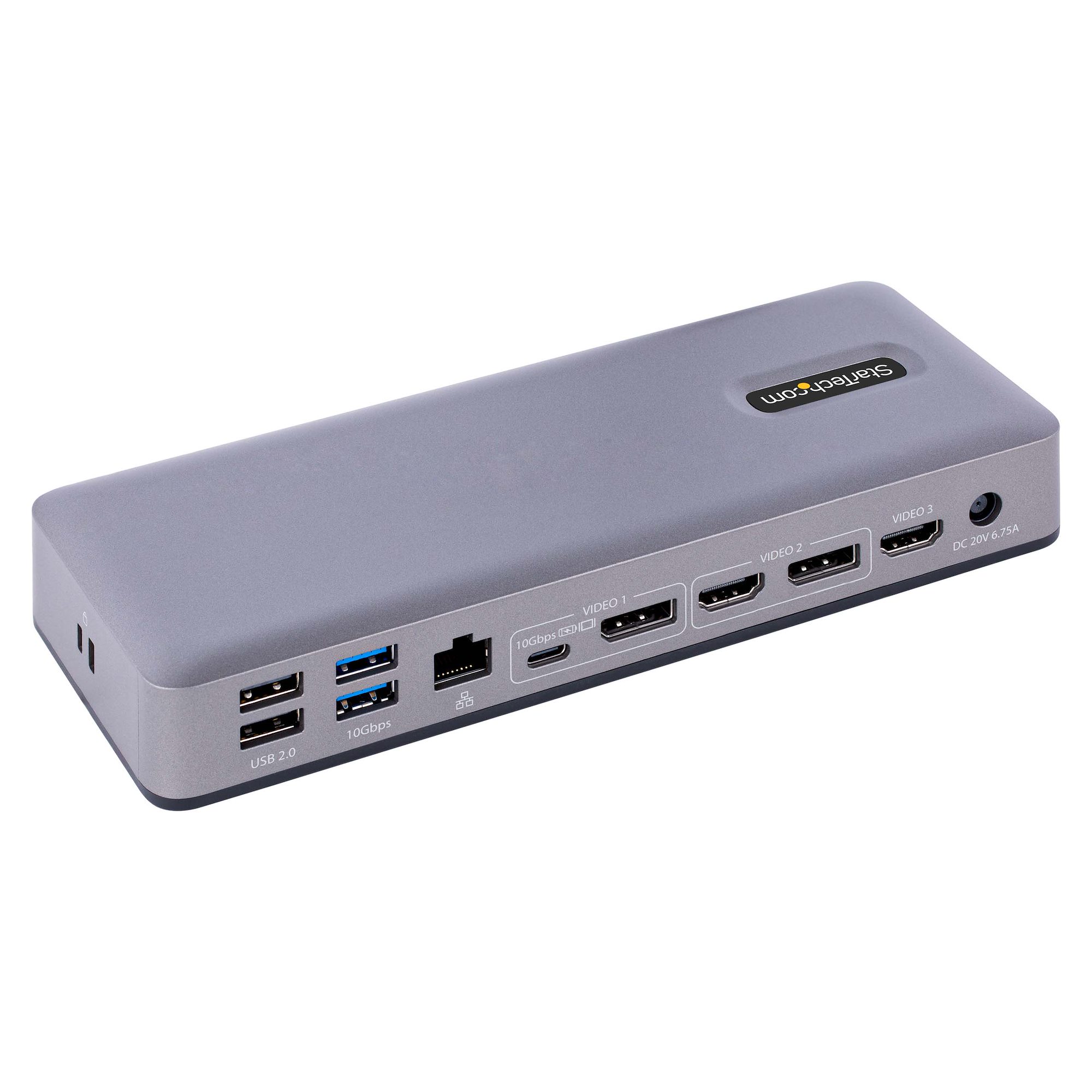

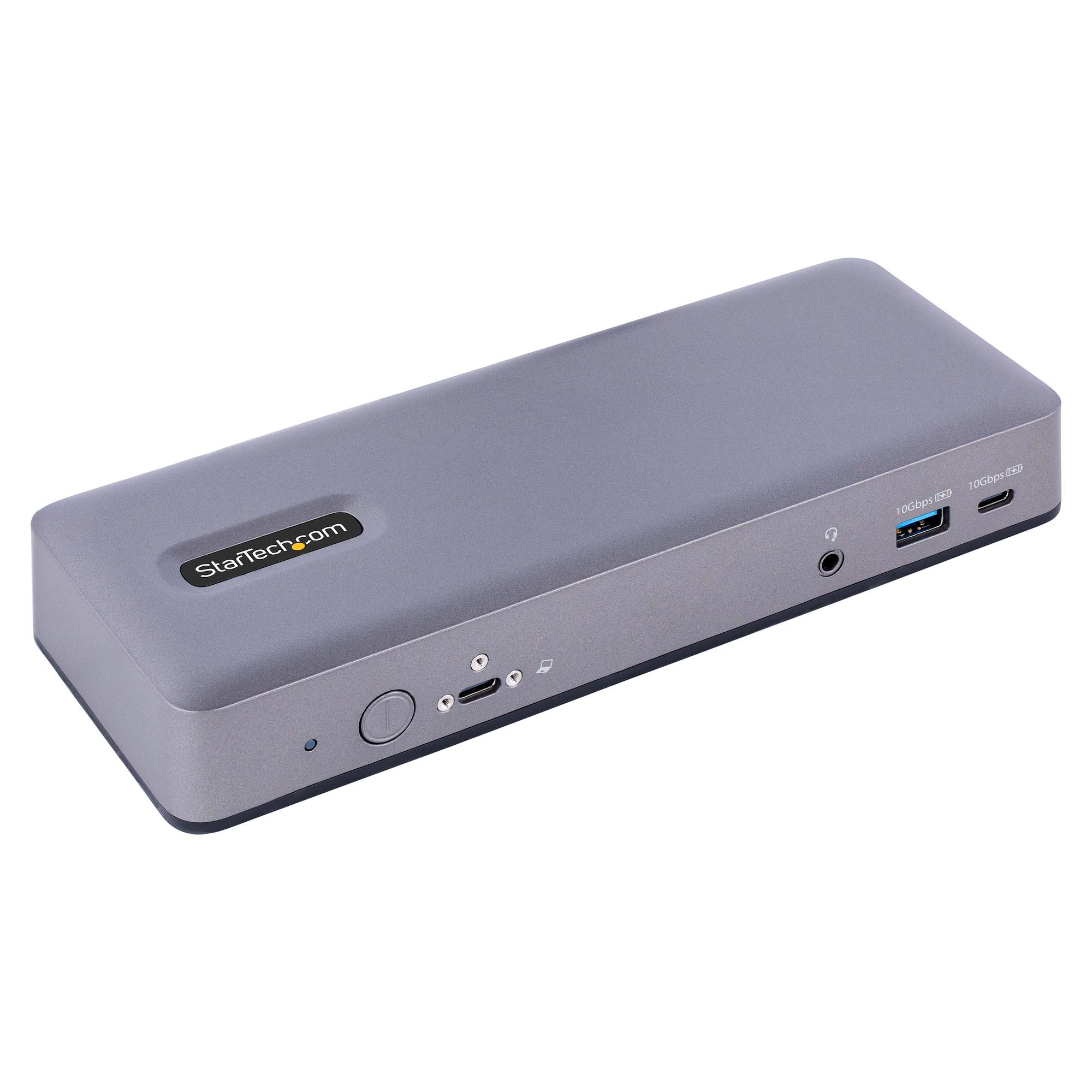

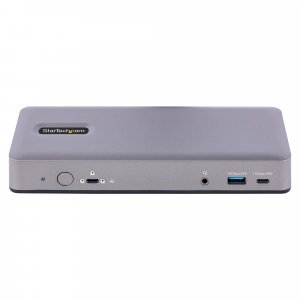

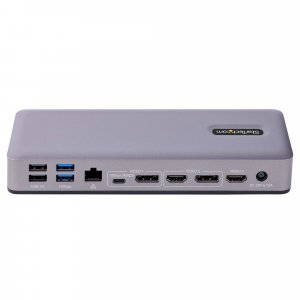

StarTech.com DK31C3MNCRUE laptop dock/port replicator Wired USB 3.2 Gen 2 (3.1 Gen 2) Type-C
