Description

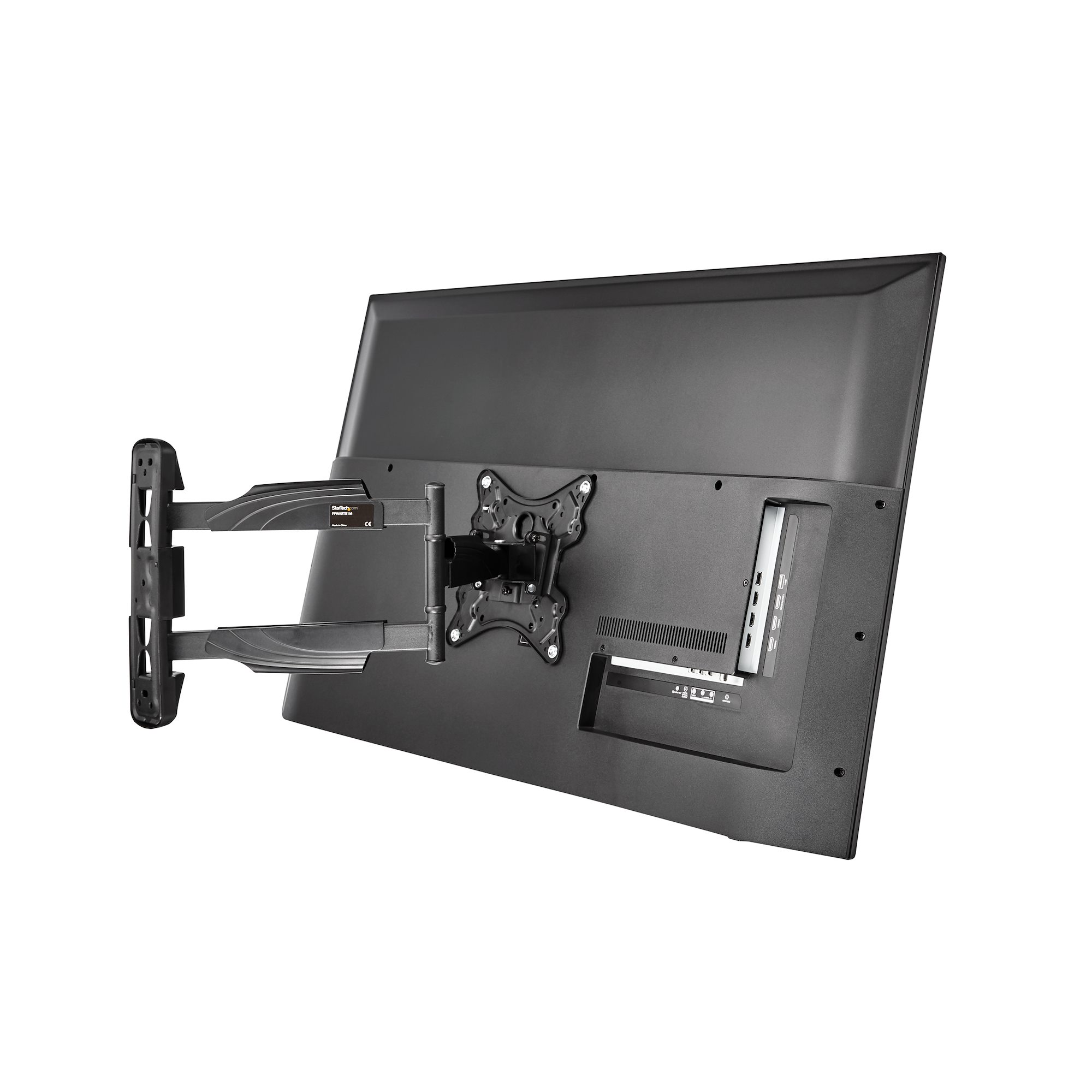

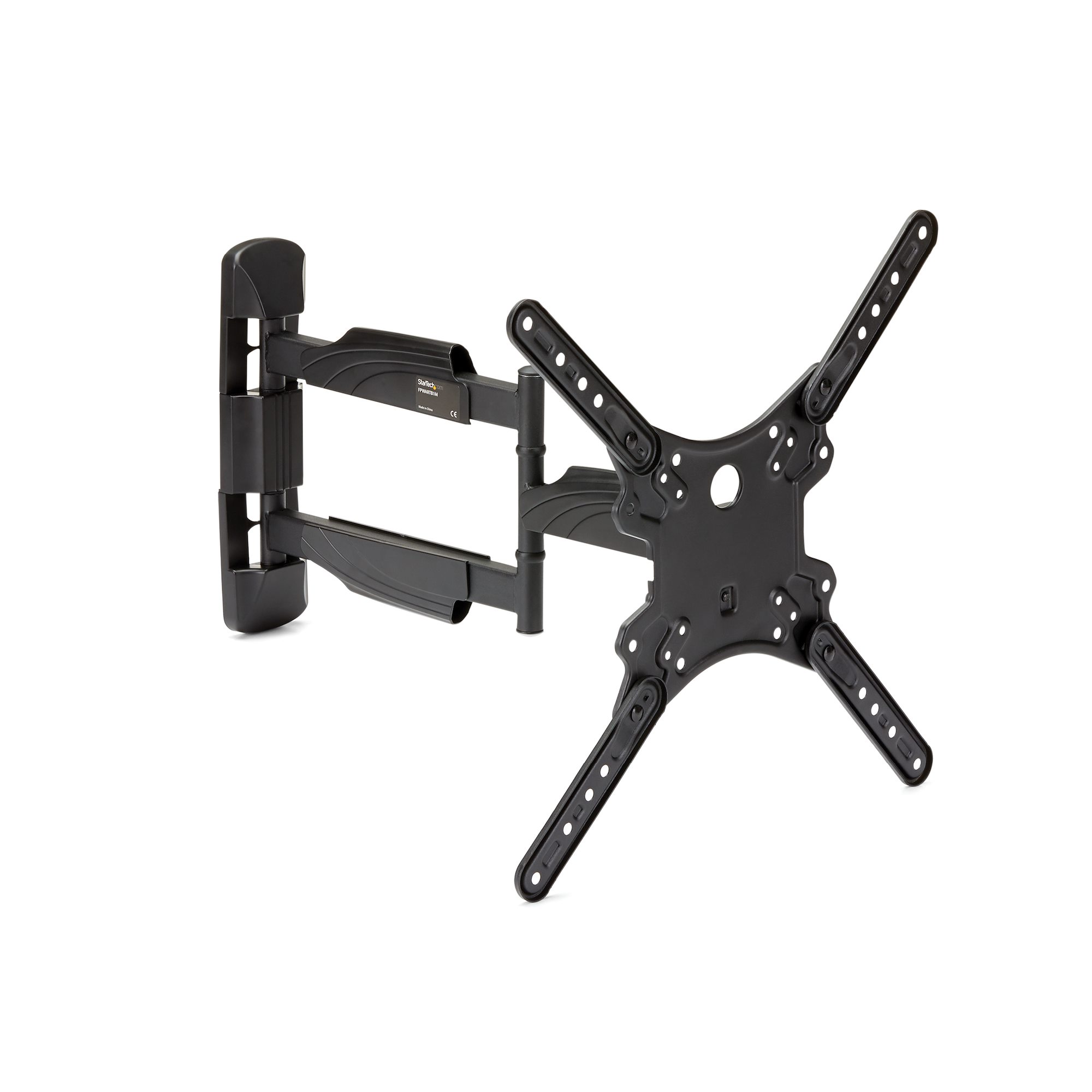

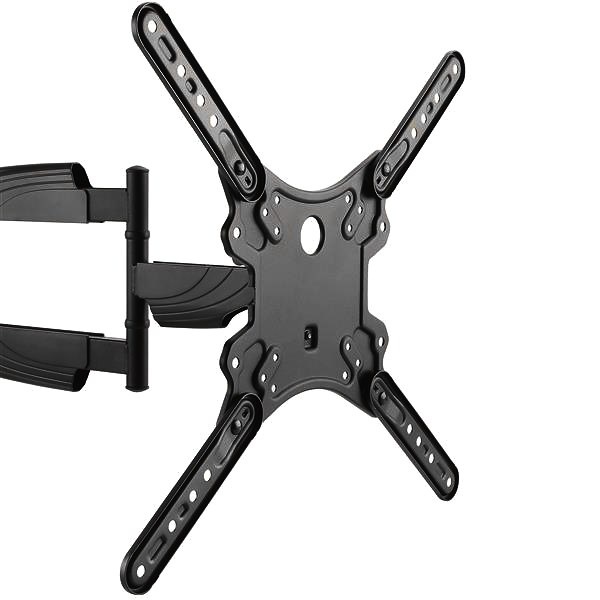

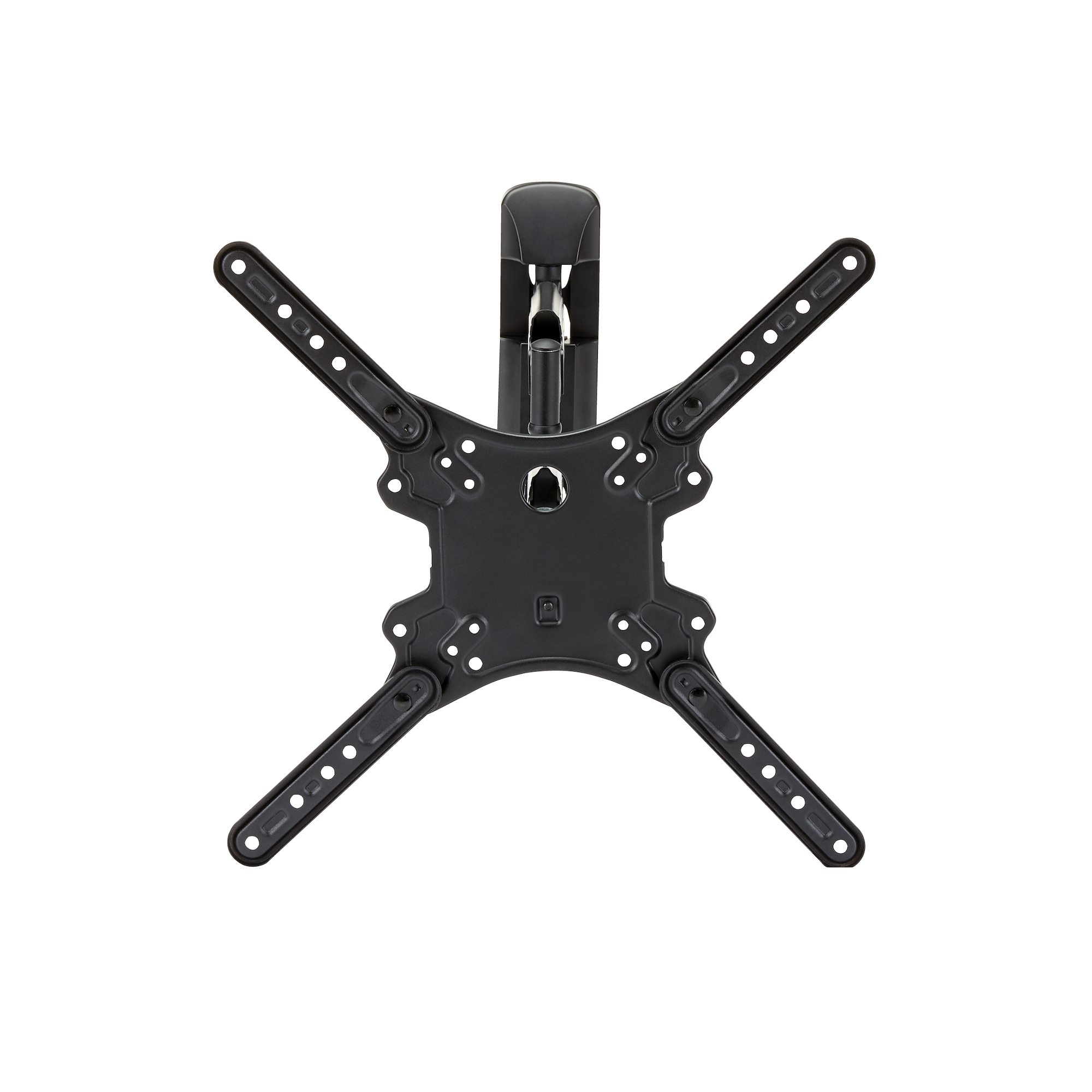

StarTech.com Full Motion TV Wall Mount - 32-55 inch (77lb/35kg) VESA Displays - Low Profile Universal Flat Screen TV Wall Mount - Heavy Duty Adjustable Tilt/Swivel Articulating Arm Bracket. Maximum weight capacity: 35 kg, Minimum screen size: 55.9 cm (22"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: -12 - 2°, Swivel angle range: -90 - 90°, Distance to the wall (min): 4.9 cm, Distance to the wall (max): 50.3 cm. Product colour: Black

55" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays incl. curved TVs up to 55 inch (77 lb/35 kg) w/ a durable full-motion steel frame and a powder-coated finish

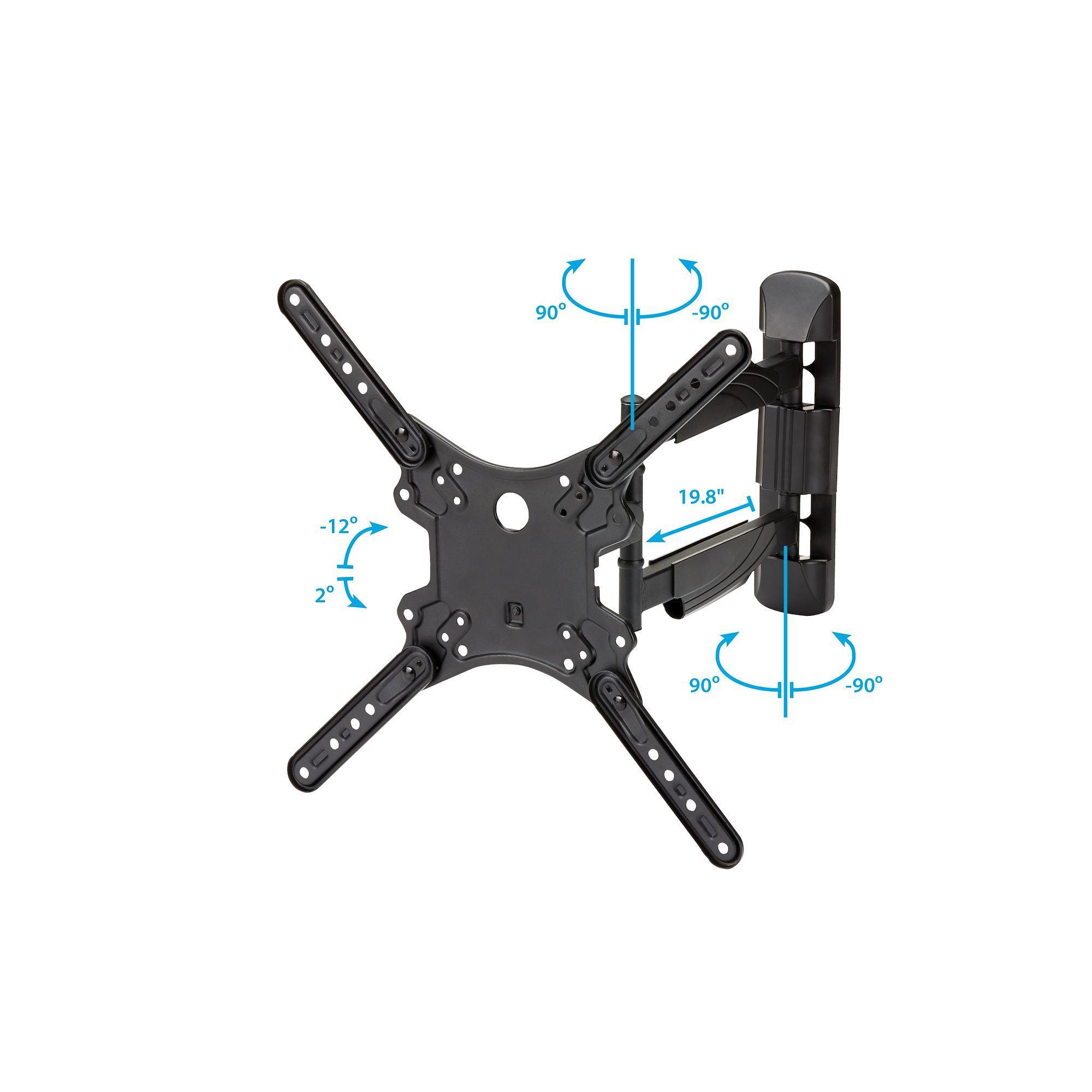

WIDE RANGE OF MOTION: Articulating & adjustable TV wall mount offers +/-90° swivel, +2/-12° tilting & +/-5° LCD screen level adjustment without the use of additional tools to ensure display is level

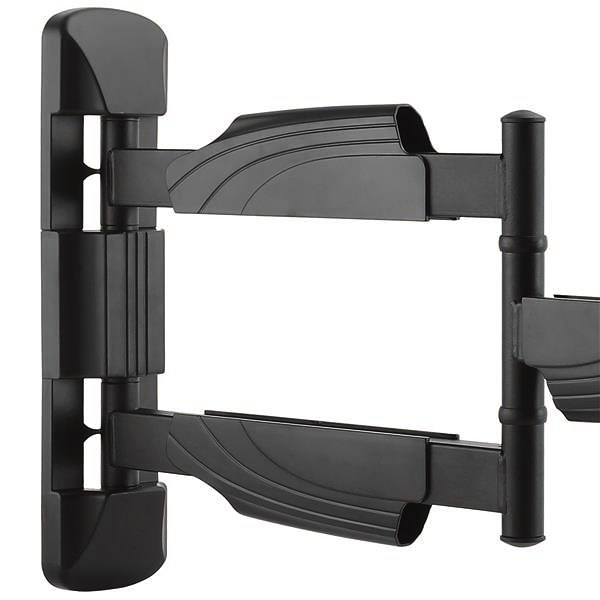

EXTENDABLE ARM: Arm can extend from 1.9" (49mm) to 19.8" (503mm) from the wall; With the length of the arm, center of the display has an overall lateral range (left to right) of 39.6" (1006mm)
COMPATIBILITY: Universal television wall mount supports LG, Samsung, & others (screws/spacers incl) & VESA hole patterns 100x100, 100x200, 100x150, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400

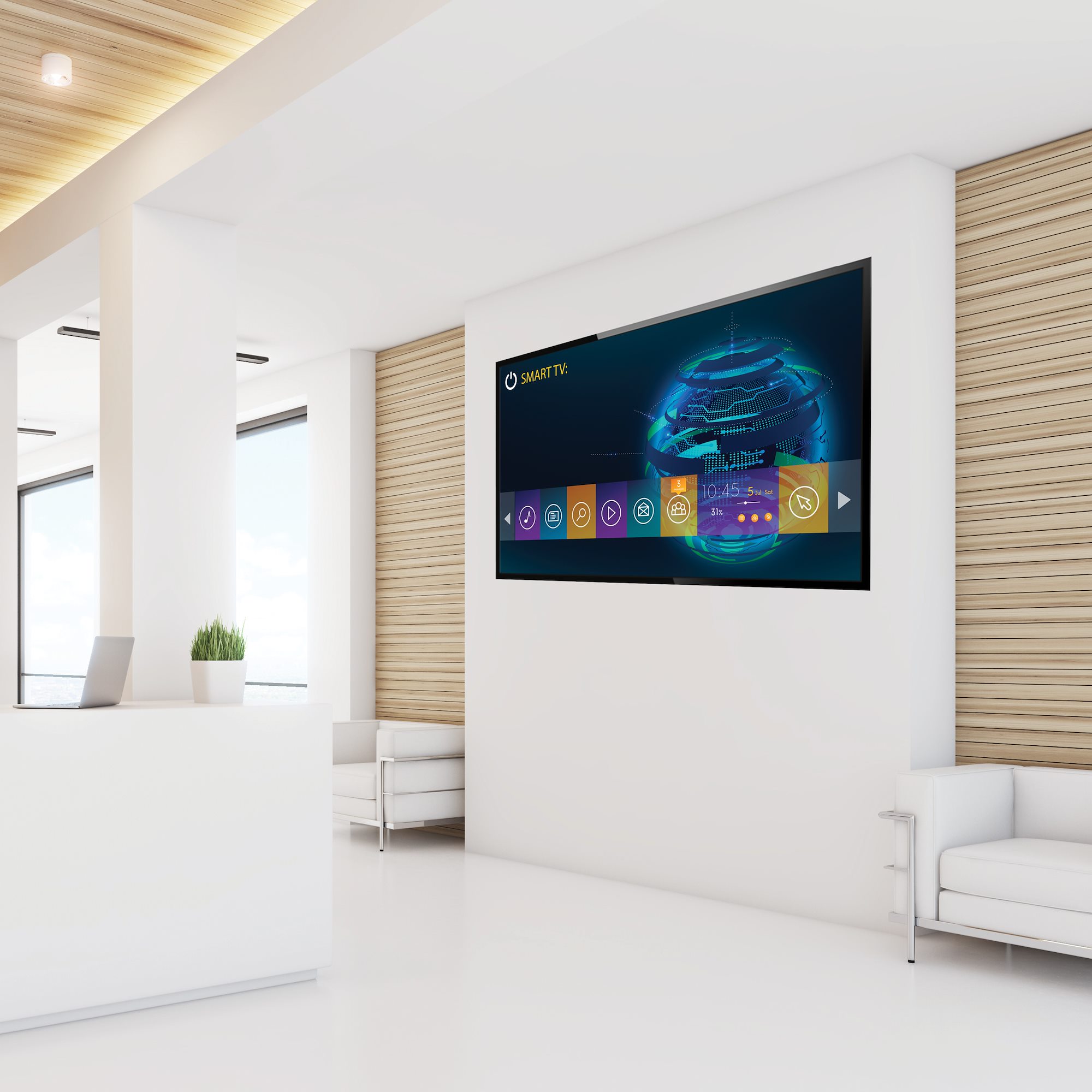

TIDY AESTHETIC: The low profile tv wall mounting bracket w/ integrated cable management & optional black snap-on covers keeps flat screen cables organized; ideal for customer-facing digital signage

Product Properties

Manufacturer
StarTech.com

Model
FPWARTB1M

EAN
65030870375

Bullet points

Point
55" TV WALL MOUNT

COMPATIBILITY

EXTENDABLE ARM

TIDY AESTHETIC

WIDE RANGE OF MOTION

Design

Anti-theft function
No

Housing material
Steel

Product colour
Black

Ergonomics

Built-in spirit level
Yes

Cable management
Yes

Distance to the wall (max)
50.3 cm

Distance to the wall (min)
4.9 cm

Swivel angle range
-90 - 90°

Tilt angle range
-12 - 2°

Logistics data

Harmonized System (HS) code
85299097

Master (outer) case height
311 mm

Master (outer) case length
420 mm

Master (outer) case width
348 mm

Products per master (outer) case
6 pc(s)

Mounting

Maximum screen size
139.7 cm (55")

Maximum VESA mount
400 x 400 mm

Maximum weight capacity
35 kg

Minimum screen size
55.9 cm (22")

Minimum VESA mount
100 x 100 mm

Mounting type
Wall

Number of displays supported
1

Panel mounting interface
100 x 100,100 x 150,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300

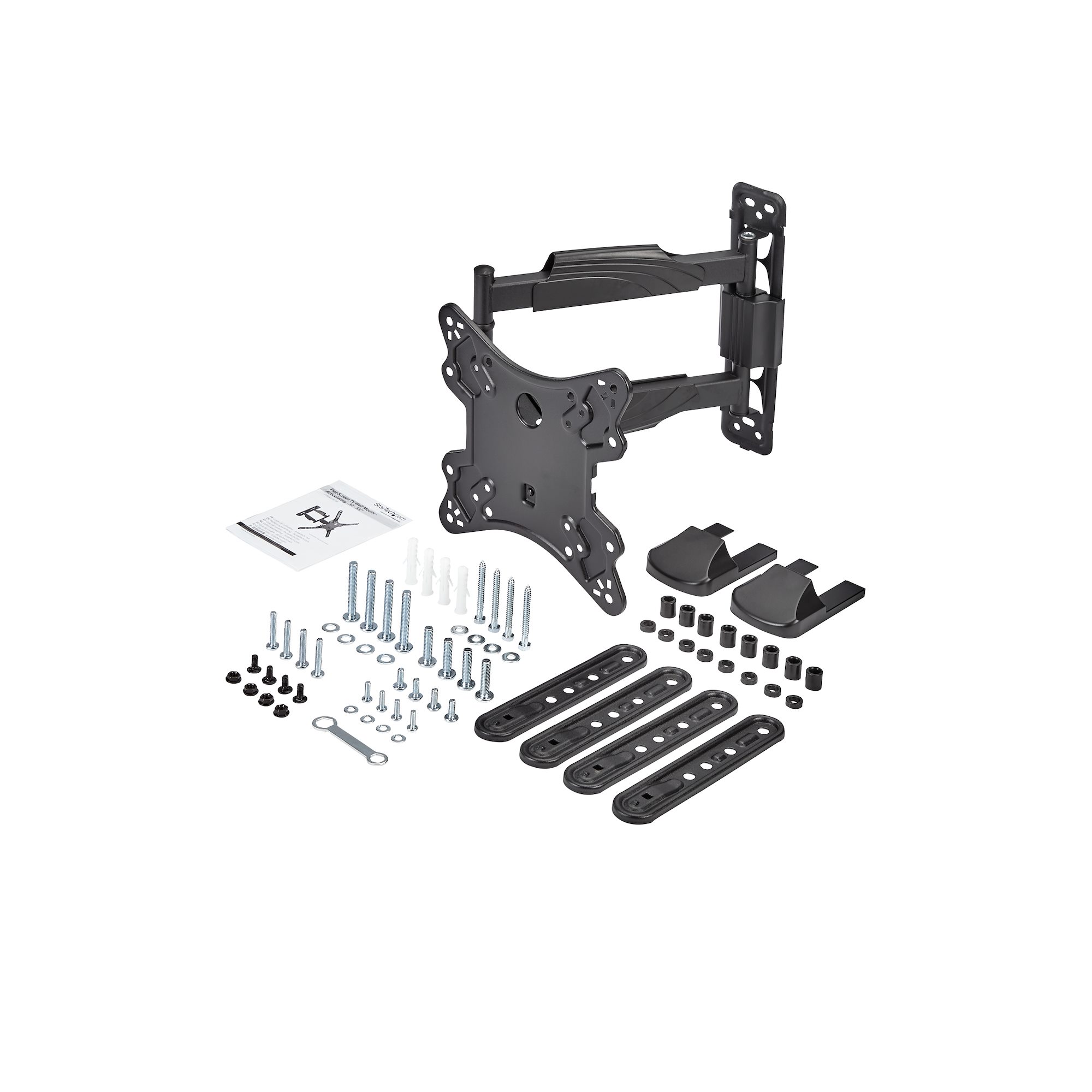

Packaging content

Adapter bracket included
Yes

Manual
Yes

Mounting kit
Yes

Number of adapter brackets included
4

Number of screws
32

Number of spacers included
16

Number of washers included
12

Screws included
Yes

Spacer included
Yes

Washers included
Yes

Wrench included
Yes

Packaging data

Package depth
395 mm

Package height
50 mm

Package weight
3.5 kg

Package width
323 mm

Technical details

Compliance certificates
RoHS

Weight & dimensions

Depth
614 mm

Depth (max)
61.4 cm

Height
400 mm

Weight
2.8 kg

Width
400 mm
