Description

StarTech.com Industrial 6 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. Switching capacity: 12 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable

FIBER & PoE: Industrial 6 Port Gigabit Ethernet Switch IEEE 802.3af (PoE) or 802.3at (PoE+) 30W max per 4 x PoE ports PSE + 2 x open SFP slots / Use with devices like cameras, sensors, wi-fi APs
TECH SPECS: 10/100/1000 Mbps Auto-Negotiation / Unmanaged / 6 Total Mixed Fiber/Copper Connections: 4 PoE ports + 1 SFP + 1 Flex Copper or SFP port (MSA Compliant) / Total power budget: 120W

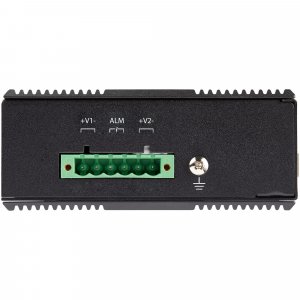

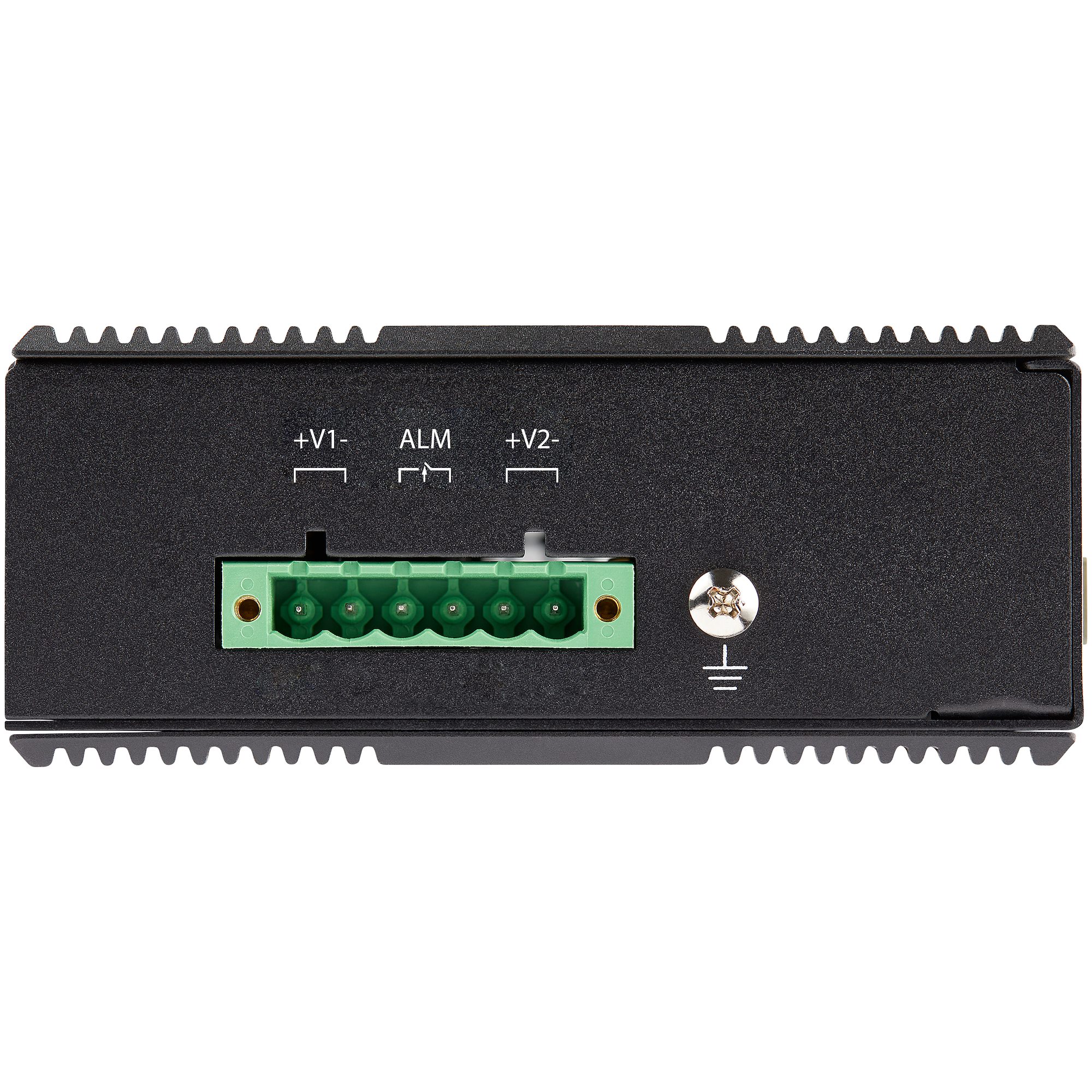

FLEXIBLE 12V POWER INPUT: Can be wired via dual redundant terminal block inputs with voltage as low as 12V DC, boosted as needed to PoE/PoE+ (55V) for applications like solar, rail, and automotive
ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C / Vibration, shock & free fall rated / Rugged industrial IP-30 aluminum housing / -40C to 75C hardened operating temp / DIN/Wall Mount
STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years / This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support

Product Properties

Manufacturer
StarTech.com

Model
IES1G52UP12V

EAN
65030889834

Bullet points

Point
FIBER & PoE

FLEXIBLE 12V POWER INPUT

ROBUST DESIGN

STARTECH.COM ADVANTAGE

TECH SPECS

Certificates

Certification
CE, RoHS, FCC

Data transmission

Jumbo frames
9000

Jumbo frames support
Yes

Switching capacity
12 Gbit/s

Design

DIN rail mounting
Yes

Housing material
Aluminium, Steel

International Protection (IP) code
IP30

LED indicators
Activity, Link, PoE, Power

Product colour
Black

Rack mounting
No

Safety
EN60950-1

Wall mountable
Yes

Logistics data

Harmonized System (HS) code
85176990

Master (outer) case height
225 mm

Master (outer) case length
345 mm

Master (outer) case width
355 mm

Products per master (outer) case
10 pc(s)

Management features

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T

Flow control support
Yes

Full duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x

Operational conditions

Operating relative humidity (H-H)
5 - 95%

Operating temperature (T-T)
-40 - 75 °C

Storage temperature (T-T)
-40 - 85 °C

Other features

Terminal block port
Yes

Packaging content

Quick start guide
Yes

Packaging data

Package depth
162 mm

Package height
64 mm

Package weight
946.4 g

Package width
211 mm

Terminal block included
Yes

Performance

Buffer size
128 KB

Mean time between failures (MTBF)
693764 h

Ports & interfaces

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

SFP module slots quantity
2

Switch Number of Ports
5

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

Surge protection
Yes

Surge protection voltage
2 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
30 W

Power over Ethernet plus (PoE+) ports quantity
4

Total Power over Ethernet (PoE) budget
120 W

Protocols

Supported network protocols
CSMA/CD

Weight & dimensions

Depth
142 mm

Height
43 mm

Weight
701.4 g

Width
105 mm
