Description

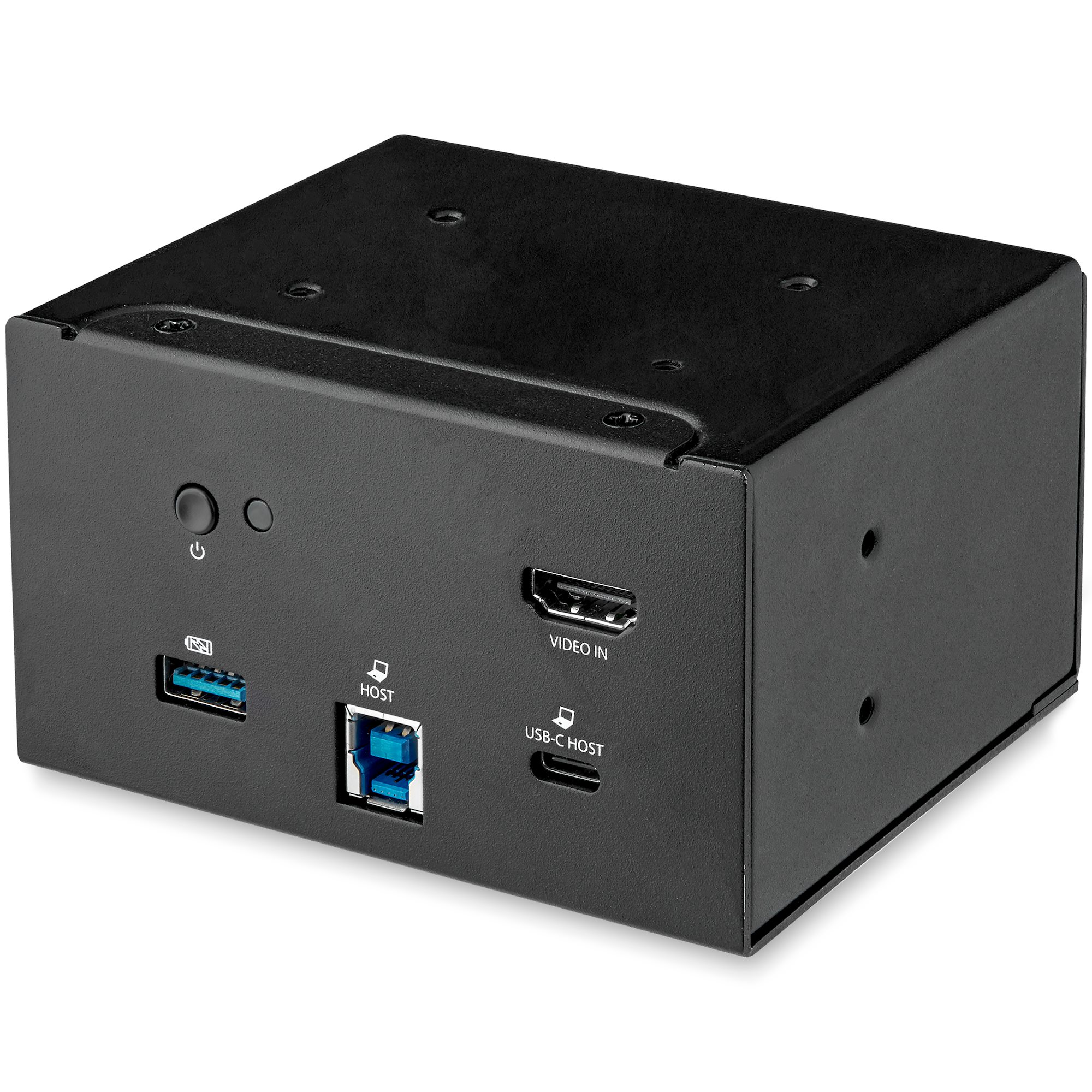

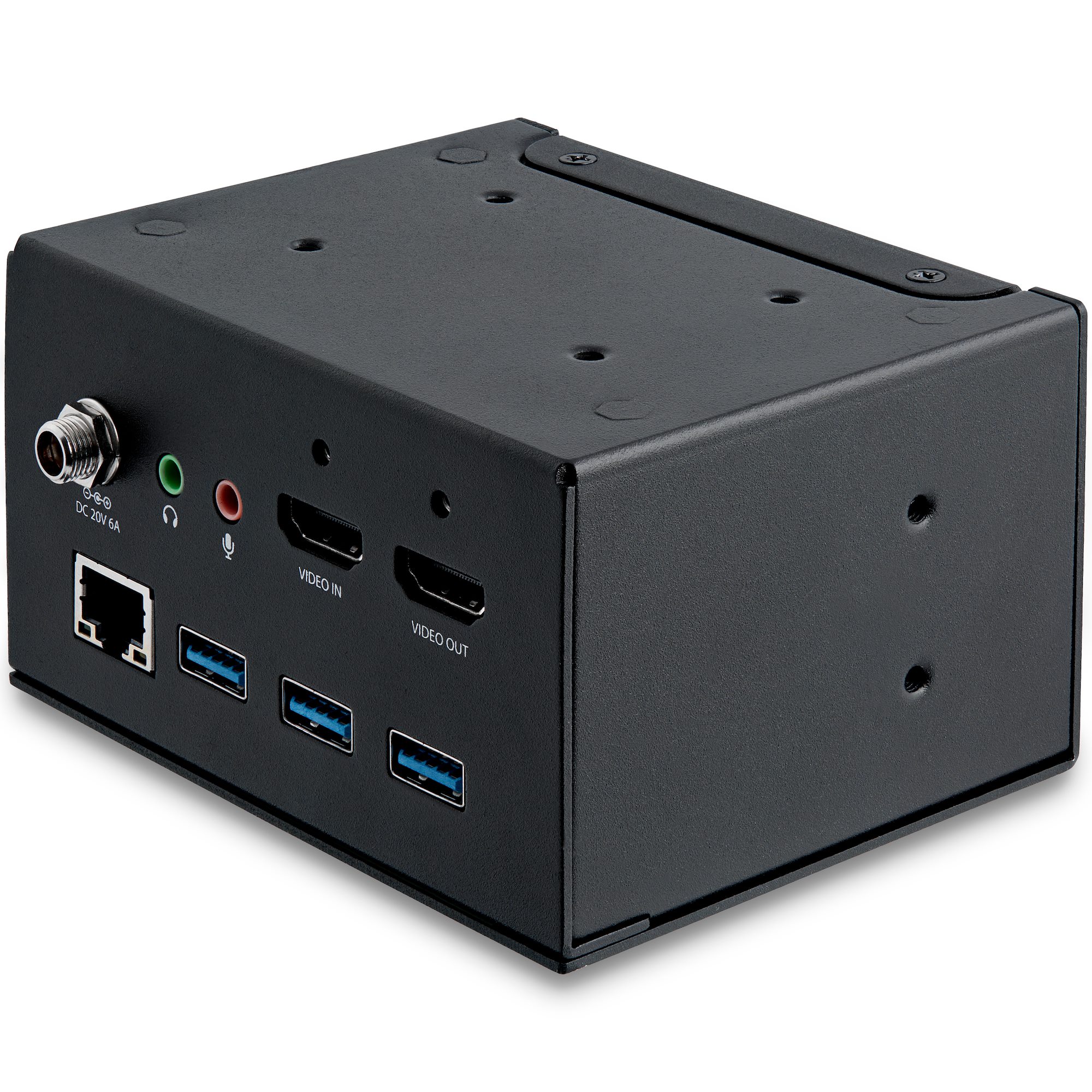

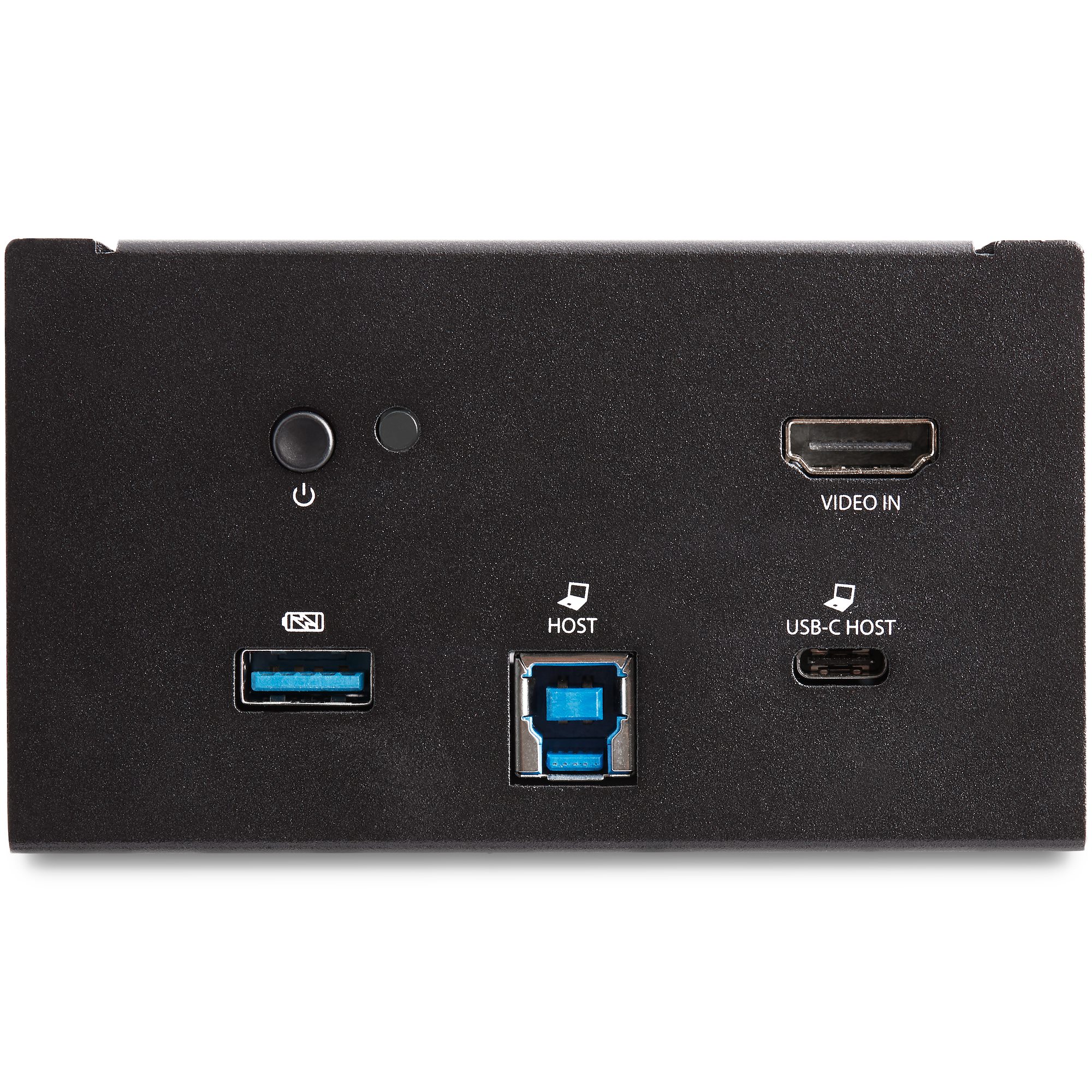

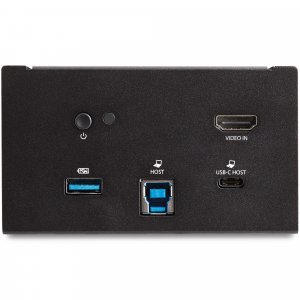

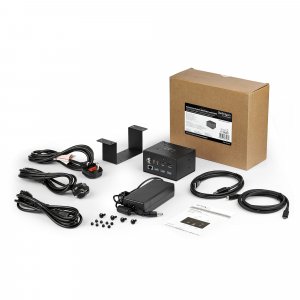

StarTech.com Laptop Docking Module for Conference Table Connectivity Box. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-B, Headphone connectivity: 3.5 mm. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 3840 x 2160 pixels. AC input voltage: 100 - 240 V, Input current: 2 A, Output voltage: 20 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,..., Other operating systems supported: ChromeOS

Easily access boardroom or huddle space devices and set up conference calls using applications such as Skype for Business
Connect to all your boardroom peripherals from a USB-C or USB-A laptop
Power and charge your USB-C laptop with USB Power Delivery 2.0 (up to 60W)
Keep your mobile devices charged with the USB-A charging port
Use as a standalone solution or combine with a single-module or dual-module StarTech.com Connectivity Box

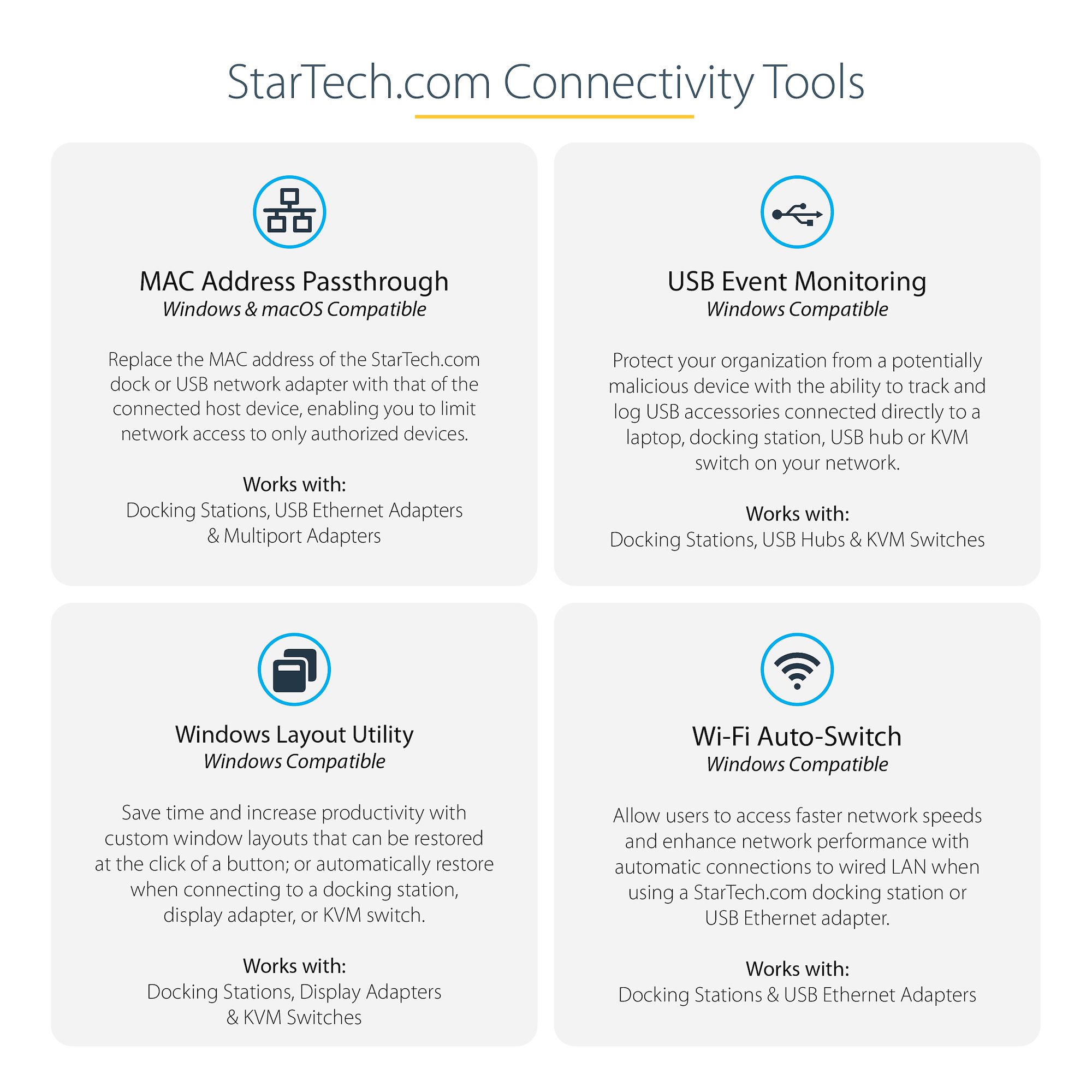

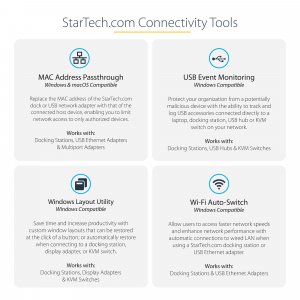

CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities

Product Properties

Manufacturer
StarTech.com

Model
MOD4DOCKACPD

EAN
65030871075

Bullet points

Point
Connect to all your boardroom peripherals from a USB-C or USB-A laptop

CONNECTIVITY TOOLS

Keep your mobile devices charged with the USB-A charging port

Power and charge your USB-C laptop with USB Power Delivery 2.0 (up to 60W)

Logistics data

Harmonized System (HS) code
84733020

Master (outer) case height
246 mm

Master (outer) case length
430 mm

Master (outer) case width
273 mm

Products per master (outer) case
4 pc(s)

Network

Auto MDI/MDI-X
Yes

Ethernet LAN
Yes

Full duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Operational conditions

Operating relative humidity (H-H)
20 - 80%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 65 °C

Other features

Chipset
DisplayLink - DL-6950, Genesys Logic - GL850G, Texas Instruments - TPS65982, Parade Technologies - PS176, VIA Labs - VL813, Realtek - RTL8153

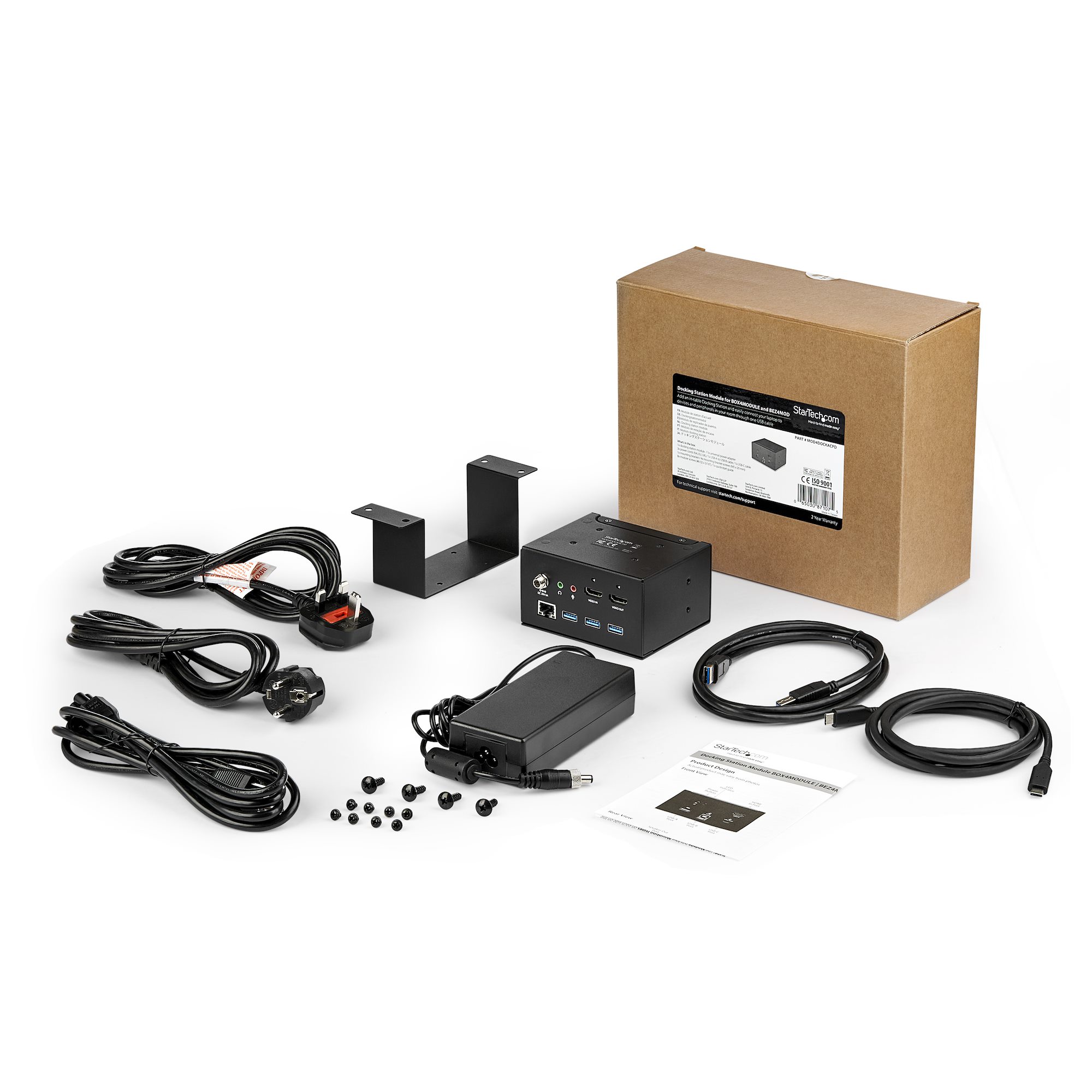

Packaging content

AC adapter included
Yes

Cables included
USB Type-A to USB Type-B, USB Type-C to USB Type-C

Mounting brackets included
Yes

Number of screws
12

Quick start guide
Yes

Packaging data

Package depth
251 mm

Package height
10 mm

Package weight
2.1 kg

Package width
211 mm

Performance

Card reader integrated
No

Certification
CE, FCC, TAA, REACH

Data transfer rate
5 Gbit/s

Housing material
Aluminium, Plastic

LED indicators
Power

Maximum digital resolution
3840 x 2160 pixels

Product colour
Black

UASP support
Yes

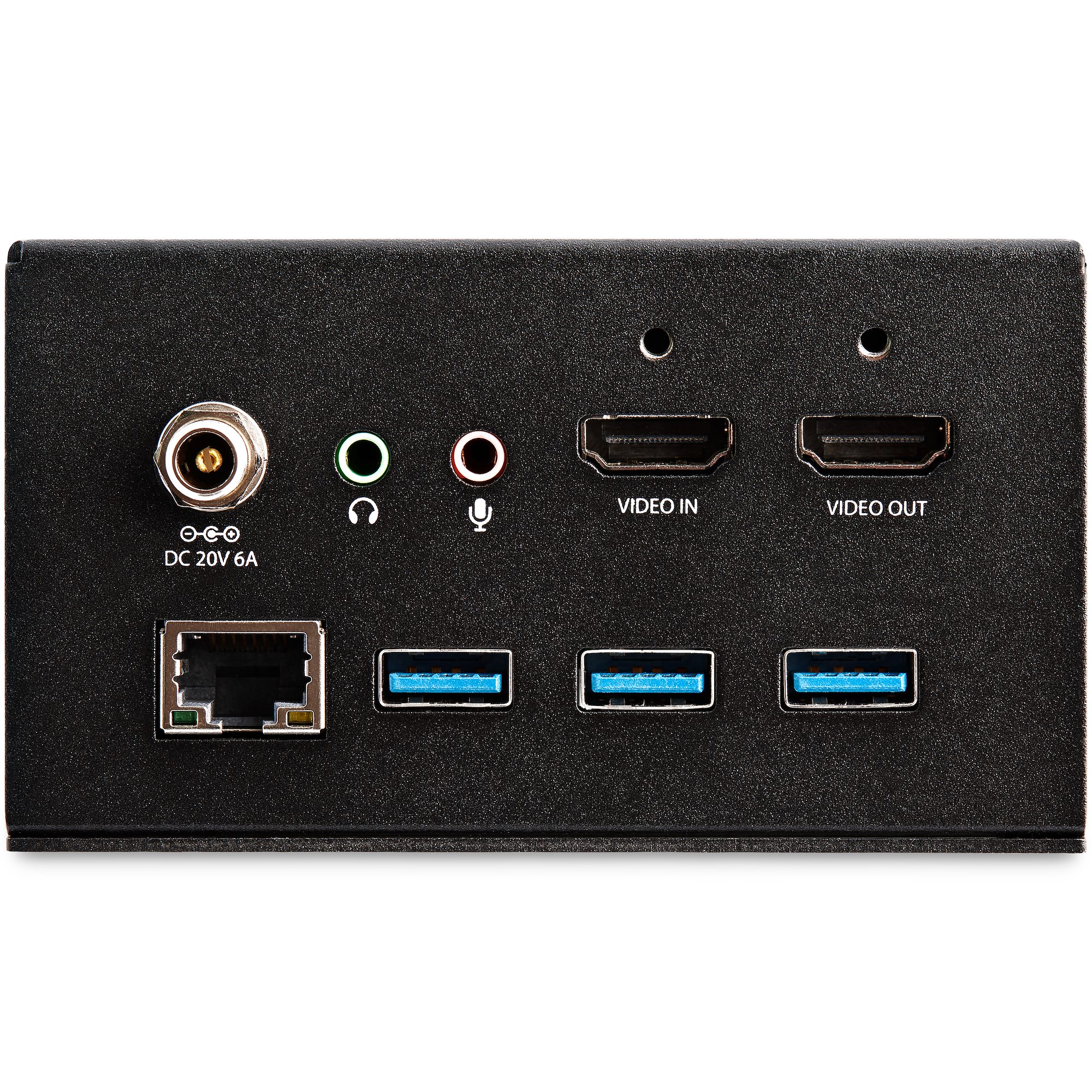

Ports & interfaces

Combo headphone/mic port
No

Connectivity technology
Wired

HDMI ports
3

Headphone connectivity
3.5 mm

Headphone outputs
1

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-B

Microphone in
Yes

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

Power

AC input voltage
100 - 240 V

Compatible power plug types
EU, UK, US

Input current
2 A

Output current
6 A

Output voltage
20 V

Power consumption (typical)
60 W

Power plug type
Type N

Software

Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Other operating systems supported
ChromeOS

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Technical details

Compliance certificates
RoHS

Weight & dimensions

Depth
12 mm

Height
61 mm

Weight
588 g

Width
94 mm
