Model: DMFKSLCLCCOUPLER
EAN: 65030901697

StarTech.com LC to LC Coupler, LC Fiber Coupler, LC/UPC Keystone Jack, Duplex Fiber Optic LC Keystone Coupler for Patch Panel

Manufacturer:
StarTech.com
StarTech.com LC to LC Coupler, LC Fiber Coupler, LC/UPC Keystone Jack, Duplex Fiber Optic LC Keystone Coupler for Patch Panel, LC, White, Multi-mode, Single-mode, Acrylonitrile butadiene styrene (ABS), CE, 19 mm
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

StarTech.com LC to LC Coupler, LC Fiber Coupler, LC/UPC Keystone Jack, Duplex Fiber Optic LC Keystone Coupler for Patch Panel. Connector type: LC, Product colour: White, Fiber mode structure: Multi-mode, Single-mode. Compliance certificates: CE. Width: 19 mm, Depth: 18 mm, Height: 20 mm. Quantity per pack: 1 pc(s), Package width: 125 mm, Package depth: 90 mm. Master (outer) case width: 410 mm, Master (outer) case length: 410 mm, Master (outer) case height: 230 mm

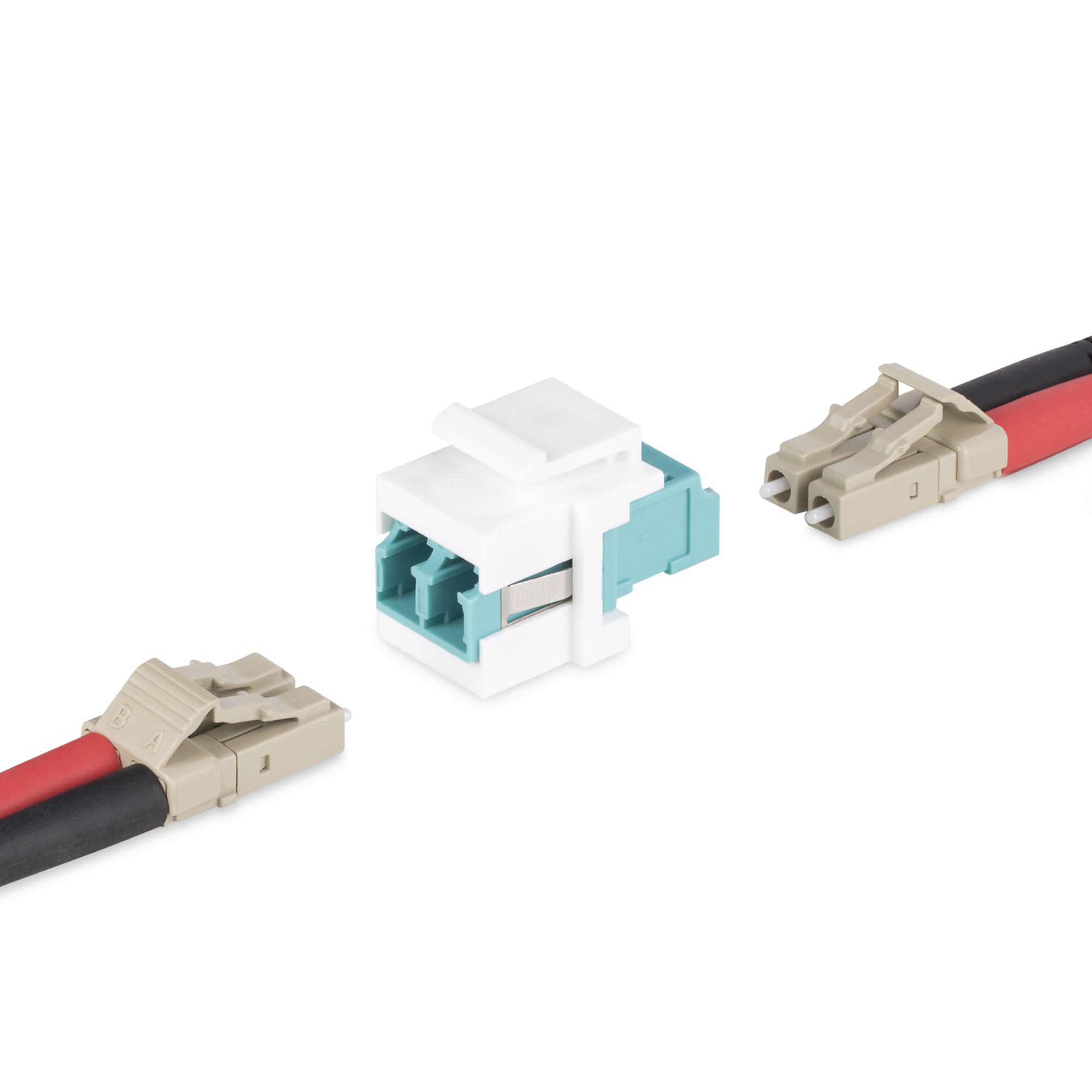

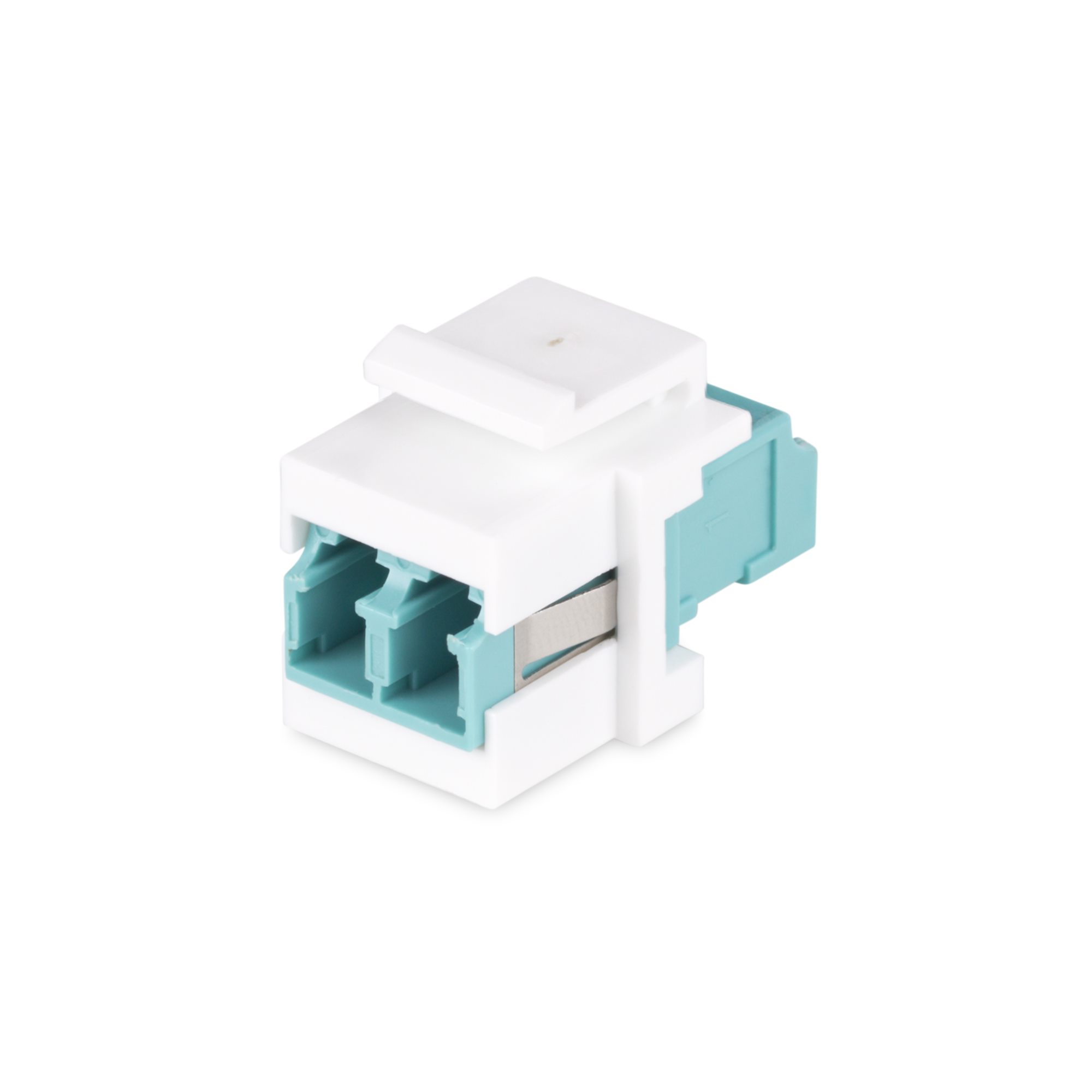

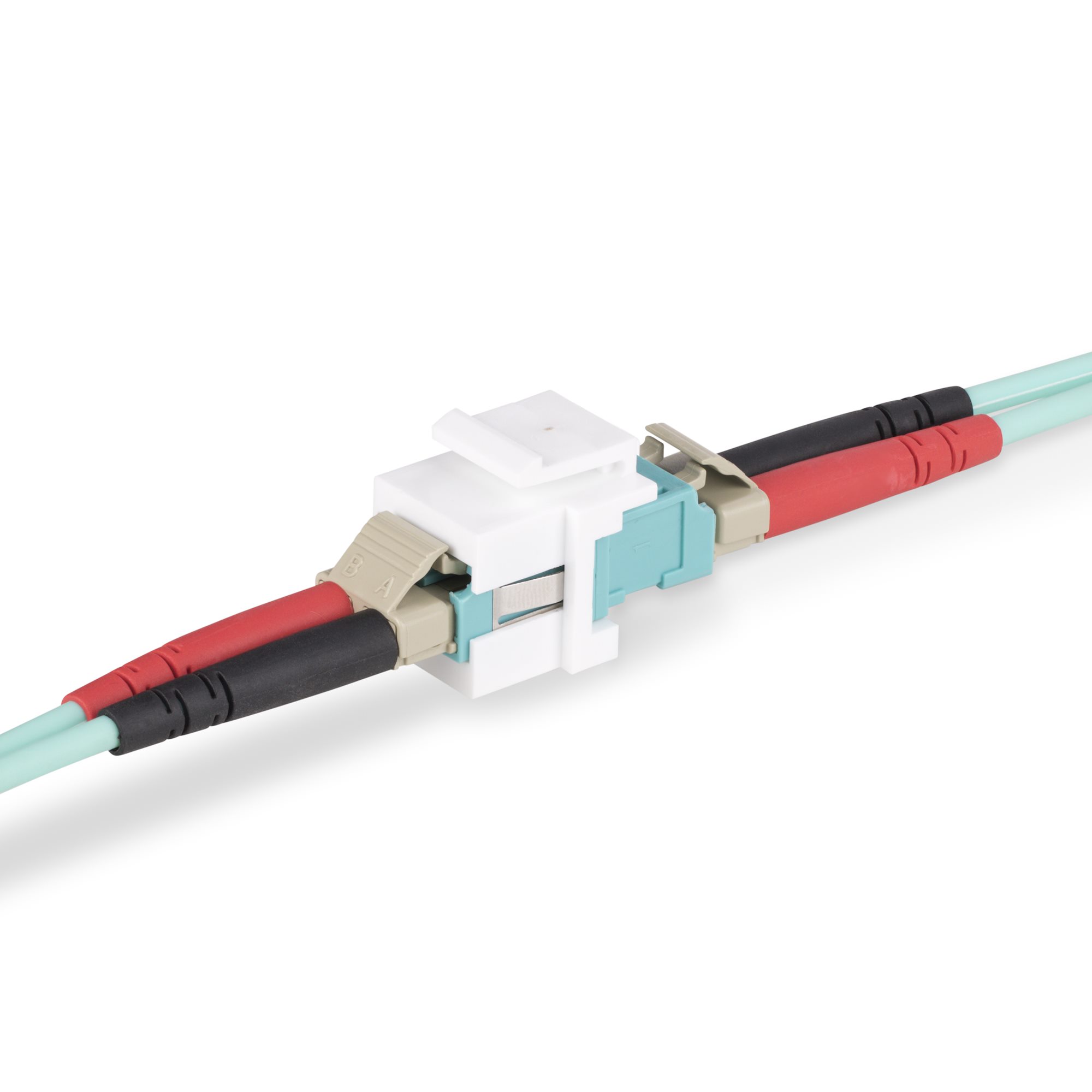

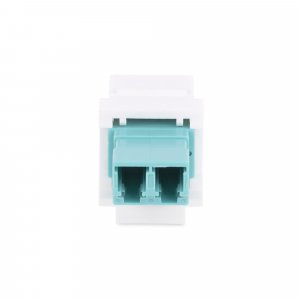

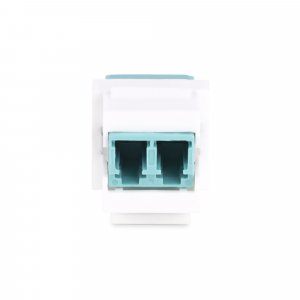

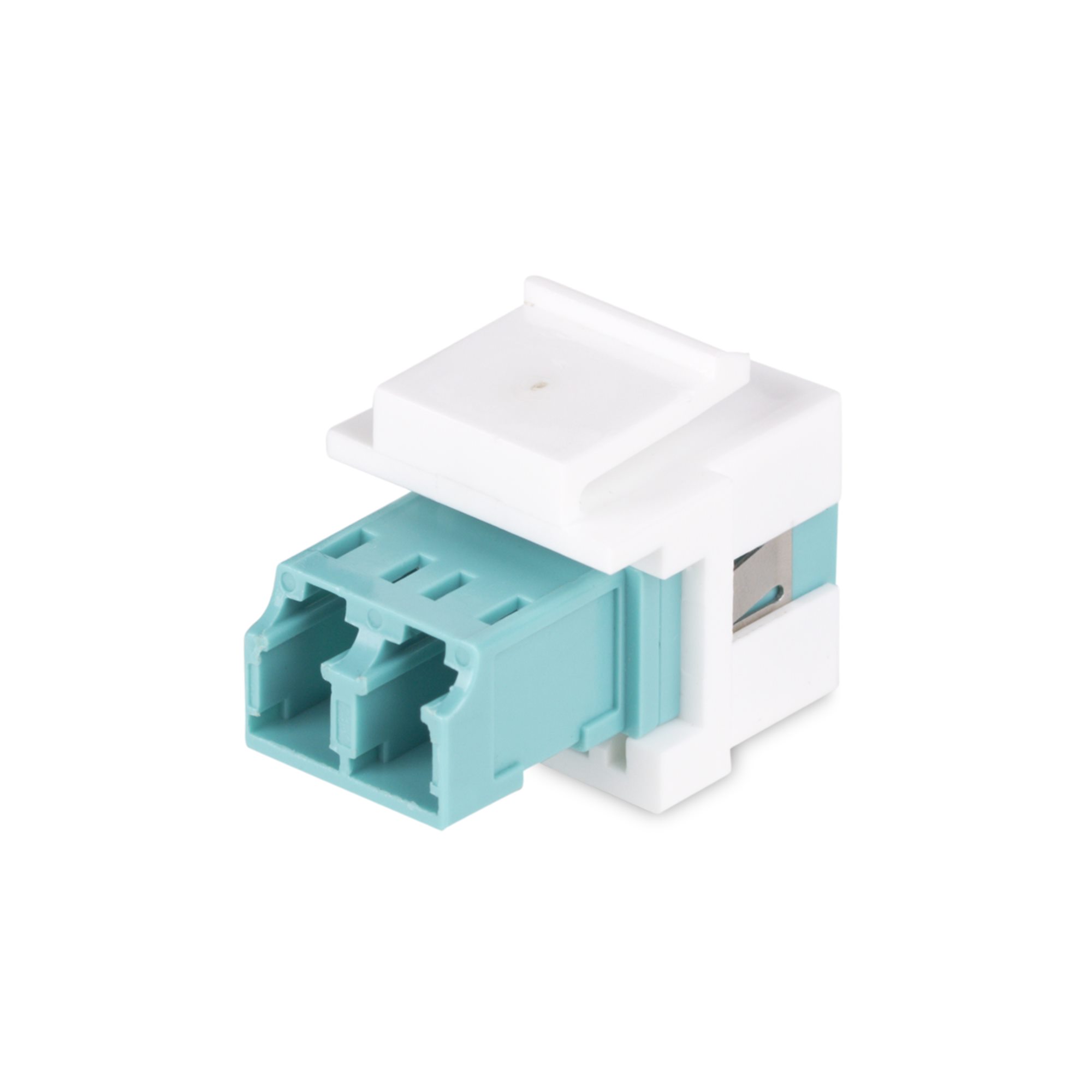

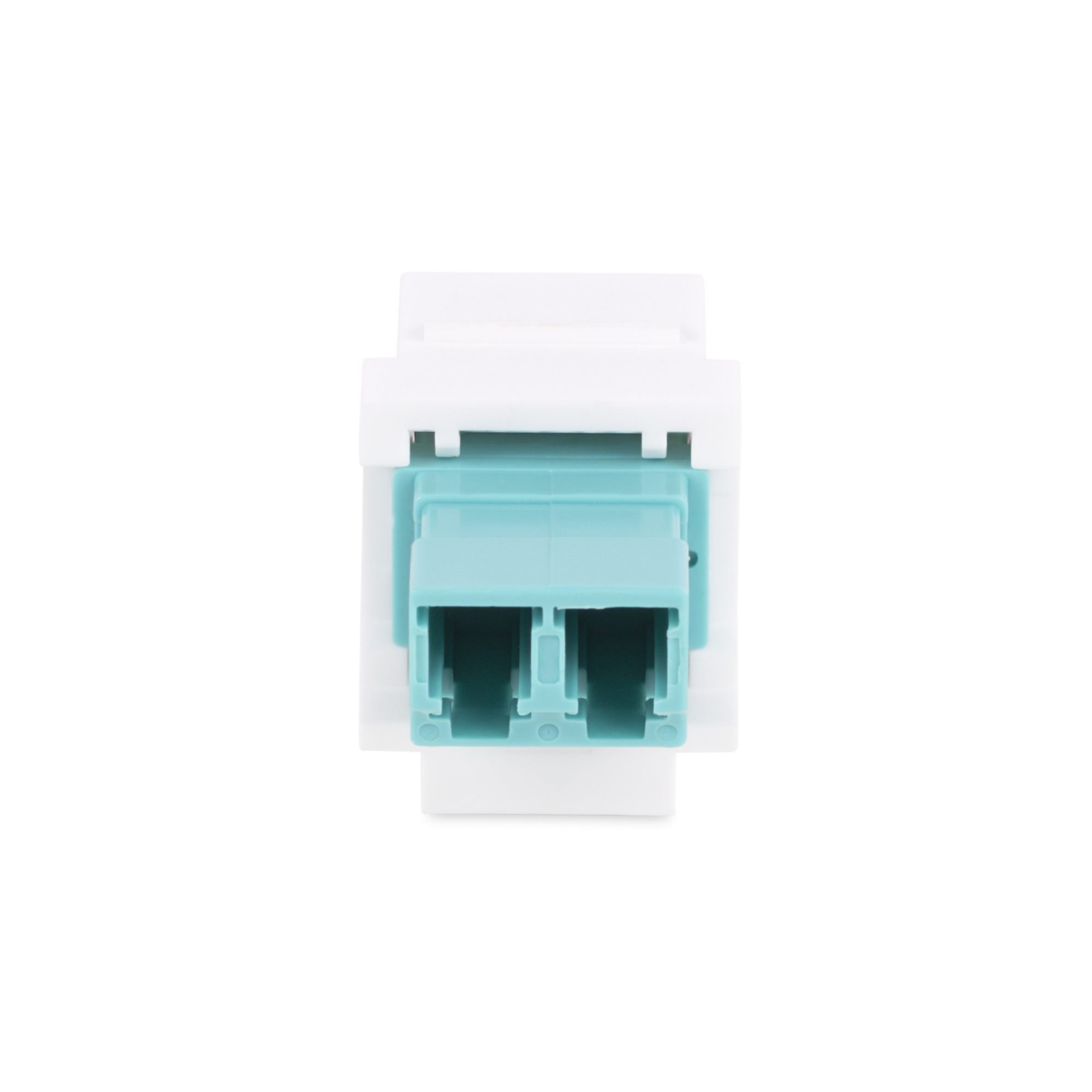

  • LC KEYSTONE COUPLER: LC to LC Coupler features a compact design with removable Keystone Jack; Join two LC fiber cables or extend fiber connectivity in a network setup; Ideal for keystone patch panels and wall plate installations
  • ROBUST CONSTRUCTION: ABS outer housing enhances durability and wear protection; Ceramic-lined inner sleeves enables precise alignment of fiber ends; Rated for 500 insertion cycles with minimal insertion loss; Includes protective dust covers
  • RELIABLE DATA TRANSMISSION: LC coupler supports 1/10/40/100Gbps for reliable transfer rates between devices; Insertion Loss below 0.2dB exceeds TIA 568 B.3 industry standards; Supports both LED and VCSEL sources
  • COMPATIBILITY: Versatile compatibility with Single Mode and Multimode fiber; Compatible with OS1/OS2, and OM1/OM2/OM3/OM4/OM5 cables; Supports 9/125µm, 62.5/125µm, and 50/125µm fiber cores; NOTE: Best paired with LC/LC fiber cables with UPC polished ends

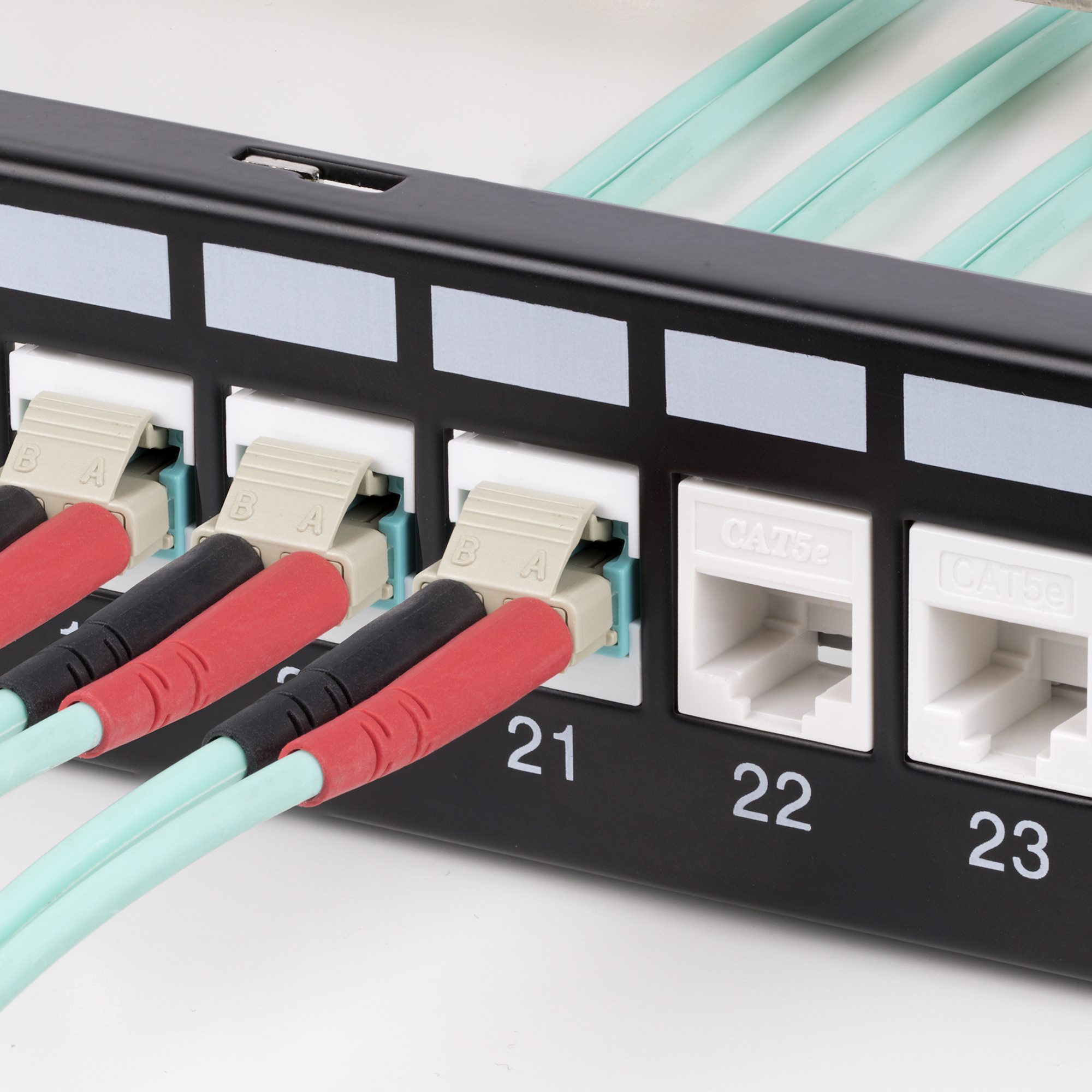

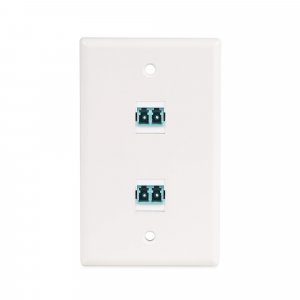

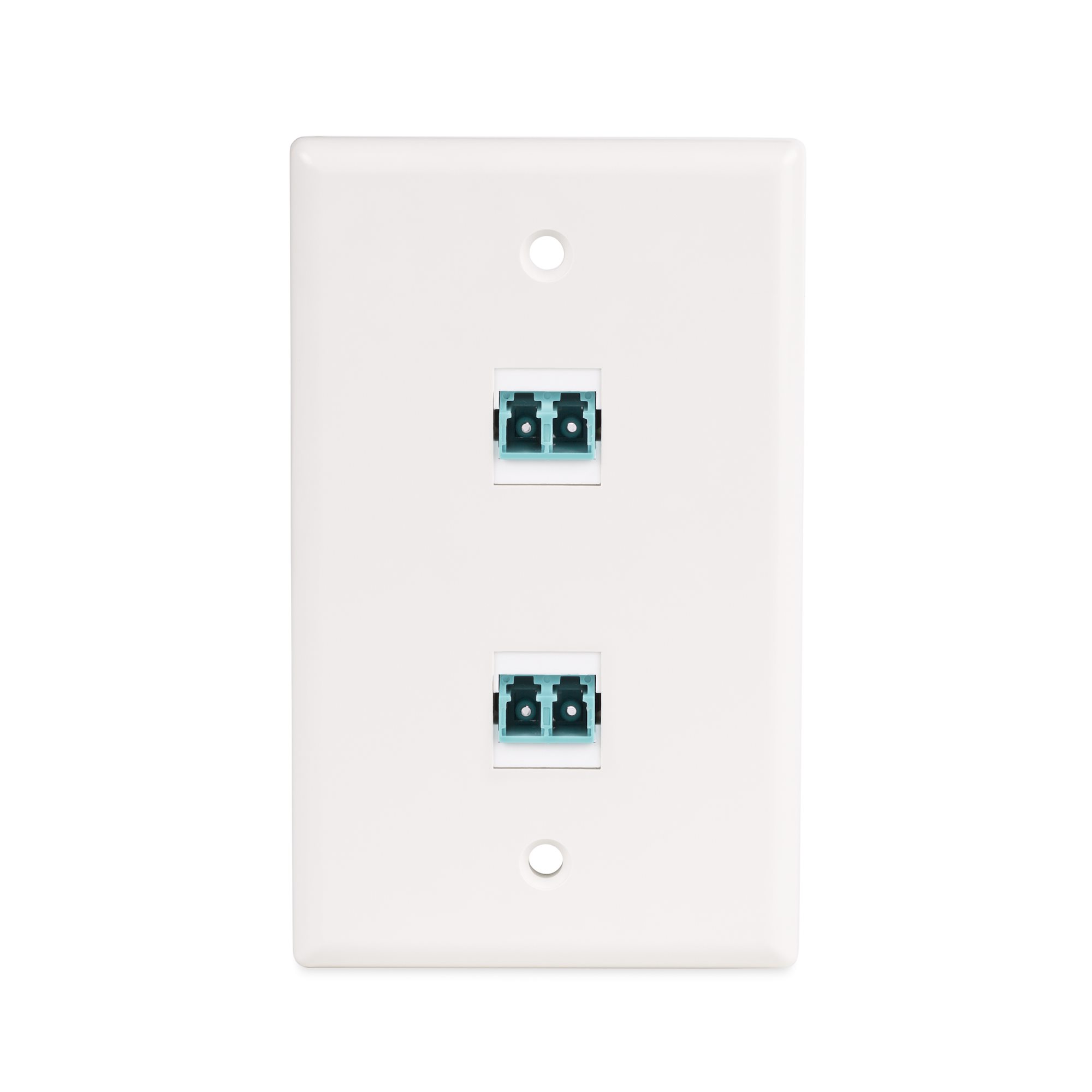

  • QUICK INSTALLATION: Simple plug-and-play design requires no tools for quick and hassle-free setup; LC fiber coupler snaps securely into keystone jack with metal tabs; Deploy the coupler to an existing keystone wall plate or patch panel

Product Properties

  • Model
  • DMFKSLCLCCOUPLER
  • EAN
  • 65030901697
  • Bullet points
  • Point
  • COMPATIBILITY
    LC KEYSTONE COUPLER
    QUICK INSTALLATION
    RELIABLE DATA TRANSMISSION
    ROBUST CONSTRUCTION
  • Certificates
  • Compliance certificates
  • CE
  • Features
  • Connector type
  • LC
  • Duplex
  • Yes
  • Fiber mode structure
  • Multi-mode, Single-mode
  • Housing material
  • Acrylonitrile butadiene styrene (ABS)
  • Number of connectors
  • 2
  • Product colour
  • White
  • Logistics data
  • Master (outer) case height
  • 230 mm
  • Master (outer) case length
  • 410 mm
  • Master (outer) case width
  • 410 mm
  • Products per master (outer) case
  • 1000 pc(s)
  • Packaging data
  • Package depth
  • 90 mm
  • Package height
  • 20 mm
  • Package weight
  • 6 g
  • Package width
  • 125 mm
  • Quantity per pack
  • 1 pc(s)
  • Sustainability
  • Sustainability compliance
  • Yes
  • Weight & dimensions
  • Depth
  • 18 mm
  • Height
  • 20 mm
  • Width
  • 19 mm
