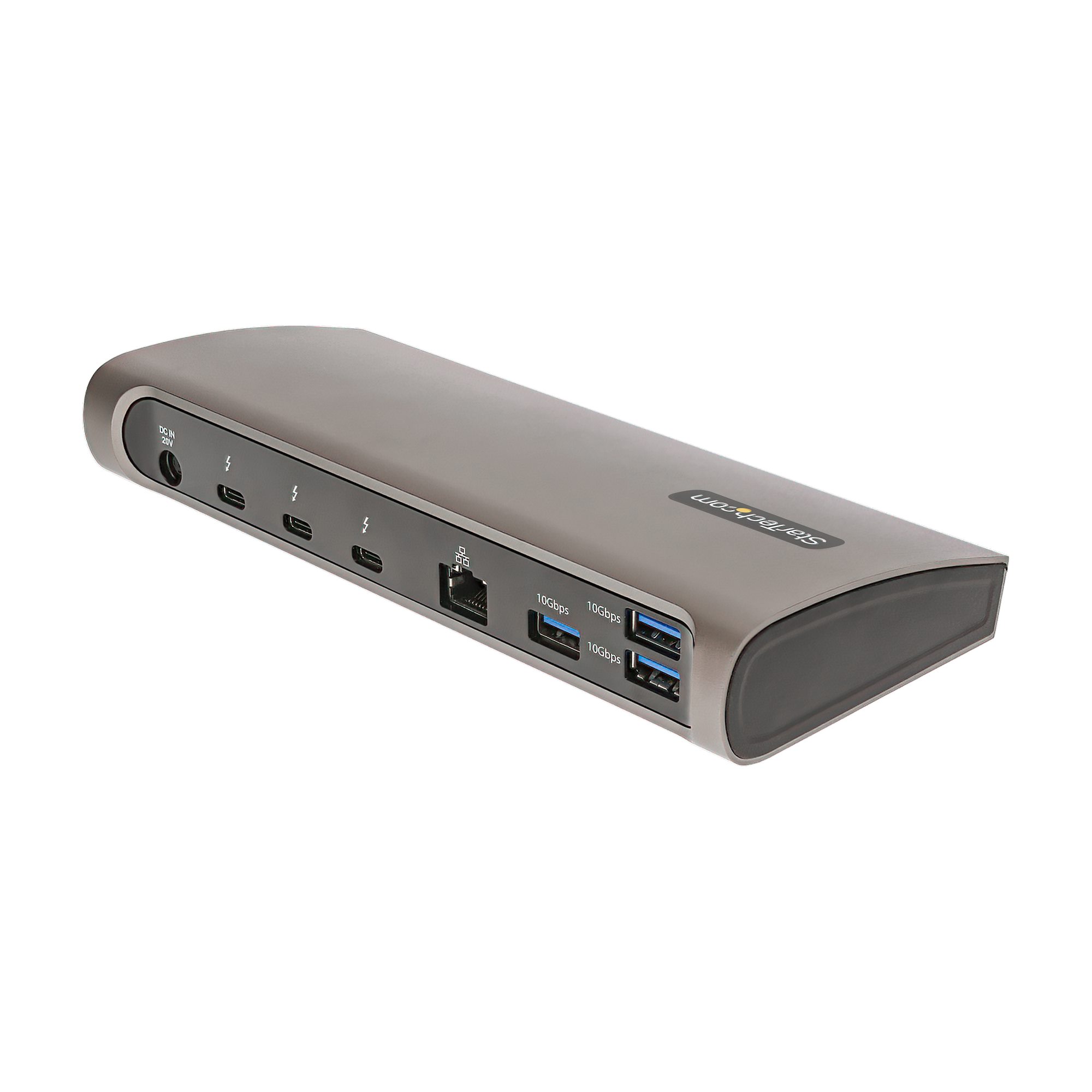

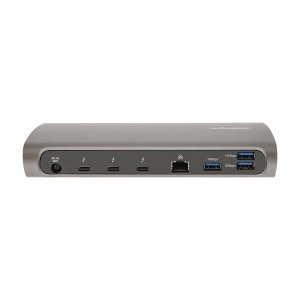

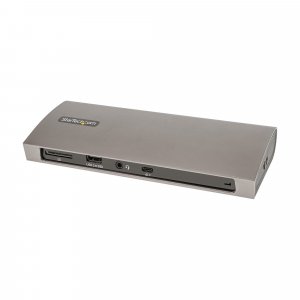

StarTech.com Thunderbolt 4 Dock, 96W Power Delivery, Single 8K/Dual Monitor 4K 60Hz, 3xTB4/USB4 ports, 4xUSB-A, SD, GbE, Thunderbolt 4 Docking Station for Windows or TB3 MacBook, 0.8m Cable
Roll over image to zoom inClick to Open expanded view
Model: TB4CDOCKUE
EAN: 65030895064

StarTech.com Thunderbolt 4 Dock, 96W Power Delivery, Single 8K/Dual Monitor 4K 60Hz, 3xTB4/USB4 ports, 4xUSB-A, SD, GbE, Thunderbolt 4 Docking Station for Windows or TB3 MacBook, 0.8m Cable

Manufacturer:
StarTech.com
StarTech.com Thunderbolt 4 Dock, 96W Power Delivery, Single 8K/Dual Monitor 4K 60Hz, 3xTB4/USB4 ports, 4xUSB-A, SD, GbE, Thunderbolt 4 Docking Station for Windows or TB3 MacBook, 0.8m Cable, Wired, Thunderbolt 4, 96 W, 10,100,1000 Mbit/s, Black, Grey, MMC
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products

Description

StarTech.com Thunderbolt 4 Dock, 96W Power Delivery, Single 8K/Dual Monitor 4K 60Hz, 3xTB4/USB4 ports, 4xUSB-A, SD, GbE, Thunderbolt 4 Docking Station for Windows or TB3 MacBook, 0.8m Cable. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 96 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Grey, Compatible memory cards: MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC, HD type: 8K Ultra HD. Compatible power plug types: EU. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura

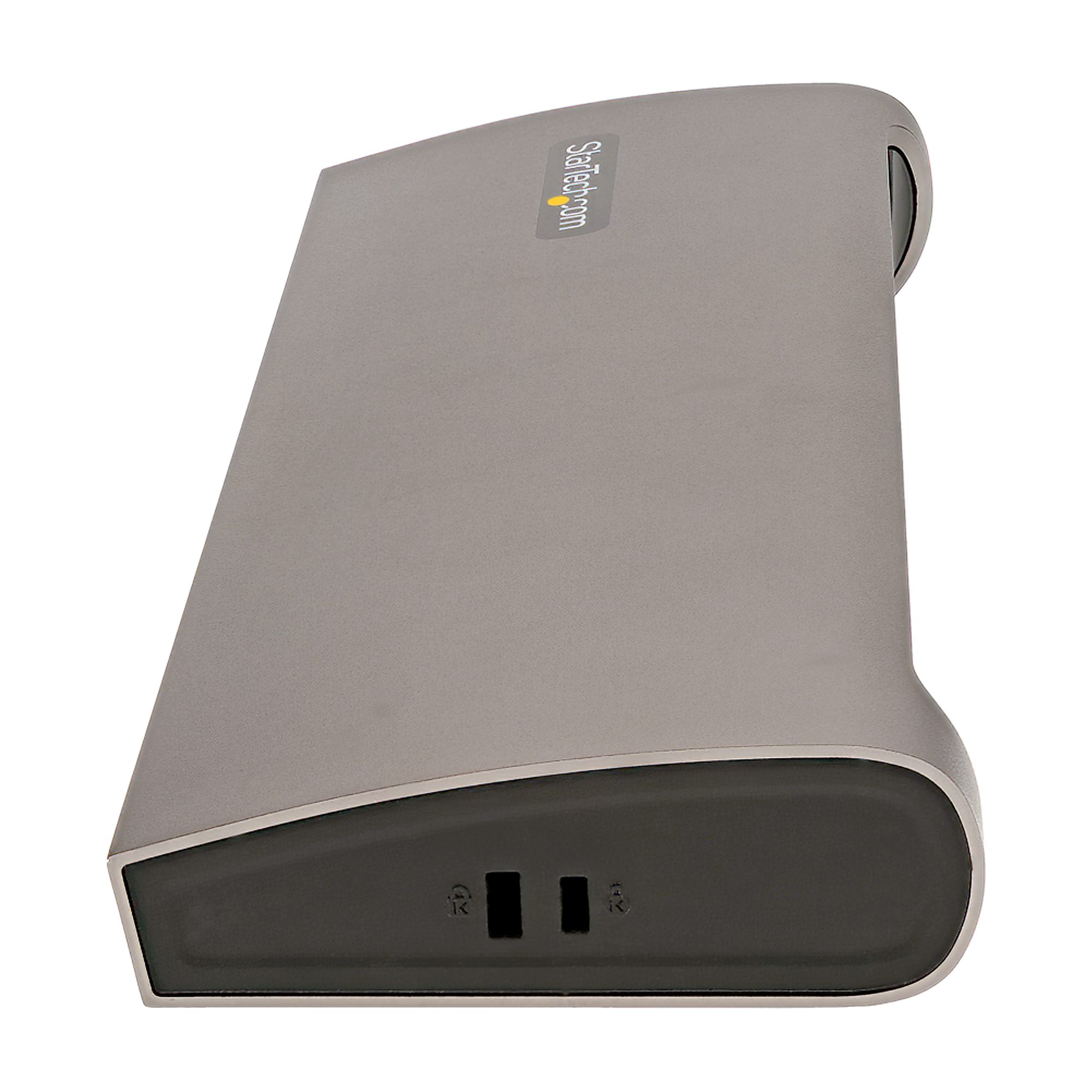

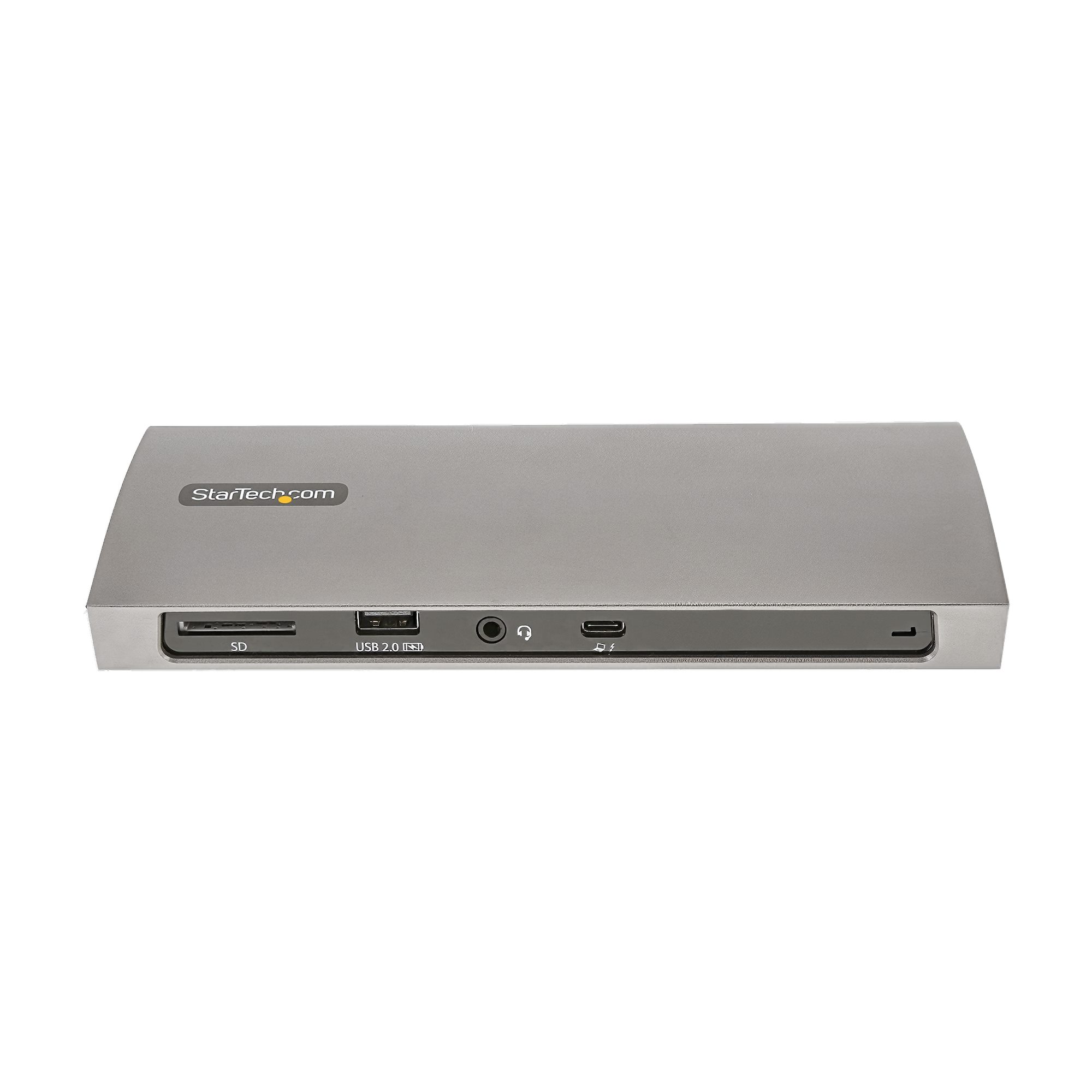

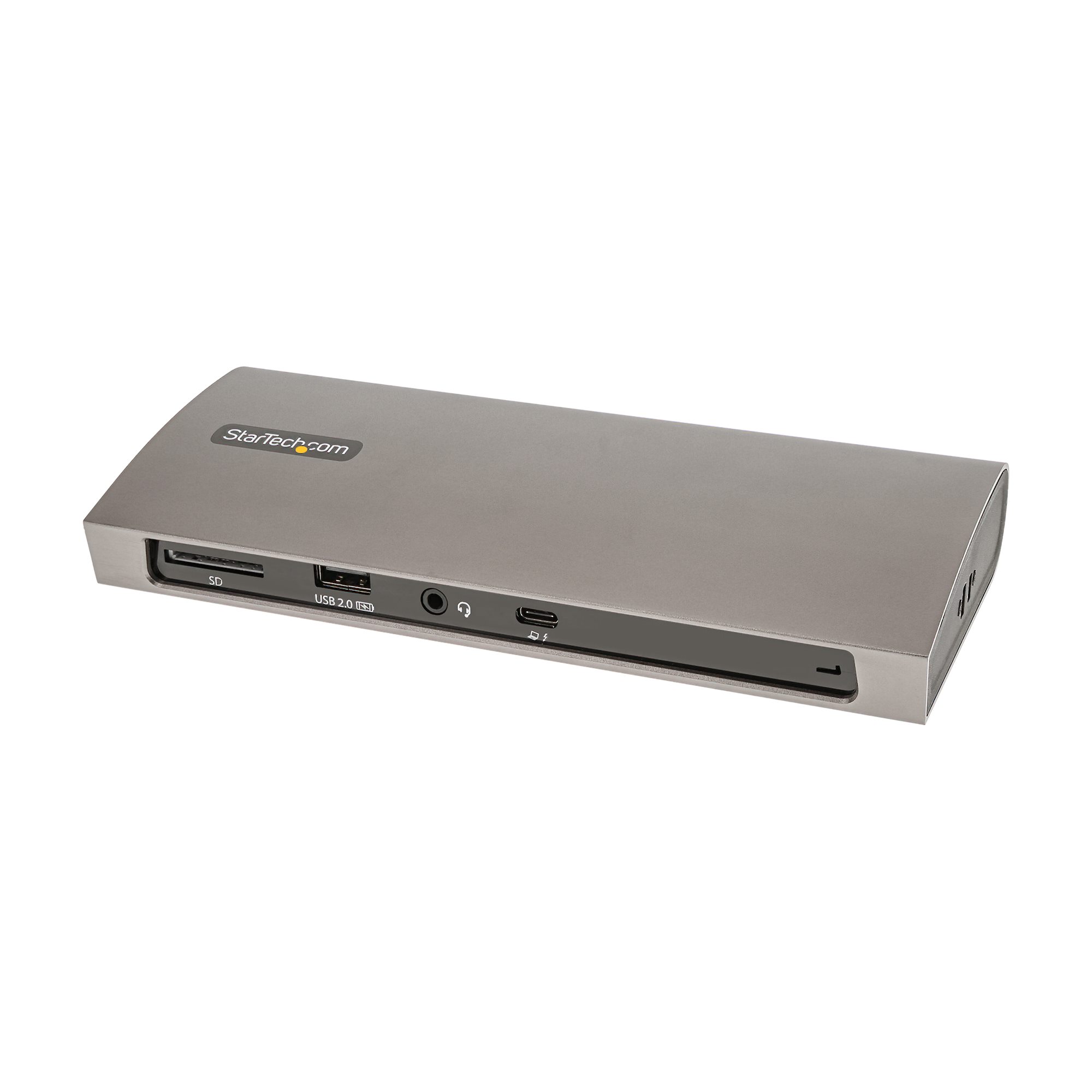

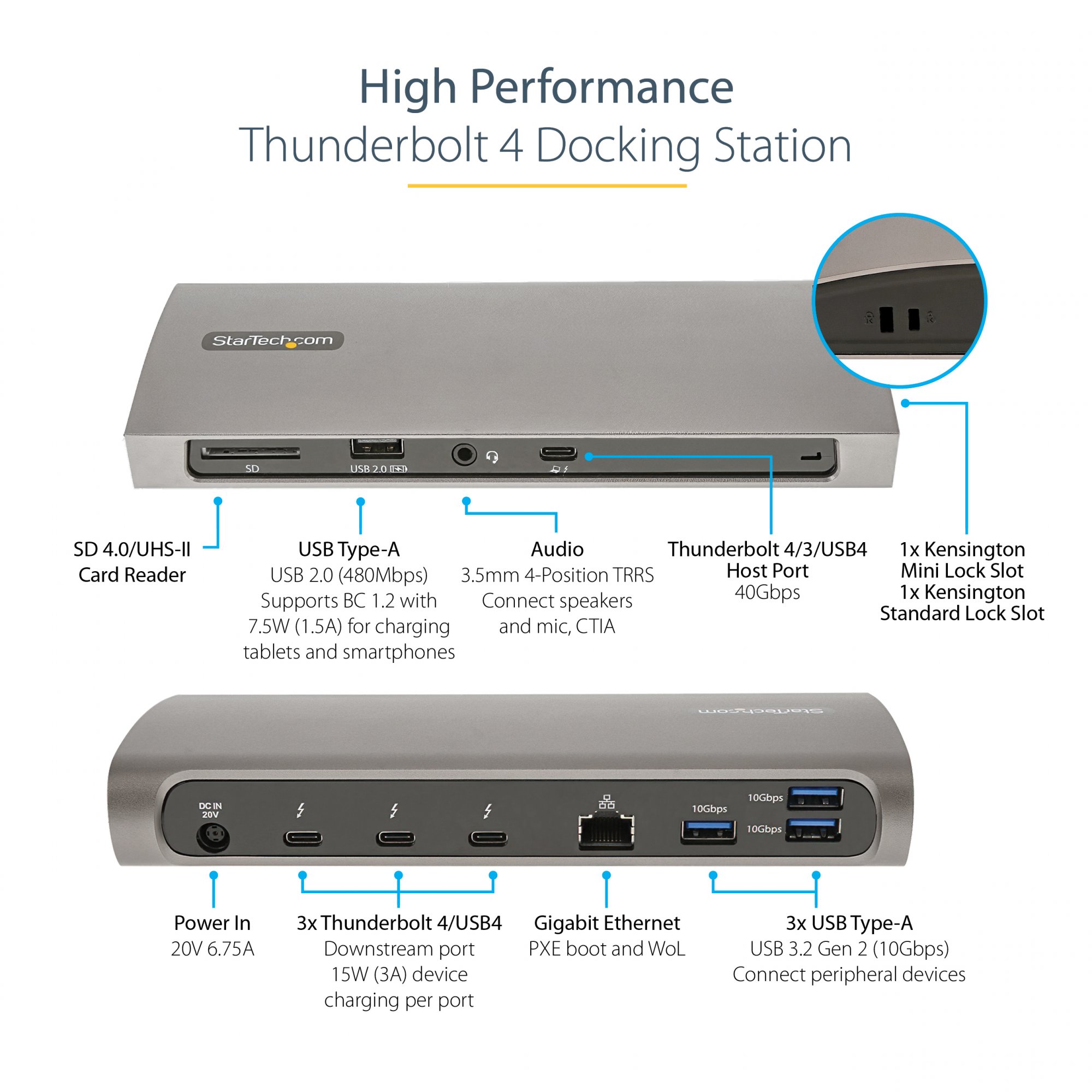

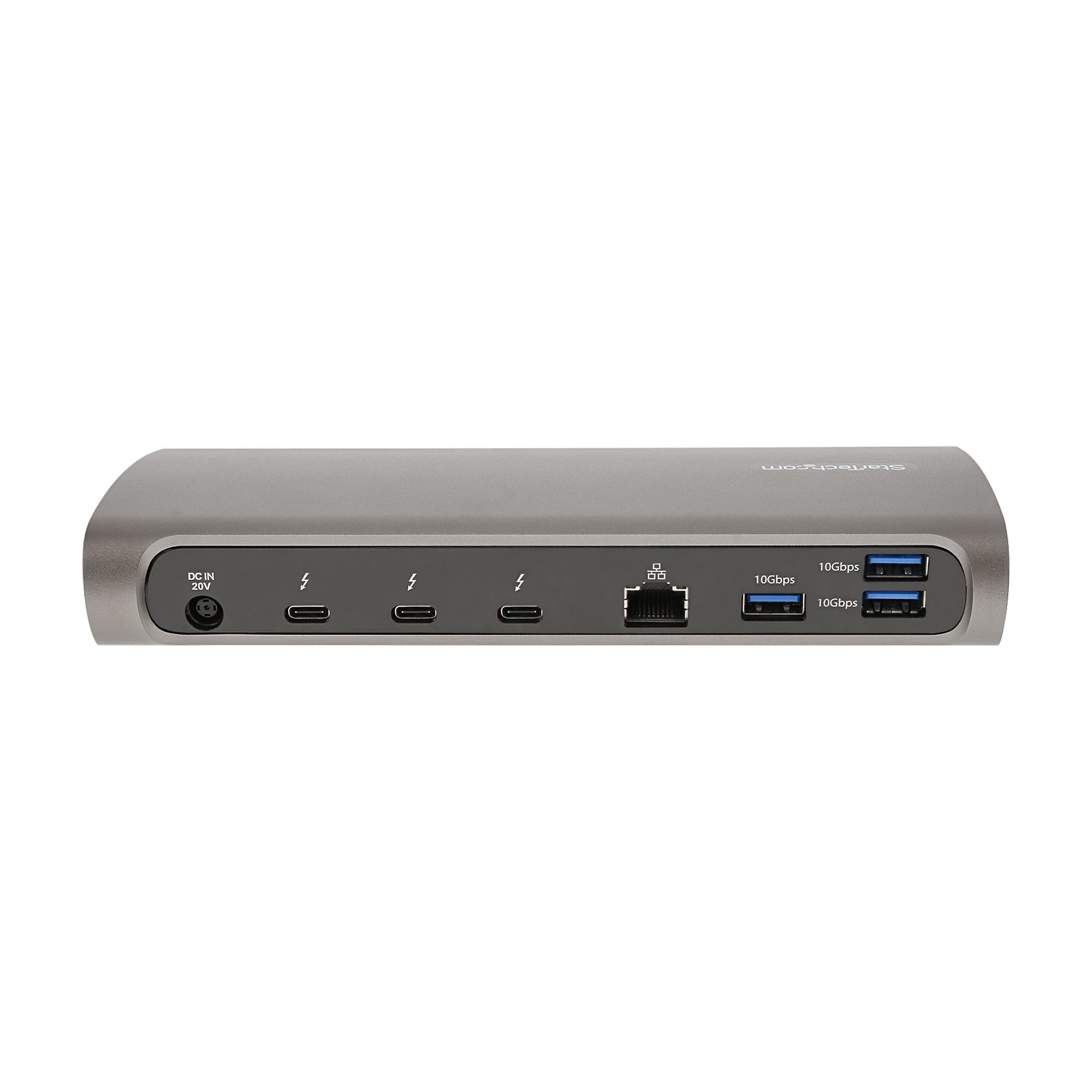

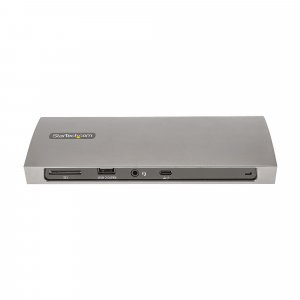

  • HIGH-PERFORMANCE THUNDERBOLT 4 CERTIFIED DOCK: Easy Driverless setup; 3x downstream Thunderbolt 4 (40Gbps) ports; 4x USB-A ports (3x 10Gbps/1x BC 1.2 fast charge); SD card reader; GbE; 2.6ft TB4 cable; Front host port; Kensington-style security slots

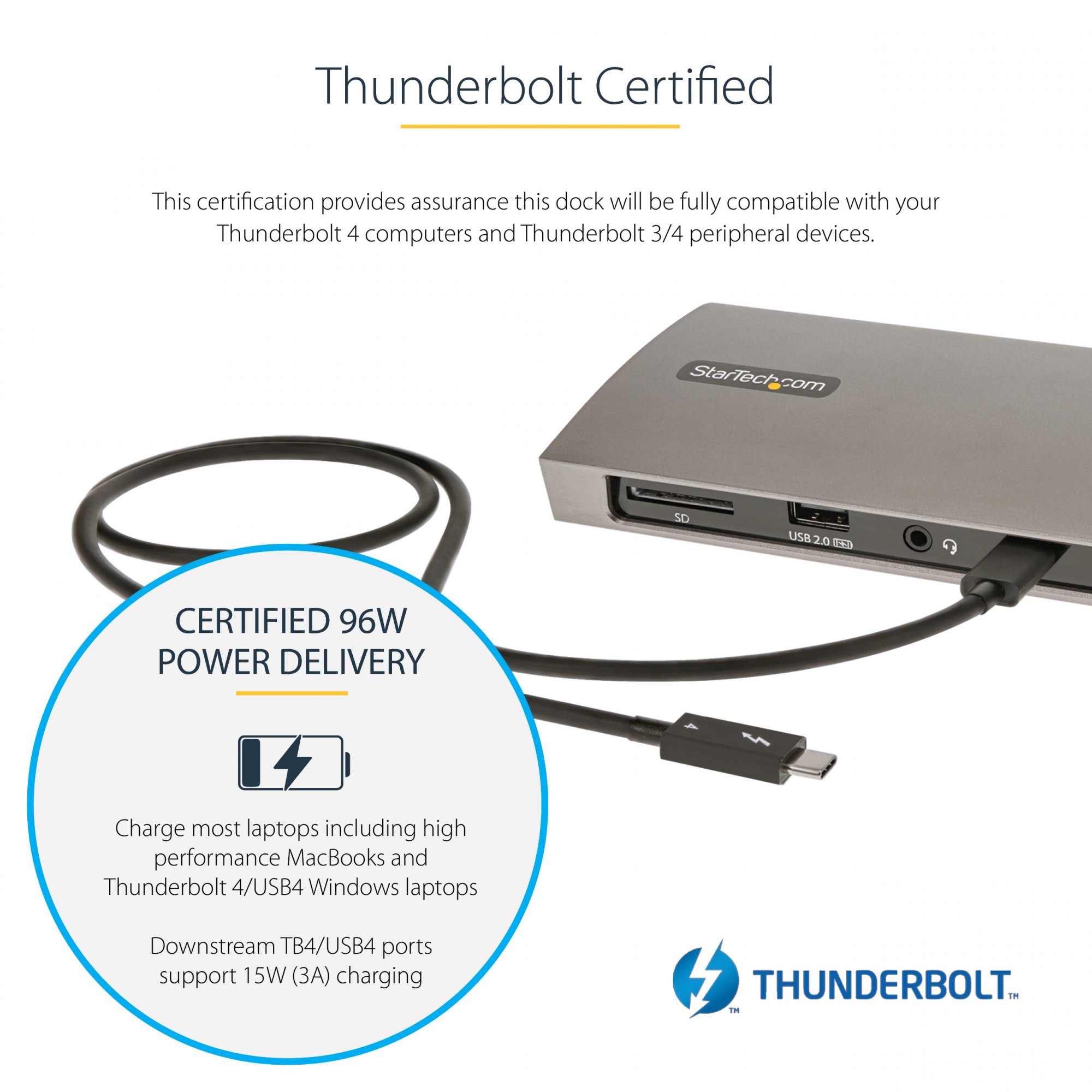

  • CERTIFIED 96W POWER DELIVERY: Includes fully spec'd power adapter to simultaneously charge laptop (96W PD) & power to all ports; Downstream TB4 / TB3 / USB4 ports support 15W (3A) charging; 1x BC 1.2 USB-A port with 7.5W (1.5A) for charging mobile devices

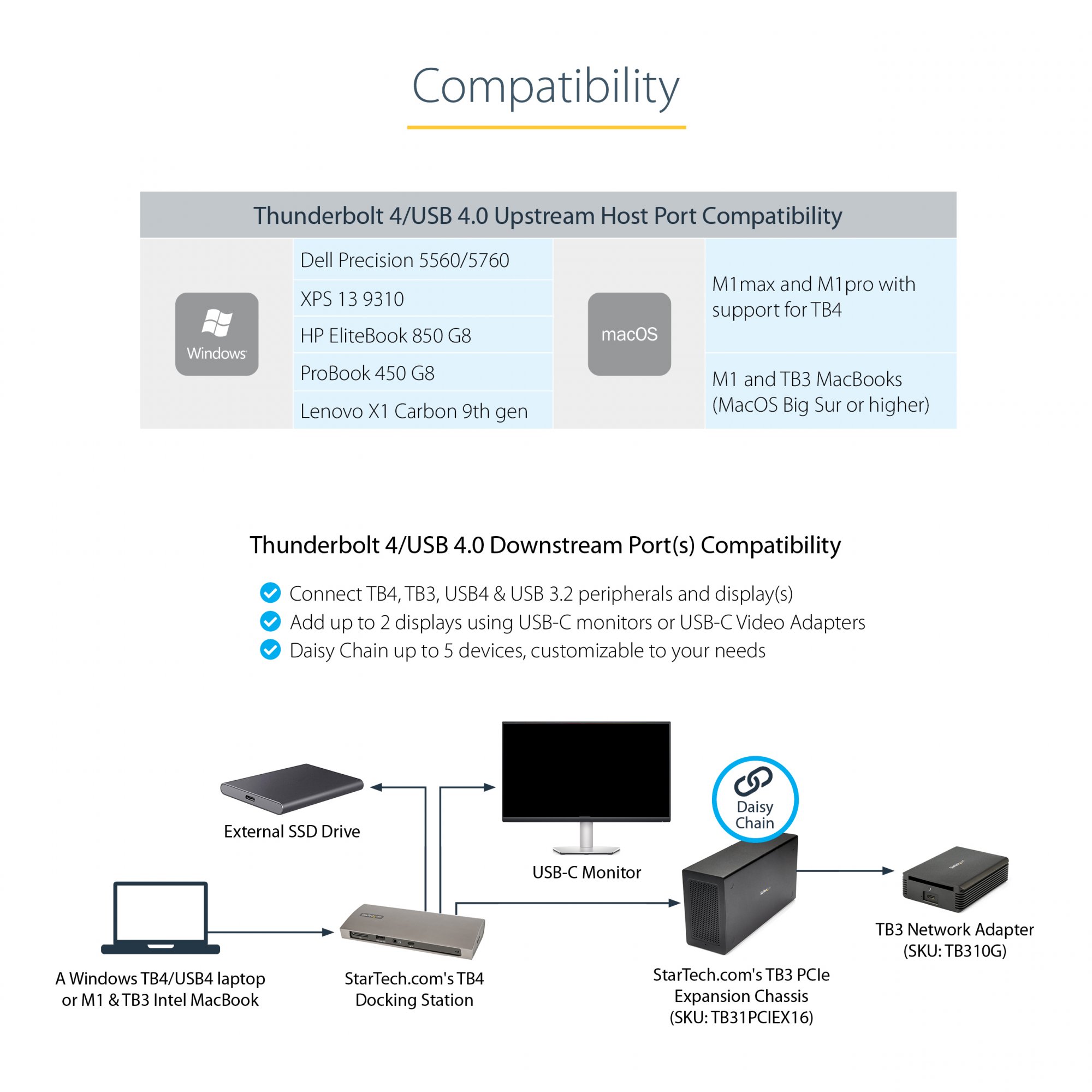

  • COMPATIBILITY: This docking station is compatible with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later

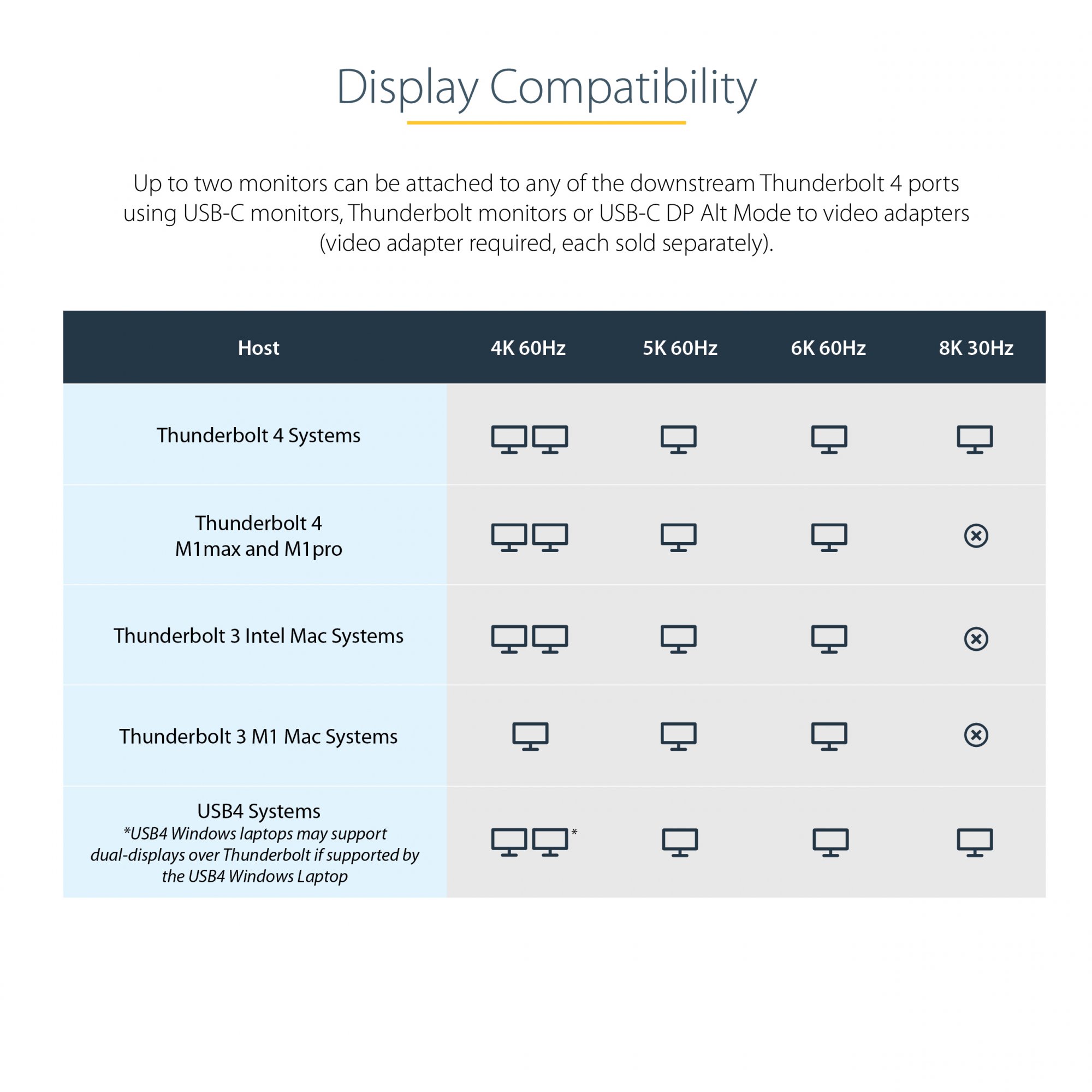

  • 3x THUNDERBOLT 4 PORTS: The dock features three downstream Thunderbolt 4 ports for connecting TB4, TB3, USB4 or USB peripherals; The TB4 ports can be used for connecting up to two external displays supporting dual 4K 60Hz or a single 5K/6K/8K monitor

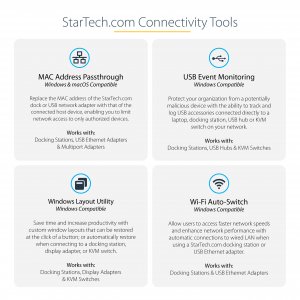

  • OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout

Product Properties

  • Model
  • TB4CDOCKUE
  • EAN
  • 65030895064
  • Bullet points
  • Point
  • 3x THUNDERBOLT 4 PORTS
    CERTIFIED 96W POWER DELIVERY
    COMPATIBILITY
    HIGH-PERFORMANCE THUNDERBOLT 4 CERTIFIED DOCK
    OUR ADVANTAGE
  • Logistics data
  • Harmonized System (HS) code
  • 84733020
  • Master (outer) case height
  • 265 mm
  • Master (outer) case length
  • 305 mm
  • Master (outer) case width
  • 380 mm
  • Products per master (outer) case
  • 8 pc(s)
  • Network
  • Auto MDI/MDI-X
  • Yes
  • Ethernet LAN
  • Yes
  • Ethernet LAN (RJ-45) ports
  • 1
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Full duplex
  • Yes
  • Wake-on-LAN ready
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 0 - 95%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage temperature (T-T)
  • -20 - 70 °C
  • Other features

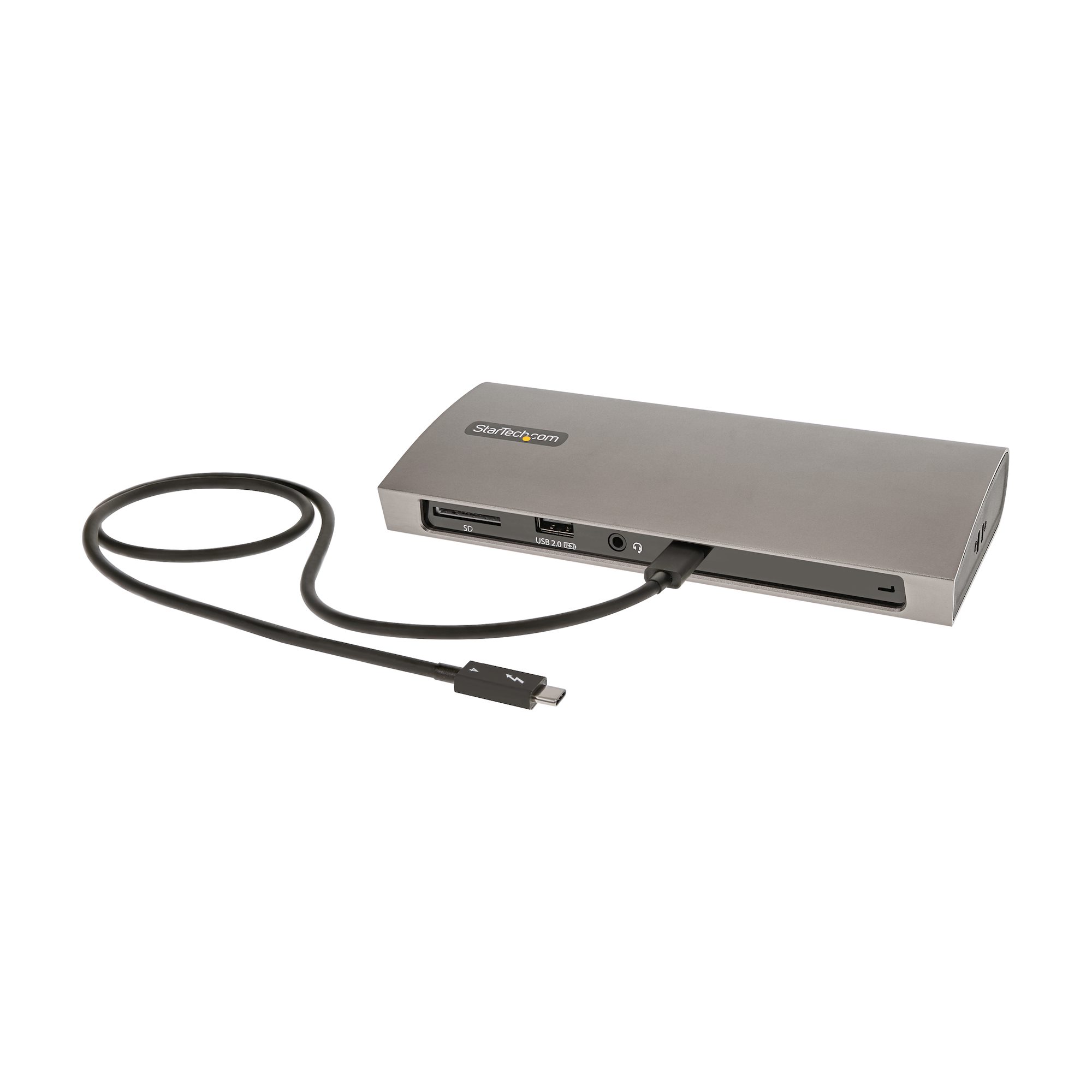

  • Cable length
  • 0.8 m
  • Chipset
  • Intel - JHL8440, Cypress - CYUSB4357, Parade - FL5801, Parade - FL5801, Cypress - CYPD5235, Realtek - RTL8153B, Realtek - ALC4042, Genesys Logic - GL3226

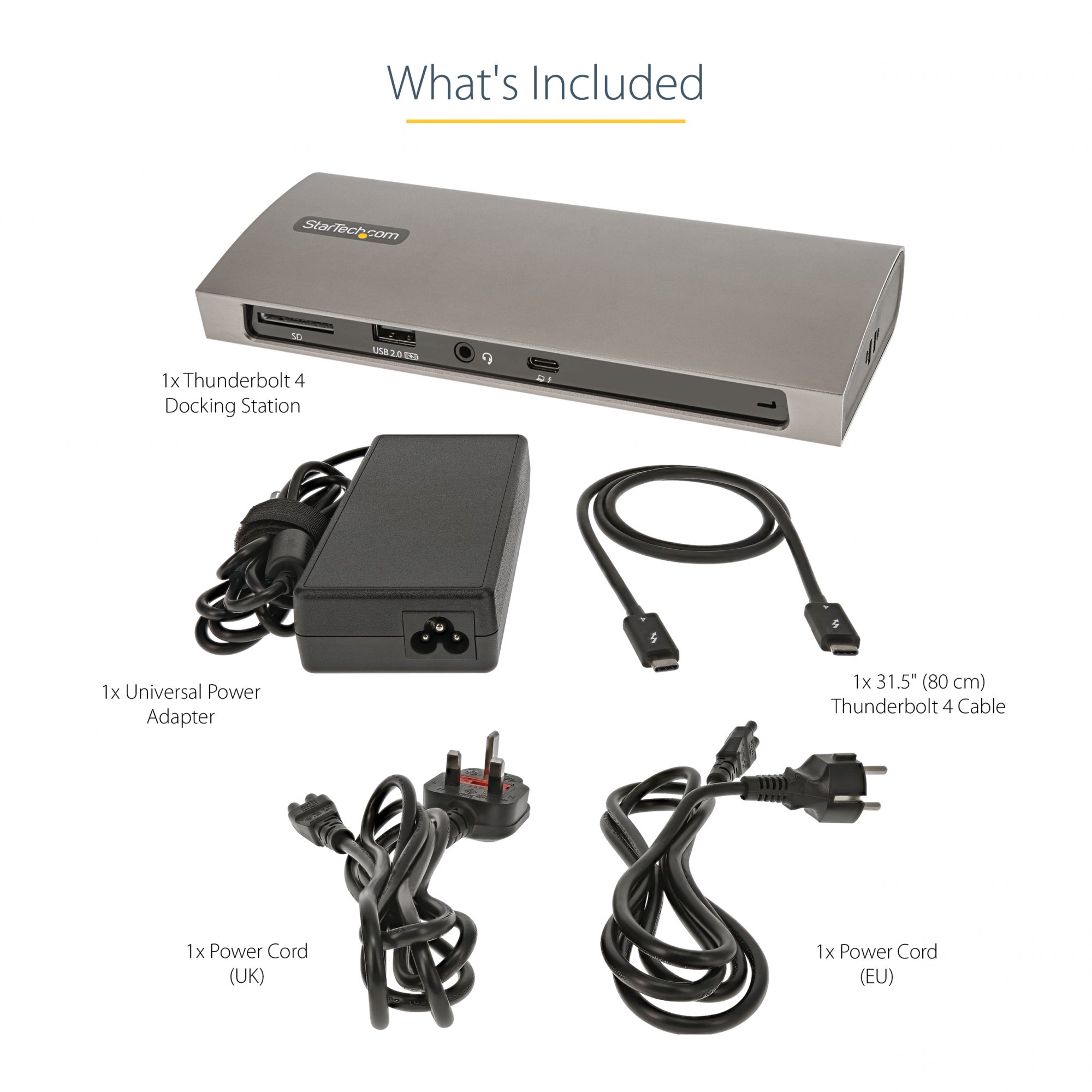

  • Packaging content
  • AC adapter included
  • Yes
  • Cables included
  • Thunderbolt
  • Quick start guide
  • Yes
  • Packaging data
  • Package depth
  • 145 mm
  • Package height
  • 90 mm
  • Package weight
  • 1.1 kg
  • Package width
  • 230 mm
  • Performance
  • Cable lock slot
  • Yes
  • Cable lock slot type
  • Kensington
  • Card reader integrated
  • Yes
  • Compatible memory cards
  • MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
  • HD type
  • 8K Ultra HD
  • Housing material
  • Aluminium, Plastic
  • LED indicators
  • Yes
  • Maximum refresh rate
  • 60 Hz
  • Number of displays supported
  • 2
  • Product colour
  • Black, Grey
  • Ports & interfaces
  • Combo headphone/mic port
  • Yes
  • Connectivity technology
  • Wired
  • DC-in jack
  • Yes
  • Headphone outputs
  • 1
  • Host interface
  • Thunderbolt 4
  • Thunderbolt 4 ports quantity
  • 3
  • USB 2.0 ports quantity
  • 1
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 0
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 3
  • USB Power Delivery (USB PD)
  • Yes
  • USB Power Delivery up to
  • 96 W
  • Power
  • Compatible power plug types
  • EU
  • Software
  • Mac operating systems supported
  • Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
  • Windows operating systems supported
  • Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64
  • Technical details
  • Compliance certificates
  • CE, RoHS

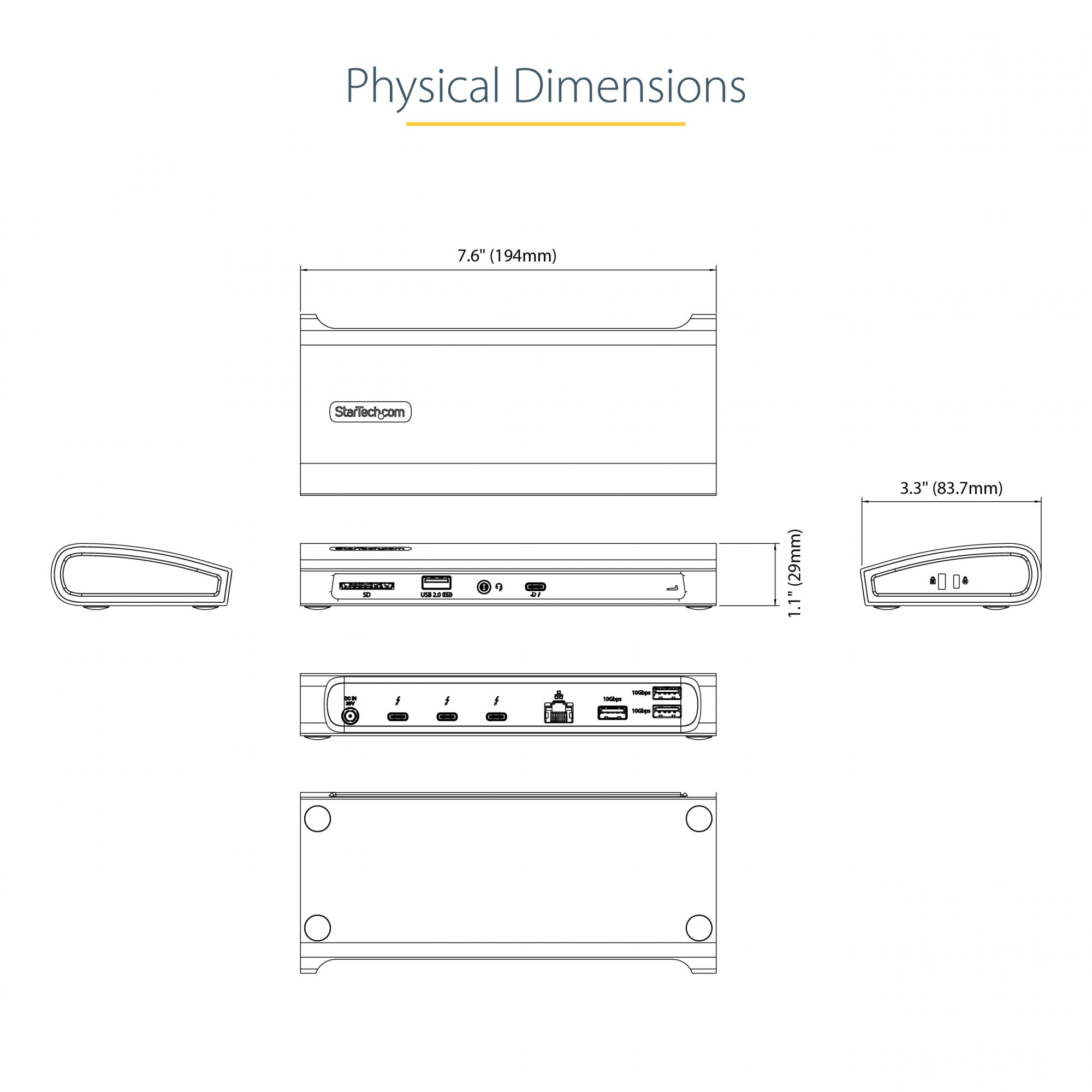

  • Weight & dimensions
  • Depth
  • 84 mm
  • Height
  • 29 mm
  • Weight
  • 1 kg
  • Width
  • 194 mm
