Description

StarTech.com Thunderbolt 4 Multi-Display Docking Station, Quad/Triple/Dual Monitor Dock - 2x HDMI/2x DisplayPort, 7x USB Hub, 2.5Gb Ethernet, 98W Power Delivery. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 98 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Copper ethernet cabling technology: 2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC, Data transfer rate: 40 Gbit/s. Power source type: DC, AC input voltage: 110 - 240 V, Input current: 2.5 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

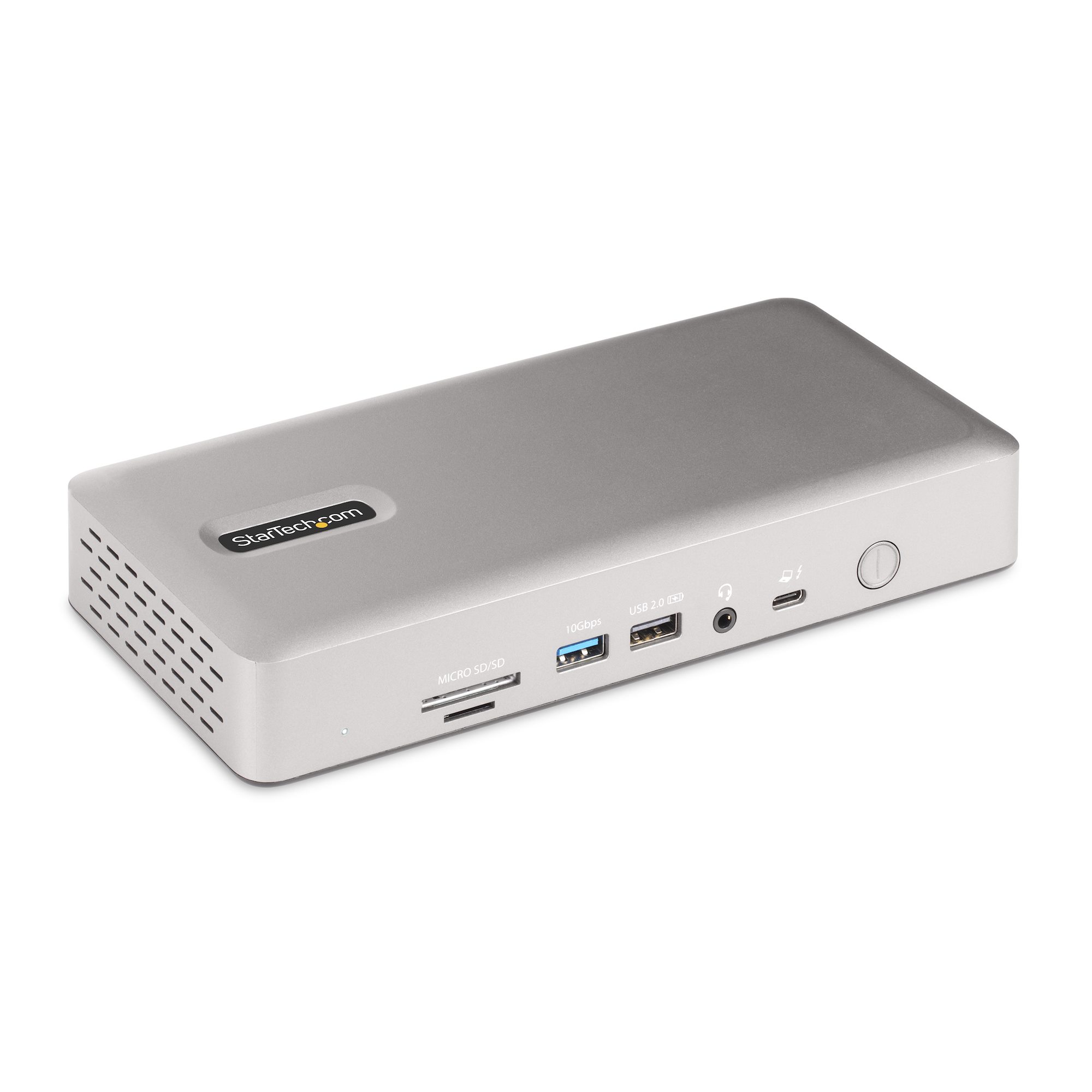

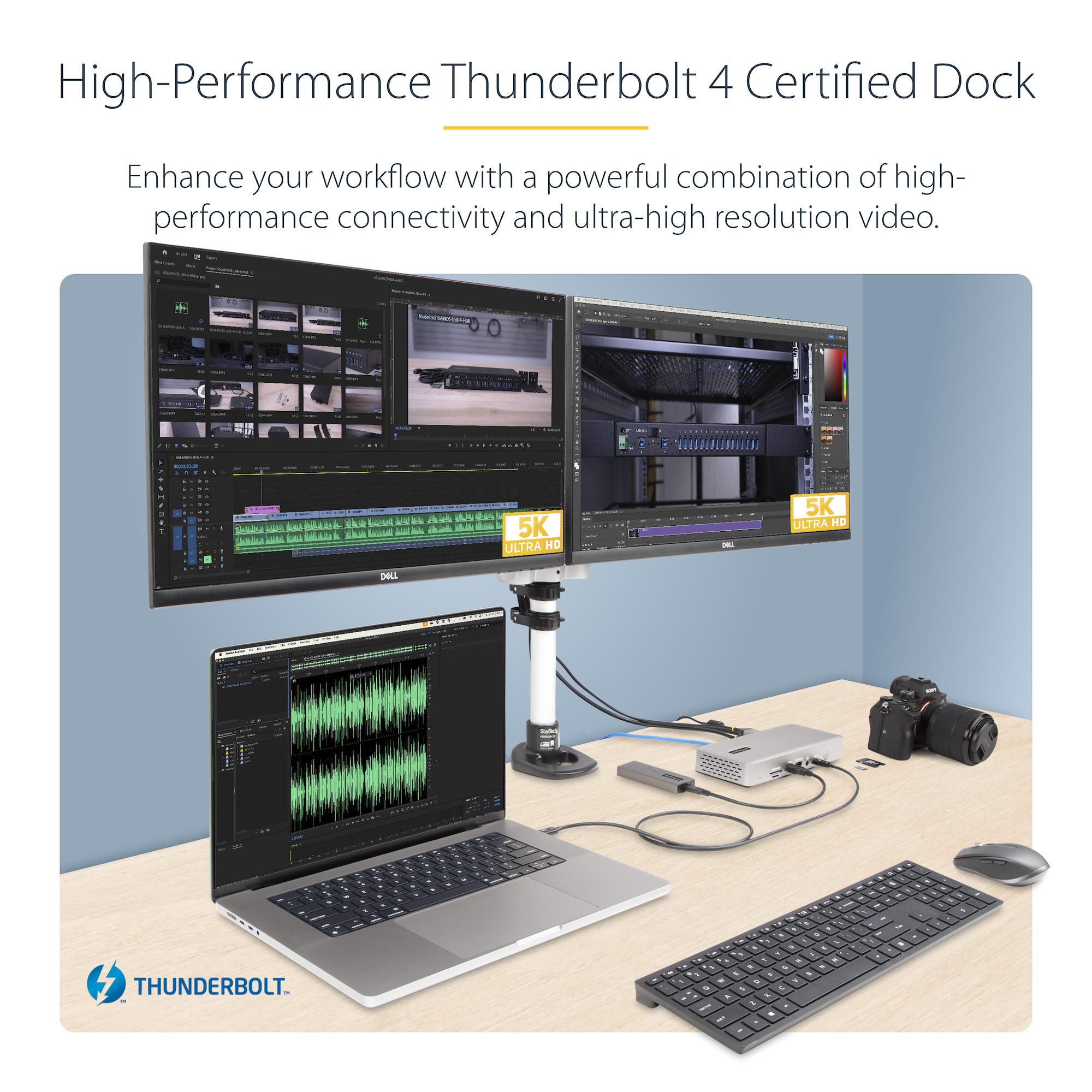

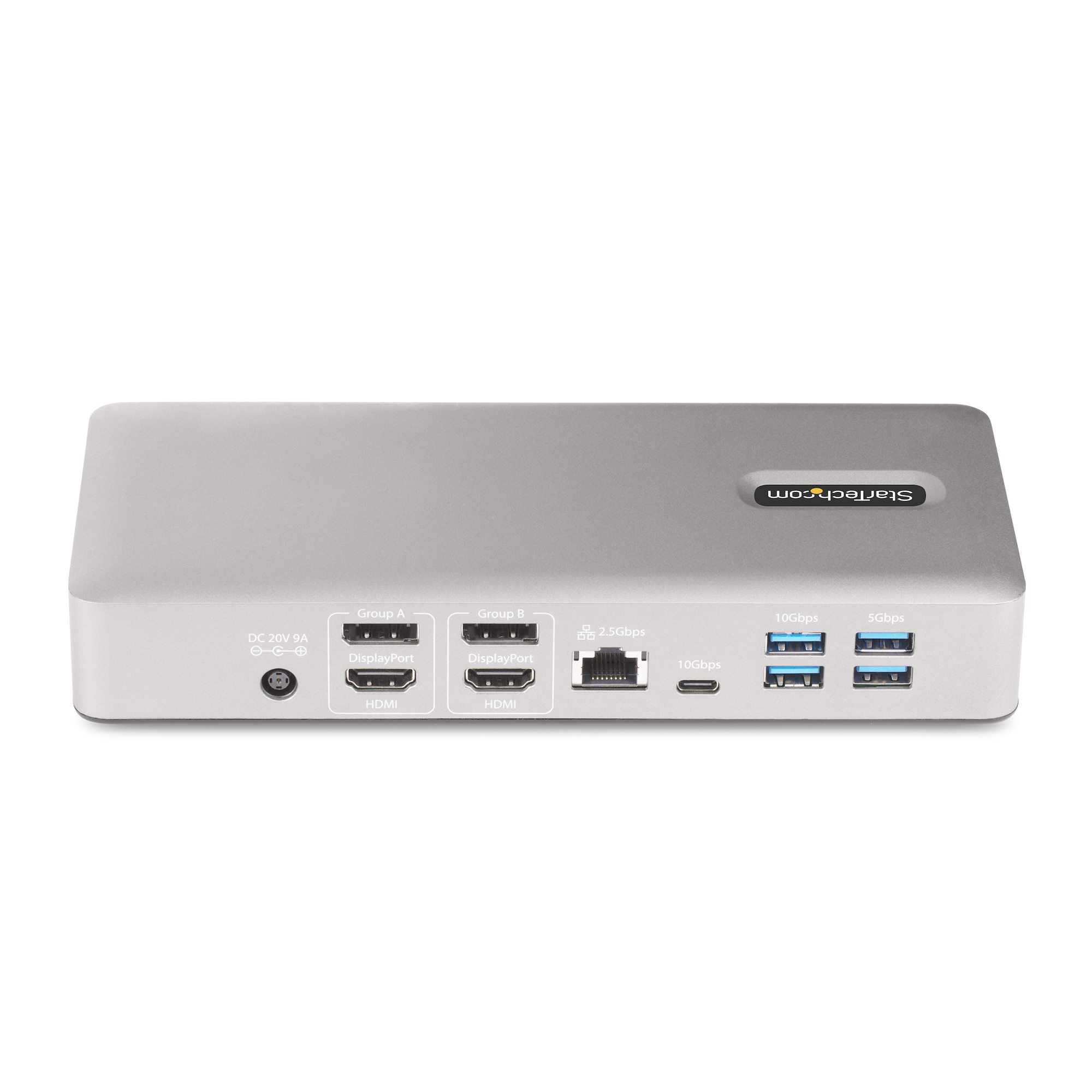

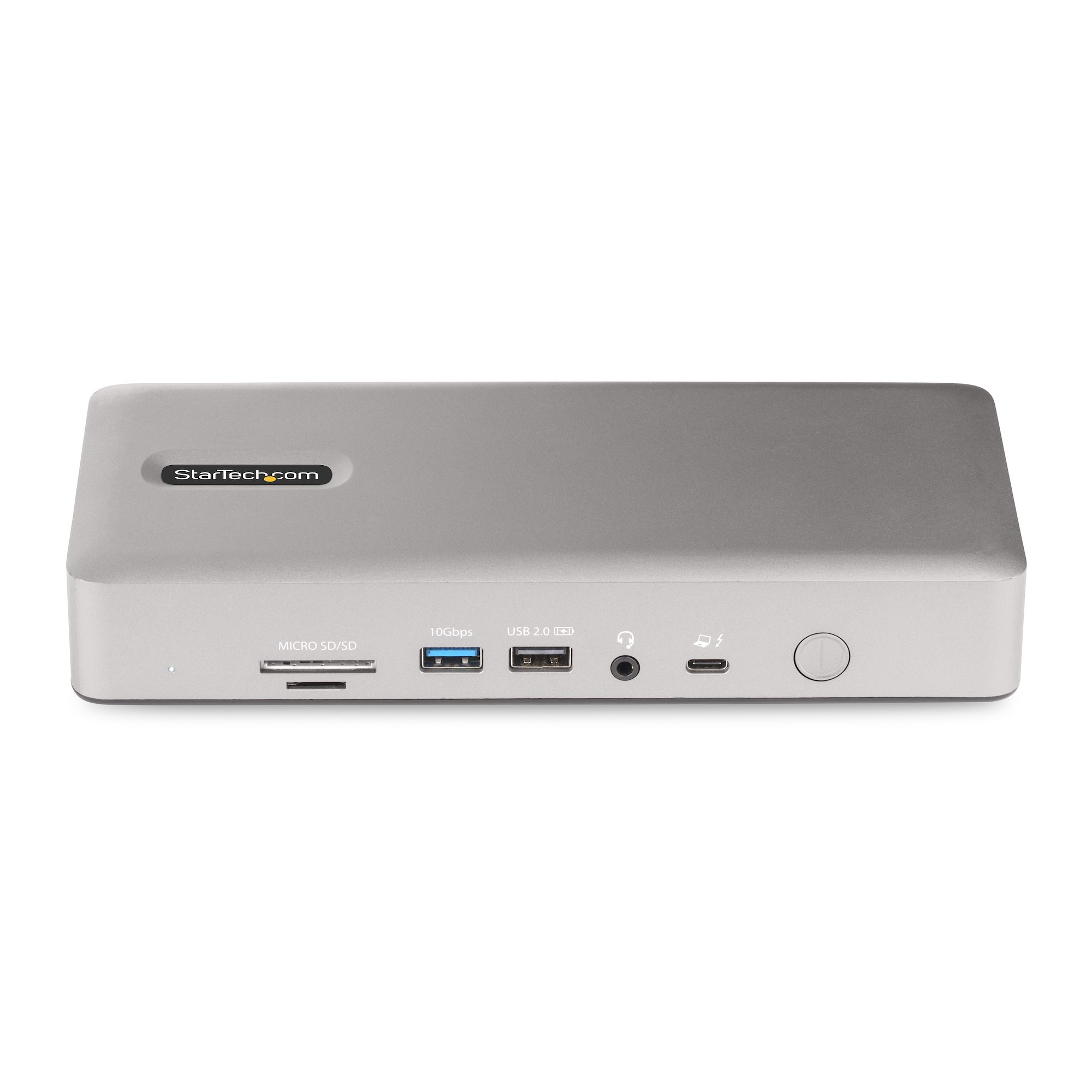

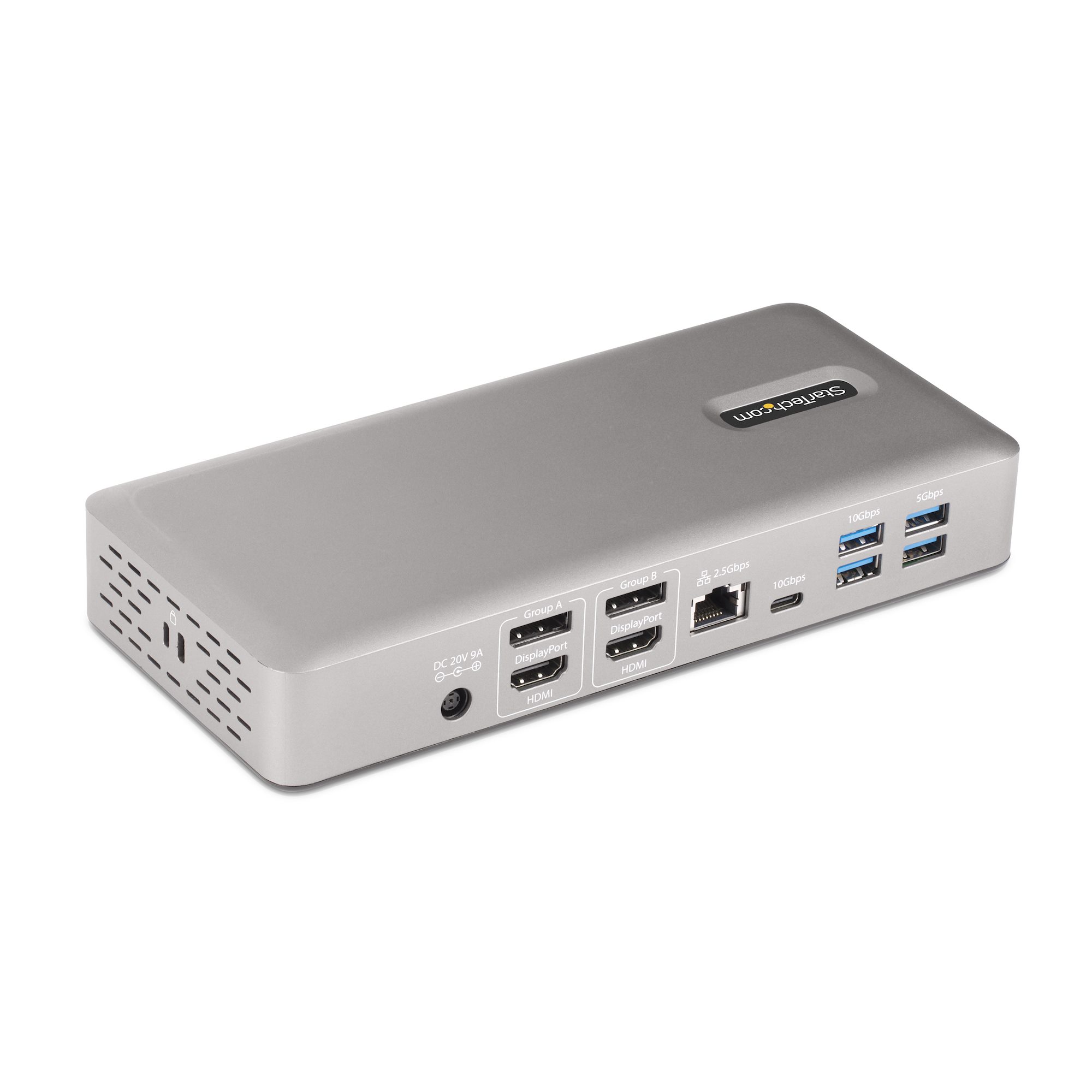

HIGH-PERFORMANCE THUNDERBOLT 4 DOCK: Easy driverless setup; 2x DisplayPort; 2x HDMI; 7-Port USB Hub (3x USB-A 10Gbps/1x USB-C 10Gbps/2x USB-A 5Gbps/1x USB 2.0); SD & mSD card readers; 2.5GbE; Lock slots (k-slots); 3.5mm Headset jack

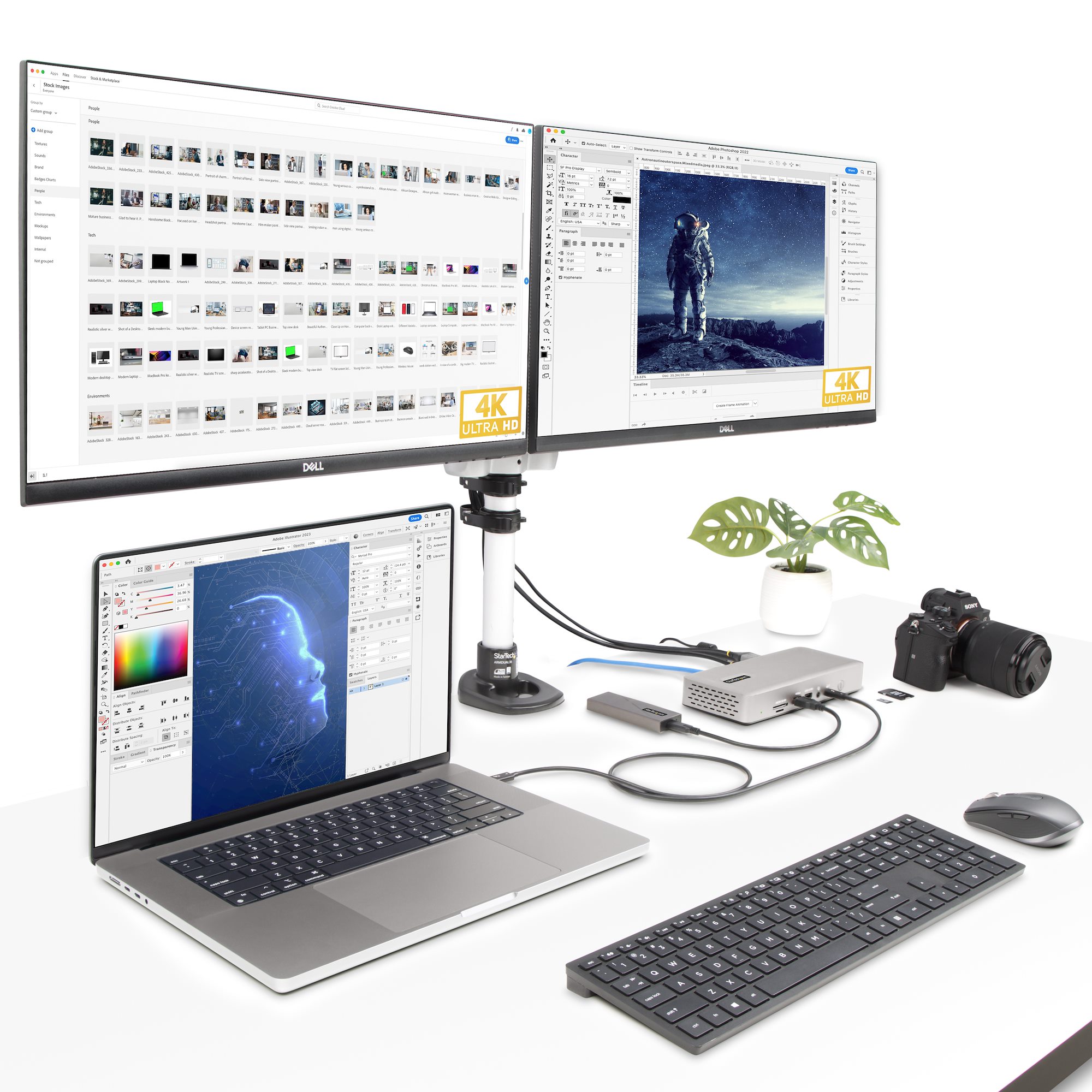

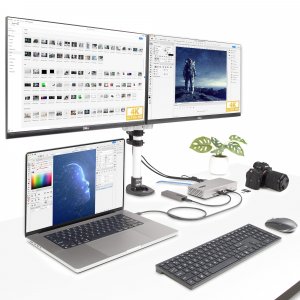

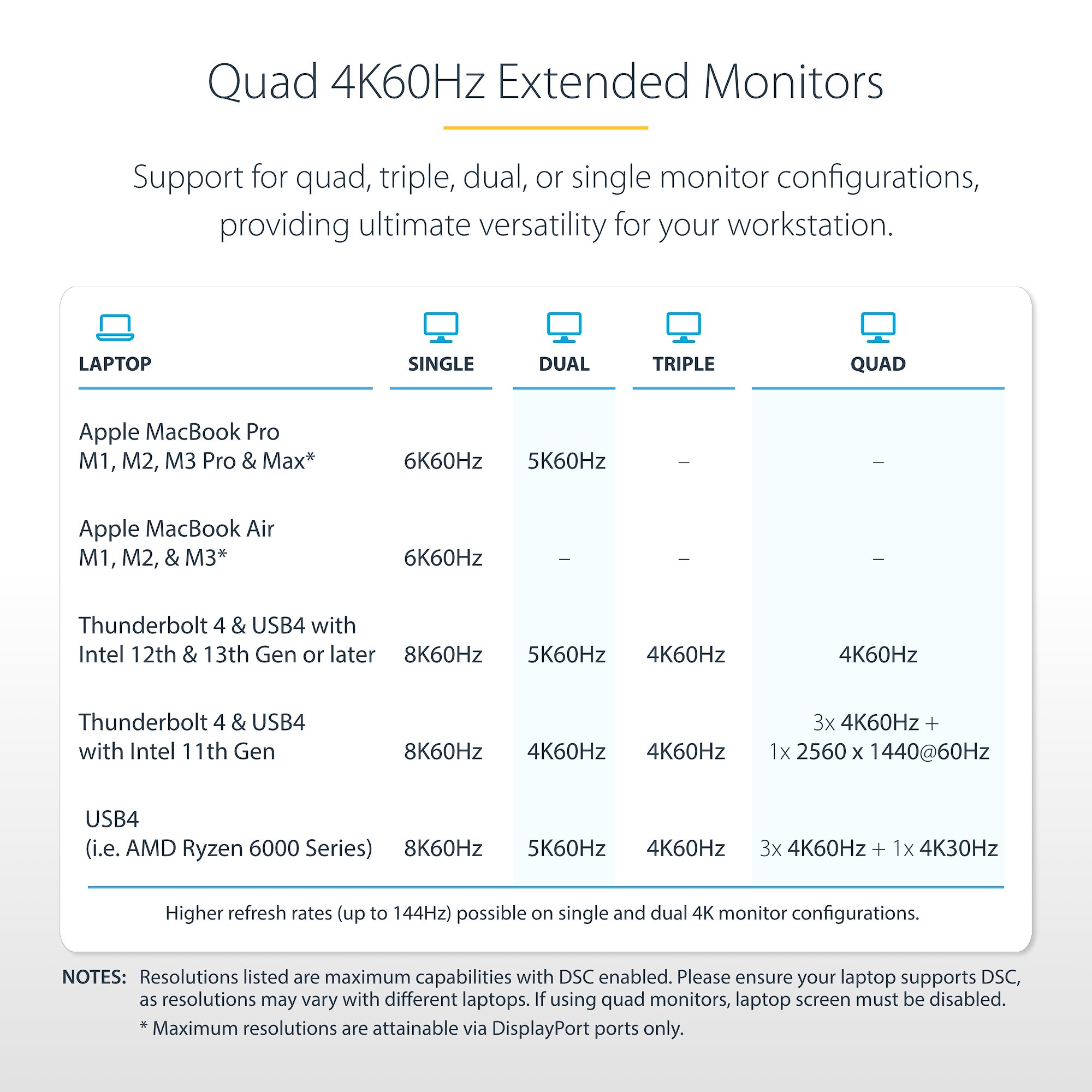

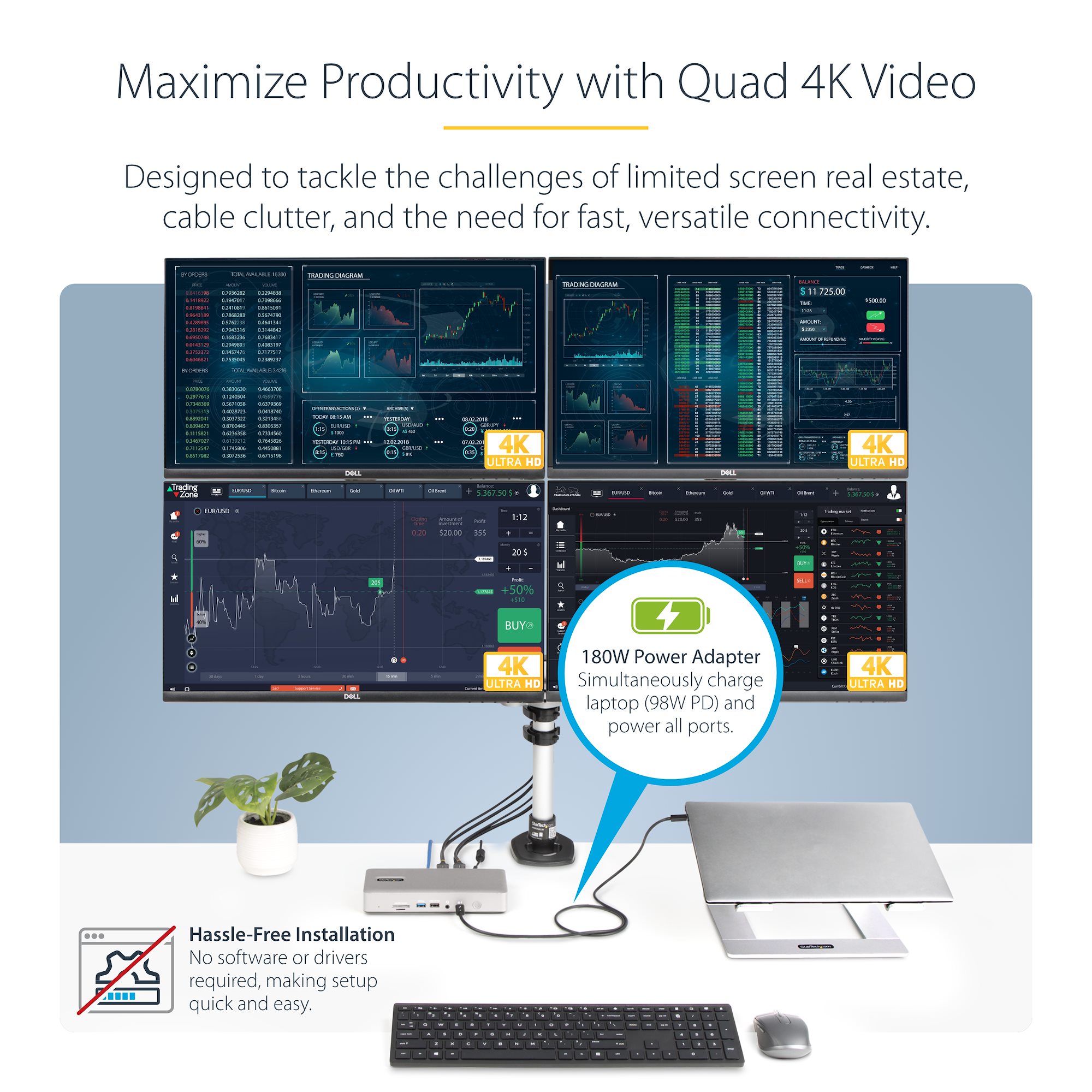

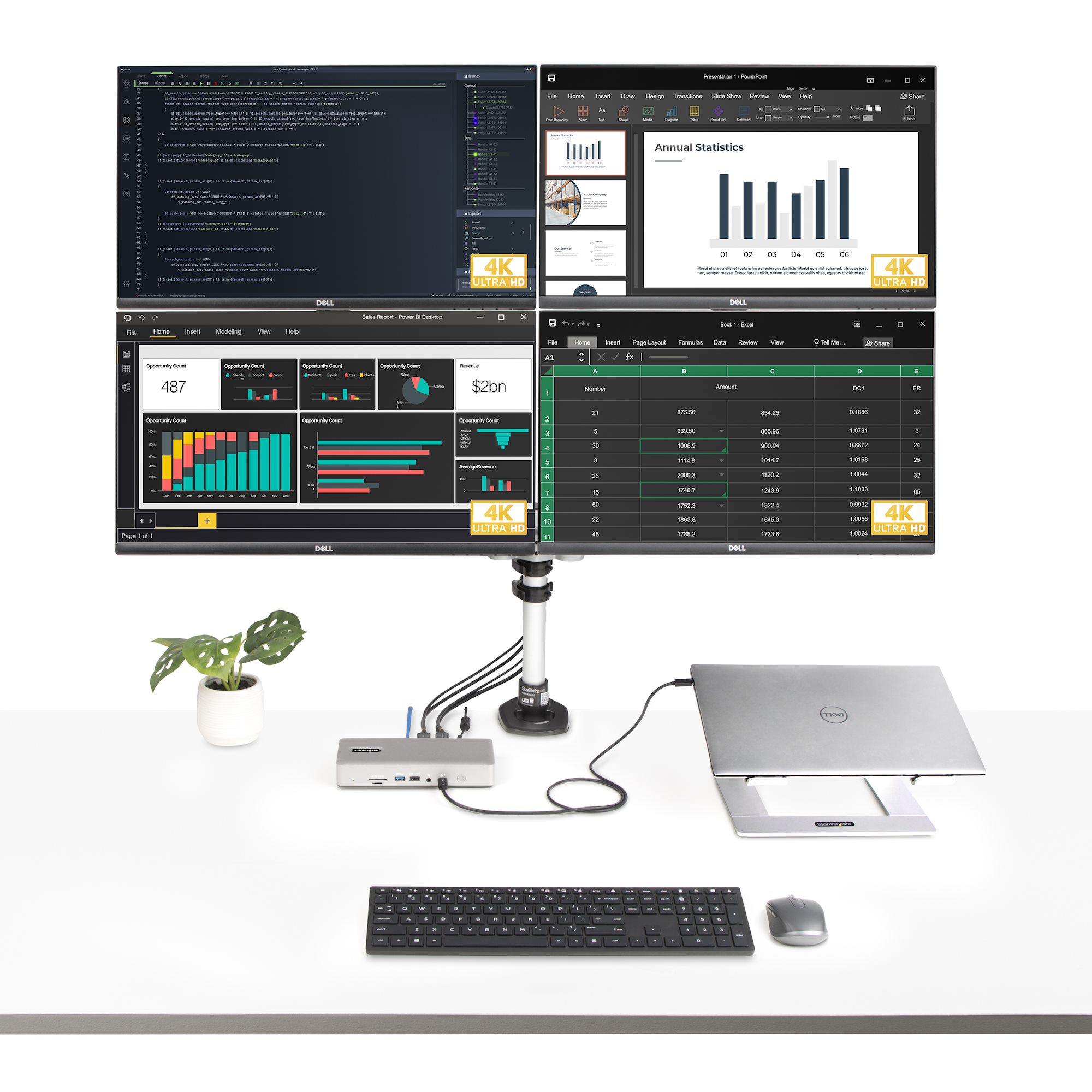

MULTI-MONITOR FLEXIBILITY: Up to quad 4K 60Hz w/Intel 12th Gen CPU (or higher) supporting DP 1.4 w/DSC; Quad displays at lower resolutions or refresh-rates without DSC or with Intel 11th gen CPU (or lower); Single HDMI display up to 8K 60Hz or 4K 144Hz
COMPATIBILITY: Compatible with Thunderbolt or USB4 laptops with Windows, macOS, or Ubuntu; Quad display on Windows laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later
98W POWER DELIVERY: Includes fully spec'd power adapter to simultaneously charge laptop (98W PD) and power all ports; Downstream USB 2.0 port supports 7.5W (1.5A) for charging mobile devices or other battery-powered devices

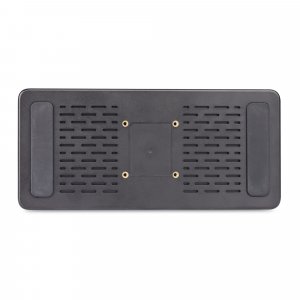

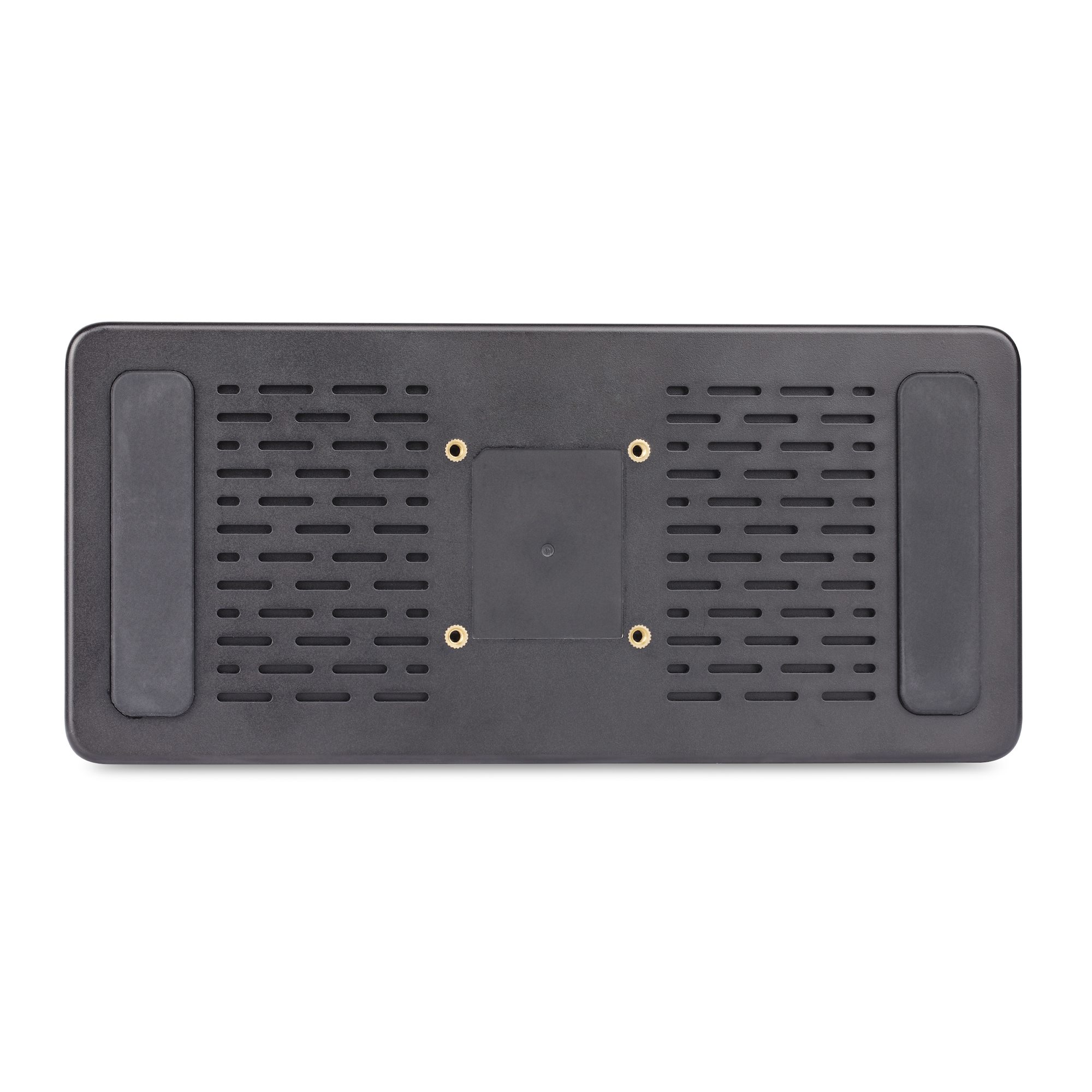

IT PRO ADVANTAGES: Includes 3.3ft/1m TB4 host cable; Mounting holes for optional brackets (SSPMSVESA/SSPMSUDWM); K-Slots for lock; Connectivity Tools software w/MAC Address Pass-Through, USB Event Monitoring, WiFi Auto Switching & Windows Layout utilities

Product Properties

Manufacturer
StarTech.com

Model
132UE-TB4USB4DOCK

EAN
65030899680

Bullet points

Point
98W POWER DELIVERY

COMPATIBILITY

HIGH-PERFORMANCE THUNDERBOLT 4 DOCK

IT PRO ADVANTAGES

MULTI-MONITOR FLEXIBILITY

Logistics data

Master (outer) case height
285 mm

Master (outer) case length
310 mm

Master (outer) case width
380 mm

Products per master (outer) case
4 pc(s)

Network

Copper ethernet cabling technology
2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000,2500 Mbit/s

Full duplex
Yes

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
0 - 40 °C

Storage temperature (T-T)
-20 - 70 °C

Other features

Chipset
Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek - RTL8156BG, Genesys Logic - GL3231S, Realtek - ALC4030U, Realtek - RTD2188, Cypress - CCG5, TI - TPS2546

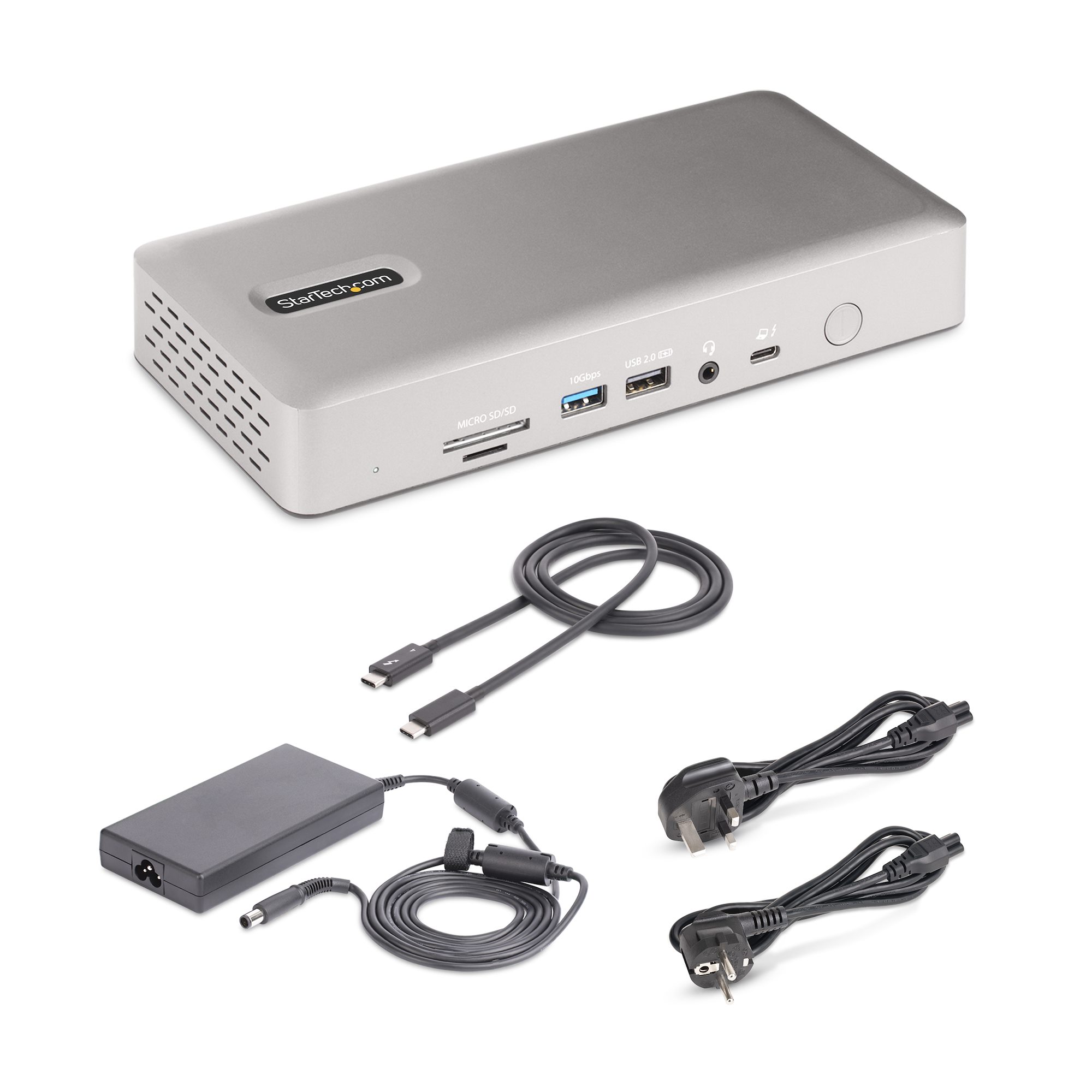

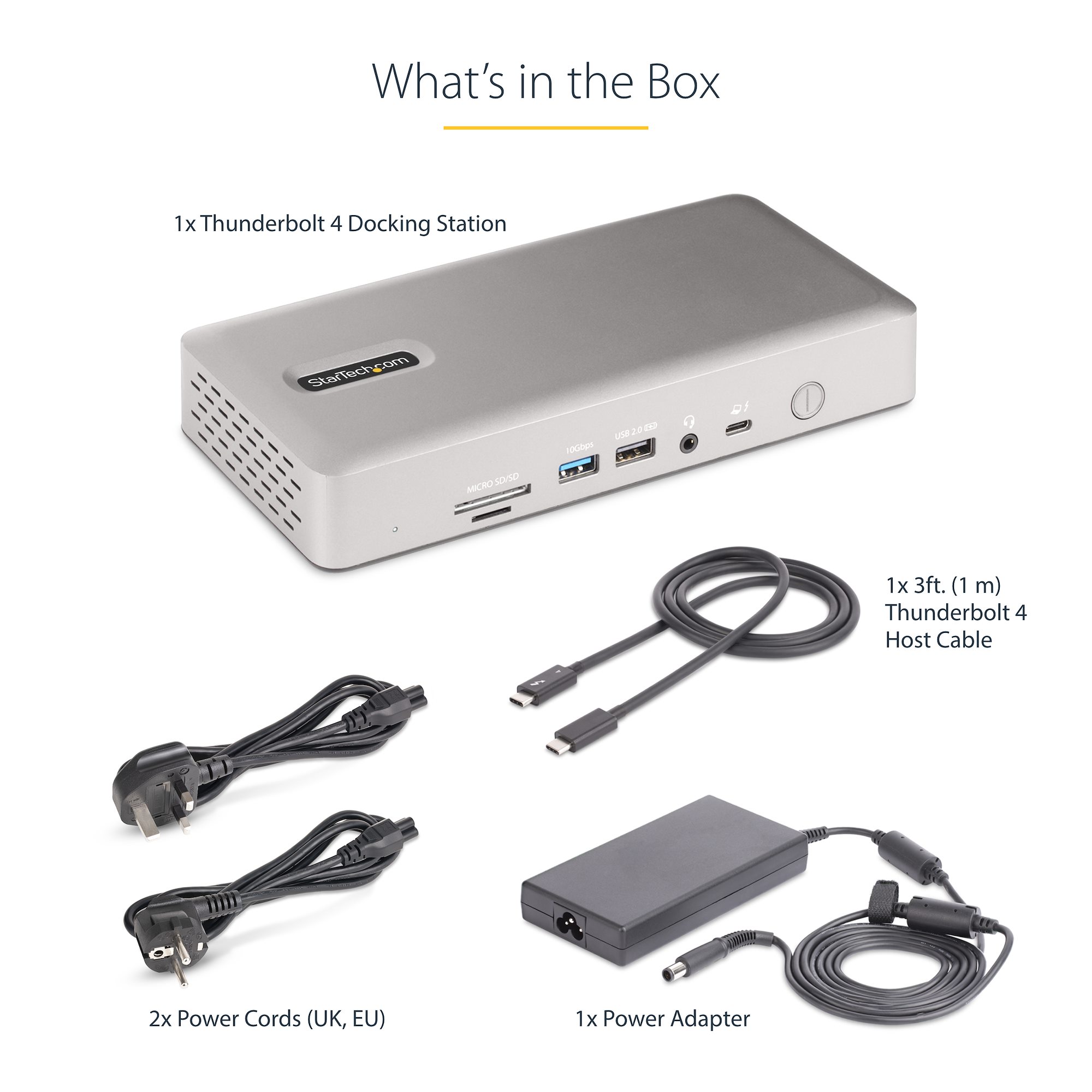

Packaging content

AC adapter included
Yes

Cables included
Thunderbolt

Quick start guide
Yes

Packaging data

Package depth
145 mm

Package height
90 mm

Package weight
1.4 kg

Package width
235 mm

Performance

Cable lock slot
Yes

Cable lock slot type
Kensington, Nano

Card reader integrated
Yes

Compatible memory cards
MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC

Data transfer rate
40 Gbit/s

HD type
8K Ultra HD

Housing material
Aluminium

LED indicators
LAN, Power

Maximum digital resolution
7680 x 4320 pixels

Maximum refresh rate
60 Hz

On/off switch
Yes

Product colour
Grey

UASP support
Yes

Ports & interfaces

Combo headphone/mic port
Yes

Connectivity technology
Wired

DC-in jack
Yes

DisplayPort version
1.4

DisplayPorts quantity
2

HDMI ports
2

HDMI version
2.1

Headphone connectivity
3.5 mm

Headphone outputs
1

Host interface
Thunderbolt 4

USB 2.0 ports quantity
1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

USB Power Delivery (USB PD)
Yes

USB Power Delivery revision
3.0

USB Power Delivery up to
98 W

Power

AC input voltage
110 - 240 V

Compatible power plug types
EU, UK

Input current
2.5 A

Output current
9 A

Output voltage
20 V

Power consumption (max)
180 W

Power source type
DC

Software

Mac operating systems supported
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64

Sustainability

Sustainability compliance
Yes

Technical details

Compliance certificates
CE, RoHS

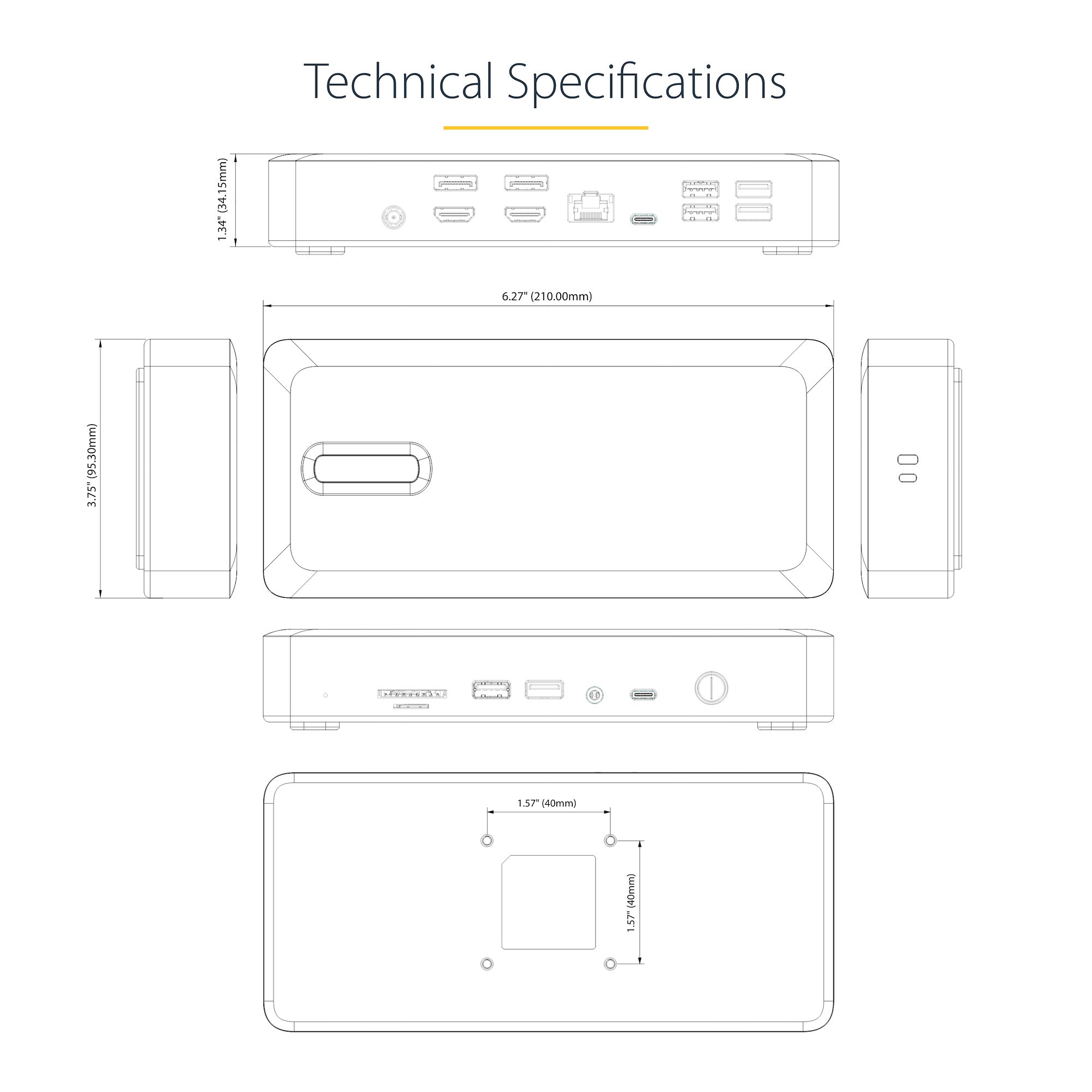

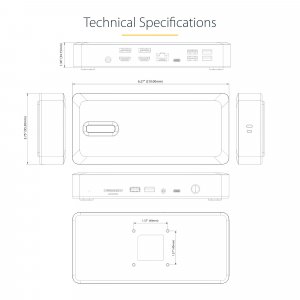

Weight & dimensions

Depth
96 mm

Height
34 mm

Weight
200 g

Width
210 mm
