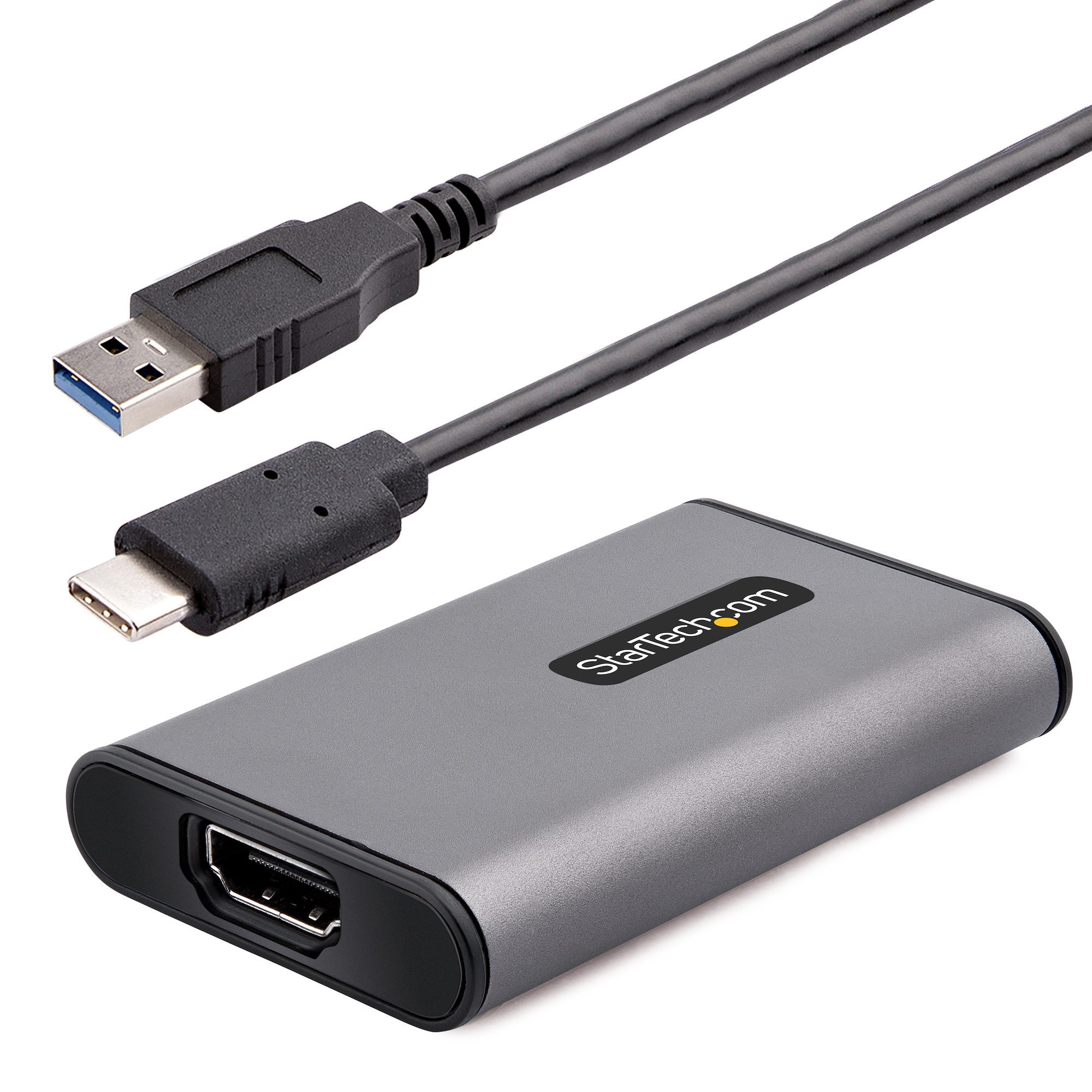

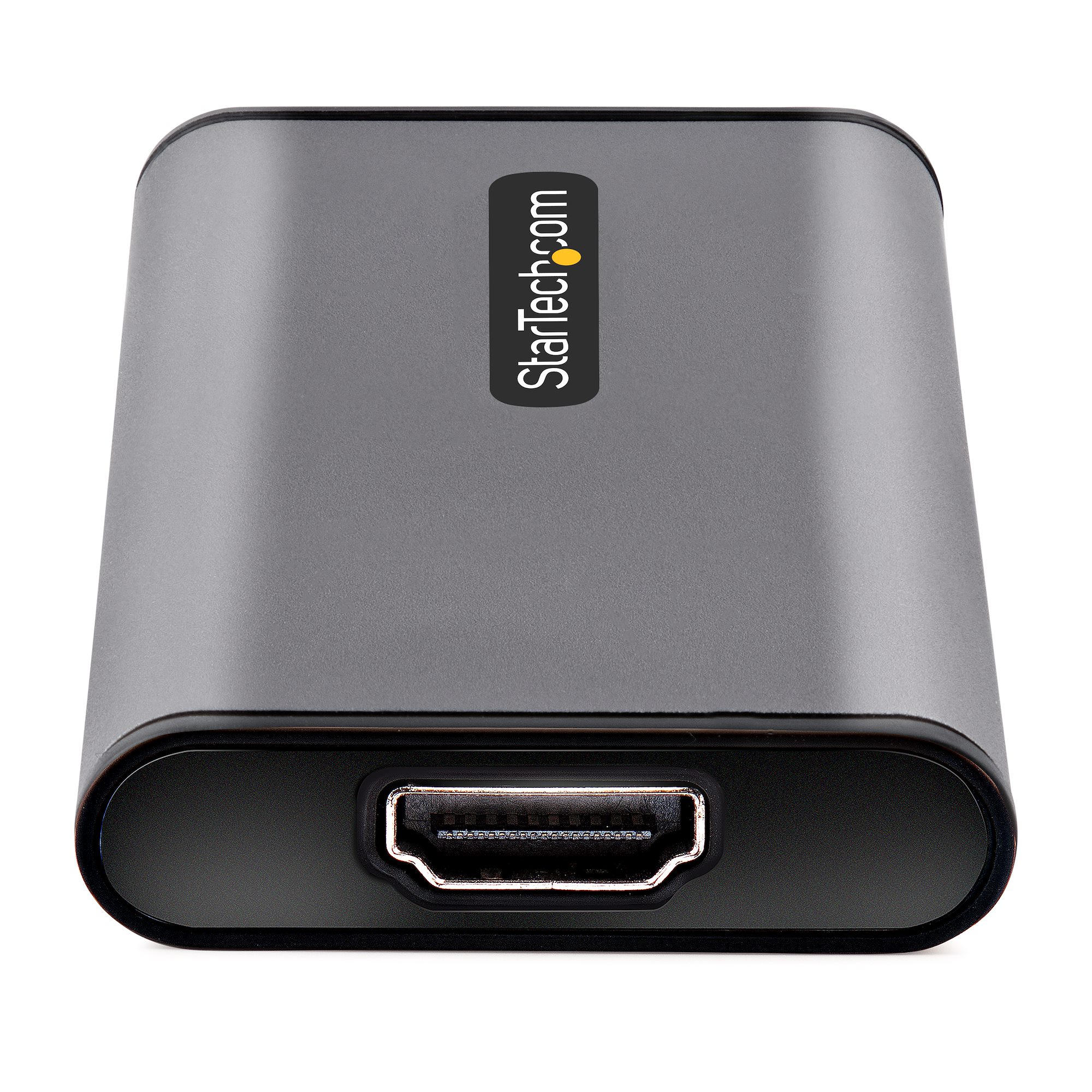

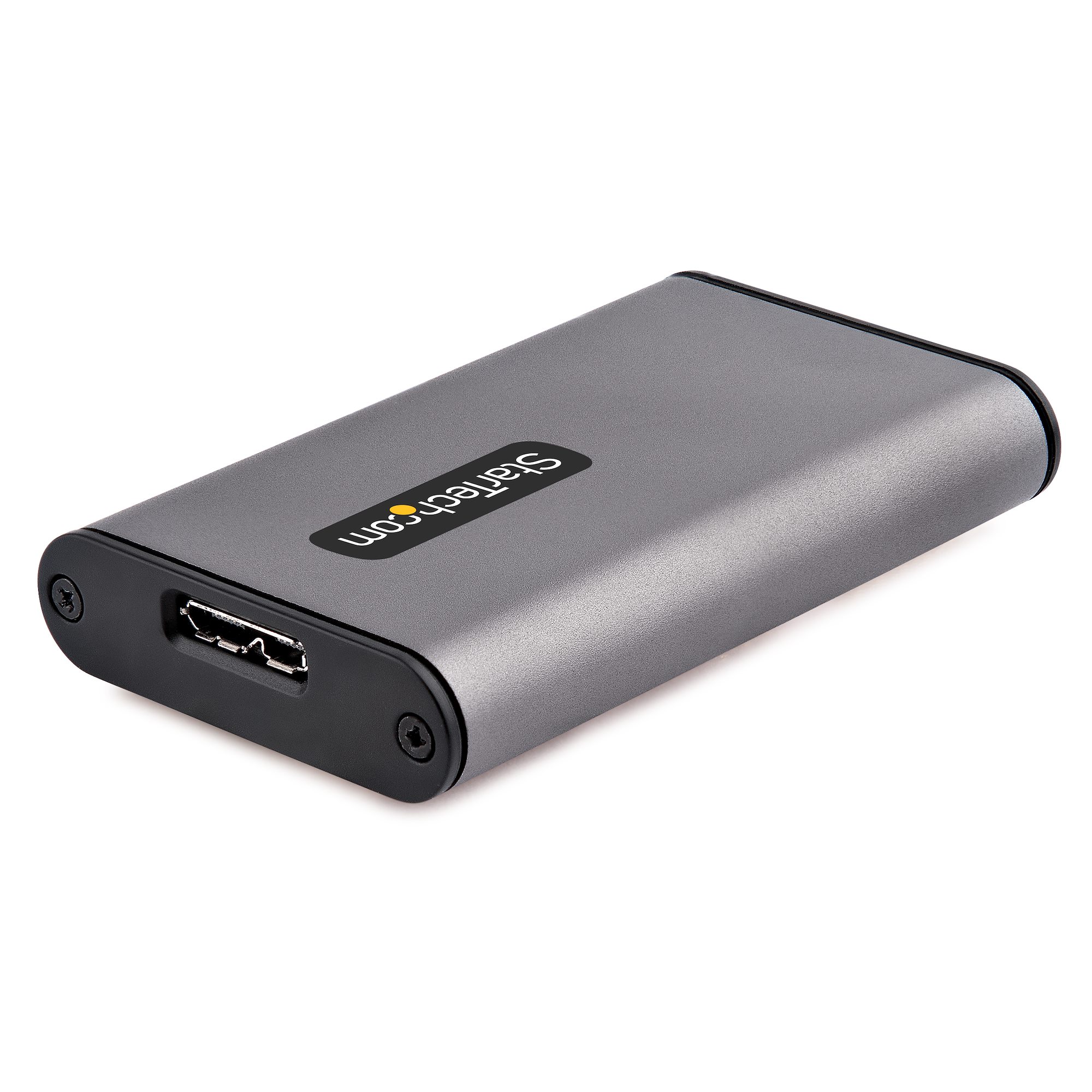

StarTech.com USB 3.0 HDMI Video Capture Device, 4K 30Hz Video Capture Adapter/External USB Capture Card, UVC, Live Stream, Screen Recorder, Works w/ USB-A, USB-C, TB3 - Windows/Mac/Ubuntu
Roll over image to zoom inClick to Open expanded view
StarTech.com USB 3.0 HDMI Video Capture Device, 4K 30Hz Video Capture Adapter/External USB Capture Card, UVC, Live Stream, Screen Recorder, Works w/ USB-A, USB-C, TB3 - Windows/Mac/Ubuntu
StarTech.com USB 3.0 HDMI Video Capture Device, 4K 30Hz Video Capture Adapter/External USB Capture Card, UVC, Live Stream, Screen Recorder, Works w/ USB-A, USB-C, TB3 - Windows/Mac/Ubuntu
StarTech.com USB 3.0 HDMI Video Capture Device, 4K 30Hz Video Capture Adapter/External USB Capture Card, UVC, Live Stream, Screen Recorder, Works w/ USB-A, USB-C, TB3 - Windows/Mac/Ubuntu
Print
Model: 4K30-HDMI-CAPTURE
EAN: 65030895682

StarTech.com USB 3.0 HDMI Video Capture Device, 4K 30Hz Video Capture Adapter/External USB Capture Card, UVC, Live Stream, Screen Recorder, Works w/ USB-A, USB-C, TB3 - Windows/Mac/Ubuntu

Manufacturer:
StarTech.com
StarTech.com USB 3.0 HDMI Video Capture Device, 4K 30Hz Video Capture Adapter/External USB Capture Card, UVC, Live Stream, Screen Recorder, Works w/ USB-A, USB-C, TB3 - Windows/Mac/Ubuntu, Black, Grey, HDMI, 3840 x 2160 pixels, ITE IT66021 / ITE IT9323, D
Please log in to see your price
Related products

Description

StarTech.com USB 3.0 HDMI Video Capture Device, 4K 30Hz Video Capture Adapter/External USB Capture Card, UVC, Live Stream, Screen Recorder, Works w/ USB-A, USB-C, TB3 - Windows/Mac/Ubuntu. Product colour: Black, Grey, Host interface: HDMI, Video capture resolution (max): 3840 x 2160 pixels. Maximum frame rate: 60 fps, Supported video modes: 1080p, 1440p, 2160p. Audio formats supported: PCM. USB connector type: Micro-USB B, USB version: 3.2 Gen 1 (3.1 Gen 1). Power supply type: USB, AC input voltage: 5 V, Input voltage: 5 V
  • PERFORMANCE: The HDMI Video Capture Device records up to 4K 30Hz HDMI / Captures up to 2160p 30fps, 1440p 60fps, or 1080p 120fps / 2ch 16 bit PCM audio support / 32KHz/44.1KHz/48KHz sampling rate / HDCP 1.4 compliant, does not capture protected content
  • USB VIDEO CLASS: UVC ensures driverless, automatic install in Windows, macOS, and Ubuntu / The External USB Capture Card is compatible with DirectShow/QuickTime applications (OBS, Xsplit and VLC) / H.264/H.265 software encoding (MPEG4/MJPEG/YUY2)
  • APPLICATIONS: Record conference calls, presentations, security feeds or training videos using 3rd party software / Live stream for education, corporate presentations, or houses of worship on platforms with RTSP/RTMP / Capture video camera, DSLR or webcams
  • PORTABLE & BUS POWERED: Durable, compact, and lightweight aluminum video capture adapter / Ideal for media rooms, classrooms or recording studios/ Connects directly to a laptop or desktop / 16inch (40cm) USB 3.2 Gen 1 USB-A and USB-C cables included
  • COMPATIBILITY: This screen recorder works with Windows (7 & up), macOS (10.14 & up) and Ubuntu (20.04 & up) / Works w/ Thunderbolt 3 / Works with video editing and collaboration software such as Teams, Google Hangouts, Zoom, Adobe Connect, and GoToMeeting

Product Properties

  • Model
  • 4K30-HDMI-CAPTURE
  • EAN
  • 65030895682
  • Audio
  • Supported audio channels
  • 2
  • Bullet points
  • Point
  • APPLICATIONS
    COMPATIBILITY
    PERFORMANCE
    PORTABLE & BUS POWERED
    USB VIDEO CLASS
  • File formats
  • Audio formats supported
  • PCM
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Master (outer) case length
  • 390 mm
  • Products per master (outer) case
  • 60 pc(s)
  • Operational conditions
  • Operating relative humidity (H-H)
  • 20 - 90%
  • Operating temperature (T-T)
  • 0 - 45 °C
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Other features
  • Master (outer) case height
  • 260 mm
  • Master (outer) case width
  • 490 mm
  • Packaging content
  • Cables included
  • USB Type-A to Micro USB-B, USB Type-C to Micro-USB Type-B
  • Quick installation guide
  • Yes
  • Packaging data
  • Package depth
  • 155 mm
  • Package height
  • 37 mm
  • Package weight
  • 181 g
  • Package width
  • 107 mm
  • Performance
  • Cable length
  • 0.4 m
  • Capturing from
  • Digital camera, PC
  • Chipset
  • ITE IT66021 / ITE IT9323
  • Host interface
  • HDMI
  • Housing material
  • Aluminium
  • Internal
  • No
  • Product colour
  • Black, Grey
  • Video capture resolution (max)
  • 3840 x 2160 pixels
  • Ports & interfaces
  • Audio (L/R) in
  • 0
  • Component video (YPbPr/YCbCr) in
  • 0
  • Composite video in
  • 0
  • HDMI in
  • 1
  • Headphone outputs
  • 0
  • USB connector type
  • Micro-USB B
  • USB port
  • Yes
  • USB version
  • 3.2 Gen 1 (3.1 Gen 1)
  • Power
  • AC input voltage
  • 5 V
  • Input current
  • 0.3 A
  • Input voltage
  • 5 V
  • Power consumption
  • 1.5 W
  • Power supply type
  • USB
  • Software
  • Linux operating systems supported
  • Ubuntu 20.04 LTS
  • Mac compatibility
  • Yes
  • Mac operating systems supported
  • Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
  • Windows operating systems supported
  • Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64
  • Technical details
  • Compliance certificates
  • CE, RoHS
  • Video
  • HDCP
  • Yes
  • HDCP version
  • 1.4
  • Maximum frame rate
  • 60 fps
  • Supported video modes
  • 1080p, 1440p, 2160p
  • Weight & dimensions
  • Depth
  • 73 mm
  • Height
  • 12 mm
  • Weight
  • 41 g
  • Width
  • 44 mm
