Description

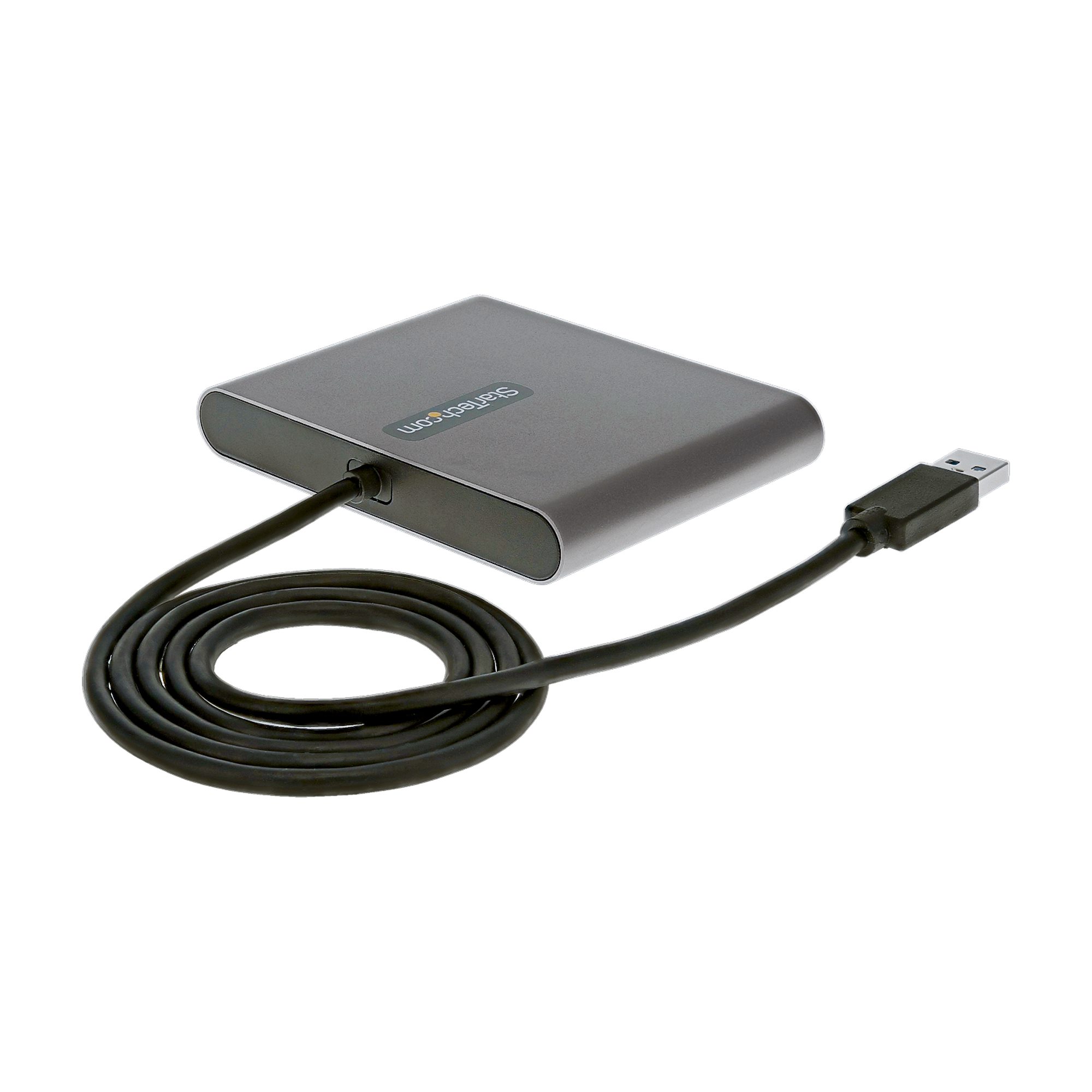

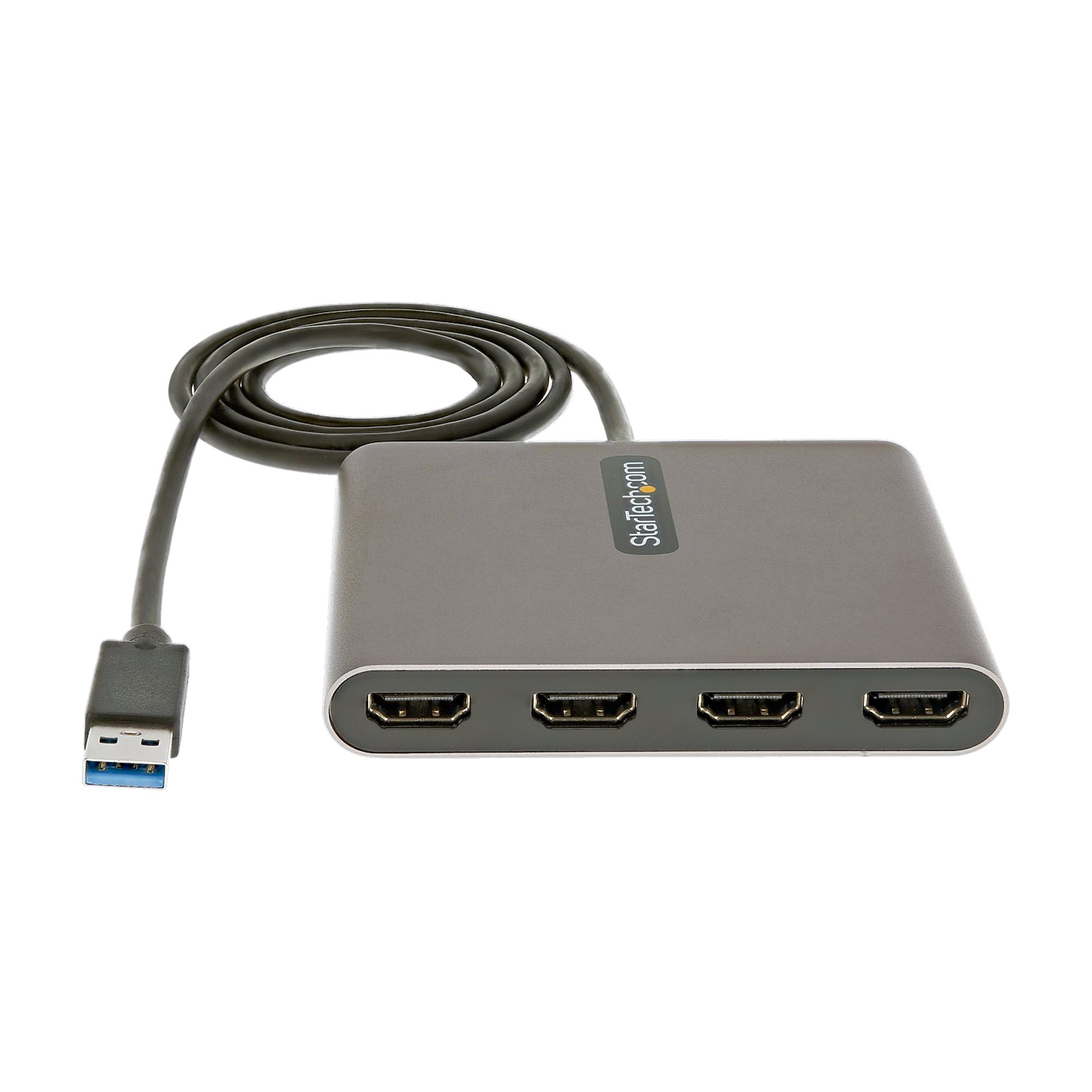

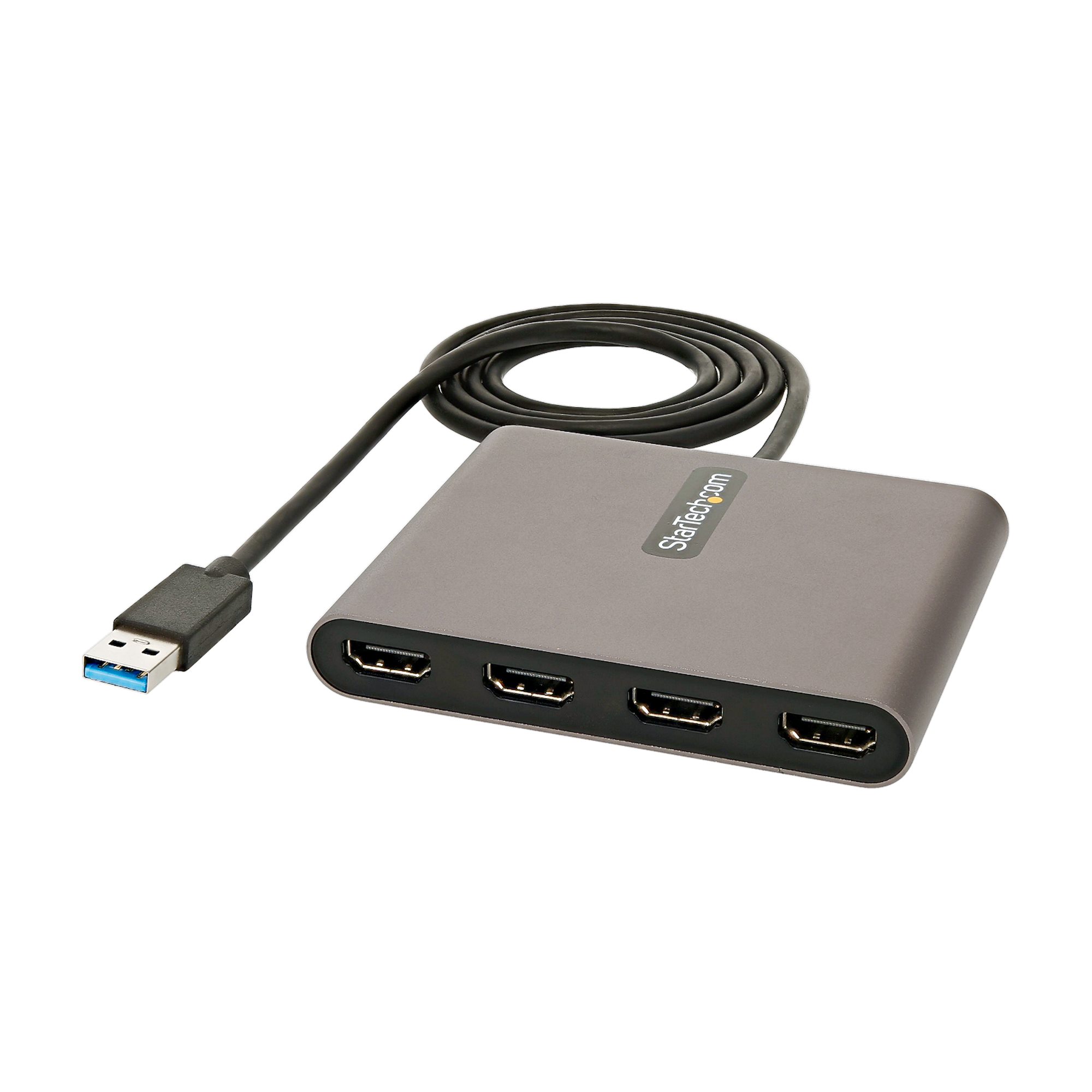

StarTech.com USB 3.0 to Quad HDMI Adapter, USB to 4x HDMI Monitor Converter for Windows (no support for macOS/ChromeOS/Linux) - TAA. USB version: 3.2 Gen 1 (3.1 Gen 1), USB connector type: USB Type-A, USB connector gender: Male. Product colour: Grey, Housing material: Aluminium. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10.... Width: 80 mm, Depth: 101 mm, Height: 16 mm. Package width: 207 mm, Package depth: 144 mm, Package height: 38 mm

COMPATIBILITY: This adapter is only compatible with Windows and does not support macOS, ChromeOS or Linux; Works with all Windows X86/X64/ARM platforms: Intel, AMD, and Snapdragon X Copilot+ PC; Administrator rights are required to install the drivers

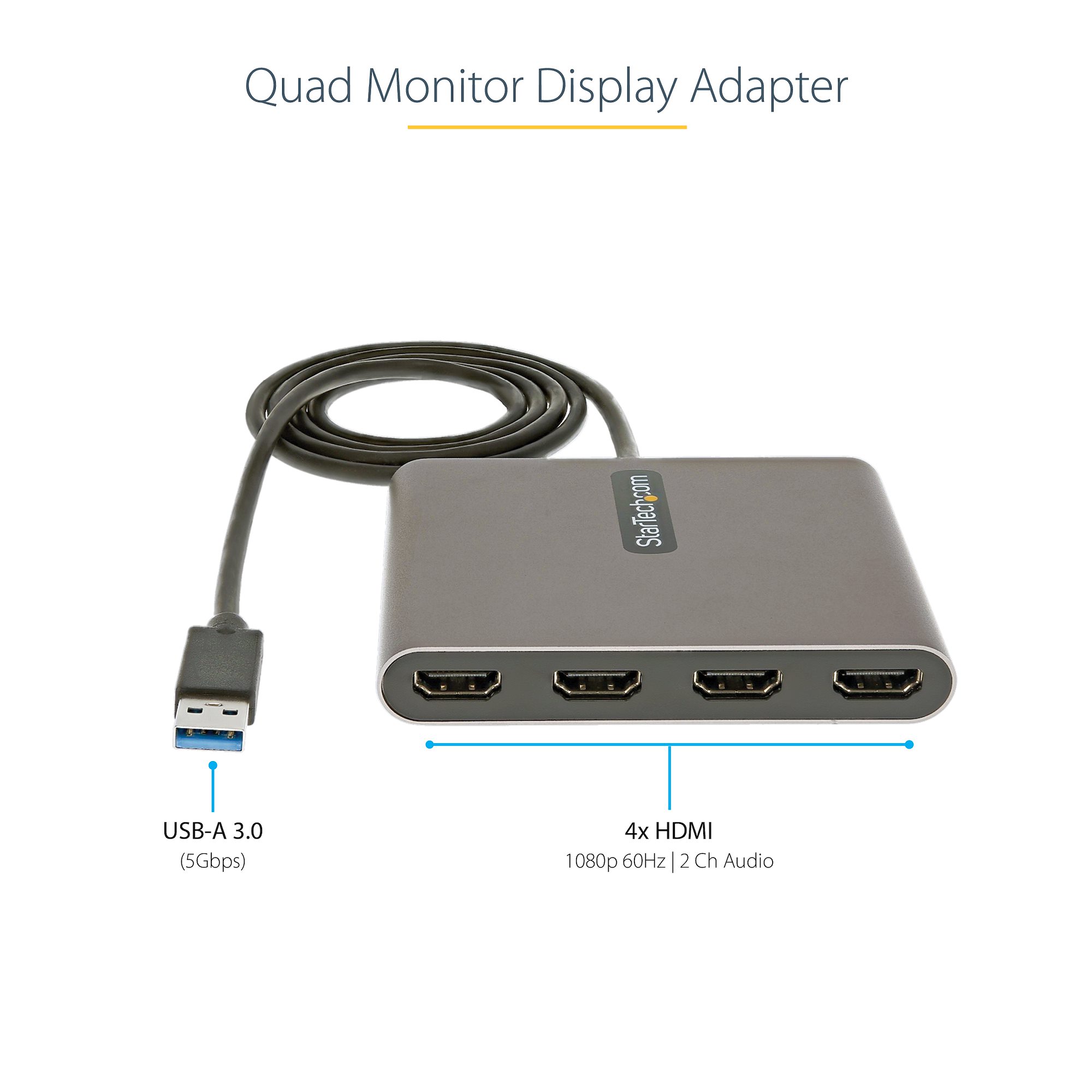

QUAD MONITOR DISPLAY ADAPTER: USB 3.0 to 4x HDMI video adapter lets you extend your desktop by adding up to four HDMI monitors to your laptop or desktop computer; 4x 1080p 60Hz displays; 2ch audio (one source replicated to all displays through HDMI)

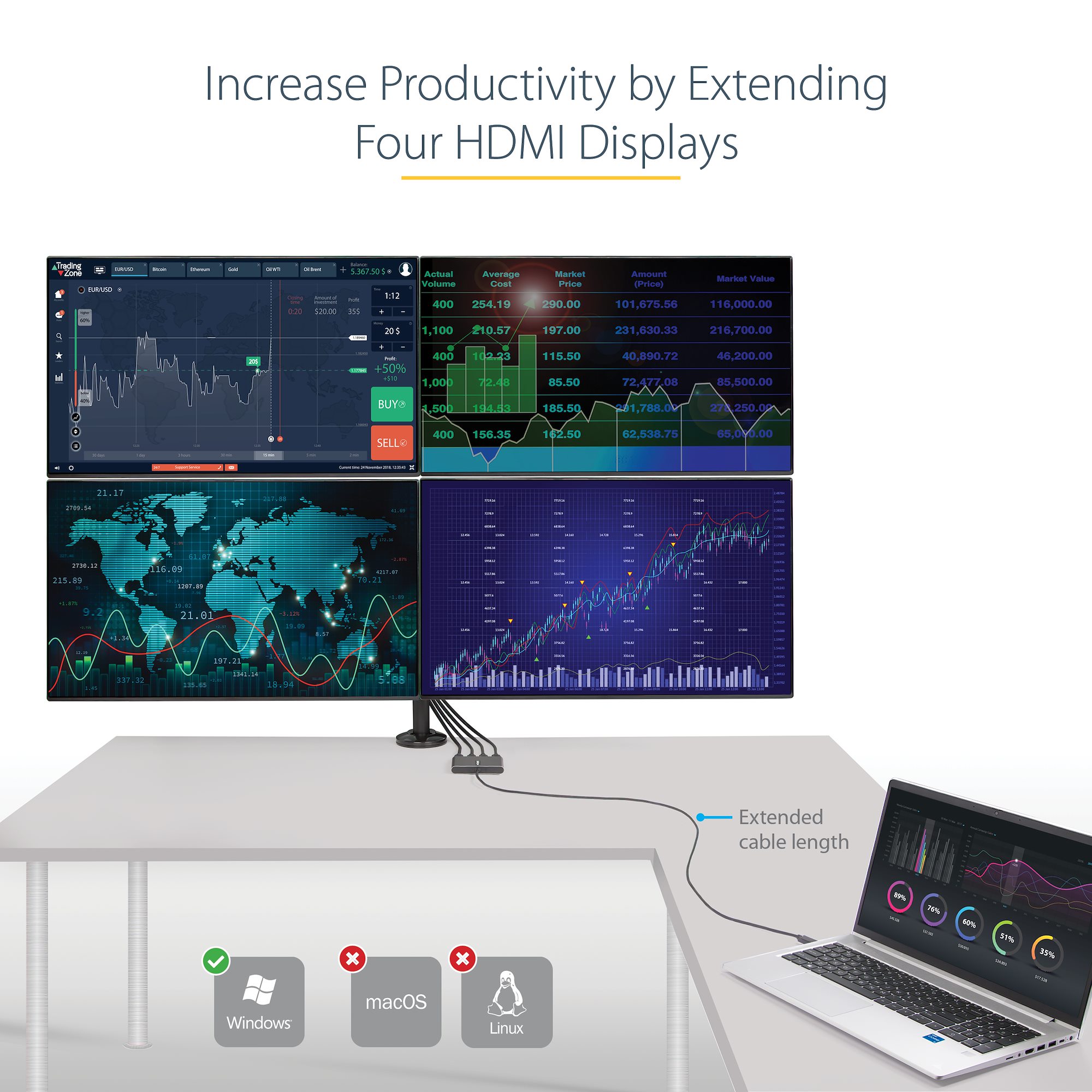

INCREASE PRODUCTIVITY: USB 3.0 to HDMI adapter supports a total of 5 displays in extended mode (incl. laptop screen) at your workstation or working remotely from home; External video graphics card is USB bus-powered with no extra power supply required

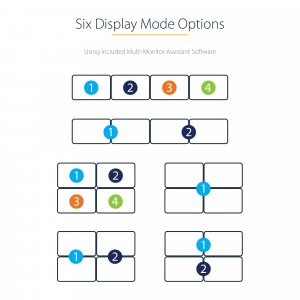

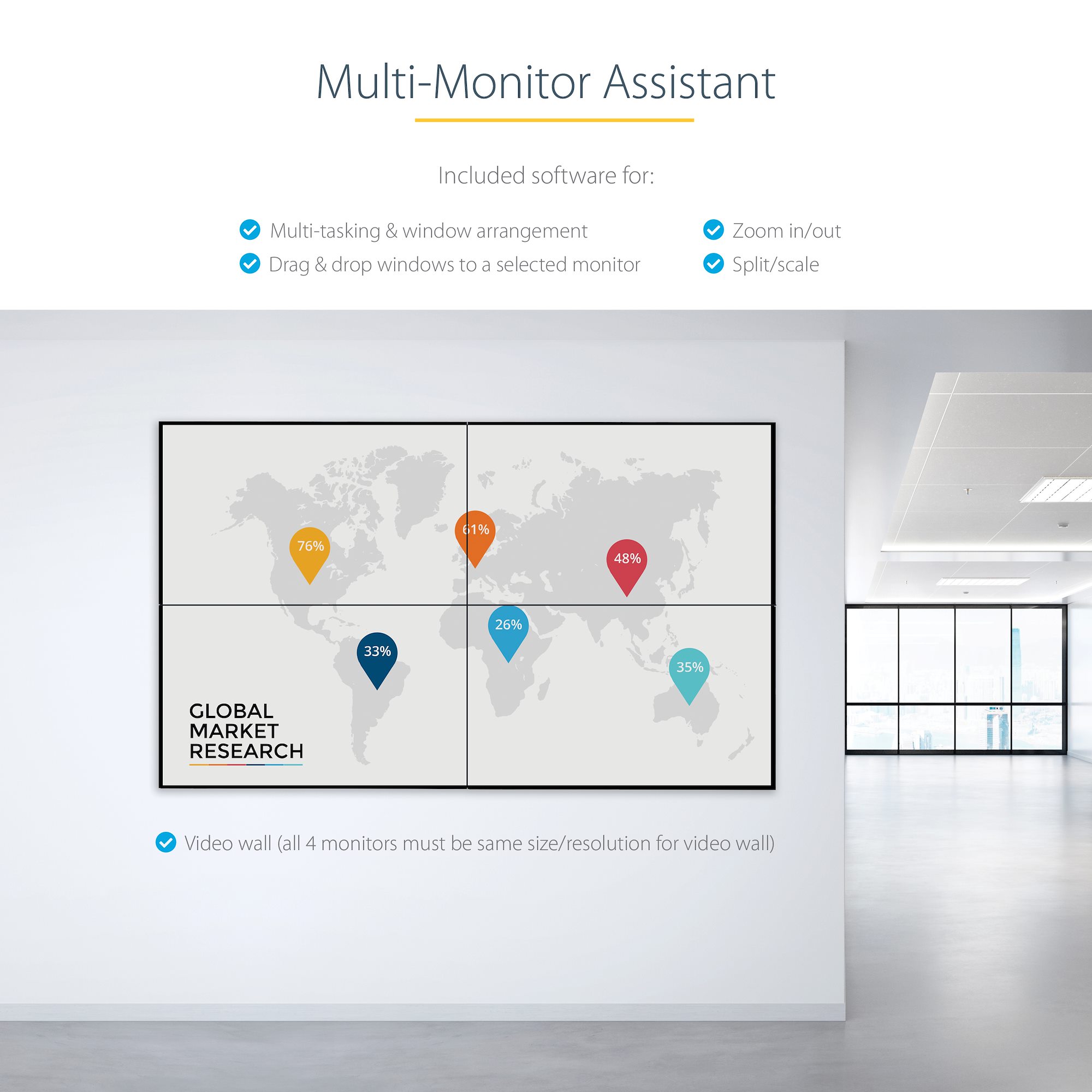

MULTI-MONITOR ASSISTANT: Increase productivity w/ included software for multi-tasking and window arrangement; drag & drop windows to a selected monitor, zoom in/out, and split/scale

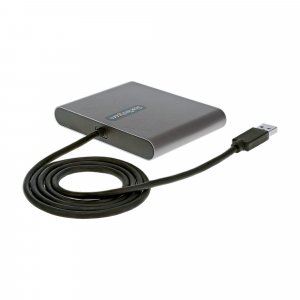

EASY SETUP: USB-A to HDMI quad monitor adapter dongle is equipped w/ a 3.3ft (1m) attached USB-A cable for added distance between the adapter & host device for multiple monitor workspace or HDTV boardroom setup

Product Properties

Manufacturer
StarTech.com

Model
USB32HD4

EAN
65030888721

Bullet points

Point
COMPATIBILITY

EASY SETUP

INCREASE PRODUCTIVITY

MULTI-MONITOR ASSISTANT

QUAD MONITOR DISPLAY ADAPTER

Design

Housing material
Aluminium

Integrated USB cable
Yes

Product colour
Grey

Logistics data

Harmonized System (HS) code
84733020

Master (outer) case height
430 mm

Master (outer) case length
310 mm

Master (outer) case width
445 mm

Products per master (outer) case
40 pc(s)

Operational conditions

Operating relative humidity (H-H)
0 - 85%

Operating temperature (T-T)
0 - 45 °C

Storage temperature (T-T)
-10 - 75 °C

Packaging content

Quick installation guide
Yes

Packaging data

Package depth
144 mm

Package height
38 mm

Package weight
280 g

Package width
207 mm

Performance

Chipset
Trigger T6-688SL, IT66121

DisplayPort output
No

DVI output
No

HDMI output
Yes

HDMI ports quantity
4

Maximum resolution
1920 x 1080 pixels

Number of displays supported
4

Refresh rate at maximum resolution
60 Hz

USB connector form factor
Straight

USB connector gender
Male

USB connector type
USB Type-A

USB version
3.2 Gen 1 (3.1 Gen 1)

System requirements

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64

Technical details

Compliance certificates
CE, RoHS

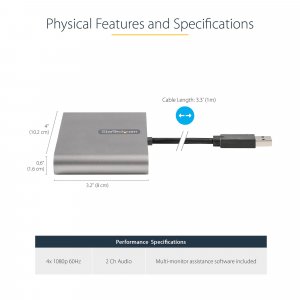

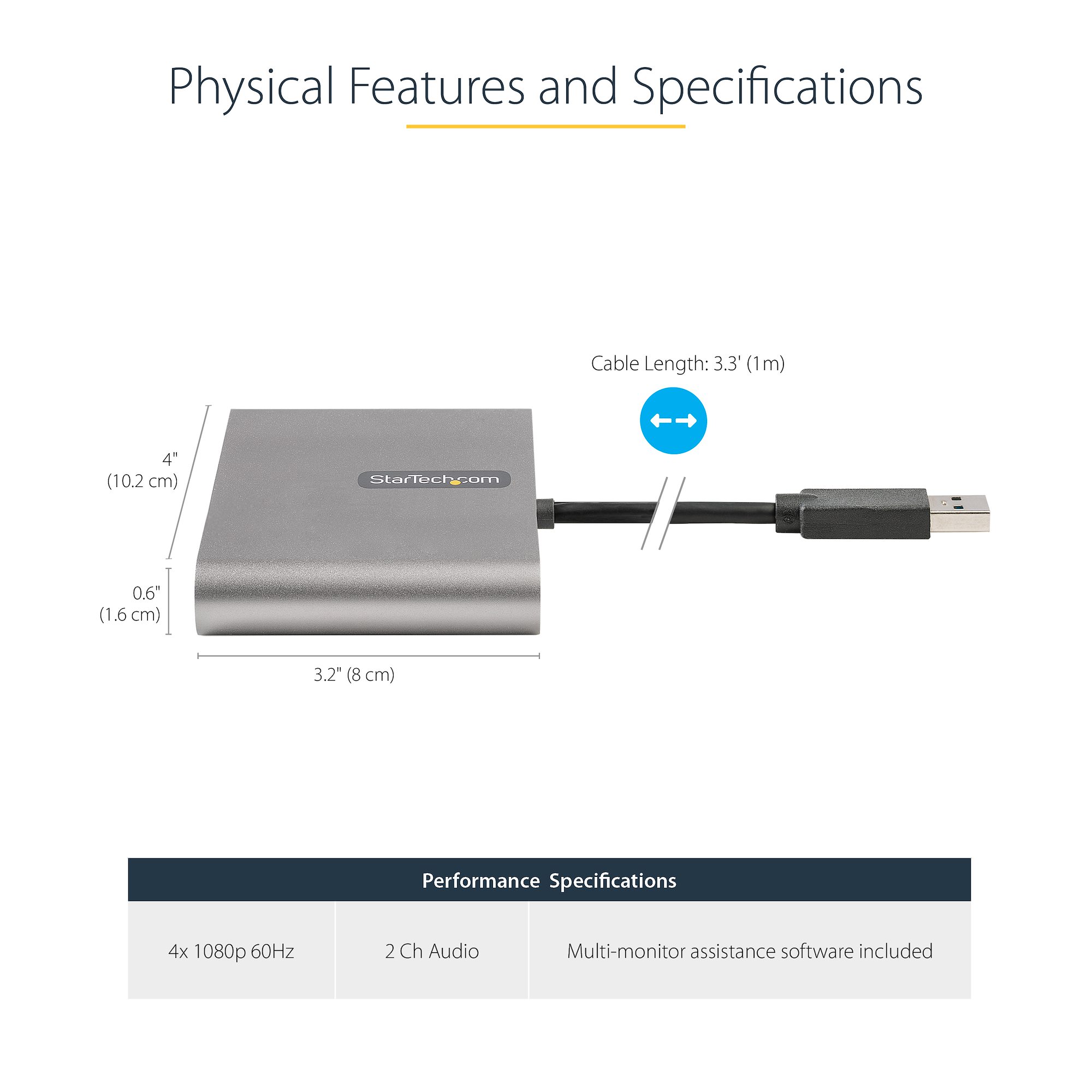

Weight & dimensions

Depth
101 mm

Height
16 mm

USB cable length
1 m

Weight
180 g

Width
80 mm
