Description

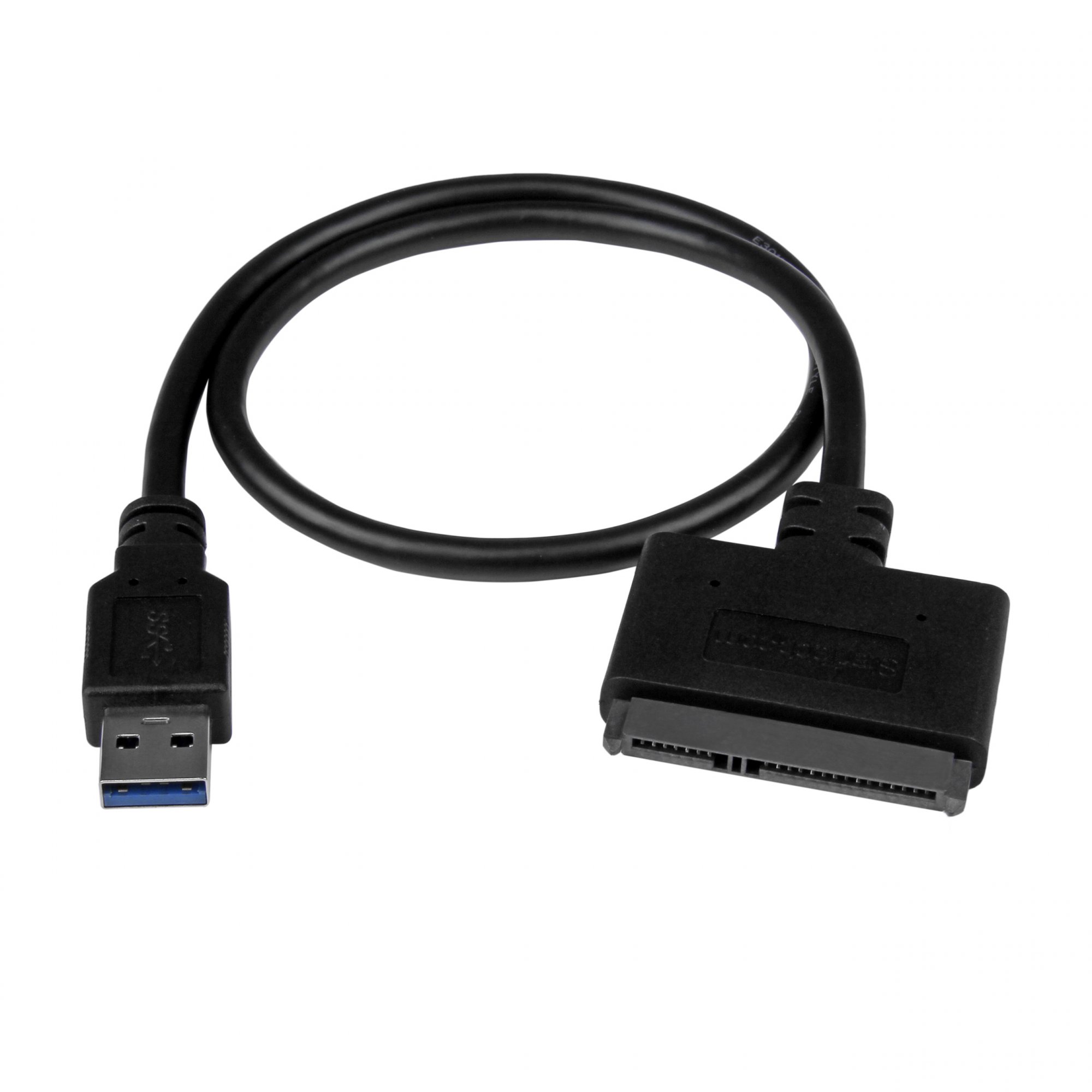

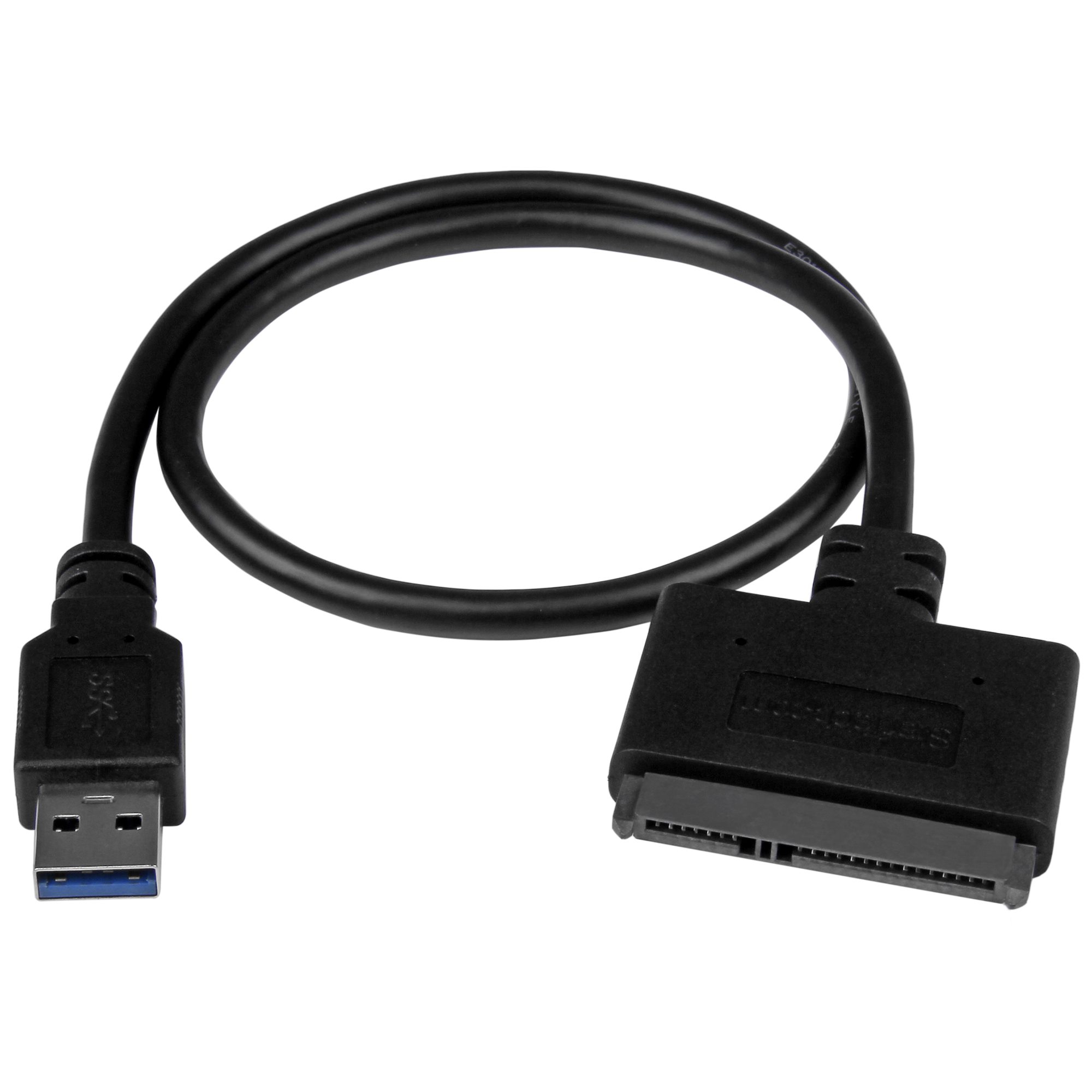

StarTech.com USB 3.1 to 2.5" SATA Hard Drive Adapter - USB 3.1 Gen 2 10Gbps with UASP External HDD/SSD Storage Converter. Connector 1: USB 3.1 A, Connector 2: SATA 7+15 pin, Cable length: 0.5 m. Product colour: Black

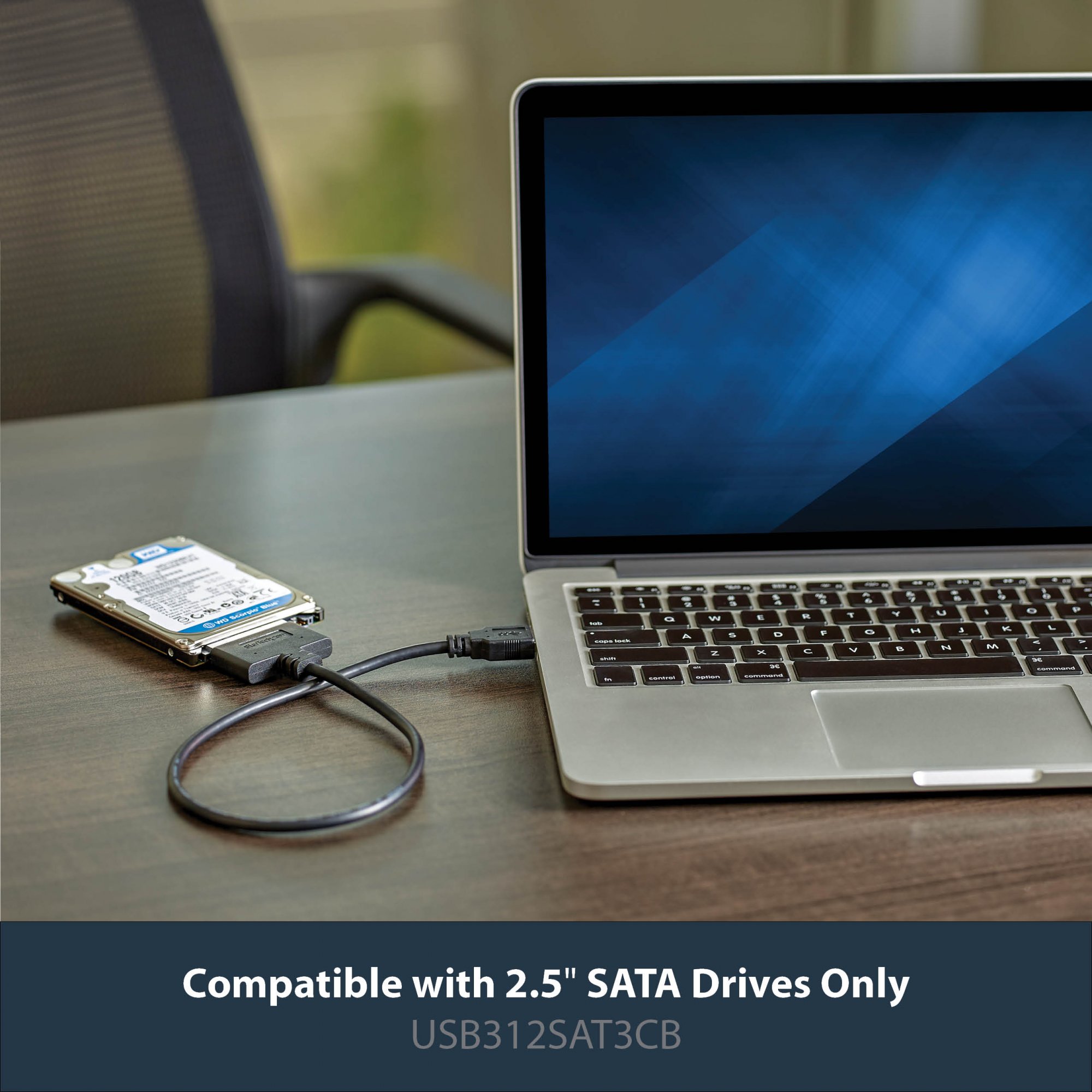

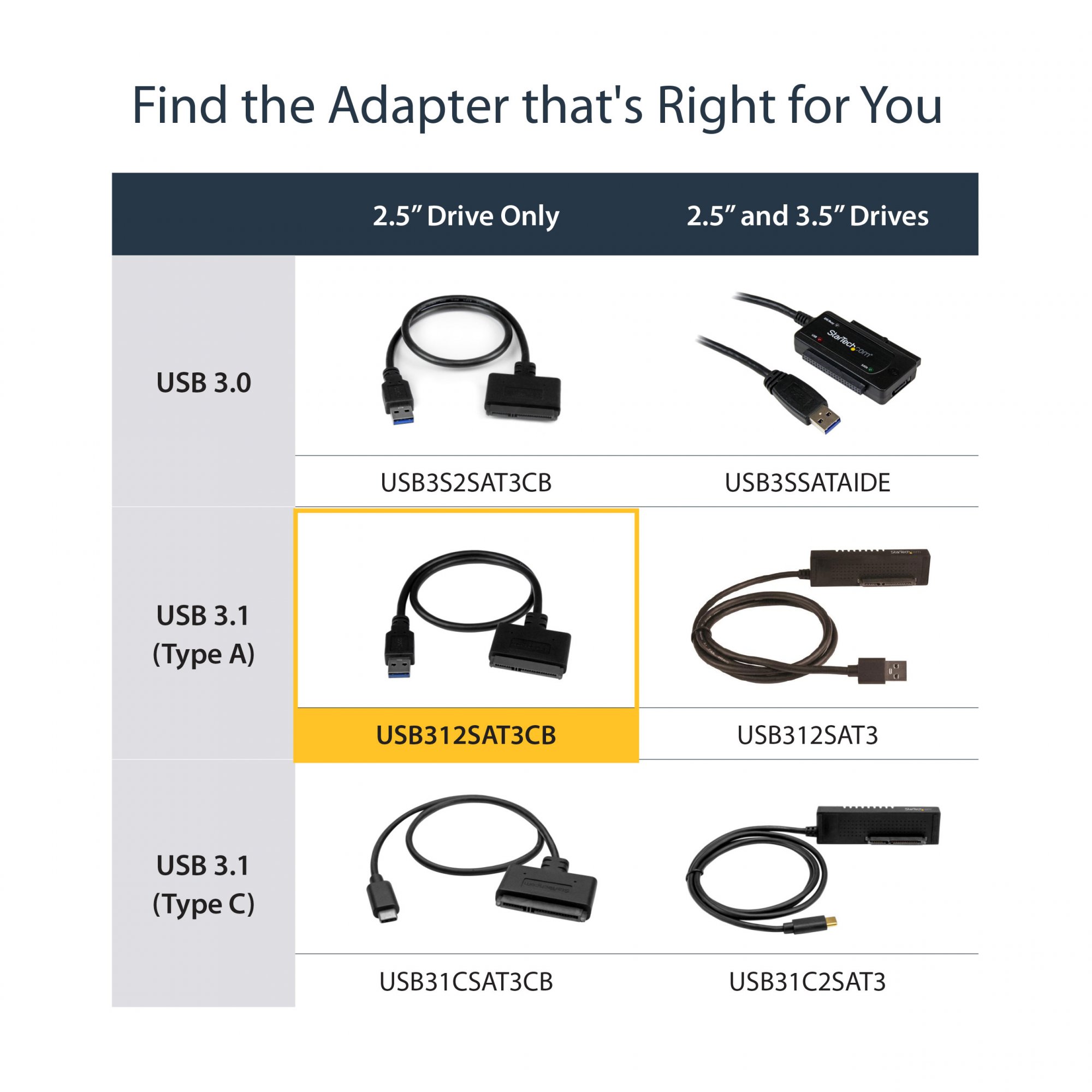

QUICKLY ACCESS A SATA SSD OR HDD: This USB 3.1 to SATA cable delivers instant access to your 2.5" SATA drives from your laptop or computer; The adapter is compatible with SATA I, II and III (up to 6Gbps) NOTE: Supports 2.5" SATA drives only. For 3.5" drives please see our USB312SAT3

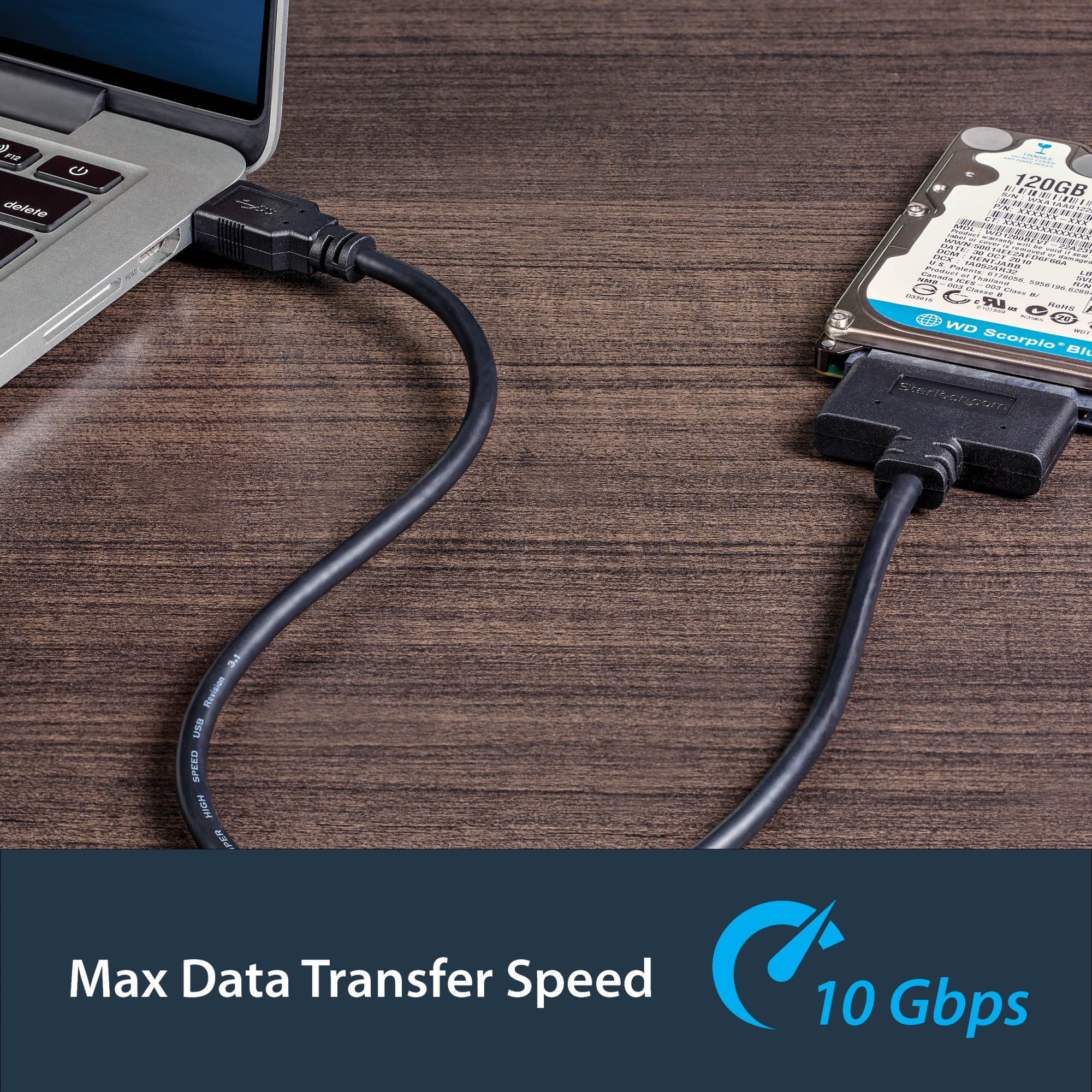

FAST TRANSFER SPEEDS & UASP SUPPORT: The SATA hard drive adapter cable lets users experience enhanced performance and super-fast data transfer speeds with support for USB 3.1 (10Gbps) and UASP

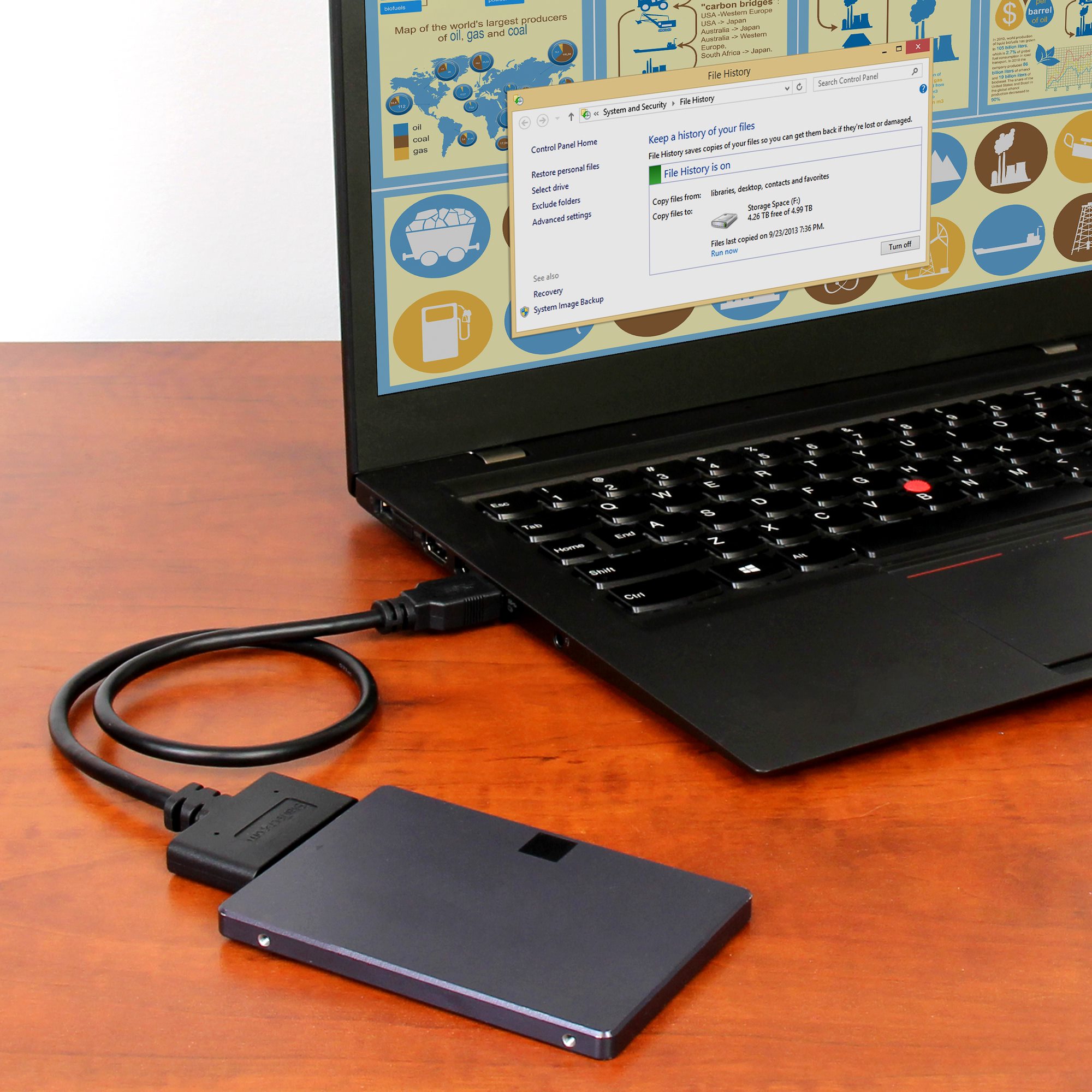

CONNECT FROM ANYWHERE: The external HDD / SSD storage converter delivers perfect portability, tucking away nicely in a laptop bag; The cable-style adapter is USB-powered so no external power cords are required

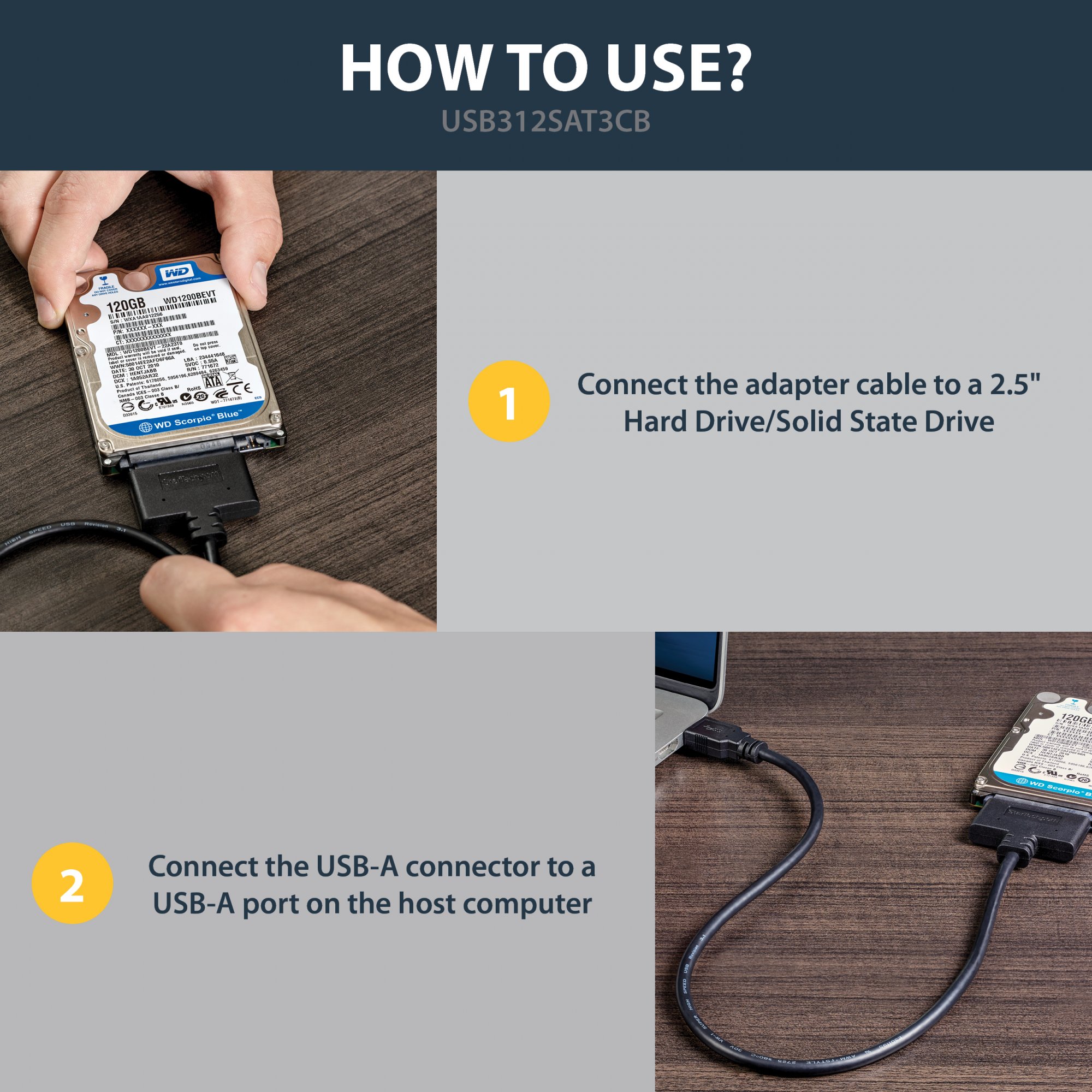

PLUG-AND-PLAY: Access any 2.5" hard drive or solid-state drive from any USB enabled computer by simply plugging in the SATA adapter cable; you can easily swap between drives with no need to install the drive inside an enclosure

Product Properties

Manufacturer
StarTech.com

Model
USB312SAT3CB

EAN
65030861779

Bullet points

Point
CONNECT FROM ANYWHERE

FAST TRANSFER SPEEDS & UASP SUPPORT

Plug-and-play

QUICKLY ACCESS A SATA SSD OR HDD

Certificates

Compliance certificates
CE, RoHS

Logistics data

Master (outer) case height
420 mm

Master (outer) case length
415 mm

Master (outer) case width
435 mm

Products per master (outer) case
200 pc(s)

Operational conditions

Operating temperature (T-T)
0 - 70 °C

Relative humidity
40 - 50%

Storage temperature (T-T)
-10 - 55 °C

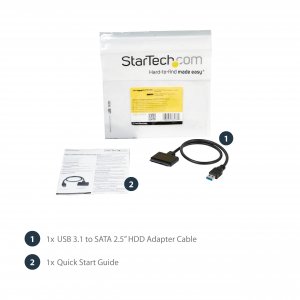

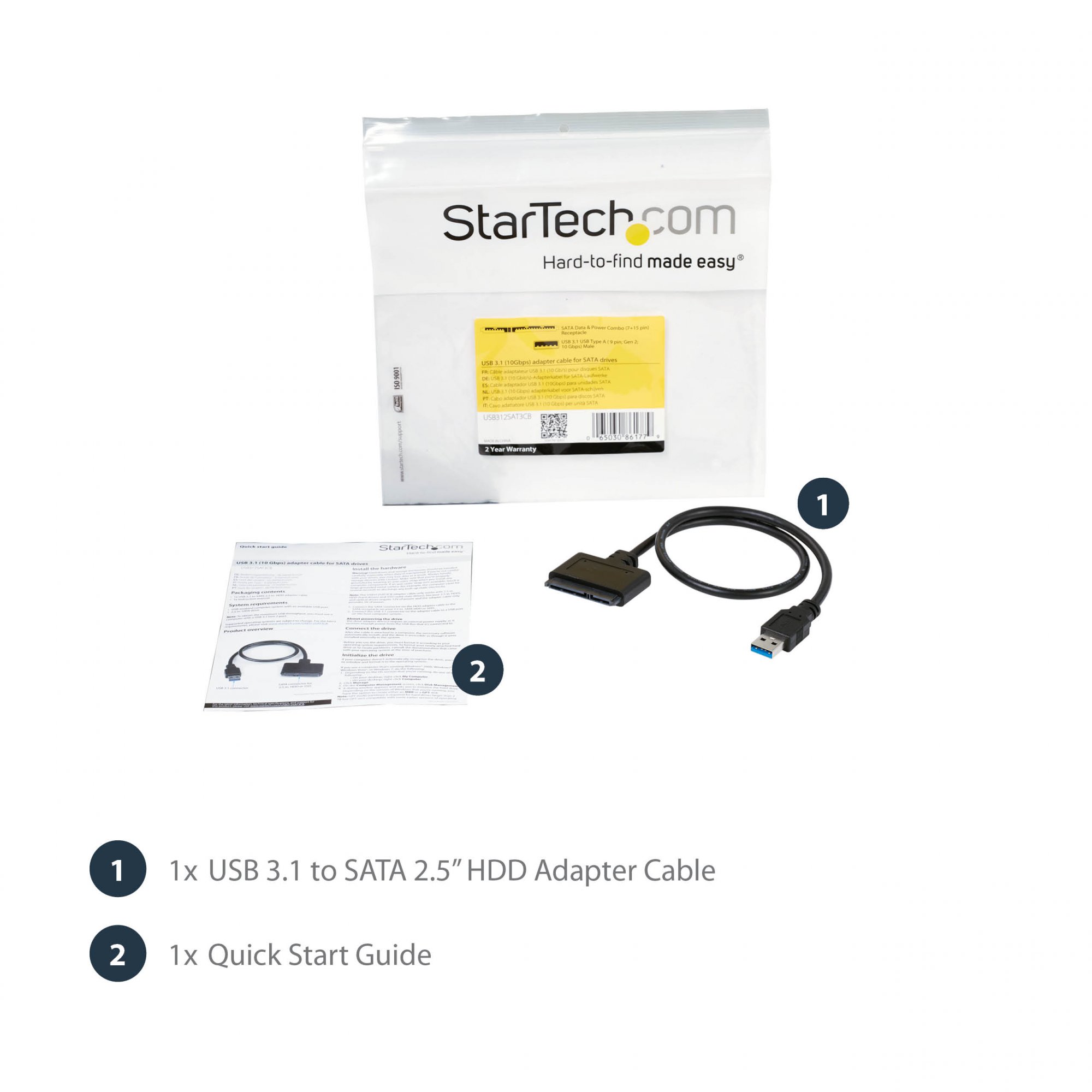

Packaging content

Manual
Yes

Packaging data

Package depth
220 mm

Package height
10 mm

Package weight
52 g

Package width
198 mm

Performance

Chipset
ASMedia - ASM1351

Data transfer rate
10 Gbit/s

Hot-swap
Yes

Housing material
Plastic

Maximum supported storage capacity
2 TB

Product colour
Black

Storage drive sizes supported
2.5"

UASP support
Yes

Ports & interfaces

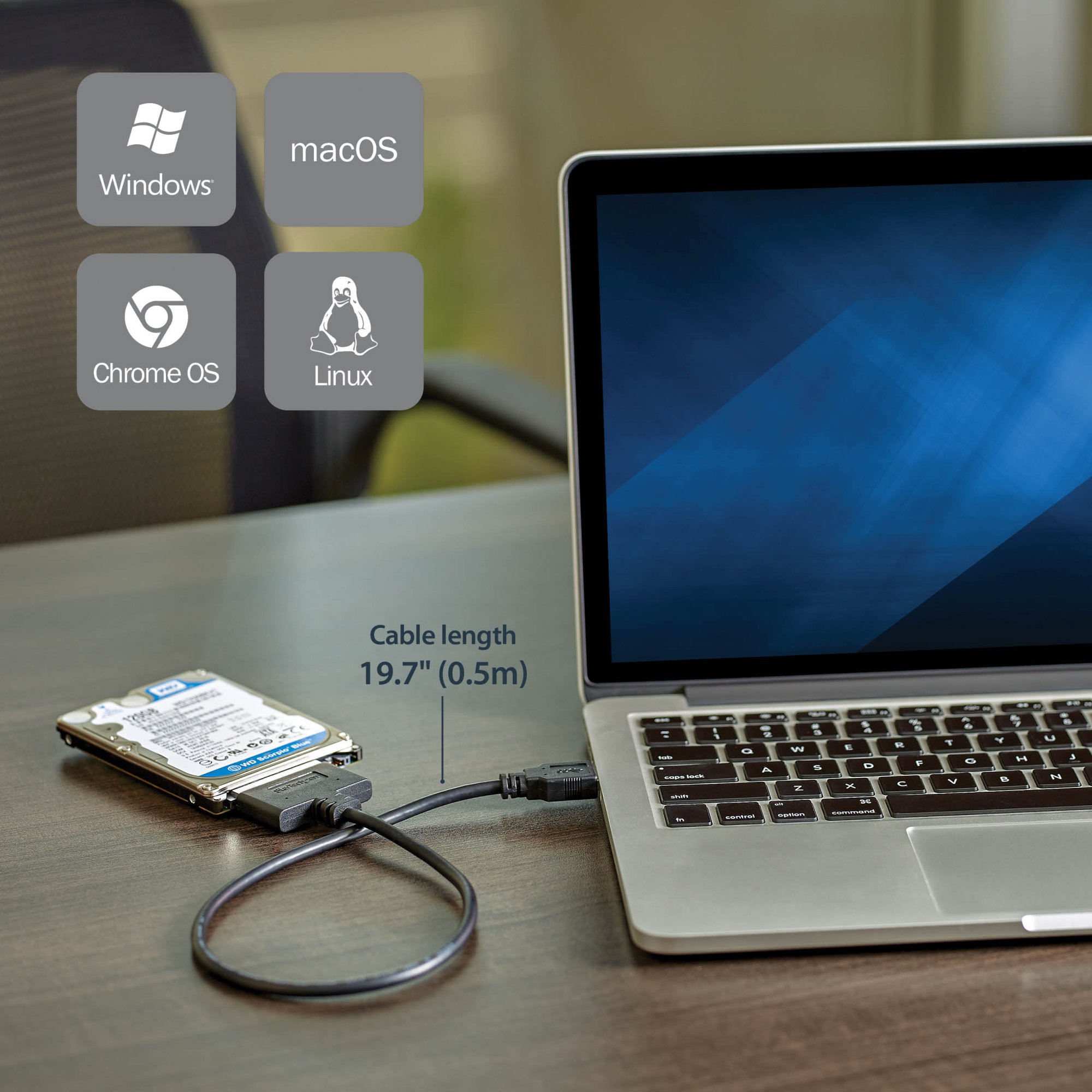

Cable length
0.5 m

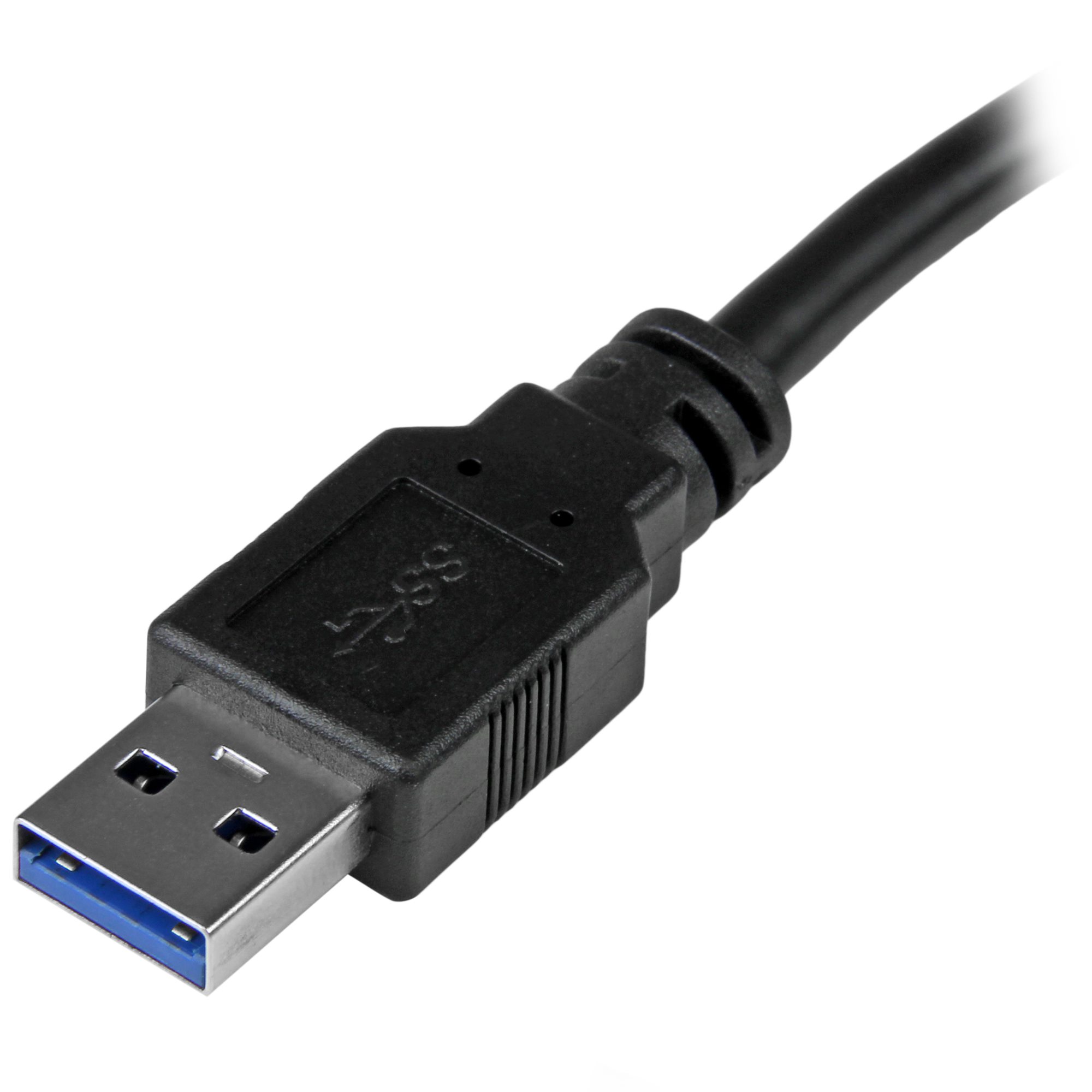

Connector 1
USB 3.1 A

Connector 1 form factor
Straight

Connector 1 gender
Male

Connector 2

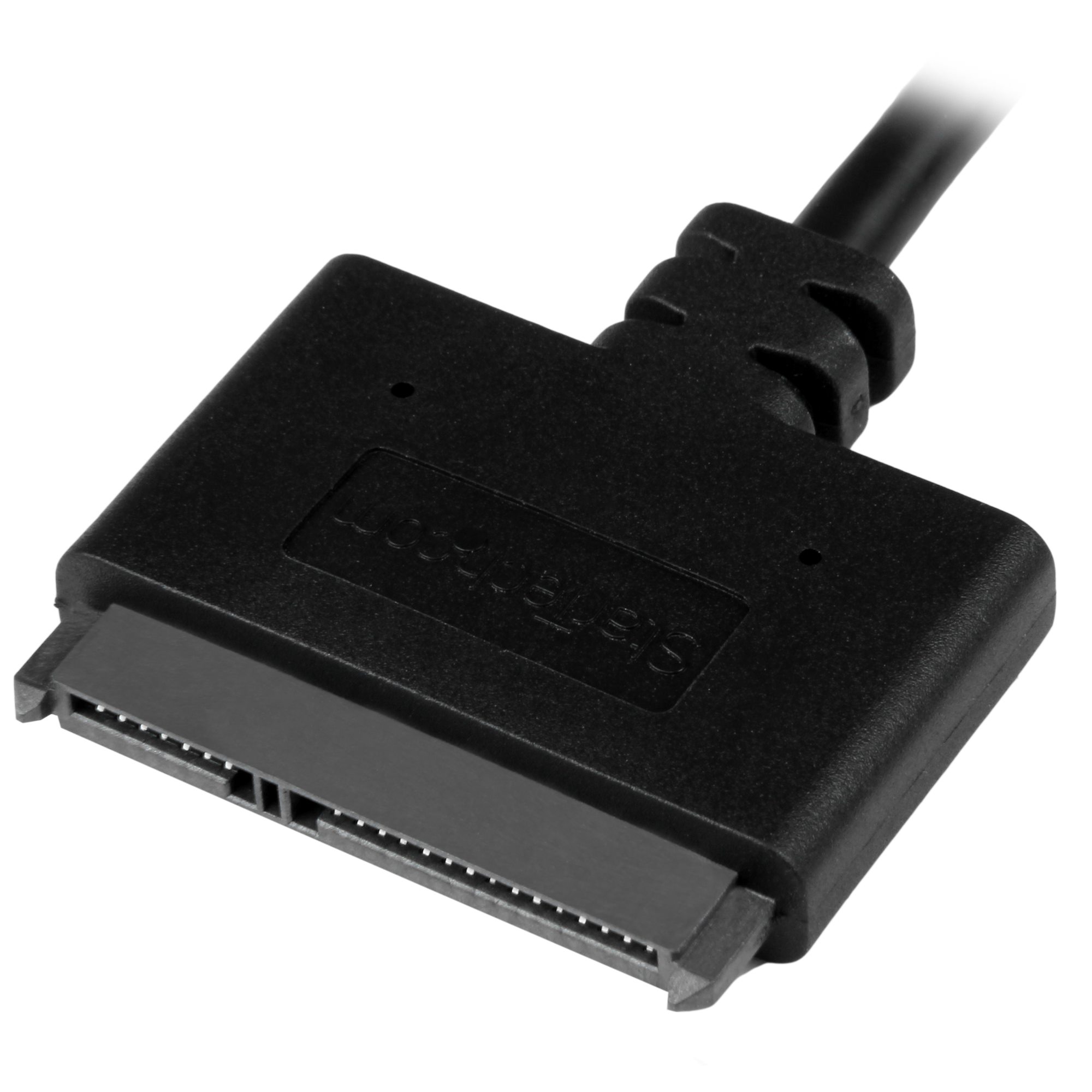

SATA 7+15 pin

Connector 2 form factor
Straight

Connector 2 gender
Male

Power

USB powered
Yes

Sustainability

Sustainability certificates
CE, RoHS

Weight & dimensions

Depth
515 mm

Height
8 mm

Weight
39 g

Width
45 mm
