Description

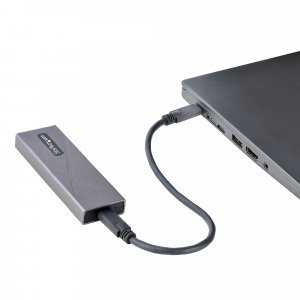

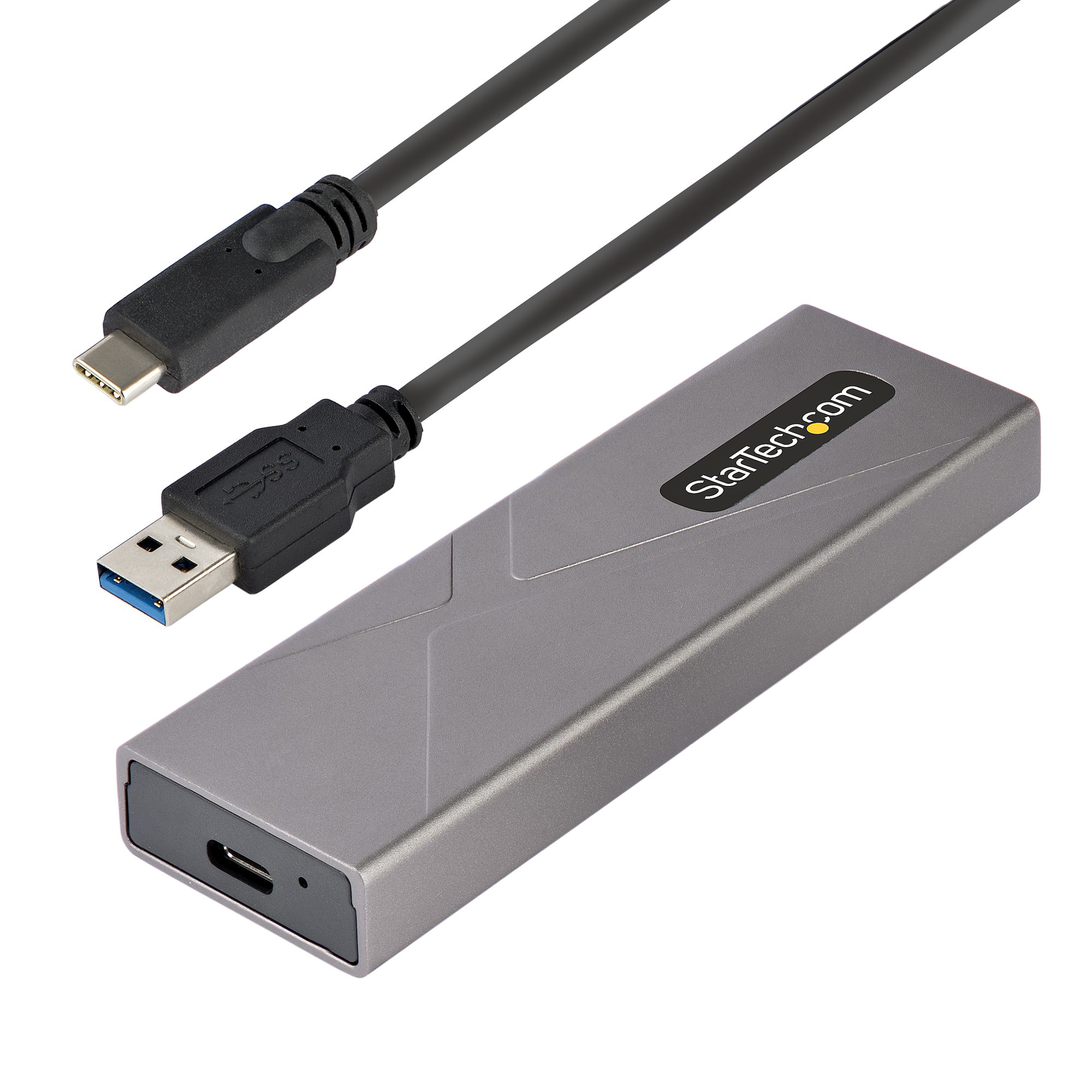

StarTech.com USB-C 10Gbps to M.2 NVMe or M.2 SATA SSD Enclosure - Tool-free External M.2 PCIe/SATA NGFF SSD Aluminum Case - USB Type-C&A Host Cables - Supports 2230/2242/2260/2280. Product type: SSD enclosure. Number of storage drives supported: 1, Storage drive size: M.2, Supported storage drive interfaces: M.2. Data transfer rate: 10 Gbit/s. Product colour: Grey. USB connector type: USB Type-C

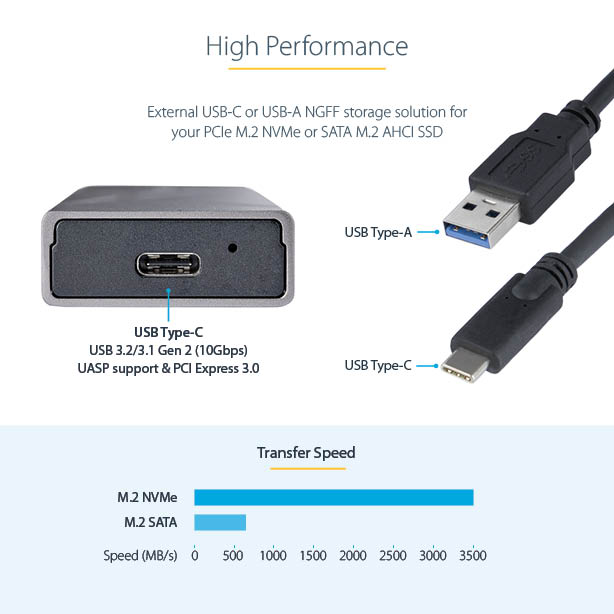

HIGH PERFORMANCE: External USB-C or USB-A NGFF storage solution for your PCIe M.2 NVMe or SATA M.2 AHCI SSD; This enclosure features USB 3.2 Gen 2 (10Gbps) with UASP support & PCI Express 3.0; Compatible with thunderbolt 3/4 host computers

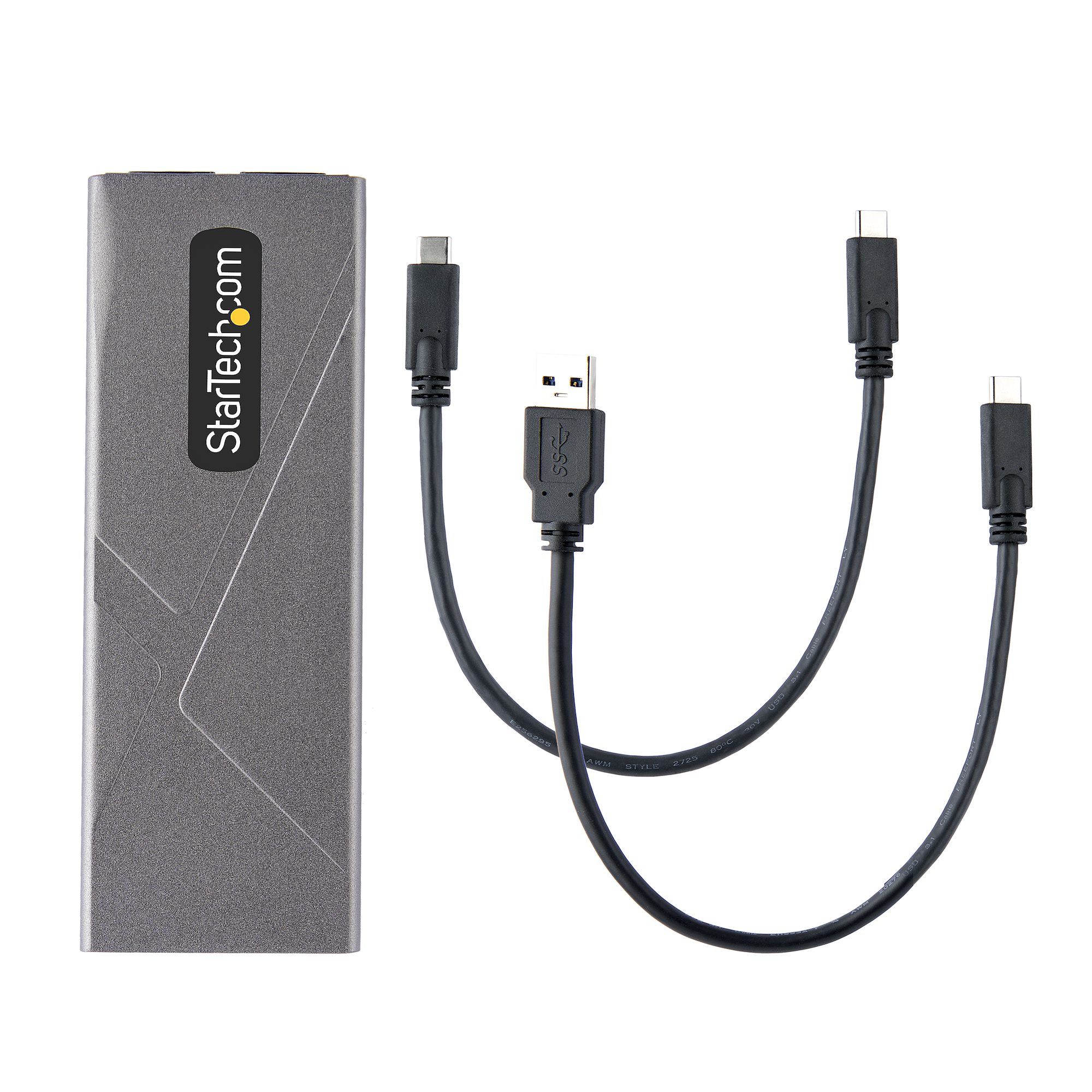

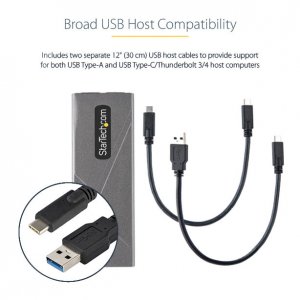

COMPATIBILITY: M.2 SATA or M.2 NVMe SSD enclosure comes with two separate 12in (30 cm) USB host cables to provide support for both USB Type-A and USB Type-C; OS Support includes Windows, Mac, Chrome, Linux, Ubuntu & iOS (iPhone 15 [Plus/Pro/Max] and up)

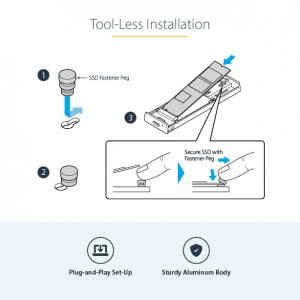

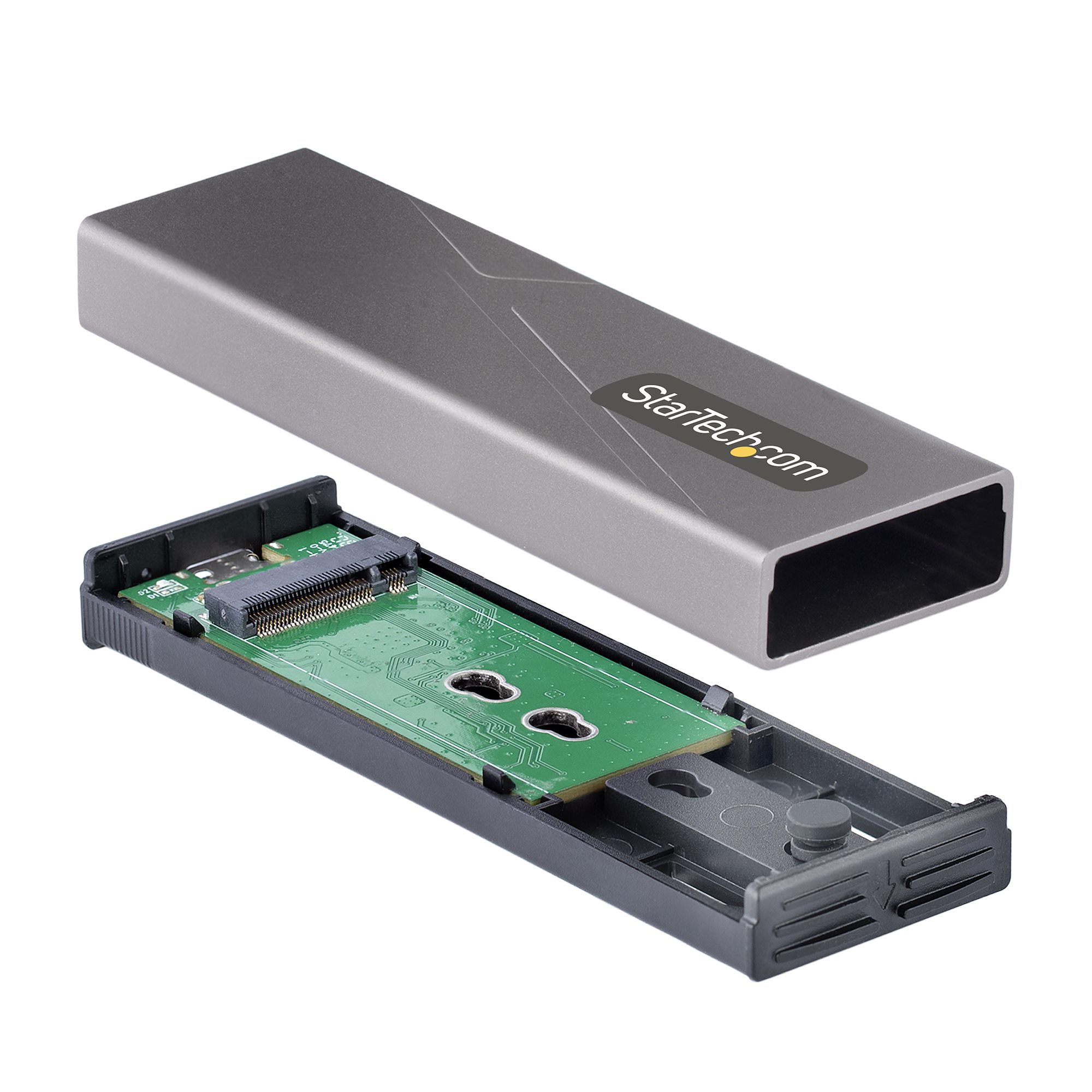

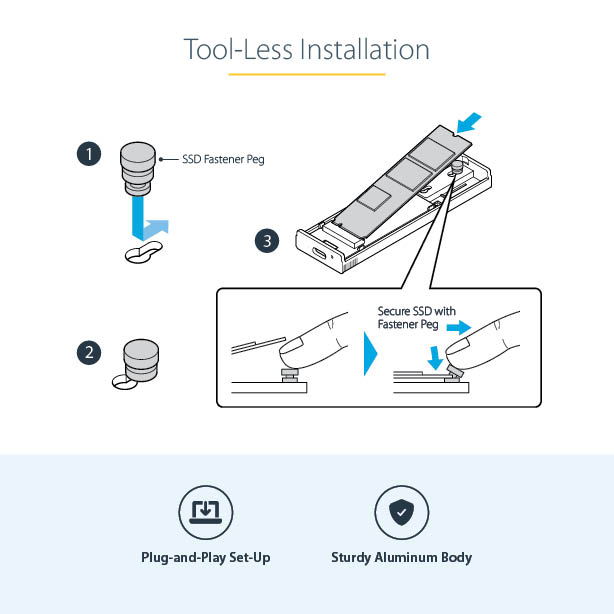

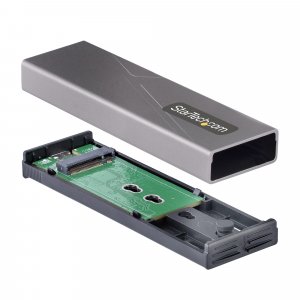

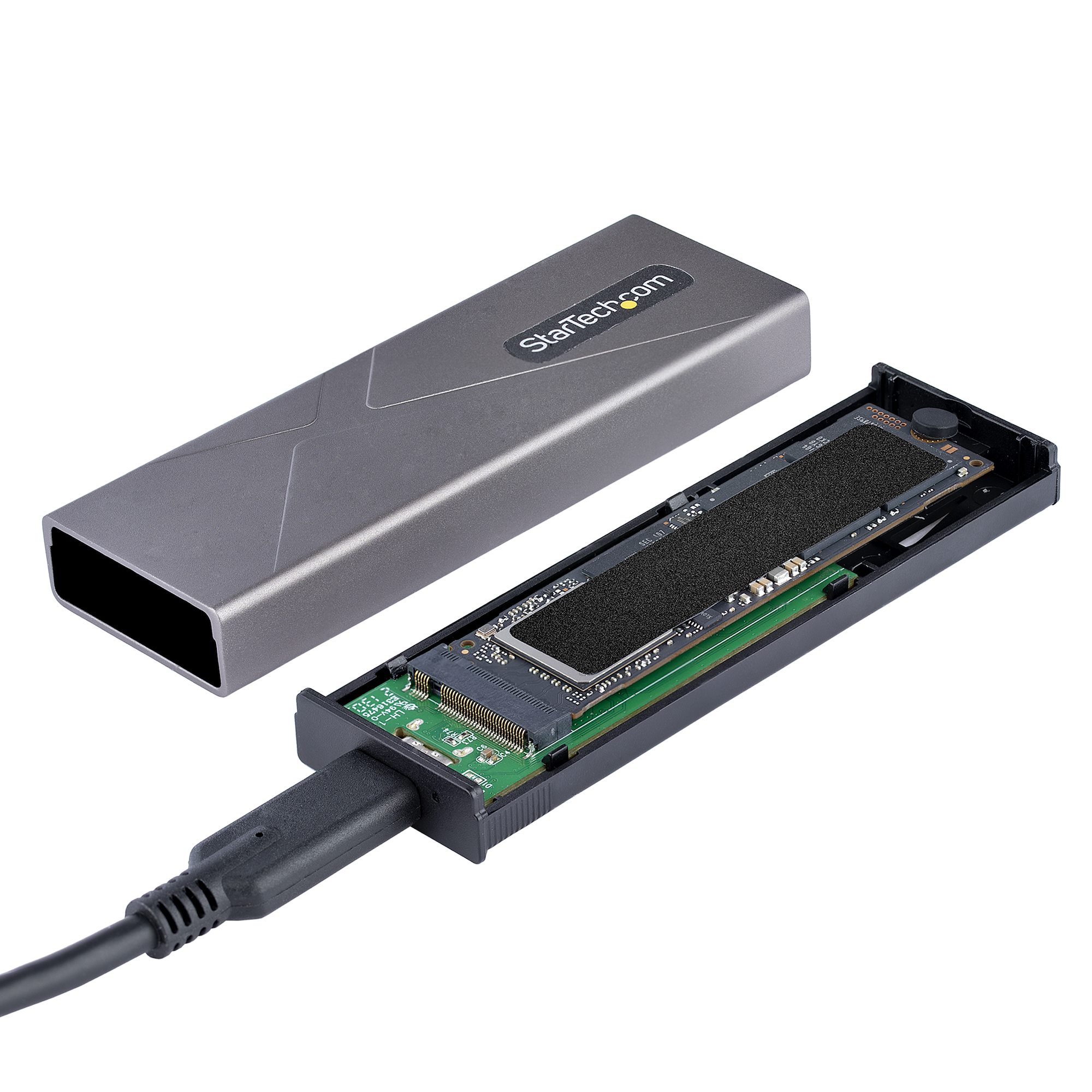

TOOL-LESS INSTALLATION: The M2 SATA or M.2 NVMe SSD (solid state drive) adapter features driverless plug-and-play setup and a tool-less case design for hassle free drive installation

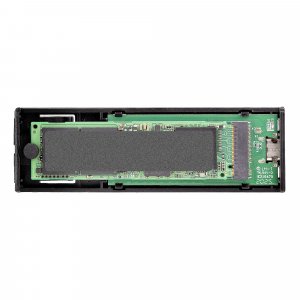

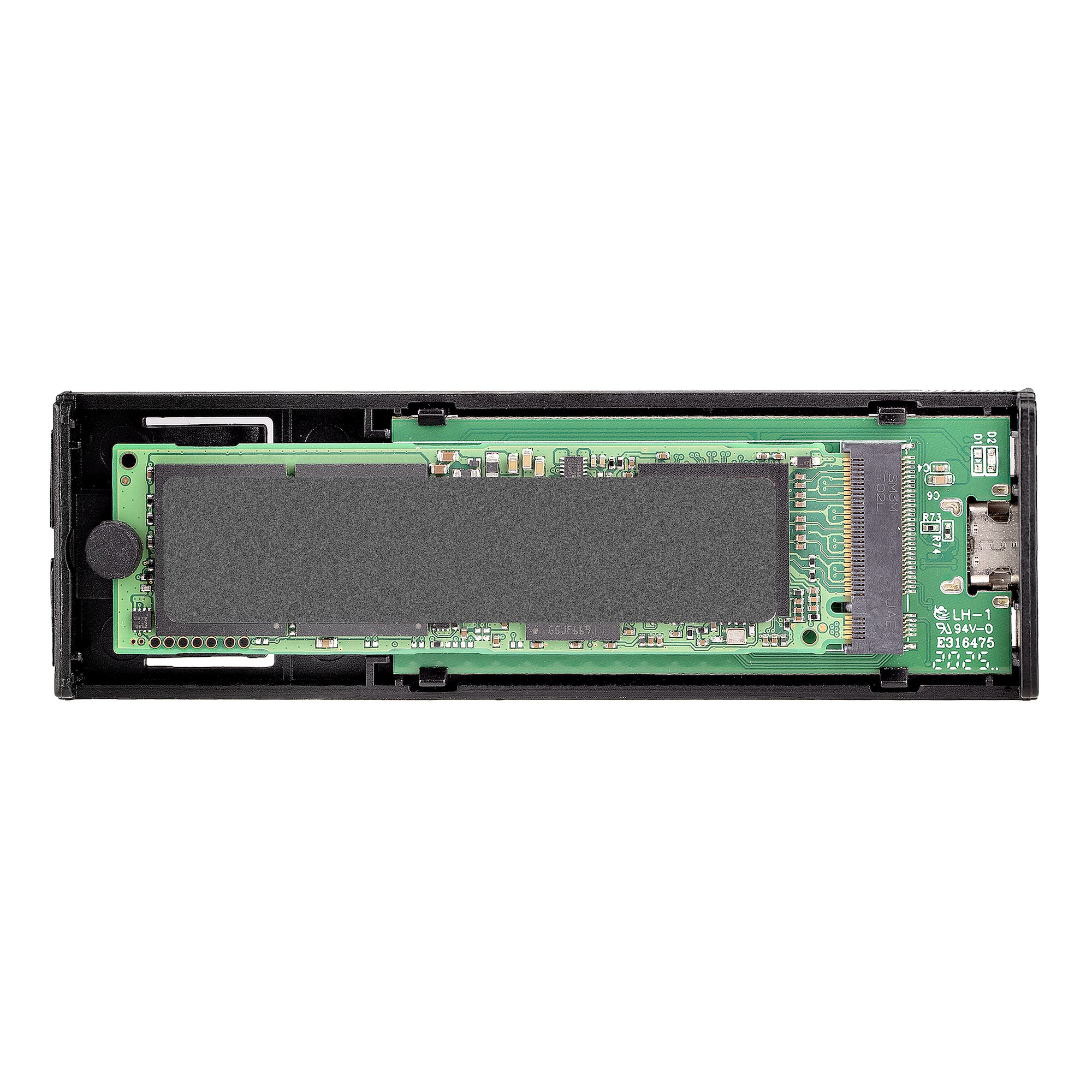

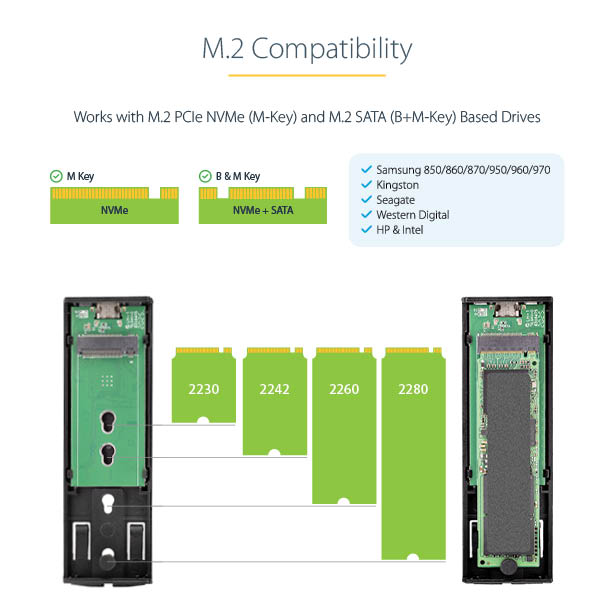

M.2 COMPATIBILITY: Works w/M.2 PCIe NVMe (M-Key) & M.2 SATA (B+M-Key) based drives: 2230/2242/2260/2280 SSDs incl Samsung 850/860/870/950/960/970, Kingston, Seagate, Western Digital, HP & Intel; PCIe 4.0 SSDs (reduced speed); NOT COMPATIBLE W/22110mm

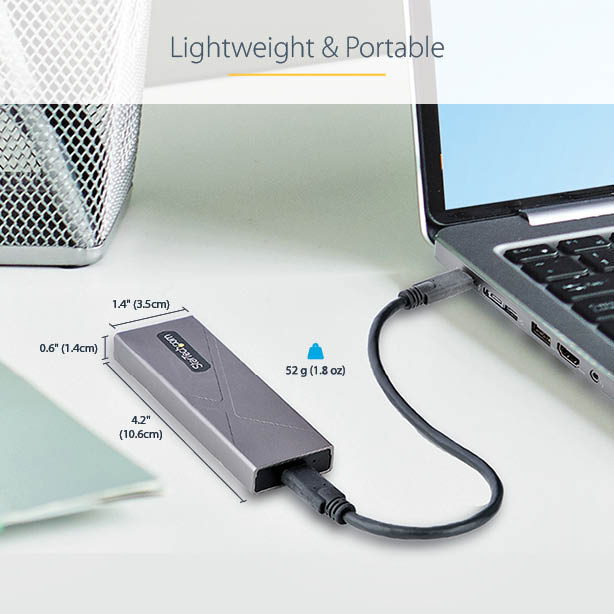

LIGHTWEIGHT & PORTABLE: Compact aluminum housing (4.1x.14x0.5 in / 105x35x14 mm) protects the SSD & acts as a large heatsink for heat dissipation, ensuring consistency at peak performance levels

Product Properties

Manufacturer
StarTech.com

Model
M2-USB-C-NVME-SATA

EAN
65030894975

Bullet points

Point
COMPATIBILITY

HIGH PERFORMANCE

LIGHTWEIGHT & PORTABLE

M.2 COMPATIBILITY

TOOL-LESS INSTALLATION

Design

LED indicators
Activity, Power

Material
Aluminium

Product colour
Grey

Product type
SSD enclosure

Logistics data

Harmonized System (HS) code
84733080

Master (outer) case height
415 mm

Master (outer) case length
305 mm

Master (outer) case width
364 mm

Products per master (outer) case
40 pc(s)

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 95%

Storage temperature (T-T)
-10 - 65 °C

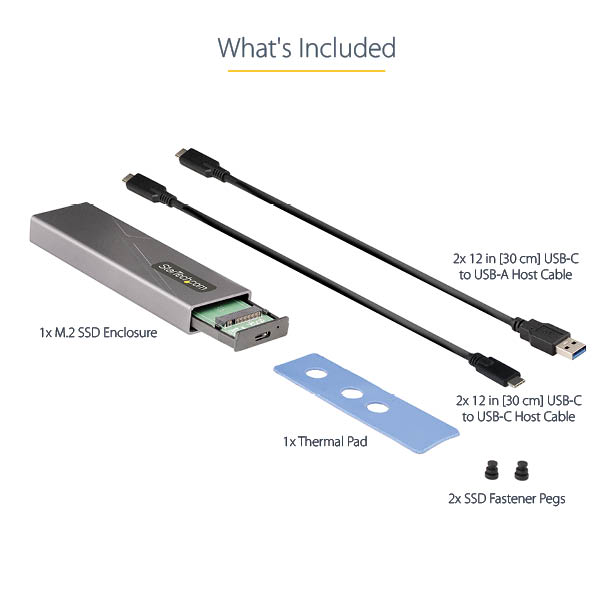

Packaging content

Cables included
USB Type-A to USB Type-C, USB Type-C to USB Type-C

Manual
Yes

Performance

Chipset
Realtek - RTL9210B

Data transfer rate
10 Gbit/s

Mean time between failures (MTBF)
112000 h

UASP support
Yes

Ports & interfaces

Integrated USB cable
No

USB connectivity
Yes

USB connector gender
Female

USB connector type
USB Type-C

USB ports quantity
1

USB version
3.2 Gen 2 (3.1 Gen 2)

Power

Power source type
USB

Storage

Number of storage drives installed
0

Number of storage drives supported
1

Storage drive size
M.2

Supported storage drive interfaces
M.2

Supported storage drive lengths
30,42,60,80 mm

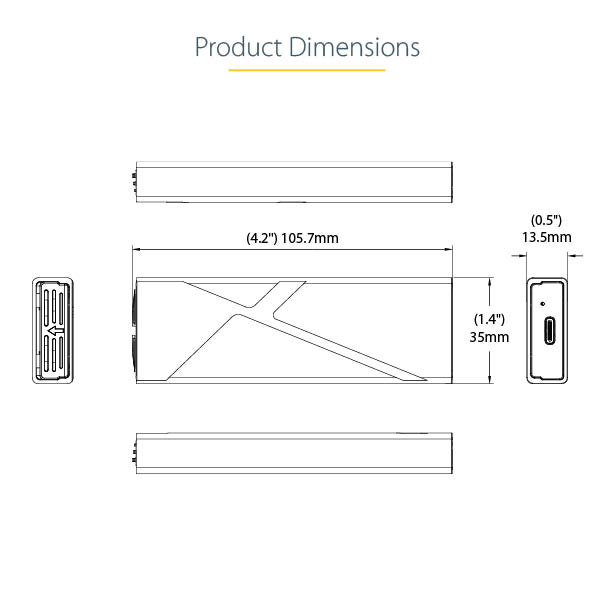

Weight & dimensions

Cable length
0.3 m

Depth
106 mm

Height
14 mm

Package depth
142 mm

Package height
28 mm

Package weight
75 g

Package width
170 mm

Weight
52 g

Width
35 mm
