Description

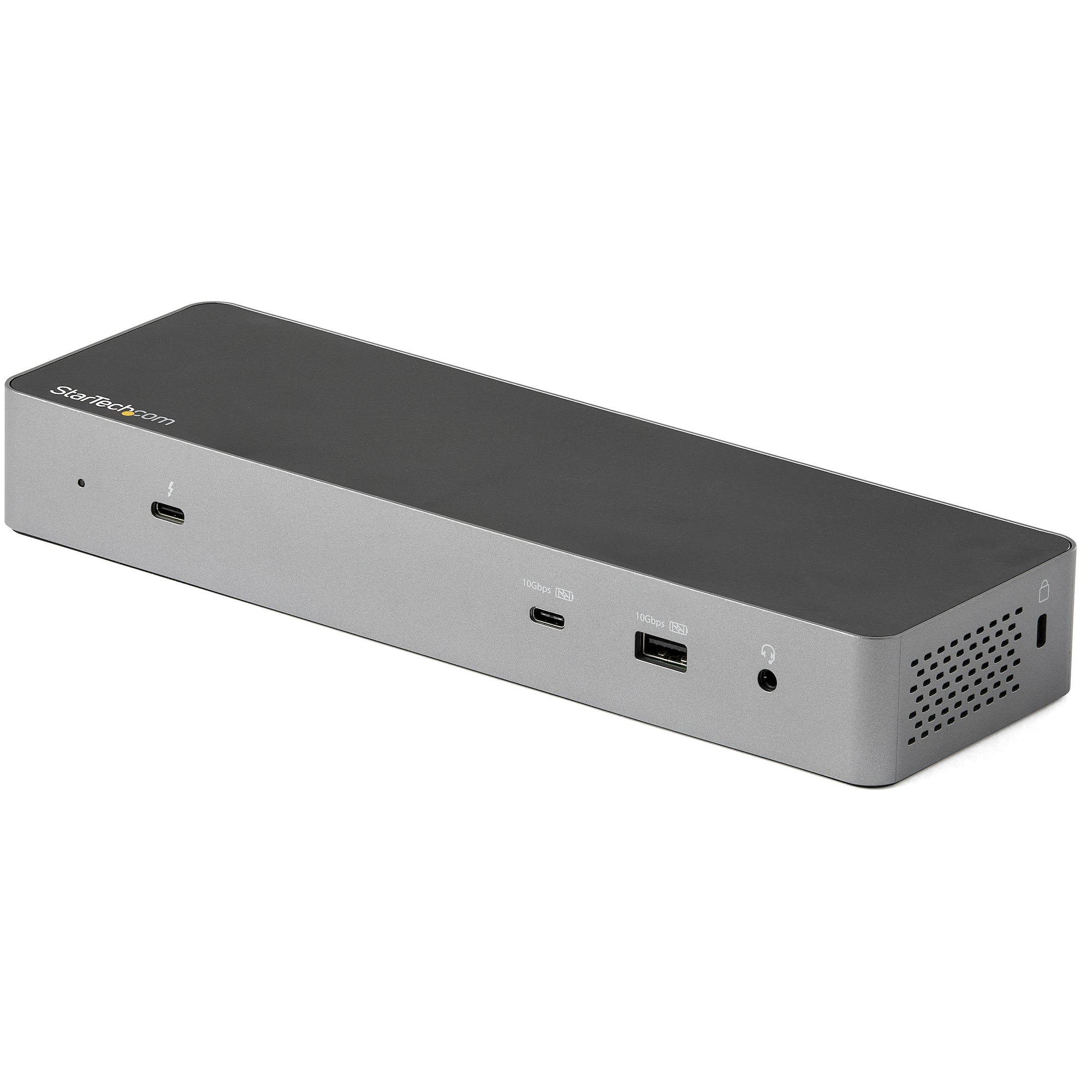

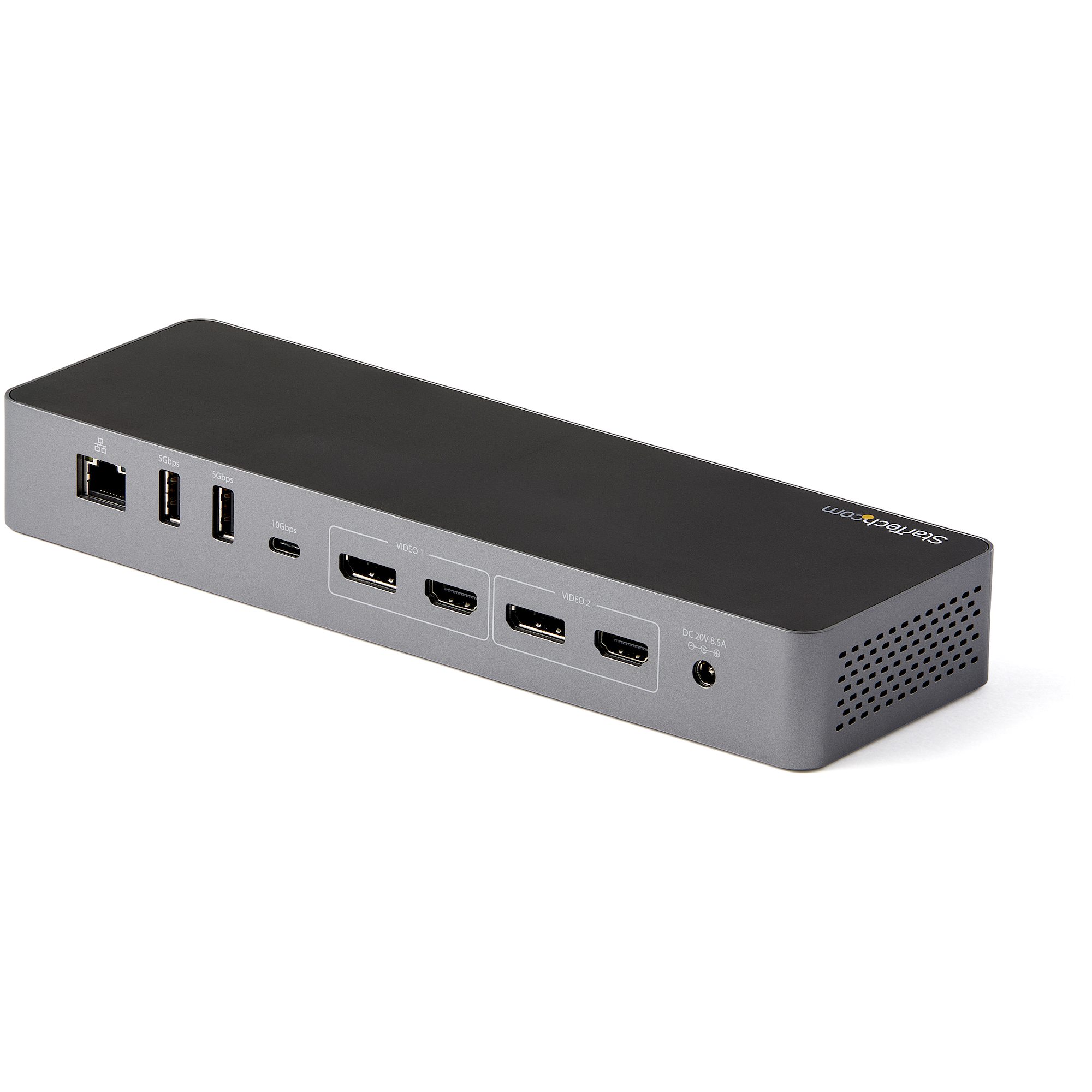

StarTech.com USB C Docking Station for Macbook Pro/Air-M1/M2/M3/M4, Thunderbolt Compatible, HDMI/DisplayPort, Dual 4K 60Hz/Single 8K, USB Type-C Laptop Dock, 96W Power Delivery, USB 10Gbps. Connectivity technology: Wired, Host interface: Thunderbolt 3, USB Power Delivery up to: 96 W. Product colour: Black, Grey, Data transfer rate: 40 Gbit/s, Maximum digital resolution: 7680 x 4320 pixels. AC input voltage: 100 - 240 V, Input current: 2.5 A, Output voltage: 20 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur,..., Linux operating systems supported: Ubuntu 18.04 LTS, Ubuntu 20.04 LTS. Width: 220 mm, Depth: 80 mm, Height: 30 mm

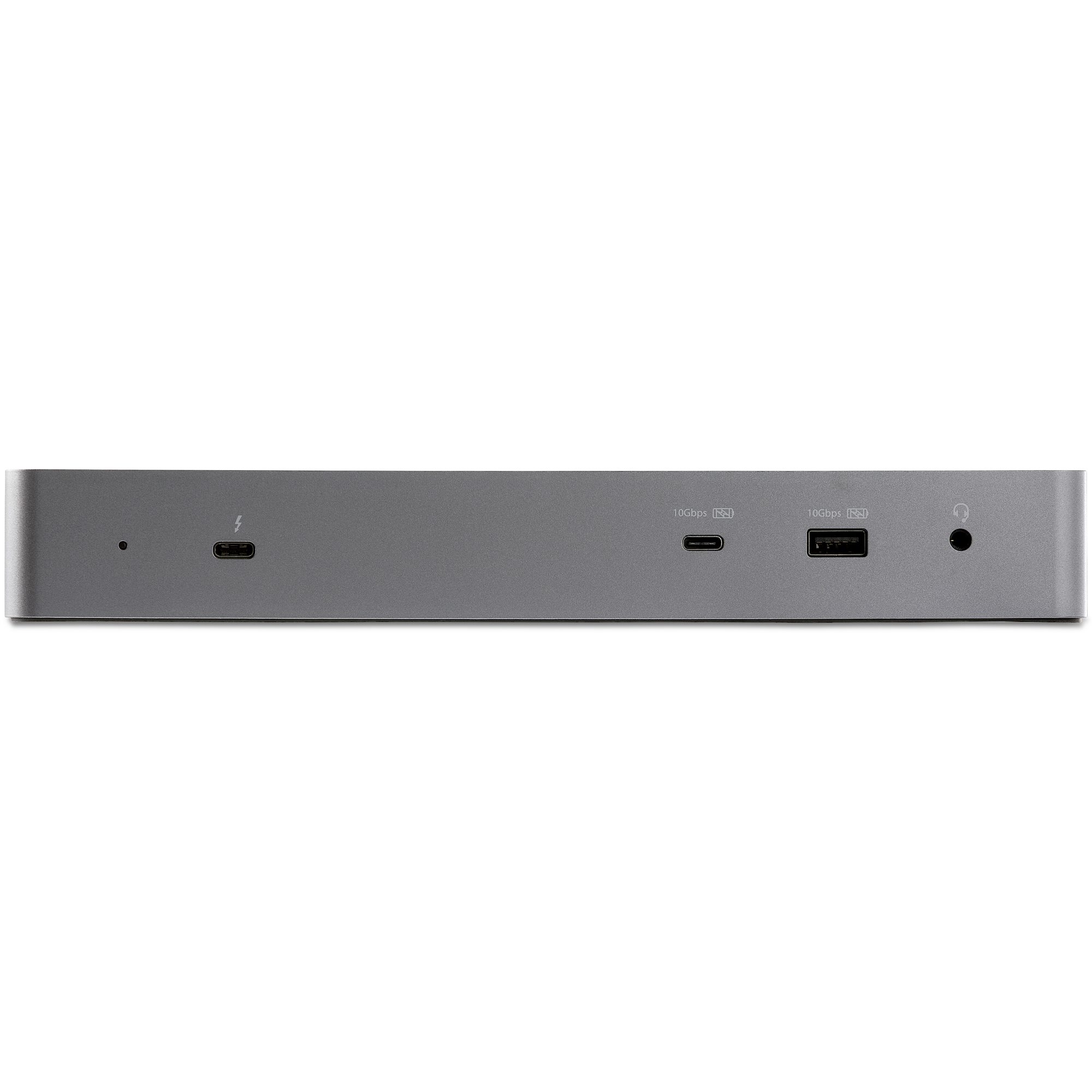

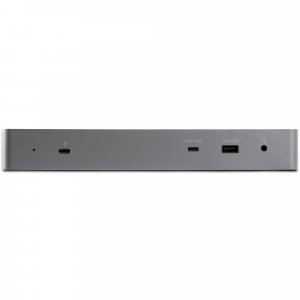

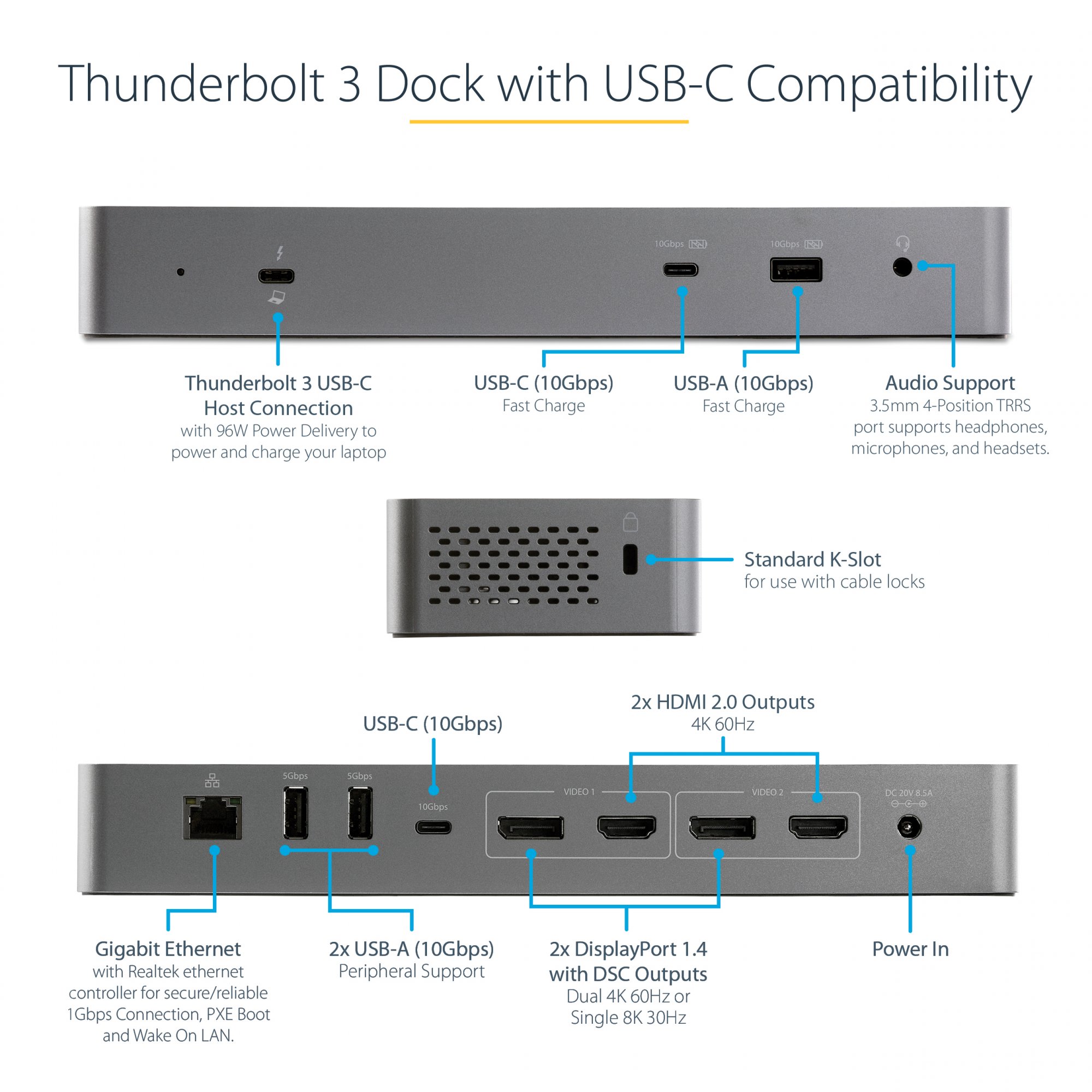

HIGH-PERFORMANCE DOCK: Alternative to TB3DK2DPPDUE; Easy Driverless setup; Dual monitor 4K 60Hz; 5x USB Hub (2x fast charge ports) with 3x USB-A (1x 10Gbps USB 3.2/3.1 Gen 2) & 2x USB-C 10Gbps; Gigabit Ethernet (WoL/PXE), headset ports; 96W Power Delivery

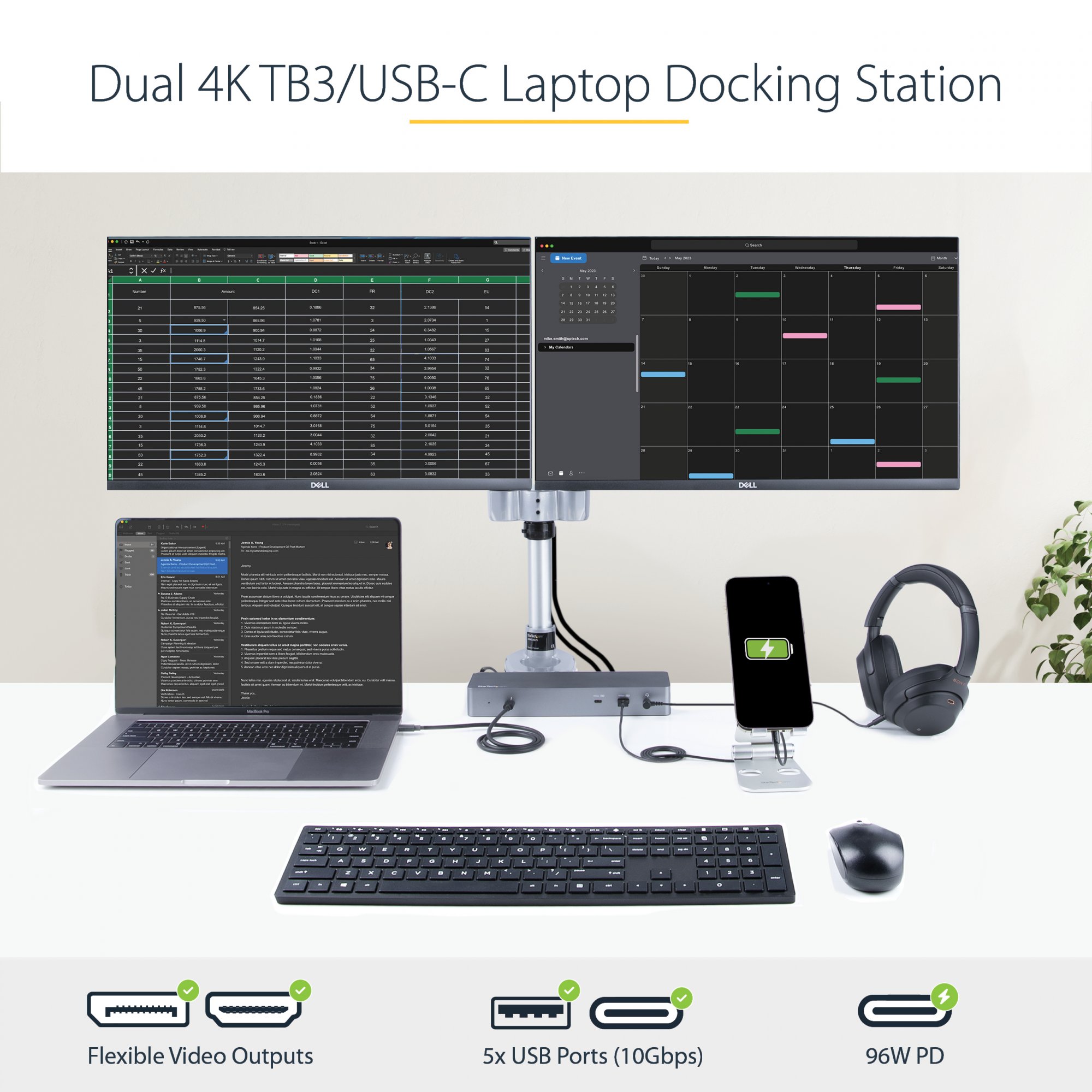

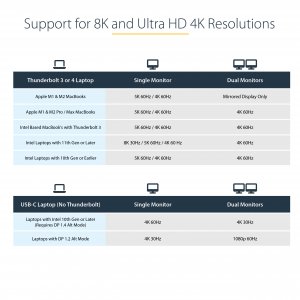

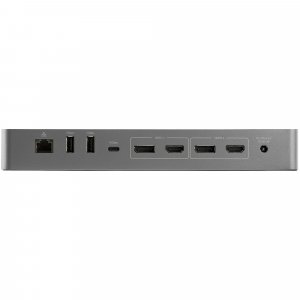

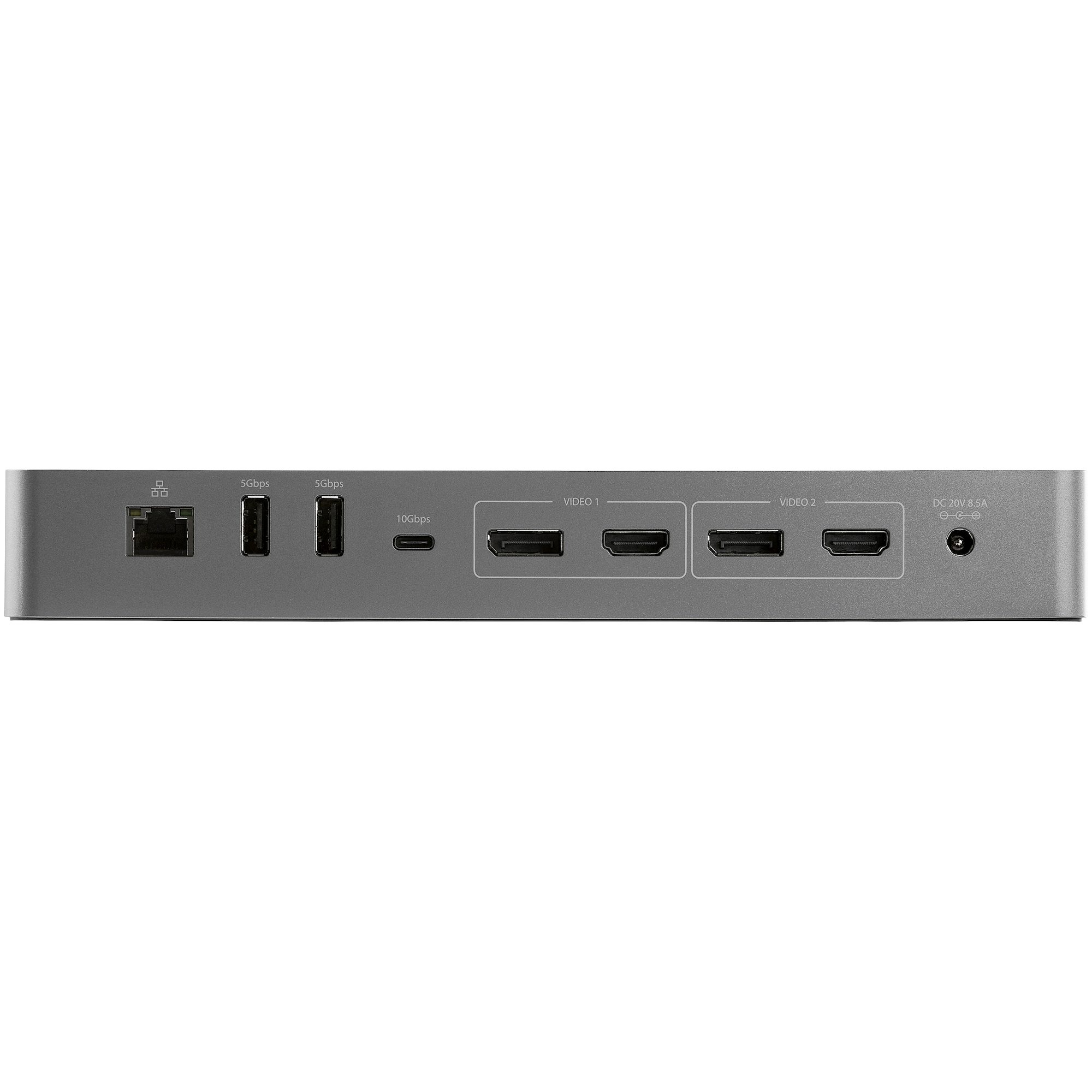

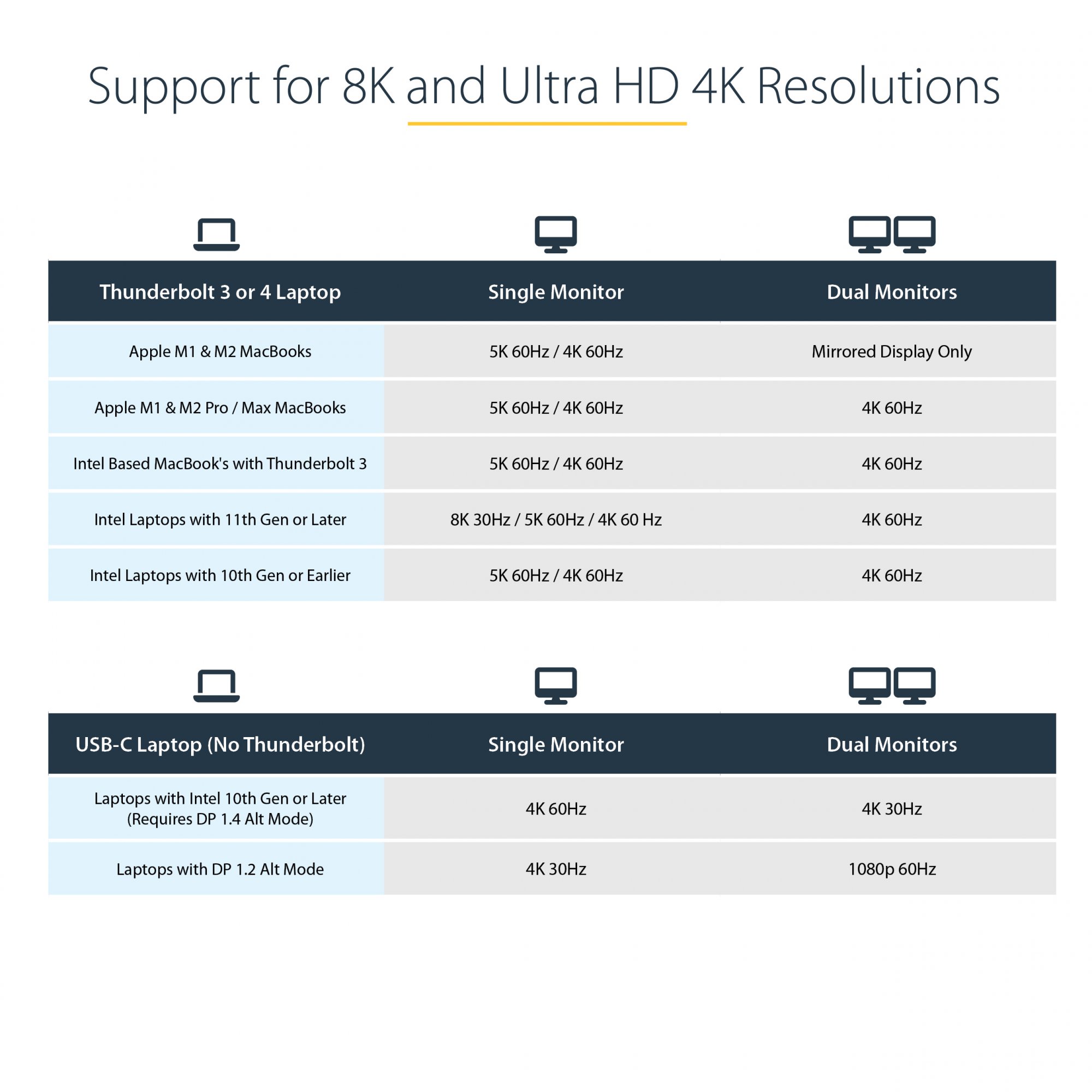

FLEXIBLE MONITOR OUTPUTS: Dual 4K 60Hz video output utilizing direct GPU performance with no software or compression; Use DP or HDMI monitors; Up to dual 4K 30Hz on USB-C (non TB3) laptops; Thunderbolt 3 Dock with 2x DP 1.4 & 2x HDMI 2.0 ports
COMPATIBILITY: This docking station is compatible with Windows, macOS, and Ubuntu; Supports Thunderbolt or USB4 laptops; Dual Display on M1, M2, M3 Max/Pro, M4 Pro/Max MacBooks, and single display on base M-series MacBooks and iPad Pro M1 & later
96W POWER DELIVERY 3.0 CERTIFIED: The port replicator includes a fully spec'd power adapter that provides full power to laptop and peripheral devices unlike consumer docks that use SMART power; The Dock can deliver up to 100W peak power (96W sustained)

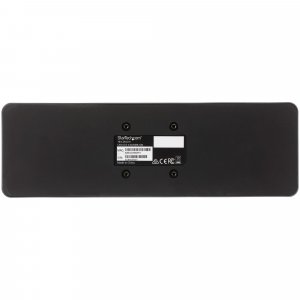

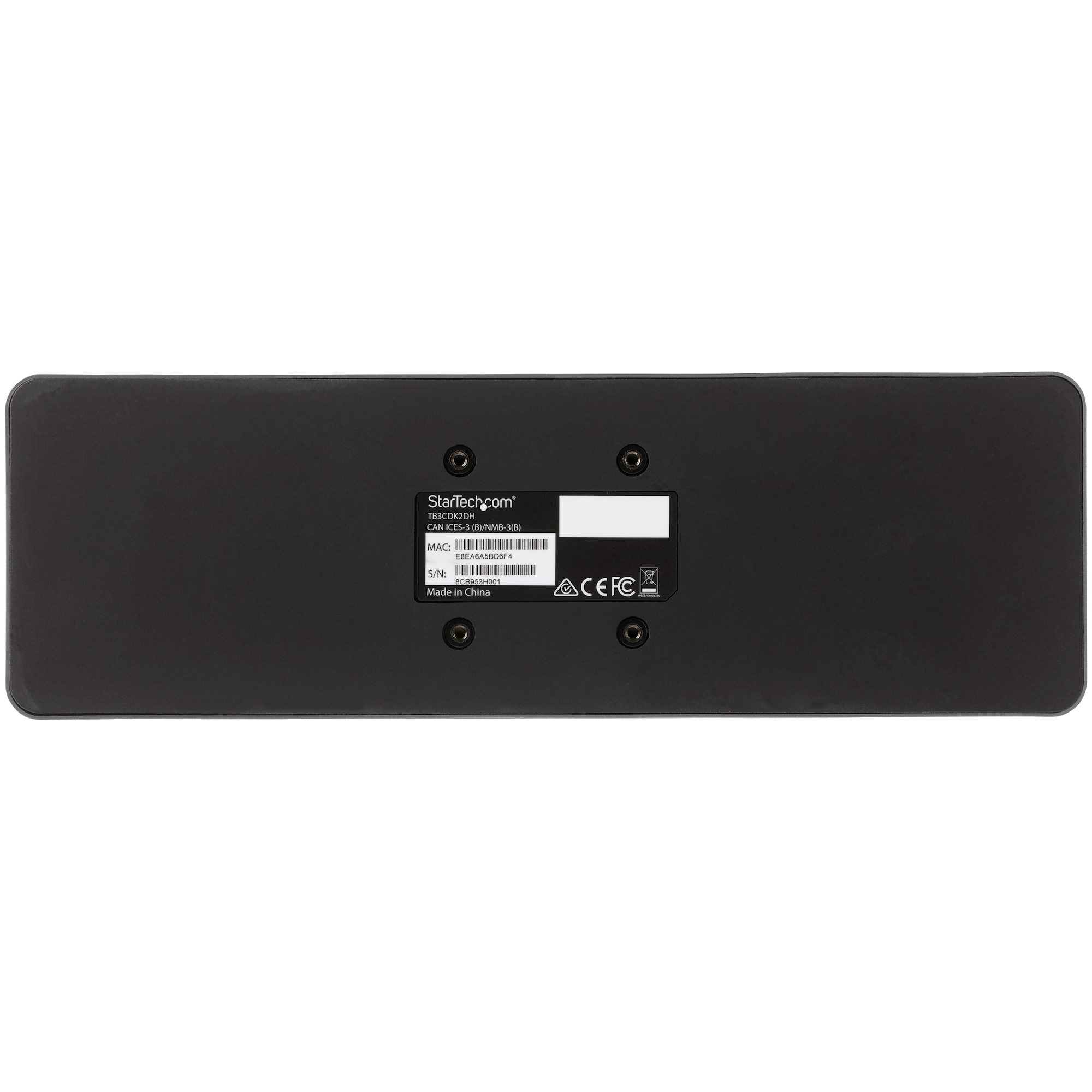

DEVICE SECURITY: Thunderbolt/USB-C dock Includes 2.6ft (0.8m) Thunderbolt 3 host cable; Mounting holes for optional brackets (SSPMSVESA, SSPMSUDWM); K-Slot for security lock
OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams with Network MAC Address Pass-Through for network security, WiFi Auto Switching for improved network performance, USB Event Monitoring, and Windows Layout

Product Properties

Manufacturer
StarTech.com

Model
TB3CDK2DHUE

EAN
65030880992

Bullet points

Point
96W POWER DELIVERY 3.0 CERTIFIED

COMPATIBILITY

DEVICE SECURITY

FLEXIBLE MONITOR OUTPUTS

HIGH-PERFORMANCE DOCK

OUR ADVANTAGE

Logistics data

Harmonized System (HS) code
84733020

Master (outer) case height
320 mm

Master (outer) case length
500 mm

Master (outer) case width
248 mm

Products per master (outer) case
40 pc(s)

Network

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Operating temperature (T-T)
0 - 35 °C

Storage temperature (T-T)
-20 - 70 °C

Other features

Chipset
C-Media - CM6533, Genesys Logic - GL3590, Genesys Logic - GL3523, Realtek - RTD2184, Titan Ridge - JHL7440, Cypress - CCG5C

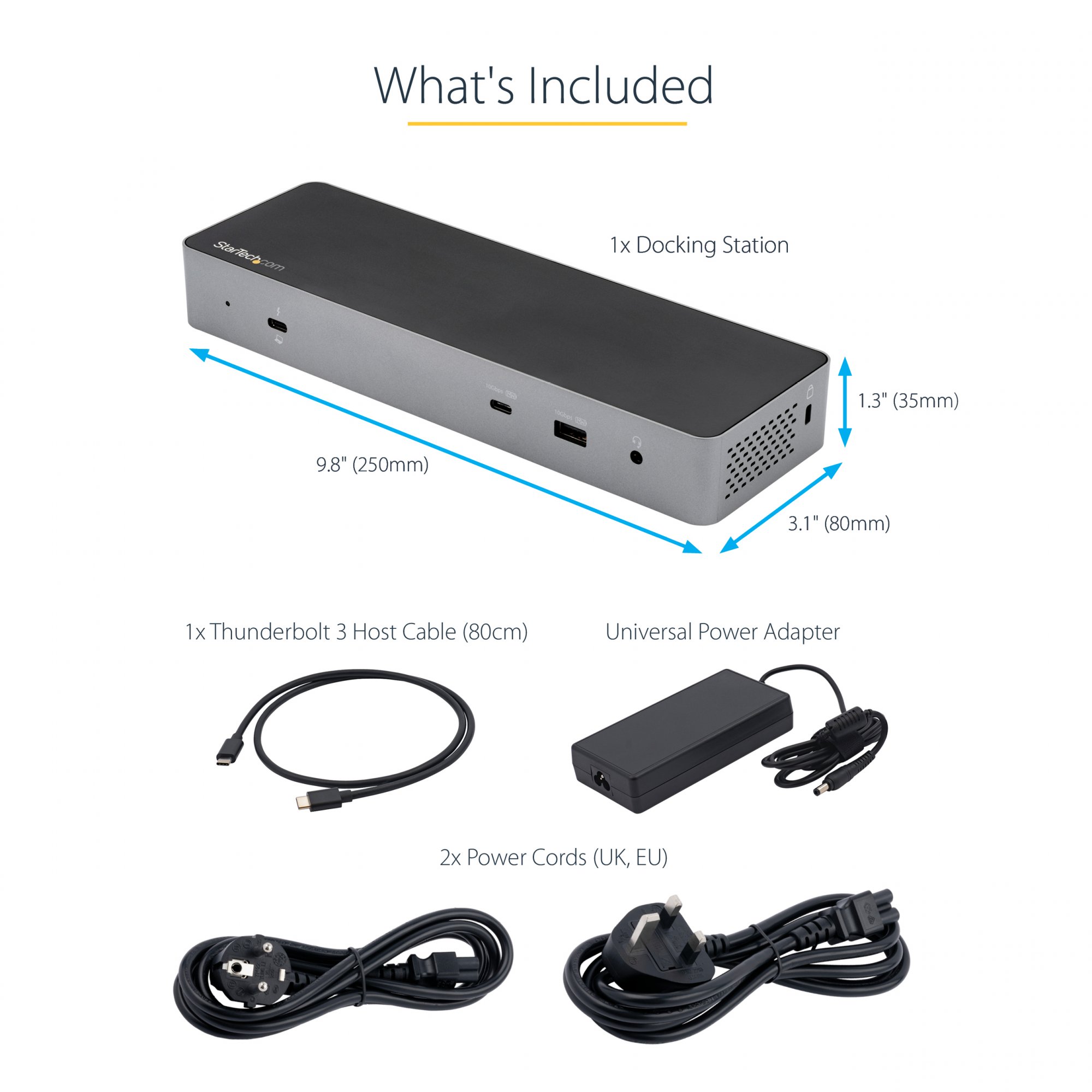

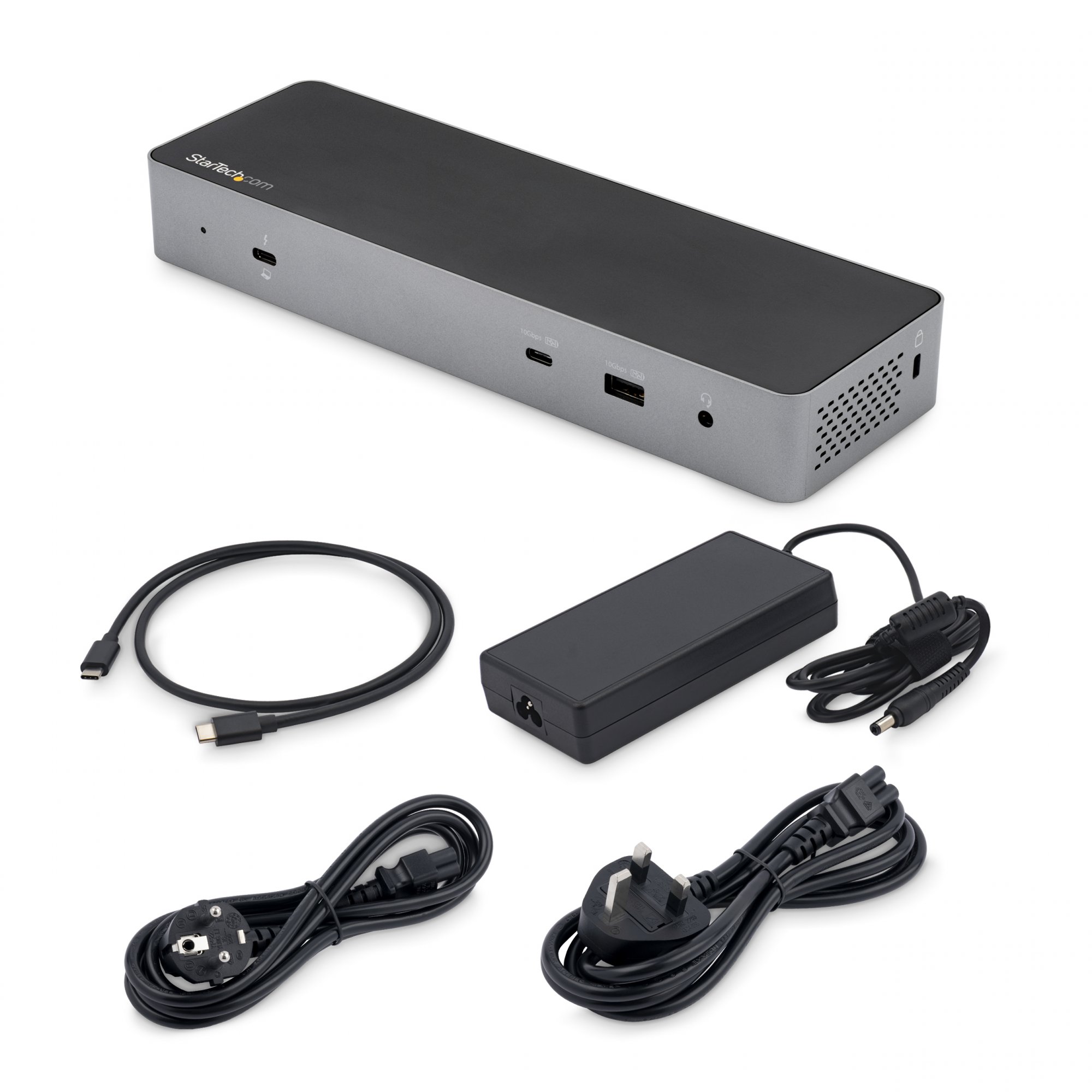

Packaging content

AC adapter included
Yes

Cables included
AC, Thunderbolt

Manual
Yes

Packaging data

Package depth
160 mm

Package height
110 mm

Package weight
1.1 kg

Package width
305 mm

Performance

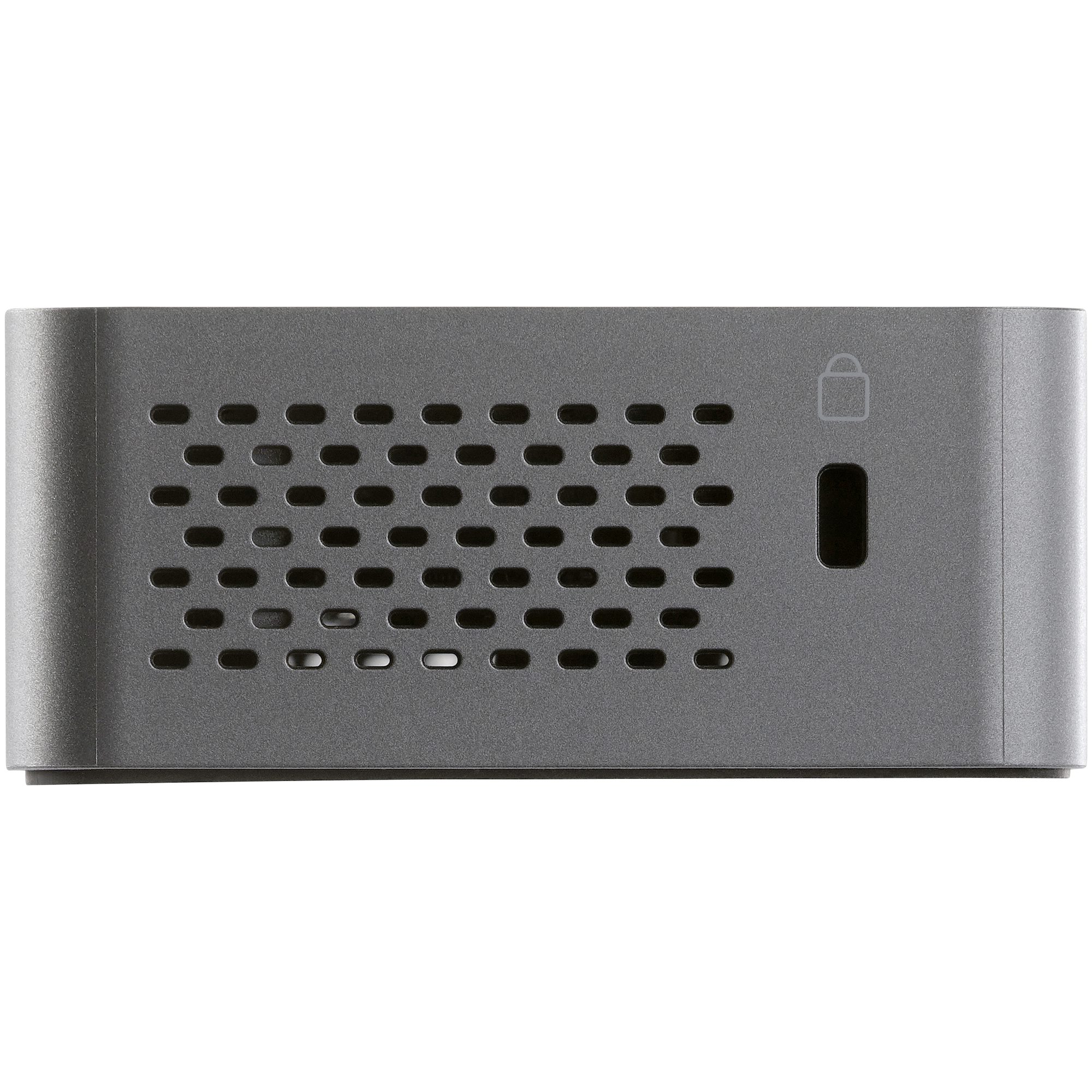

Cable lock slot
Yes

Cable lock slot type
Kensington

Card reader integrated
No

Data transfer rate
40 Gbit/s

Maximum digital resolution
7680 x 4320 pixels

Number of displays supported
2

Product colour
Black, Grey

Ports & interfaces

Combo headphone/mic port
Yes

Connectivity technology
Wired

DC-in jack
Yes

DisplayPorts quantity
2

HDMI ports
2

Headphone connectivity
3.5 mm

Headphone outputs
1

Host interface
Thunderbolt 3

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2

USB Power Delivery (USB PD)
Yes

USB Power Delivery up to
96 W

Power

AC input voltage
100 - 240 V

Compatible power plug types
EU, UK

Input current
2.5 A

Output current
8.5 A

Output voltage
20 V

Software

Linux operating systems supported
Ubuntu 18.04 LTS, Ubuntu 20.04 LTS

Mac operating systems supported
Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64

Weight & dimensions

Depth
80 mm

Height
30 mm

Weight
250 g

Width
220 mm
