Description

StarTech.com USB-C Multiport Adapter - USB-C Travel Docking Station w/ 4K HDMI - 60W Power Delivery Pass-Through, GbE, 2pt USB-A 3.0 Hub - Portable Mini USB Type-C Dock for Laptop - White. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 60 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Silver, White, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 4096 x 2160 pixels. Power source type: USB, Power supply: 60 W. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Other operating systems supported: ChromeOS

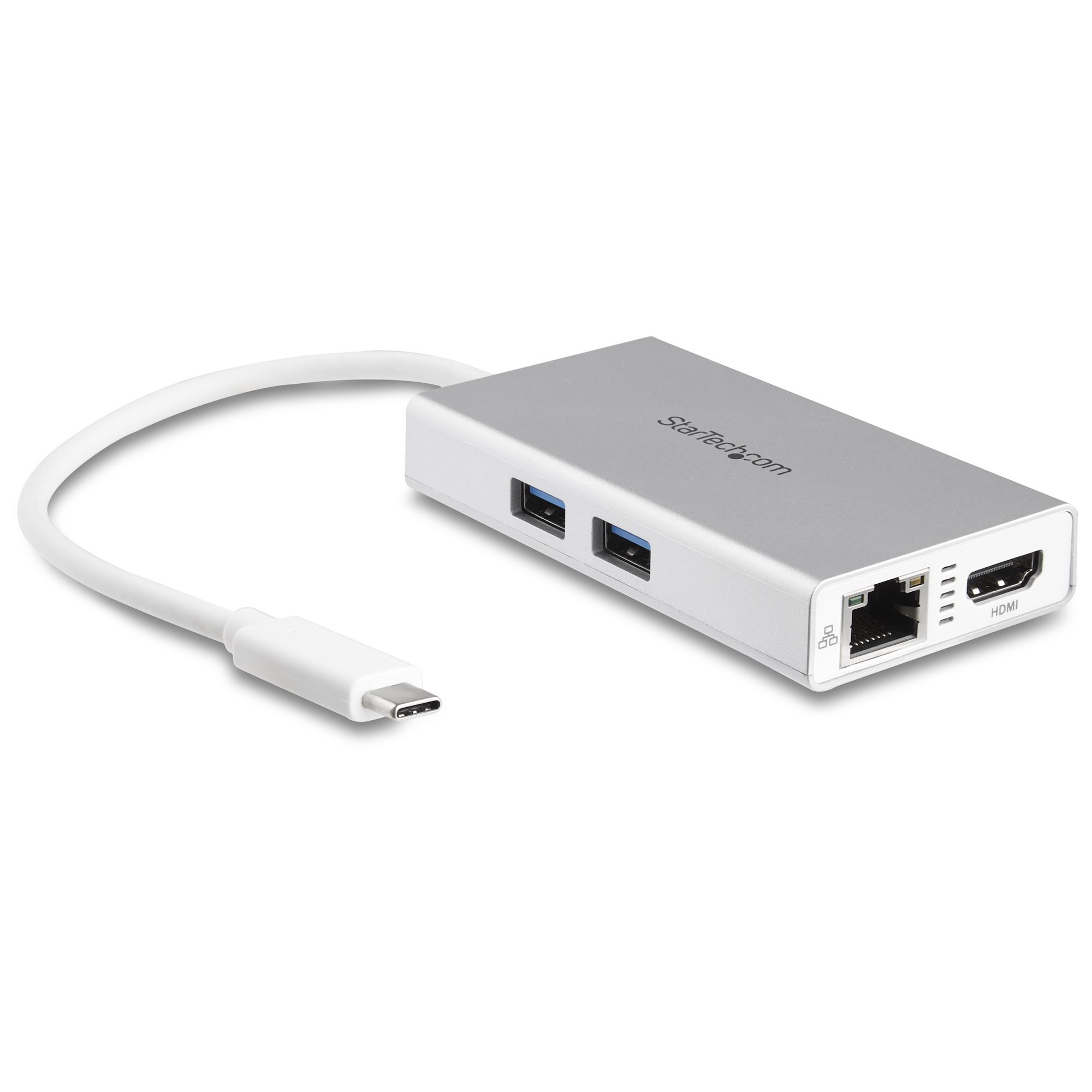

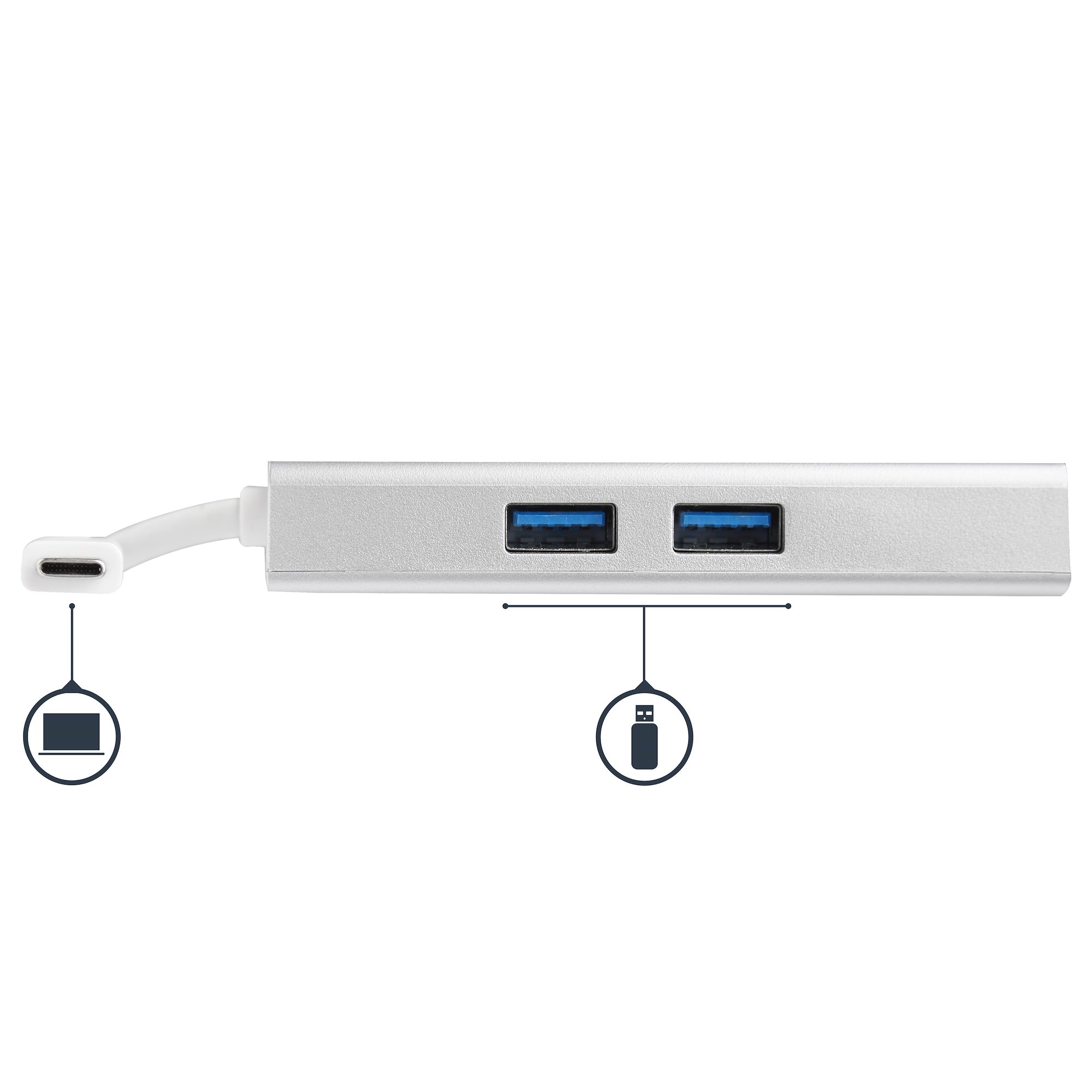

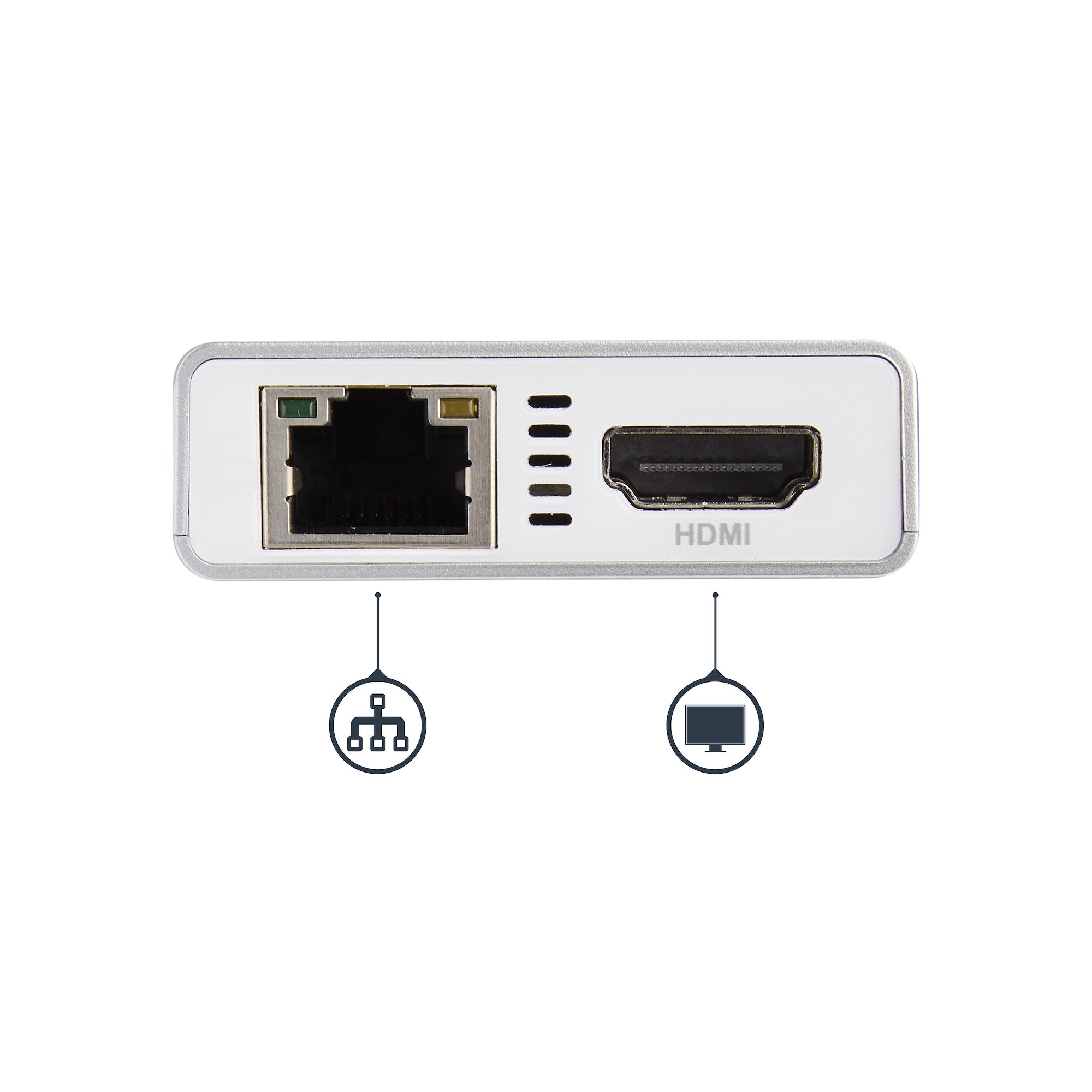

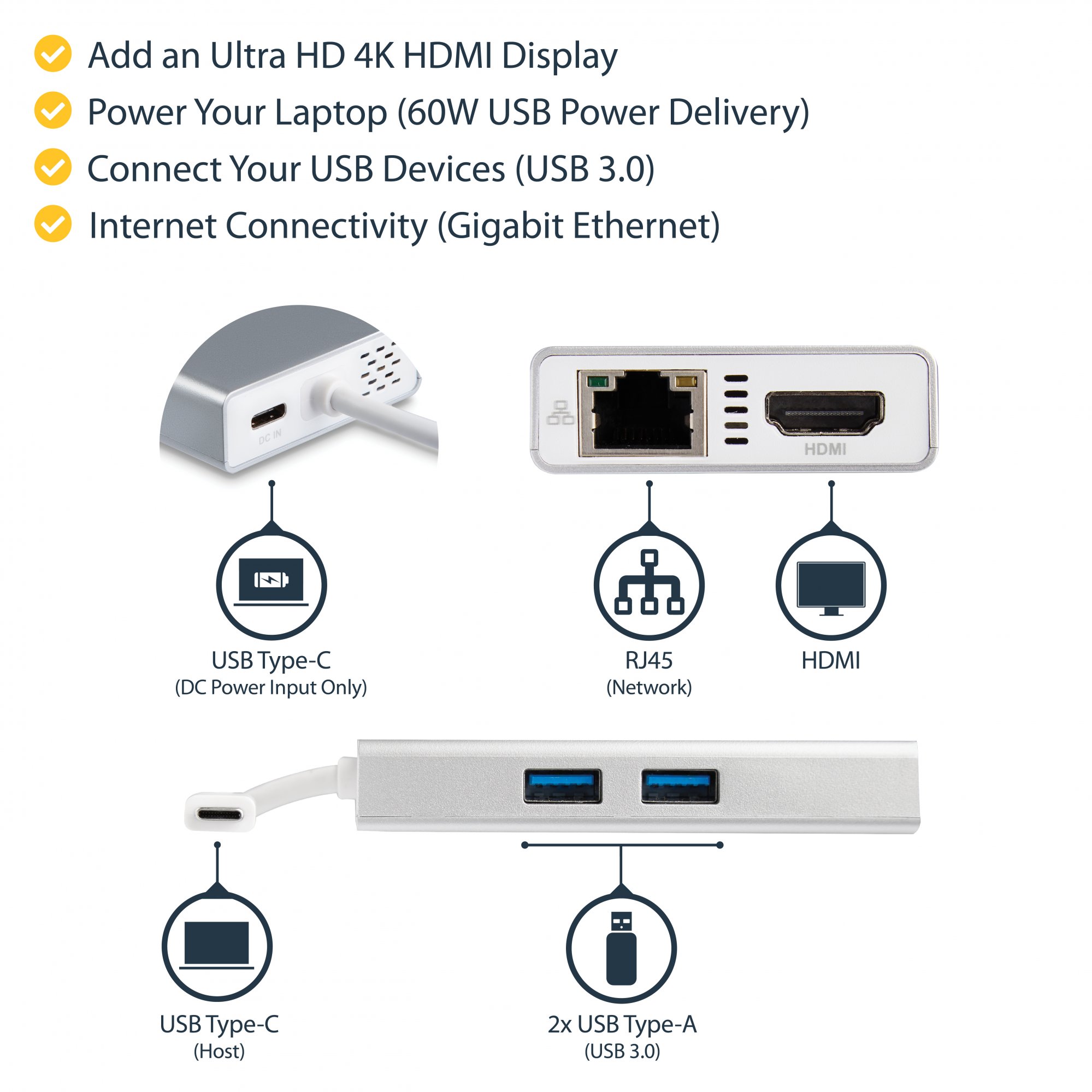

4-IN-1 TRAVEL DOCK: USB-C multiport adapter has 4K 30Hz UHD HDMI video output for a single display, 2x USB-A 3.0 (5Gbps) ports, Gigabit Ethernet (GbE), and 60W Power Delivery 2.0 charging pass through_x000D_
EXTRA LONG CABLE: The portable silver & white USB-C mini dock’s 25cm (10 in.) attached cable provides extended reach to reduce port/connector strain on 2-in-1 devices or laptops on riser stands_x000D_

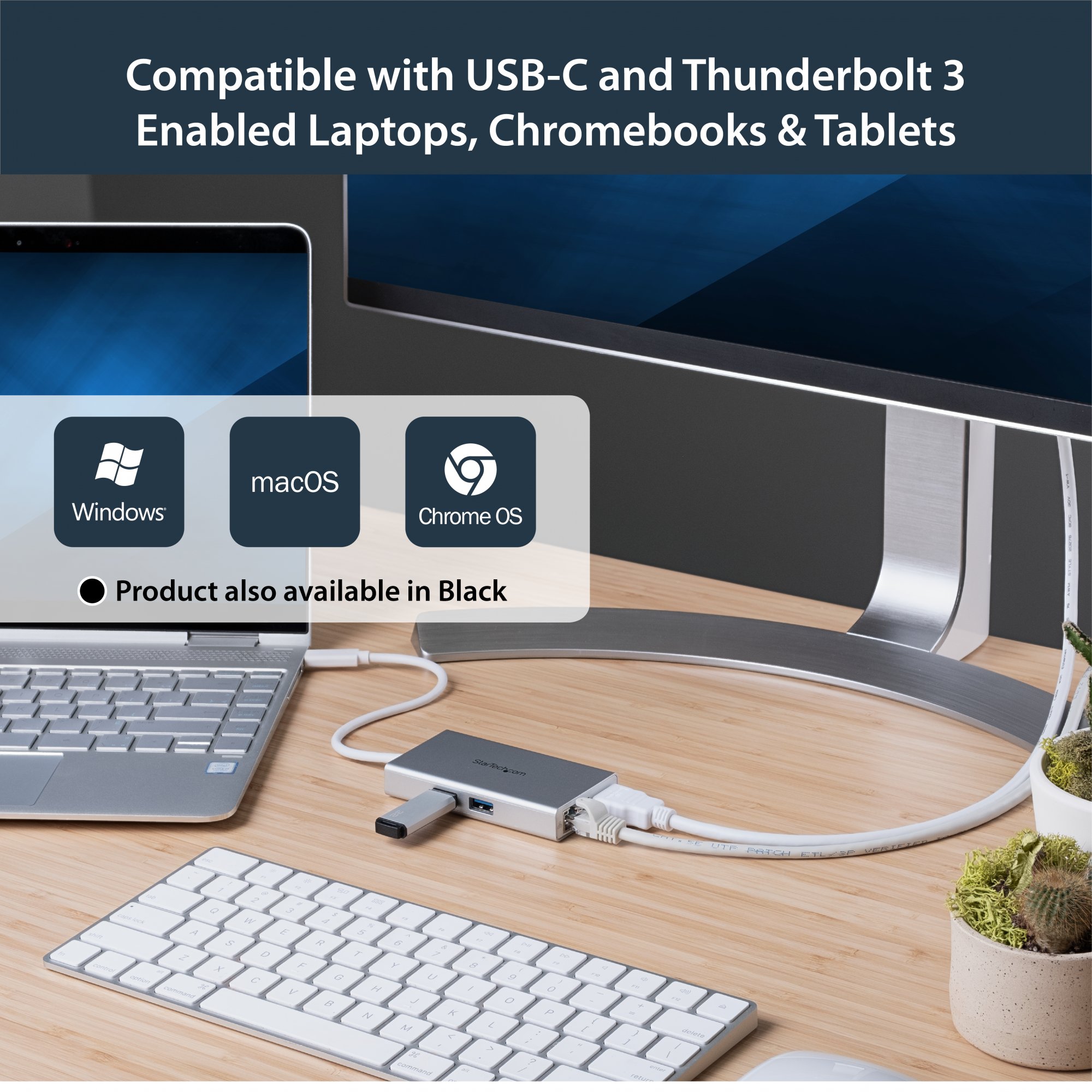

WIDE DEVICE COMPATIBILITY: USB C multiport adapter for USB-C & Thunderbolt 3 laptops, ultrabooks, Chromebooks, tablets & phones for brands like HP, Dell, Lenovo, MacBooks, Surface and Samsung Galaxy_x000D_
WIDE OPERATING SYSTEM COMPATIBILITY: With automatic driver setup, this all-in-one USB 3.1 Gen 1 Type-C docking station supports Windows, macOS, ChromeOS, Android (Galaxy S9 & up, Pixel 3)_x000D_

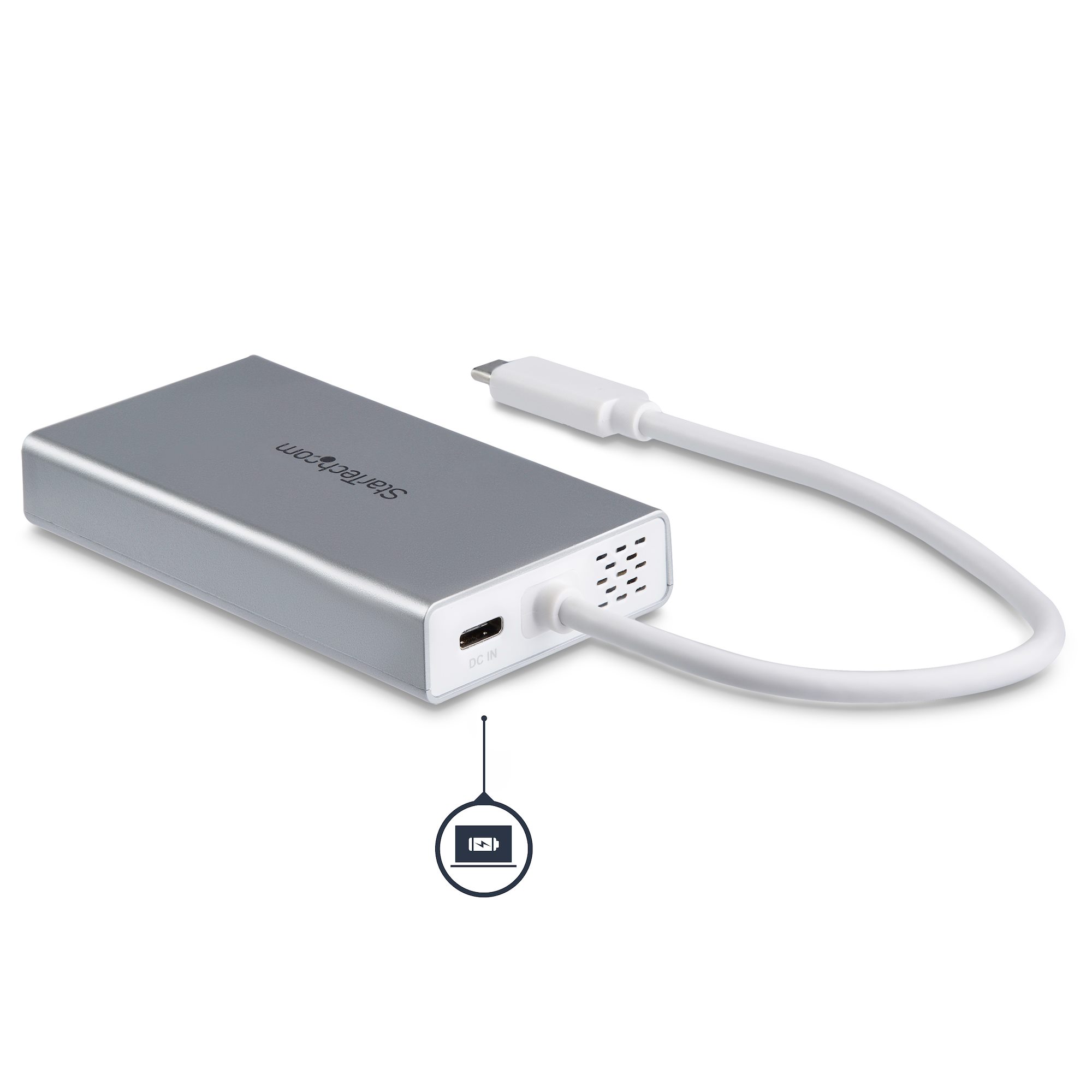

POWERED BY LAPTOP OR EXTERNAL ADAPTER: This dock can draw power from the laptop USB bus or charge the laptop via PD-Passthrough if a USB-C power adapter is connected (12W for dock & 48W for charging)_x000D_
_x000D_

Product Properties

Manufacturer
StarTech.com

Model
DKT30CHPDW

EAN
65030871037

Bullet points

Point
4-IN-1 TRAVEL DOCK

EXTRA LONG CABLE

POWERED BY LAPTOP OR EXTERNAL ADAPTER

WIDE DEVICE COMPATIBILITY

WIDE OPERATING SYSTEM COMPATIBILITY

_x000D_

Logistics data

Harmonized System (HS) code
84733020

Master (outer) case height
316 mm

Master (outer) case length
445 mm

Master (outer) case width
440 mm

Products per master (outer) case
40 pc(s)

Network

Auto MDI/MDI-X
Yes

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Full duplex
Yes

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Wake-on-LAN ready
Yes

Operational conditions

Operating relative humidity (H-H)
0 - 85%

Operating temperature (T-T)
0 - 50 °C

Storage temperature (T-T)
-10 - 65 °C

Other features

Cable length
0.25 m

Chipset
VIA/VLI - VL813, VIA/VLI - VL100, Chrontel - CH7525A, ASIX - AX88179

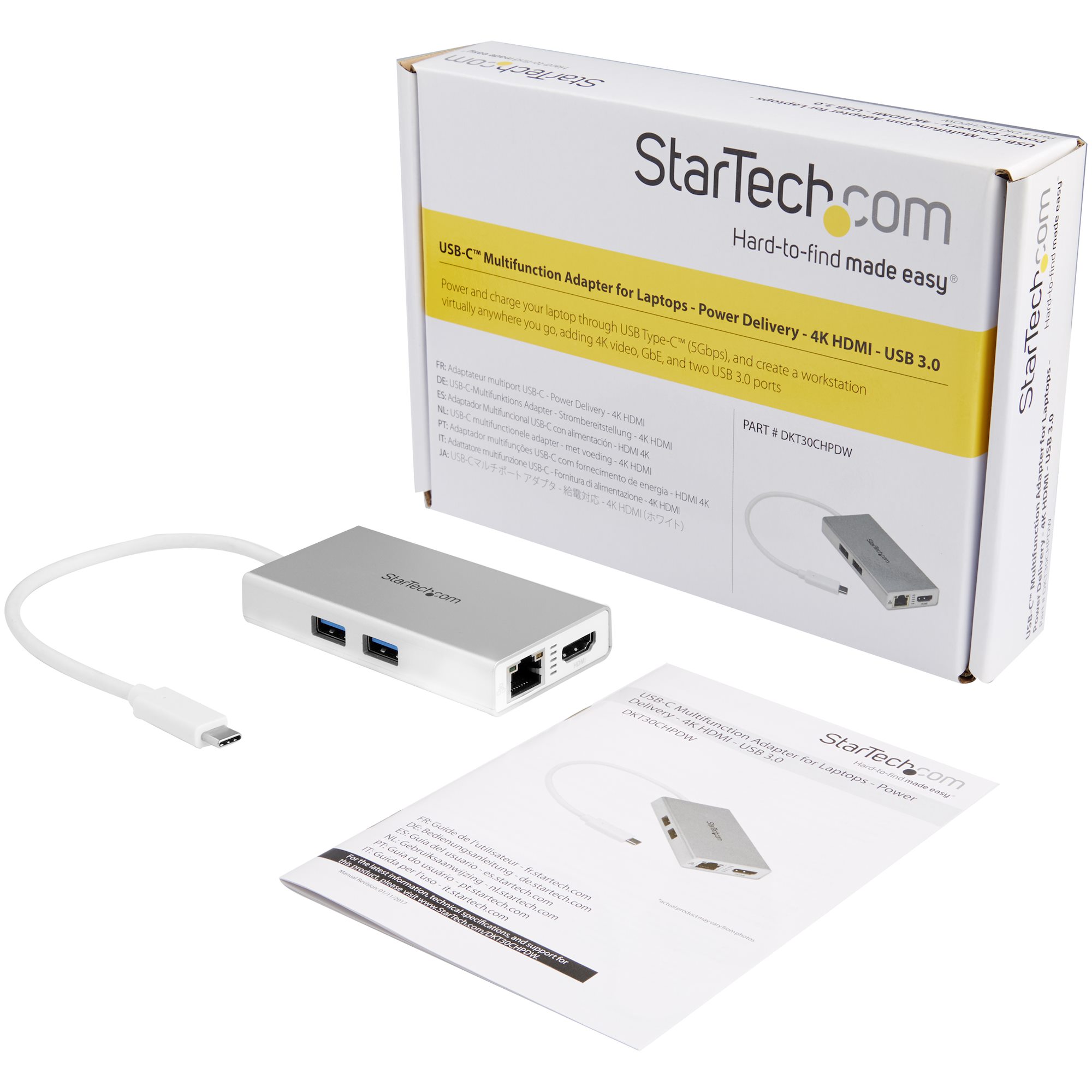

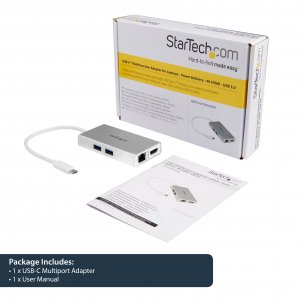

Packaging content

Quick start guide
Yes

Packaging data

Package depth
213 mm

Package height
42 mm

Package weight
193 g

Package width
147 mm

Performance

Card reader integrated
No

Certification
CE, FCC, TAA, REACH

Data transfer rate
5 Gbit/s

Housing material
Plastic

Maximum digital resolution
4096 x 2160 pixels

Product colour
Silver, White

UASP support
Yes

Ports & interfaces

Connectivity technology
Wired

DC-in jack
Yes

HDMI ports
1

Headphone outputs
0

Host interface
USB 3.2 Gen 1 (3.1 Gen 1) Type-C

Microphone in
No

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

USB connector type
USB Type-A, USB Type-C

USB Power Delivery (USB PD)
Yes

USB Power Delivery up to
60 W

Power

Power source type
USB

Power supply
60 W

Software

Mac compatibility
Yes

Mac operating systems supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura

Other operating systems supported
ChromeOS

Windows operating systems supported
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Technical details

Compliance certificates
RoHS

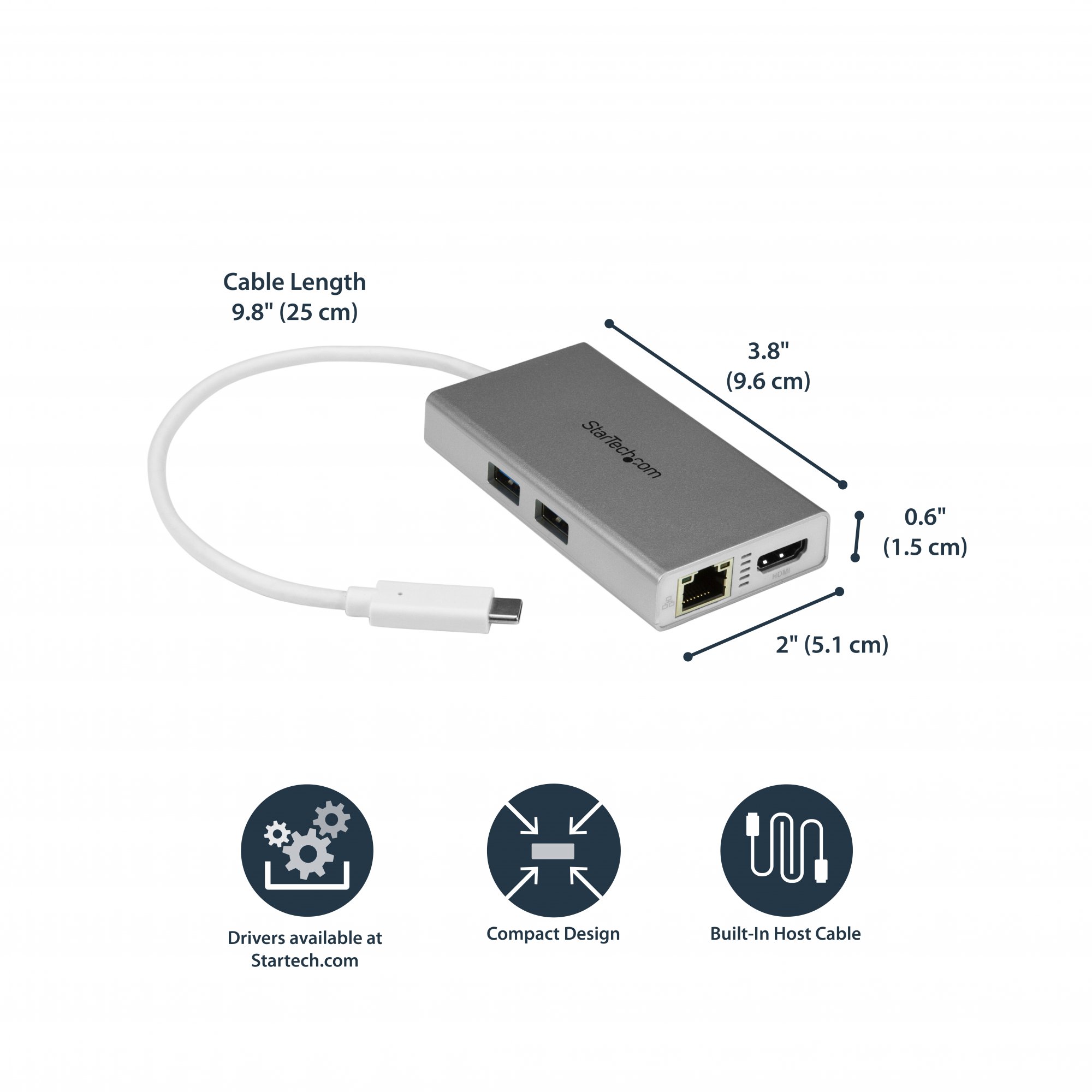

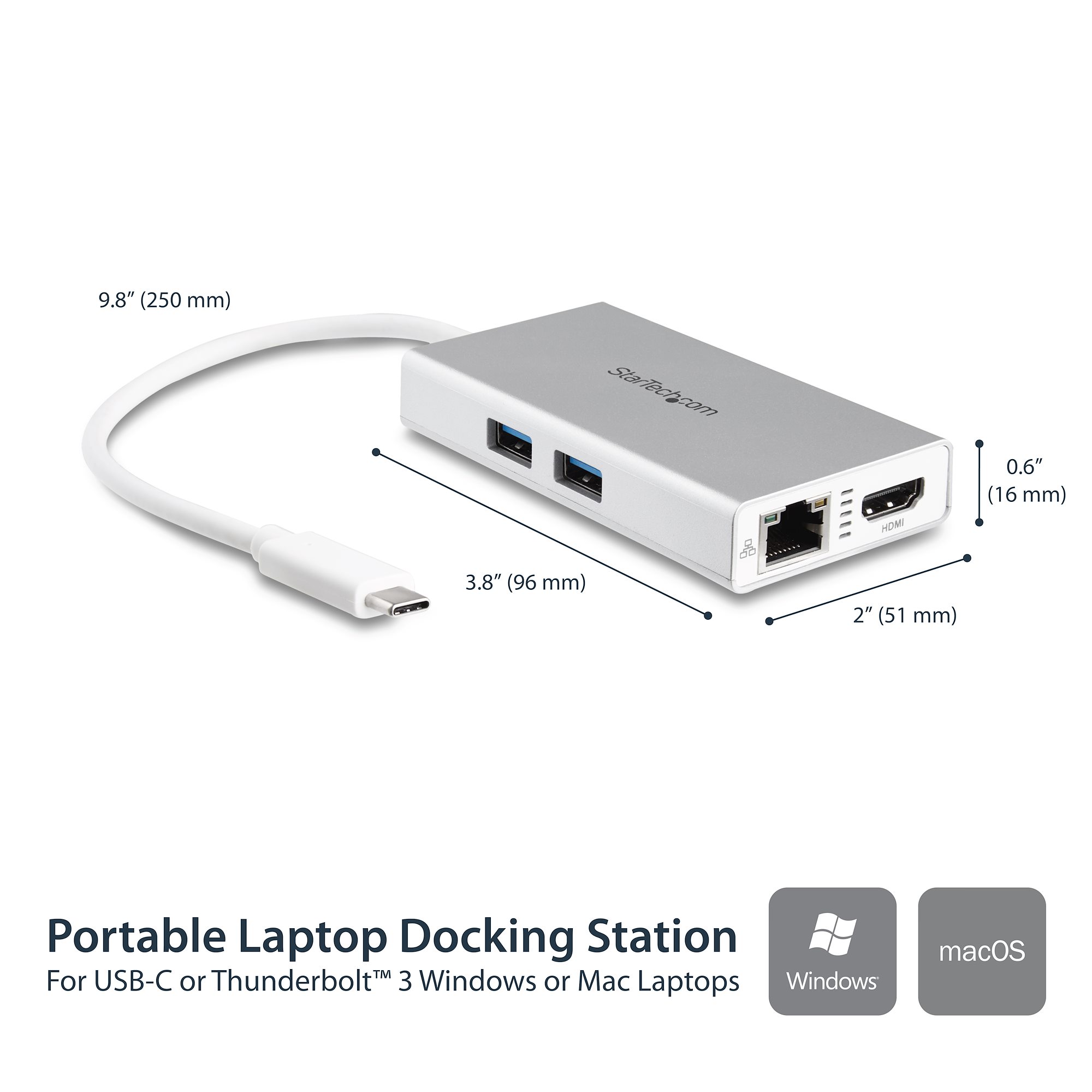

Weight & dimensions

Depth
96 mm

Height
16 mm

Weight
64 g

Width
51 mm
