Description

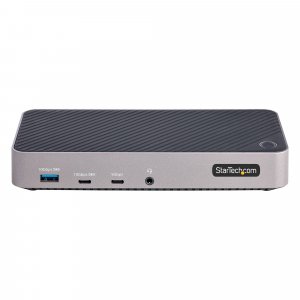

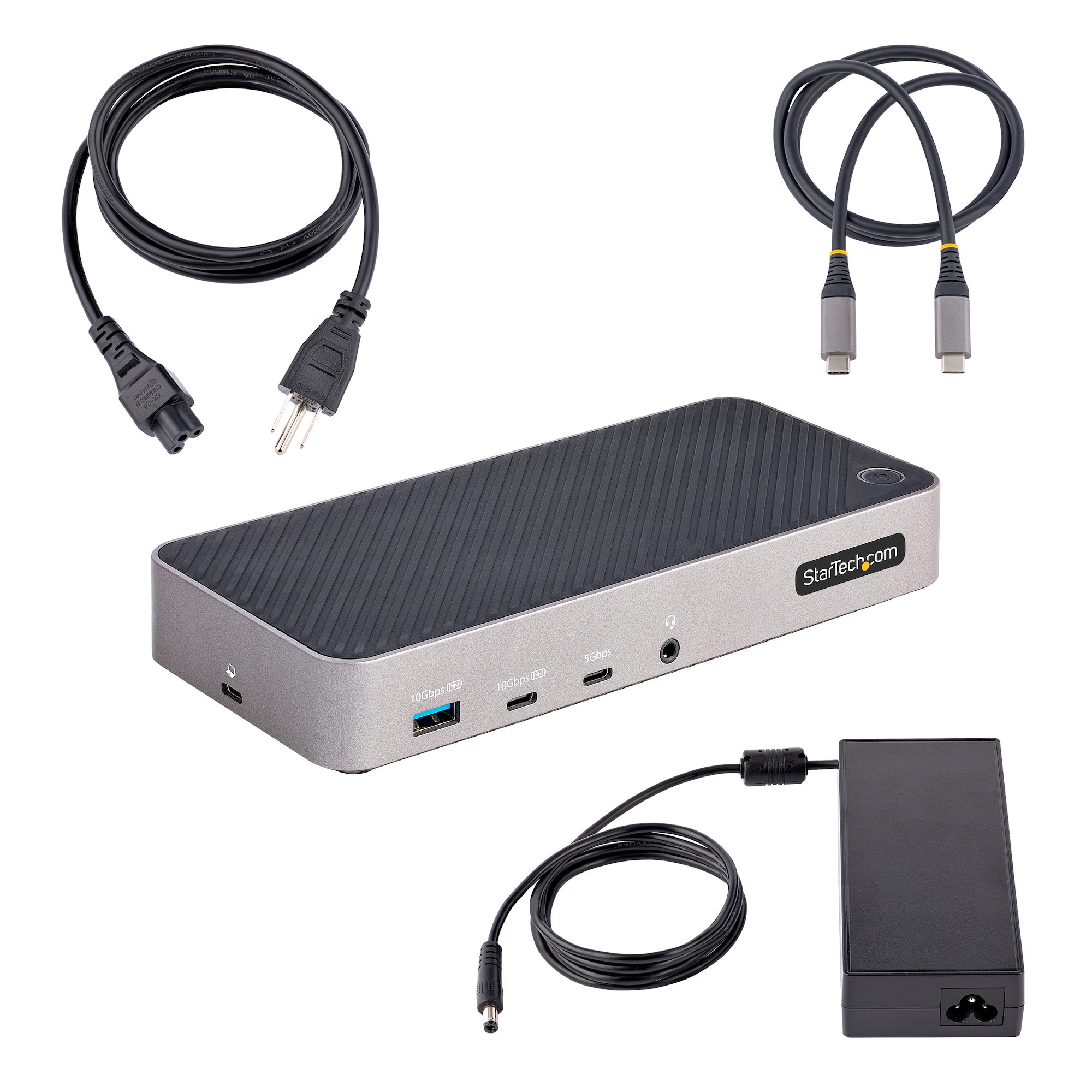

StarTech.com USB-C Triple Monitor Docking Station - HDMI/DP Triple 4k USB-C Dock - 5x USB Hub - GbE - 100W PD - Universal Multi Monitor Docking Station - Thunderbolt 3/4 Compatible. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T, Networking standards: IEEE 802.3ab. Product colour: Grey, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. Power source type: DC, AC input voltage: 100 - 240 V, Input current: 2.5 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina,..., Mobile operating systems supported: Android

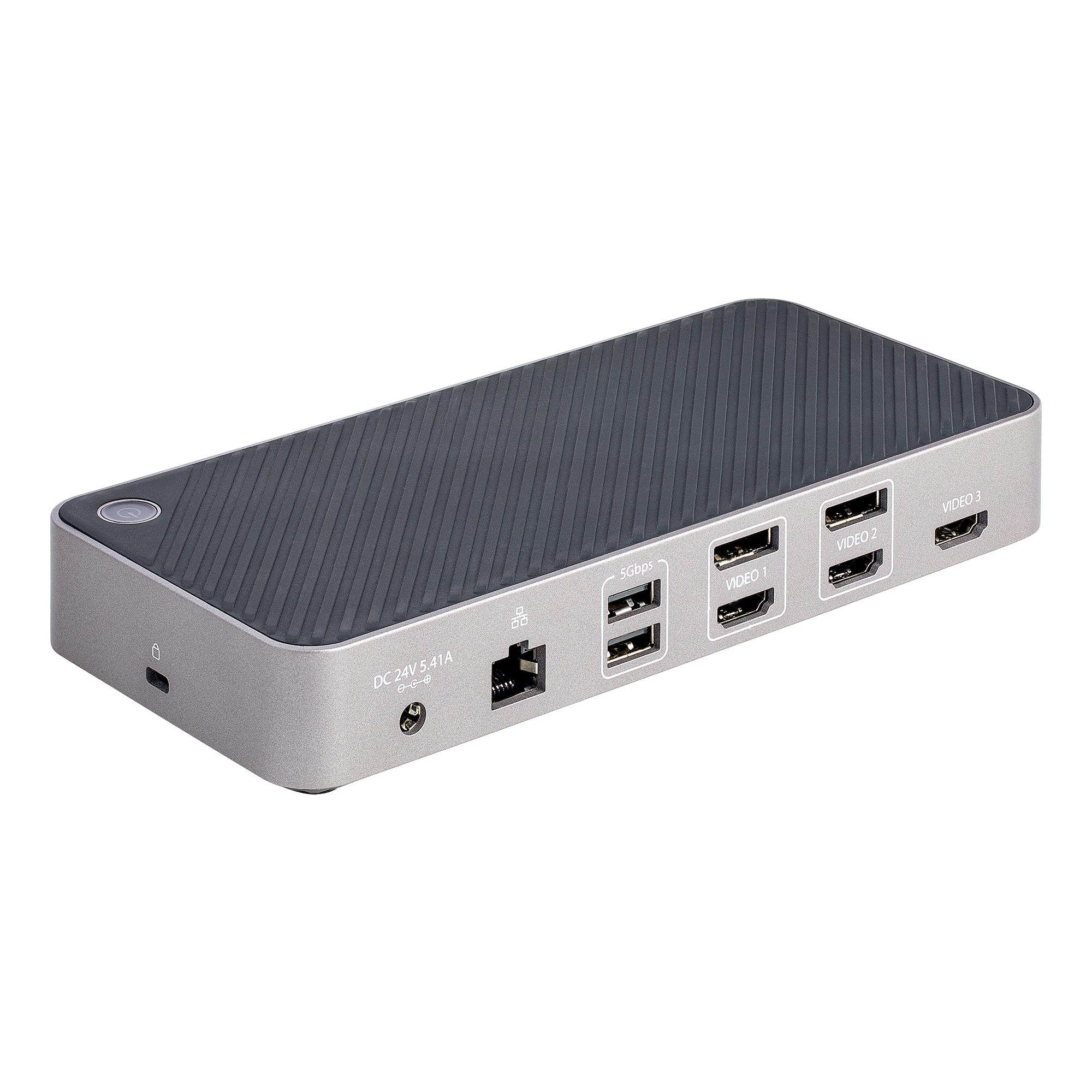

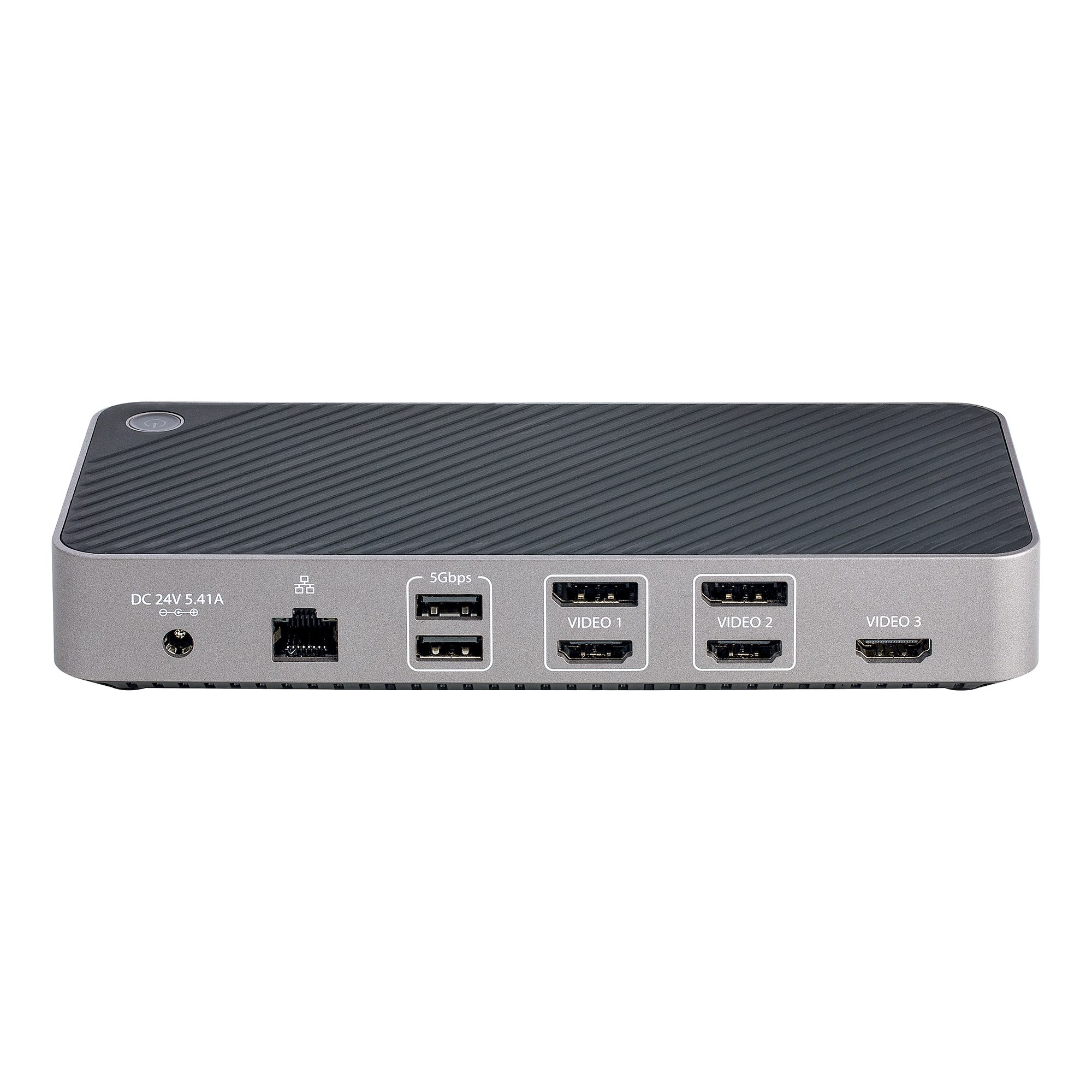

HIGH-PERFORMANCE TRIPLE 4K VIDEO: USB C Multi Monitor Docking Station features flexible video outputs that enable you to connect two 4K 60Hz HDMI 2.0 and/or DisplayPort 1.2 (DP++) monitors via DisplayLink and a 3rd 4K 30Hz HDMI monitor via DP 1.2 Alt Mode
COMPATIBILITY: Supports Windows, macOS, ChromeOS, Linux and hardware platforms including Intel, AMD and the Apple M-Series, enabling three external displays even on laptops that natively only support one; Driver installation required on Windows and macOS

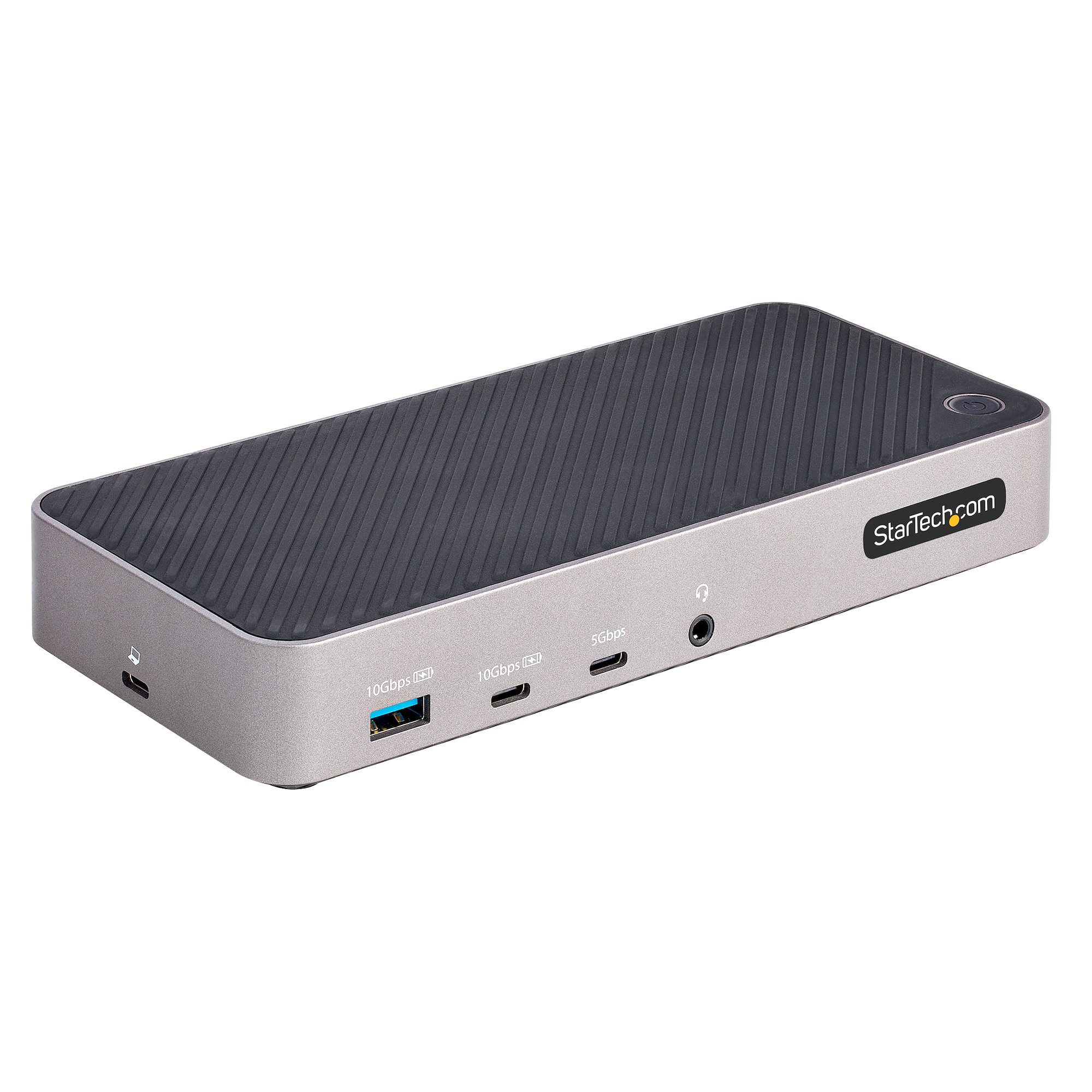

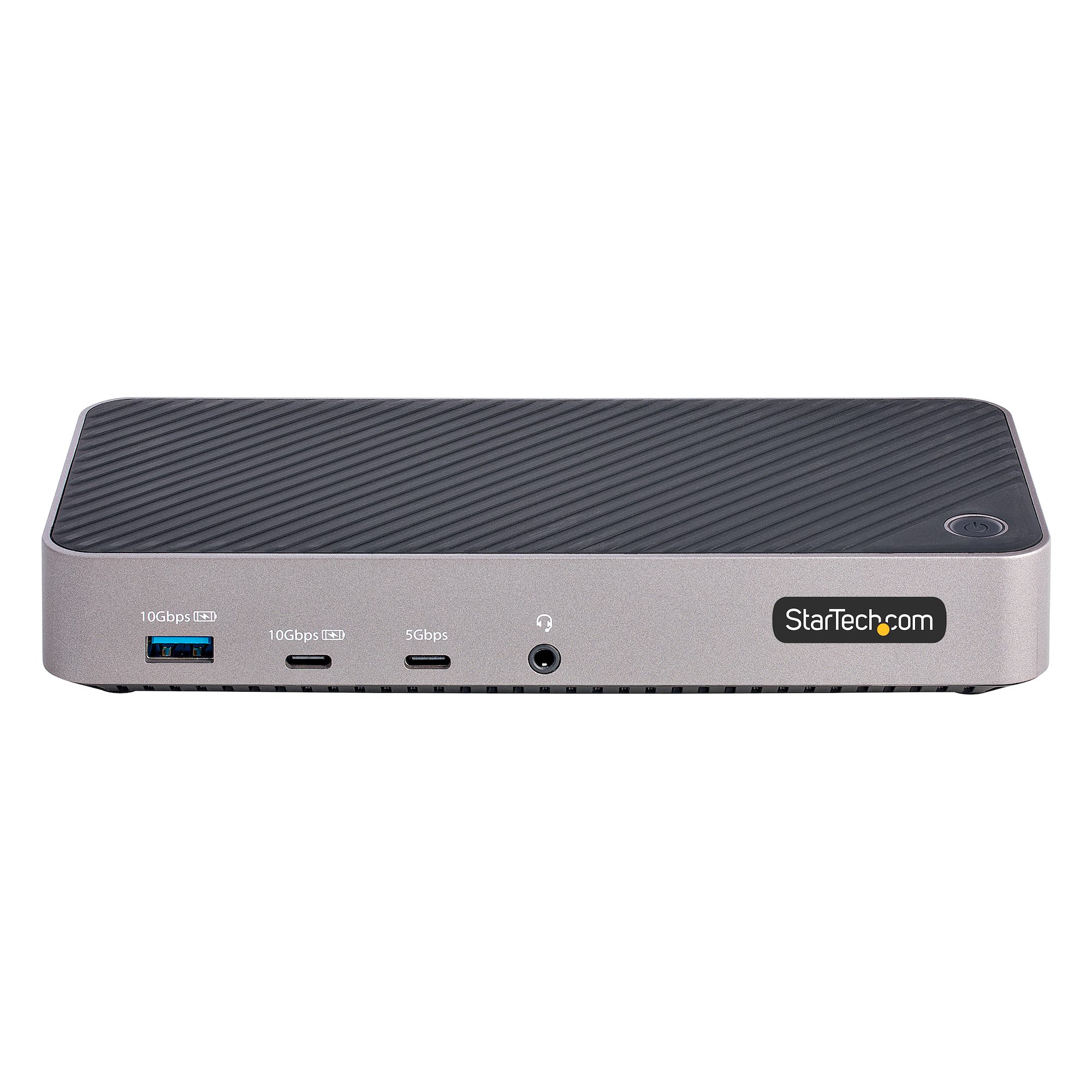

FULL FEATURE DOCK: 5-Port USB Hub with 3x USB-A (2x 5Gbps, 1x 10Gbps w/BC 1.2 charging) and 2x USB-C (1x 10Gbps w/BC 1.2, 1x 5Gbps) - 100W USB PD - 3.5mm Headset/Audio port and Gigabit Ethernet (WoL) - K Slot - OCP protects devices from power surges
100W POWER DELIVERY 3.0: Power and charge USB-C and Thunderbolt 3/4 laptops and ultrabooks including Lenovo X1/Thinkpad P Series, Dell Latitudes/Precision,/XPS 15, HP Envy, Surface Laptop 3 and MacBook - Incl. 3.3ft/1m USB-IF Certified USB-C host cable
CONNECTIVITY TOOLS: Optimize the performance and security of this universal docking station, using the included MAC Address Changer, USB Event Monitoring, Windows Layout and Wi-Fi Auto Switch utilities (available for download)

Product Properties

Manufacturer
StarTech.com

Model
116U-USBC-DOCK

EAN
65030900096

Bullet points

Point
100W POWER DELIVERY 3.0

COMPATIBILITY

CONNECTIVITY TOOLS

FULL FEATURE DOCK

HIGH-PERFORMANCE TRIPLE 4K VIDEO

Logistics data

Master (outer) case height
290 mm

Master (outer) case length
430 mm

Master (outer) case width
280 mm

Products per master (outer) case
10 pc(s)

Network

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100,1000 Mbit/s

Networking standards
IEEE 802.3ab

Wake-on-LAN ready
Yes

Operational conditions

Operating relative humidity (H-H)
0 - 85%

Operating temperature (T-T)
0 - 70 °C

Storage temperature (T-T)
-10 - 55 °C

Other features

Chipset
DisplayLink - DL-6950-N, VIA - VL817C0, Parade - PS176C0

Packaging content

AC adapter included
Yes

Cables included
USB Type-C to USB Type-C

Quick start guide
Yes

Packaging data

Package depth
250 mm

Package height
50 mm

Package weight
1.1 kg

Package width
205 mm

Performance

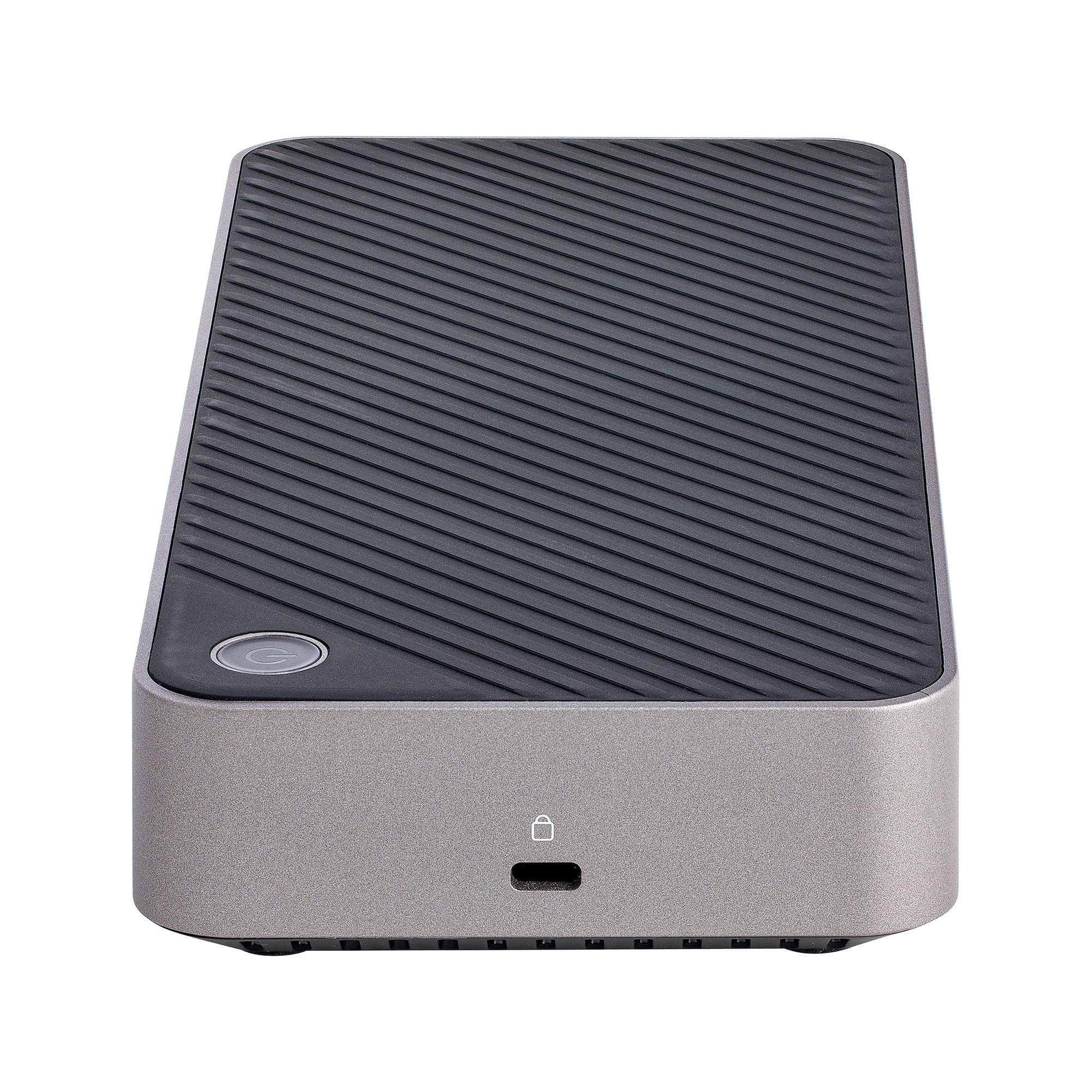

Cable lock slot
Yes

Cable lock slot type
Kensington

Card reader integrated
No

Data transfer rate
10 Gbit/s

HD type
4K Ultra HD

Housing material
Plastic

LED indicators
Power

Maximum digital resolution
4096 x 2160 pixels

Maximum refresh rate
60 Hz

Product colour
Grey

Ports & interfaces

Combo headphone/mic port
Yes

Connectivity technology
Wired

DC-in jack
Yes

DisplayPort version
1.4

DisplayPorts quantity
2

HDMI ports
3

HDMI version
2.0

Headphone connectivity
3.5 mm

Headphone outputs
1

Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 2.0 ports quantity
0

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1

USB Power Delivery (USB PD)
Yes

USB Power Delivery revision
3.0

USB Power Delivery up to
100 W

USB Type-C DisplayPort Alternate Mode
Yes

Power

AC input voltage
100 - 240 V

Input current
2.5 A

Output current
5.41 A

Output voltage
24 V

Power consumption (typical)
15 W

Power plug type
Type M

Power source type
DC

Software

Linux operating systems supported
Yes

Mac operating systems supported
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura

Mobile operating systems supported
Android

Other operating systems supported
ChromeOS

Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64

Sustainability

Sustainability compliance
Yes

Technical details

Compliance certificates
CE

Weight & dimensions

Depth
190 mm

Height
30 mm

Weight
350 g

Width
85 mm
