StarTech.com USB-C & USB-A Dock - Hybrid Universal Triple Monitor Laptop Docking Station DisplayPort & HDMI 4K 60Hz - 85W Power Delivery, 6x USB Hub, GbE, Audio - USB 3.1 Gen 2 10Gbps - TAA
Roll over image to zoom inClick to Open expanded view
Model: DK31C3HDPDUE
EAN: 65030881944

StarTech.com USB-C & USB-A Dock - Hybrid Universal Triple Monitor Laptop Docking Station DisplayPort & HDMI 4K 60Hz - 85W Power Delivery, 6x USB Hub, GbE, Audio - USB 3.1 Gen 2 10Gbps - TAA

Manufacturer:
StarTech.com
StarTech.com USB-C & USB-A Dock - Hybrid Universal Triple Monitor Laptop Docking Station DisplayPort & HDMI 4K 60Hz - 85W Power Delivery, 6x USB Hub, GbE, Audio - USB 3.1 Gen 2 10Gbps - TAA, Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 85 W, 10,100,1000 Mbit/
Please log in to see your price
Related products

Description

StarTech.com USB-C & USB-A Dock - Hybrid Universal Triple Monitor Laptop Docking Station DisplayPort & HDMI 4K 60Hz - 85W Power Delivery, 6x USB Hub, GbE, Audio - USB 3.1 Gen 2 10Gbps - TAA. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 85 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Grey, Data transfer rate: 10 Gbit/s, Maximum digital resolution: 3840 x 2160 pixels. AC input voltage: 100 - 240 V, Input current: 2.5 A, Output voltage: 20 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High...

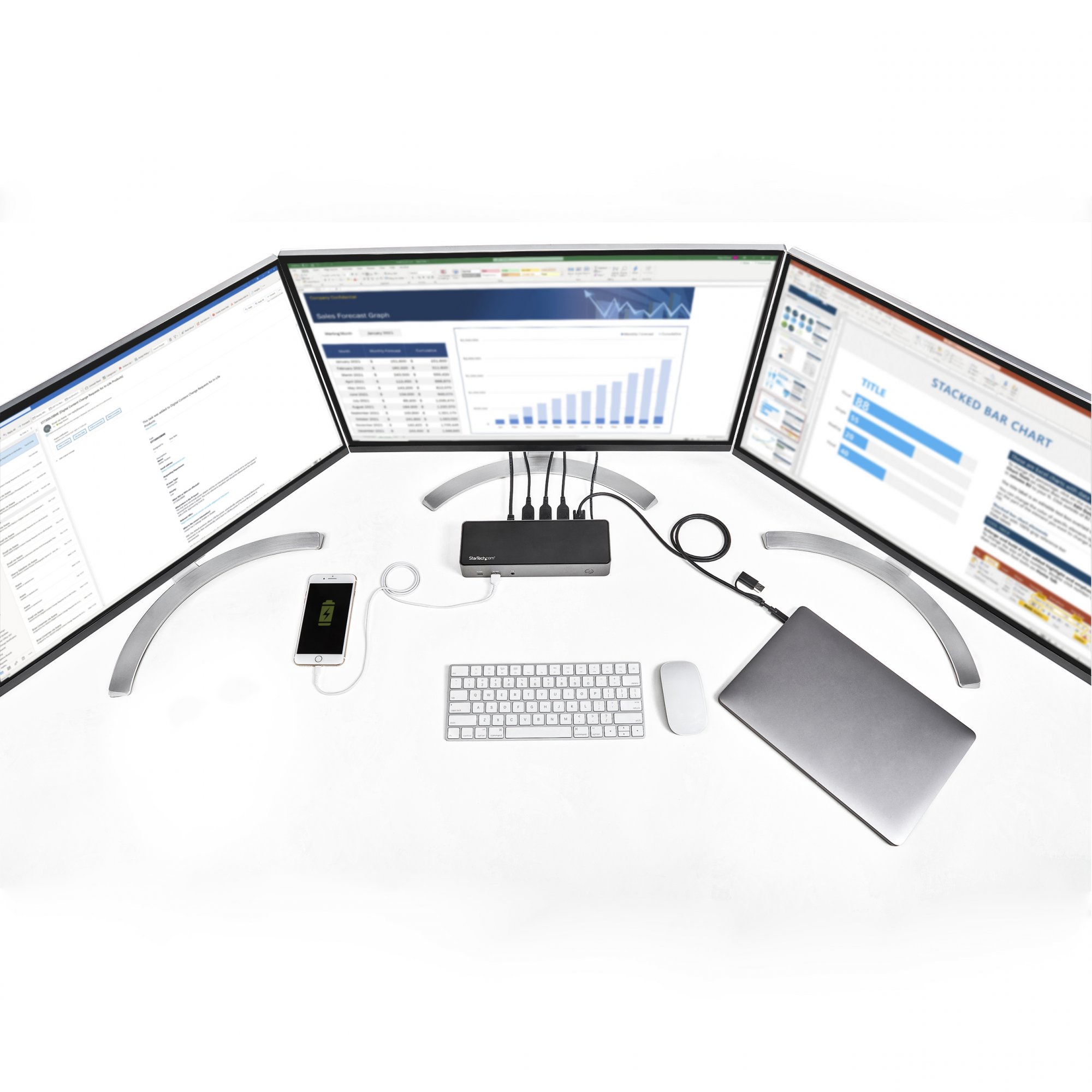

  • FLEXIBLE MULTI DISPLAY SETUP: USB 3.2 Gen 2 10Gbps Type-C/A dock supports dual or triple monitor setup (up to 3x 4K 60Hz), using any combination of the 3x DisplayPort 1.4 & 3x HDMI 2.0
  • 85W POWER DELIVERY: Power & charge USB-C/Thunderbolt 3 and 4 workstation laptops/ultrabooks incl Lenovo X1 Carbon, ThinkPad P Series, Dell Latitudes, Precision, XPS 15, HP Spectre, ZBook & MacBook Pro 16
  • COMPATIBILITY: Supports Windows, macOS, ChromeOS, Linux and hardware platforms including Intel, AMD and the Apple M-Series, enabling three external displays even on laptops that natively only support one; Driver installation required on Windows and macOS

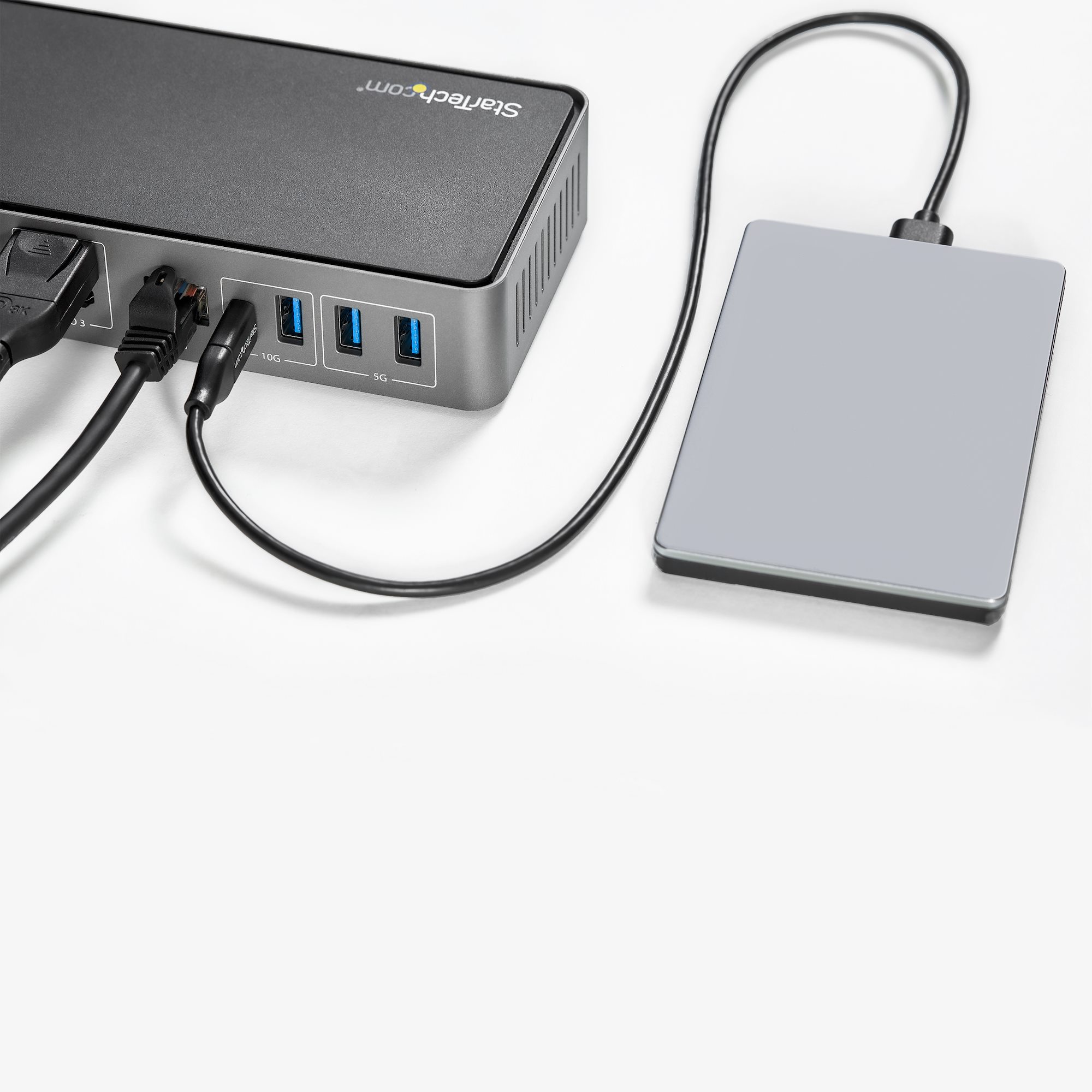

  • 6-PORT USB HUB: 4x USB-A (1x 10Gbps), 2x USB-C (1x 10Gbps), incl. 2x BC 1.2 fast charge always-on front ports; USB-C Gen 1 & USB-A laptops will only support downstream port speeds up to USB 5Gbps

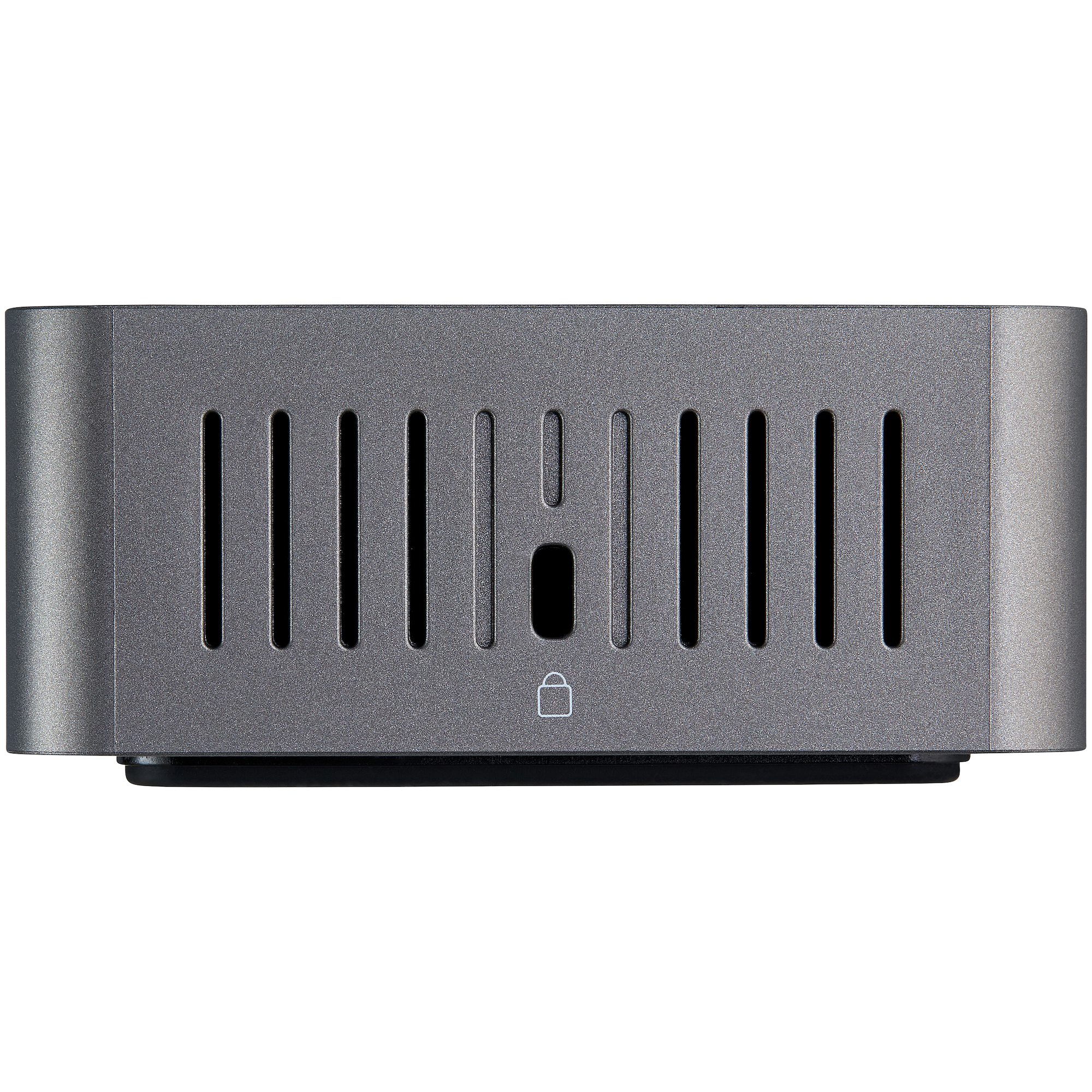

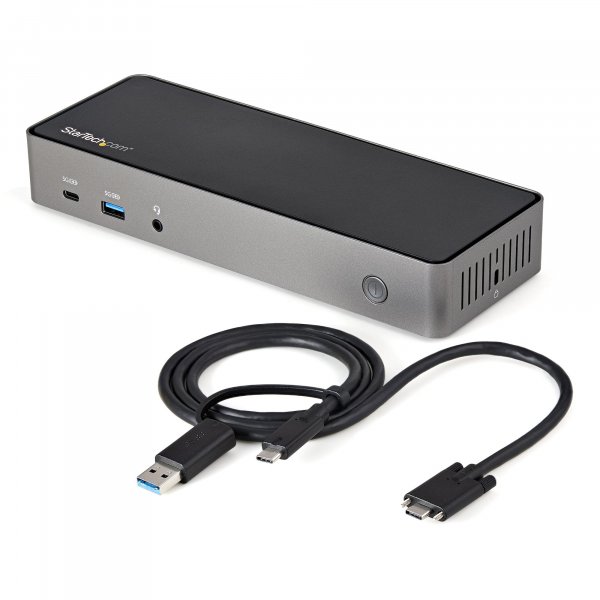

  • DEPLOYMENT READY: Docking station features a K-slot, 1m combo host cable; Gigabit Ethernet & headset ports; Windows, MacOS, Chrome OS; Mounting holes for mounting plates SSPMSUDWM/SSPMSVESA
  • CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities

Product Properties

  • Model
  • DK31C3HDPDUE
  • EAN
  • 65030881944
  • Bullet points
  • Point
  • 6-PORT USB HUB
    85W POWER DELIVERY
    COMPATIBILITY
    CONNECTIVITY TOOLS
    DEPLOYMENT READY
    FLEXIBLE MULTI DISPLAY SETUP
  • Logistics data
  • Harmonized System (HS) code
  • 84733020
  • Master (outer) case height
  • 300 mm
  • Master (outer) case length
  • 395 mm
  • Master (outer) case width
  • 315 mm
  • Products per master (outer) case
  • 6 pc(s)
  • Network
  • Ethernet LAN
  • Yes
  • Ethernet LAN (RJ-45) ports
  • 1
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Operational conditions
  • Operating relative humidity (H-H)
  • 0 - 95%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage temperature (T-T)
  • -20 - 70 °C
  • Other features
  • Cable length
  • 1 m
  • Chipset
  • Realtek RTS5423, Realtek RTS5411, Realtek RTS5412, Realtek RTS5451, Realtek RTD2142, DisplayLink DL6950
  • Packaging content
  • AC adapter included
  • Yes
  • Cables included
  • USB Type-A to USB Type-C
  • Quick start guide
  • Yes
  • Packaging data
  • Package depth
  • 253 mm
  • Package height
  • 91 mm
  • Package weight
  • 1.7 kg
  • Package width
  • 172 mm
  • Performance
  • Cable lock slot
  • Yes
  • Cable lock slot type
  • Kensington
  • Card reader integrated
  • No
  • Certification
  • CE, FCC
  • Data transfer rate
  • 10 Gbit/s
  • Housing material
  • Aluminium, Plastic
  • Maximum digital resolution
  • 3840 x 2160 pixels
  • Product colour
  • Black, Grey
  • Ports & interfaces
  • Combo headphone/mic port
  • Yes
  • Connectivity technology
  • Wired
  • DC-in jack
  • Yes
  • DisplayPorts quantity
  • 3
  • HDMI ports
  • 3
  • HDMI version
  • 2.0
  • Headphone outputs
  • 1
  • Host interface
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C
  • USB 2.0 ports quantity
  • 0
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 3
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 1
  • USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
  • 1
  • USB Power Delivery (USB PD)
  • Yes
  • USB Power Delivery up to
  • 85 W
  • Power
  • AC input voltage
  • 100 - 240 V
  • Compatible power plug types
  • EU, UK
  • Input current
  • 2.5 A
  • Output current
  • 7.5 A
  • Output voltage
  • 20 V
  • Power plug type
  • Type M
  • Software
  • Mac operating systems supported
  • Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura
  • Windows operating systems supported
  • Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64
  • Technical details
  • Compliance certificates
  • RoHS
  • Weight & dimensions
  • Depth
  • 233 mm
  • Height
  • 37 mm
  • Weight
  • 365 g
  • Width
  • 84 mm
