Description

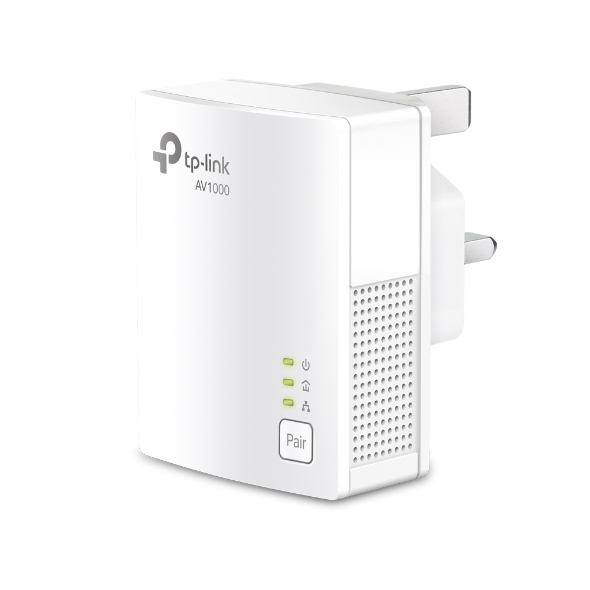

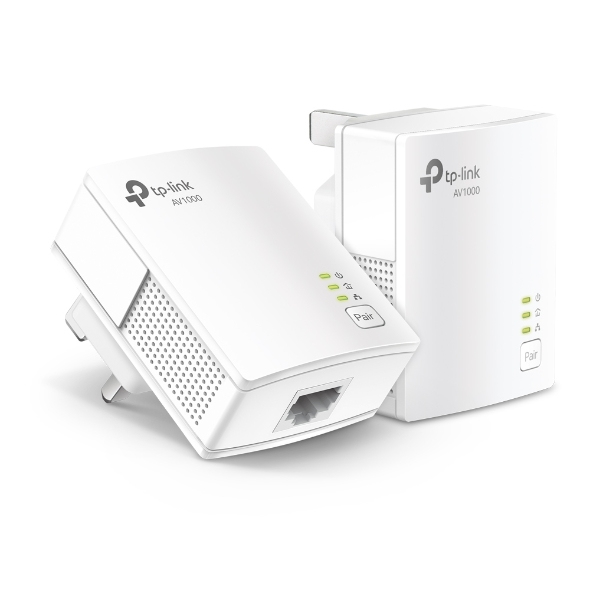

TP-Link AV1000 Gigabit Powerline Starter Kit. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Ethernet LAN interface type: Gigabit Ethernet. Power consumption (typical): 2.3 W, Power consumption (standby): 0.5 W. Product colour: White, LED indicators: LAN, PLC, Power, Certification: CE, RoHS. Windows operating systems supported: Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise.... Width: 65 mm, Depth: 52 mm, Height: 28.5 mm

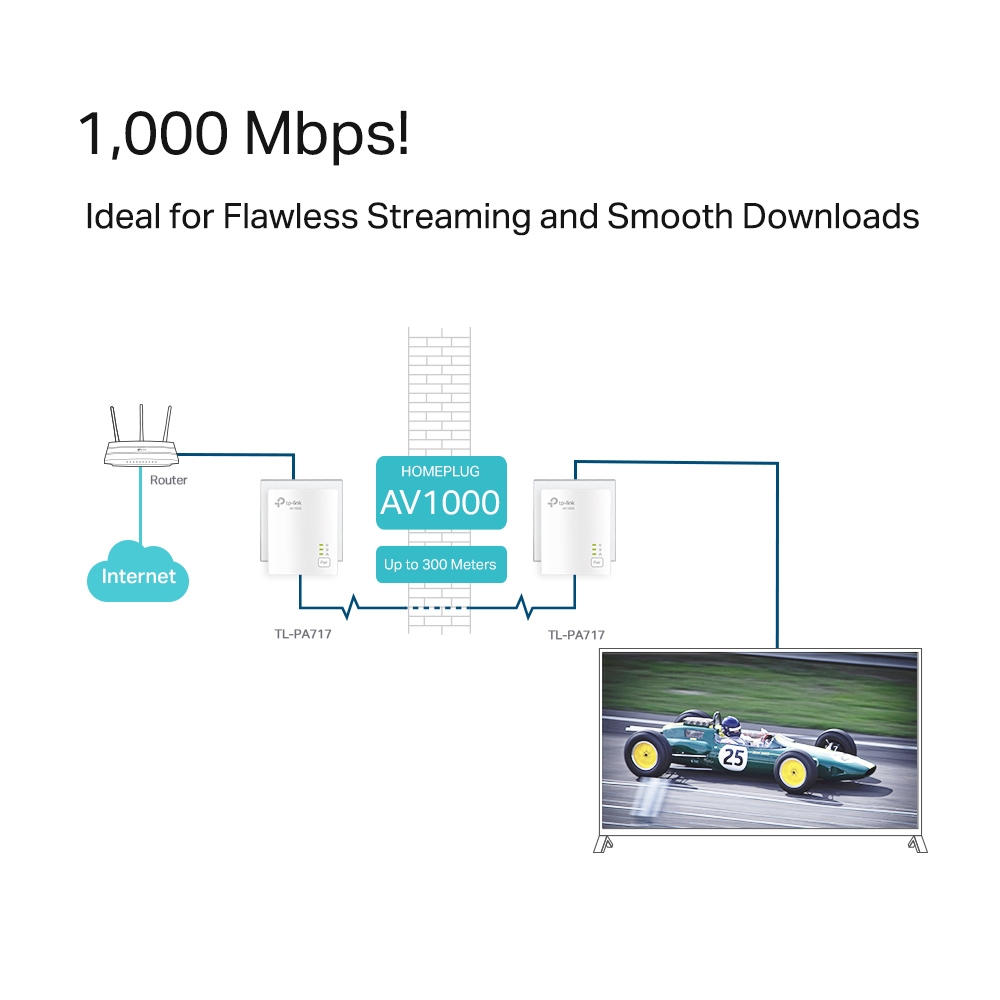

HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs

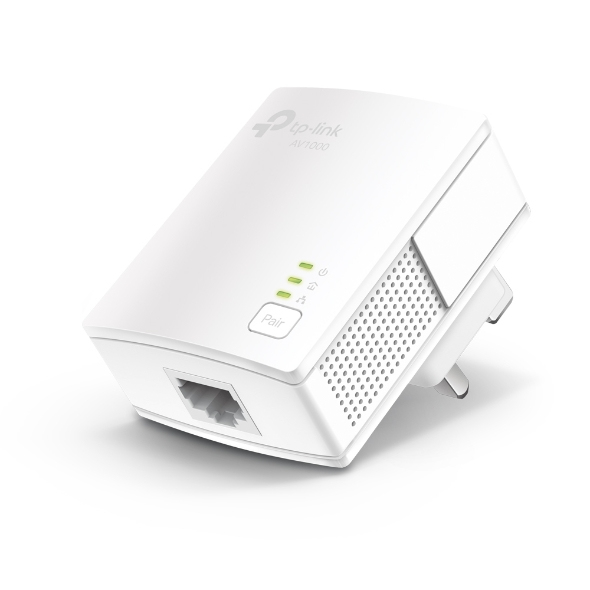

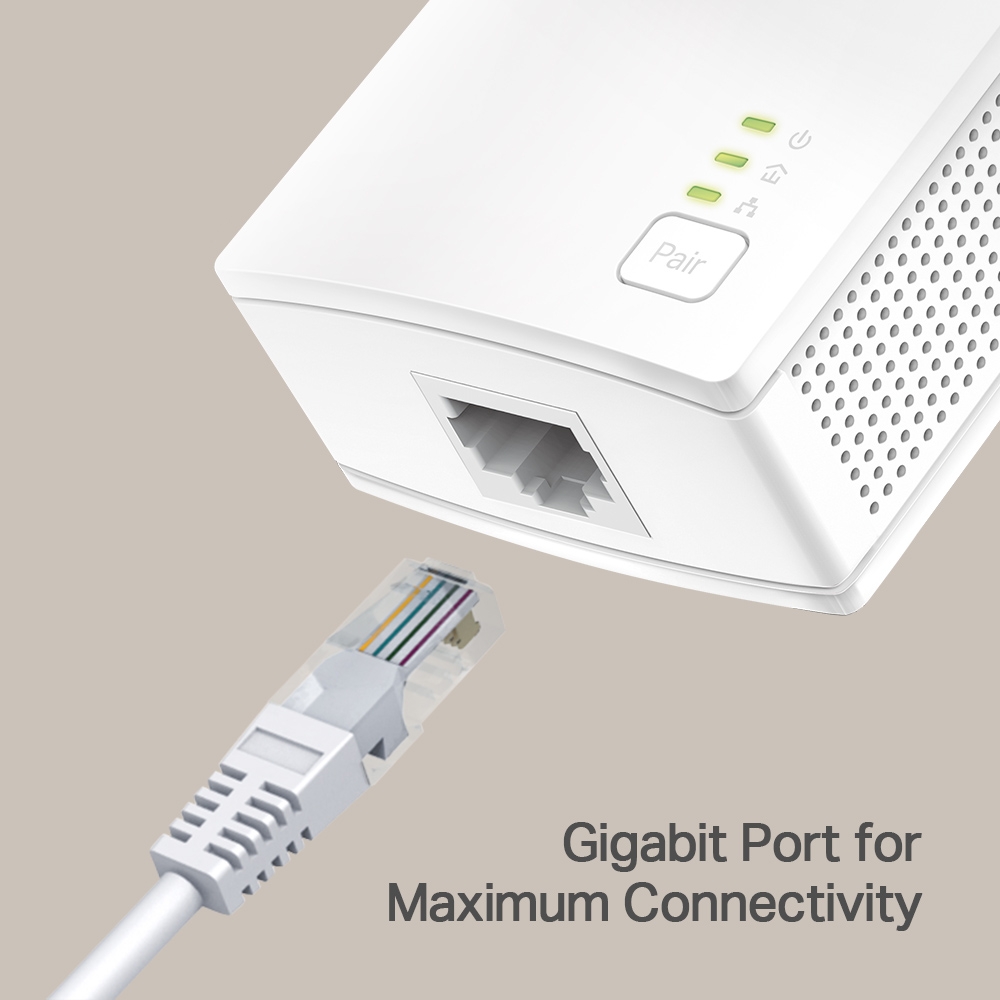

Gigabit port - provides secure wired networks for desktops, smart TVs or games consoles

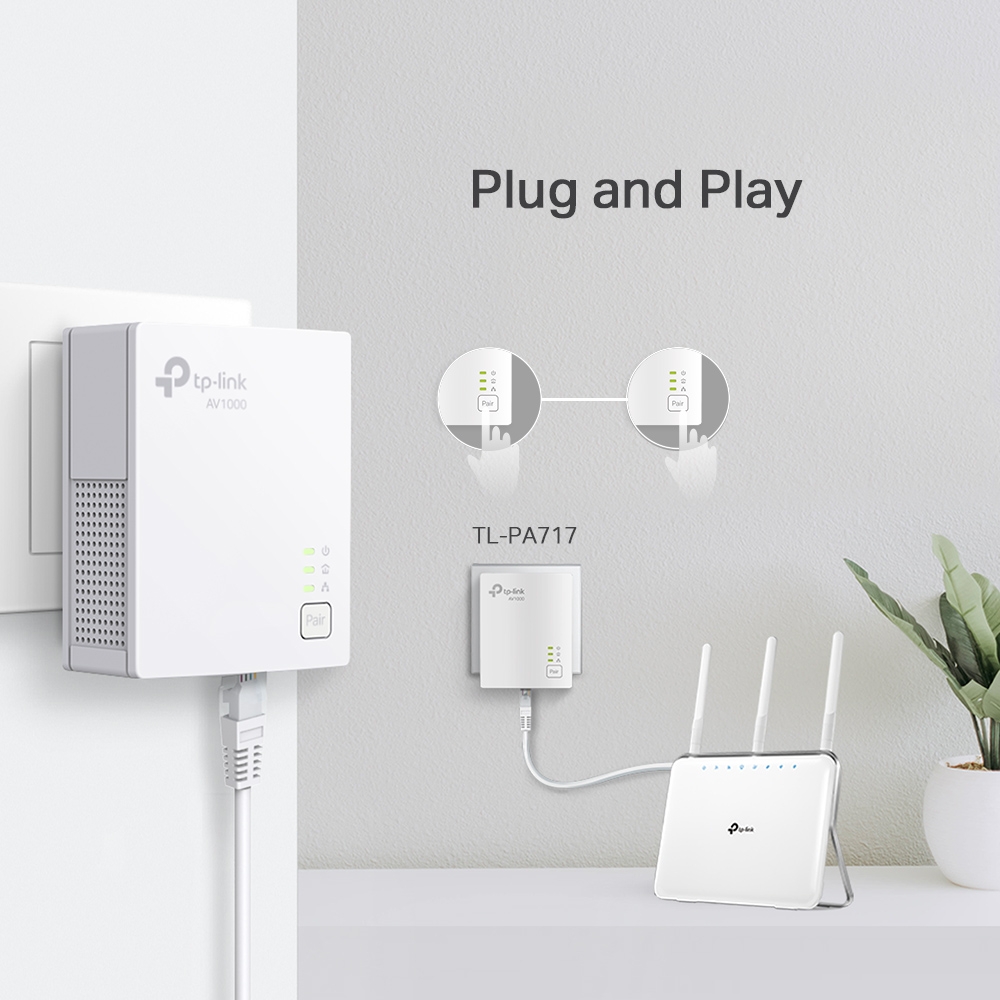

Plug and play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired and wireless connections right away
Patented Power - Saving Mode - automatically reduces power consumption by up to 85%

Product Properties

Manufacturer
TP-LINK

Model
TL-PA717KIT

EAN
6935364052300

Bullet points

Point
Gigabit port - provides secure wired networks for desktops, smart TVs or games consoles

Patented Power - Saving Mode - automatically reduces power consumption by up to 85%

Certificates

Compliance certificates
RoHS

Design

Certification
CE, RoHS

LED indicators
LAN, PLC, Power

Product colour
White

Logistics data

Harmonized System (HS) code
85171800

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Cables included
LAN (RJ-45)

Quantity per pack
2 pc(s)

Quick installation guide
Yes

Packaging data

Package depth
136 mm

Package height
100 mm

Package type
Box

Package weight
430 g

Package width
190 mm

Performance

Built-in power socket
No

Encryption button
Yes

Ethernet LAN
Yes

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100 Mbit/s

Ethernet LAN interface type
Gigabit Ethernet

Maximum data transfer rate
1000 Mbit/s

Maximum operating distance
300 m

Modulation
OFDM

Networking standards
IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Plug and Play
Yes

PowerLine standard
HomePlug AV2

Security algorithms
128-bit AES

Power

Power consumption (standby)
0.5 W

Power consumption (typical)
2.3 W

System requirements

Linux operating systems supported
Yes

Mac operating systems supported
Yes

Windows operating systems supported
Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight & dimensions

Depth
52 mm

Height
28.5 mm

Width
65 mm
