Model: TL-SG1210MPE
EAN: 6935364052676

TP-Link 10-Port Gigabit Easy Smart Switch with 8-Port PoE+

Manufacturer:
TP-LINK
TP-Link 10-Port Gigabit Easy Smart Switch with 8-Port PoE+, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Please log in to see your price
Related products

Description

TP-Link 10-Port Gigabit Easy Smart Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE.... DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE)
  • 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port

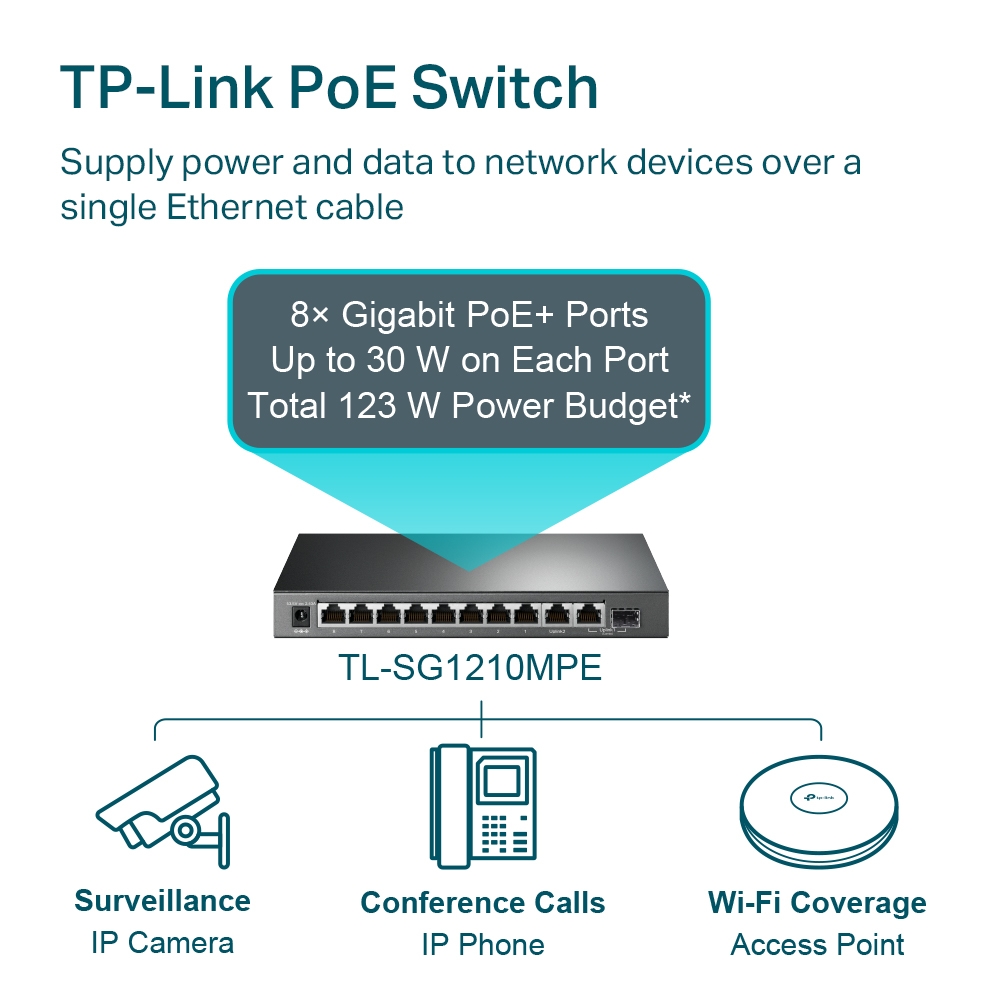

  • Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
  • Supports PoE power up to 123 W for all PoE ports*

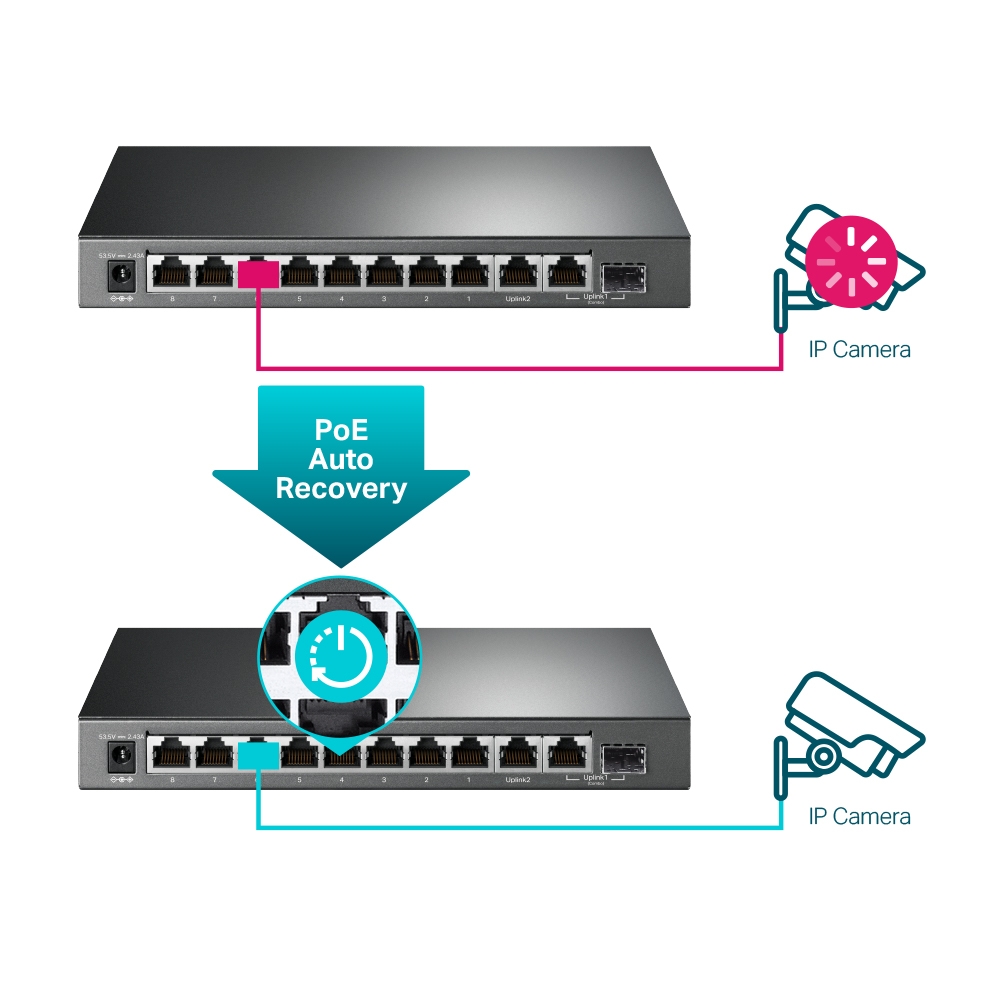

  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery

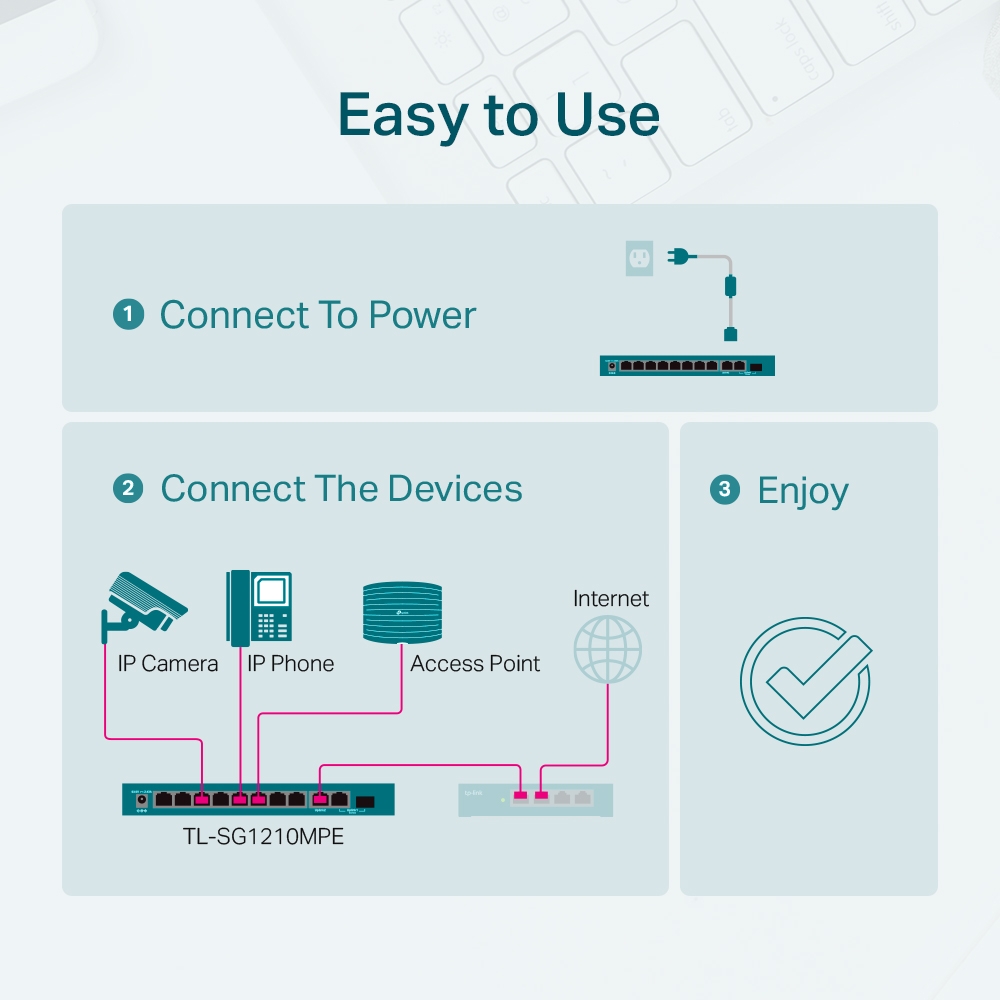

  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Fanless design lowers energy consumption and eliminates operating noise

Product Properties

  • Model
  • TL-SG1210MPE
  • EAN
  • 6935364052676
  • Bullet points
  • Point
  • 9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port
    Fanless design lowers energy consumption and eliminates operating noise
    Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
    Simple network set-up on top of plug-and-play connectivity
    Supports PoE Power up to 123 W for all PoE ports*
    Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Data transmission
  • Forwarding rate
  • 14.88 Mpps
  • Jumbo frames
  • 16000
  • Jumbo frames support
  • Yes
  • MAC address table
  • 4000 entries
  • Store-and-forward
  • Yes
  • Switching capacity
  • 20 Gbit/s
  • Design
  • LED indicators
  • Yes
  • Product colour
  • Black
  • Rack mounting
  • No
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2
  • Switch type
  • Managed
  • Network
  • 10G support
  • No
  • Broadcast storm control
  • Yes
  • Networking standards
  • IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Port mirroring
  • Yes
  • Rate limiting
  • Yes
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • Manual
  • Yes
  • Ports & interfaces
  • Fiber optic connector
  • SFP
  • Fiber ports quantity
  • 1
  • Installed SFP modules quantity
  • 0
  • Installed SFP+ modules quantity
  • 0
  • Power connector
  • DC-in jack
  • Switch Number of Ports
  • 9
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • DC input voltage
  • 53.5 V
  • Input current
  • 2.43 A
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) power per port
  • 30 W
  • Power over Ethernet plus (PoE+) ports quantity
  • 8
  • Security
  • IGMP snooping
  • Yes
  • Loop protection
  • Yes

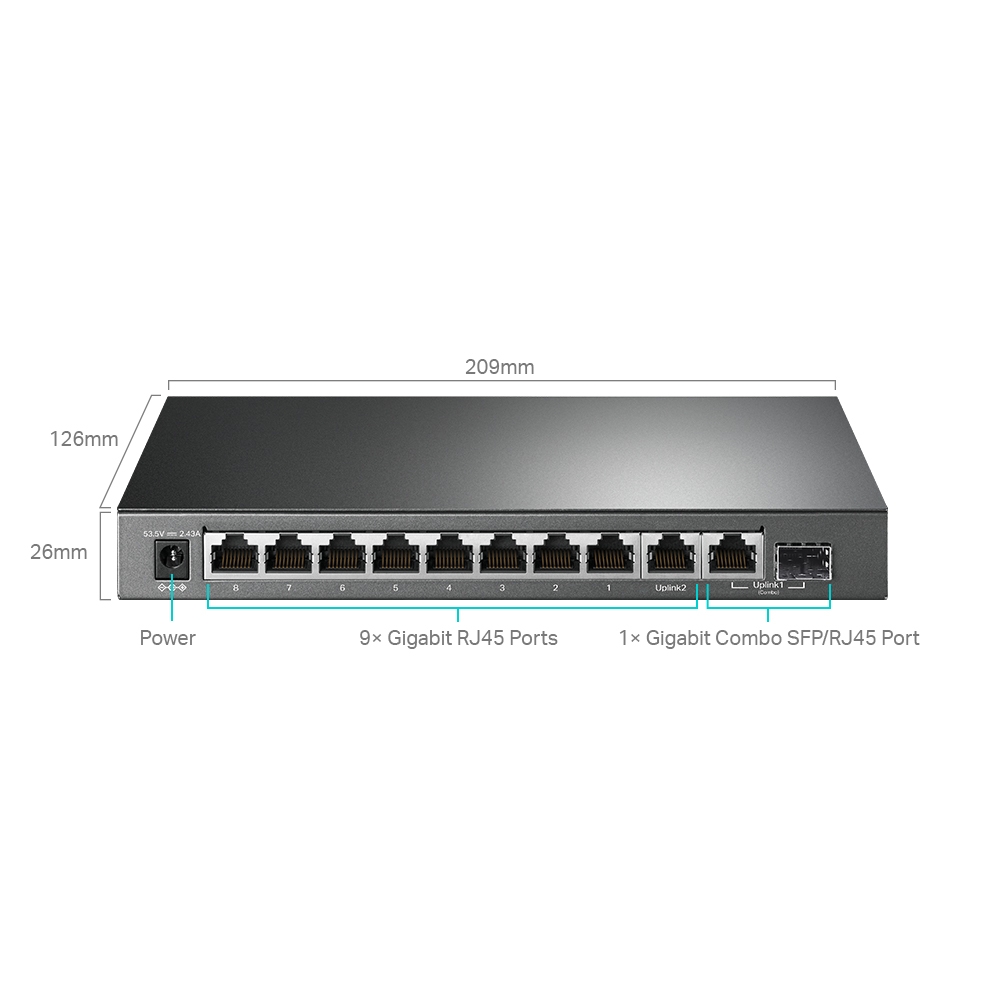

  • Weight & dimensions
  • Depth
  • 126 mm
  • Height
  • 26 mm
  • Width
  • 209 mm
