Description

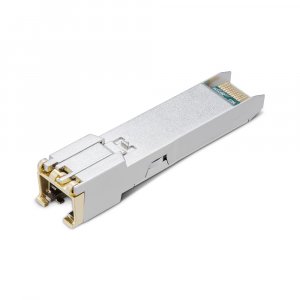

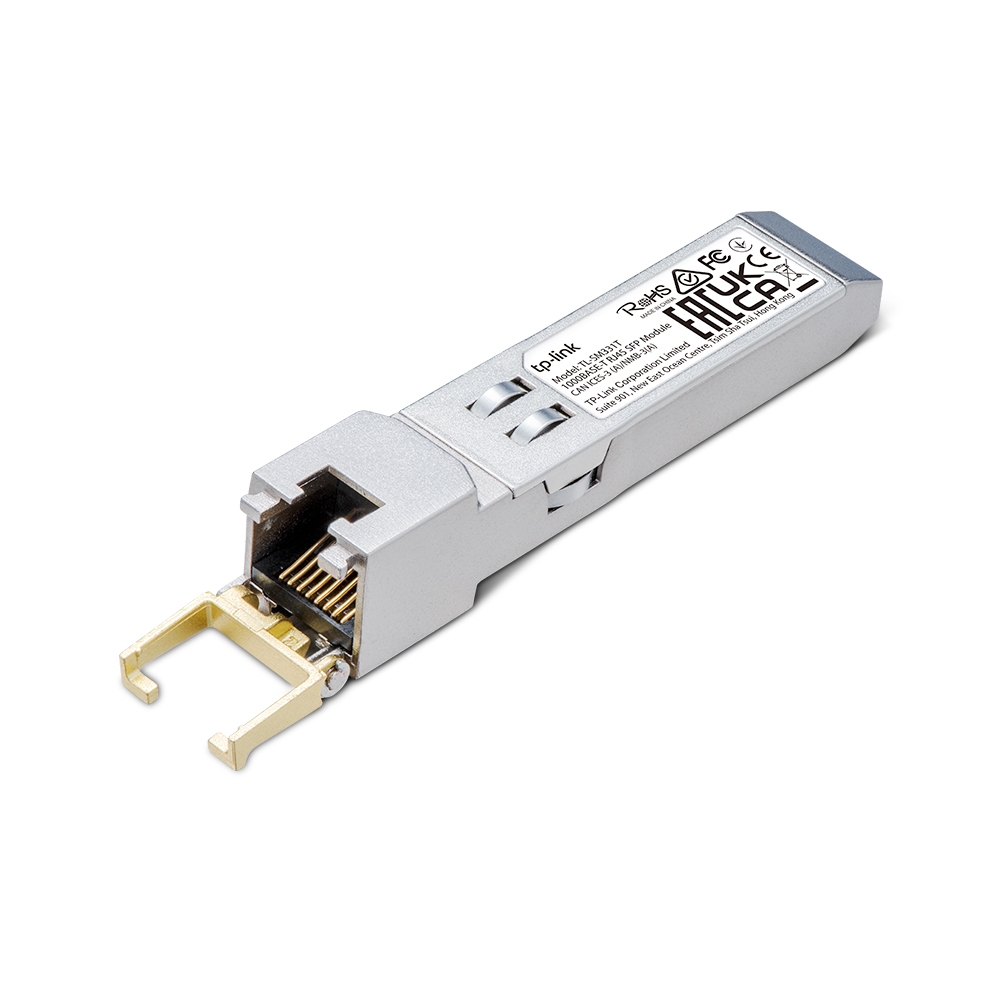

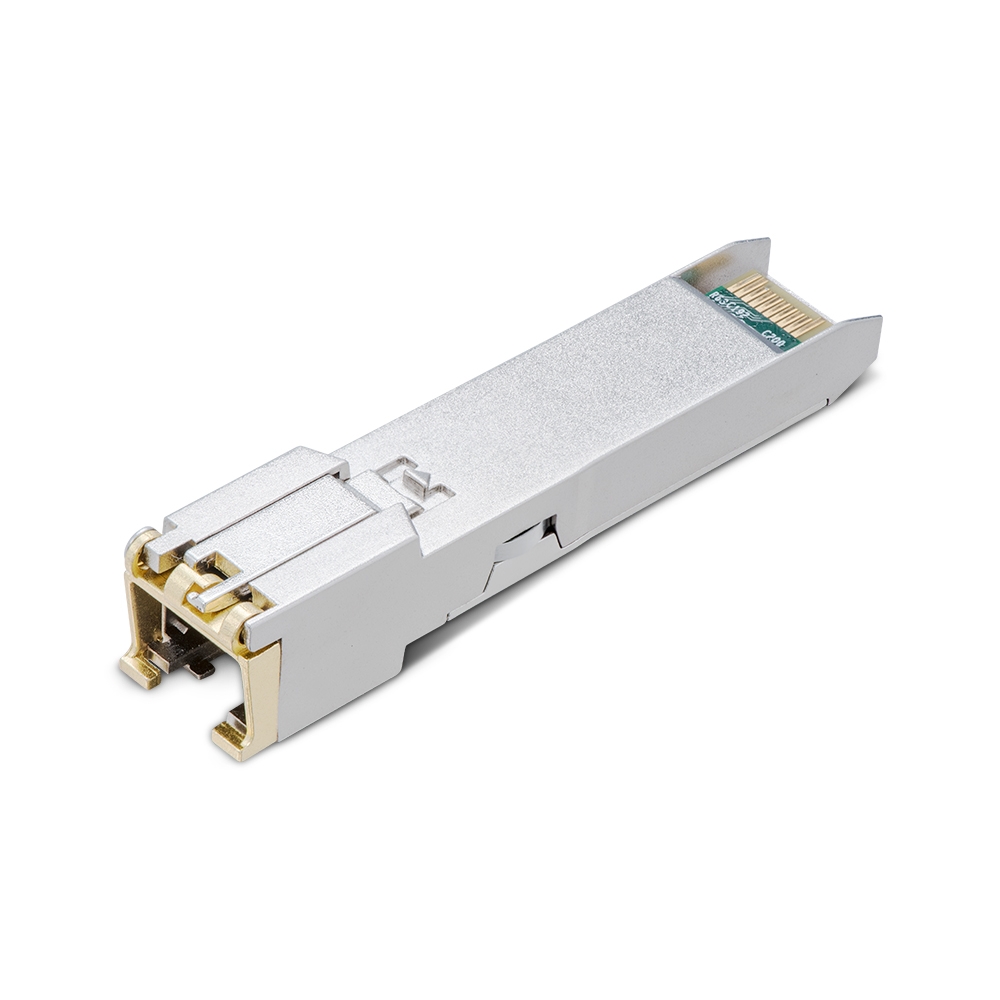

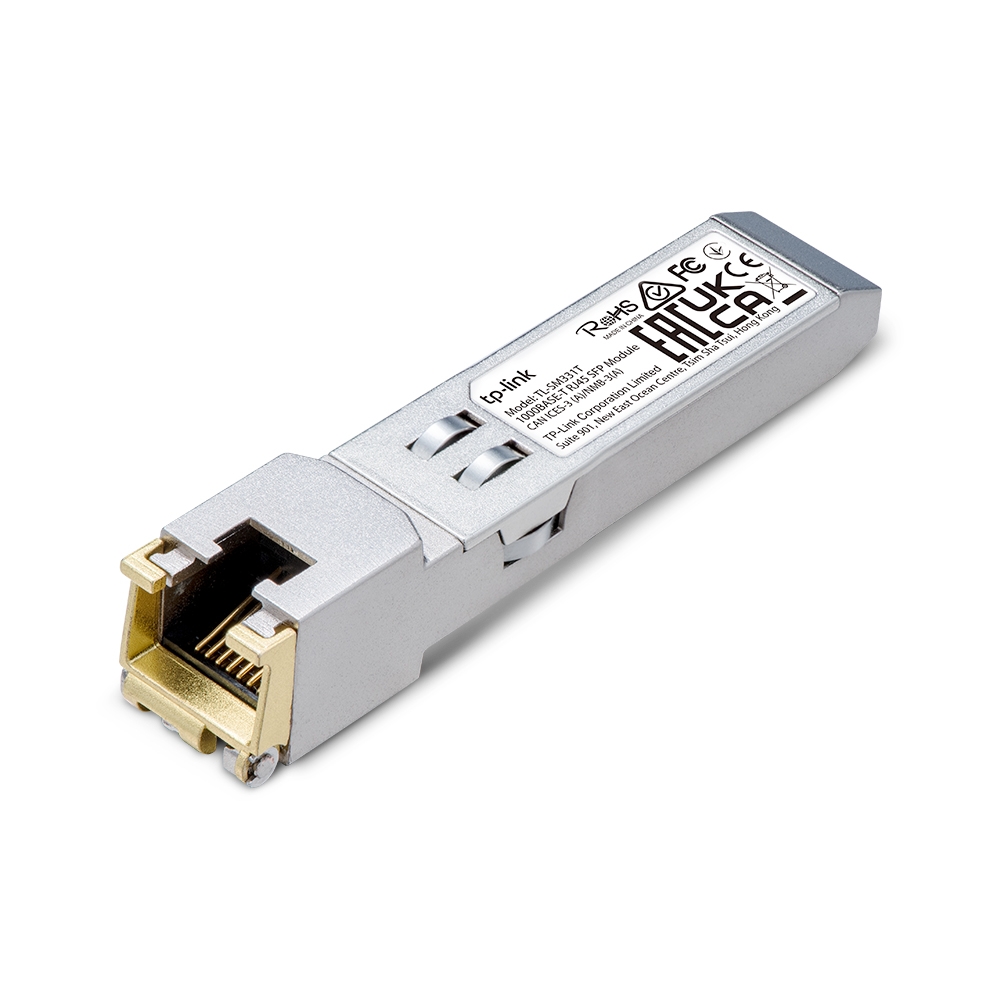

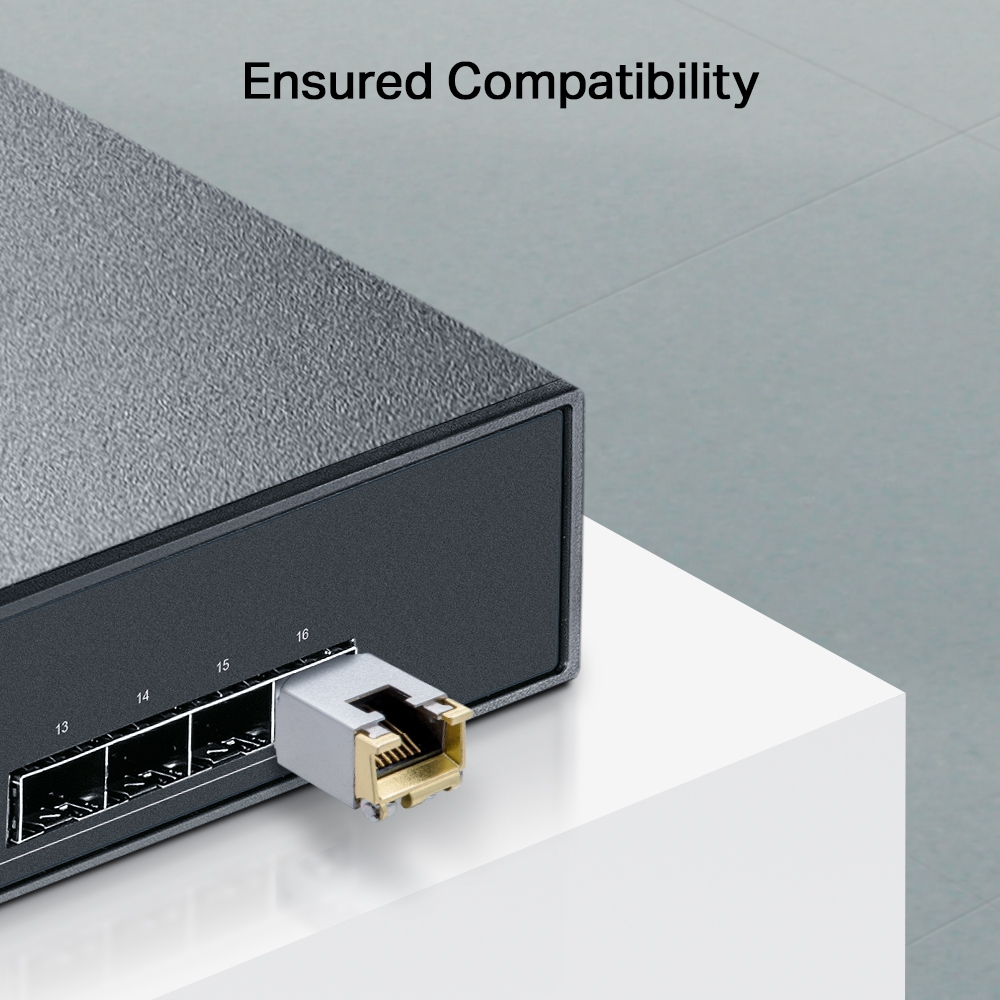

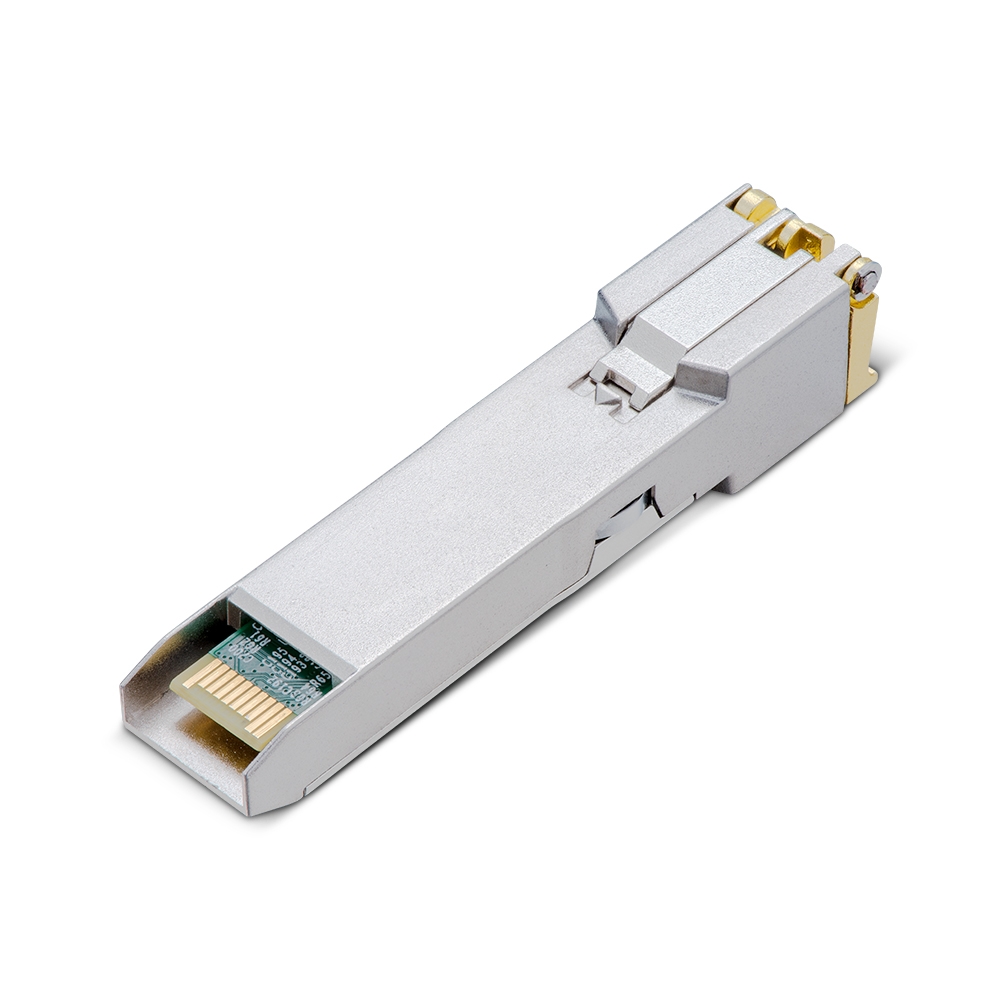

TP-Link 1000BASE-T RJ45 SFP Module. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Silver. Input voltage: 3.3 V. Certification: FCC, CE. Width: 67.4 mm, Depth: 13.8 mm, Height: 13.8 mm

Support 1000BASE-T Operation in Host Systems
Support TX Disable function
For 100m Reach Over UTP Cat 5e or above Cable

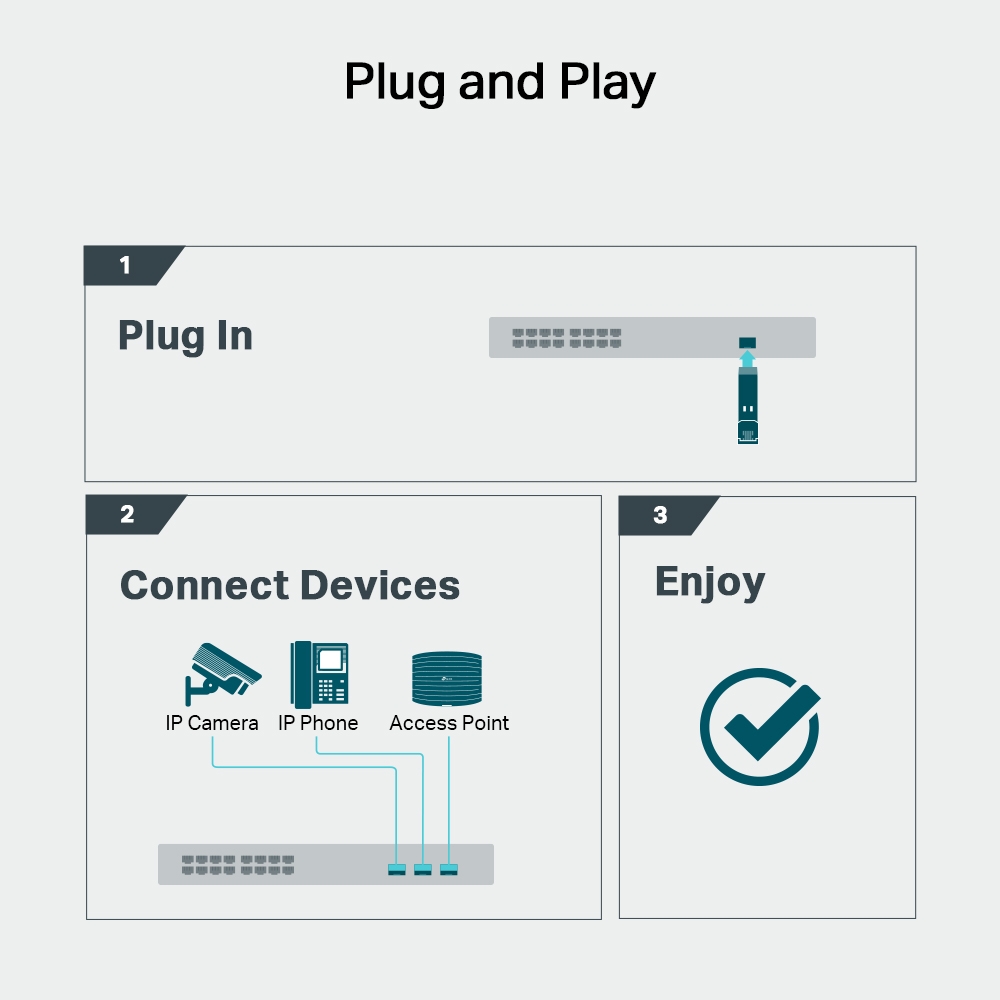

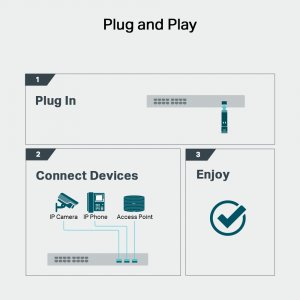

Hot-Pluggable SFP Footprint Features
Commercial Product Operating Temperature Range: 0-70°C
Compliant with IEEE Std 802.3-2002

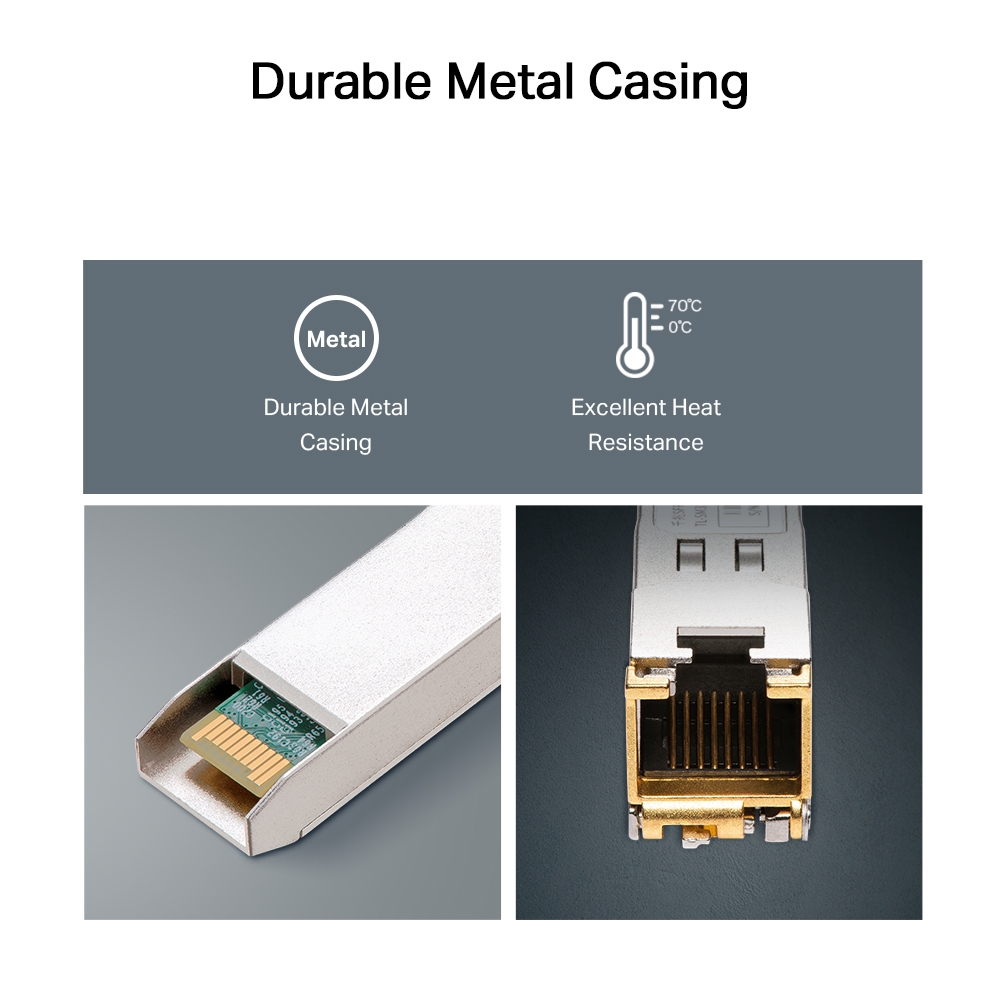

Fully Metallic Enclosure for Low EMI
Low Power Dissipation (0.5 W Typical, 0.8 W Max)

Product Properties

Manufacturer
TP-LINK

Model
TL-SM331T

EAN
4897098680506

Bullet points

Point
Commercial Product Operating Temperature Range: 0-70°C

Compliant with IEEE Std 802.3-2002

For 100m Reach Over UTP Cat 5e or above Cable

Fully Metallic Enclosure for Low EMI

Hot-Pluggable SFP Footprint Features

Low Power Dissipation (0.5 W Typical, 0.8 W Max)

Support 1000BASE-T Operation in Host Systems

Support TX Disable function

Certificates

Certification
FCC, CE

Features

Product colour
Silver

Logistics data

Harmonized System (HS) code
85369010

Operational conditions

Operating temperature (T-T)
0 - 70 °C

Storage temperature (T-T)
-40 - 85 °C

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package depth
122.5 mm

Package height
38.5 mm

Package weight
60 g

Package width
81.5 mm

User guide
Yes

Performance

Ethernet interface type
Gigabit Ethernet

Ethernet LAN
Yes

Fiber cable diameters supported (core/cladding)
50/125 µm

Interface type
SFP

Maximum data transfer rate
1250 Mbit/s

Maximum transfer distance
300 m

Multi-mode fiber (MMF) supported
Yes

Networking standards
IEEE 802.3ae

SFP transceiver type
Fiber optic

Wavelength
850 nm

Power

Input voltage
3.3 V

Weight & dimensions

Depth
13.8 mm

Height
13.8 mm

Width
67.4 mm
