Description

TP-Link 10/100 Mbps WDM Media Converter. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, Ethernet LAN data rates: 10,100 Mbit/s. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode, Fiber cable diameters supported (core/cladding): 9/125 µm. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 0.6 A

Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

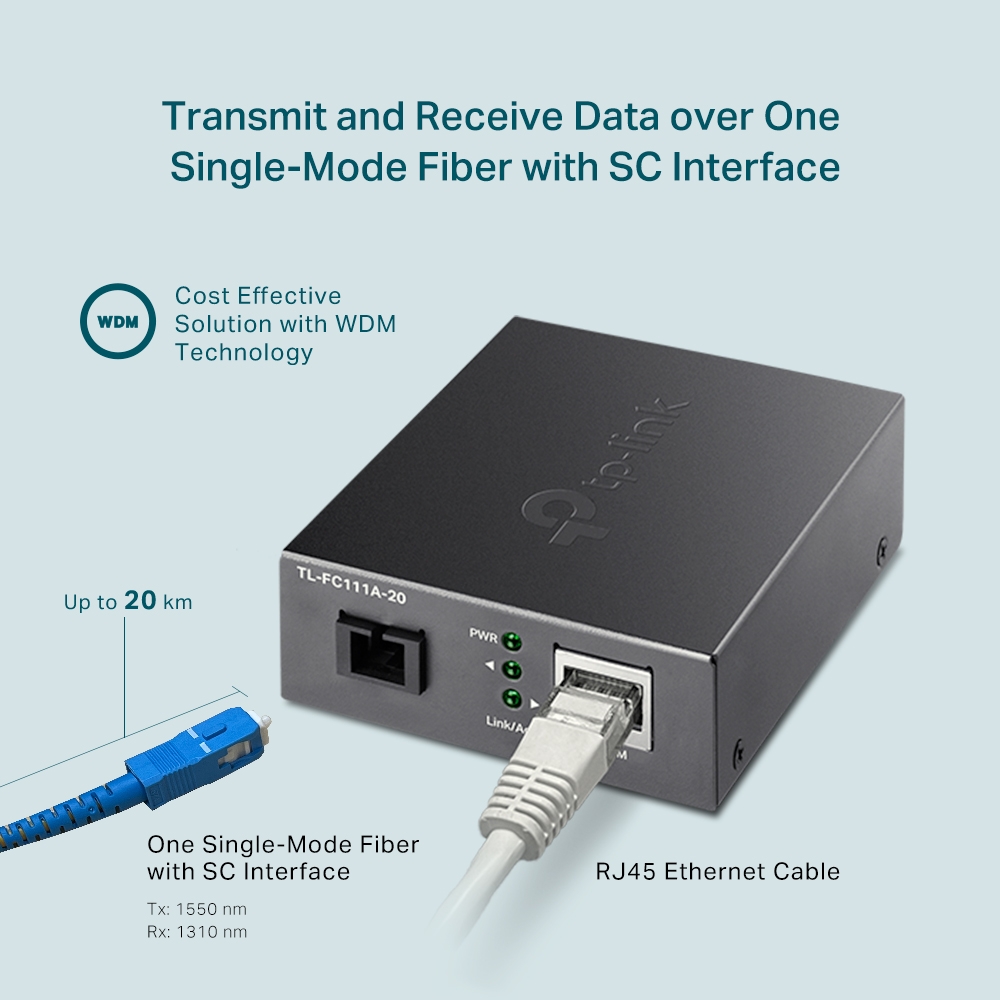

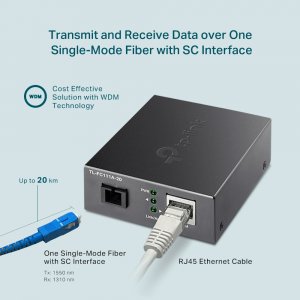

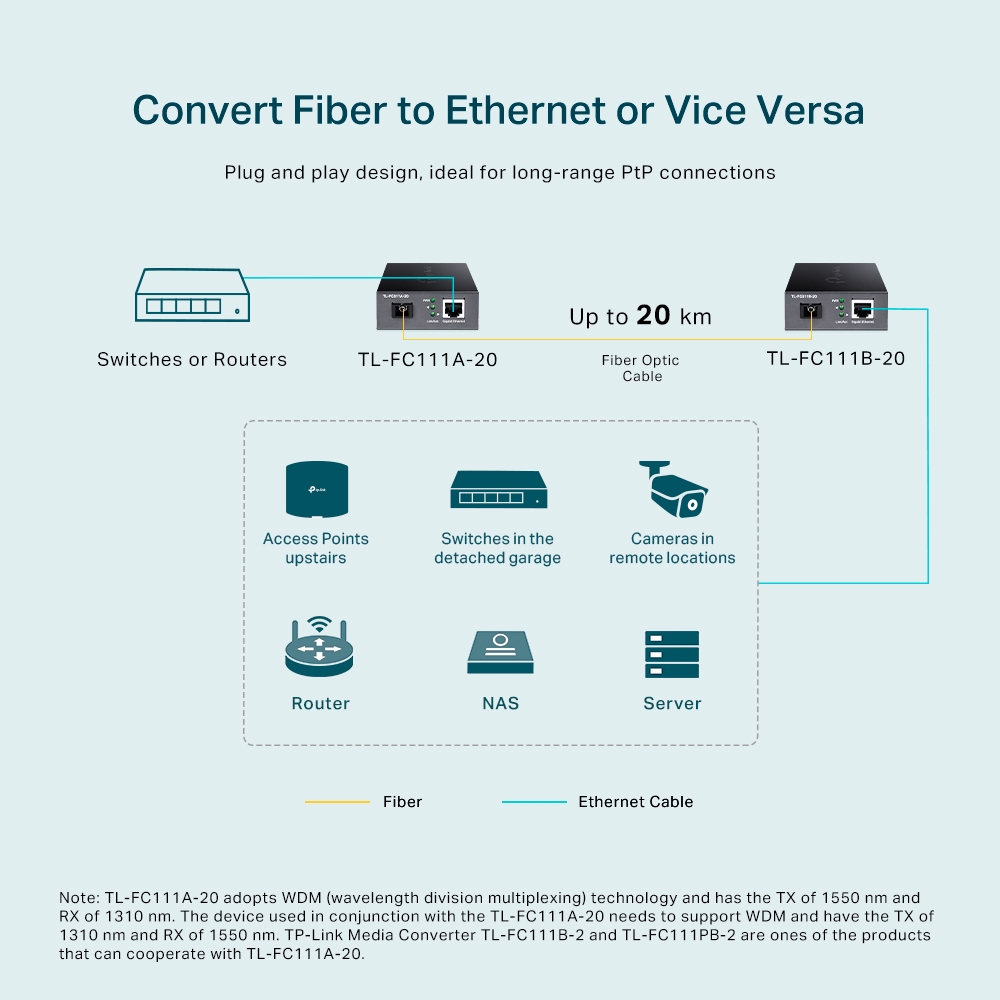

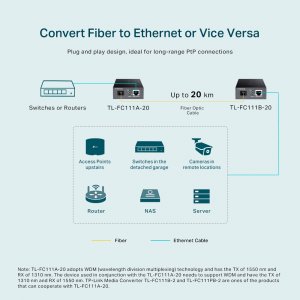

Adopts WDM technology, transmitting and receiving data on one single fiber
Extends fiber distance up to 20km

Product Properties

Manufacturer
TP-LINK

Model
TL-FC111A-20

EAN
6935364010966

Bullet points

Point
Adopts WDM technology, transmitting and receiving data on one single fiber

Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

Complies with 802.3u 10/100Base-TX, 100Base-FX standards

Extends fiber distance up to 20km

Certificates

Certification
FCC, CE

Compliance certificates
RoHS

Features

Internal
No

LED indicators
Activity, Link, Power

Product colour
Black

Logistics data

Harmonized System (HS) code
85176990

Network

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Cable types supported
Cat3, Cat4, Cat5, Cat5e

Copper ethernet cabling technology
10BASE-T, 100BASE-T

Duplex system
Full, Half

Ethernet LAN data rates
10,100 Mbit/s

Fiber ethernet cabling technology
100BASE-FX

Flow control support
Yes

Maximum data transfer rate
100 Mbit/s

Networking standards
IEEE 802.3, IEEE 802.3i, IEEE 802.3u

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Package depth
204 mm

Package height
65 mm

Package weight
360 g

Package width
165 mm

Performance

Fiber cable diameters supported (core/cladding)
9/125 µm

Fiber mode structure
Single-mode

Maximum transfer distance
20000 m

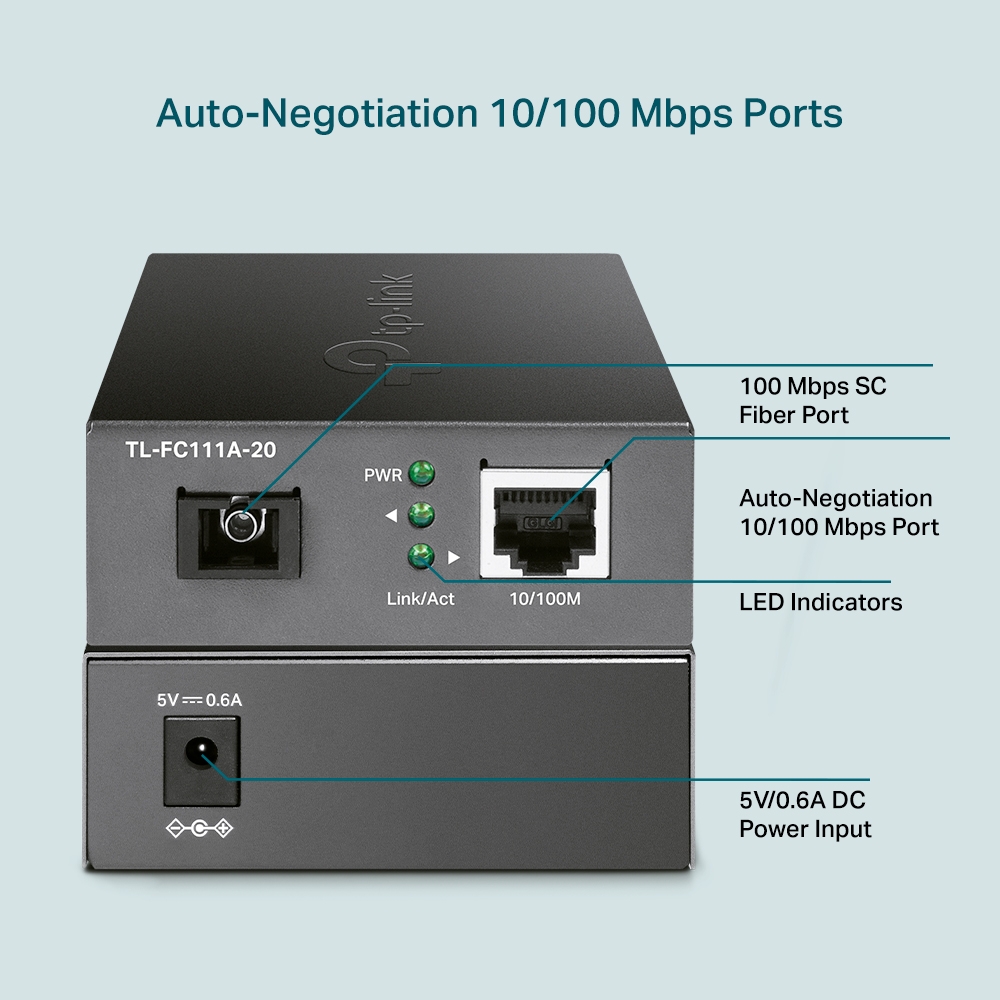

Ports & interfaces

Connectivity technology
Wired

Ethernet LAN (RJ-45) ports
1

Fiber optic connector
SC

Fiber ports quantity
1

Power

Output current
0.6 A

Output voltage
5 V

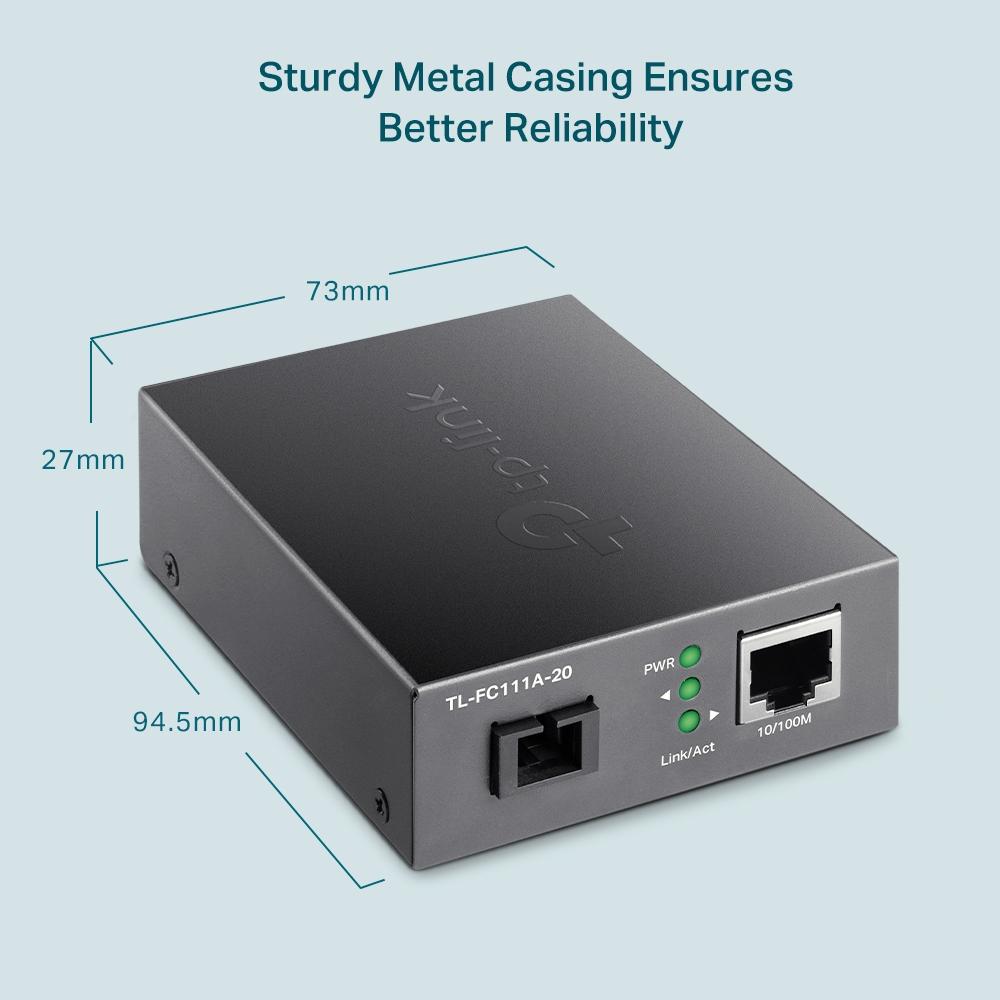

Weight & dimensions

Depth
73 mm

Height
27 mm

Width
94.5 mm
