Model: TL-SM5310-T
EAN: 4897098681084

TP-Link 10G BASE-T RJ45 SFP+ Module

Manufacturer:
TP-LINK

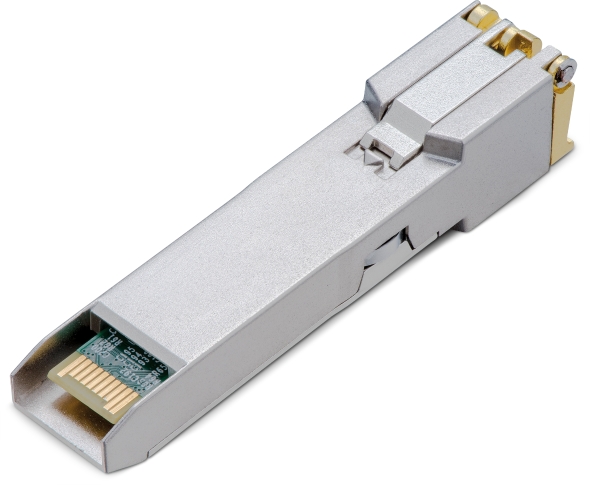

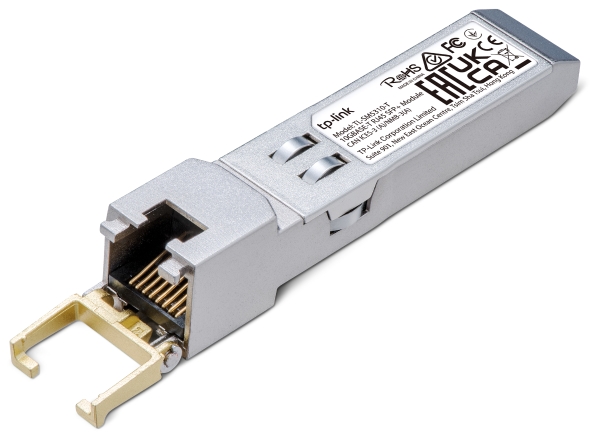

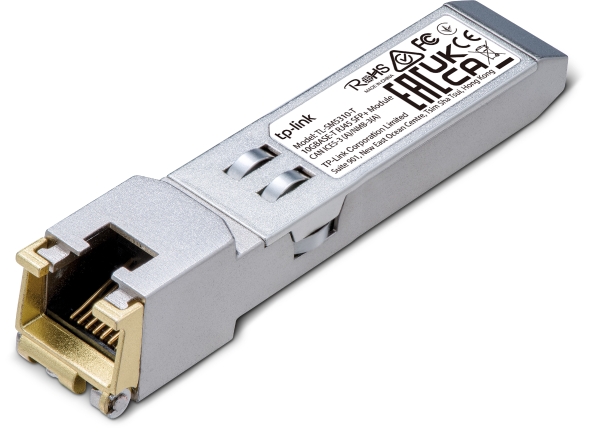

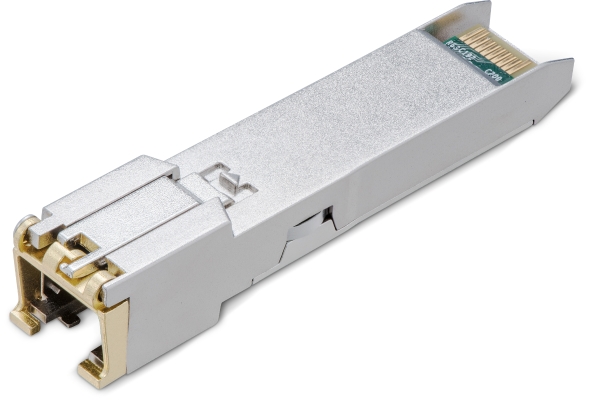

TP-Link 10G BASE-T RJ45 SFP+ Module, Copper, 10300 Mbit/s, RJ-45, 100 m, 10 Gigabit Ethernet, IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz
Please log in to see your price
Related products

Description

TP-Link 10G BASE-T RJ45 SFP+ Module. SFP transceiver type: Copper, Maximum data transfer rate: 10300 Mbit/s, Interface type: RJ-45. Product colour: Silver, Housing material: Metal, Form factor: SFP+. Input voltage: 3.3 V. Compliance certificates: CE, Federal Communications Commission (FCC), RoHS. Quantity per pack: 1 pc(s)
  • Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
  • Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
  • Support DDM (Temperature and Voltage)
  • Hot-Pluggable SFP+ Footprint Features
  • Support TX Disable function
  • Commercial Product Operating Temperature Range: 0-70°C
  • Fully Metallic Enclosure for Low EMI

Product Properties

  • Model
  • TL-SM5310-T
  • EAN
  • 4897098681084
  • Bullet points
  • Point
  • Commercial Product Operating Temperature Range: 0-70°C
    Fully Metallic Enclosure for Low EMI
    Hot-Pluggable SFP+ Footprint Features
    Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
    Support DDM (Temperature and Voltage)
    Support TX Disable function
    Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
  • Certificates
  • Compliance certificates
  • CE, Federal Communications Commission (FCC), RoHS
  • Features
  • Easy to install
  • Yes
  • Form factor
  • SFP+
  • Hot-Plug support
  • Yes
  • Housing material
  • Metal
  • Product colour
  • Silver
  • Logistics data
  • Harmonized System (HS) code
  • 85369010
  • Operational conditions
  • Maximum operating temperature
  • 70 °C
  • Minimum operating temperature
  • 0 °C
  • Operating temperature (T-T)
  • 0 - 70 °C
  • Storage temperature (T-T)
  • -40 - 85 °C
  • Packaging content
  • Quantity per pack
  • 1 pc(s)
  • Packaging data
  • Package depth
  • 122.5 mm
  • Package height
  • 38.5 mm
  • Package weight
  • 2.87 kg
  • Package width
  • 81.5 mm
  • Performance
  • Copper ethernet cabling technology
  • 10GBASE
  • Ethernet interface type
  • 10 Gigabit Ethernet
  • Ethernet LAN
  • Yes
  • Interface type
  • RJ-45
  • Maximum data transfer rate
  • 10300 Mbit/s
  • Maximum transfer distance
  • 100 m
  • Networking standards
  • IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz
  • SFP transceiver type
  • Copper
  • Power
  • Input voltage
  • 3.3 V
  • Sustainability
  • Sustainability compliance
  • Yes
