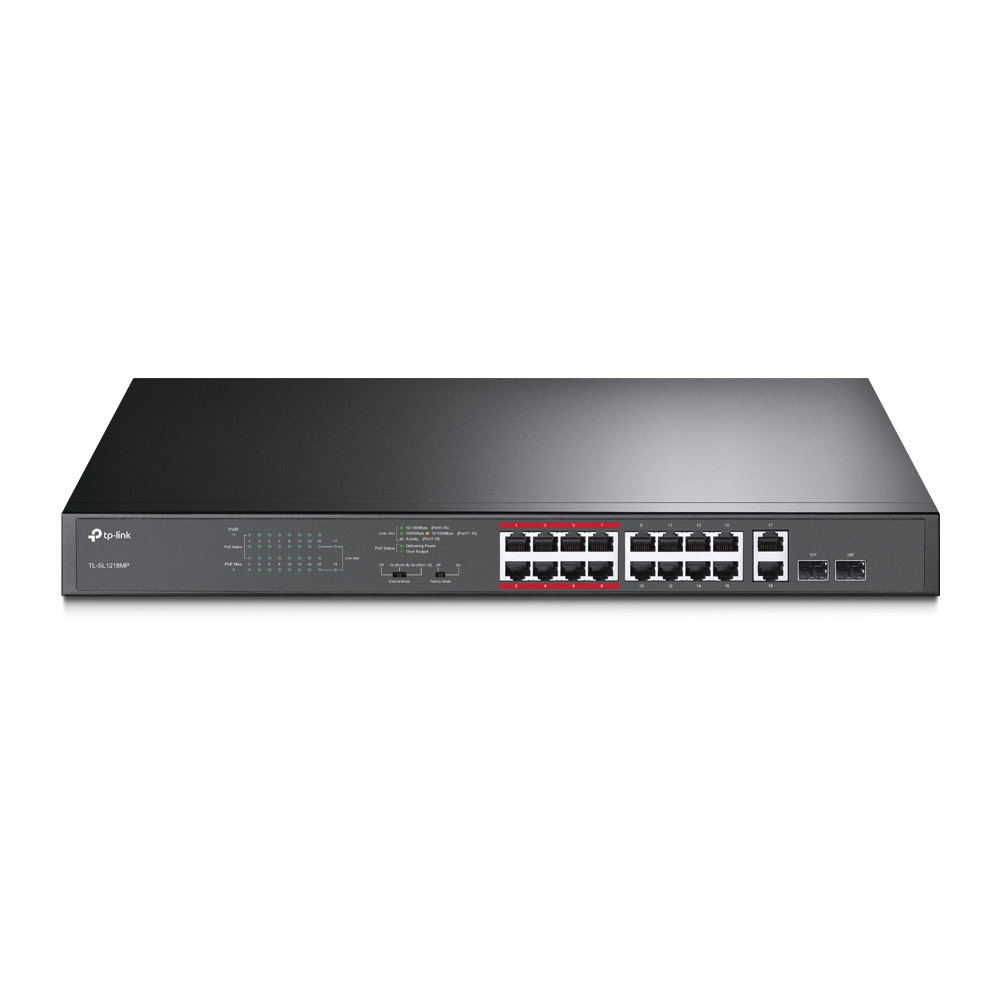

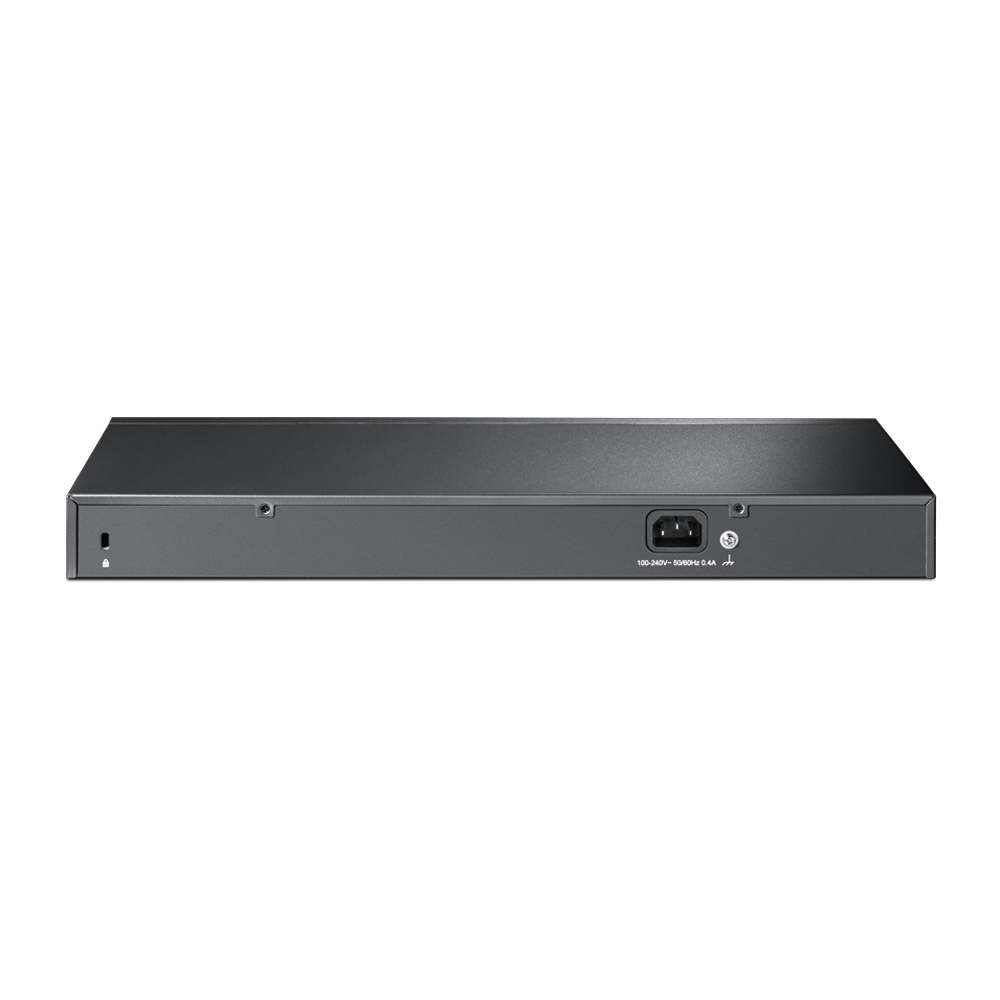

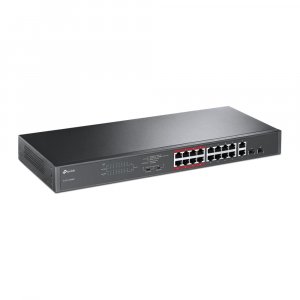

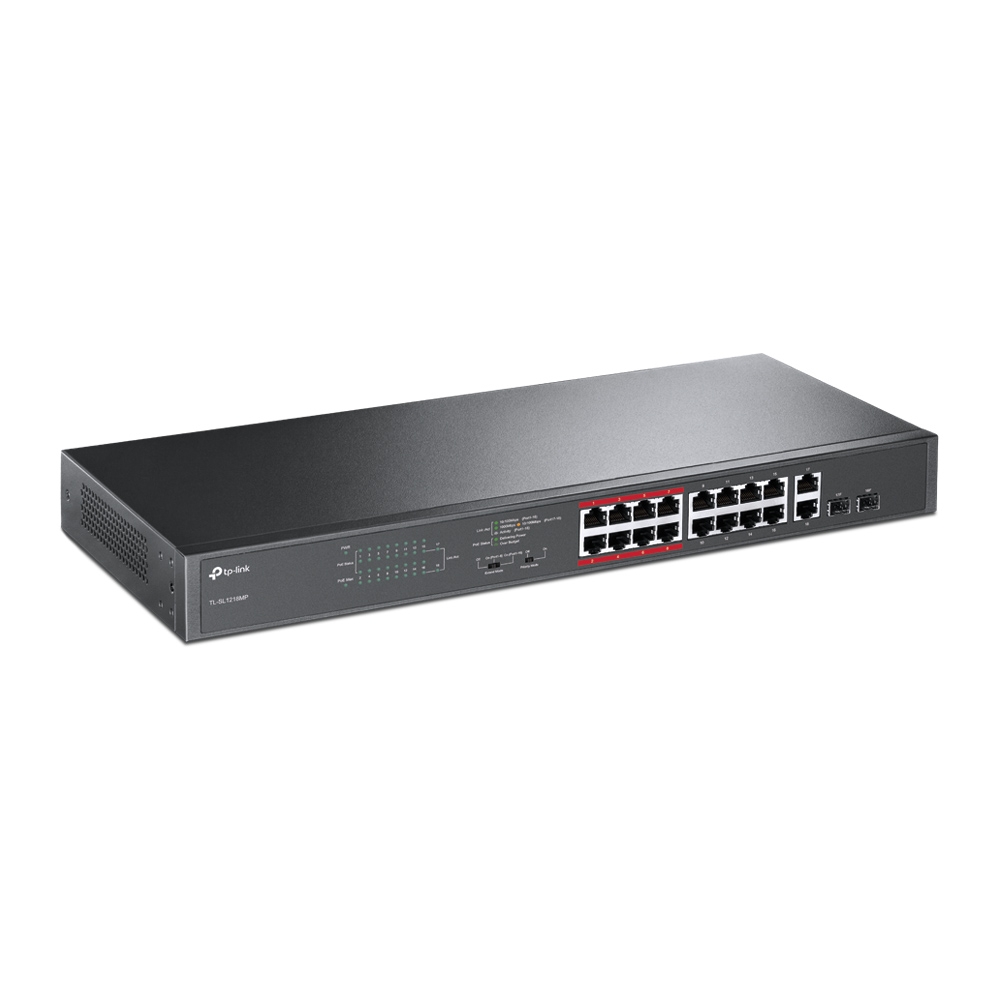

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
Roll over image to zoom inClick to Open expanded view
TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch
Print
Model: TL-SL1218MP
EAN: 6935364099817

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch

Manufacturer:
TP-LINK
TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch, Unmanaged, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting
Please log in to see your price
Related products

Description

TP-Link 16-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 7.2 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting
  • 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
  • Up to 250m data and power transmission under extend mode specially designed for surveillance system
  • Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
  • High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports
  • Easy to use, with no configuration and installation needed

Product Properties

  • Model
  • TL-SL1218MP
  • EAN
  • 6935364099817
  • Bullet points
  • Point
  • 16 PoE+ 10/100Mbps RJ45 ports, 2 Gigabit RJ45 ports and 2 combo Gigabit SFP slots
    Easy to use, with no configuration and installation needed
    High PoE power budget with up to 30W for each PoE port and 194W for all PoE ports
    Priority mode for port1-8 to guarantees the quality of sensitive applications like video monitor
    Up to 250m data and power transmission under extend mode specially designed for surveillance system
  • Data transmission
  • Jumbo frames
  • 10000
  • Jumbo frames support
  • Yes
  • MAC address table
  • 8000 entries
  • Packet buffer memory
  • 4.1 MB
  • Store-and-forward
  • Yes
  • Switching capacity
  • 7.2 Gbit/s
  • Design
  • LED indicators
  • LAN, PoE, Status
  • Number of fans
  • 2 fan(s)
  • Product colour
  • Black
  • Rack mounting
  • Yes
  • Stackable
  • No
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Switch type
  • Unmanaged
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Copper ethernet cabling technology
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • Flow control support
  • Yes
  • Networking standards
  • IEEE 802.3af, IEEE 802.3at
  • Operational conditions
  • Heat dissipation
  • 741.15 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • Cables included
  • LAN (RJ-45)
  • Manual
  • Yes
  • Quick start guide
  • Yes
  • User guide
  • Yes
  • Ports & interfaces
  • Combo SFP ports quantity
  • 2
  • Fast Ethernet (copper) ports quantity
  • 16
  • Gigabit Ethernet (copper) ports quantity
  • 2
  • Installed SFP+ modules quantity
  • 0
  • Switch Number of Ports
  • 16
  • Switch Port Speed
  • Fast Ethernet (10/100)
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (typical)
  • 18.7 W
  • Power source
  • AC
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet plus (PoE+) ports quantity
  • 16
  • Total Power over Ethernet (PoE) budget
  • 192 W
  • Security
  • MAC address filtering
  • Yes
  • Weight & dimensions
  • Depth
  • 180 mm
  • Height
  • 44 mm
  • Width
  • 440 mm
