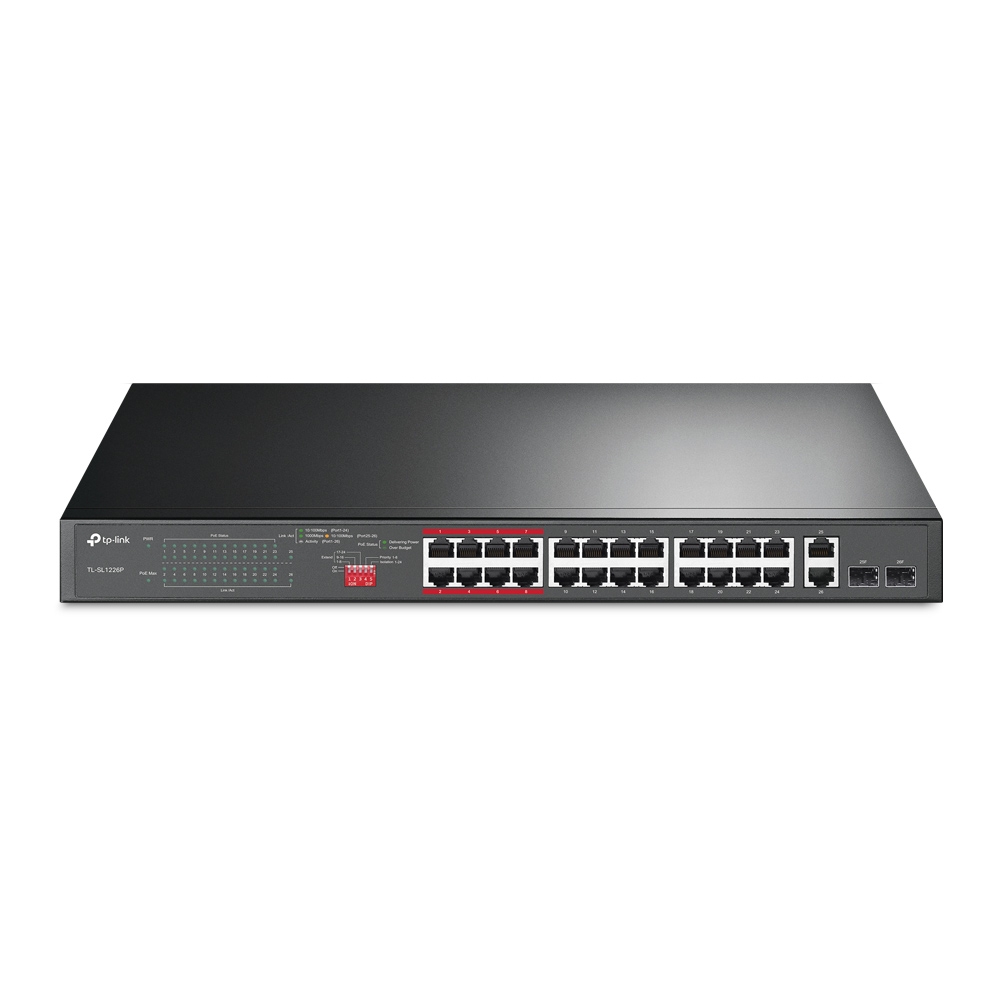

TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
Roll over image to zoom inClick to Open expanded view
TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
Print
Model: TL-SL1226P
EAN: 6935364089450

TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch

Manufacturer:
TP-LINK
TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Please log in to see your price
Related products

Description

TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 26. MAC address table: 8000 entries, Switching capacity: 8.8 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots

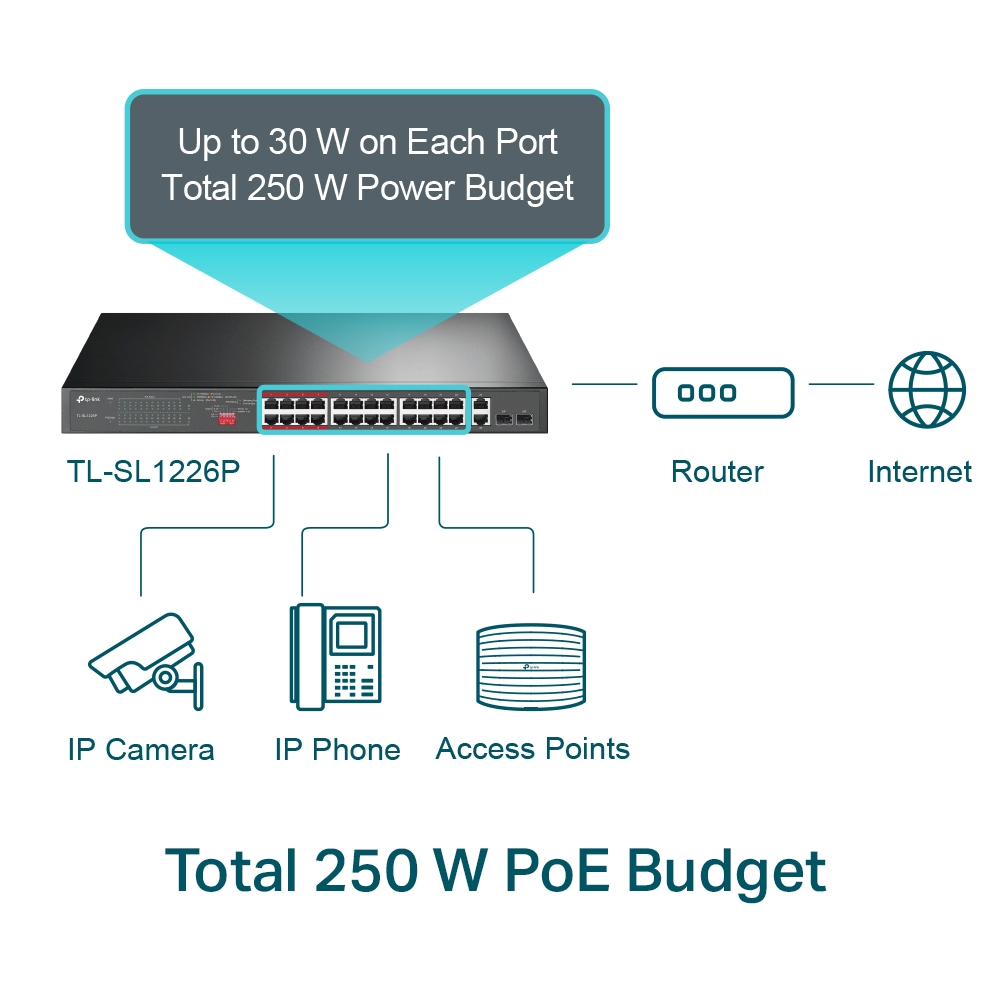

  • High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports

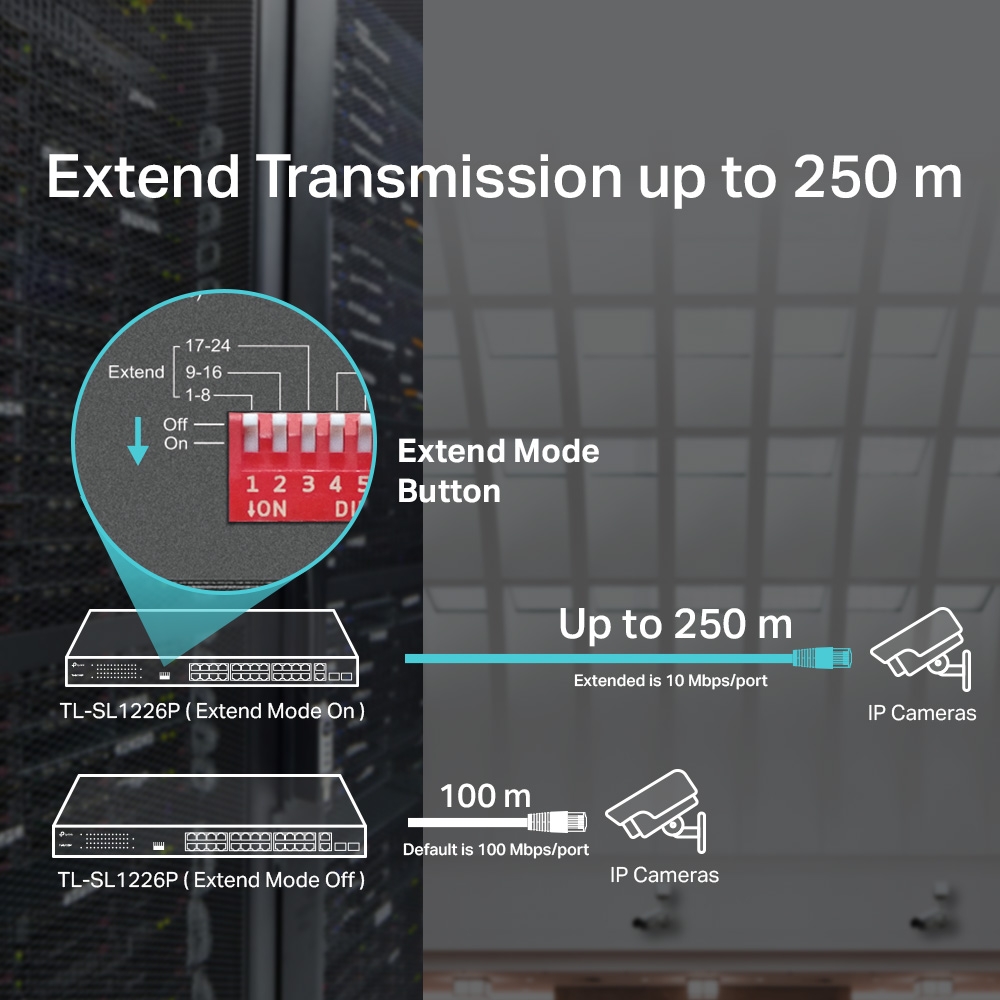

  • Up to 250 m data and power PoE transmission range under Extend Mode, ideal for surveillance system

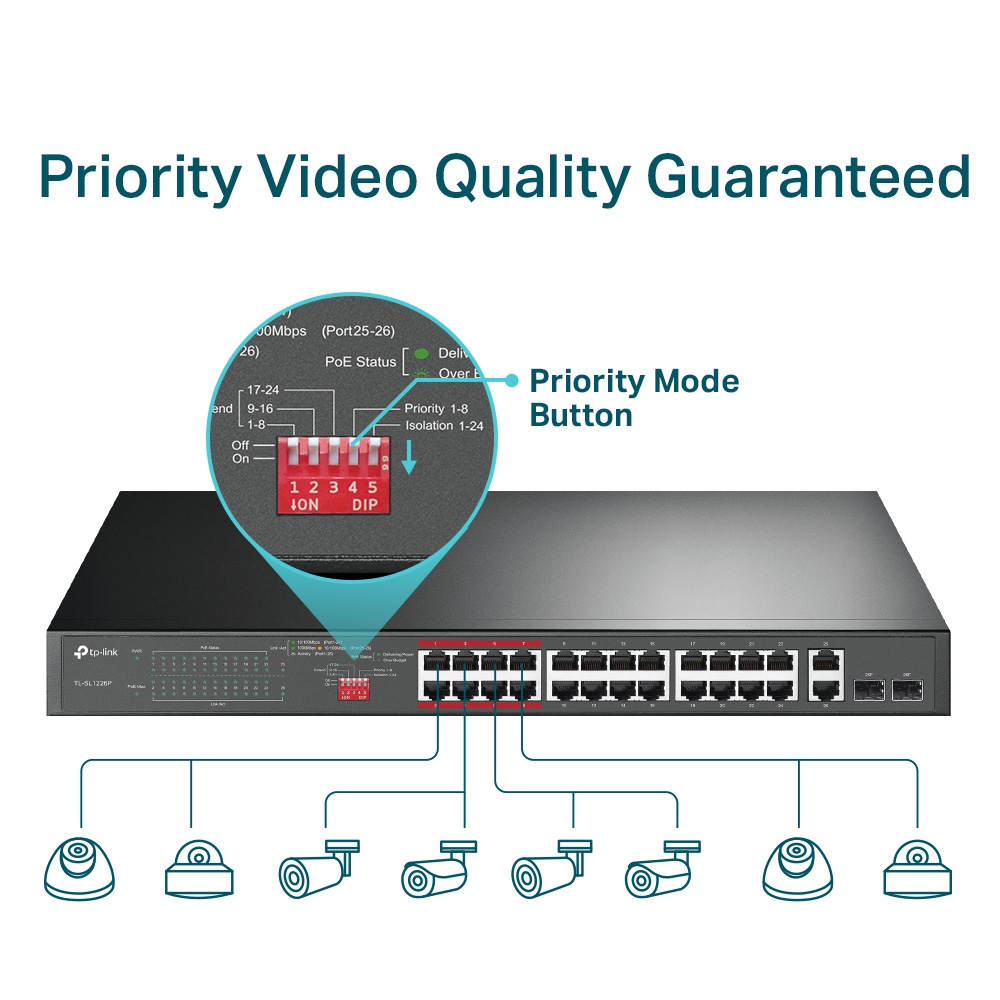

  • Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
  • Isolation Mode allows one-click client traffic separation for higher security and performance

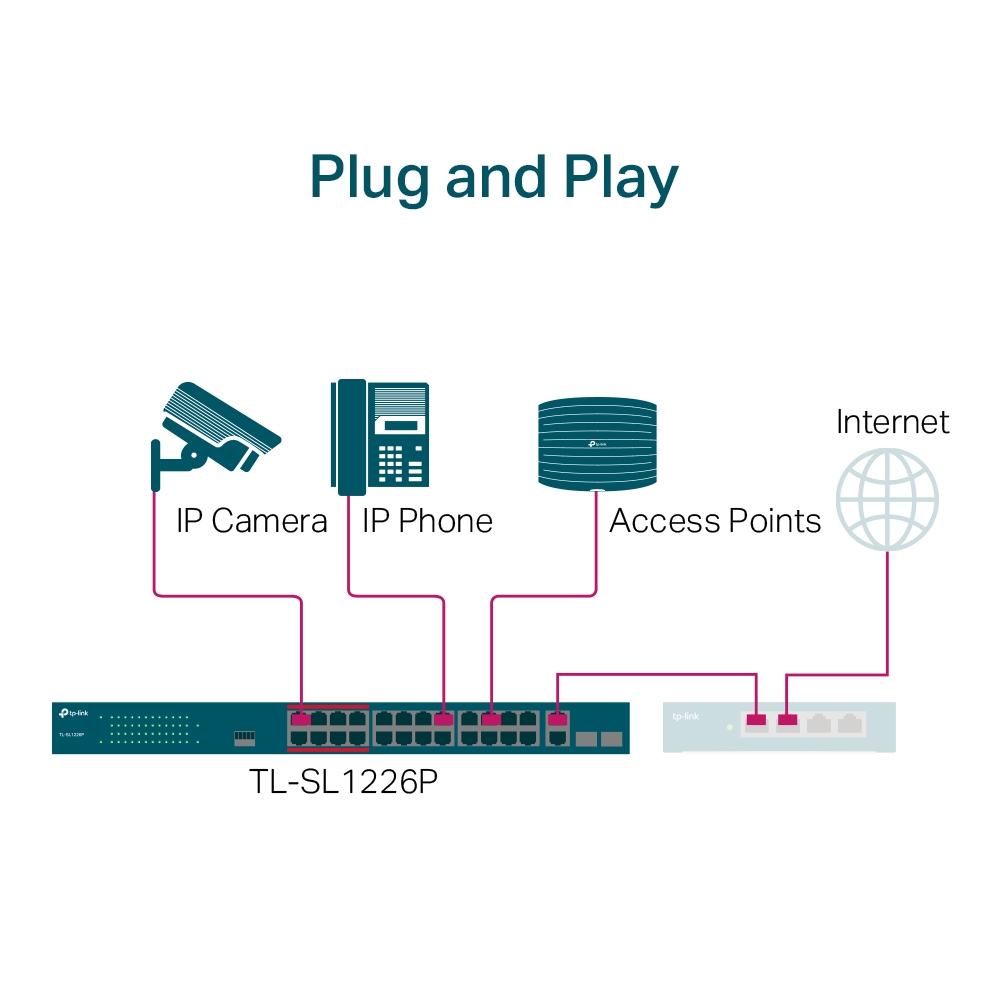

  • Plug and play, with no configuration and installation needed

Product Properties

  • Model
  • TL-SL1226P
  • EAN
  • 6935364089450
  • Bullet points
  • Point
  • 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots
    High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports
    Isolation Mode allows one-click client traffic separation for higher security and performance
    Plug and play, with no configuration and installation needed
    Up to 250 m data and power PoE transmission range under Extend Mode, ideal for surveillance system
  • Certificates
  • Certification
  • CE, FCC, RoHS
  • Data transmission
  • Forwarding rate
  • 6.54 Mpps
  • Jumbo frames
  • 10000
  • Jumbo frames support
  • Yes
  • MAC address table
  • 8000 entries
  • Packet buffer memory
  • 4.1 MB
  • Store-and-forward
  • Yes
  • Switching capacity
  • 8.8 Gbit/s
  • Design
  • Form factor
  • 1U
  • LED indicators
  • Yes
  • Number of fans
  • 2 fan(s)
  • Product colour
  • Grey
  • Rack mounting
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Switch type
  • Unmanaged
  • Traffic classification
  • Yes
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Auto-negotiation
  • Yes
  • Copper ethernet cabling technology
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • Networking standards
  • IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
  • Operational conditions
  • Heat dissipation
  • 1002.54 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • Quick start guide
  • Yes
  • Rack mount kit
  • Yes
  • Packaging data
  • Package depth
  • 528 mm
  • Package height
  • 80 mm
  • Package weight
  • 3.02 kg
  • Package width
  • 250 mm
  • Ports & interfaces
  • Combo SFP ports quantity
  • 2
  • Fast Ethernet (copper) ports quantity
  • 24
  • Gigabit Ethernet (copper) ports quantity
  • 2
  • Switch Number of Ports
  • 26
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 281 W
  • Power source
  • AC
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) power per port
  • 30 W
  • Power over Ethernet plus (PoE+) ports quantity
  • 24
  • Total Power over Ethernet (PoE) budget
  • 250 W
  • Weight & dimensions
  • Depth
  • 180 mm
  • Height
  • 44 mm
  • Width
  • 440 mm
