Description

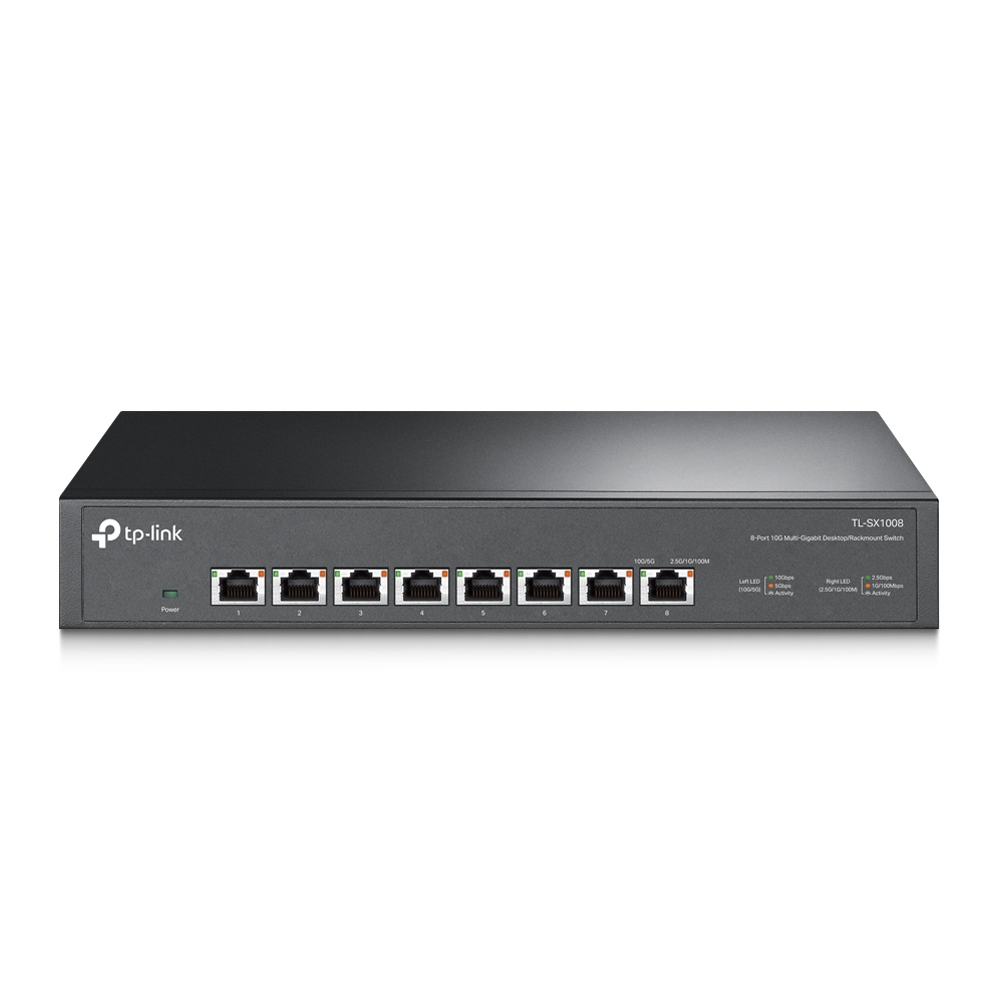

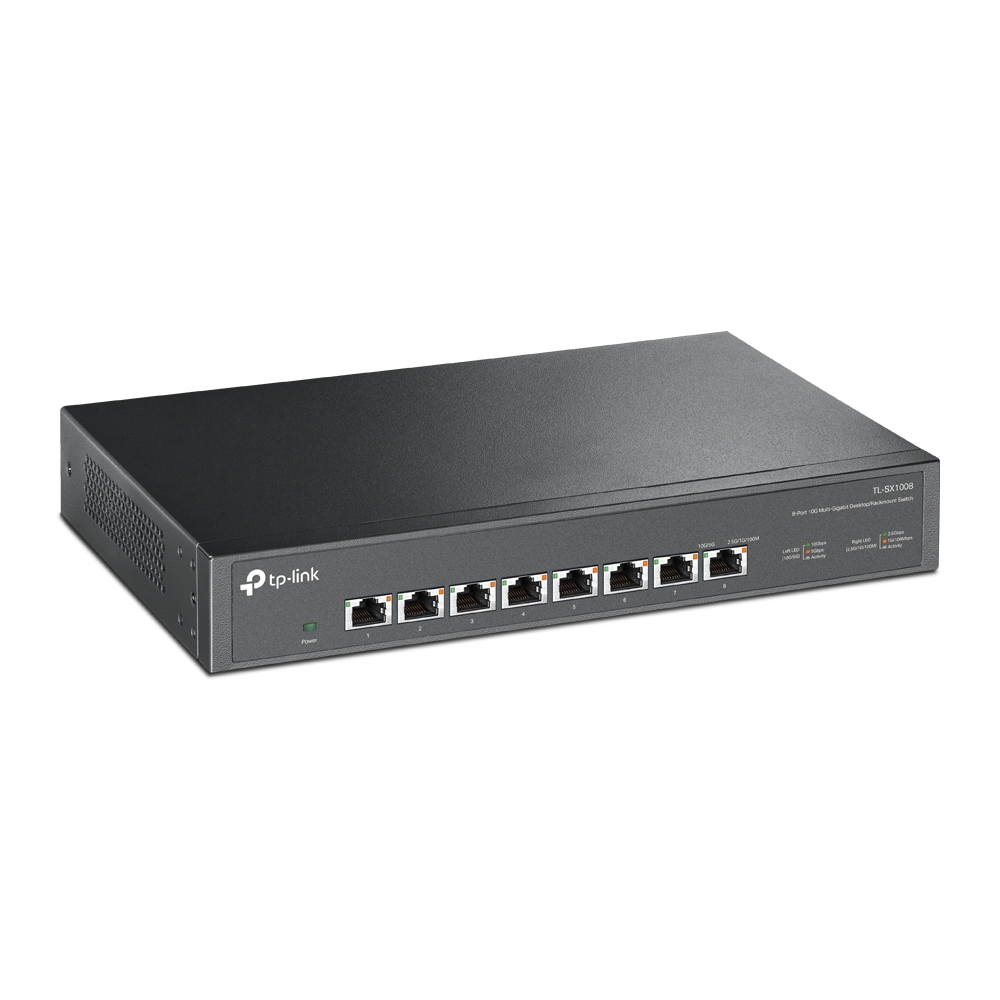

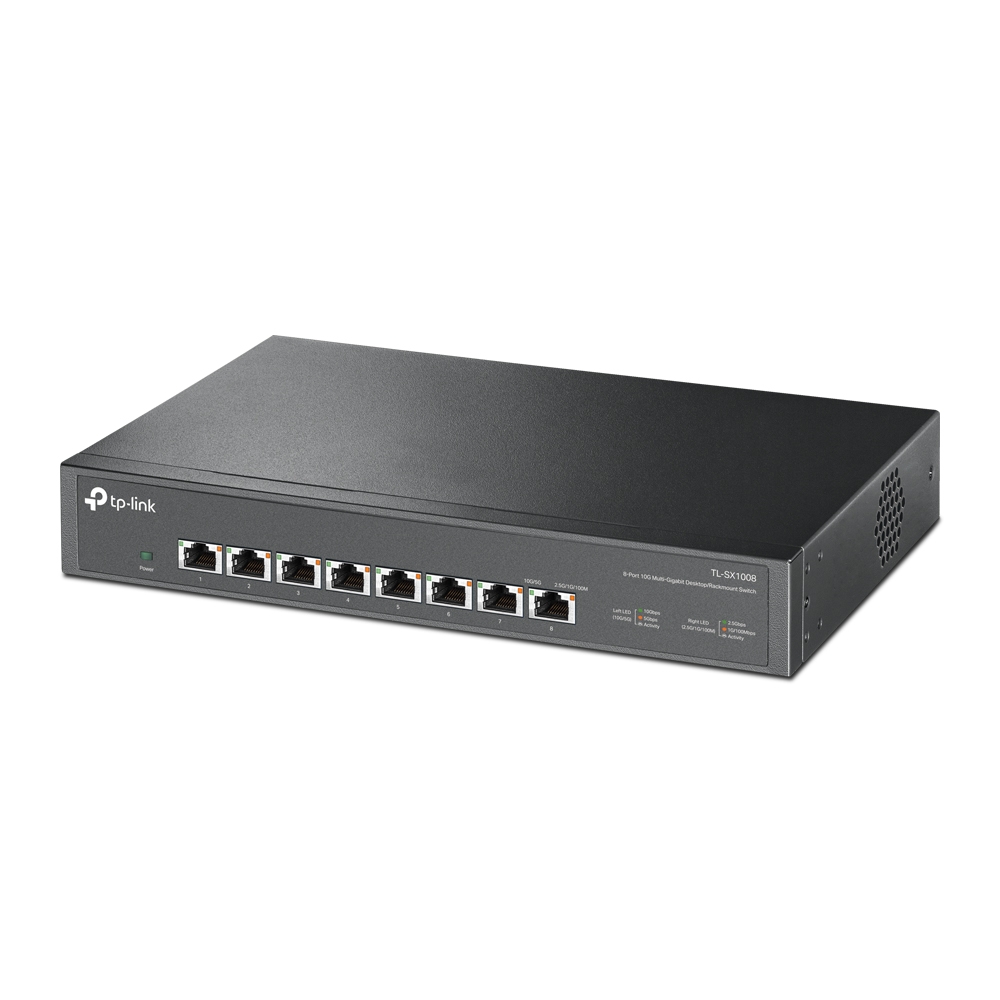

TP-Link 8-Port 10G Desktop/Rackmount Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 32000 entries, Switching capacity: 160 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3x. Rack mounting, Form factor: 1U

Eight 10 Gbps Ports. 8× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160 Gbps of switching capacity

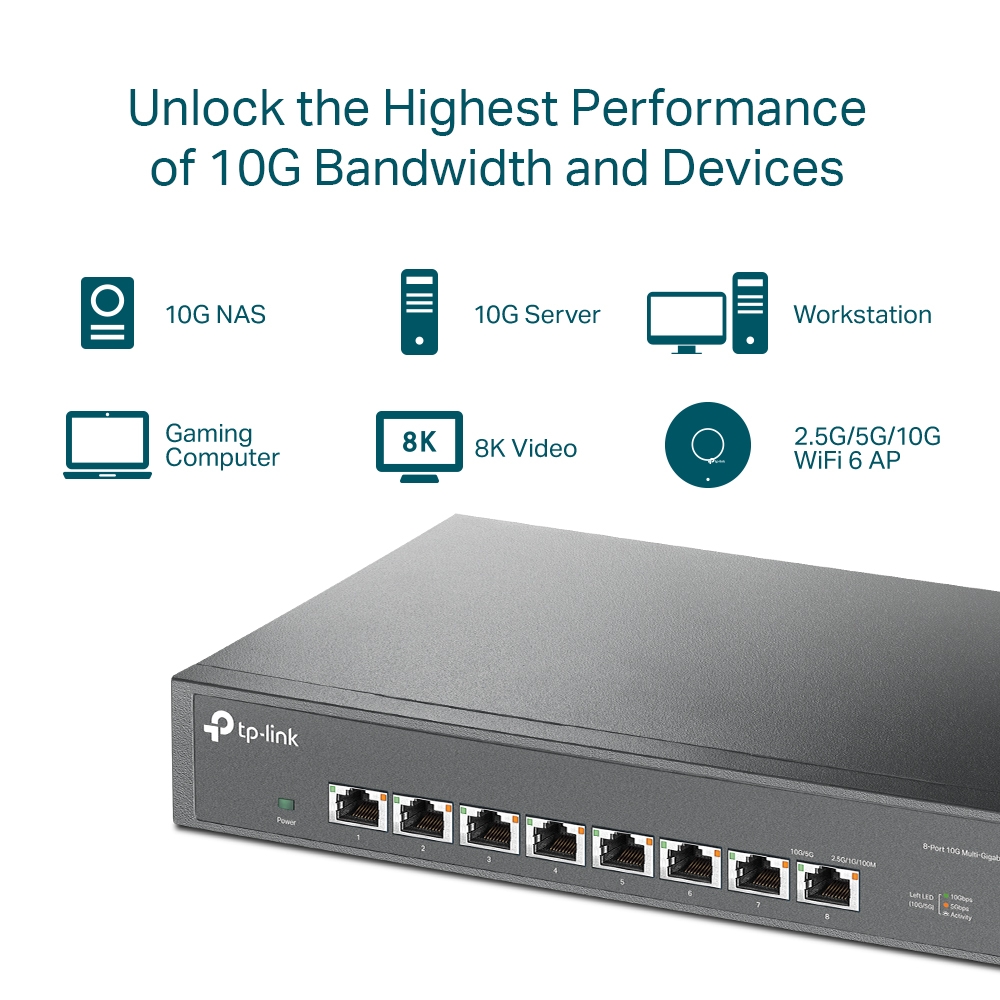

Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more
Ideal for Various Scenarios. Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment
Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance

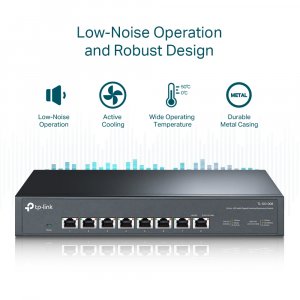

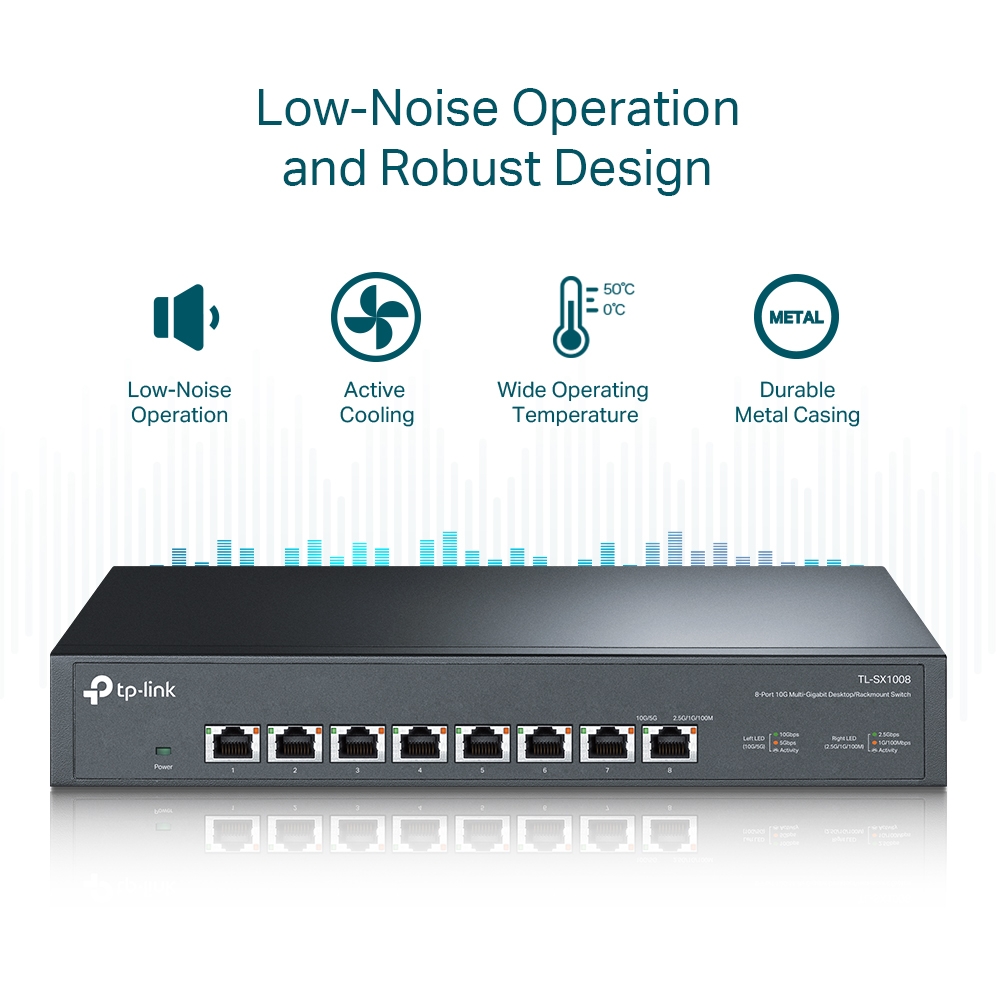

Low-Noise Operation. Intelligent fan speed adjustment ensures minimal noise to be non-distracting when use
Wide Operation Temperature. Durable metal casing and a heat dissipating design guarantee a wide operation temperature (0–50 ℃)
Plug and Play. Allows for easy deployment without the need for a technician

Product Properties

Manufacturer
TP-LINK

Model
TL-SX1008

EAN
6935364030926

Bullet points

Point
Plug and Play. Allows for easy deployment without the need for a technician

Certificates

Certification
CE, FCC ,RoHS

Data transmission

Forwarding rate
119 Mpps

Jumbo frames
10000

Jumbo frames support
Yes

MAC address table
32000 entries

Packet buffer memory
16 MB

Store-and-forward
Yes

Switching capacity
160 Gbit/s

Design

Form factor
1U

LED indicators
Yes

Number of fans
1 fan(s)

Product colour
Black

Rack mounting
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Switch type
Unmanaged

Network

10G support
Yes

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3x

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Cables included
AC

Quick start guide
Yes

Rack mount kit
Yes

Packaging data

Package depth
400 mm

Package height
80 mm

Package type
Box

Package weight
2.07 kg

Package width
250 mm

Ports & interfaces

10G Ethernet (copper) ports quantity
8

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Switch Number of Ports
8

Switch Port Speed
10G Ethernet (100/1000/10000)

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Input current
0.8 A

Power consumption (max)
28.4 W

Power source
AC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Weight & dimensions

Depth
180 mm

Height
44 mm

Width
294 mm
