Description

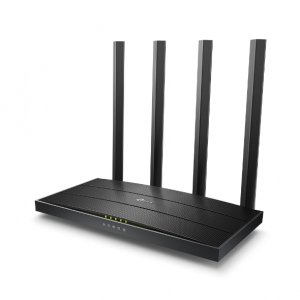

TP-Link AC1200 Wireless MU-MIMO Gigabit Router. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 1200 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WEP, WPA, WPA-PSK, WPA2, Firewall security: DoS, SPI Firewall, IP and MAC Address Binding. Product type: Tabletop router, Product colour: Black, LED indicators: LAN, Power, Status, WLAN, WPS

AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band
MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance

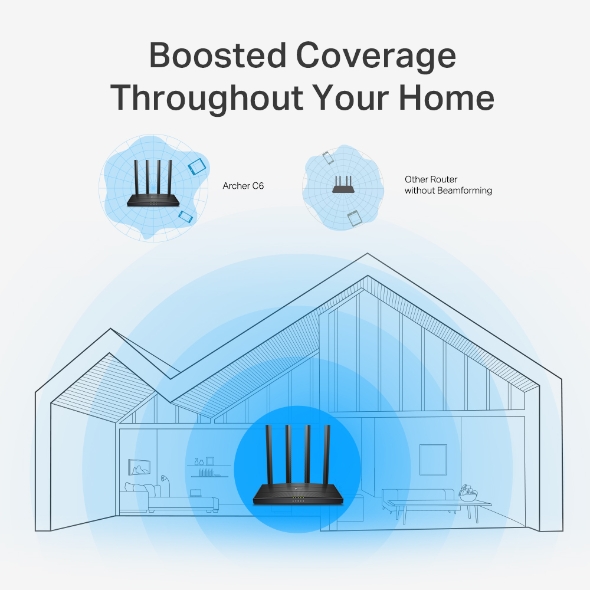

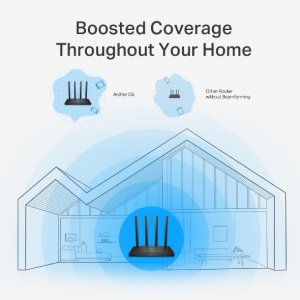

Boosted Coverage – Four external antennas equipped with Beamforming technology extend and concentrate the Wi-Fi signals
Access Point Mode –Supports AP Mode to transform your wired connection into wireless network

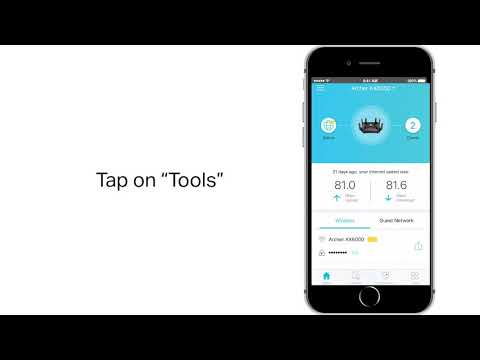

Easy Setup – Set up your Wi-Fi in minutes with TP-Link Tether app

Product Properties

Manufacturer
TP-LINK

Model
ARCHER C6 V3.2

EAN
6935364089399

Antenna

Antenna design
External

Transmit power
20 - 23 dBmW

Bullet points

Point
AC1200 Dual-Band Wi-Fi – 867 Mbps at 5 GHz and 300 Mbps at 2.4 GHz band

Access Point Mode –Supports AP Mode to transform your wired connection into wireless network

Easy Setup – Set up your Wi-Fi in minutes with TP-Link Tether app

MU-MIMO Technology – Simultaneously transfers data to multiple devices for 2× faster performance

Certificates

Certification
FCC, CE, RoHS

Design

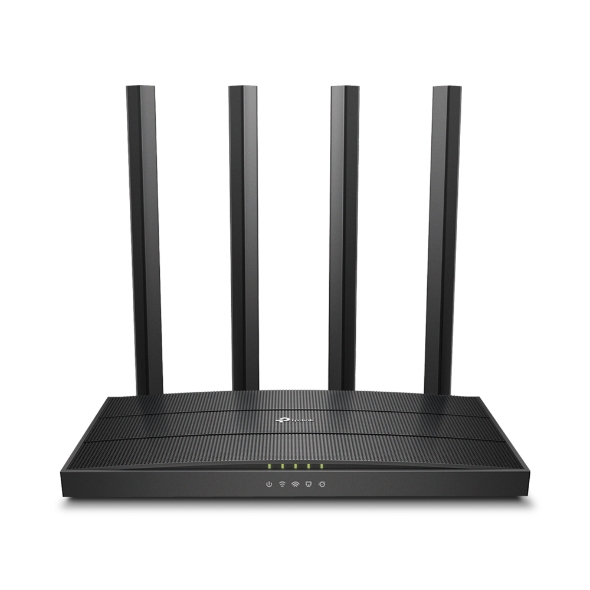

LED indicators
LAN, Power, Status, WLAN, WPS

On/off switch
Yes

Product colour
Black

Product type
Tabletop router

Wall mountable
Yes

Features

Built-in processor
Yes

Processor cores
2

Management features

MU-MIMO technology
Yes

Quality of Service (QoS) support
Yes

Reset button
Yes

WPS push button
Yes

Mobile network

Network

Cabling technology
10/100/1000Base-T(X)

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Ethernet LAN interface type
Gigabit Ethernet

Networking standards
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Port forwarding
Yes

Port triggering
Yes

Receiver sensitivity
11a 6Mbps:-93dBm；11a 54Mbps:-78dBm； 11ac HT20 mcs8:-69dBm;11ac HT40 mcs9:-65dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbm；

VPN server
PPTP VPN, OpenVPN

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Ports & interfaces

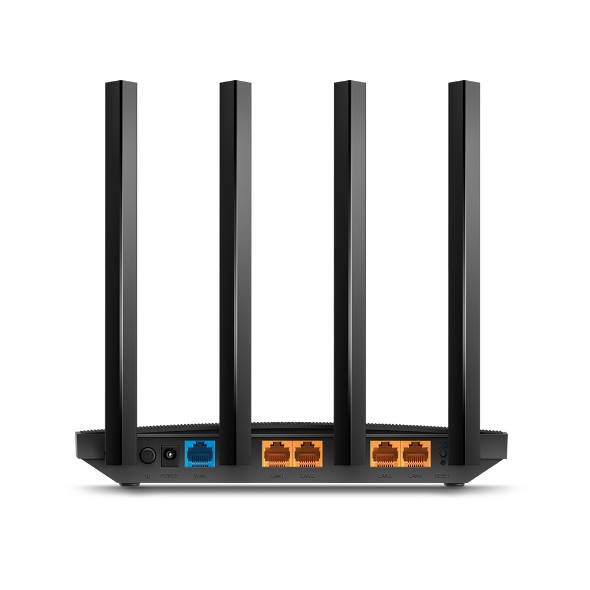

Ethernet LAN (RJ-45) ports
4

Memory card slot(s)
No

USB port
No

Power

Output current
1 A

Output voltage
12 V

Power source type
DC

Protocols

DHCP client
Yes

DHCP server
Yes

Universal Plug and Play (UPnP)
Yes

Security

DMZ support
Yes

Firewall security
DoS, SPI Firewall, IP and MAC Address Binding

Security algorithms
WEP, WPA, WPA-PSK, WPA2

WAN connection

3G/4G USB modem compatibility
No

Ethernet WAN
Yes

SIM card slot
No

WAN connection type
RJ-45

Weight & dimensions

Depth
117 mm

Height
32 mm

Width
215 mm

Wireless LAN features

Top Wi-Fi standard
Wi-Fi 5 (802.11ac)

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac)

WLAN data transfer rate (first band)
300 Mbit/s

WLAN data transfer rate (max)
1200 Mbit/s

WLAN data transfer rate (second band)
867 Mbit/s
