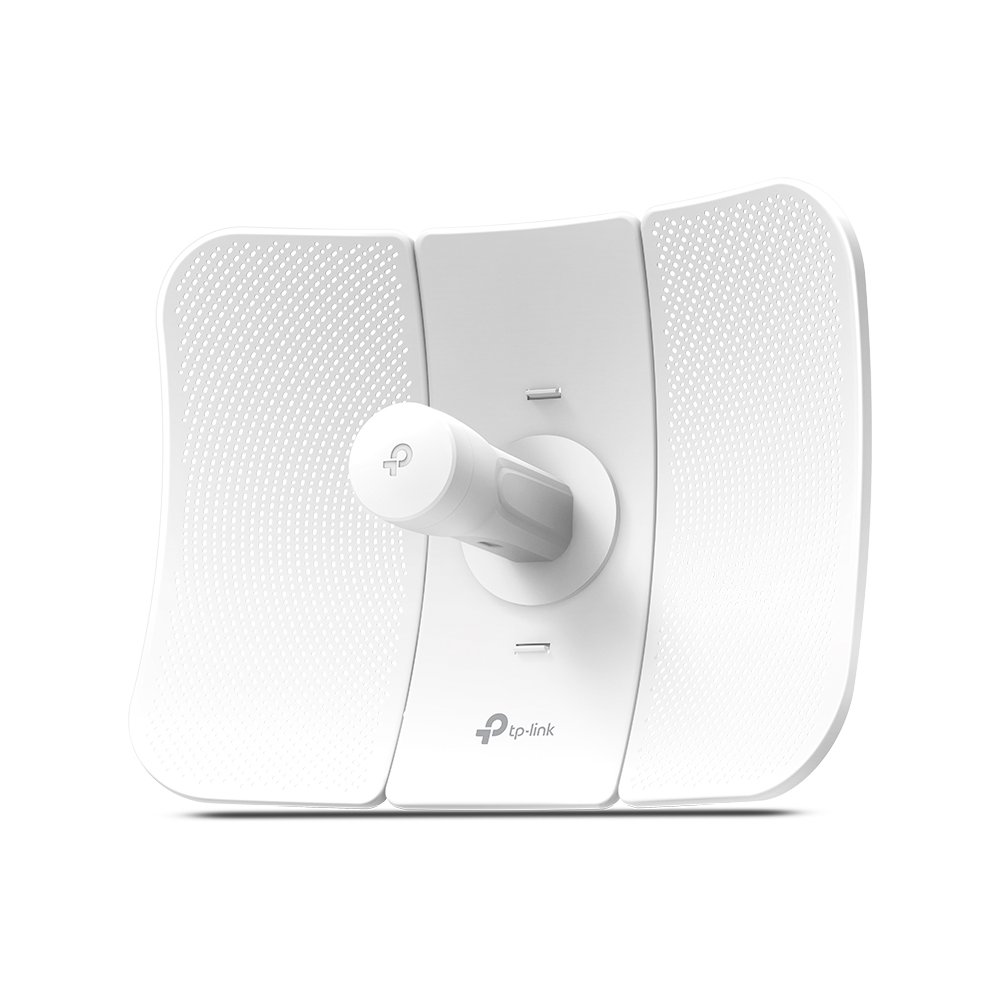

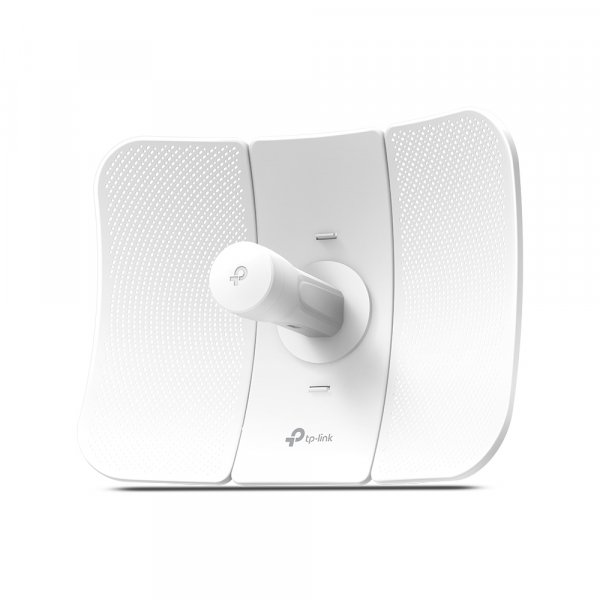

TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi
Roll over image to zoom inClick to Open expanded view
TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi
TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi
TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi
Print
Model: CPE710
EAN: 6935364053345

TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi

Manufacturer:
TP-LINK
TP-Link CPE710, 23 dBi, 5.15 - 5.85 GHz, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, 23 dBi, 9°, 7°
Please log in to see your price
Related products

Description

TP-Link CPE710. Antenna gain level (max): 23 dBi, Frequency band: 5.15 - 5.85 GHz, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n. Antenna type: Directional antenna, Antenna connector type: PoE/LAN, Product colour: White. Power source type: PoE, Input voltage: 24 V. Certification: CE, FCC, RoHS, IC. Width: 366 mm, Depth: 280 mm, Height: 207 mm
  • 802.11ac for up to 867Mbps on 5GHz wireless data rate
  • 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
  • Excellent beam directivity, improved latency and noise cancellation

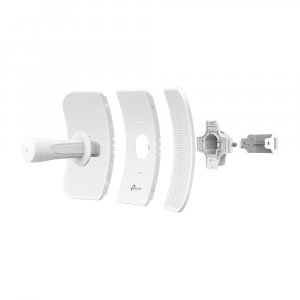

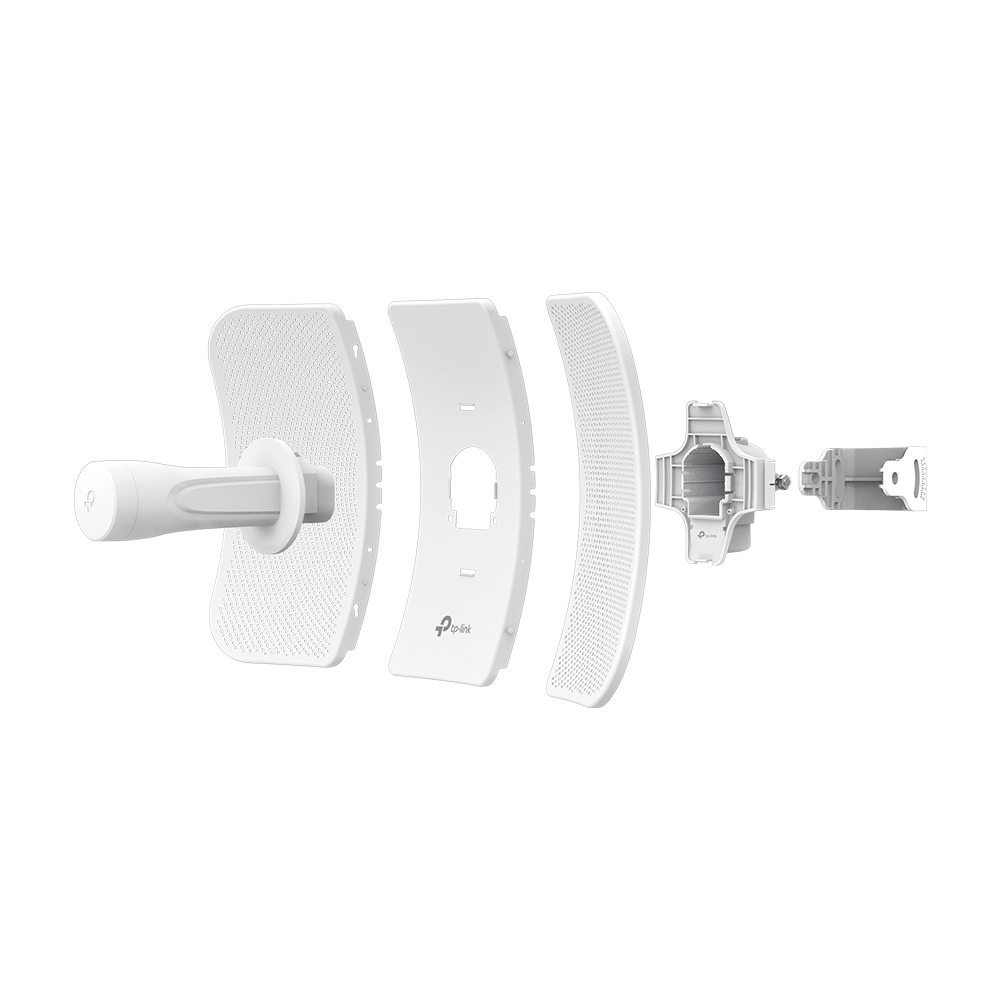

  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
  • Pharos Control gives administrators a free, centralized management system
  • Passive PoE supports to allow flexible deployment and convenient installation

Product Properties

  • Model
  • CPE710
  • EAN
  • 6935364053345
  • Bullet points
  • Point
  • 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
    802.11ac for up to 867Mbps on 5GHz wireless data rate
    Excellent beam directivity, improved latency and noise cancellation
    Passive PoE supports to allow flexible deployment and convenient installation
    Pharos Control gives administrators a free, centralized management system
  • Certificates
  • Certification
  • CE, FCC, RoHS, IC
  • Features
  • Antenna connector type
  • PoE/LAN
  • Antenna type
  • Directional antenna
  • Housing material
  • Plastic
  • International Protection (IP) code
  • IP65
  • LED indicators
  • Power
  • Product colour
  • White
  • Logistics data
  • Export Control Classification Number (ECCN)
  • EAR99
  • Harmonized System (HS) code
  • 85176990
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • -40 - 70 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • Cables included
  • AC
  • Packaging data
  • Package type
  • Box
  • Performance
  • Antenna gain level (max)
  • 23 dBi
  • Built-in processor
  • Yes
  • Flash memory
  • 16 MB
  • Frequency band
  • 5.15 - 5.85 GHz
  • Gain
  • 23 dBi
  • Horizontal beam width
  • 9°
  • Internal memory
  • 128 MB
  • Networking standards
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
  • Processor frequency
  • 750 MHz
  • Vertical beam width
  • 7°
  • Wi-Fi standards
  • 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
  • Power
  • Input voltage
  • 24 V
  • Power source type
  • PoE
  • Weight & dimensions
  • Depth
  • 280 mm
  • Height
  • 207 mm
  • Width
  • 366 mm
