Description

TP-Link Gigabit WDM Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode, Fiber cable diameters supported (core/cladding): 9/125 µm. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 0.6 A

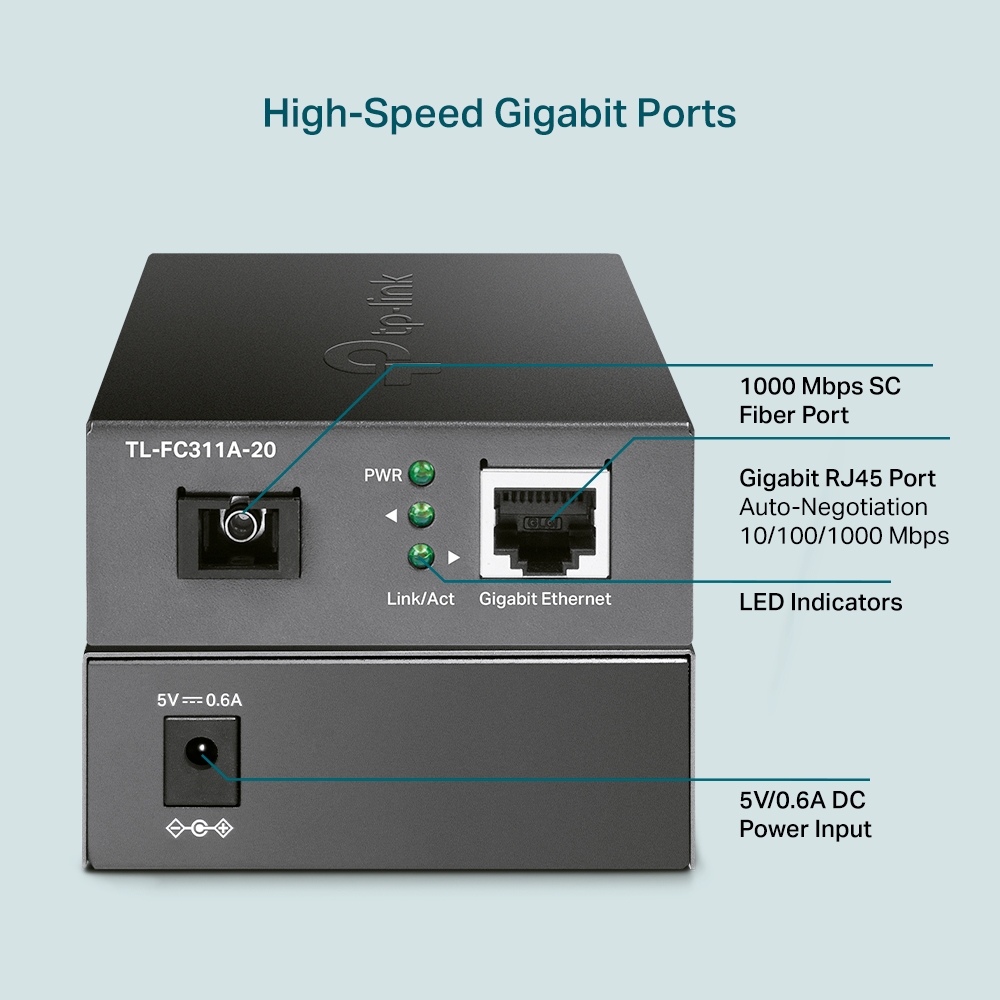

1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

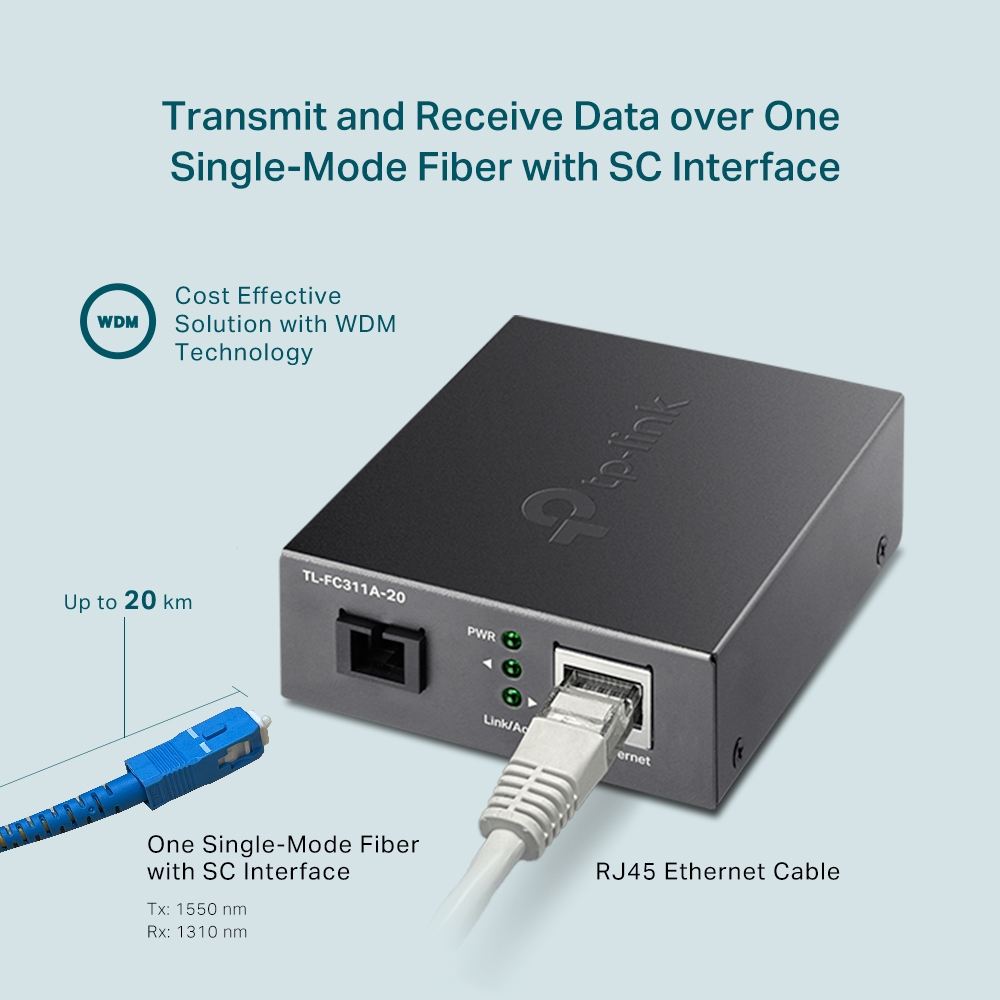

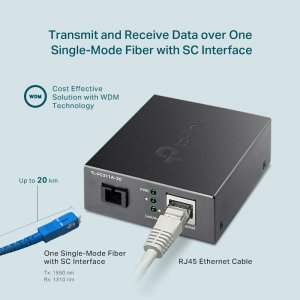

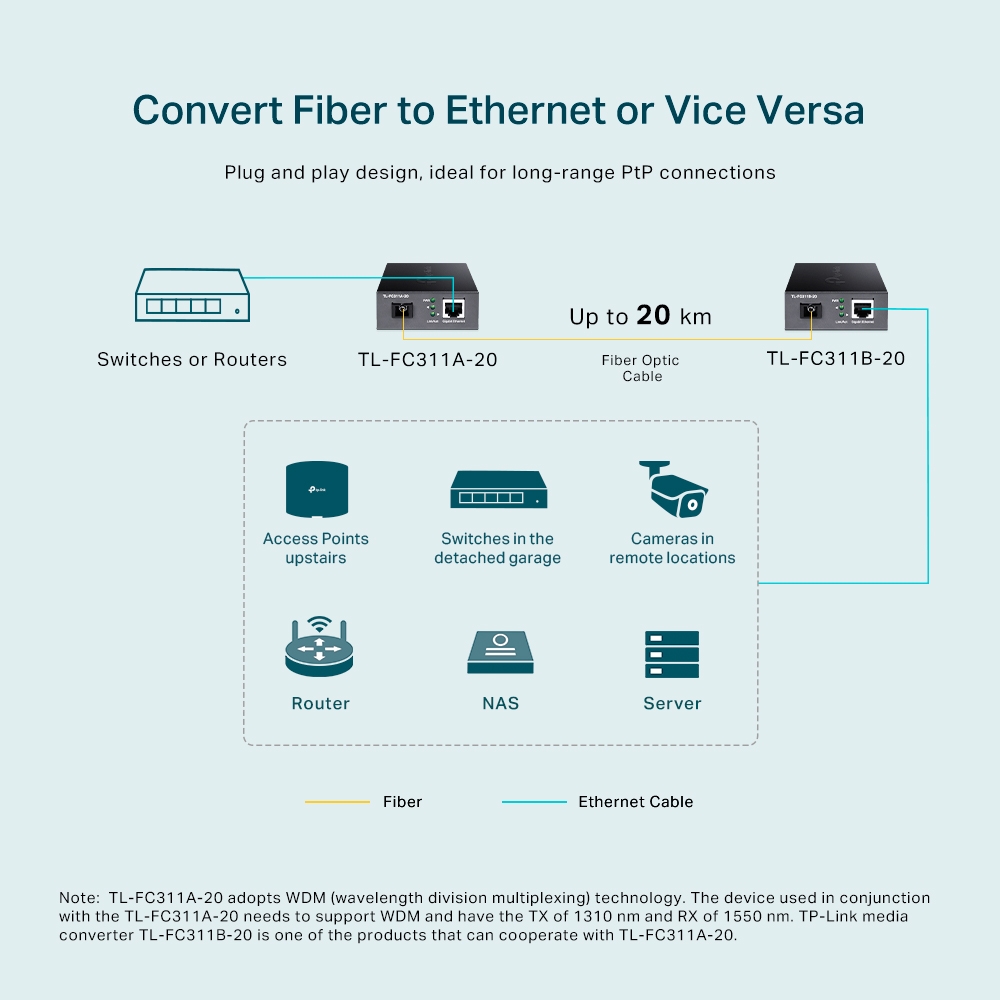

Adopts WDM technology, transmitting and receiving data on one single fiber
Extends fiber distance up to 20 km

Product Properties

Manufacturer
TP-LINK

Model
TL-FC311A-20

EAN
6935364010584

Bullet points

Point
1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX

Adopts WDM technology, transmitting and receiving data on one single fiber

Auto-negotiation of Half-Duplex/Full-Duplex transfer mode

Extends fiber distance up to 20 km

Features

Internal
No

LED indicators
Activity, Link, Power

Product colour
Black

Logistics data

Harmonized System (HS) code
85176990

Network

Data transfer rate
1000 Mbit/s

Ethernet interface type
Gigabit Ethernet

Ethernet LAN data rates
10,100,1000 Mbit/s

Maximum data transfer rate
1000 Mbit/s

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 50 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

AC adapter included
Yes

Quick installation guide
Yes

Packaging data

Package depth
204 mm

Package height
65 mm

Package weight
560 g

Package width
165 mm

Performance

Fiber cable diameters supported (core/cladding)
9/125 µm

Fiber mode structure
Single-mode

Maximum transfer distance
20000 m

Wavelength-division multiplexing (WDM)
Yes

Ports & interfaces

Connectivity technology
Wired

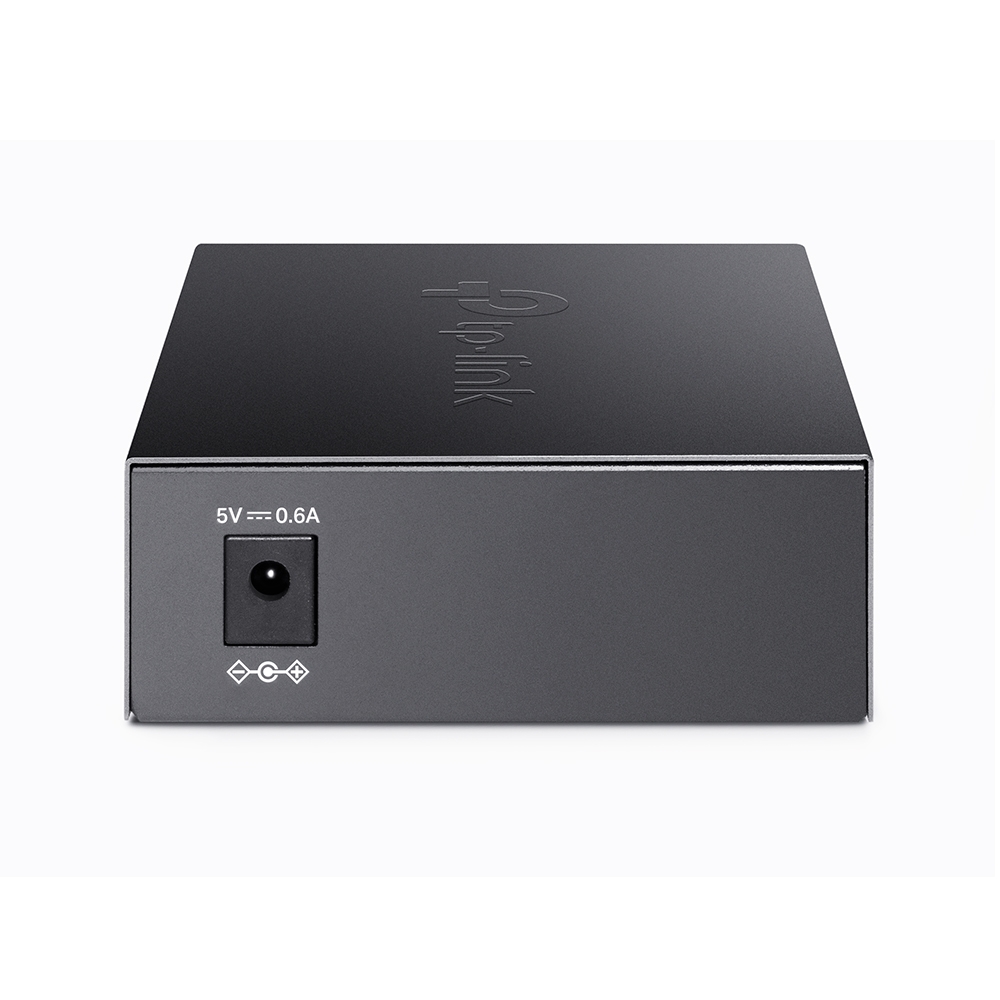

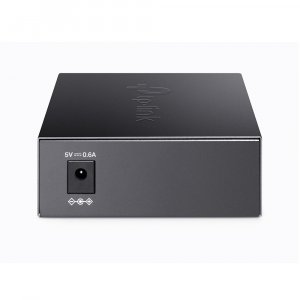

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
1

Fiber optic connector
SC

Fiber ports quantity
1

Power

Output current
0.6 A

Output voltage
5 V

Weight & dimensions

Depth
73 mm

Height
27 mm

Width
94.5 mm
