Description

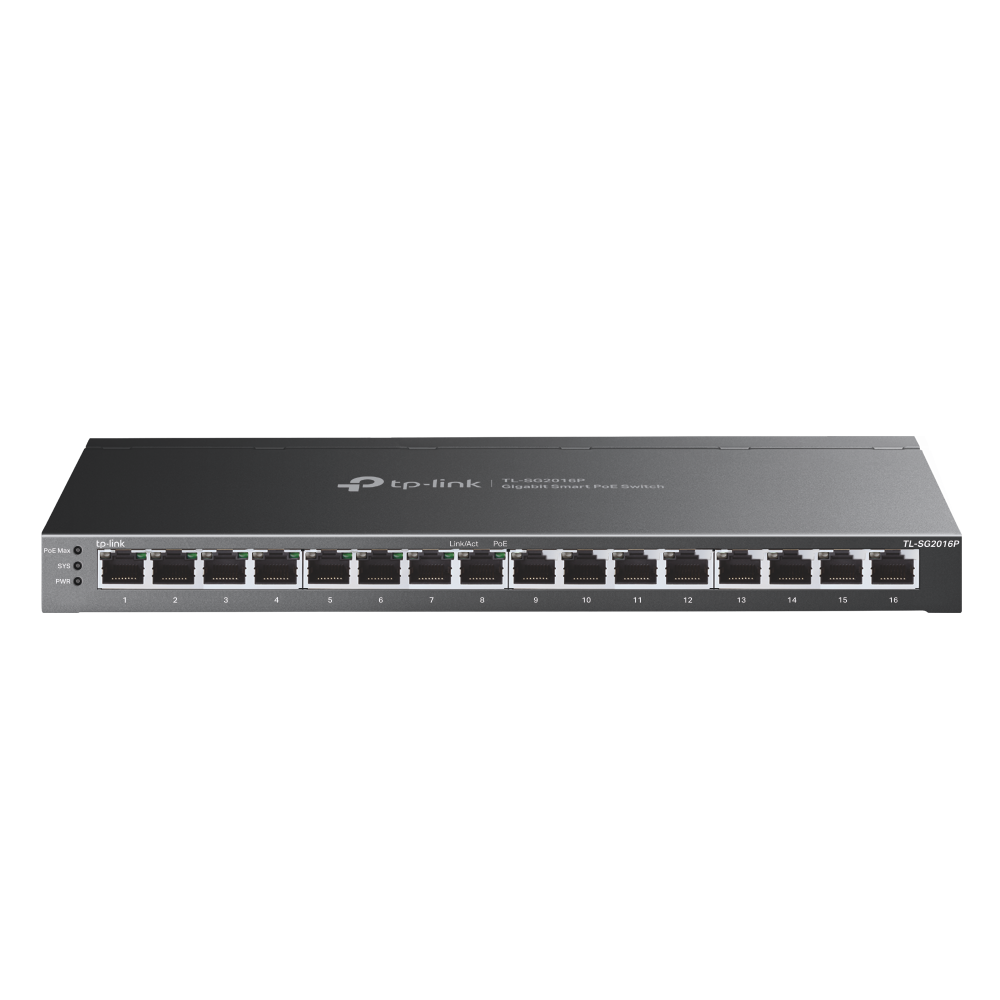

TP-Link JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+. Switch layer: L2/L3/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE.... DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE)

120 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 120 W*
Full Gigabit Ports: 8× gigabit PoE+ ports and 8× gigabit non-PoE ports provide high-speed connections
Integrated into Omada SDN: Zero-Touch Provisioning**, Centralized Cloud Management, and Intelligent Monitoring
Centralized Management: Cloud access and Omada app for ultra convenience and easy management
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping

Product Properties

Manufacturer
TP-LINK

Model
TL-SG2016P

EAN
4897098689349

Bullet points

Point
120 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 120 W*

Centralized Management: Cloud access and Omada app for ultra convenience and easy management

Full Gigabit Ports

Integrated into Omada SDN

Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping

Robust Security Strategies

Certificates

Certification
CE, FCC, RoHS

Data transmission

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
8000 entries

Number of queues
8

Packet buffer memory
4.1 MB

Switching capacity
16 Gbit/s

Design

Housing material
Metal

LED indicators
PoE, Power, System

Product colour
Black

Management features

ARP inspection
Yes

Cloud-managed
Yes

Configuring Location Settings (CLI)
Yes

MIB support
RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757

Quality of Service (QoS) support
Yes

Switch layer
L2/L3/L4

System event log
Yes

Web-based management
Yes

Multicast features

Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2

Multicast support
Yes

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Broadcast storm control
Yes

Cable types supported
Cat3, Cat4, Cat5, Cat5e

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Ethernet LAN data rates
10,100,1000 Mbit/s

Flow control support
Yes

Link aggregation
Yes

Networking standards
IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x

Number of VLANs
4000

Port mirroring
Yes

Rate limiting
Yes

Spanning tree protocol
Yes

Virtual LAN features
Multicast VLAN, Tagged VLAN, Voice VLAN

VLAN support
Yes

Operational conditions

Heat dissipation
499.98 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Manual
Yes

Packaging data

Package depth
434 mm

Package height
70 mm

Package weight
1.94 kg

Package width
227 mm

Performance

Fanless
Yes

Firmware upgradeable
Yes

Minimum system requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/10/11, MAC OS, NetWare, UNIX, Linux

Ports & interfaces

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Power connector
DC-in jack

Switch Number of Ports
16

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

DC input voltage
53.5 V

Input current
1.31 A

Power consumption (max)
146.5 W

Power source
DC/PoE

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet plus (PoE+) ports quantity
8

Total Power over Ethernet (PoE) budget
120 W

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes

IPv4 & IPv6 features
Dual stack IPv4/IPv6

Supported network protocols
ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2

Security

Access Control List (ACL)
Yes

Authentication
Guest VLAN, MAC-based authentication, Port-based authentication

BPDU filtering/protection
Yes

DHCP features
DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping

IGMP snooping
Yes

IP-MAC-Port binding
Yes

MAC address entries
Dynamic MAC address entries, Static MAC address entries

MAC address filtering
Yes

Queue scheduling algorithms
SP, Weighted Round Robin (WRR)

Security algorithms
EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS

SSH/SSL support
Yes

Weight & dimensions

Depth
111.7 mm

Height
25.4 mm

Width
286 mm
