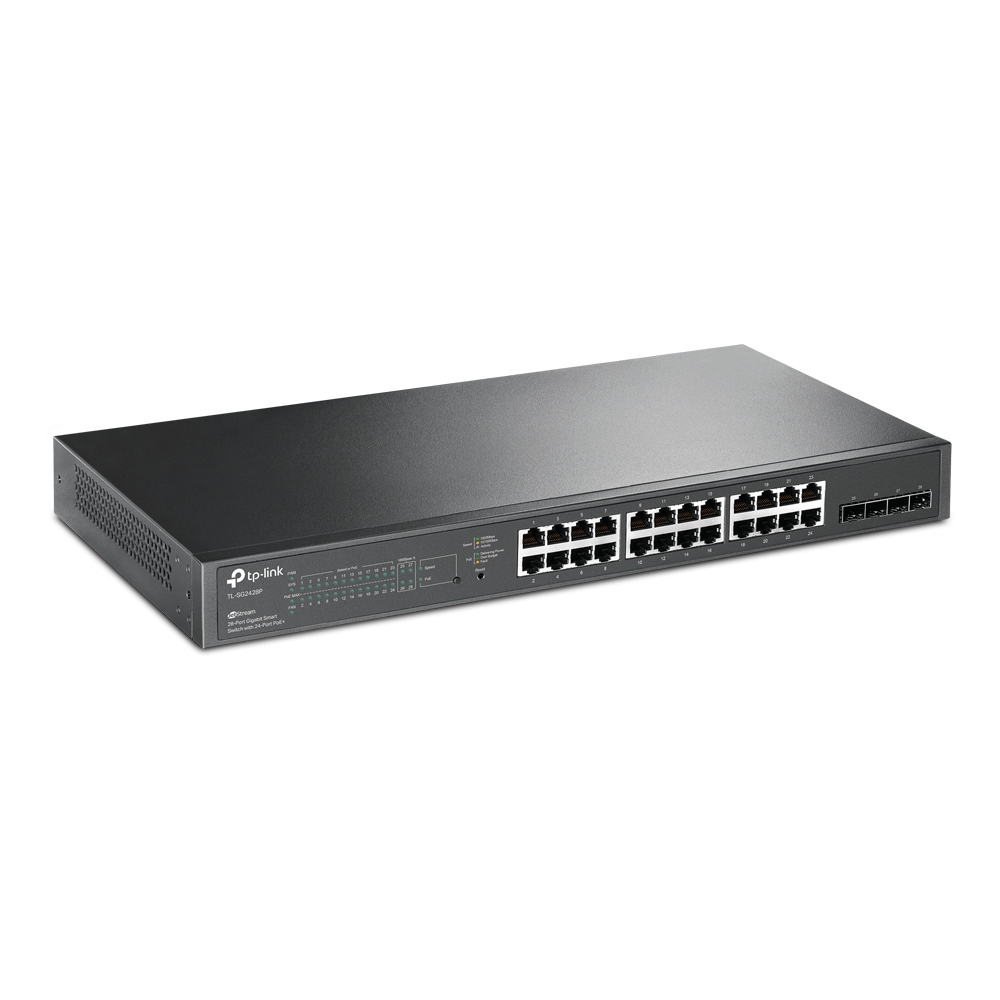

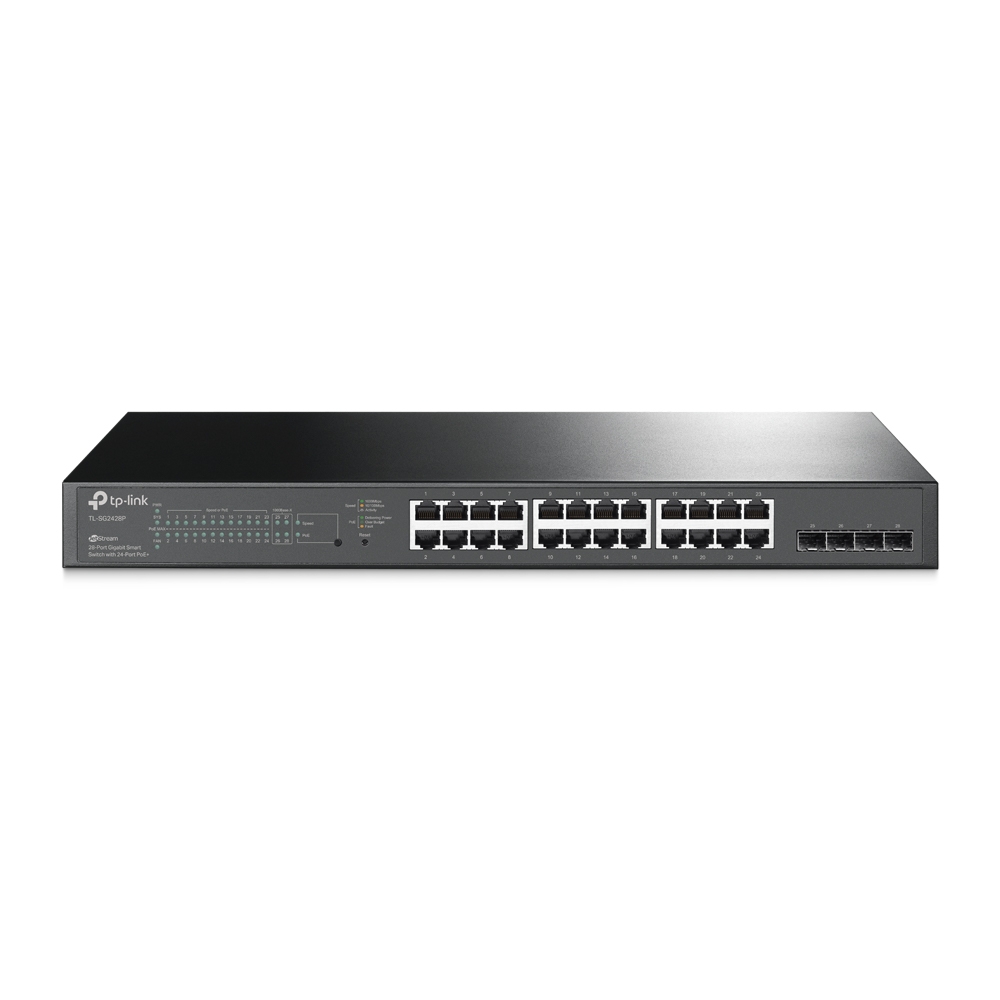

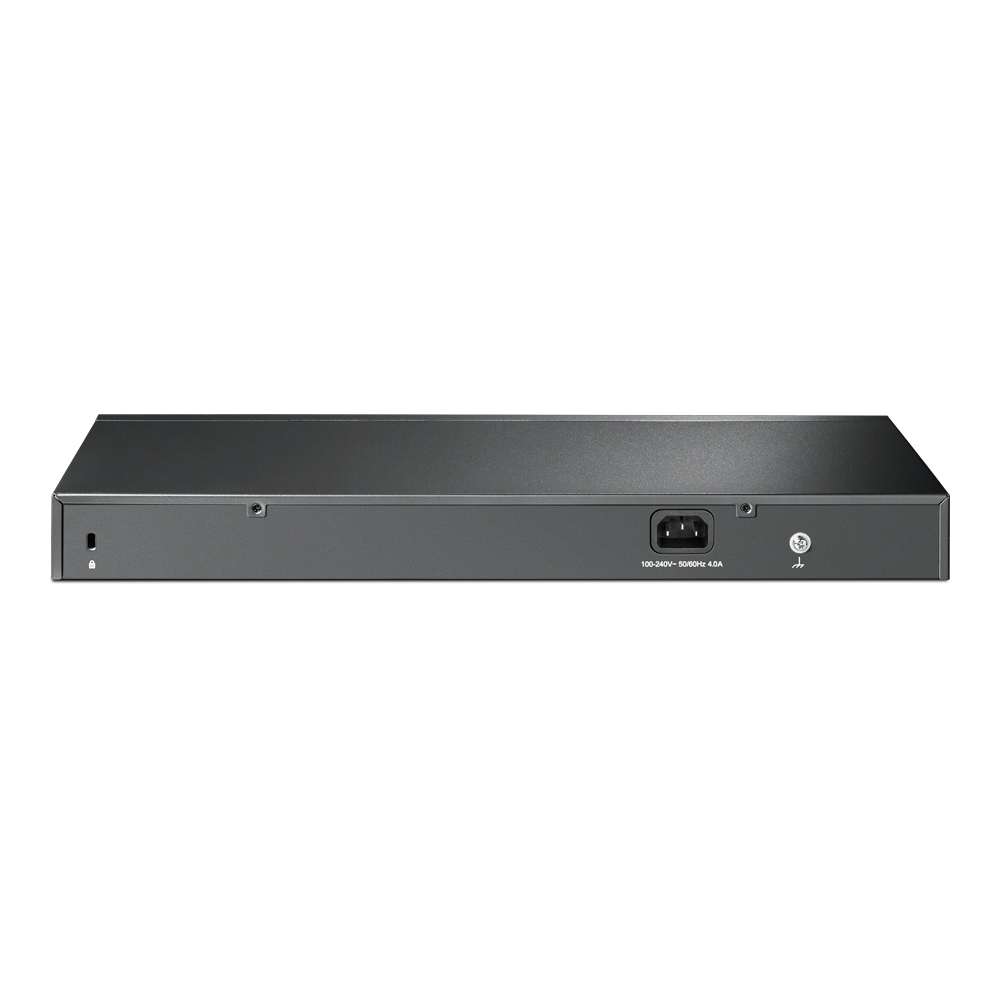

TP-Link JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+
Roll over image to zoom inClick to Open expanded view
TP-Link JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+
TP-Link JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+
TP-Link JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+
Print
Model: TL-SG2428P
EAN: 6935364030667

TP-Link JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+

Manufacturer:
TP-LINK
TP-Link JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+, Managed, L2/L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Please log in to see your price
Related products

Description

TP-Link JetStream 28-Port Gigabit Smart PoE Switch with 24-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
  • 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*
  • Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management
  • Static Routing: Helps route internal traffic for more efficient use of network resources
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
  • IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery

Product Properties

  • Model
  • TL-SG2428P
  • EAN
  • 6935364030667
  • Bullet points
  • Point
  • 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*
    Centralized Management: Cloud access and Omada app for ultra convenience and easy management
    Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections
    Integrated into Omada SDN
    IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
    Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
    Robust Security Strategies
    Static Routing: Helps route internal traffic for more efficient use of network resources
  • Certificates
  • Certification
  • CE, FCC, RoHS
  • Data transmission
  • Forwarding rate
  • 41.7 Mpps
  • Jumbo frames
  • 9000
  • Jumbo frames support
  • Yes
  • MAC address table
  • 8000 entries
  • Number of queues
  • 8
  • Packet buffer memory
  • 4.1 MB
  • Switching capacity
  • 56 Gbit/s
  • Design
  • Form factor
  • 1U
  • Number of fans
  • 2 fan(s)
  • Product colour
  • Black
  • Rack mounting
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • ARP inspection
  • Yes
  • MIB support
  • Y
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2/L2+
  • Switch type
  • Managed
  • System event log
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • No
  • Broadcast storm control
  • Yes
  • Cable types supported
  • Cat3, Cat4, Cat5, Cat5e
  • Copper ethernet cabling technology
  • 10BASE-T, 1000BASE-T
  • Flow control support
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Number of VLANs
  • 4000
  • Port mirroring
  • Yes
  • Rate limiting
  • Yes
  • Spanning tree protocol
  • Yes
  • Virtual LAN features
  • MAC address-based VLAN, Protocol-based VLAN, Voice VLAN
  • VLAN support
  • Yes
  • Operational conditions
  • Heat dissipation
  • 1047.3 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Optical fiber
  • Fiber ethernet cabling technology
  • 1000BASE-X
  • Packaging content
  • Cables included
  • AC
  • Rack mount kit
  • Yes
  • User guide
  • Yes
  • Packaging data
  • Package depth
  • 528 mm
  • Package height
  • 100 mm
  • Package weight
  • 3.98 kg
  • Package width
  • 336 mm
  • Performance
  • Firmware upgradeable
  • Yes
  • Ports & interfaces
  • Gigabit Ethernet (copper) ports quantity
  • 24
  • Installed SFP modules quantity
  • 0
  • Installed SFP+ modules quantity
  • 0
  • SFP module slots quantity
  • 4
  • Switch Number of Ports
  • 24
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 50/60 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 306.9 W
  • Power source
  • AC
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) power per port
  • 30 W
  • Power over Ethernet plus (PoE+) ports quantity
  • 24
  • Total Power over Ethernet (PoE) budget
  • 250 W
  • Protocols
  • Management protocols
  • SNMPv1/v2c/v3, SNTP
  • Security
  • Access Control List (ACL)
  • Yes
  • Authentication type
  • RADIUS
  • BPDU filtering/protection
  • Yes
  • DHCP features
  • DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client
  • IGMP snooping
  • Yes
  • IP-MAC-Port binding
  • Yes
  • Queue scheduling algorithms
  • SP, WRR+SP, Weighted Round Robin (WRR)
  • Security algorithms
  • HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
  • SSH/SSL support
  • Yes
  • Weight & dimensions
  • Depth
  • 220 mm
  • Height
  • 44 mm
  • Width
  • 440 mm
