Description

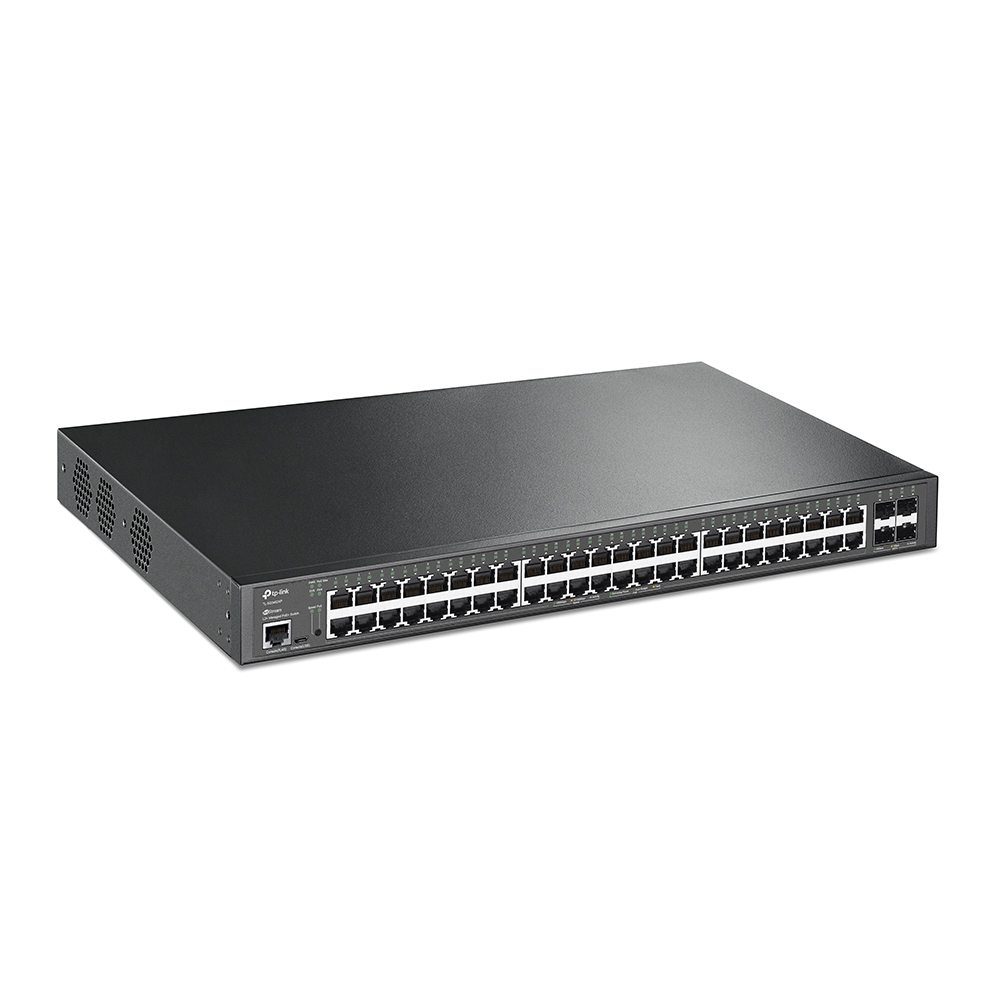

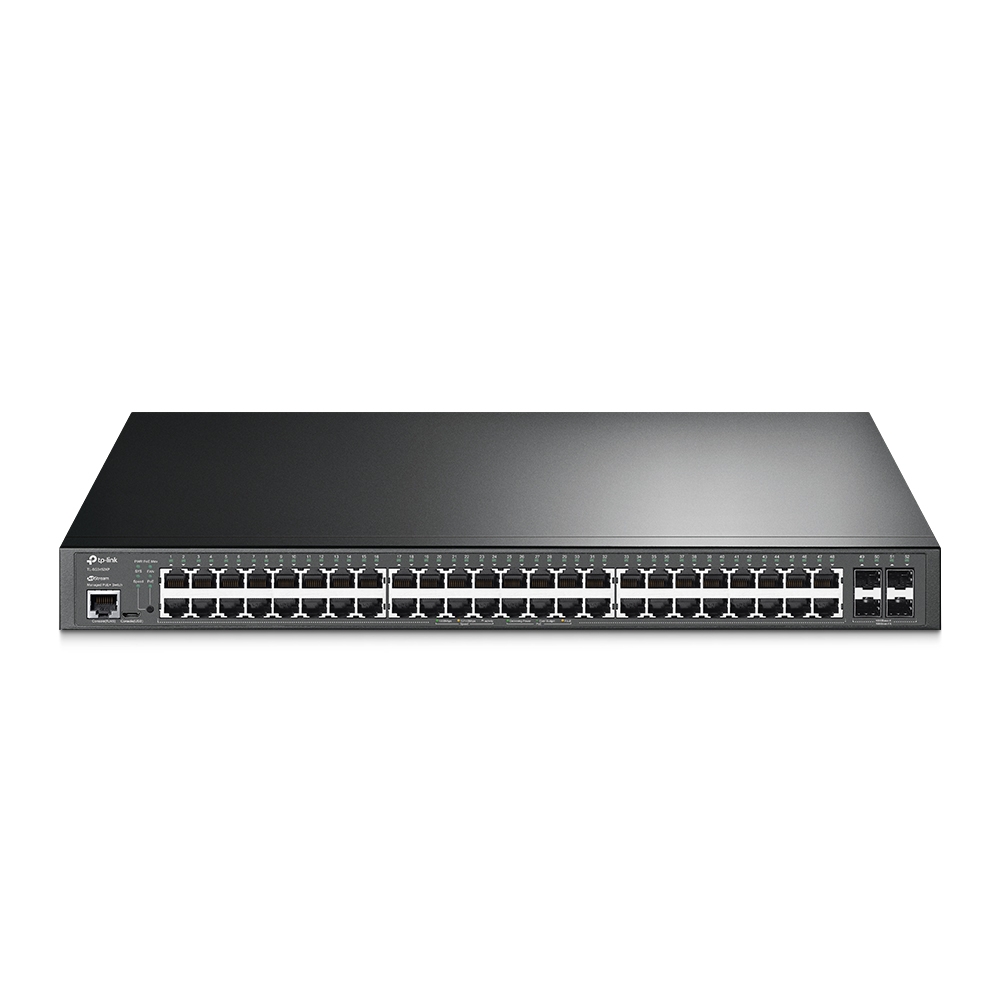

TP-Link JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

10G Lightning-Fast Uplink: Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10 Gbps SFP+ slots
PoE+ Output with 500 W Power Budget: Design your optimal network layout with forty-eight 802.3af/at PoE+ gigabit ports.*
Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management
Abundant L2 and L2+ Features: It supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping
Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, and 802.1X Authentication
Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Product Properties

Manufacturer
TP-LINK

Model
TL-SG3452XP

EAN
6935364006501

Bullet points

Point
10G Lightning-Fast Uplink

Abundant L2 and L2+ Features

Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management

PoE+ Output with 500 W Power Budget

Robust Security Strategies

Standalone Management

Certificates

Certification
CE, FCC, RoHS

Data transmission

Forwarding rate
130.9 Mpps

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
16000 entries

Packet buffer memory
12 MB

Store-and-forward
Yes

Switching capacity
176 Gbit/s

Design

Form factor
1U

LED indicators
Yes

Number of fans
3 fan(s)

Product colour
Black

Rack mounting
Yes

Reset button
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

ARP inspection
Yes

Cloud-managed
Yes

Configuring Location Settings (CLI)
Yes

Quality of Service (QoS) support
Yes

Switch layer
L2+

Switch type
Managed

System event log
Yes

Web-based management
Yes

Multicast features

Multicast support
Yes

Network

10G support
Yes

Broadcast storm control
Yes

Flow control support
Yes

Head-of-line (HOL) blocking
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z

Port mirroring
Yes

Rate limiting
Yes

Spanning tree protocol
Yes

VLAN support
Yes

Operational conditions

Heat dissipation
2169.2 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Cables included
AC

Quick start guide
Yes

Packaging data

Package depth
528 mm

Package height
100 mm

Package weight
6.48 kg

Package width
440 mm

Ports & interfaces

Console port
RJ-45/Micro-USB

Power connector
AC-in jack

SFP+ module slots quantity
4

Switch Number of Ports
48

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Power consumption (max)
635.7 W

Power source
AC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
30 W

Power over Ethernet plus (PoE+) ports quantity
48

Total Power over Ethernet (PoE) budget
500 W

Security

Access Control List (ACL)
Yes

Authentication
Auto VLAN, Guest VLAN

BPDU filtering/protection
Yes

DHCP features
DHCP client, DHCP relay, DHCP server

IGMP snooping
Yes

IP-MAC-Port binding
Yes

MAC address filtering
Yes

SSH/SSL support
Yes

Static port security
Yes

Weight & dimensions

Depth
330 mm

Height
44 mm

Width
440 mm
