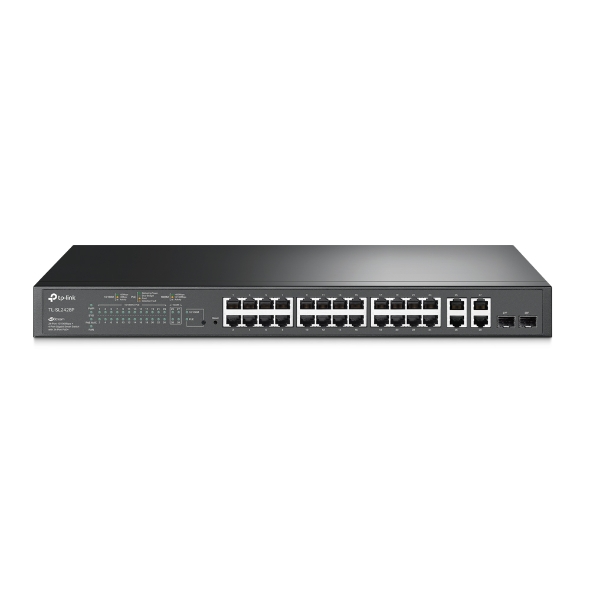

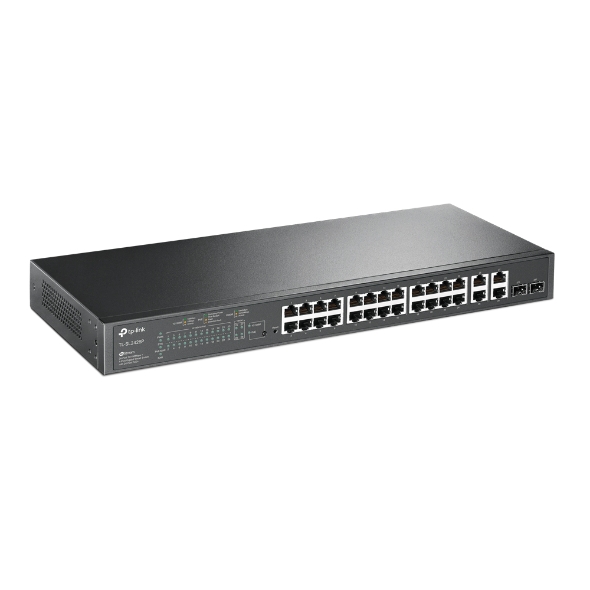

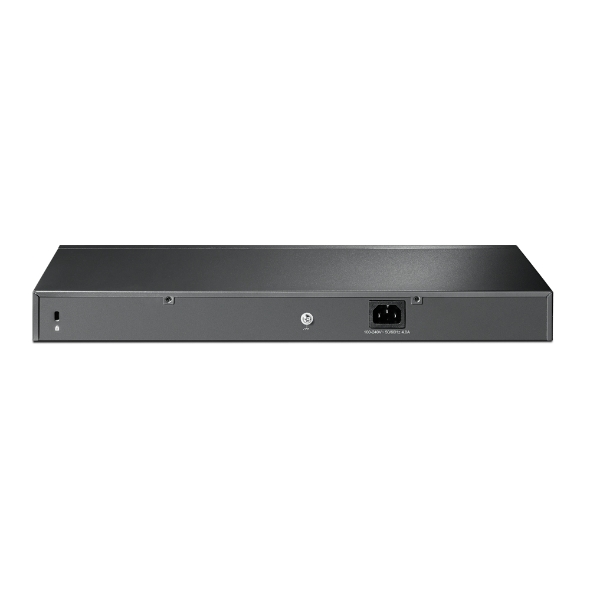

TP-Link JetStream TL-SL2428P network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Roll over image to zoom inClick to Open expanded view
TP-Link JetStream TL-SL2428P network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
TP-Link JetStream TL-SL2428P network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
TP-Link JetStream TL-SL2428P network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black
Print
Model: TL-SL2428P
EAN: 6935364030629

TP-Link JetStream TL-SL2428P network switch Managed L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black

Manufacturer:
TP-LINK
TP-Link JetStream TL-SL2428P, Managed, L2, Fast Ethernet (10/100), Power over Ethernet (PoE), Rack mounting, 1U
Please log in to see your price
Related products

Description

TP-Link JetStream TL-SL2428P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 12.8 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Product Properties

  • Model
  • TL-SL2428P
  • EAN
  • 6935364030629
  • Certificates
  • Certification
  • CE, FCC, RoHS
  • Data transmission
  • Jumbo frames support
  • Yes
  • MAC address table
  • 8000 entries
  • Number of queues
  • 4
  • Switching capacity
  • 12.8 Gbit/s
  • Throughput
  • 9.5 Mpps
  • Design
  • Form factor
  • 1U
  • Number of fans
  • 2 fan(s)
  • Product colour
  • Black
  • Rack mounting
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • ARP inspection
  • Yes
  • Configuring Location Settings (CLI)
  • Yes
  • Quality of Service (QoS) support
  • Yes
  • Switch layer
  • L2
  • Switch type
  • Managed
  • System event log
  • Yes
  • Web-based management
  • Yes
  • Multicast features
  • Multicast support
  • Yes
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Broadcast storm control
  • Yes
  • Cable types supported
  • Cat5, Cat5e
  • Copper ethernet cabling technology
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • Flow control support
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
  • Number of VLANs
  • 512
  • Port mirroring
  • Yes
  • Rate limiting
  • Yes
  • Spanning tree protocol
  • Yes
  • VLAN support
  • Yes
  • Operational conditions
  • Heat dissipation
  • 995.09 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • Cables included
  • AC
  • Quick start guide
  • Yes
  • Rack mount kit
  • Yes
  • Packaging data
  • Package depth
  • 528 mm
  • Package height
  • 80 mm
  • Package weight
  • 3.02 kg
  • Package width
  • 250 mm
  • Performance
  • Compatible operating systems
  • Microsoft Windows XP, Vista, Windows 7, Windows 8, MAC OS, NetWare, UNIX, Linux
  • Firmware upgradeable
  • Yes
  • Ports & interfaces
  • Combo SFP ports quantity
  • 2
  • Fast Ethernet (copper) ports quantity
  • 24
  • Gigabit Ethernet (copper) ports quantity
  • 4
  • Installed SFP modules quantity
  • 0
  • Installed SFP+ modules quantity
  • 0
  • Switch Number of Ports
  • 24
  • Switch Port Speed
  • Fast Ethernet (10/100)
  • Power
  • AC input frequency
  • 50/60 Hz
  • AC input voltage
  • 100 - 240 V
  • Power consumption (max)
  • 291.6 W
  • Power source
  • AC
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet plus (PoE+) ports quantity
  • 24
  • Total Power over Ethernet (PoE) budget
  • 250 W
  • Protocols
  • Management protocols
  • SNMP v1/v2c/v3, RMON, SNTP, TFTP
  • Security
  • Access Control List (ACL)
  • Yes
  • IGMP snooping
  • Yes
  • Security algorithms
  • SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS
  • SSH/SSL support
  • Yes
  • Weight & dimensions
  • Depth
  • 180 mm
  • Height
  • 44 mm
  • Width
  • 440 mm
