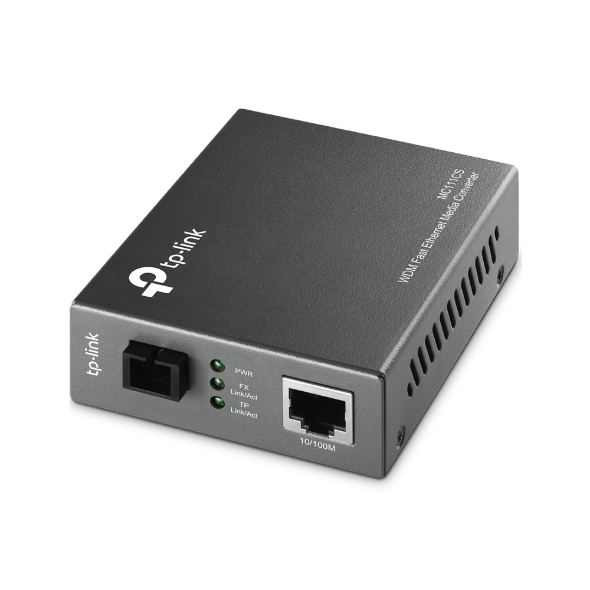

TP-Link MC111CS network media converter 100 Mbit/s Single-mode Black
Roll over image to zoom inClick to Open expanded view
Print
Model: MC111CS
EAN: 6935364030414

TP-Link MC111CS network media converter 100 Mbit/s Single-mode Black

Manufacturer:
TP-LINK
TP-Link MC111CS, 100 Mbit/s, IEEE 802.3, IEEE 802.3u, 10,100 Mbit/s, Full, Half, Cat3, Cat4, Cat5, Cat5e, 20000 m
Please log in to see your price
Related products

Description

TP-Link MC111CS. Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, Ethernet LAN data rates: 10,100 Mbit/s. Maximum transfer distance: 20000 m, Fiber mode structure: Single-mode. Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 2.49 W
  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Work with MC112CS WDM single fiber media converter
  • Extends fiber distance up to 20km (12.5 miles)

Product Properties

  • Model
  • MC111CS
  • EAN
  • 6935364030414
  • Bullet points
  • Point
  • Adopts WDM technology, transmitting and receiving data on one single fiber
    Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
    Complies with 802.3u 10/100Base-TX, 100Base-FX standards
    Extends fiber distance up to 20km (12.5 miles)
    Work with MC112CS WDM single fiber media converter
  • Certificates
  • Compliance certificates
  • RoHS
  • Features
  • Internal
  • No
  • LED indicators
  • Yes
  • Product colour
  • Black
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Network
  • Auto MDI/MDI-X
  • Yes
  • Cable types supported
  • Cat3, Cat4, Cat5, Cat5e
  • Duplex system
  • Full, Half
  • Ethernet LAN data rates
  • 10,100 Mbit/s
  • Maximum data transfer rate
  • 100 Mbit/s
  • Networking standards
  • IEEE 802.3, IEEE 802.3u
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • Manual
  • Yes
  • Performance
  • Fiber mode structure
  • Single-mode
  • Maximum transfer distance
  • 20000 m
  • Wavelength-division multiplexing (WDM)
  • Yes
  • Ports & interfaces
  • Connectivity technology
  • Wired
  • Ethernet LAN (RJ-45) ports
  • 1
  • Fiber optic connector
  • SC
  • Fiber ports quantity
  • 1
  • Power
  • Power consumption (max)
  • 2.49 W
  • Weight & dimensions
  • Depth
  • 73 mm
  • Height
  • 27 mm
  • Width
  • 95 mm
