Description

TP-Link N300 4G LTE Telephony WiFi Router. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 3G standards: DC-HSPA+, HSPA, HSPA+, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, Firewall security: : DoS, SPI Firewall, IP and MAC Address Binding

Cutting-edge 4G network – share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps*

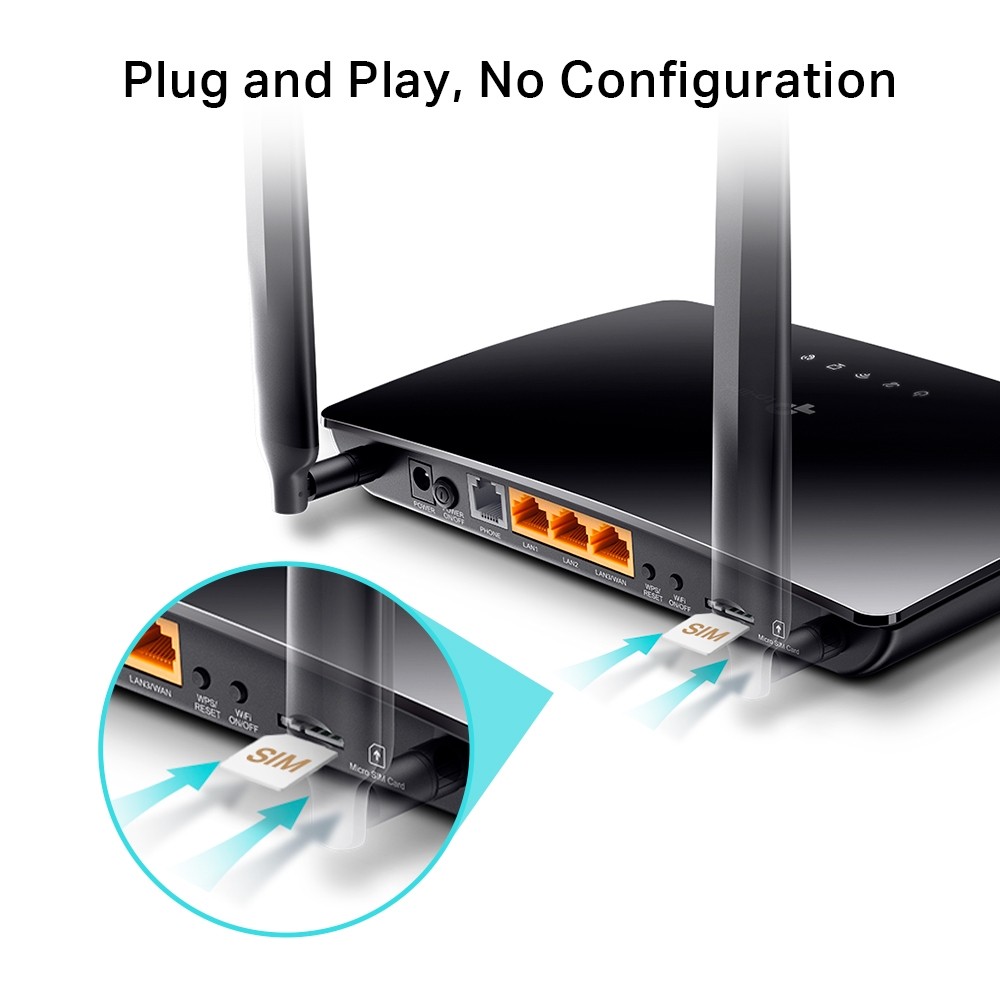

Plug a SIM card and play – no configurations needed, compatibility for SIM cards in 100+ countries are assured by years of field tests
WiFi speeds up to 300 Mbps – enjoy uninterrupted HD movies, rapid file downloads, seamless video chats, and more at the same time*
Professional voice functions – supports VoLTE/CSFB/VoIP functions and provides 50 MB of internal storage for 100 minutes of voicemail
Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection

Product Properties

Manufacturer
TP-LINK

Model
TL-MR6500V

EAN
6935364072377

Antenna

Antenna design
External

Antennas quantity
2

Detachable antenna(s)
Yes

Design

On/off switch
Yes

Product colour
Black

Product type
Tabletop router

Wall mountable
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Reset button
Yes

Wi-Fi Multimedia (WMM)/(WME)
Yes

WPS push button
Yes

Mobile network

3G bands supported
900,2100 MHz

3G standards
DC-HSPA+, HSPA, HSPA+, UMTS

4G bands supported
800,900,1800,2100,2300,2500,2600 MHz

4G standard
LTE-TDD & LTE-FDD

Dual SIM support
No

Mobile network generation
4G

SIM card type
MicroSIM

Network

Cabling technology
10/100Base-T(X)

Dynamic DNS (DDNS)
Yes

Ethernet LAN
Yes

Ethernet LAN data rates
10,100 Mbit/s

Ethernet LAN interface type
Fast Ethernet

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Number of guest networks (2.4 GHz)
1

Port forwarding
Yes

Port triggering
Yes

Static route
Yes

VPN Passthrough
Yes

VPN server
PPTP VPN, OpenVPN

VPN tunnels quantity
10

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

AC adapter included
Yes

Cables included
LAN (RJ-45)

Quick installation guide
Yes

Packaging data

Package depth
223 mm

Package height
70 mm

Package weight
640 g

Package width
307 mm

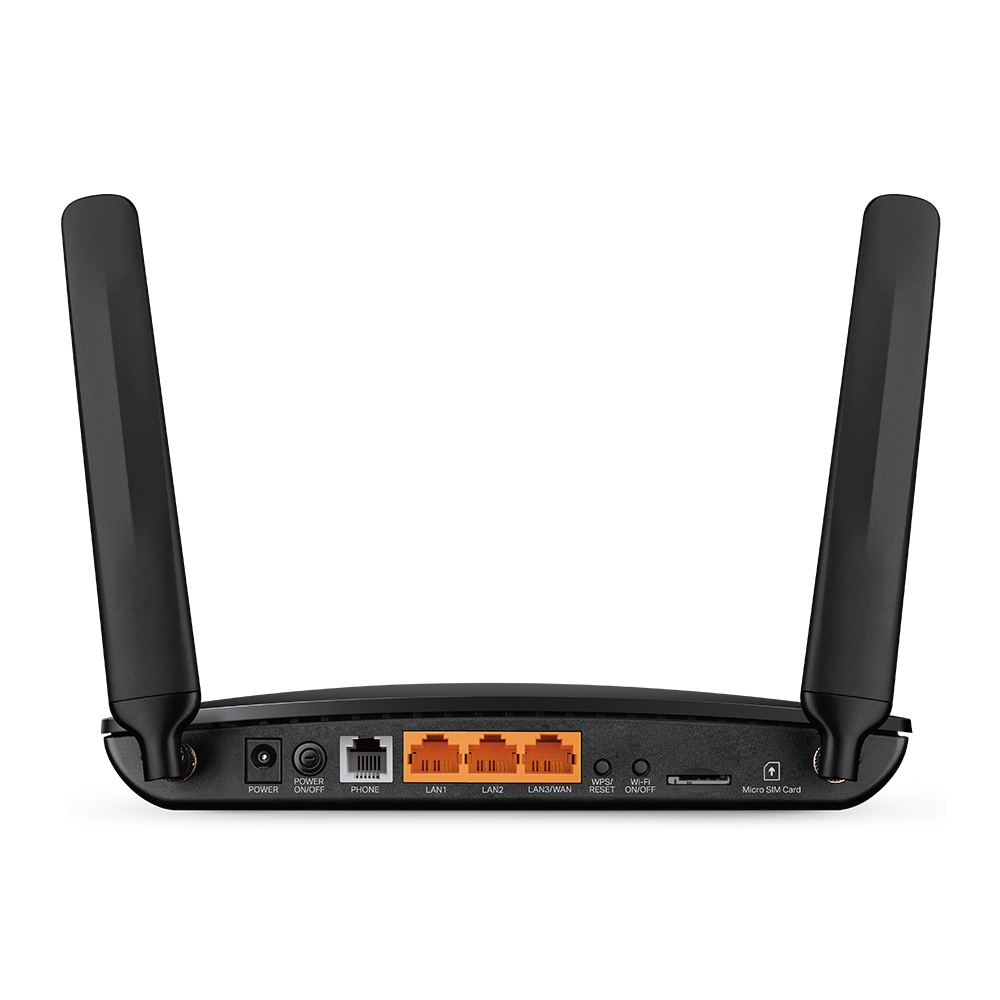

Ports & interfaces

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
2

Memory card slot(s)
No

RJ-11 ports quantity
1

USB port
No

Power

Output current
1 A

Output voltage
12 V

Power source type
DC

Protocols

DHCP client
Yes

DHCP server
Yes

Universal Plug and Play (UPnP)
Yes

VoIP protocols
SIP(RFC3261)/RTP(RFC1889/3550), G.711A/u, G.729AB, G.726

Security

DMZ support
Yes

Firewall
Yes

Firewall security
: DoS, SPI Firewall, IP and MAC Address Binding

Guest access
Yes

Parental control
Yes

Security algorithms
64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

WAN connection

3G/4G USB modem compatibility
Yes

DSL WAN
No

Ethernet WAN
Yes

SIM card slot
Yes

WAN connection type
RJ-45

Weight & dimensions

Depth
141 mm

Height
33.6 mm

Width
202 mm

Wireless LAN features

Top Wi-Fi standard
Wi-Fi 4 (802.11n)

Wi-Fi band
Single-band (2.4 GHz)

Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)

WLAN data transfer rate (first band)
300 Mbit/s

WLAN data transfer rate (max)
300 Mbit/s
