Description

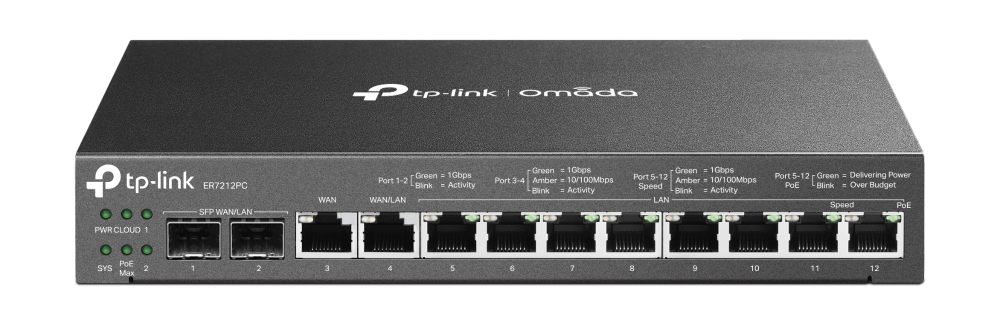

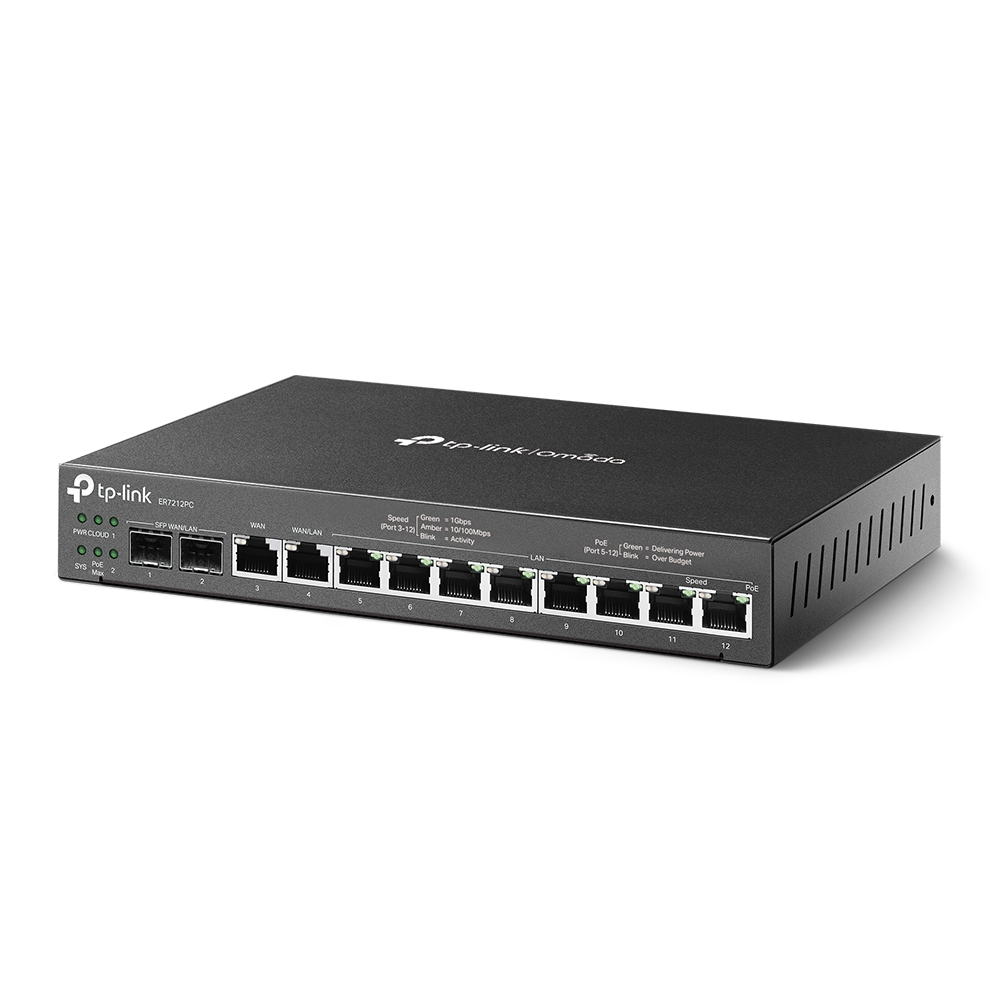

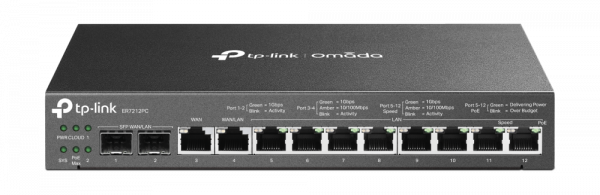

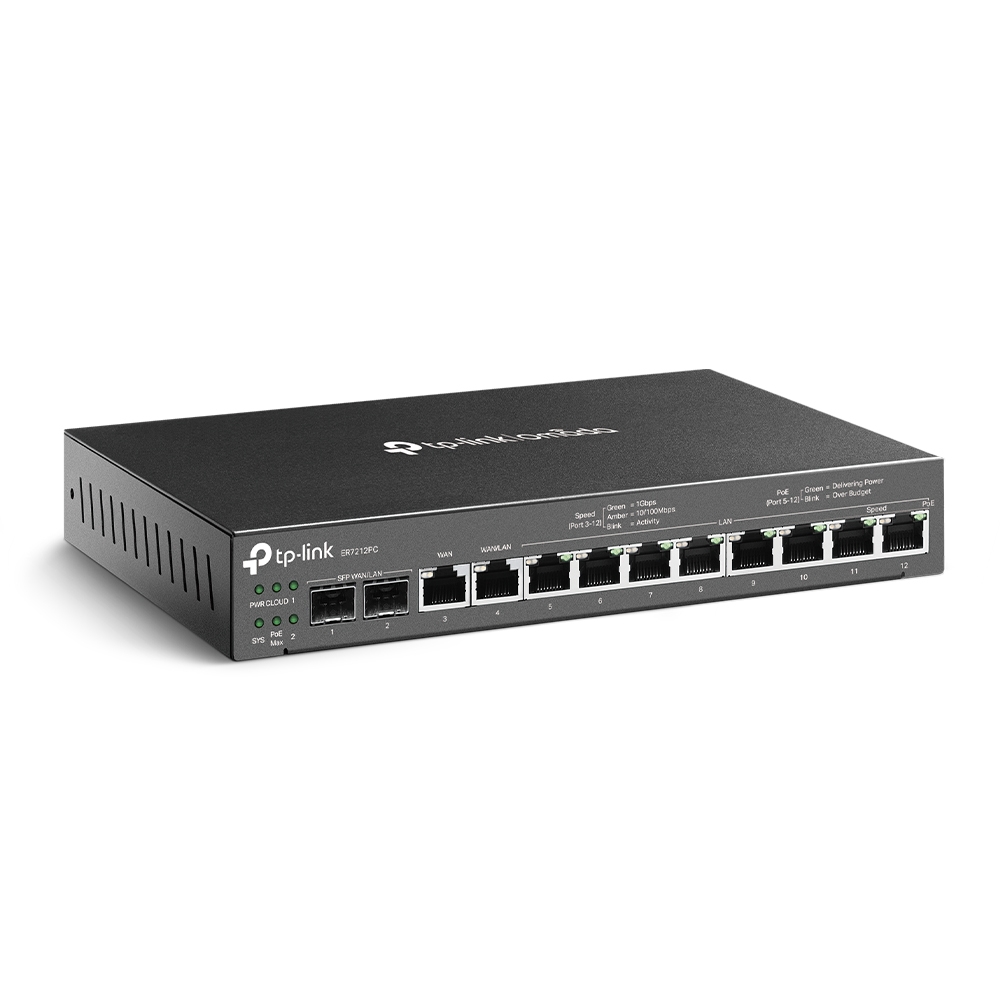

TP-Link Omada 3-in-1 Gigabit VPN Router. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Supported protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP. NAT functionality: Multi-Net NAT; Virtual Server; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP;. Processor frequency: 1200 MHz, Flash memory: 4096 MB, Internal memory: 1024 MB. Product colour: Black, Housing material: Metal

3-in-1 Router: Integrates router, PoE switch, and Omada controller altogether
Professional Hardware: Dual-Core 1.2 GHz CPU with 1GB DDR3 memory provides stellar performance for up to 12× Gigabit ports
Up to 4× WAN Ethernet Ports: Equipped with 2× Gigabit SFP WAN/LAN ports, 1× Gigabit RJ45 WAN port, and 1× Gigabit RJ45 WAN/LAN port
110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*
Centralized Management: Cloud access and the Omada app offer convenience and easy management
Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections
Easy Installation: Fanless and compact design for desktop and wall mounting

Product Properties

Manufacturer
TP-LINK

Model
ER7212PC

EAN
4897098688724

Bullet points

Point
110W PoE Budget: 8× 802.3at/af-compliant PoE+ RJ45 LAN ports yield a total power supply of 110W*

3-in-1 Router: Integrates router, PoE switch, and Omada controller altogether

Centralized Management: Cloud access and the Omada app offer convenience and easy management

Easy Installation: Fanless and compact design for desktop and wall mounting

Highly Secure VPN: Supports IPsec VPN, OpenVPN, and L2TP/PPTP VPN connections

Professional Hardware

Up to 4× WAN Ethernet Ports

Design

Housing material
Metal

LED indicators
Yes

Product colour
Black

Features

Built-in processor
Yes

Certification
CE, FCC, RoHS

Flash memory
4096 MB

Internal memory
1024 MB

Internal memory type
DDR3

Processor frequency
1200 MHz

Management features

Reset button
Yes

Universal Plug and Play (UPnP)
Yes

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet interface type
Gigabit Ethernet

Ethernet LAN data rates
10,100,1000 Mbit/s

Networking standards
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Port forwarding
Yes

Static route
Yes

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 45 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

AC adapter included
Yes

Manual
Yes

Packaging data

Package depth
374 mm

Package height
73 mm

Package weight
1.92 kg

Package width
227 mm

Ports & interfaces

Combo SFP ports quantity
2

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
10

Power over Ethernet (PoE) ports quantity
8

Power

Output current
2.43 A

Output voltage
53.5 V

Power over Ethernet (PoE)
Yes

Protocols

DHCP client
Yes

DHCP server
Yes

Supported protocols
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP

Security

Access Control List (ACL)
Yes

NAT functionality
Multi-Net NAT; Virtual Server; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP;

URL filtering
Yes

WAN connection

3G/4G USB modem compatibility
No

DSL WAN
No

Ethernet WAN
Yes

SFP WAN
Yes

SIM card slot
No

Weight & dimensions

Depth
131 mm

Height
35 mm

Width
226 mm
