Description

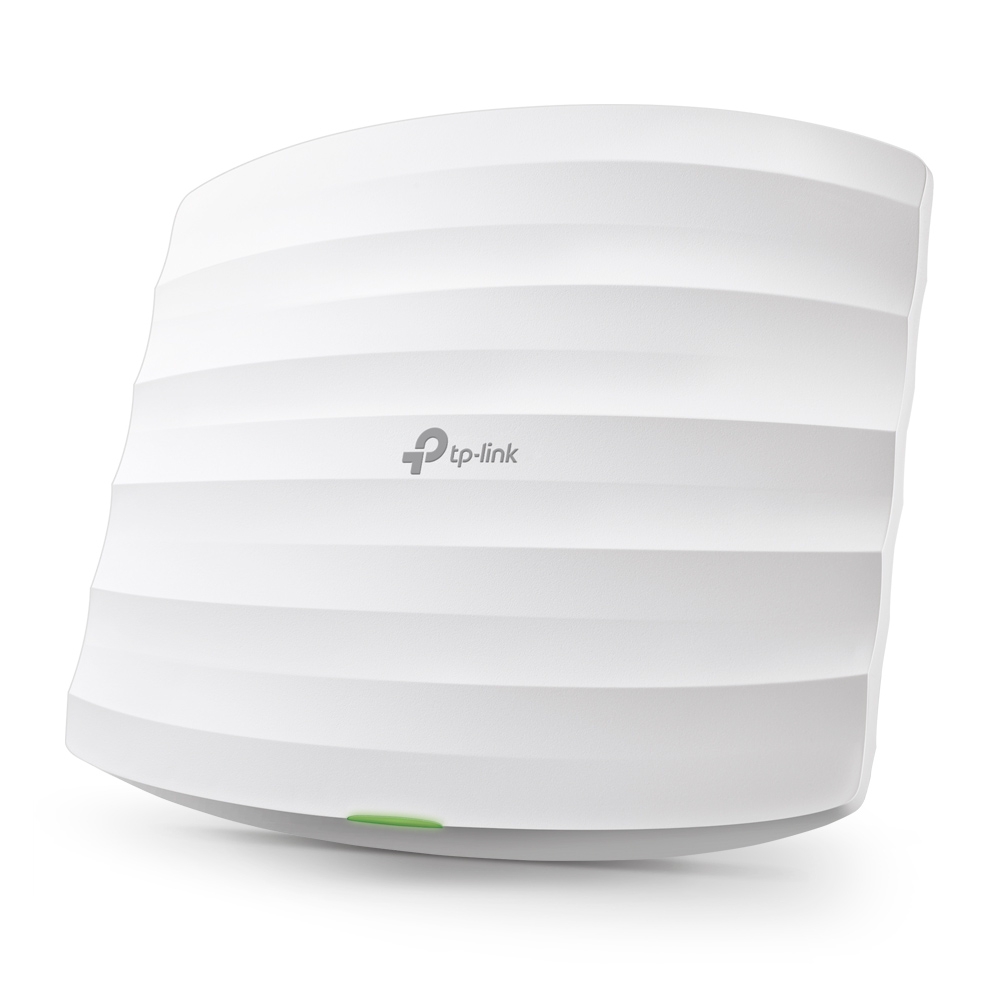

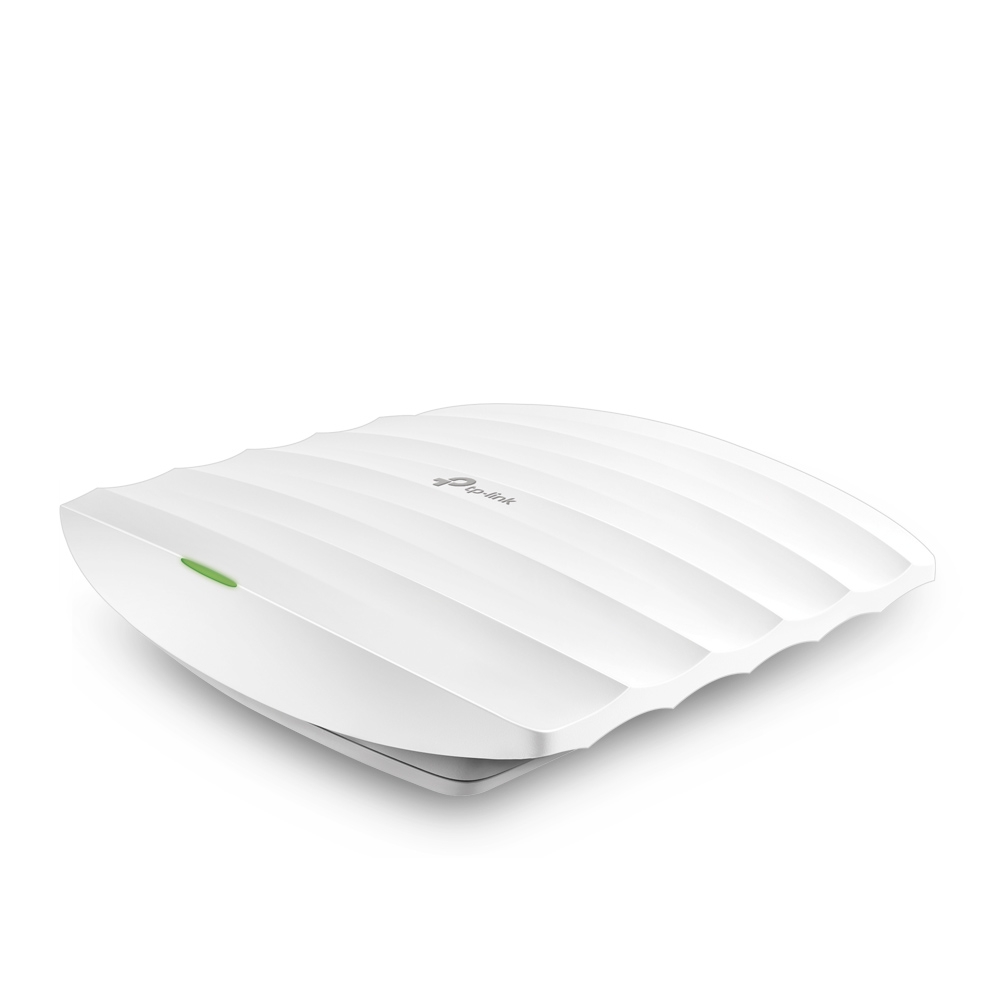

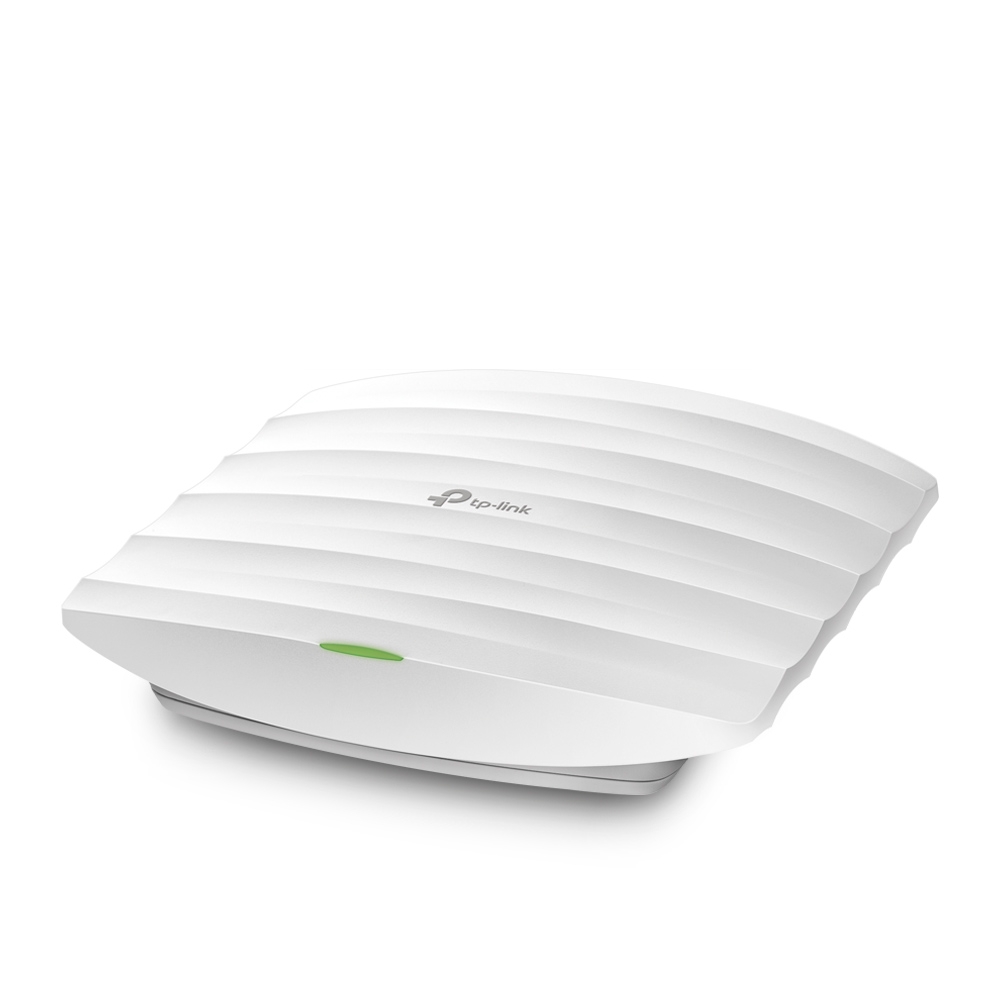

TP-Link Omada AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA-Enterprise, WPA-PSK,.... Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White

Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.†
High-Density Connectivity: MU-MIMO, Load Balance, and professional antennas improve capacity in high-density environments to connect more devices simultaneously
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)‡, Centralized Cloud Management, and Intelligent Monitoring
Centralized Management: Cloud access and Omada app for ultra convenience and easy management
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies

Product Properties

Manufacturer
TP-LINK

Model
EAP265 HD

EAN
6935364030735

Antenna

Antenna direction type
Omni-directional

Antenna gain level (max)
4 dBi

Antenna type
Internal

Bullet points

Point
Centralized Management: Cloud access and Omada app for ultra convenience and easy management

Fast Dual-Band Wi-Fi

High-Density Connectivity

Integrated into Omada SDN

POE SUPPORT

Seamless Roaming

Secure Guest Network

Certificates

Certification
CE, FCC, RoHS

Design

LED indicators
Yes

Placement
Ceiling, Wall

Product colour
White

Reset button
Yes

Features

2.4 GHz
Yes

5 GHz
Yes

6 GHz
No

Automatic channel scanning
Yes

Automatic channel selection
Yes

Band steering
Yes

Ethernet LAN data rates
10,100,1000 Mbit/s

Frequency band
2.4 - 5 GHz

Maximum data transfer rate
1300 Mbit/s

Maximum data transfer rate (2.4 GHz)
450 Mbit/s

Maximum data transfer rate (5 GHz)
1300 Mbit/s

MIMO
Yes

MIMO type
Multi User MIMO

Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at

Number of users
500 user(s)

Quality of Service (QoS) support
Yes

Rate limiting
Yes

Transmitting power (CE)
20/23 dBm

Transmitting power (FCC)
24 dBm

VLAN support
Yes

Wi-Fi Multimedia (WMM)/(WME)
Yes

Wireless isolation
Yes

Management features

Syslog
Yes

Web-based management
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Mounting kit
Yes

Quantity per pack
1 pc(s)

Quick start guide
Yes

Performance

Compatible operating systems
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux

Ports & interfaces

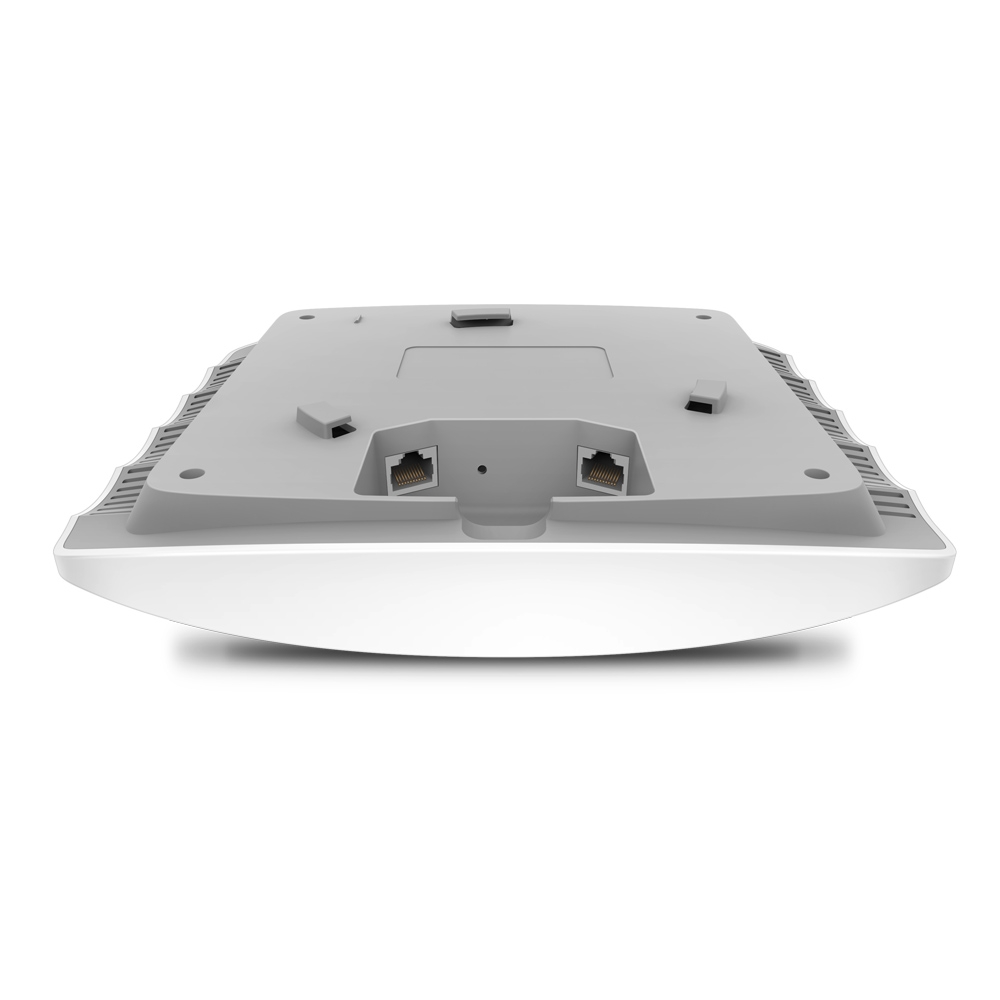

Ethernet LAN (RJ-45) ports
2

USB 2.0 ports quantity
0

WAN connection
Ethernet (RJ-45)

Power

DC voltage range
12 V

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) type supported
Active PoE, Passive PoE

Security

MAC address filtering
Yes

Number of SSID supported
16

Security algorithms
64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK

Service Set Identifier (SSID) features
Multiple SSIDs

Weight & dimensions

Depth
181.5 mm

Height
37.1 mm

Width
205.5 mm
