Description

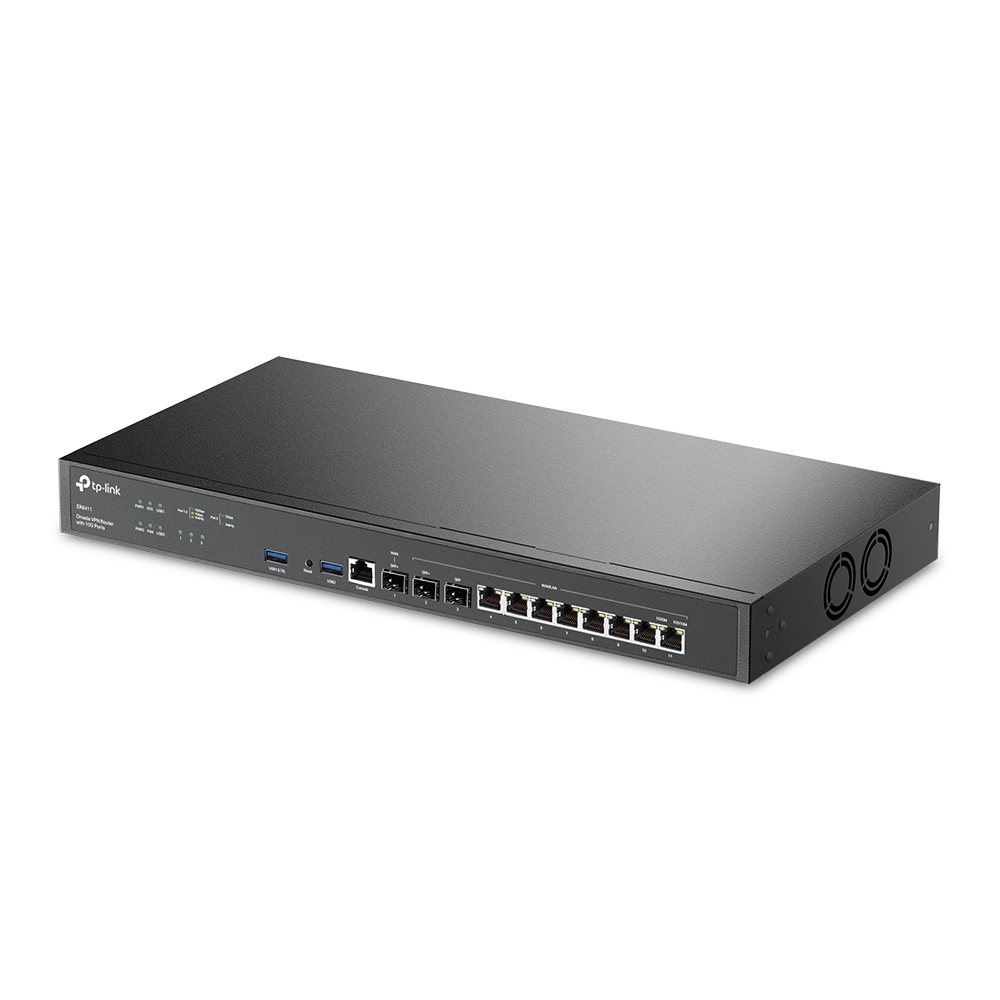

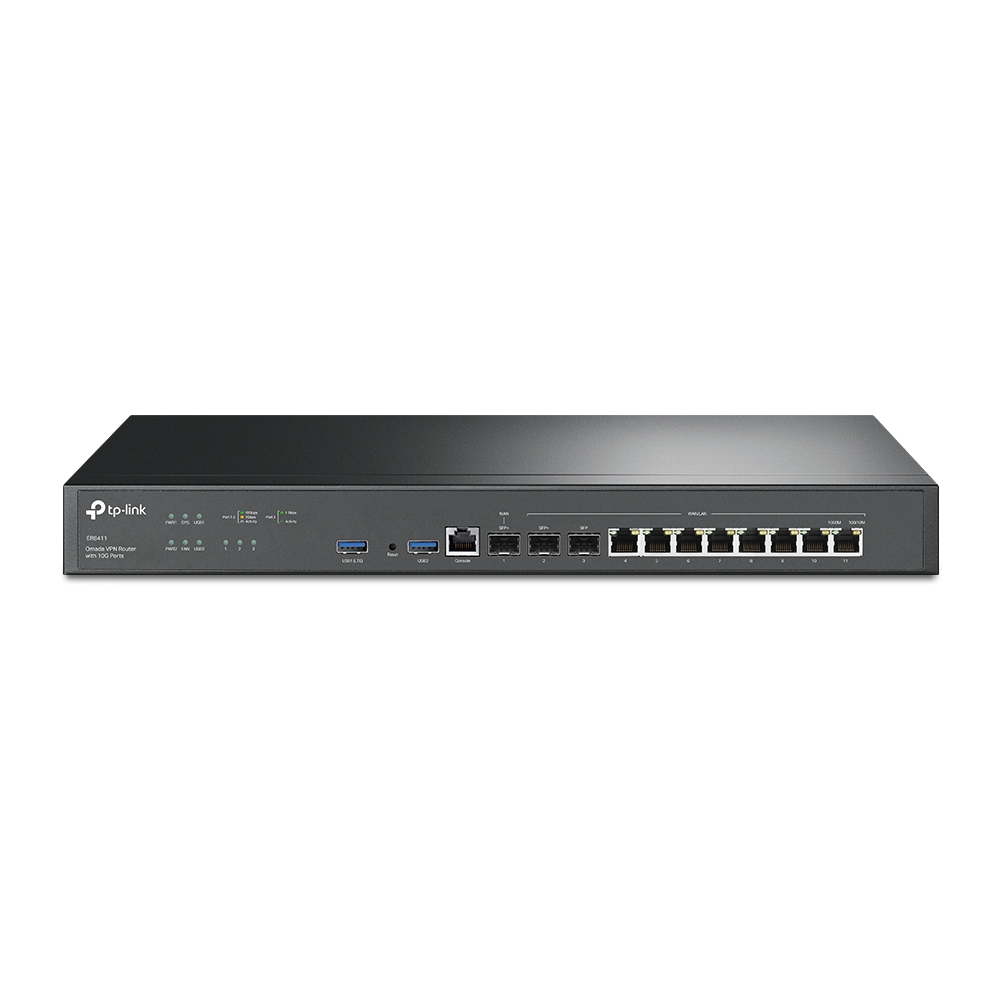

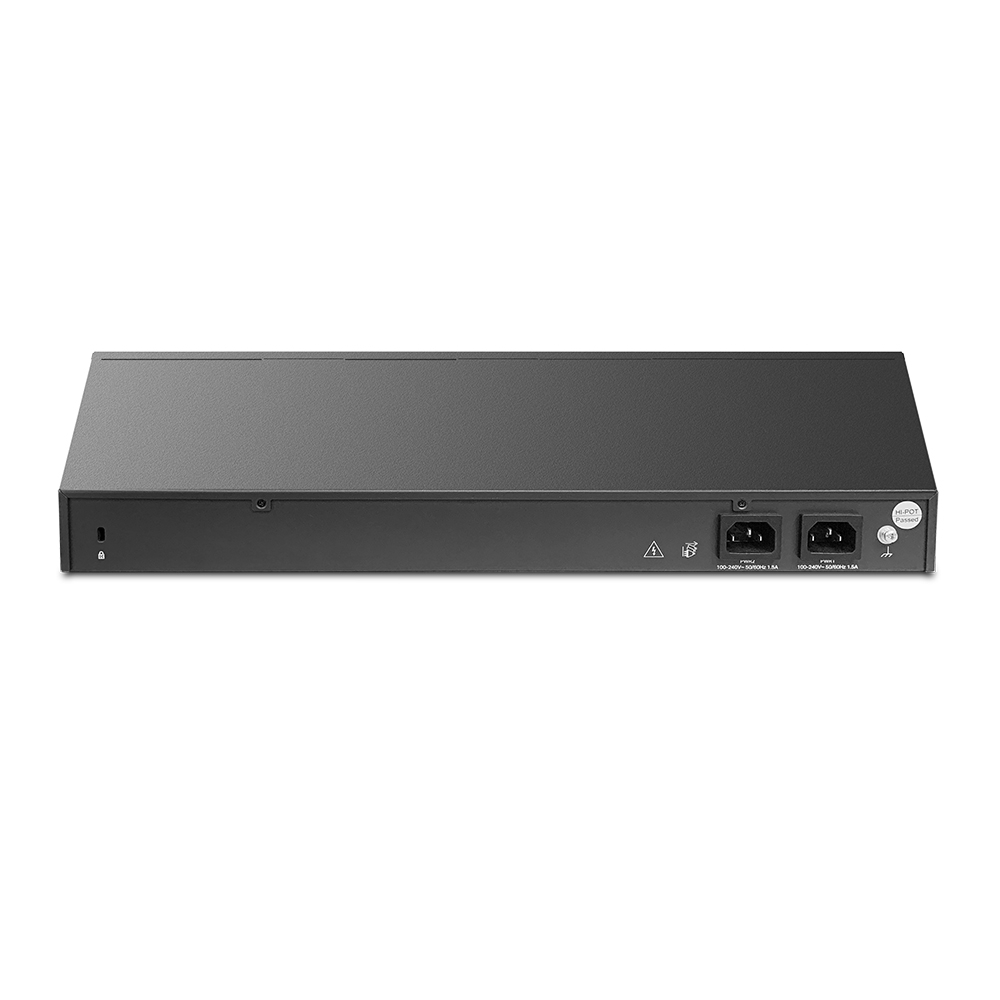

TP-Link Omada VPN Router with 10G Ports. Networking standards: IEEE 802.1Q, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). NAT functionality: One-to-One NAT; Multi-Net NAT; Virtual Server; Port Triggering; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP.... Flash memory: 256 MB, Internal memory: 4096 MB, Internal memory type: DDR4. Product colour: Black. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring

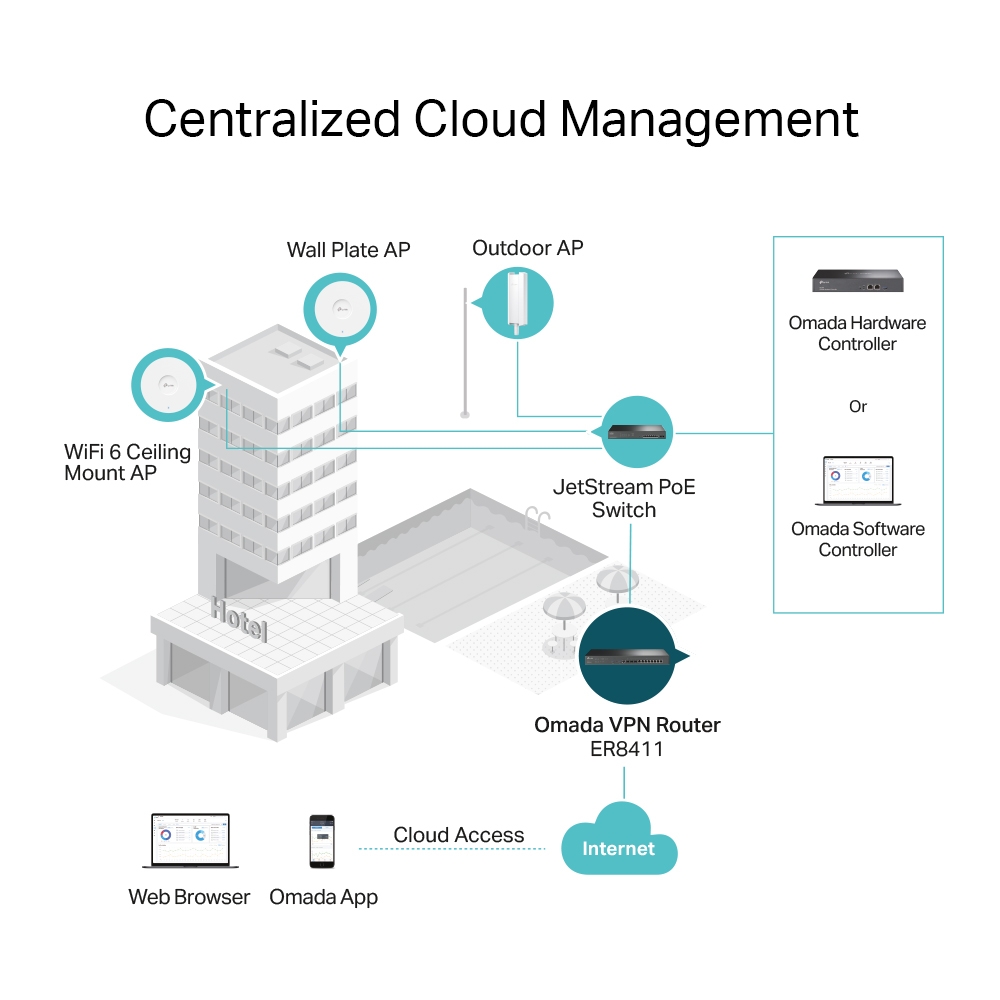

Centralized Management: Cloud access and Omada app for ultra convenience and easy management

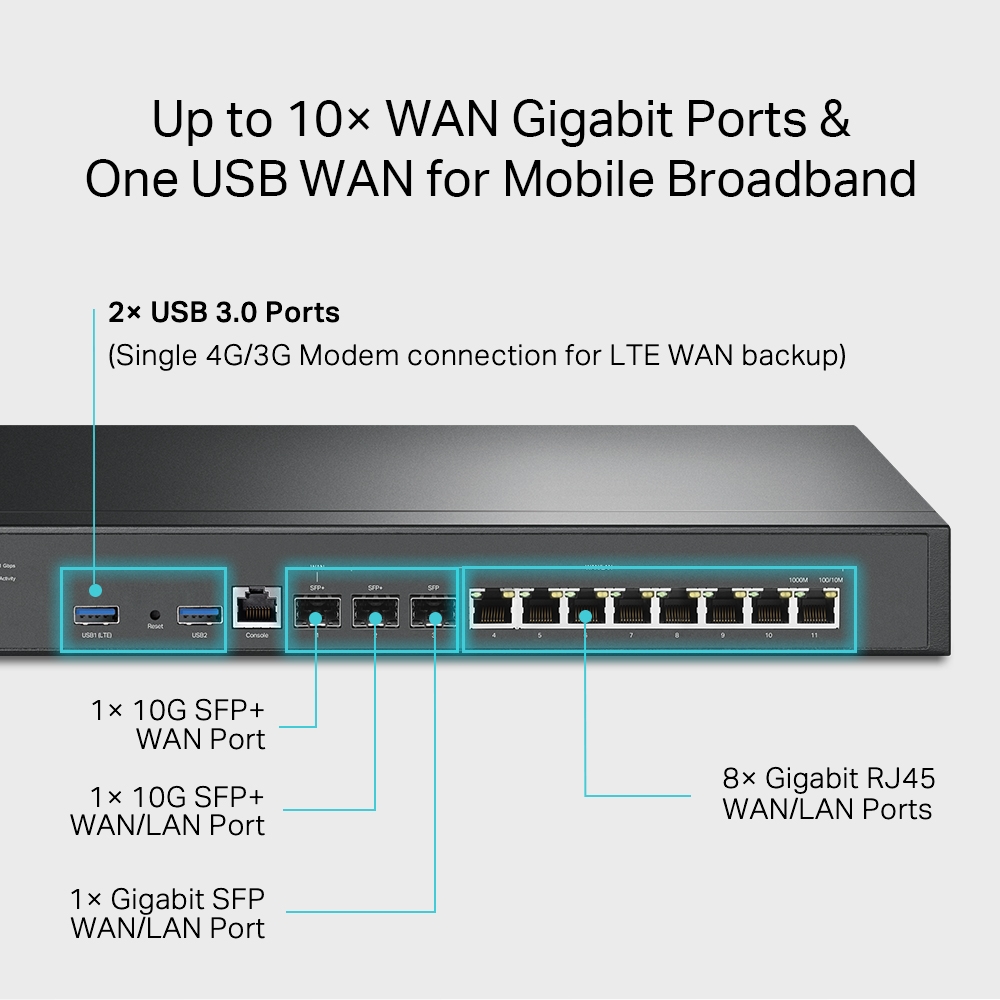

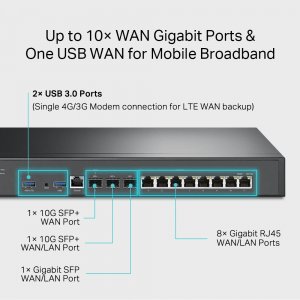

Two 10GE SFP+ Ports: 1× WAN and 1× WAN/LAN 10GE SFP+ ports provide high-bandwidth aggregation connectivity
Up to 10 WAN Ports: Fiber and RJ45 WAN ports with load balance raise the utilization rate of multi-line broadband

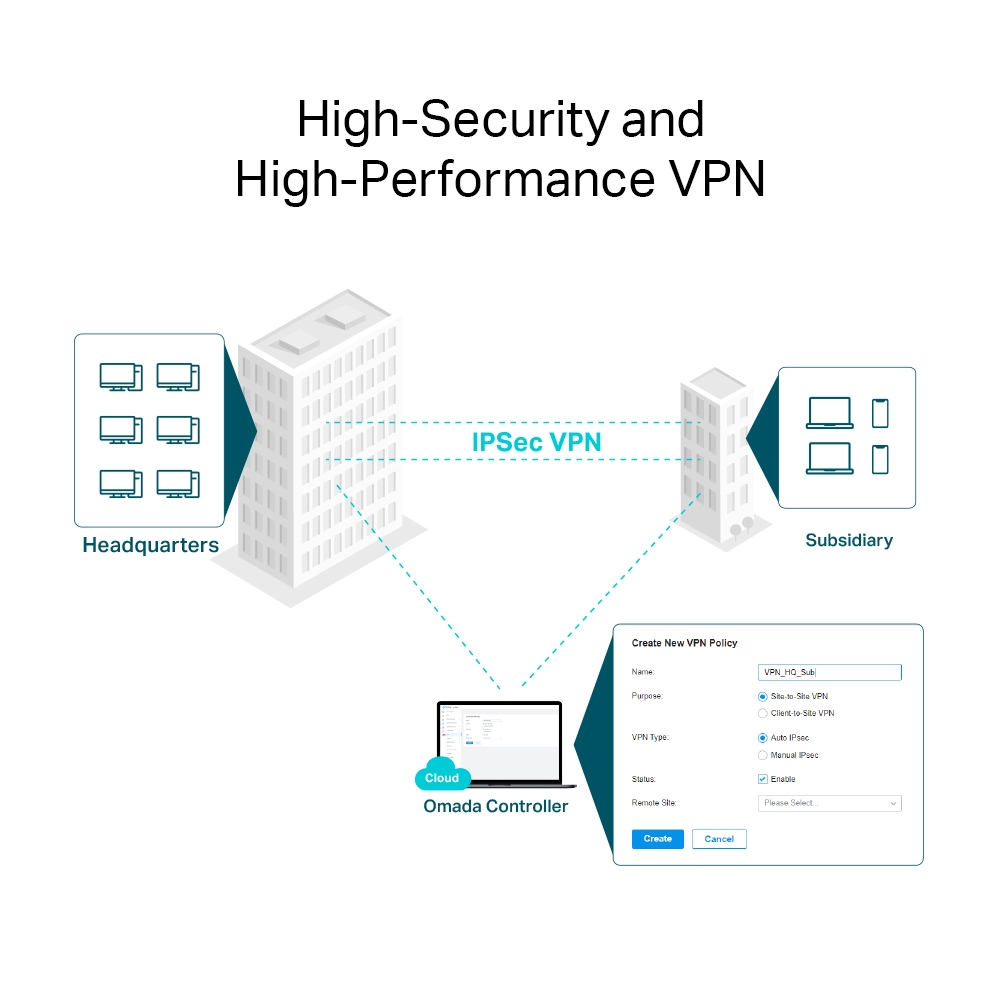

Highly Secure VPN: Enterprise-standard SSL/ IPSec / PPTP / L2TP VPN & OpenVPN / L2TP over IPSec VPN are ideal for use across multiple branches and for WFH
Abundant Security Features: Powerful Firewall, DoS defense, IP/MAC/URL filtering, and IP-MAC Binding, and One-Click ALG Activation provide world-class security

Product Properties

Manufacturer
TP-LINK

Model
ER8411

EAN
4897098683132

Bullet points

Point
Abundant Security Features

Centralized Management: Cloud access and Omada app for ultra convenience and easy management

Highly Secure VPN

Integrated into Omada SDN

Two 10GE SFP+ Ports

Up to 10 WAN Ports

Design

LED indicators
Yes

Product colour
Black

Features

Built-in processor
Yes

Certification
CE, FCC, RoHS

Flash memory
256 MB

Internal memory
4096 MB

Internal memory type
DDR4

Management features

Reset button
Yes

Universal Plug and Play (UPnP)
Yes

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet interface type
Gigabit Ethernet

Ethernet LAN data rates
10,100,1000 Mbit/s

Networking standards
IEEE 802.1Q

Port forwarding
Yes

Static route
Yes

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

AC adapter included
Yes

Manual
Yes

Packaging data

Package depth
528 mm

Package height
100 mm

Package weight
3.68 kg

Package width
336 mm

Ports & interfaces

Combo SFP ports quantity
2

DC-in jack
Yes

Ethernet LAN (RJ-45) ports
8

USB ports quantity
2

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Protocols

DHCP client
Yes

DHCP server
Yes

Security

Access Control List (ACL)
Yes

NAT functionality
One-to-One NAT; Multi-Net NAT; Virtual Server; Port Triggering; NAT-DMZ; FTP/H.323/SIP/IPSec/PPTP ALG; UPnP;

URL filtering
Yes

WAN connection

3G/4G USB modem compatibility
No

DSL WAN
No

Ethernet WAN
Yes

SFP WAN
Yes

SIM card slot
No

Weight & dimensions

Depth
220 mm

Height
44 mm

Width
440 mm
