Description

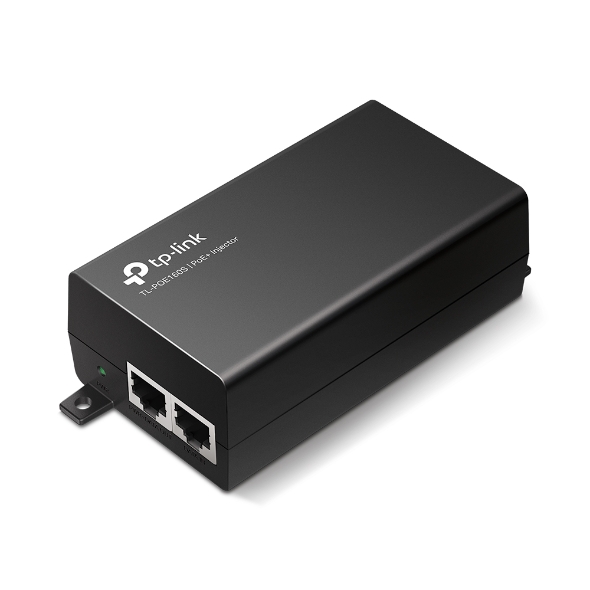

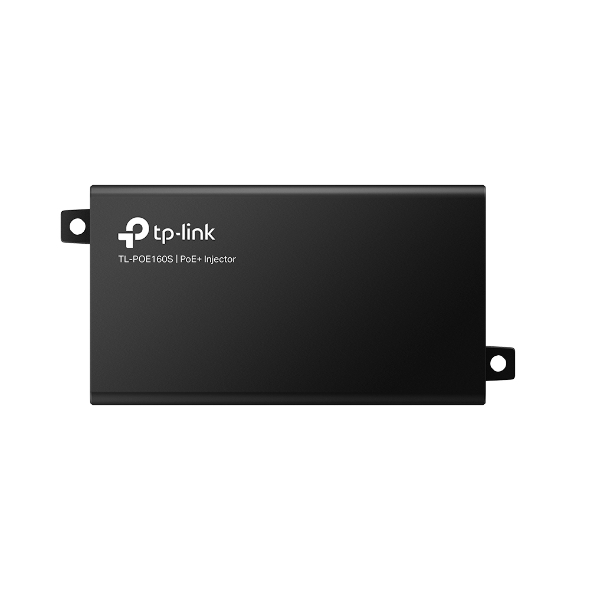

TP-Link PoE+ Injector. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Maximum operating distance: 100 m, LED indicators: Power. Output power: 30 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Certification: FCC, CE, RoHS. Width: 125 mm, Depth: 59.4 mm, Height: 36.8 mm

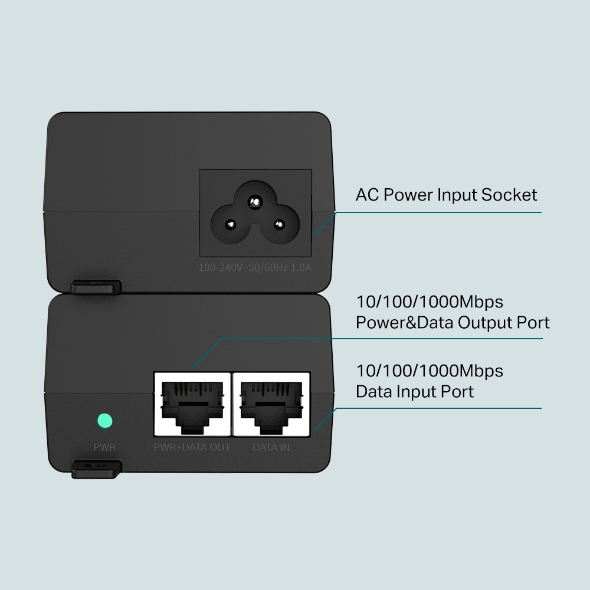

2 Gigabit ports ensure faster transmission
Complies with IEEE802.3af/at standards, supplies up to 30 W

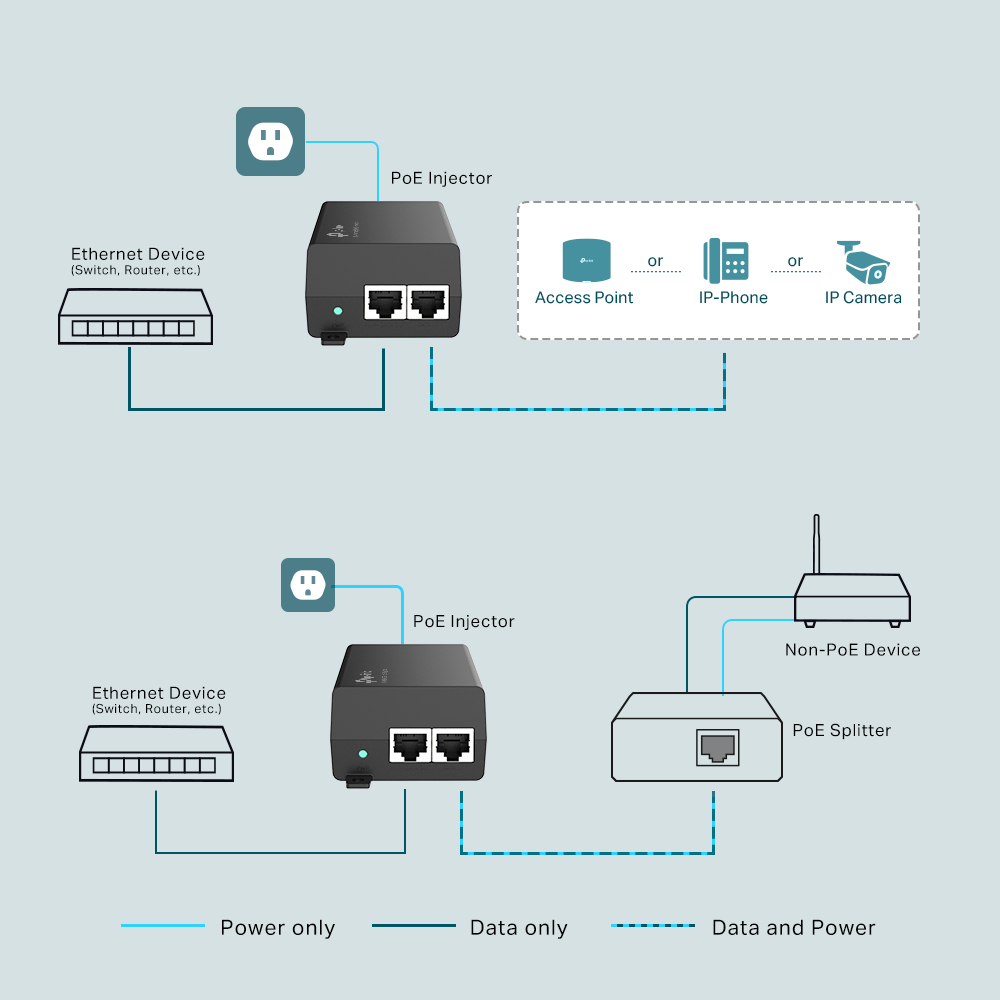

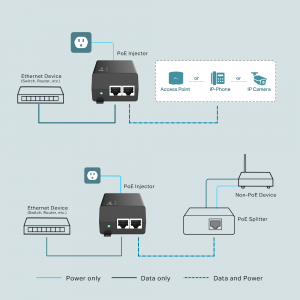

Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply

Product Properties

Manufacturer
TP-LINK

Model
TL-POE160S

EAN
6935364073091

Bullet points

Point
2 Gigabit ports ensure faster transmission

Automatically determines and supplies the exact power to meet the device's need

Complies with IEEE802.3af/at standards, supplies up to 30 W

Integrated Power Supply

Plug & Play installation, requires no configuration

Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable

Wall-mounting and desktop design accommodates most installation scenarios

Certificates

Certification
FCC, CE, RoHS

Features

LED indicators
Power

Maximum operating distance
100 m

Plug and Play
Yes

Product colour
Black

Wall mountable
Yes

Logistics data

Harmonized System (HS) code
85044095

Network

Cable types supported
Cat3, Cat4, Cat5, Cat5e

Cabling technology
10/100/1000

Ethernet interface type
Gigabit Ethernet

Ethernet LAN data rates
10,100,1000 Mbit/s

Networking standards
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u

Power over Ethernet (PoE)
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Number of products included
1 pc(s)

Packaging content

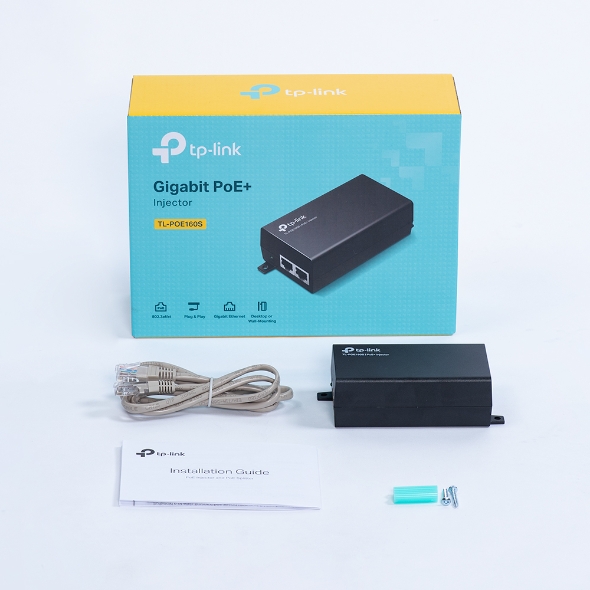

TL-POE160S, power cord, RJ45 cable, installation guide, wall-mounting kits

Power cord included
Yes

Quick installation guide
Yes

Wall mounting kit
Yes

Packaging data

Package depth
230 mm

Package height
80 mm

Package type
Box

Package weight
460 g

Package width
170 mm

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

RJ-45 input ports
1

RJ-45 output ports
1

Power

AC adapter frequency
50/60 Hz

AC adapter input voltage
100 - 240 V

Output power
30 W

Weight & dimensions

Depth
59.4 mm

Height
36.8 mm

Width
125 mm
