Description

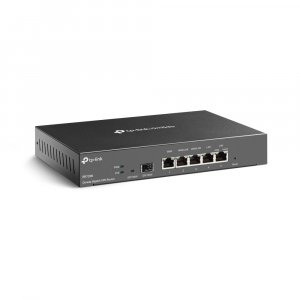

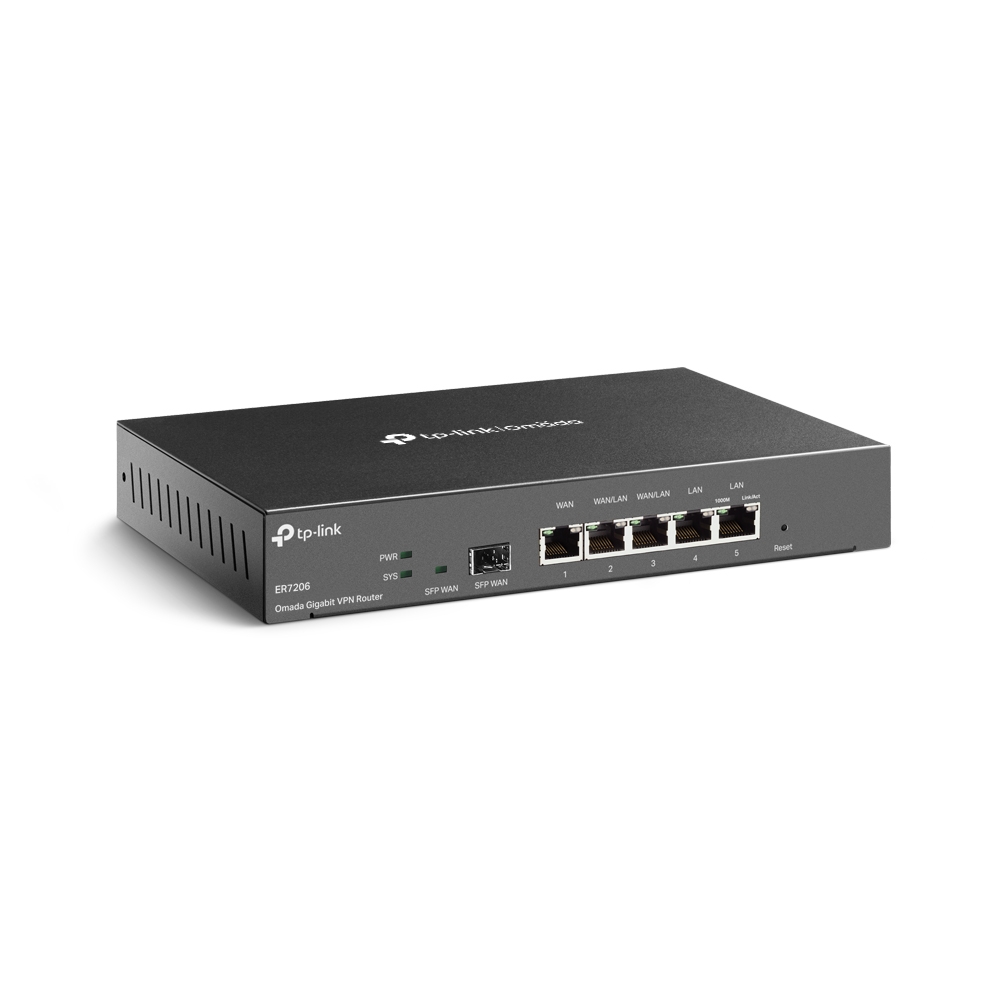

TP-Link SafeStream Gigabit Multi-WAN VPN Router. Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). Supported network protocols: TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP. Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, IPSEC, MD5, SHA-1, SNMP, SNMPv2, SNMPv3, Firewall security: SPI, VPN support: IPSec VPN, PPTP VPN, L2TP VPN, OpenVPN. Flash memory: 132 MB, Internal memory: 512 MB, Internal memory type: DRAM. Product colour: Black, LED indicators: Activity, Link, Power, System, WAN

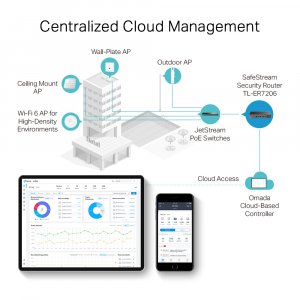

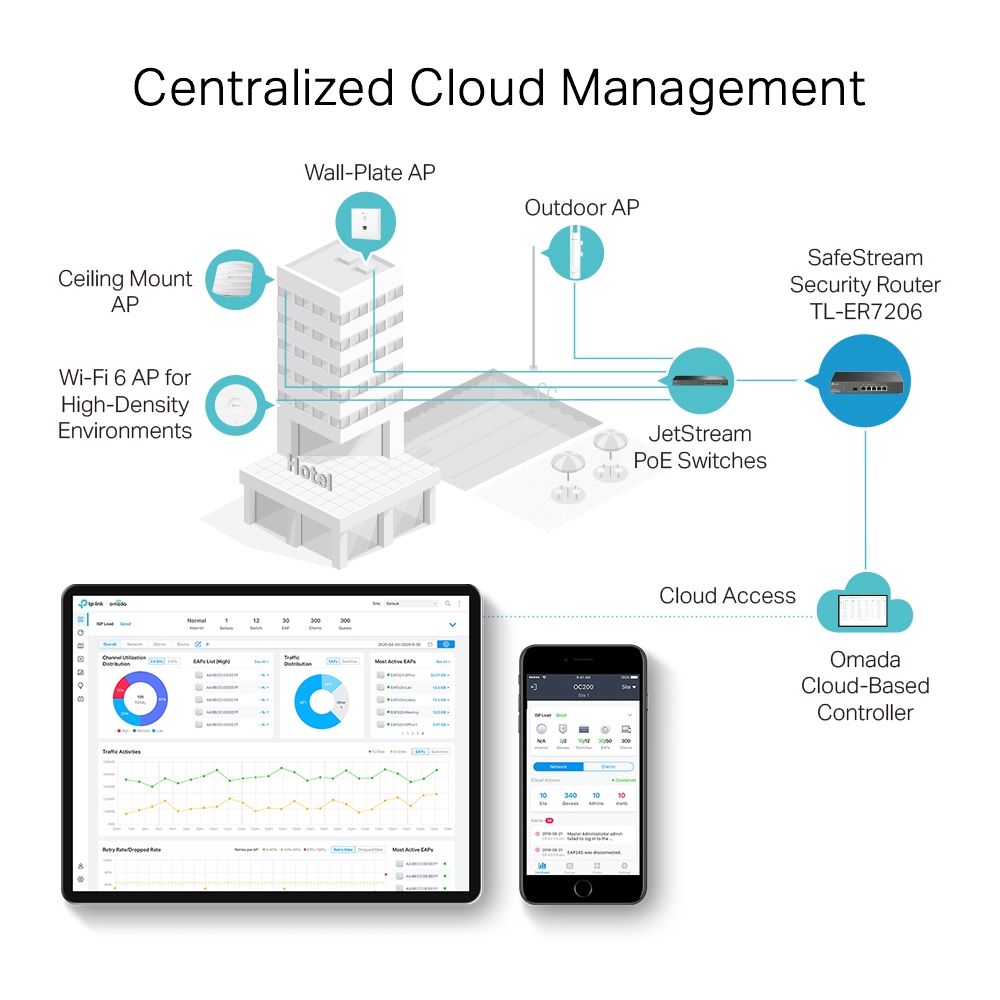

Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring
Centralized Management: Cloud access and Omada app for ultra convenience and easy management

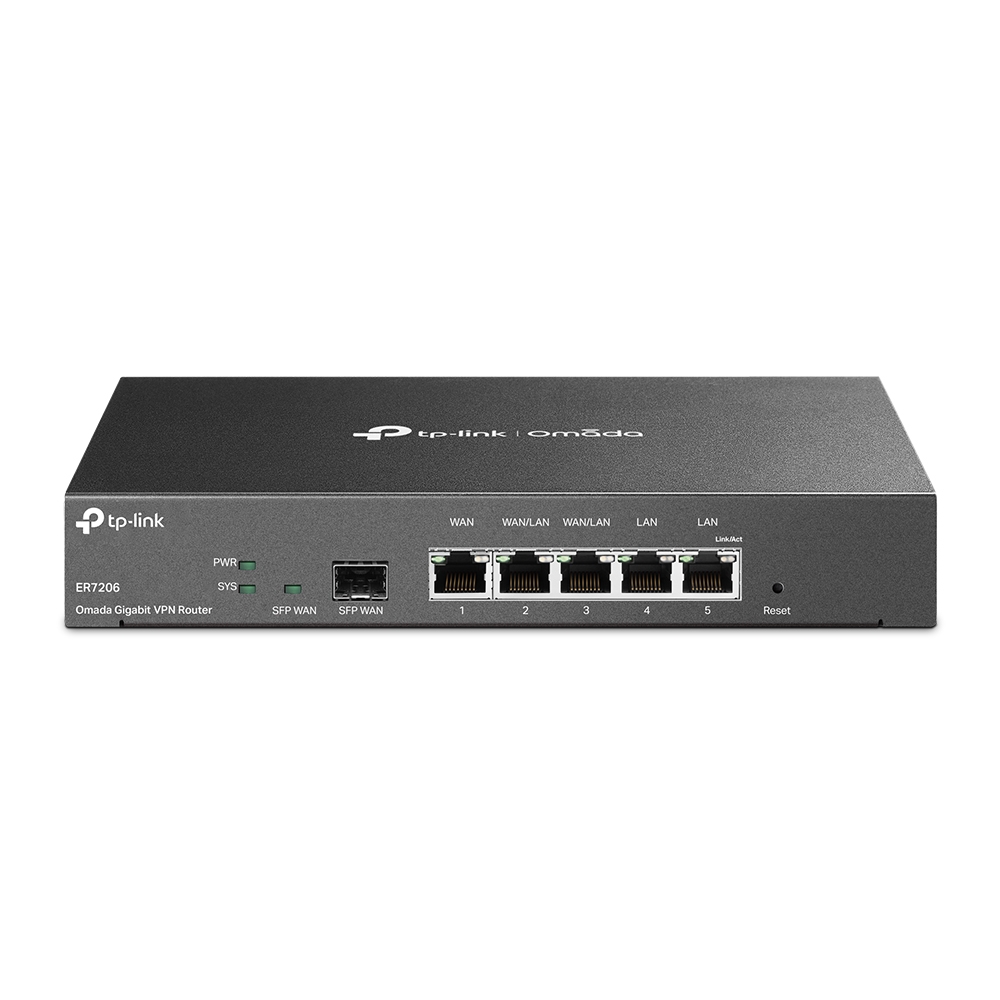

Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity

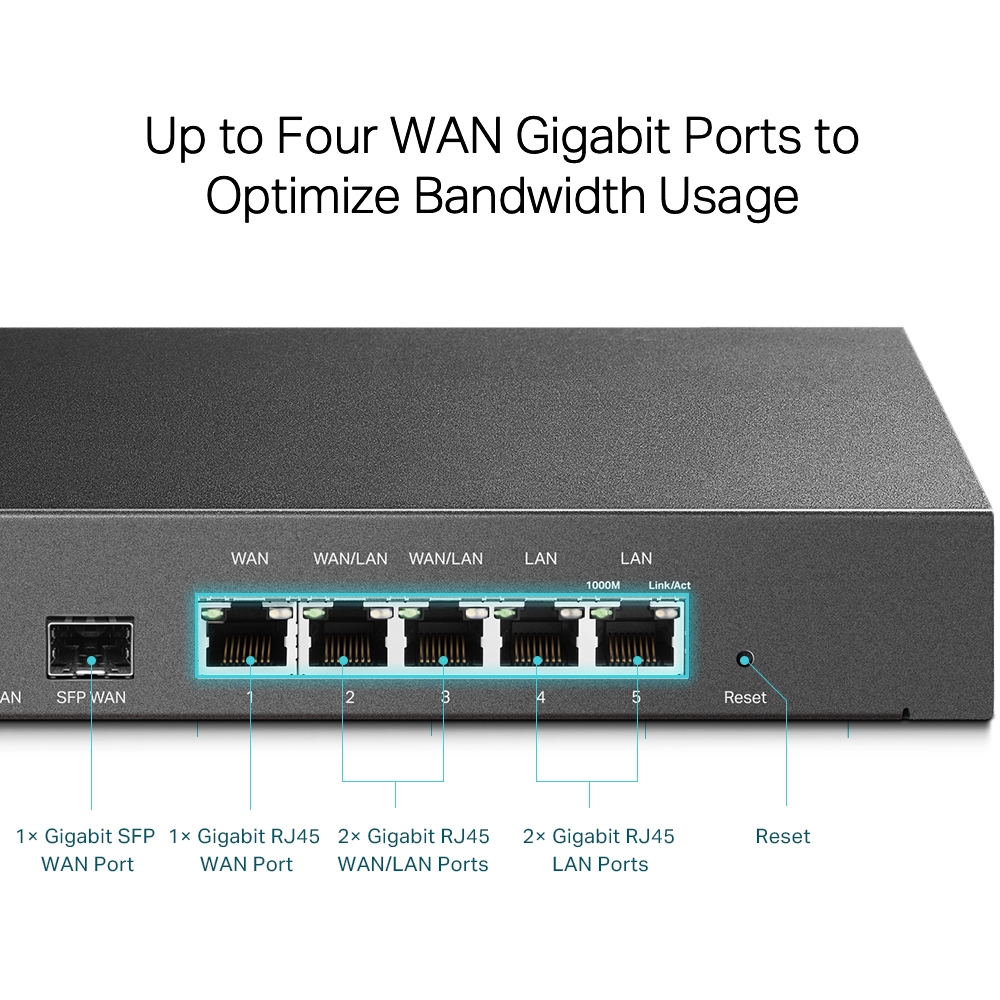

Up to 4 WAN Ports: 1 gigabit SFP WAN port, 1 gigabit RJ45 WAN port, 2 gigabit WAN/LAN ports optimize bandwidth usage

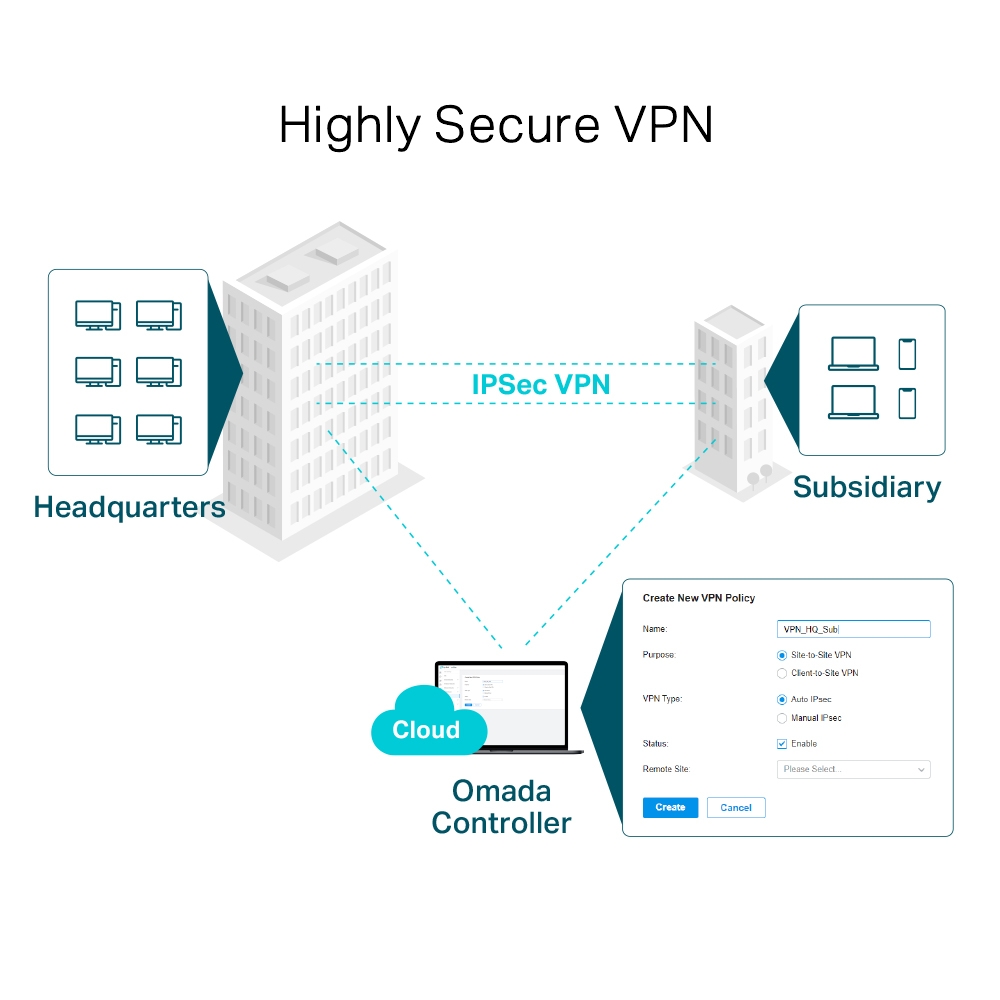

Highly Secure VPN: Supports up to 100× LAN-to-LAN IPsec, 50× OpenVPN*, 50× L2TP, and 50× PPTP VPN connections

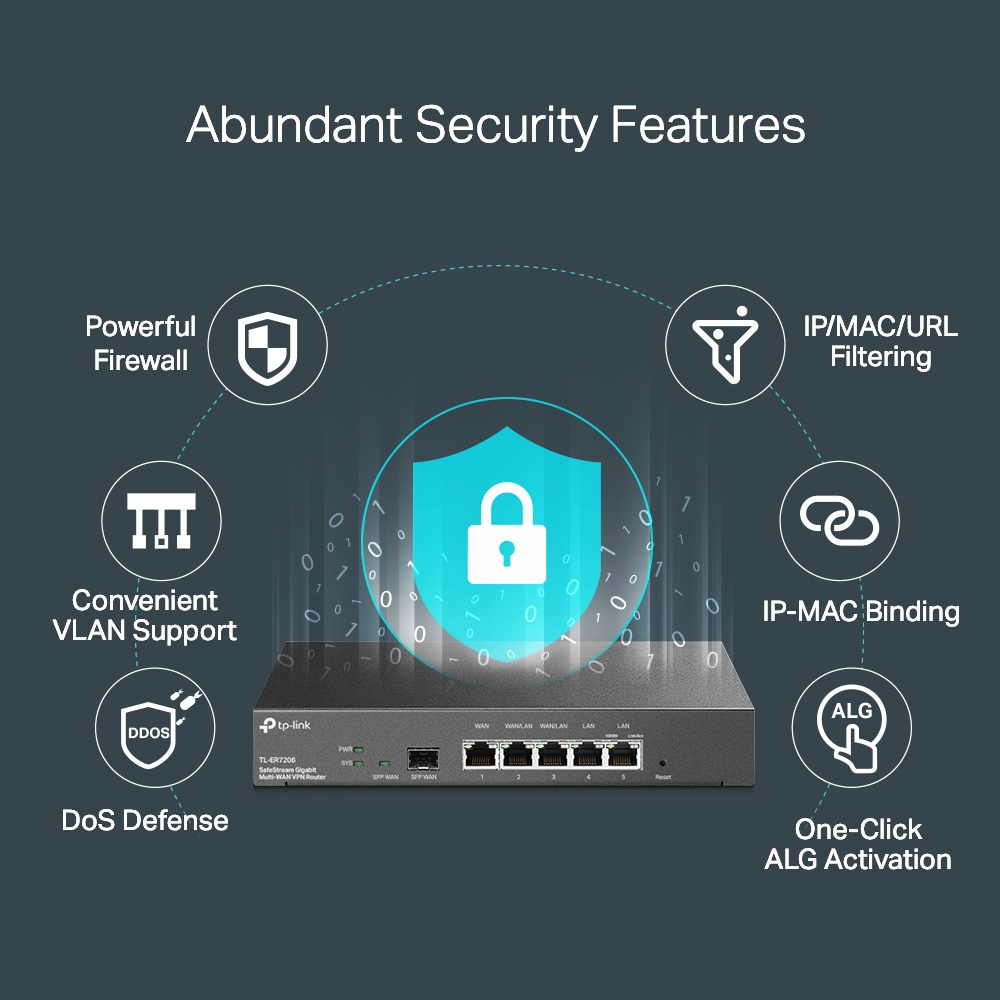

Abundant Security Features: Advanced firewall policies, DoS defense,IP/MAC/URL filtering, and more security functions protect your network and data

Product Properties

Manufacturer
TP-LINK

Model
TL-ER7206

EAN
6935364072407

Bullet points

Point
Abundant Security Features

Centralized Management: Cloud access and Omada app for ultra convenience and easy management

Gigabit Ports: 1 gigabit SFP and 5 gigabit RJ45 ports provide high-speed wired connectivity

Highly Secure VPN

Integrated into Omada SDN

Up to 4 WAN Ports

Design

LED indicators
Activity, Link, Power, System, WAN

Product colour
Black

Features

Certification
CE, FCC, RoHS

Flash memory
132 MB

Internal memory
512 MB

Internal memory type
DRAM

Linux operating systems supported
Yes

Mac operating systems supported
Yes

Windows operating systems supported
Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP

Logistics data

Harmonized System (HS) code
85176990

Management features

Reset button
Yes

Universal Plug and Play (UPnP)
Yes

Web-based management
Yes

Network

Cabling technology
10/100/1000Base-T(X)

Ethernet interface type
Gigabit Ethernet

Ethernet LAN data rates
10,100,1000 Mbit/s

Networking standards
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Policy-based routing
Yes

Static route
Yes

VLAN support
Yes

Operational conditions

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging data

Cables included
AC

Package depth
288 mm

Package height
72 mm

Package weight
1.32 kg

Package width
226 mm

Quick installation guide
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
4

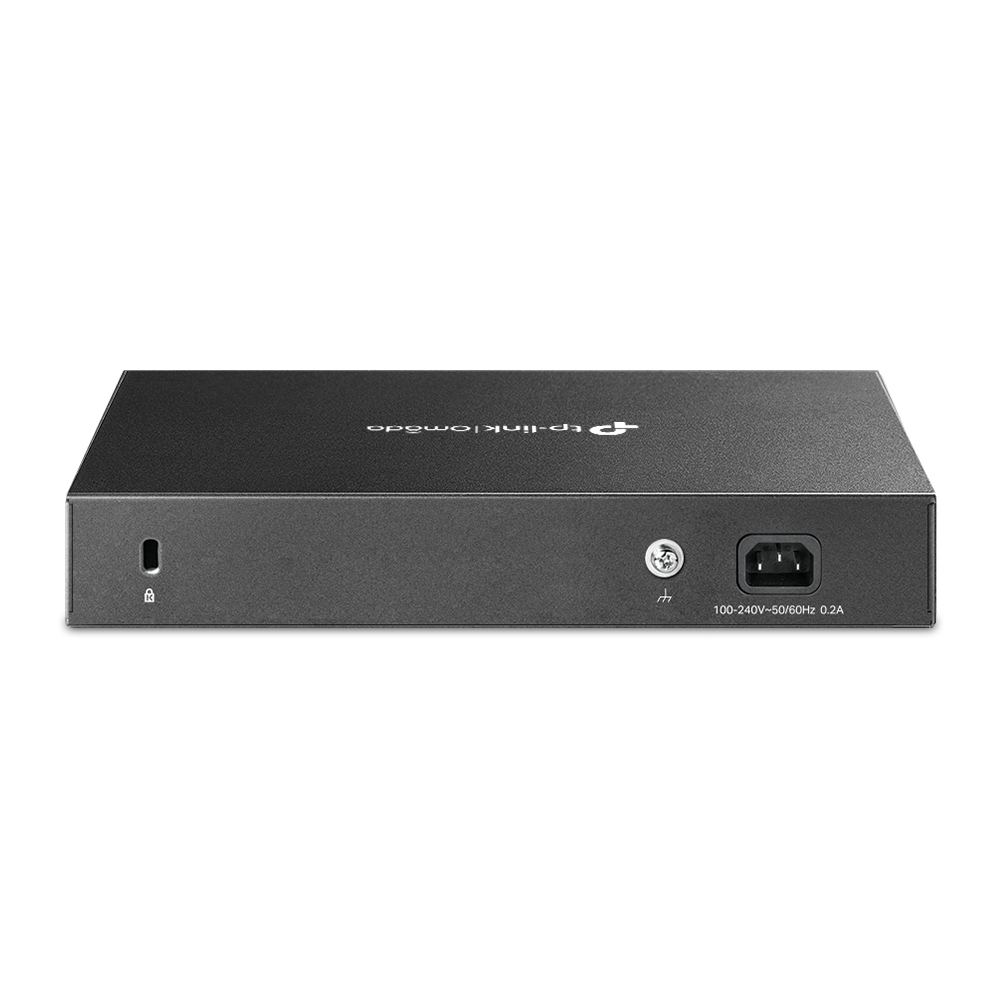

Power

AC input frequency
50 - 60 Hz

AC input voltage
100 - 240 V

Power source type
AC

Protocols

DHCP server
Yes

DMZ support
Yes

Supported network protocols
TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP

Security

Access Control List (ACL)
Yes

ARP attack prevention
Yes

Firewall
Yes

Firewall security
SPI

Security algorithms
3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, IPSEC, MD5, SHA-1, SNMP, SNMPv2, SNMPv3

System event log
Yes

URL filtering
Yes

VPN support
IPSec VPN, PPTP VPN, L2TP VPN, OpenVPN

WAN connection

3G/4G USB modem compatibility
No

DSL WAN
No

Ethernet WAN
Yes

SFP WAN
Yes

SIM card slot
No

Weight & dimensions

Depth
131 mm

Height
35 mm

Width
226 mm
