Description

TP-Link TL-SF1006P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 6. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.2 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 53.5 V. Power over Ethernet (PoE)

6× 10/100 Mbps RJ45 ports
4× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Up to 250m data and power transmitting range under Extend Mode**
Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 67 W for all PoE ports*
Plug and play with no configuration required

Product Properties

Manufacturer
TP-LINK

Model
TL-SF1006P

EAN
6935364030940

Bullet points

Point
4× PoE+ ports transfer data and power on individual cables

6× 10/100 Mbps RJ45 ports

Plug and play with no configuration required

Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application

Supports PoE Power up to 30 W for each PoE port

Supports PoE Power up to 67 W for all PoE ports*

Up to 250m data and power transmitting range under Extend Mode**

Works with IEEE 802.3af/at compliant PDs

Certificates

Certification
FCC, CE, RoHS

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Data transmission

Forwarding rate
0.8928 Mpps

Jumbo frames
2000

Jumbo frames support
Yes

MAC address table
2000 entries

Store-and-forward
Yes

Switching capacity
1.2 Gbit/s

Design

Housing material
Metal

LED indicators
Yes

Product colour
Black

Rack mounting
No

Stackable
No

Logistics data

Harmonized System (HS) code
85176990

Management features

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Cable types supported
Cat3, Cat4, Cat5, Cat5e

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T

Flow control support
Yes

Full duplex
Yes

Half duplex
Yes

MAC address auto-aging supported
Yes

MAC address auto-learning supported
Yes

Networking standards
IEEE 802.3af, IEEE 802.3at

Operational conditions

Heat dissipation
252.34 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

User guide
Yes

Packaging data

AC adapter included
Yes

Package depth
196 mm

Package height
121 mm

Package type
Box

Package weight
870 g

Package width
131 mm

Performance

Fanless
Yes

Ports & interfaces

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Switch Number of Ports
6

Switch Port Speed
Fast Ethernet (10/100)

Power

AC input frequency
50 Hz

AC input voltage
220 V

DC input voltage
53.5 V

Input current
1.31 A

Power consumption (max)
74 W

Power source
DC/PoE

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet plus (PoE+) ports quantity
4

Total Power over Ethernet (PoE) budget
67 W

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
101 mm

Height
25 mm

Width
158 mm

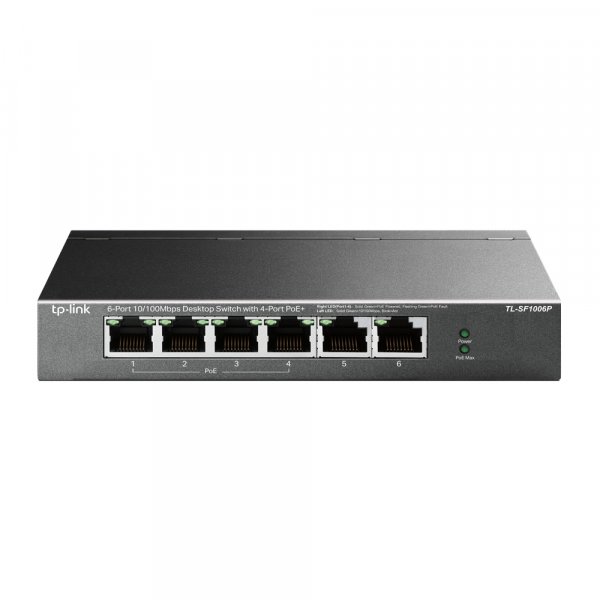

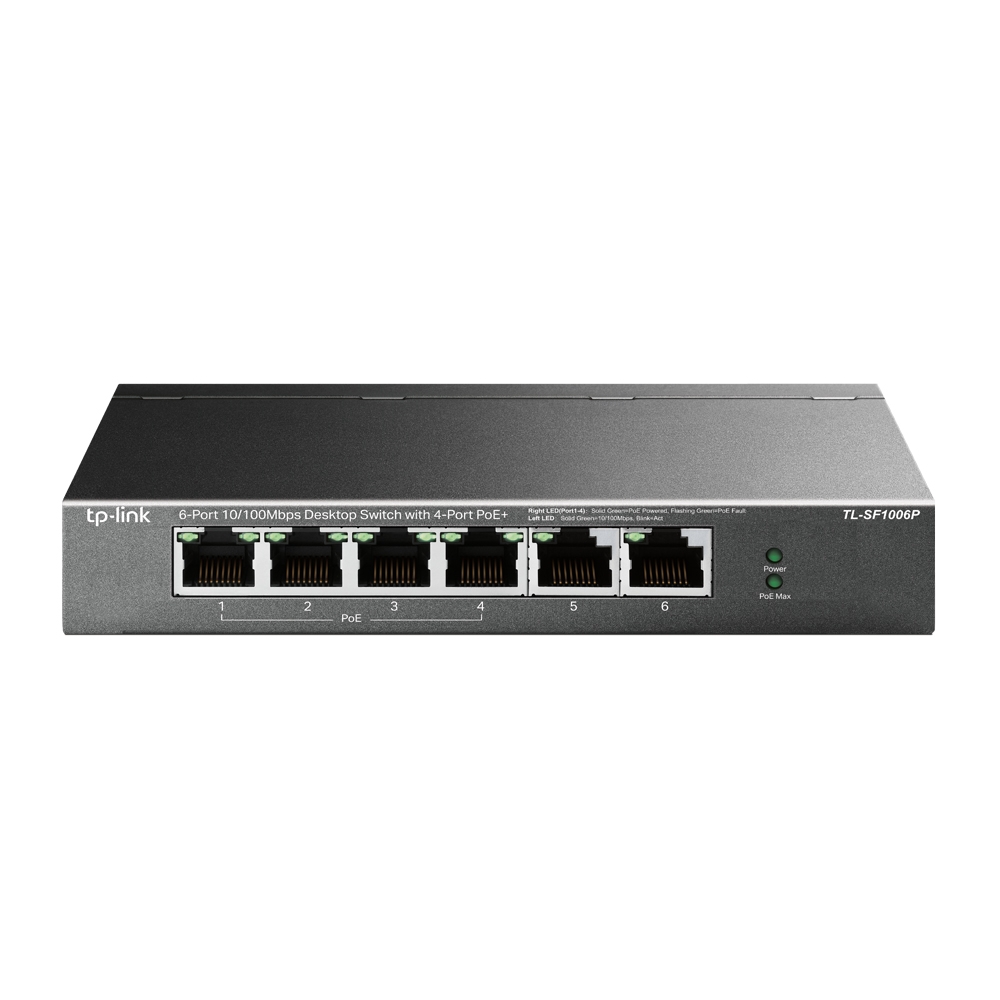

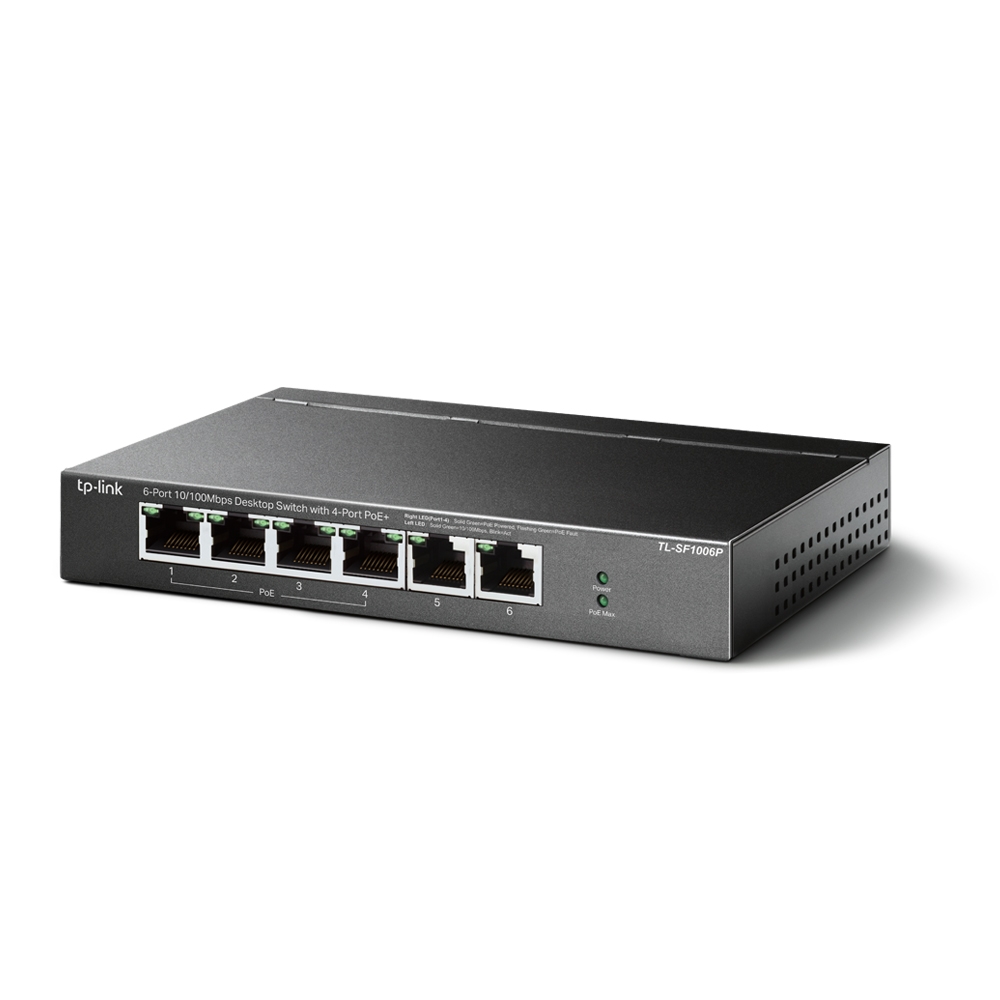

TP-Link TL-SF1006P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
