Description

TP-Link TL-SF1024D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting

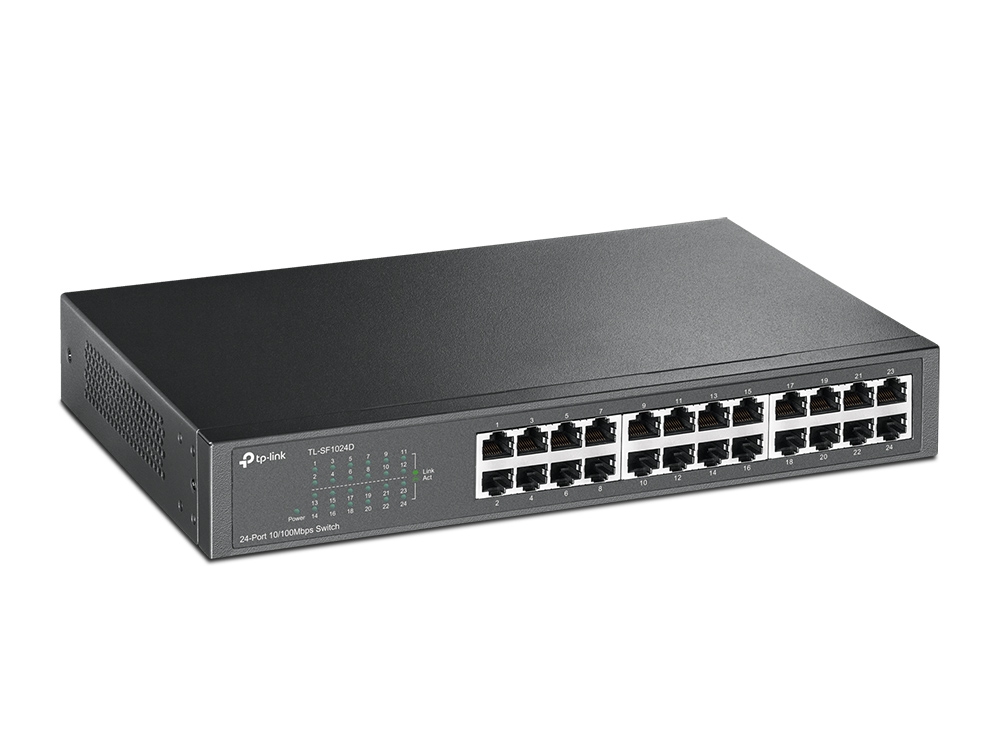

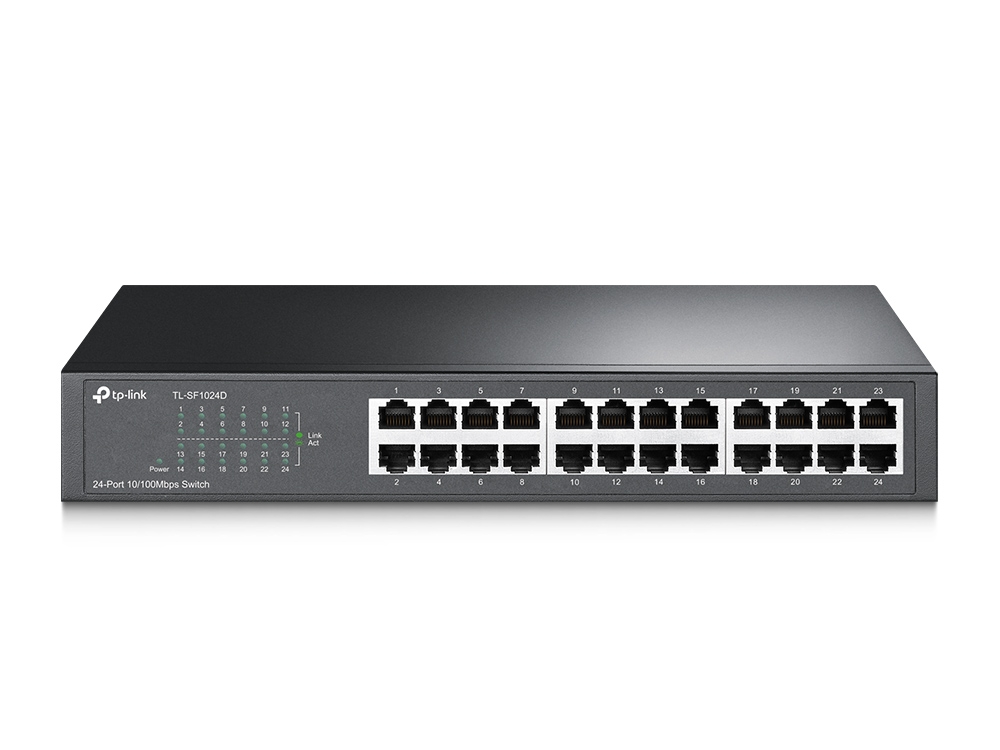

24 10/100M RJ45 ports
Green Ethernet technology saves power consumption
Supports MAC address self-learning and auto MDI/MDIX
Standard 13-inch steel case

Product Properties

Manufacturer
TP-LINK

Model
TL-SF1024D

EAN
6935364020828

Bullet points

Point
24 10/100M RJ45 ports

Green Ethernet technology saves power consumption

Standard 13-inch steel case

Supports MAC address self-learning and auto MDI/MDIX

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Data transmission

Forwarding rate
3.57 Mpps

MAC address table
8000 entries

Packet buffer memory
2 MB

Store-and-forward
Yes

Switching capacity
4.8 Gbit/s

Throughput
3.57 Mpps

Design

Housing material
Metal

LED indicators
Yes

Product colour
Grey

Rack mounting
Yes

Stackable
No

Logistics data

Harmonized System (HS) code
85176990

Management features

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Cable types supported
Cat3, Cat5e, Cat4, Cat5

Copper ethernet cabling technology
10GBASE-T, 100BASE-TX

Ethernet LAN data rates
10,100 Mbit/s

Networking standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Operational conditions

Heat dissipation
10.88 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

Cables included
AC

Rack mount kit
Yes

User guide
Yes

Packaging data

Package depth
400 mm

Package height
80 mm

Package type
Box

Package weight
2 kg

Package width
250 mm

Performance

Fanless
Yes

Ports & interfaces

Fast Ethernet (copper) ports quantity
24

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

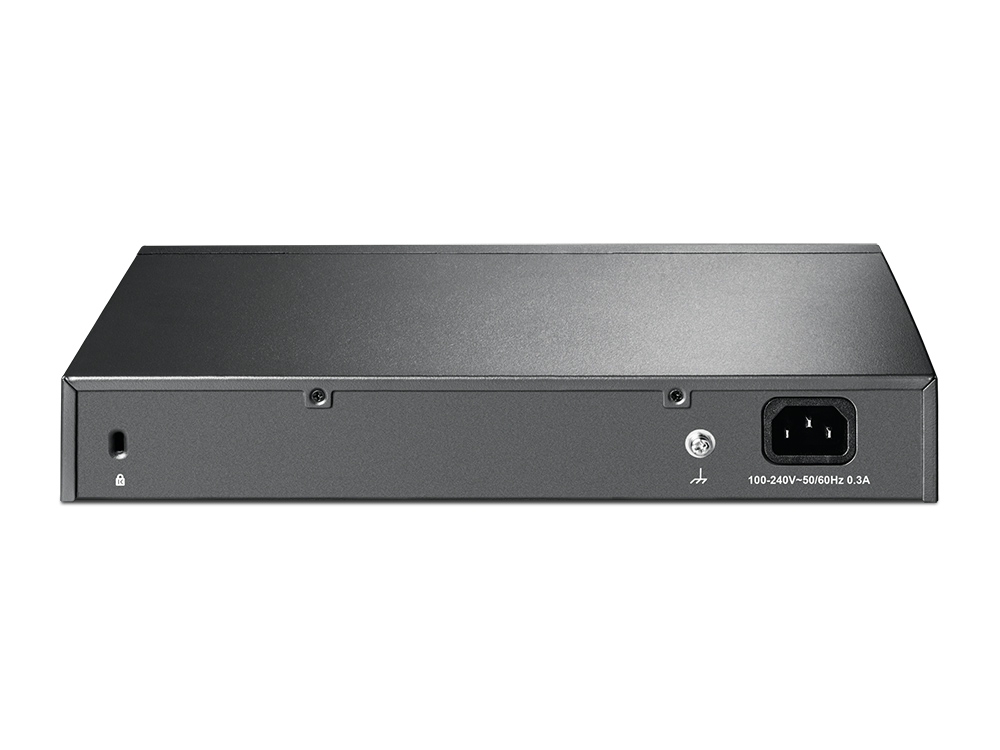

Power connector
AC-in jack

Switch Number of Ports
24

Switch Port Speed
Fast Ethernet (10/100)

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

Power consumption (typical)
3.53 W

Power source
AC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Protocols

Supported network protocols
CSMA/CD, TCP/IP

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
180 mm

Height
44 mm

Width
294 mm

TP-Link TL-SF1024D network switch Unmanaged Fast Ethernet (10/100) Grey
