Description

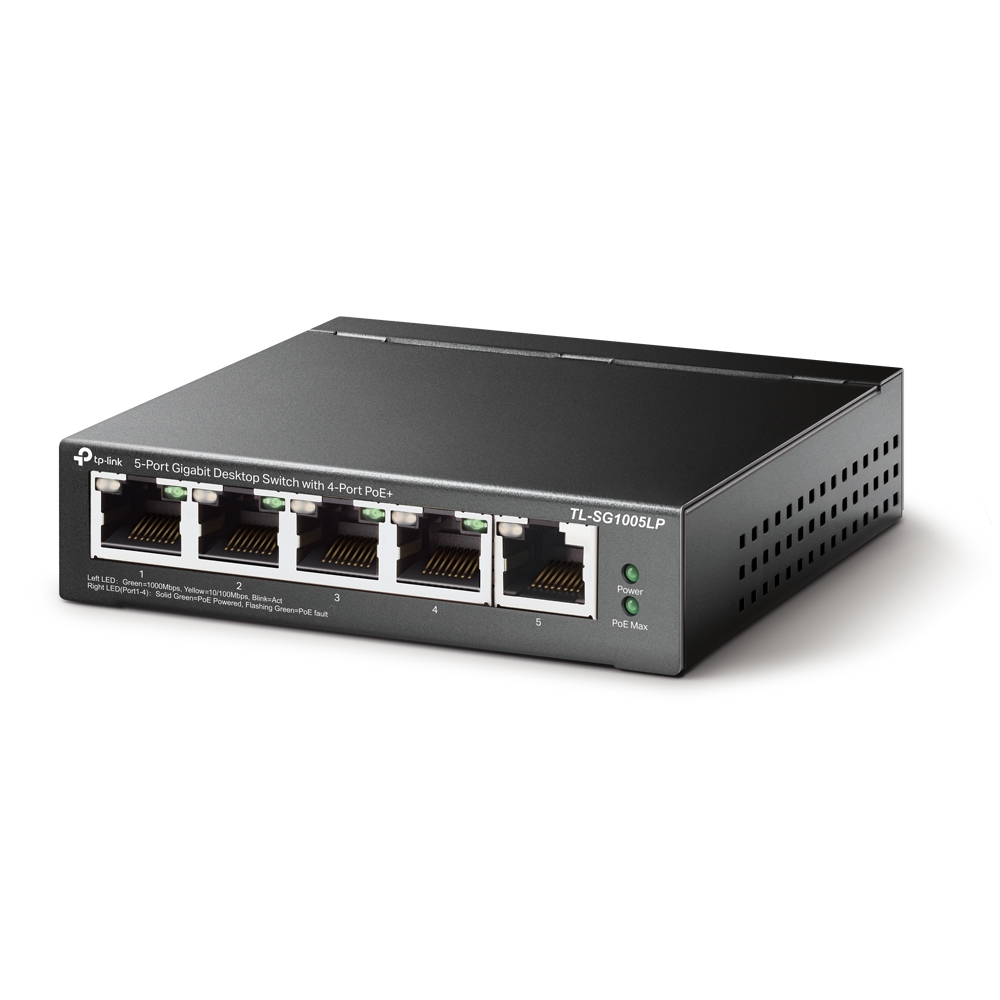

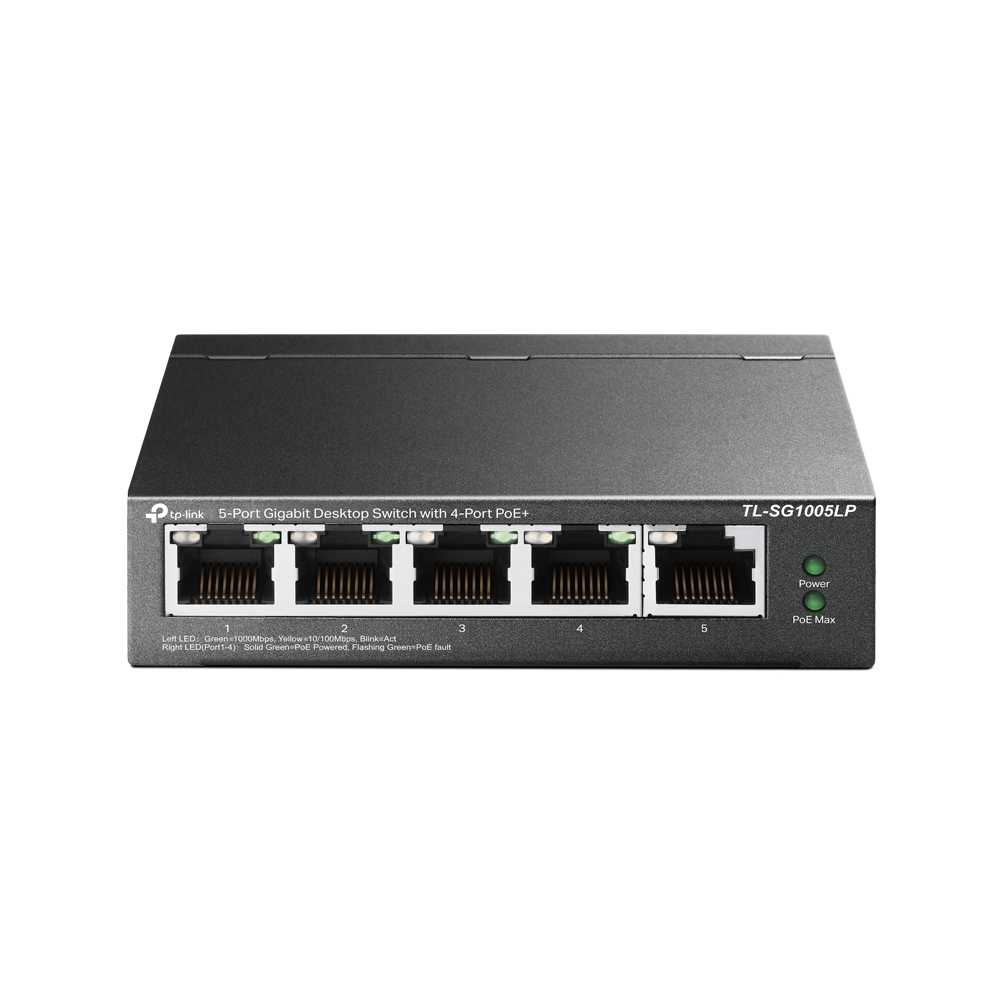

TP-Link TL-SG1005LP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable

5× 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 40 W for all PoE ports
Plug and play, no configuration and installation required

Product Properties

Manufacturer
TP-LINK

Model
TL-SG1005LP

EAN
6935364052737

Bullet points

Point
5× 10/100/1000 Mbps RJ45 ports

802.1p/DSCP QoS enable smooth latency-sensitive traffic

Plug and play, no configuration and installation required

Supports PoE Power up to 30 W for each PoE port

Supports PoE Power up to 40 W for all PoE ports

With four PoE+ ports, transfers data and power on one single cable

Works with IEEE 802.3af/at compliant PDs

Certificates

Certification
FCC, CE, RoHS

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Data transmission

Forwarding rate
7.44 Mpps

Jumbo frames
16000

Jumbo frames support
Yes

MAC address table
2000 entries

Store-and-forward
Yes

Switching capacity
10 Gbit/s

Design

LED indicators
Yes

Product colour
Black

Rack mounting
No

Stackable
No

Wall mountable
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch type
Unmanaged

Network

10G support
No

Auto MDI/MDI-X
Yes

Auto-negotiation
Yes

Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6

Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T

Flow control support
Yes

MAC address auto-aging supported
Yes

MAC address auto-learning supported
Yes

Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Operational conditions

Heat dissipation
161.98 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Packaging content

User guide
Yes

Packaging data

Package depth
196 mm

Package height
121 mm

Package type
Box

Package weight
730 g

Package width
131 mm

Performance

Fanless
Yes

Maximum cable length
100 m

Ports & interfaces

Gigabit Ethernet (copper) ports quantity
5

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Switch Number of Ports
5

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
50/60 Hz

AC input voltage
100 - 240 V

DC input voltage
53.5 V

Input current
0.81 A

Power consumption (max)
47.5 W

Power source
DC/PoE

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet plus (PoE+) ports quantity
4

Total Power over Ethernet (PoE) budget
40 W

Security

IGMP snooping
Yes

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
98 mm

Height
25 mm

Width
99.8 mm

TP-Link TL-SG1005LP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
