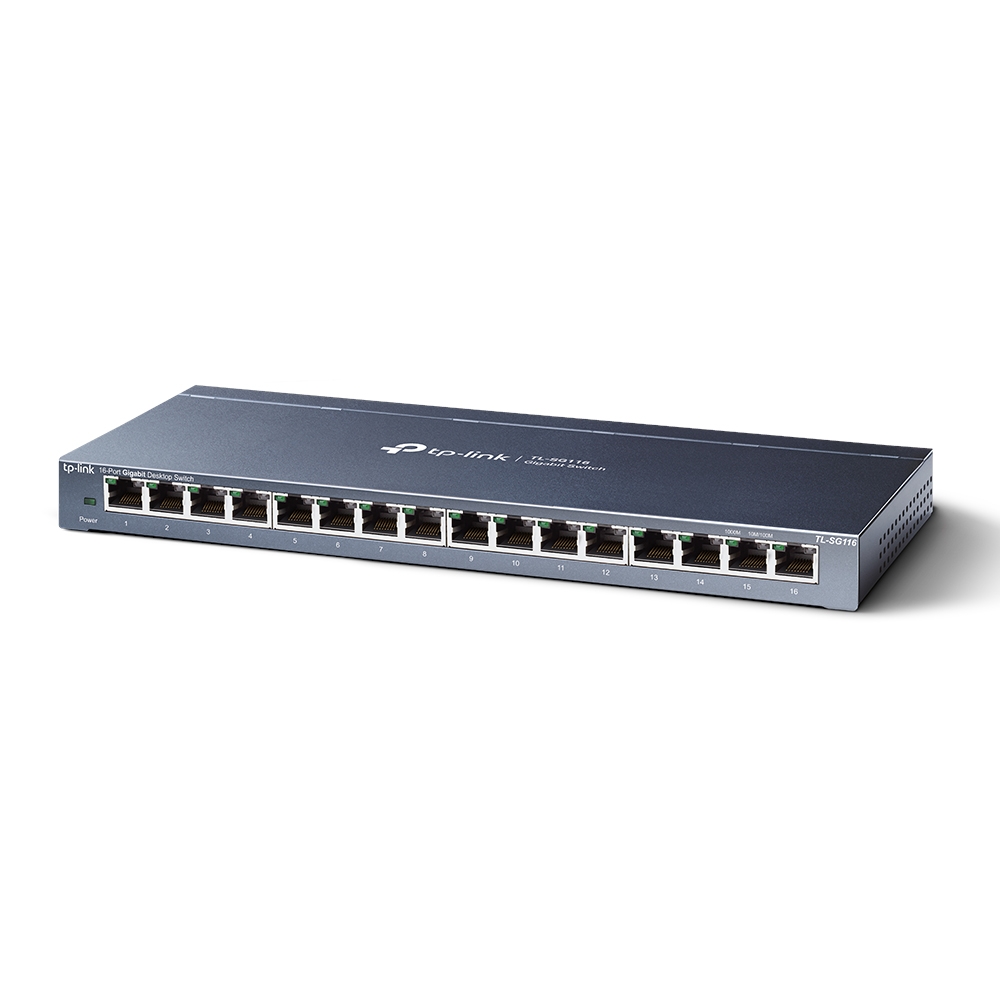

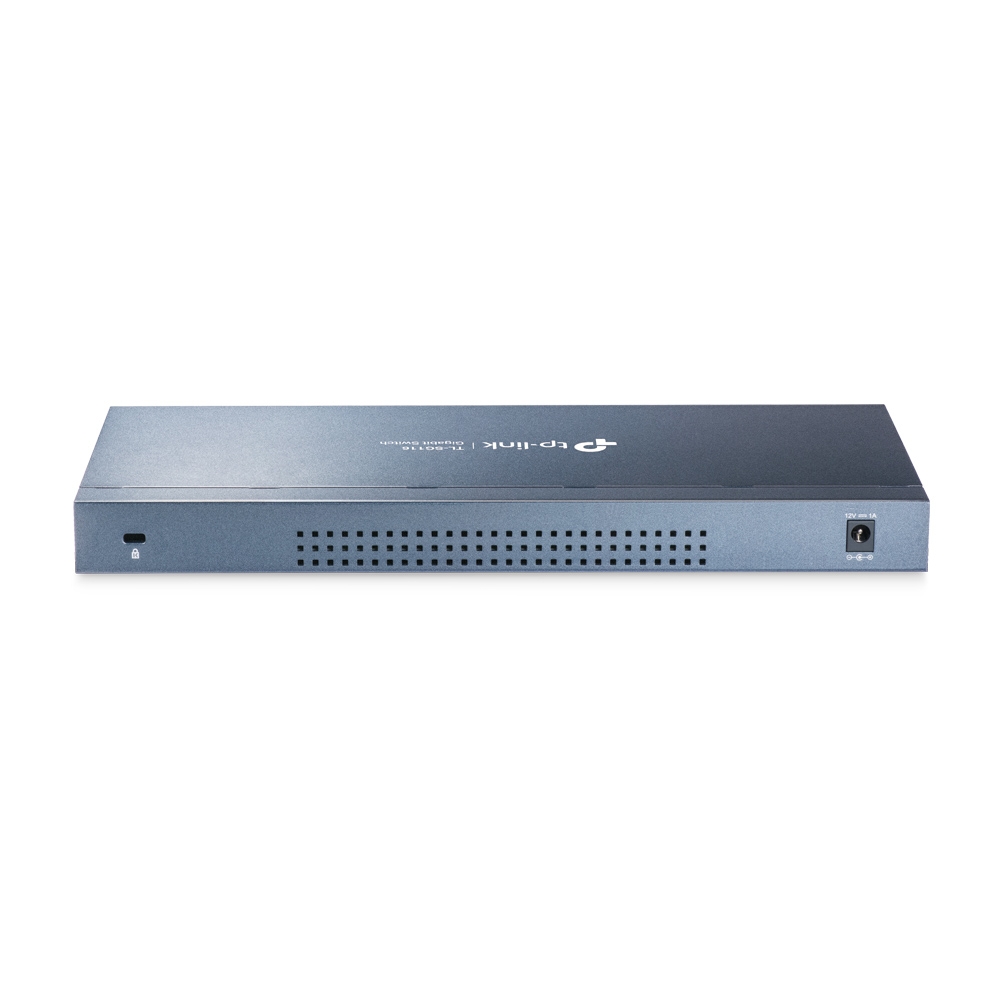

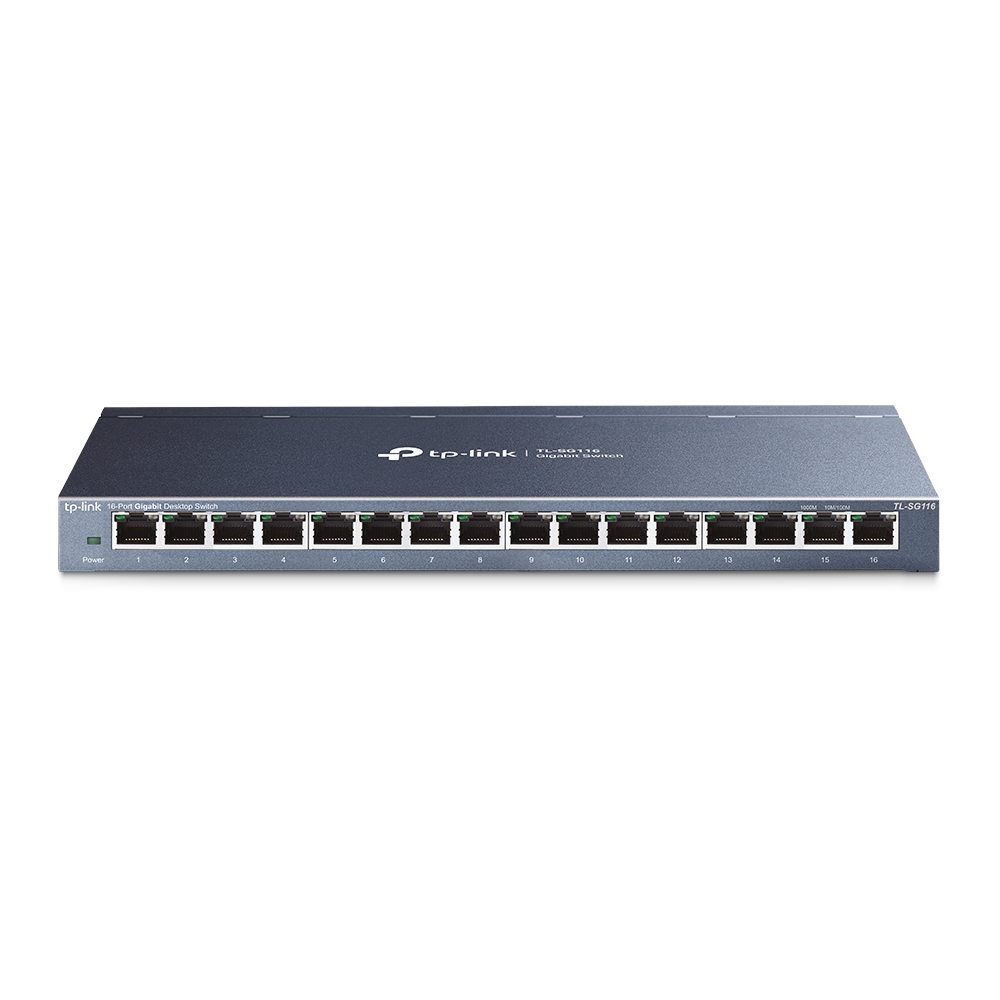

TP-Link TL-SG116 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Roll over image to zoom inClick to Open expanded view
TP-Link TL-SG116 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
TP-Link TL-SG116 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
TP-Link TL-SG116 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
TP-Link TL-SG116 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black
Print
Model: TL-SG116
EAN: 6935364084332

TP-Link TL-SG116 network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

Manufacturer:
TP-LINK
TP-Link TL-SG116, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
Please log in to see your price
Related products

Description

TP-Link TL-SG116. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. DC input voltage: 9 V. Wall mountable
  • 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
  • Green Ethernet technology saves power consumption
  • IEEE 802.3x flow control provides reliable data transfer
  • Steel housing, desktop or wall-mounting design
  • Support 802.1p/DSCP QoS and IGMP Snooping function
  • Plug and play, with no configuration needed

Product Properties

  • Model
  • TL-SG116
  • EAN
  • 6935364084332
  • Bullet points
  • Point
  • 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
    Green Ethernet technology saves power consumption
    IEEE 802.3x flow control provides reliable data transfer
    Plug and play, with no configuration needed
    Steel housing, desktop or wall-mounting design
    Support 802.1p/DSCP QoS and IGMP Snooping function
  • Data transmission
  • Forwarding rate
  • 23.81 Mpps
  • Jumbo frames
  • 9000
  • Jumbo frames support
  • Yes
  • MAC address table
  • 8000 entries
  • Number of queues
  • 4
  • Packet buffer memory
  • 4.1 MB
  • Store-and-forward
  • Yes
  • Switching capacity
  • 32 Gbit/s
  • Design
  • Housing material
  • Metal
  • LED indicators
  • Yes
  • Product colour
  • Black
  • Rack mounting
  • No
  • Wall mountable
  • Yes
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Quality of Service (QoS) support
  • Yes
  • Switch type
  • Unmanaged
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Auto-negotiation
  • Yes
  • Broadcast storm control
  • Yes
  • Cable length detection
  • Yes
  • Cable types supported
  • Cat3, Cat4, Cat5, Cat5e, Cat6
  • Copper ethernet cabling technology
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • Flow control support
  • Yes
  • Full duplex
  • Yes
  • Link aggregation
  • Yes
  • Networking standards
  • IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
  • Number of VLANs
  • 32
  • Port mirroring
  • Yes
  • Rate limiting
  • Yes
  • Virtual LAN features
  • Protocol-based VLAN, Tagged VLAN
  • VLAN support
  • Yes
  • Operational conditions
  • Heat dissipation
  • 31.68 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • Cables included
  • AC
  • Quick start guide
  • Yes
  • Ports & interfaces
  • Gigabit Ethernet (copper) ports quantity
  • 16
  • Installed SFP modules quantity
  • 0
  • Installed SFP+ modules quantity
  • 0
  • Switch Number of Ports
  • 16
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • AC input frequency
  • 50 Hz
  • AC input voltage
  • 220 V
  • DC input voltage
  • 9 V
  • Input current
  • 0.6 A
  • Power consumption (max)
  • 9.3 W
  • Power supply included
  • Yes
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • No
  • Security
  • IGMP snooping
  • Yes
  • Loop protection
  • Yes
  • Weight & dimensions
  • Depth
  • 111.7 mm
  • Height
  • 25.4 mm
  • Width
  • 286 mm
