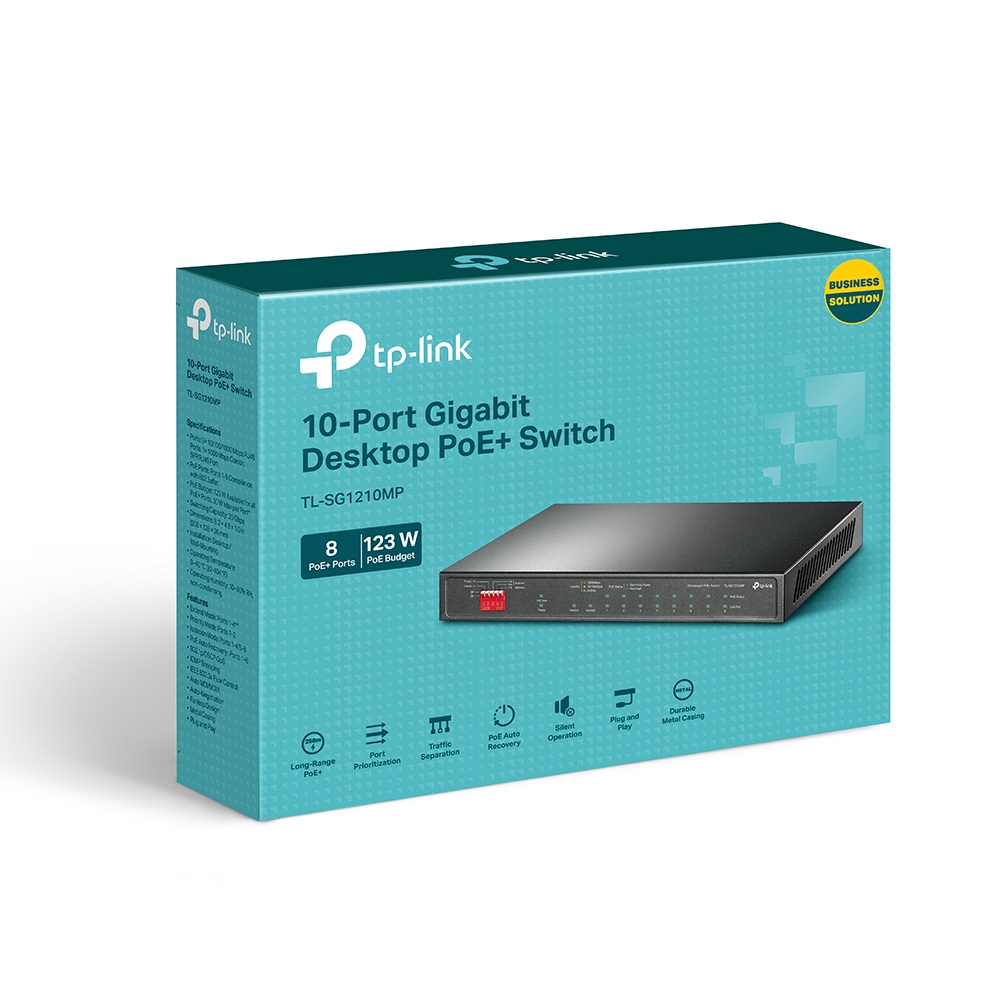

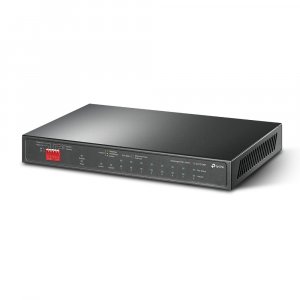

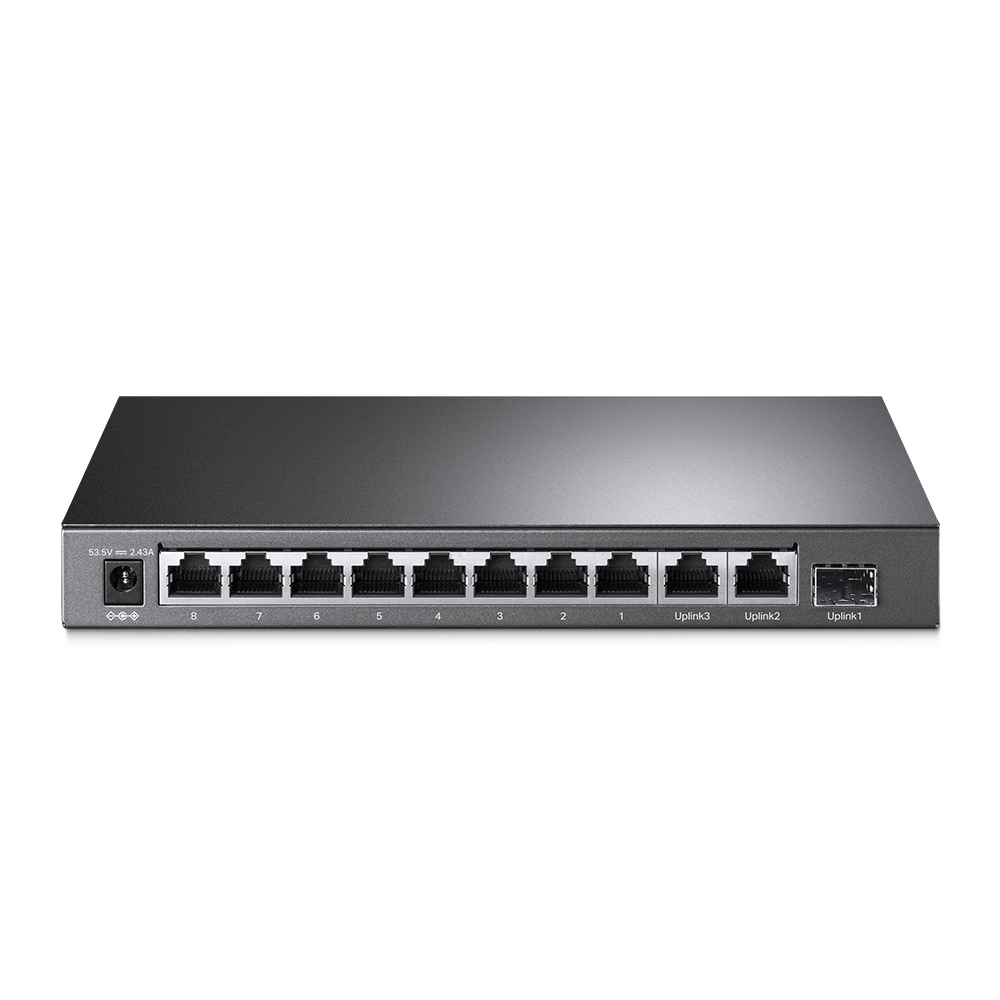

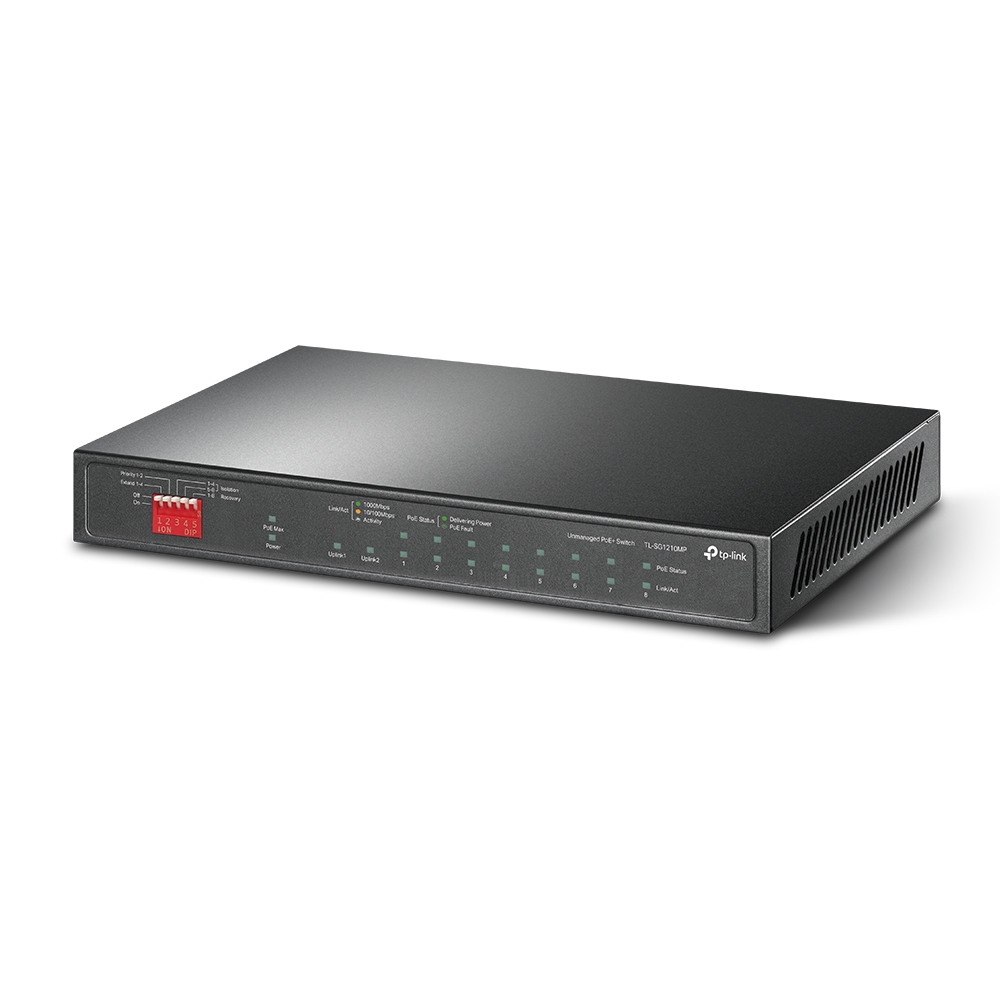

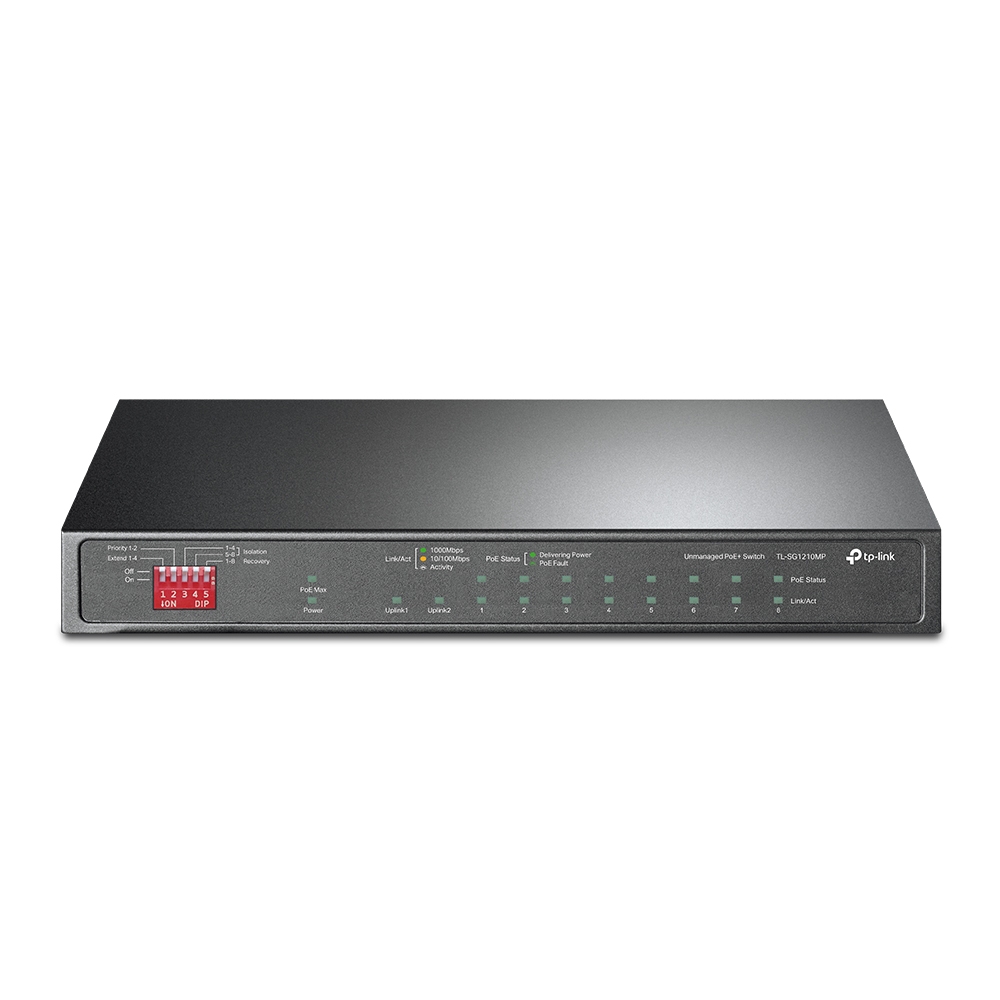

TP-Link TL-SG1210MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Roll over image to zoom inClick to Open expanded view
TP-Link TL-SG1210MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link TL-SG1210MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link TL-SG1210MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
TP-Link TL-SG1210MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Print
Model: TL-SG1210MP
EAN: 6935364052690

TP-Link TL-SG1210MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Manufacturer:
TP-LINK
TP-Link TL-SG1210MP, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
Please log in to see your price
Related products

Description

TP-Link TL-SG1210MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE)

Product Properties

  • Model
  • TL-SG1210MP
  • EAN
  • 6935364052690
  • Certificates
  • Certification
  • CE, FCC
  • Data transmission
  • MAC address table
  • 4000 entries
  • Packet buffer memory
  • 14.88 MB
  • Store-and-forward
  • Yes
  • Switching capacity
  • 20 Gbit/s
  • Design
  • LED indicators
  • Yes
  • Product colour
  • Black
  • Rack mounting
  • No
  • Logistics data
  • Harmonized System (HS) code
  • 85176990
  • Management features
  • Switch type
  • Unmanaged
  • Network
  • 10G support
  • No
  • Auto MDI/MDI-X
  • Yes
  • Auto-negotiation
  • Yes
  • Cable types supported
  • Cat3, Cat4, Cat5, Cat5e
  • Copper ethernet cabling technology
  • 10BASE-T, 100BASE-TX
  • Flow control support
  • Yes
  • MAC address auto-aging supported
  • Yes
  • MAC address auto-learning supported
  • Yes
  • Networking standards
  • IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
  • Operational conditions
  • Heat dissipation
  • 482.17 BTU/h
  • Operating relative humidity (H-H)
  • 10 - 90%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 5 - 90%
  • Storage temperature (T-T)
  • -40 - 70 °C
  • Packaging content
  • Quick start guide
  • Yes
  • Packaging data
  • Package depth
  • 315 mm
  • Package height
  • 70 mm
  • Package weight
  • 1.41 kg
  • Package width
  • 240 mm
  • Performance
  • Fanless
  • Yes
  • Ports & interfaces
  • Combo SFP ports quantity
  • 1
  • Installed SFP modules quantity
  • 0
  • Installed SFP+ modules quantity
  • 0
  • Switch Number of Ports
  • 9
  • Switch Port Speed
  • Gigabit Ethernet (10/100/1000)
  • Power
  • Input current
  • 2.43 A
  • Input voltage
  • 53.5 V
  • Power consumption (max)
  • 141.4 W
  • Power source
  • DC
  • Power over Ethernet (PoE)
  • Power over Ethernet (PoE)
  • Yes
  • Power over Ethernet (PoE) power per port
  • 30 W
  • Power over Ethernet plus (PoE+) ports quantity
  • 8
  • Total Power over Ethernet (PoE) budget
  • 123 W
  • Weight & dimensions
  • Depth
  • 126 mm
  • Height
  • 26 mm
  • Width
  • 209 mm
