Description

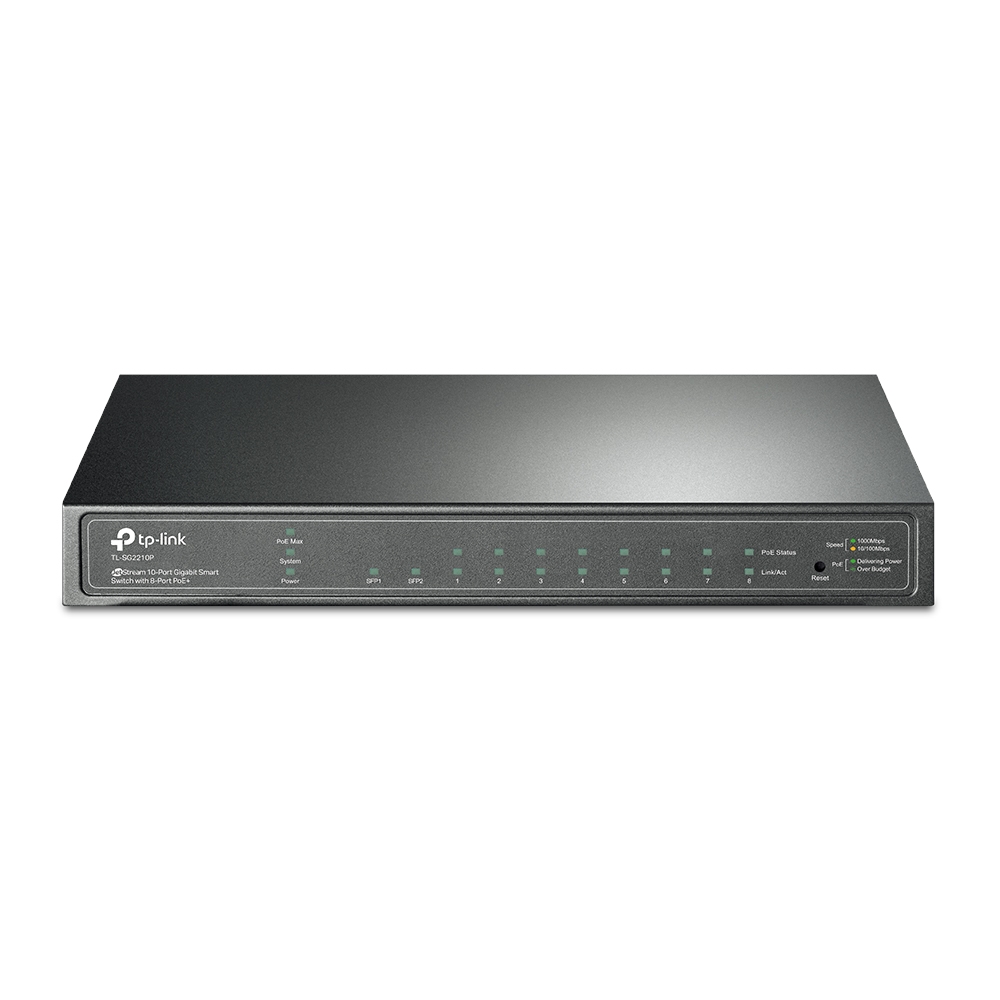

TP-Link TL-SG2210P. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable

Gigabit Ethernet connections on all ports provide full speed of data transferring
L2+ Feature ——Static Routing, helps route internal traffic for more efficient use of network resources
Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control
DHCP Snooping, 802.1X and Radius Authentication
L2/L3/L4 QoS and IGMP Snooping optimize voice and video applications
Comprehensive IPv6 support for management, QoS and ACL
Web/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features

Product Properties

Manufacturer
TP-LINK

Model
TL-SG2210P V5.0

EAN
6935364030704

Bullet points

Point
Comprehensive IPv6 support for management, QoS and ACL

DHCP Snooping, 802.1X and Radius Authentication

Gigabit Ethernet connections on all ports provide full speed of data transferring

L2/L3/L4 QoS and IGMP snooping optimize voice and video applications

WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Data transmission

Forwarding rate
14.88 Mpps

Jumbo frames support
Yes

MAC address table
8000 entries

Number of IP interfaces
16

Number of queues
8

Number of static routes
32

Packet buffer memory
4.1 MB

Static route
Yes

Store-and-forward
Yes

Switching capacity
20 Gbit/s

Design

Product colour
Black

Rack mounting
No

Stackable
No

Wall mountable
Yes

Management features

MIB support
Y

Quality of Service (QoS) support
Yes

Switch layer
L2/L2+

Switch type
Managed

Web-based management
Yes

Multicast features

IPv6 multicast entries
183

Multicast support
Yes

Network

10G support
No

Broadcast storm control
Yes

Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T

Fast leave
Yes

Flow control support
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Port mirroring
Yes

Rate limiting
Yes

Spanning tree protocol
Yes

Virtual LAN features
MAC address-based VLAN, Protocol-based VLAN, VLAN Identifier ( VLAN ID), Voice VLAN

VLAN support
Yes

Operational conditions

Heat dissipation
265.3 BTU/h

Operating relative humidity (H-H)
10 - 90%

Operating temperature (T-T)
0 - 40 °C

Storage relative humidity (H-H)
5 - 90%

Storage temperature (T-T)
-40 - 70 °C

Performance

Fanless
Yes

Flash memory
32 MB

Internal memory
256 MB

Ports & interfaces

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

SFP module slots quantity
2

Switch Number of Ports
8

Switch Port Speed
Gigabit Ethernet (10/100/1000)

Power

AC input frequency
60 Hz

AC input voltage
110 V

DC input voltage
53.5 V

Power consumption (max)
77.8 W

Power source
AC/DC

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
30 W

Total Power over Ethernet (PoE) budget
61 W

Protocols

Device link detection protocol (DLDP)
Yes

GARP VLAN Registration Protocol (GVRP)
Yes

Security

Access Control List (ACL)
Yes

BPDU filtering/protection
Yes

DHCP features
DHCP relay, DHCP server

IGMP snooping
Yes

SSH/SSL support
Yes

Sustainability

Sustainability compliance
Yes

Weight & dimensions

Depth
126 mm

Height
26 mm

Width
209 mm

TP-Link TL-SG2210P Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
