Description

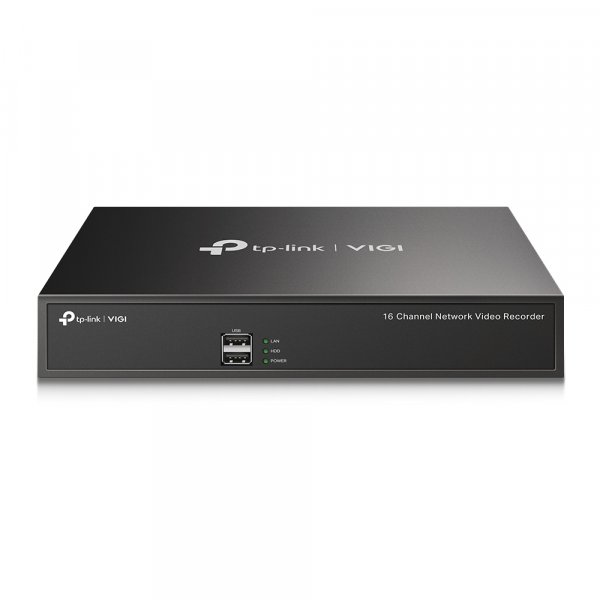

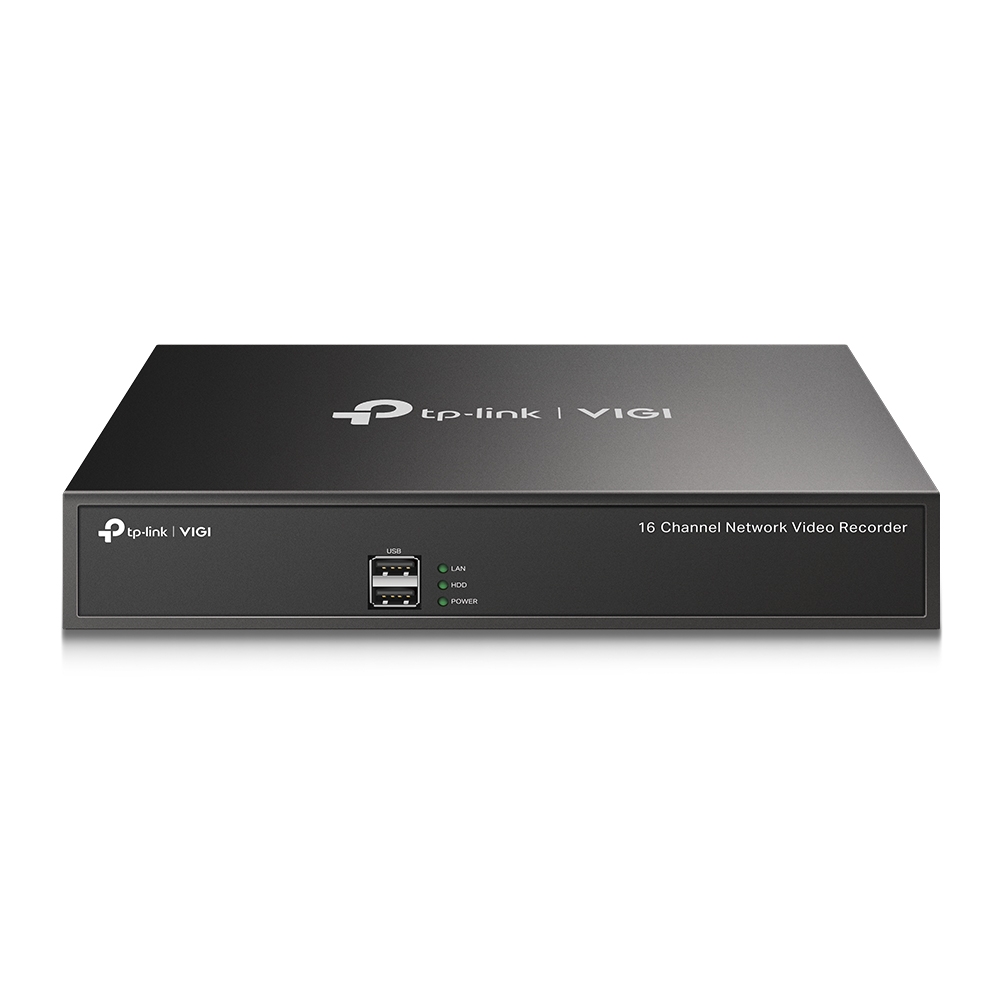

TP-Link VIGI 16 Channel Network Video Recorder. Video input channels: 16 channels, Maximum resolution: 1920 x 1080 pixels, Video recording modes: 720p, 1080p. Maximum storage capacity: 10 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s. Product colour: Black. Output current: 1.5 A, Output voltage: 12 V

24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access
16-Channel Real-Time Live View: Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle
Quick Lookup and Playback: Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage

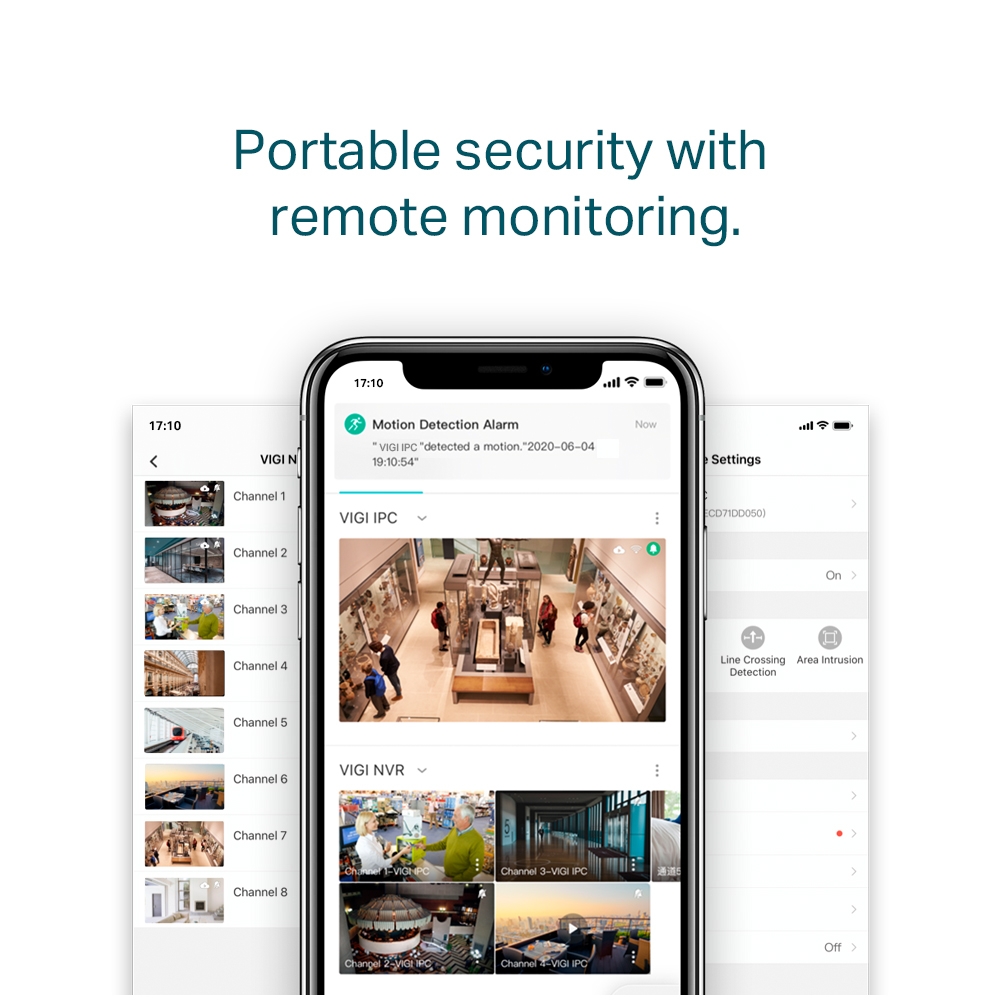

Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience
H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality
ONVIF Ensure Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility

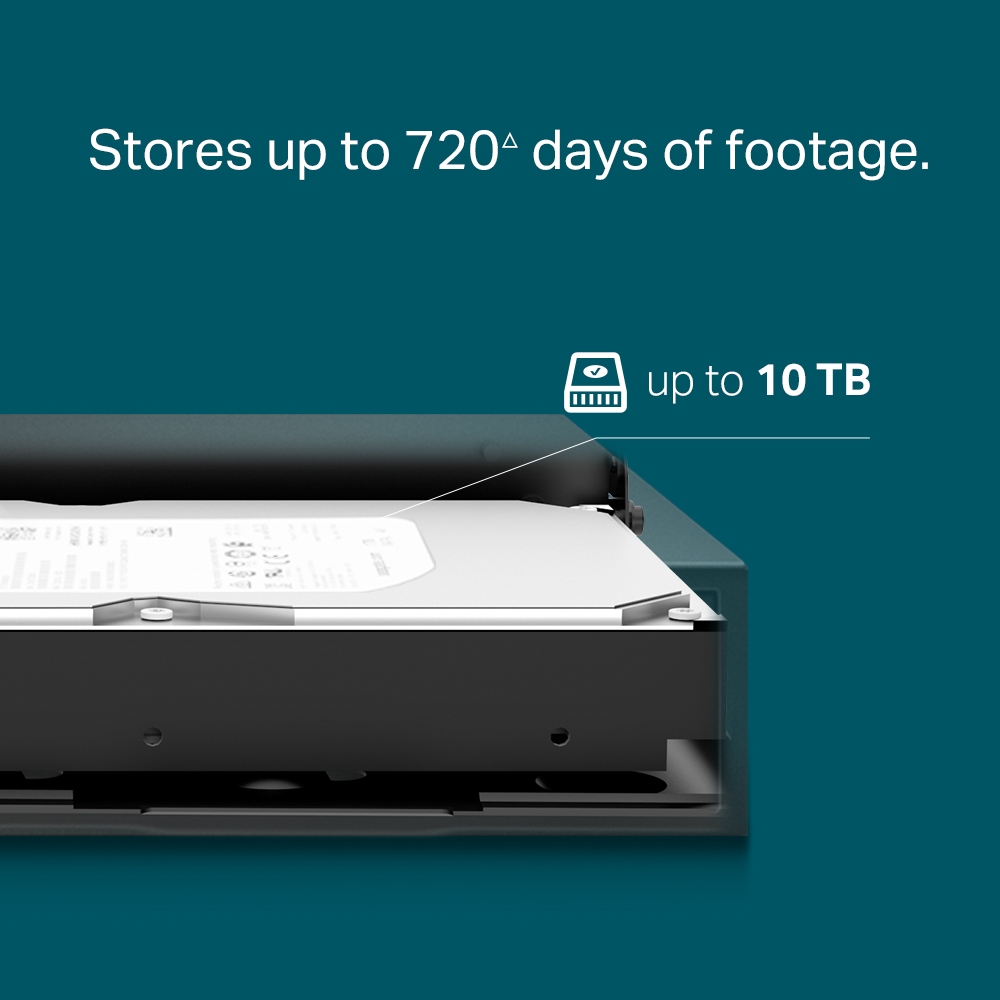

1 HDD Interface (up to 10 TB)†: Stores up to 10 TB (720 days△ of video) on a SATA hard drive, keeping your data storage secured locally
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management

Product Properties

Manufacturer
TP-LINK

Model
VIGI NVR1016H

EAN
4897098683255

Bullet points

Point
1 HDD Interface (up to 10 TB)†

16-Channel Real-Time Live View

24/7 Continuous Recording

H.265+

ONVIF Ensure Compatibility*

Quick Lookup and Playback

Remote Monitoring

Two-way Audio

Features

Product colour
Black

Hard drive

HDD interface
SATA

Maximum storage capacity
10 TB

Number of HDDs installed
0

Number of HDDs supported
1

Logistics data

Harmonized System (HS) code
85219000

Operational conditions

Operating temperature (T-T)
10 - 55 °C

Performance

Maximum resolution
1920 x 1080 pixels

Supported resolutions
1920 × 1080, 1280 × 1024, 1280 × 720, 1680 × 1050, 1440 × 900

Video formats supported
H.264, H.264+, H.265, H.265+

Video input channels
16 channels

Video recording modes
720p, 1080p

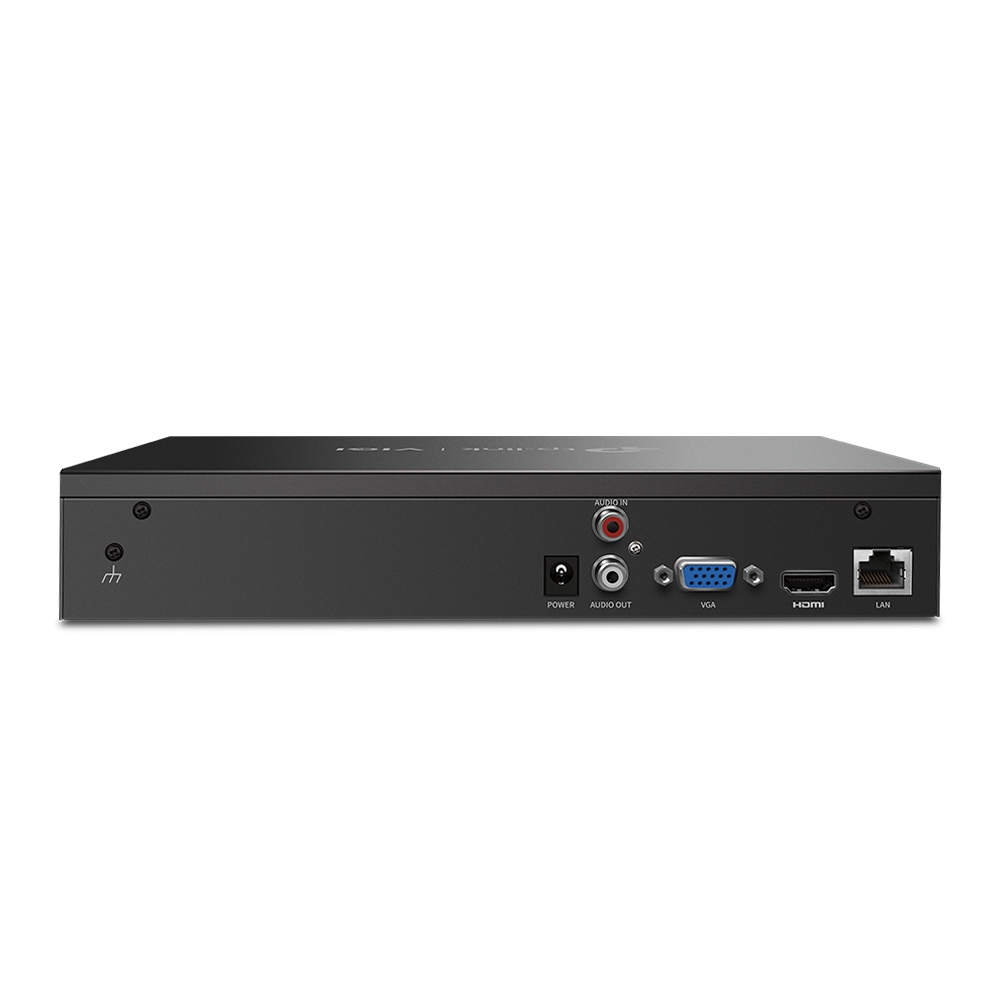

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

Ethernet LAN data rates
10,100 Mbit/s

Power

Output current
1.5 A

Output voltage
12 V

Weight & dimensions

Depth
45 mm

Height
246.2 mm

Package depth
296.5 mm

Package height
64.5 mm

Package weight
600 g

Package width
277.5 mm

Weight
578.5 g

Width
148.2 mm

Wireless LAN features

Wi-Fi
No
