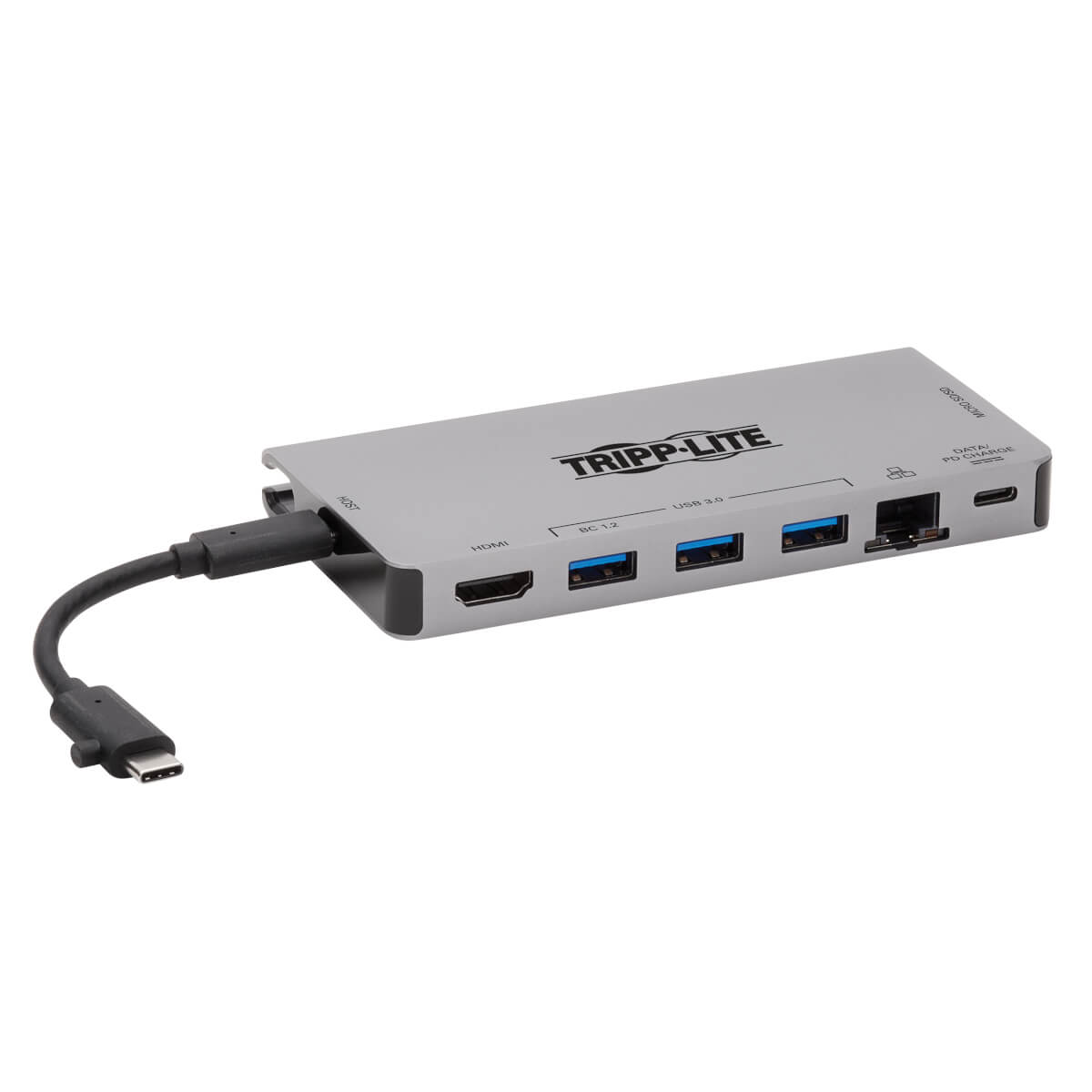

Tripp Lite U442-DOCK5D-GY USB-C Dock - 4K HDMI, USB 3.2 Gen 1, USB-A Hub, GbE, Memory Card, 100W PD Charging, Detachable Cord
Roll over image to zoom inClick to Open expanded view
Model: U442-DOCK5D-GY
EAN: 37332241023

Tripp Lite U442-DOCK5D-GY USB-C Dock - 4K HDMI, USB 3.2 Gen 1, USB-A Hub, GbE, Memory Card, 100W PD Charging, Detachable Cord

Manufacturer:
Tripp Lite
Tripp Lite U442-DOCK5D-GY USB-C Dock - 4K HDMI, USB 3.2 Gen 1, USB-A Hub, GbE, Memory Card, 100W PD Charging, Detachable Cord, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 100 W, 10,100,1000 Mbit/s, Grey, MicroSD (TransFlash), SD
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge. Click here for details
Related products

Description

Tripp Lite U442-DOCK5D-GY USB-C Dock - 4K HDMI, USB 3.2 Gen 1, USB-A Hub, GbE, Memory Card, 100W PD Charging, Detachable Cord. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 5 Gbit/s. Power source type: USB, Power connector: USB Type-C. Sustainability certificates: RoHS

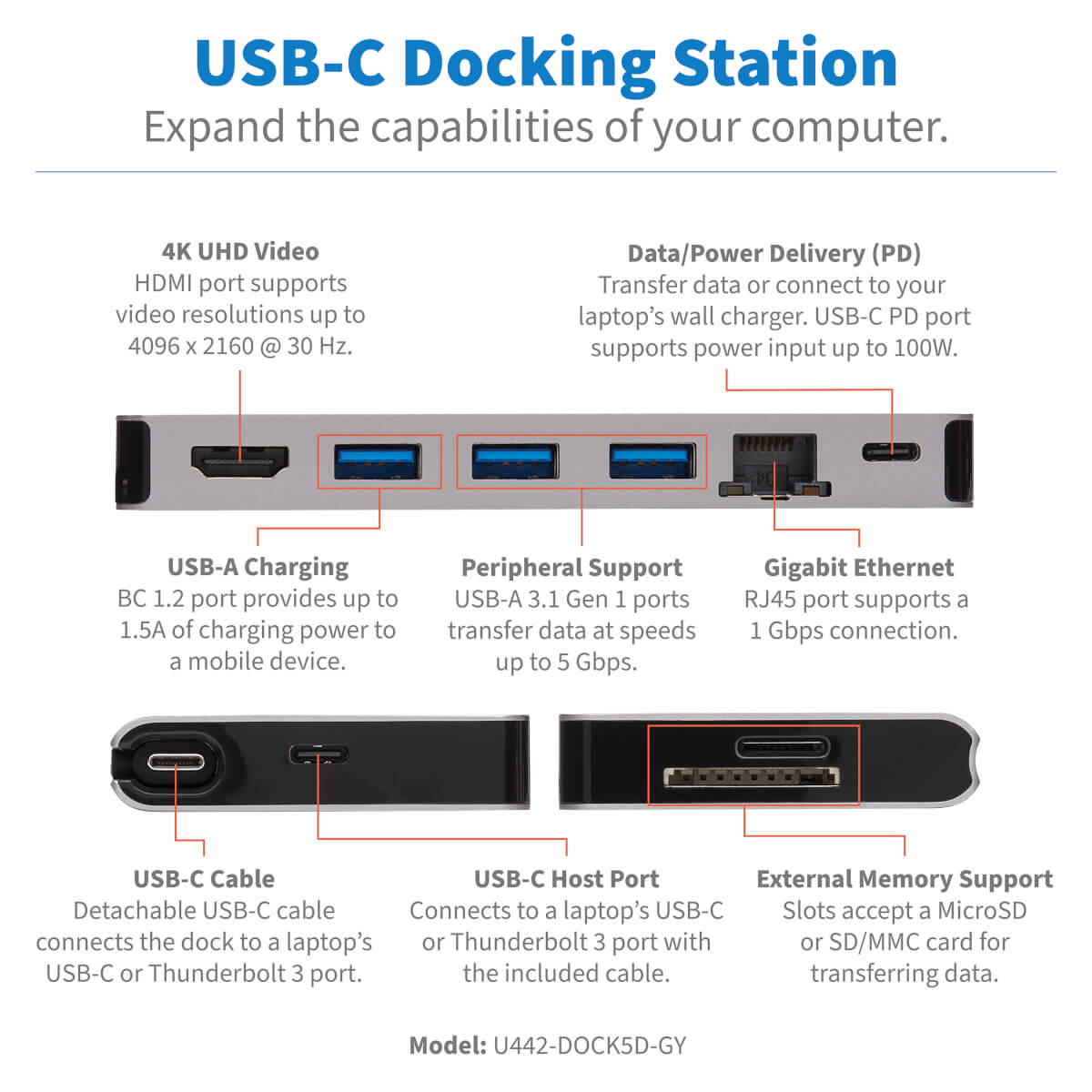

  • Converts audio/video signals from sources supporting USB-C DisplayPort Alt Mode
  • Supports true 4K resolutions up to 4096 x 2160 (@ 30 Hz) for crystal-clear video
  • Connects you to a wired 10/100/1000 Ethernet network when Wi-Fi is unavailable
  • Supports 20V 5A (100W) power output for fast-charging large-capacity mobile devices

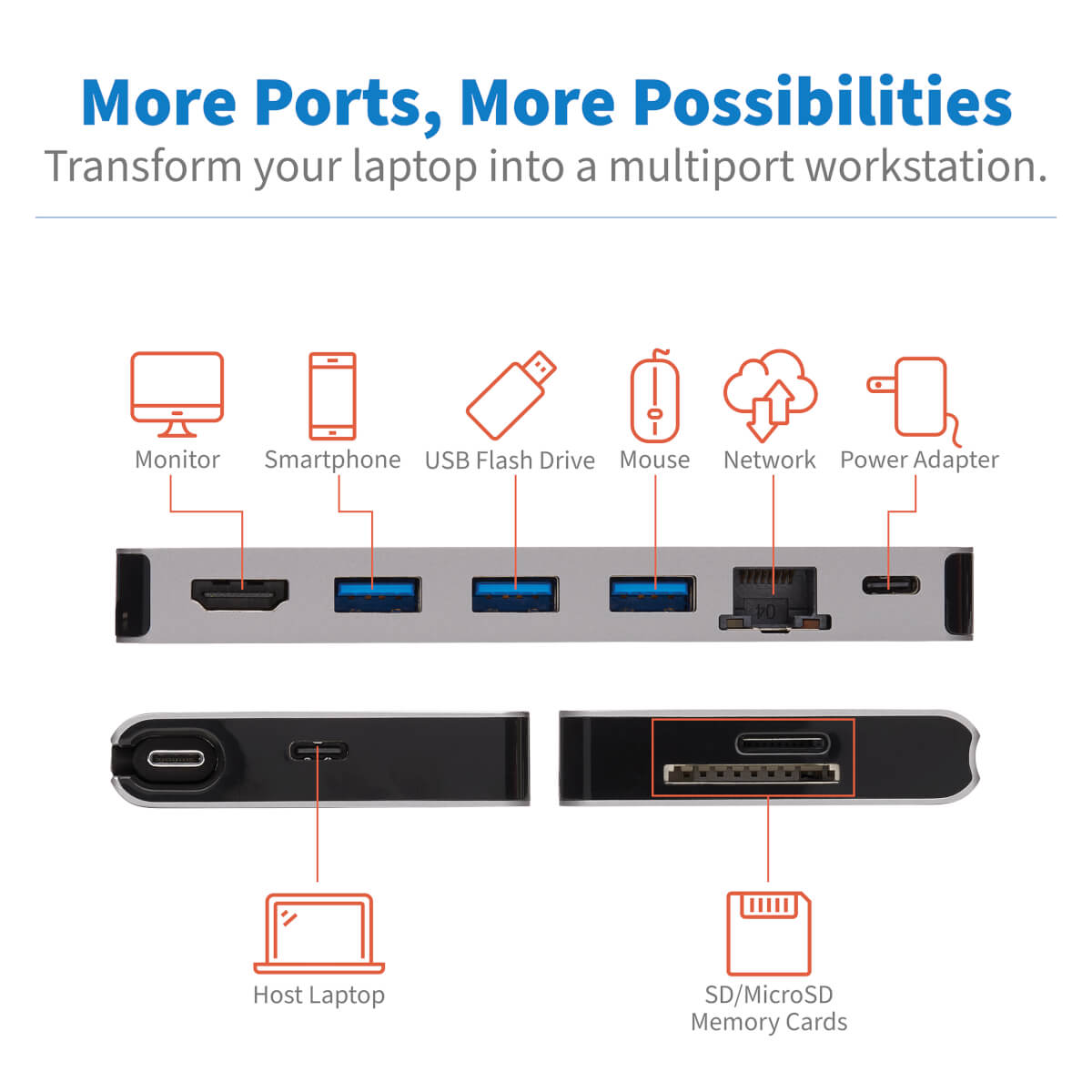

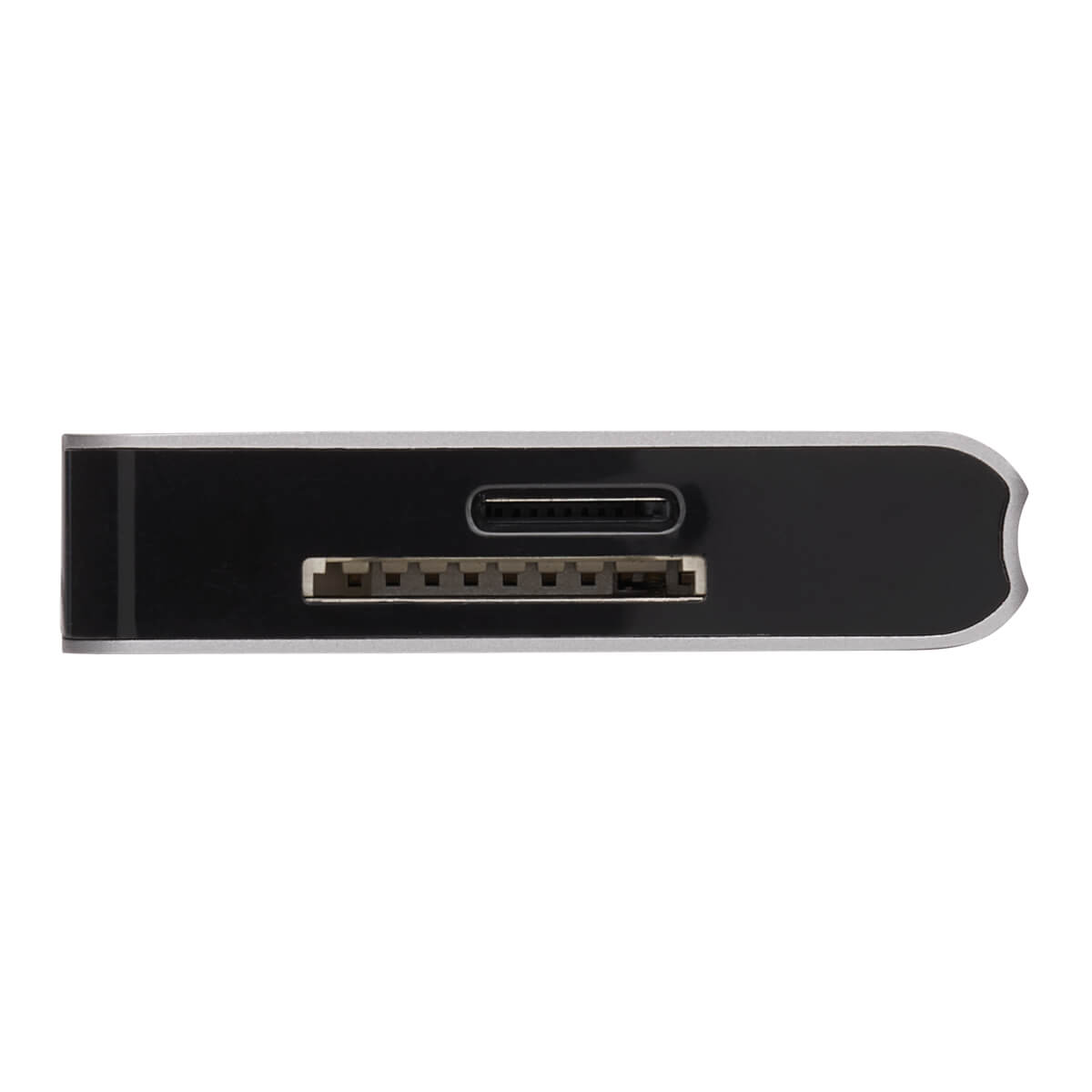

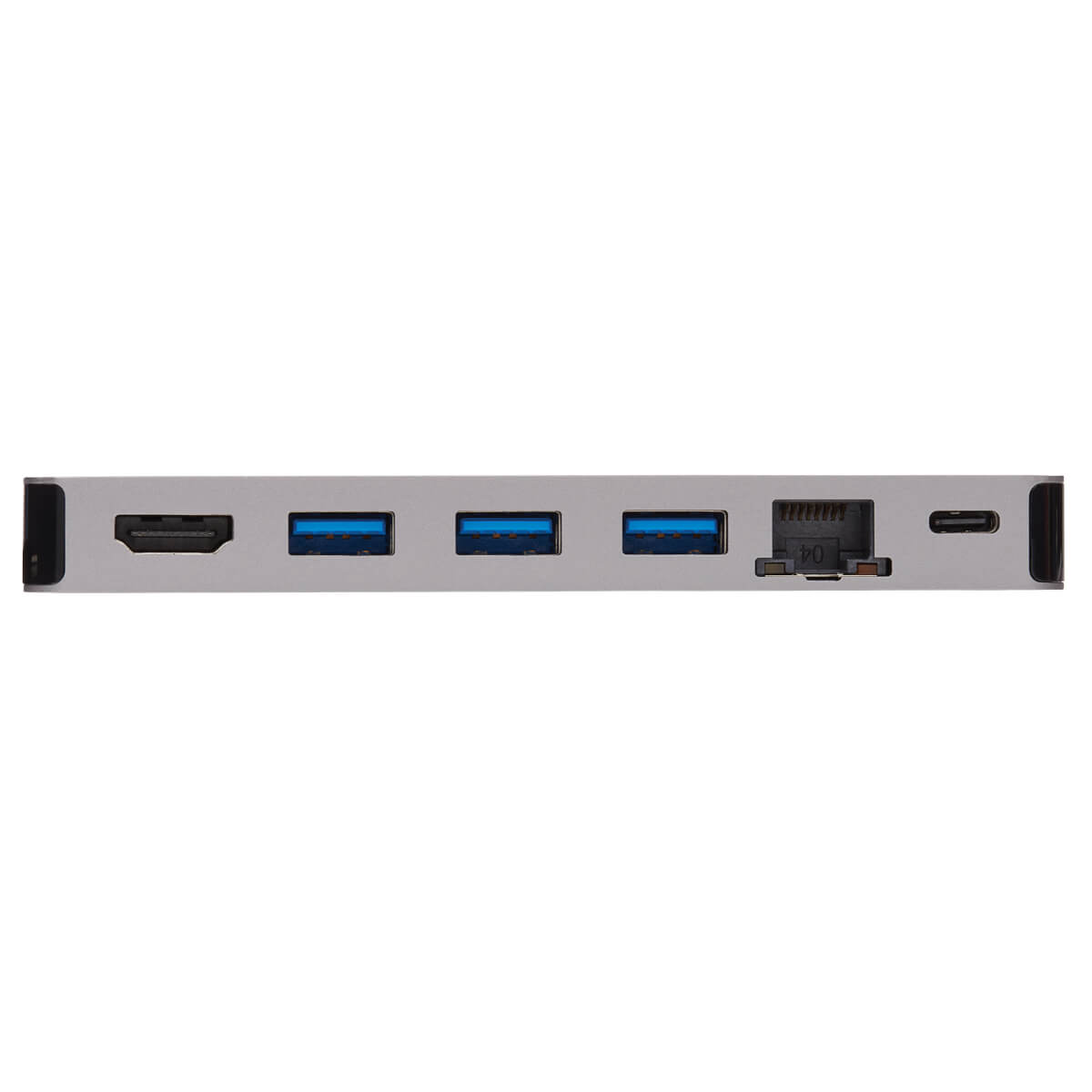

  • USB-C, USB-A and memory card ports allow connection of flash drives and other peripherals

Product Properties

  • Model
  • U442-DOCK5D-GY
  • EAN
  • 37332241023
  • Bullet points
  • Point
  • Connects you to a wired 10/100/1000 Ethernet network when Wi-Fi is unavailable
    Converts audio/video signals from sources supporting USB-C DisplayPort Alt Mode
    Supports 20V 5A (100W) power output for fast-charging large-capacity mobile devices
    Supports true 4K resolutions up to 4096 x 2160 (@ 30 Hz) for crystal-clear video
    USB-C, USB-A and memory card ports allow connection of flash drives and other peripherals
  • Logistics data
  • Master (outer) case gross weight
  • 1.85 kg
  • Master (outer) case height
  • 100.1 mm
  • Master (outer) case length
  • 154.9 mm
  • Master (outer) case width
  • 220 mm
  • Products per master (outer) case
  • 10 pc(s)
  • Network
  • Auto MDI/MDI-X
  • Y
  • Ethernet LAN
  • Y
  • Ethernet LAN (RJ-45) ports
  • 1
  • Ethernet LAN data rates
  • 10,100,1000 Mbit/s
  • Full duplex
  • Y
  • Wake-on-LAN ready
  • Y
  • Operational conditions
  • Operating relative humidity (H-H)
  • 10 - 85%
  • Operating temperature (T-T)
  • 0 - 45 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -10 - 70 °C
  • Packaging content

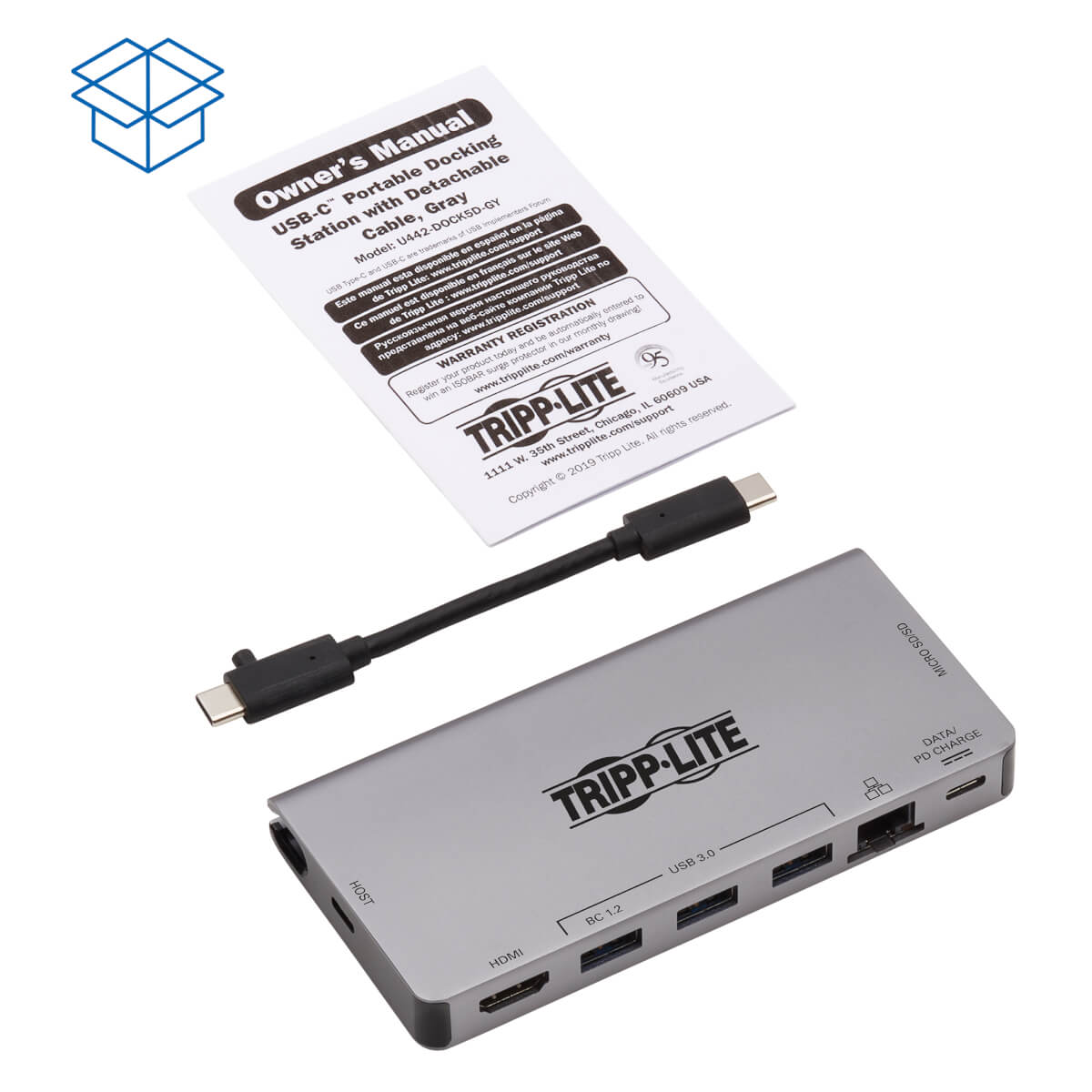

  • Cables included
  • USB Type-C
  • Manual
  • Y
  • Packaging data
  • Package depth
  • 85.1 mm
  • Package height
  • 20.1 mm
  • Package weight
  • 160 g
  • Package width
  • 140 mm
  • Quantity per pack
  • 1 pc(s)
  • Performance
  • Card reader integrated
  • Y
  • Certification
  • CE, FCC, REACH
  • Compatible memory cards
  • MicroSD (TransFlash), SD
  • Country of origin
  • Vietnam
  • Data transfer rate
  • 5 Gbit/s
  • HD type
  • 4K Ultra HD
  • Housing material
  • Aluminium
  • LED indicators
  • Y
  • Maximum digital resolution
  • 4096 x 2160 pixels
  • Product colour
  • Grey
  • Ports & interfaces
  • Connectivity technology
  • Wired
  • HDMI ports
  • 1
  • HDMI version
  • 1.4
  • Host interface
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C
  • Microphone in
  • N
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 3
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 1
  • USB Power Delivery
  • Y
  • USB Power Delivery revision
  • 3.0
  • USB Power Delivery up to
  • 100 W
  • Power
  • Power connector
  • USB Type-C
  • Power source type
  • USB
  • Sustainability
  • Sustainability certificates
  • RoHS
  • Technical details
  • Harmonized System (HS) code
  • 84733020
  • Master (outer) case GTIN (EAN/UPC)
  • 10037332241020

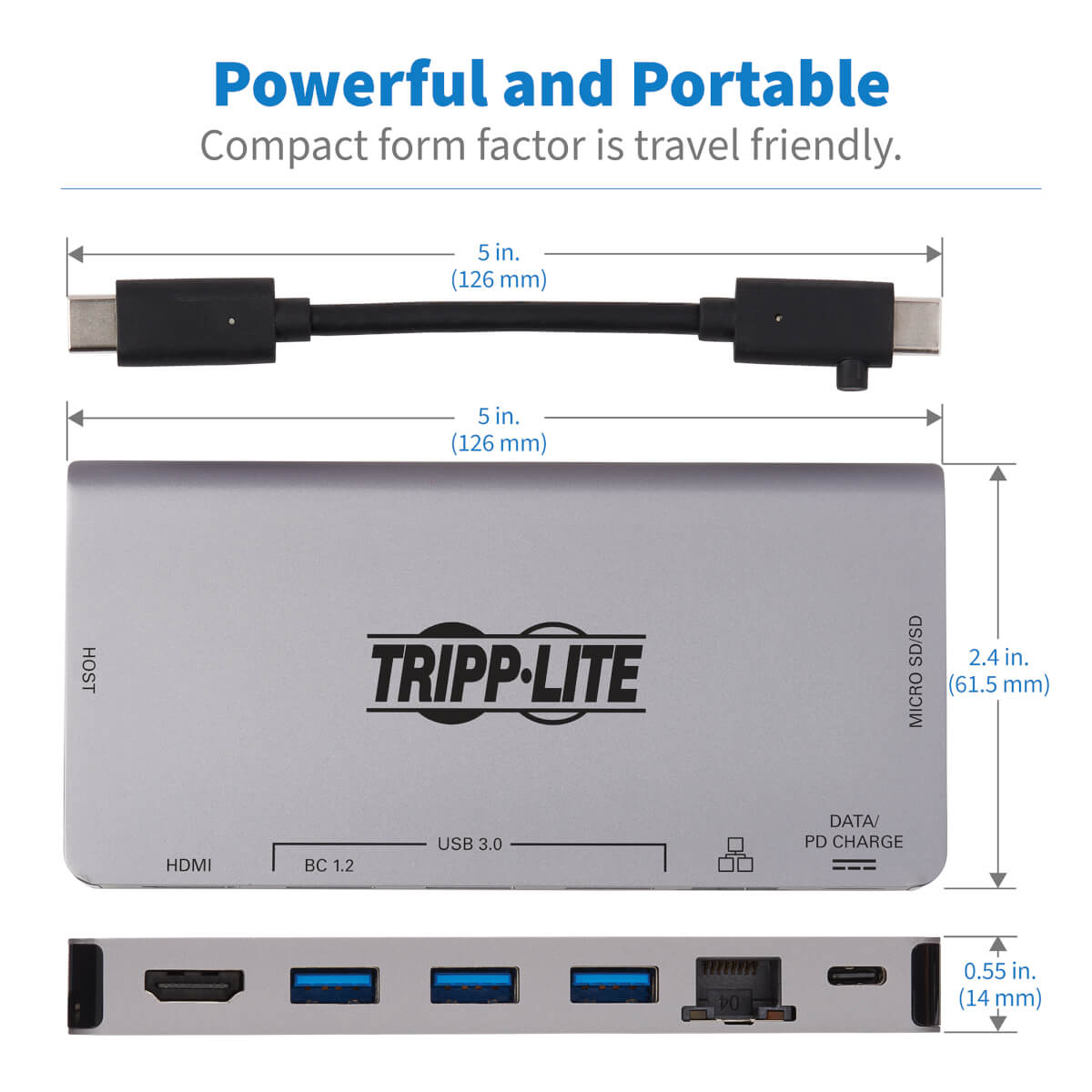

  • Weight & dimensions
  • Depth
  • 62 mm
  • Height
  • 14 mm
  • Weight
  • 140 g
  • Width
  • 126 mm
