Vertiv Avocent AV 3108 KVM switch Rack mounting Black
Roll over image to zoom inClick to Open expanded view
Vertiv Avocent AV 3108 KVM switch Rack mounting Black
Vertiv Avocent AV 3108 KVM switch Rack mounting Black
Vertiv Avocent AV 3108 KVM switch Rack mounting Black
Vertiv Avocent AV 3108 KVM switch Rack mounting Black
Vertiv Avocent AV 3108 KVM switch Rack mounting Black
Print
Model: AV3108-201

Vertiv Avocent AV 3108 KVM switch Rack mounting Black

Manufacturer:
Vertiv
Vertiv Avocent AV 3108 KVM switch Rack mounting Black, 1680 x 1050 pixels, Ethernet LAN, Rack mounting, 18 W, 1U, Black
Please log in to see your price
Related products

Description

Vertiv Avocent AV 3108 KVM switch Rack mounting Black. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Cabling technology: 10/100Base-T(X), Security algorithms: 3DES, 128-bit SSL, AES, DES. Maximum resolution: 1680 x 1050 pixels, Video bandwidth: 60 Hz, Number of users: 1 user(s). Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz
  • Powerful User Access Control - Grant access to specified users or implement LDAP directory authentication - Limit KVM access to specific targets on the switch
  • Streamlined Management - Virtual Media support allows servers to access storage media attached to the KVM
  • Local Port Access - Support for virtual media, USB keyboards and mice
  • Single Solution - Support for USB, PS/2, Sun and serial target devices in a single solution
  • Graphical, Multilingual OSD - Advanced, graphical On-Screen Display eases system configuration and server selection
  • Space-Saving - CAT-5, thin cabling saves space in the rack and allows up to a 30 meter distance between the server and the switch
  • Intelligent Cabling - Server interface modules for attaching to servers VGA, DisplayPort, DVI, HDMI

Product Properties

  • Model
  • AV3108-201
  • Bullet points
  • Point
  • Intelligent Cabling - Server interface modules for attaching to servers VGA, DisplayPort, DVI, HDMI
    Local Port Access - Support for virtual media, USB keyboards and mice
    Single Solution - Support for USB, PS/2, Sun and serial target devices in a single solution
  • Design
  • Cable lock slot
  • No
  • Cascadable
  • Yes
  • Certification
  • UL, FCC Cl. A, cUL, ICES Cl. A, CE, EAC, VCCI
  • Housing material
  • Metal
  • Product colour
  • Black
  • Rack capacity
  • 1U
  • Rack mounting
  • Yes
  • Display
  • Built-in display
  • No
  • Network
  • Cabling technology
  • 10/100Base-T(X)
  • Ethernet LAN
  • Yes
  • Ethernet LAN (RJ-45) ports
  • 1
  • Security algorithms
  • 3DES, 128-bit SSL, AES, DES
  • Operational conditions
  • Operating relative humidity (H-H)
  • 20 - 80%
  • Operating temperature (T-T)
  • 0 - 50 °C
  • Storage relative humidity (H-H)
  • 5 - 95%
  • Storage temperature (T-T)
  • -20 - 70 °C

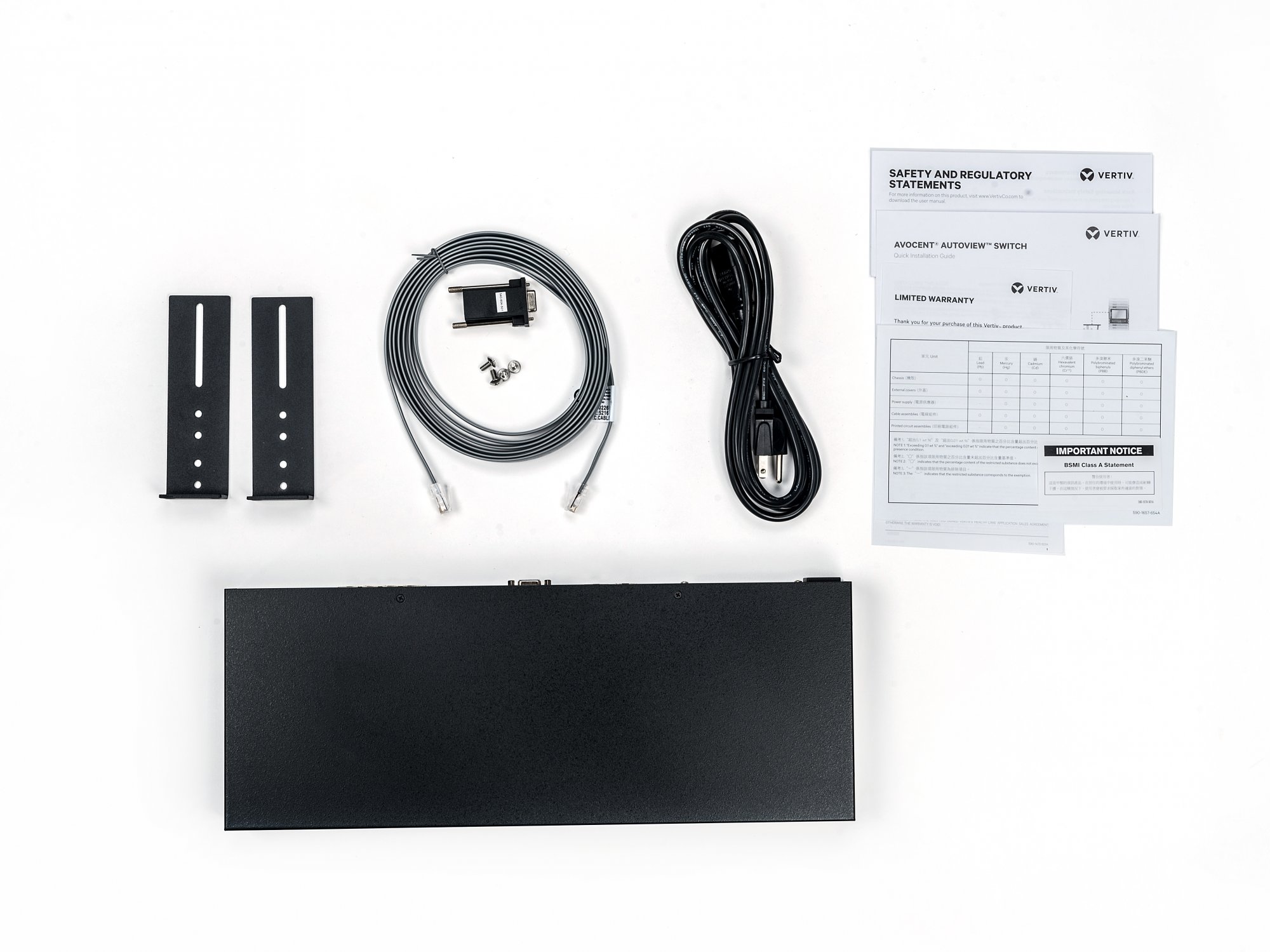

  • Packaging content
  • Cables included
  • AC
  • Quick installation guide
  • Yes
  • Rack mount kit
  • Yes
  • Packaging data
  • Package type
  • Box
  • Performance
  • Firmware upgradeable
  • Yes
  • Maximum resolution
  • 1680 x 1050 pixels
  • Number of users
  • 1 user(s)
  • Video bandwidth
  • 60 Hz

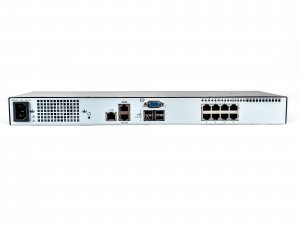

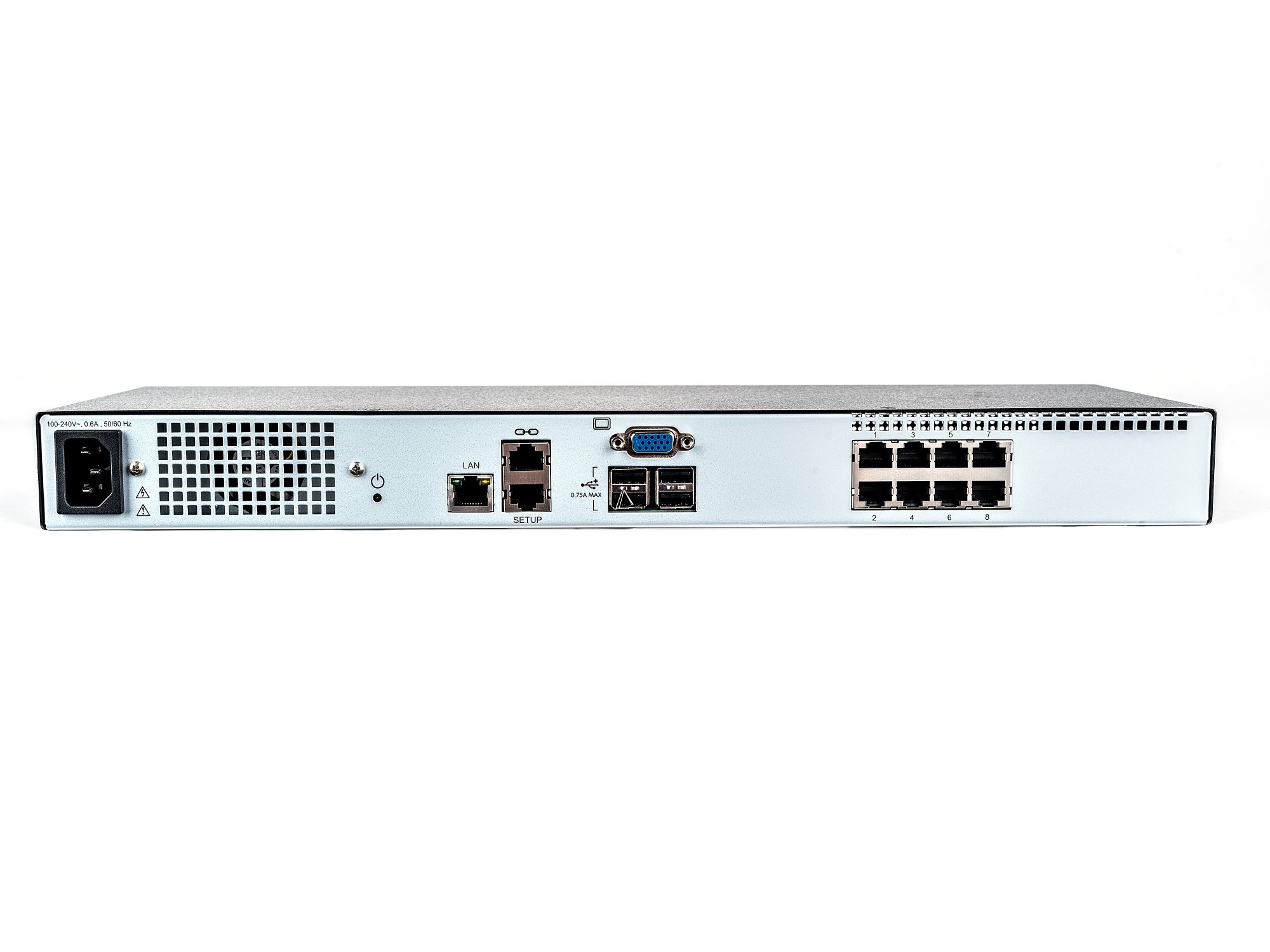

  • Ports & interfaces
  • Audio connections
  • No
  • Console ports
  • RJ–45
  • Keyboard port type
  • USB
  • Mouse port type
  • USB
  • Number of computers controlled
  • 8
  • USB 2.0 ports quantity
  • 4
  • Video port type
  • VGA
  • Power
  • AC input frequency
  • 50 - 60 Hz
  • Compatible power plug types
  • UK
  • Input current
  • 0.6 A
  • Input voltage
  • 100 - 240 V
  • Power consumption (typical)
  • 18 W
  • Power source
  • AC
  • Weight & dimensions
  • Depth
  • 165 mm
  • Height
  • 43.7 mm
  • Weight
  • 1.9 kg
  • Width
  • 432 mm
