Description

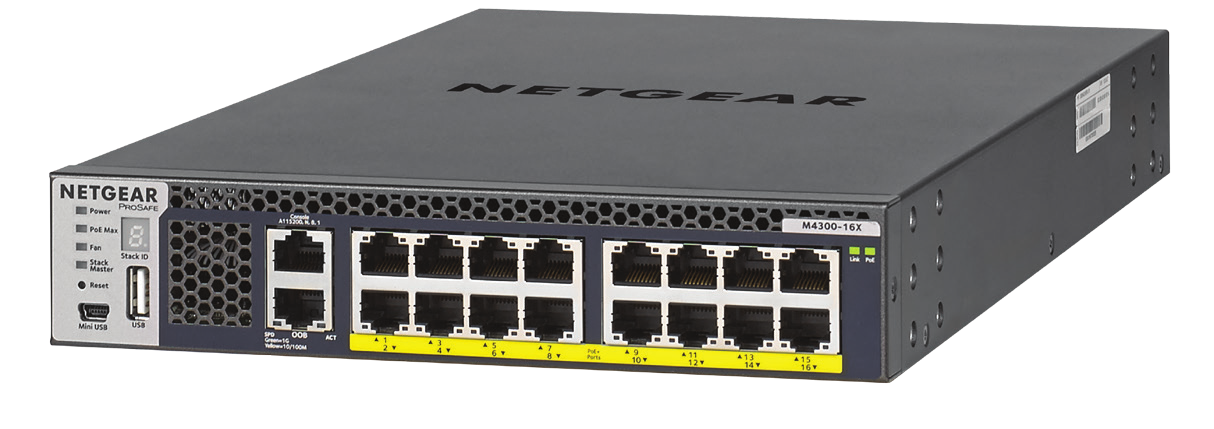

NETGEAR M4300-16X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 16, USB 2.0 ports quantity: 1, Console port: RJ-45/Mini-USB. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U

16-port 100M/1G/2.5G/5G/10GBASE-T with PoE+ (copper RJ45)
320Gbps non-blocking fabric across 16 ports
Out-of-band 1G Ethernet management port
Mini-USB and RJ45 RS232 console ports and USB storage port
Full L3 feature set and non-stop forwarding (NSF) stacking
Half-width form factor with one- and two-unit rack mount kit
Two half-width switches can be installed in a single rack space for redundant top-of-rack

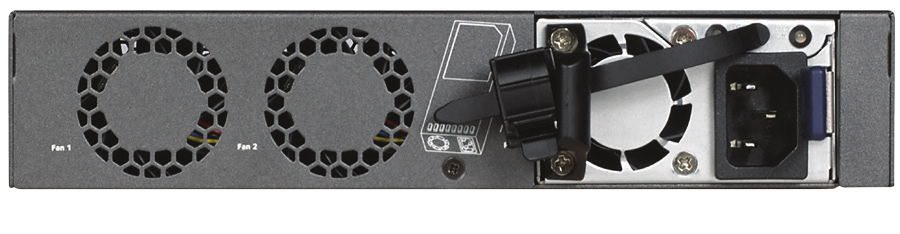

Ships with one modular APS600W PSU in its power supply slot
Low acoustics (36dB with APS299W, 35dB with APS600W, @25°C / 77°F )

Product Properties

Manufacturer
Netgear

Model
XSM4316PB-100NES

EAN
606449140989

Bullet points

Point
16-port 100M/1G/2.5G/5G/10GBASE-T with PoE+ (copper RJ45)

320Gbps non-blocking fabric across 16 ports

Full L3 feature set and non-stop forwarding (NSF) stacking

Half-width form factor with one- and two-unit rack mount kit

Low acoustics (36dB with APS299W, 35dB with APS600W, @25°C / 77°F )

Mini-USB and RJ45 RS232 console ports and USB storage port

Out-of-band 1G Ethernet management port

Ships with one modular APS600W PSU in its power supply slot

Two half-width switches can be installed in a single rack space for redundant top-of-rack

Data transmission

Jumbo frames
9000

Jumbo frames support
Yes

MAC address table
16000 entries

Number of queues
8

Number of static routes
64

Store-and-forward
Yes

Switching capacity
320 Gbit/s

Throughput
238 Mpps

Design

Airflow direction
Front-to-back airflow

Form factor
1U

Product colour
Black

Rack mounting
Yes

Stackable
Yes

Logistics data

Harmonized System (HS) code
85176990

Management features

Quality of Service (QoS) support
Yes

Switch layer
L3

Switch type
Managed

Multicast features

Multicast support
Yes

Number of multicast groups filtered
4000

Network

10G support
Yes

Auto-sensing
Yes

IP routing
Yes

Link aggregation
Yes

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u

Number of VLANs
4093

Port mirroring
Yes

Virtual LAN features
Private VLAN, Tagged VLAN, Voice VLAN

VLAN support
Yes

Operational conditions

Heat dissipation
2081.64 BTU/h

Packaging content

Rack mount kit
Yes

Performance

Built-in processor
Yes

Internal memory
1024 MB

Mean time between failures (MTBF)
690301 h

Noise level
35 dB

Physical stacking (units)
8

Processor frequency
800 MHz

Ports & interfaces

Console port
RJ-45/Mini-USB

Installed SFP modules quantity
0

Installed SFP+ modules quantity
0

Switch Number of Ports
16

Switch Port Speed
10G Ethernet (100/1000/10000)

USB 2.0 ports quantity
1

Power

Number of power supply units
1

Power consumption (max)
610 W

Power supply included
Yes

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Power over Ethernet (PoE) power per port
30 W

Power over Ethernet plus (PoE+) ports quantity
16

Total Power over Ethernet (PoE) budget
500 W

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes

Routing protocols
OSPF, OSPFv3, RIP, RIP-1, RIP-2

Security

Access Control List (ACL)
Yes

Authentication
Guest VLAN, MAC-based authentication

BPDU filtering/protection
Yes

DHCP features
DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping

IGMP snooping
Yes

Weight & dimensions

Depth
345 mm

Height
44 mm

Weight
3.22 kg

Width
212 mm

NETGEAR M4300-16X Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
