Description

ATEN CS1798. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power source: DC, Input voltage: 5 V, Power consumption (typical): 12 W. Width: 432.4 mm, Depth: 257.2 mm, Height: 44 mm

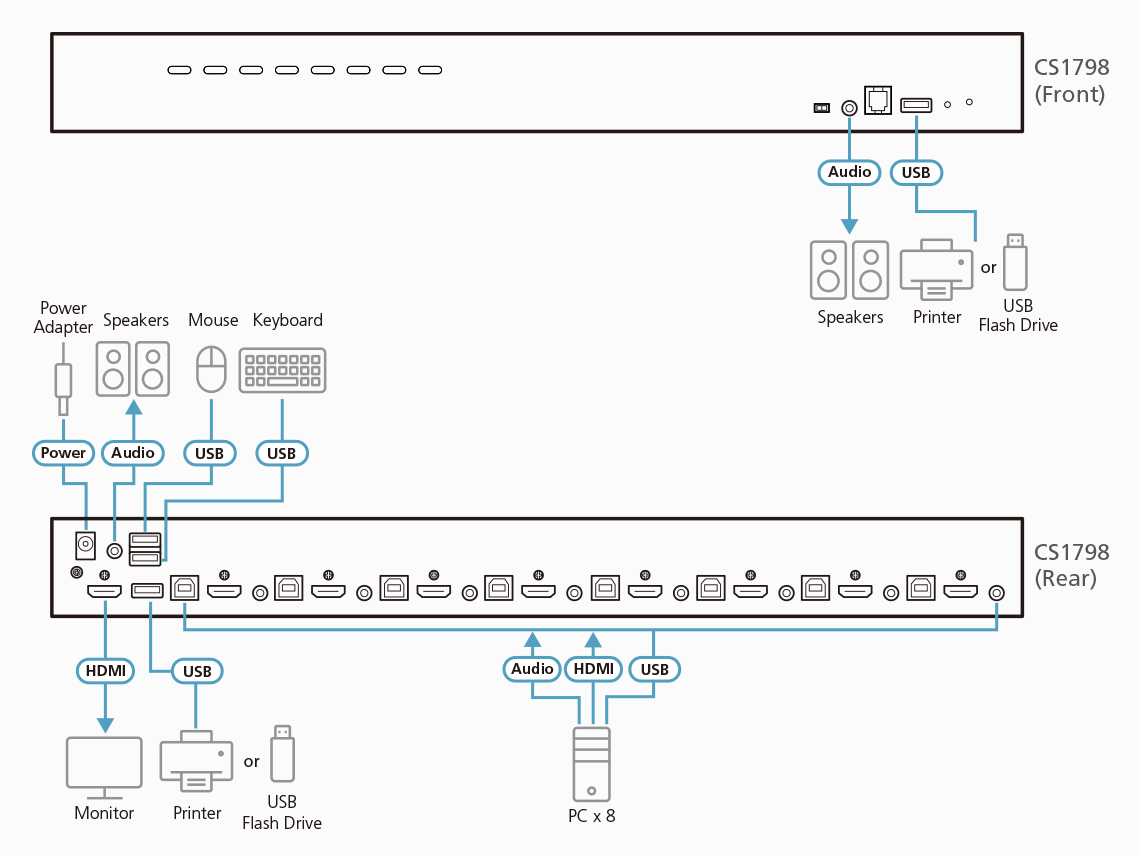

One USB console controls up to eight HDMI interface computers and two additional USB 2.0 devices
HDMI compatible
Cascadable to three levels–control up to 512 computers1
Multi-Display feature – stack up to eight CS1798 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
2-port USB 2.0 hub built in2

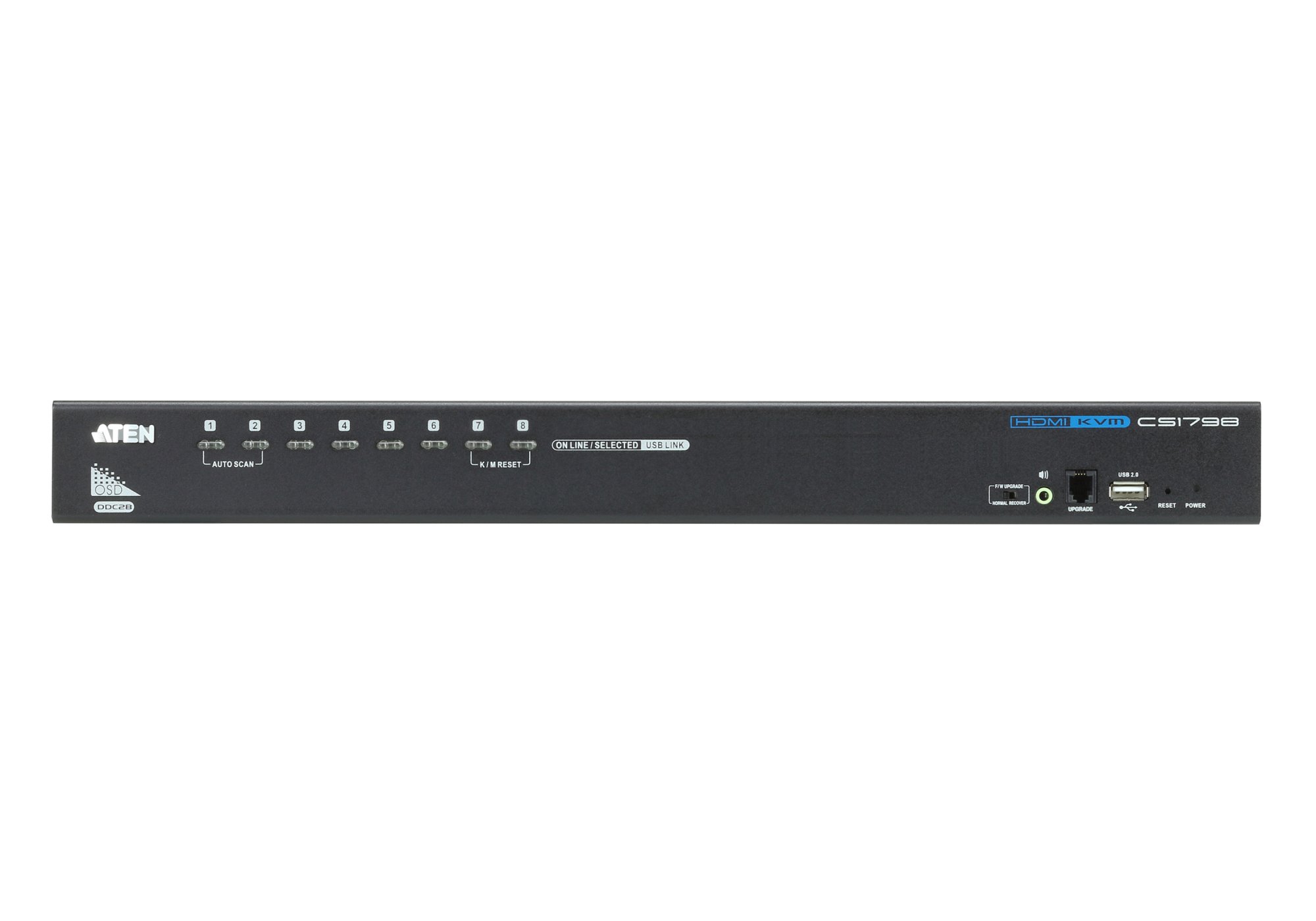

Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)
Independent switching of KVM and USB focus
OSD Backup/Restore feature–enables the administrator to back up the switch’s configuration and user profile information
Firmware upgradable
Video DynaSync™ – exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
Superior video quality–supports up to 1080p / 1920 x 1200@60Hz3
Supports widescreen resolutions
Audio enabled–full bass response provides a rich experience for 2.1 channel surround sound systems
Console audio ports on front panel for easy access
Auto Scan Mode for monitoring all computers
HDCP compatible
Multiplatform support–Windows, Linux, Mac, Sun4
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
Complete keyboard emulation for error-free booting
Mac/Sun keyboard support and emulation5
Multilingual OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian, and French
Multilingual keyboard mapping – supports English (US), English (UK), German (GER.), German (SWISS), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese
Supports hot-plugging
Note:
1. CS1798 cascade to CS1798 only.
2. The USB 2.0 hub cannot be accessed through the switch by computers on the second or third level of a cascaded installation.
3. CS1798 supports the resolution up to 1920 x 1080 @ 60 Hz. The resolution of the connected source should be 1920 x 1080 @ 60 Hz or lower in order to avoid compatibility issues.
4. For PC compatible computers. Mac and Sun computers must be compatible with USB connections.
5. PC keyboard combinations emulate Mac / Sun keyboards; Mac / Sun keyboards work only with their own computers.

Product Properties

Manufacturer
Aten

Model
CS1798

EAN
4719264641596

Bullet points

Point
1. CS1798 cascade to CS1798 only.

2-port USB 2.0 hub built in2

4. For PC compatible computers. Mac and Sun computers must be compatible with USB connections.

Audio enabled–full bass response provides a rich experience for 2.1 channel surround sound systems

Auto Scan Mode for monitoring all computers

Cascadable to three levels–control up to 512 computers1

Complete keyboard emulation for error-free booting

Computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD)

Console audio ports on front panel for easy access

Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice

Firmware upgradable

HDCP compatible

HDMI compatible

Independent switching of KVM and USB focus

Mac/Sun keyboard support and emulation5

Multiplatform support–Windows, Linux, Mac, Sun4

Note:

One USB console controls up to eight HDMI interface computers and two additional USB 2.0 devices

Superior video quality–supports up to 1080p / 1920 x 1200@60Hz3

Supports hot-plugging

Supports widescreen resolutions

Design

Cascadable
Yes

Hot keys
Yes

Housing material
Metal

Keyboard language
Chinese Traditional, English, French, German, Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Swiss, UK English, US English

LED indicators
Yes

Product colour
Black

Push button
Yes

Rack capacity
1U

Rack mounting
Yes

Display

Built-in display
No

On Screen Display (OSD)
Yes

Logistics data

Harmonized System (HS) code
85176200

Operational conditions

Operating relative humidity (H-H)
0 - 80%

Operating temperature (T-T)
0 - 50 °C

Storage temperature (T-T)
-20 - 60 °C

Packaging content

AC adapter included
Yes

Cables included
KVM

Quick installation guide
Yes

Rack mount kit
Yes

Performance

Firmware upgradeable
Yes

HD type
WUXGA

HDCP
Yes

Hot-Plug support
Yes

Maximum resolution
1920 x 1200 pixels

Video bandwidth
60 Hz

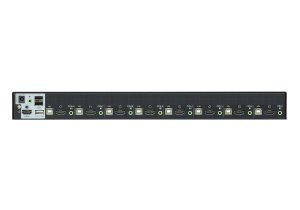

Ports & interfaces

Audio connections
Yes

Console ports
3.5mm headphone, HDMI, USB B

Console USB ports quantity
2

DC-in jack
Yes

HDMI ports
9

Headphone outputs
8

Keyboard port type
USB

Mouse port type
USB

Number of computers controlled
512

USB connector type
USB Type-B

USB hub
Yes

USB version
2.0

Video port type
HDMI

Power

Input voltage
5 V

Power consumption (typical)
12 W

Power source
DC

System requirements

Linux operating systems supported
Yes

Mac operating systems supported
Yes

Other operating systems supported
Yes

Windows operating systems supported
Yes

Weight & dimensions

Depth
257.2 mm

Height
44 mm

Weight
3.49 kg

Width
432.4 mm

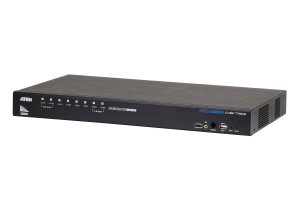

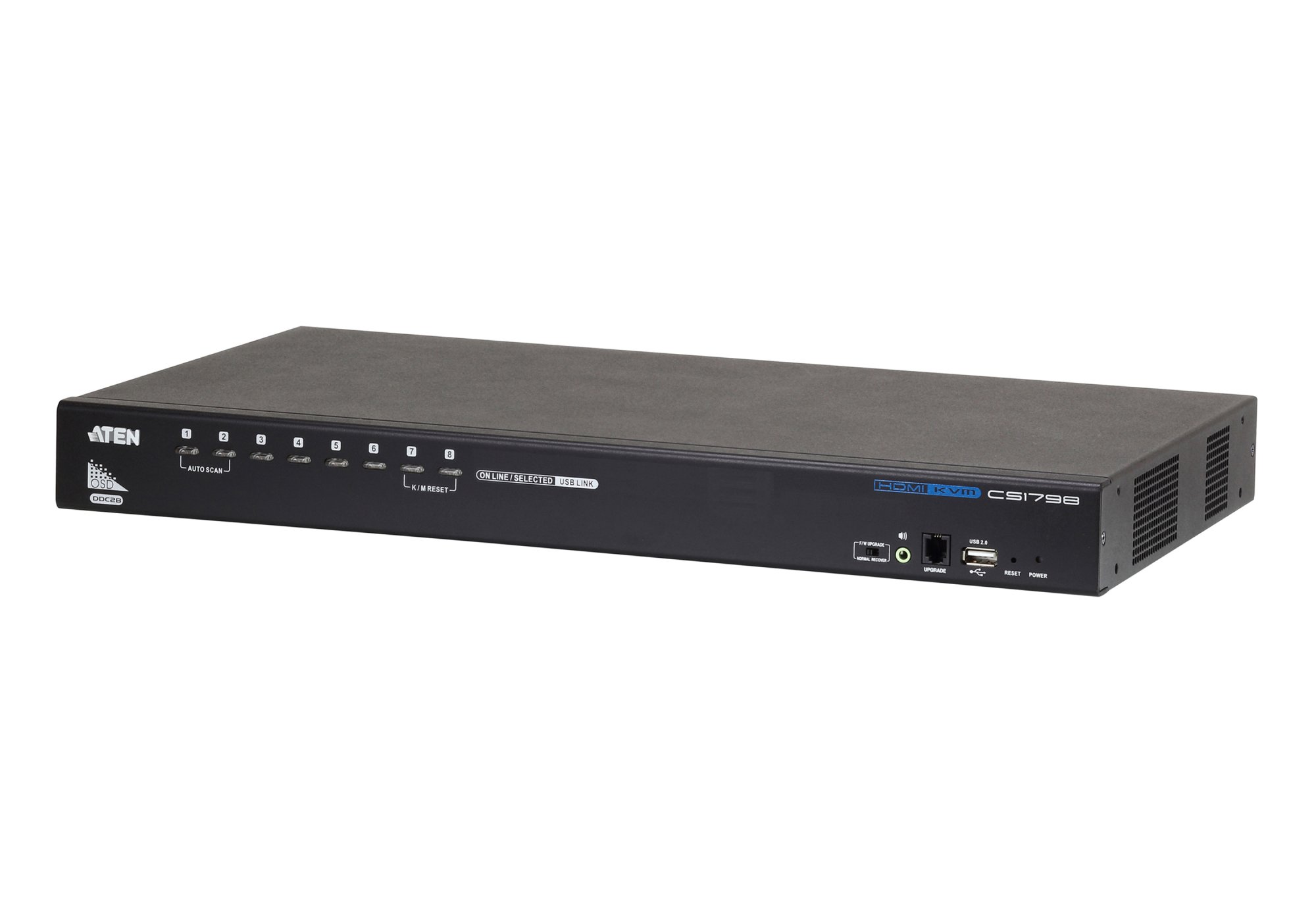

ATEN CS1798 KVM switch Rack mounting Black
