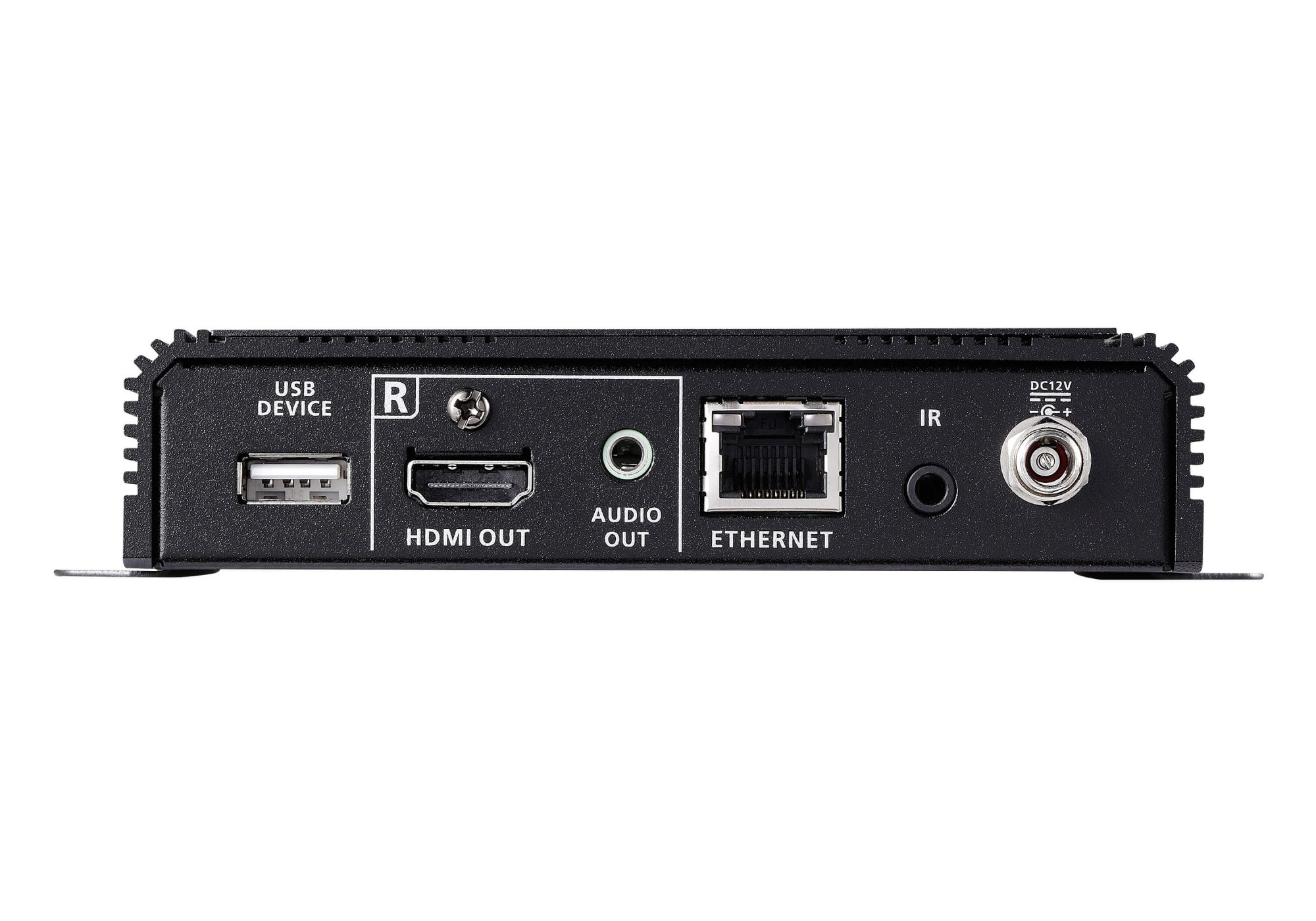

ATEN VE1843 AV extender AV transmitter & receiver Black
Roll over image to zoom inClick to Open expanded view
ATEN VE1843 AV extender AV transmitter & receiver Black
ATEN VE1843 AV extender AV transmitter & receiver Black
ATEN VE1843 AV extender AV transmitter & receiver Black
ATEN VE1843 AV extender AV transmitter & receiver Black
ATEN VE1843 AV extender AV transmitter & receiver Black
ATEN VE1843 AV extender AV transmitter & receiver Black
ATEN VE1843 AV extender AV transmitter & receiver Black
ATEN VE1843 AV extender AV transmitter & receiver Black
Print
Model: VE1843
EAN: 4710469341267

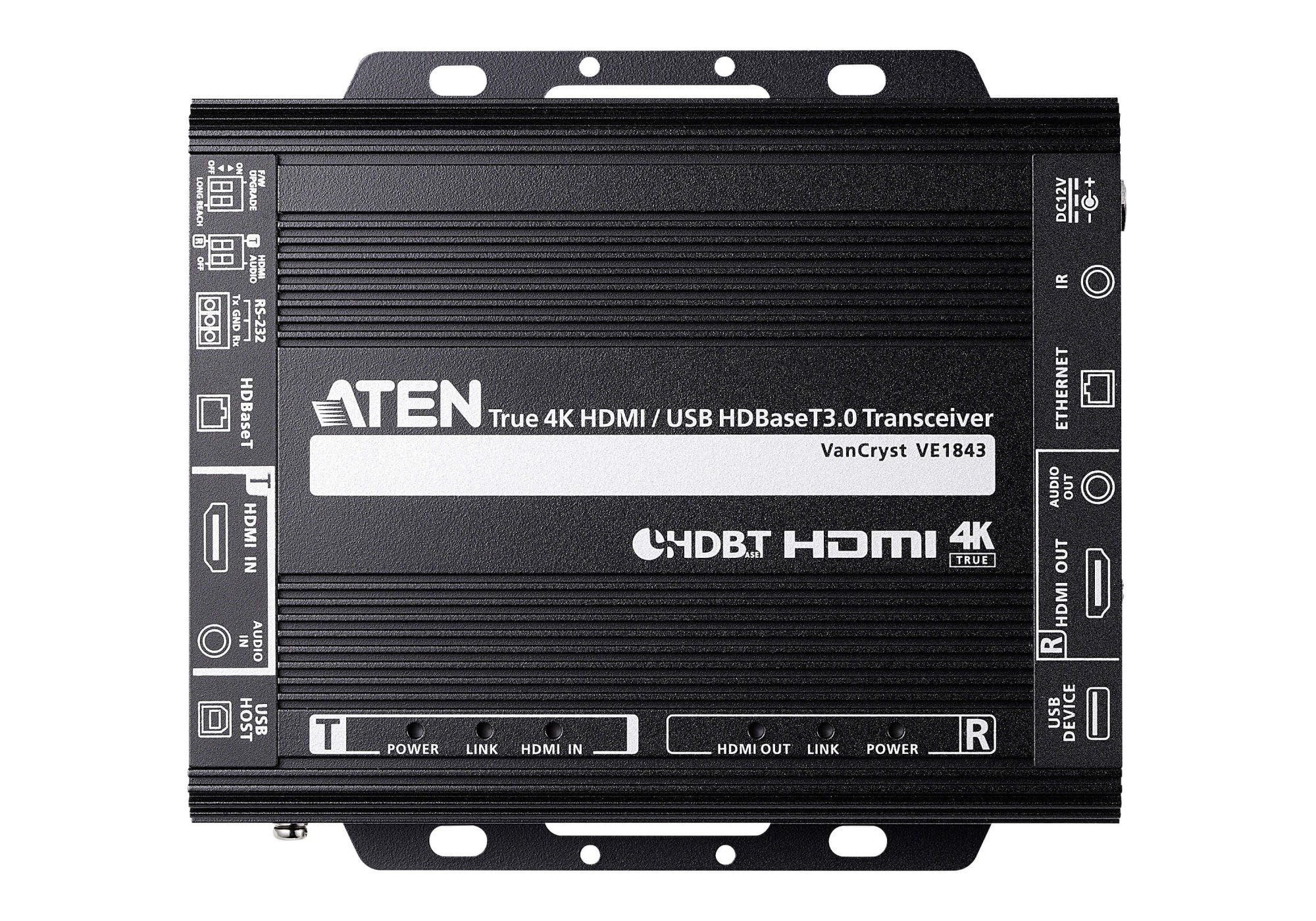

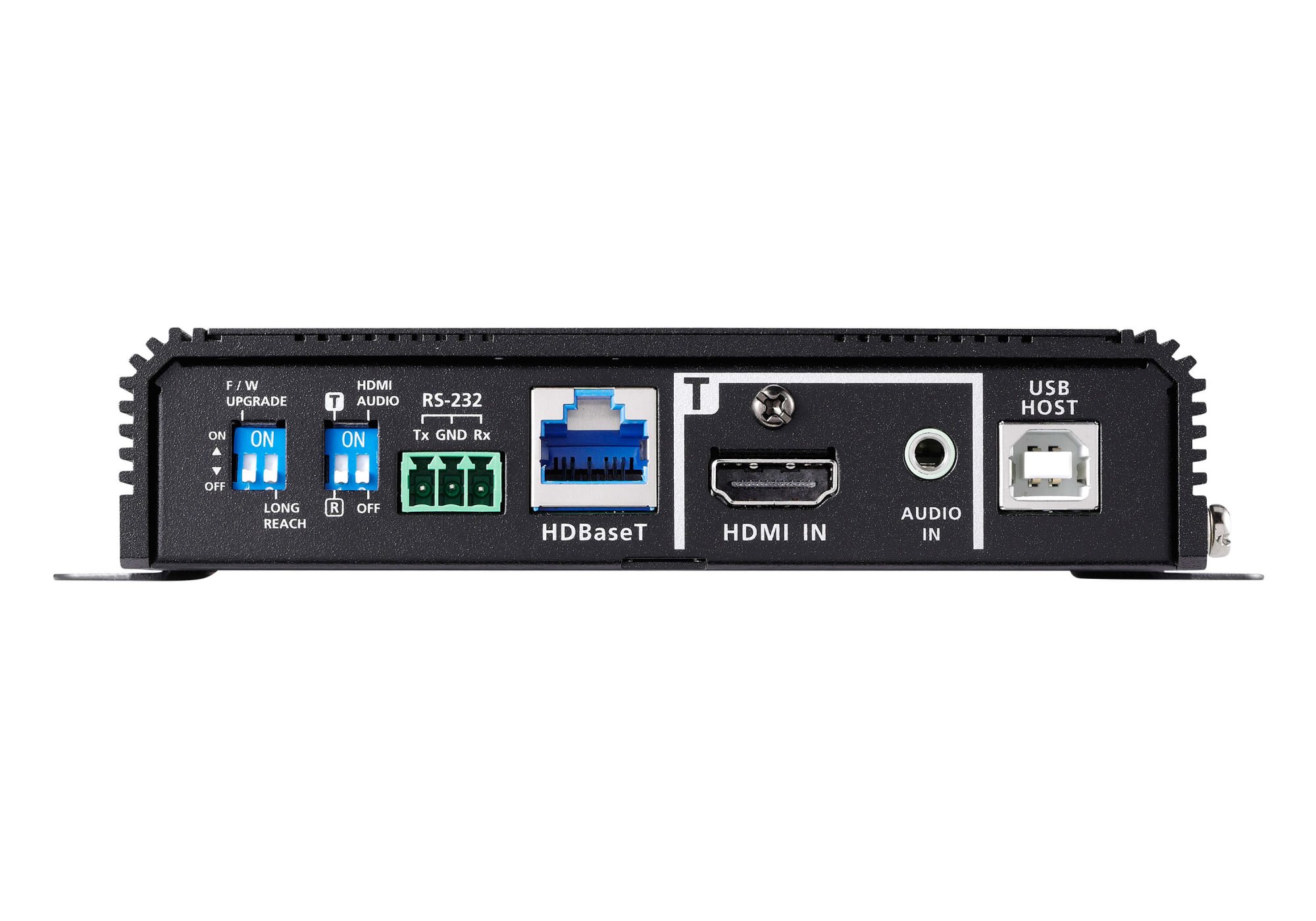

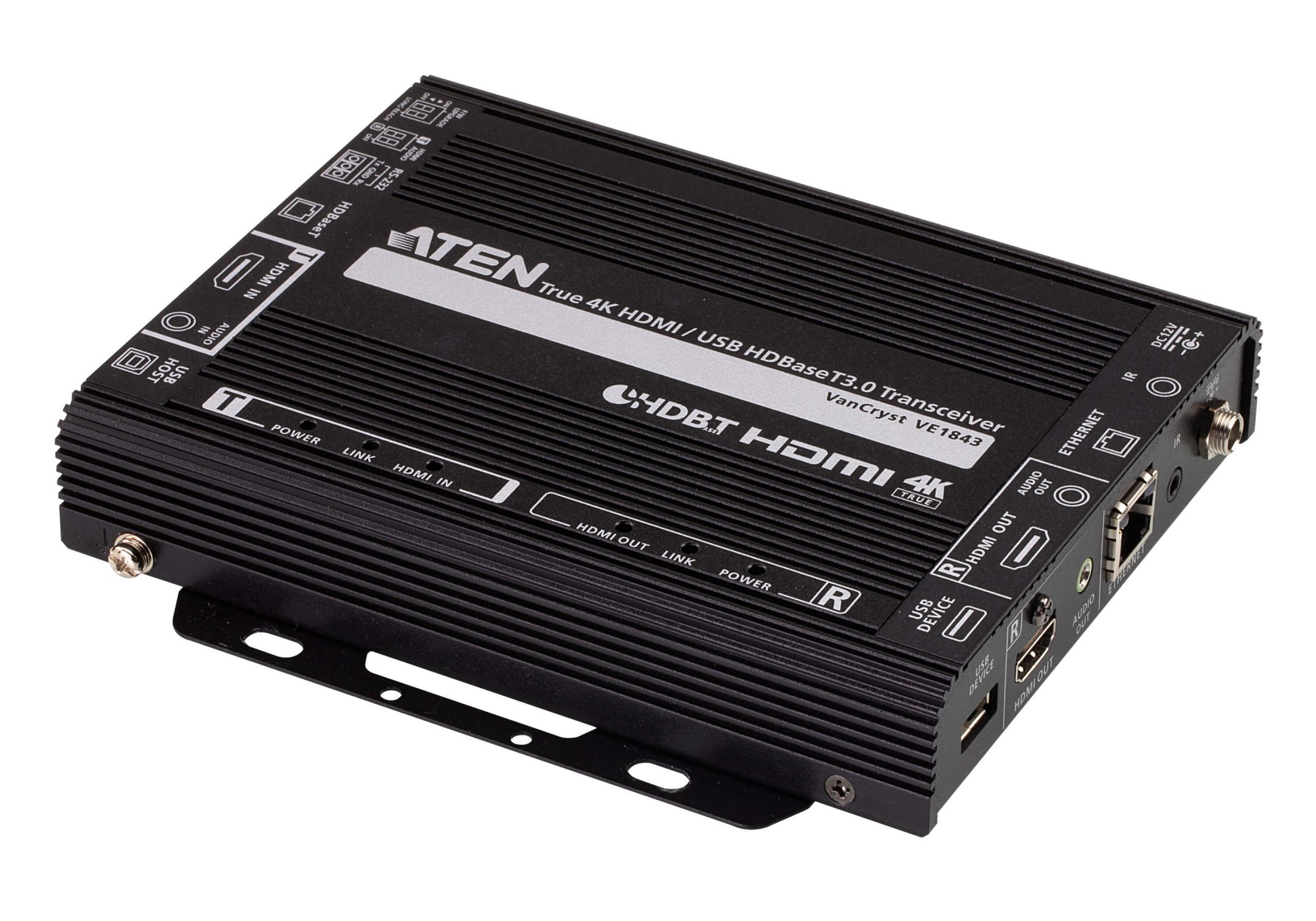

ATEN VE1843 AV extender AV transmitter & receiver Black

Manufacturer:
Aten
ATEN VE1843, 4096 x 2160 pixels, AV transmitter & receiver, 5 m, Wired, 3D, HDCP
Please log in to see your price
Included in the cost of this product is the WEEE recycling charge.

Click here for details

Related products
Cables & Connectivity

Description

ATEN VE1843. Type: AV transmitter & receiver, Maximum resolution: 4096 x 2160 pixels, Cable types supported: Cat6a. Connectivity technology: Wired, USB connector type: USB Type-A, USB Type-B. Operating voltage: 12 V, Power consumption (typical): 6.45 W. Width: 171.5 mm, Depth: 150.9 mm, Height: 30 mm. Quantity per pack: 1 pc(s)
  • Extends uncompressed True 4K HDMI signals up to 100 m over a single Cat 6a cable (HDBaseT 3.0 Certified Cat 6a U/ FTP cable* / ATEN 2L-2920 Cat 6a cable) with zero latency
  • Compliant with HDBaseT 3.0 standards – transmits high-quality video, full range IR, bi-directional RS-232, Gigabit Ethernet, independent stereo audio and USB 2.0 signals channel bypass
  • HDMI (3D, Deep Color, 4K/60Hz); HDCP 2.3 compliant
  • Superior video quality – up to 4096 x 2160 @ 60 Hz (4:4:4); HDR, HDR+, Dolby Vision supported

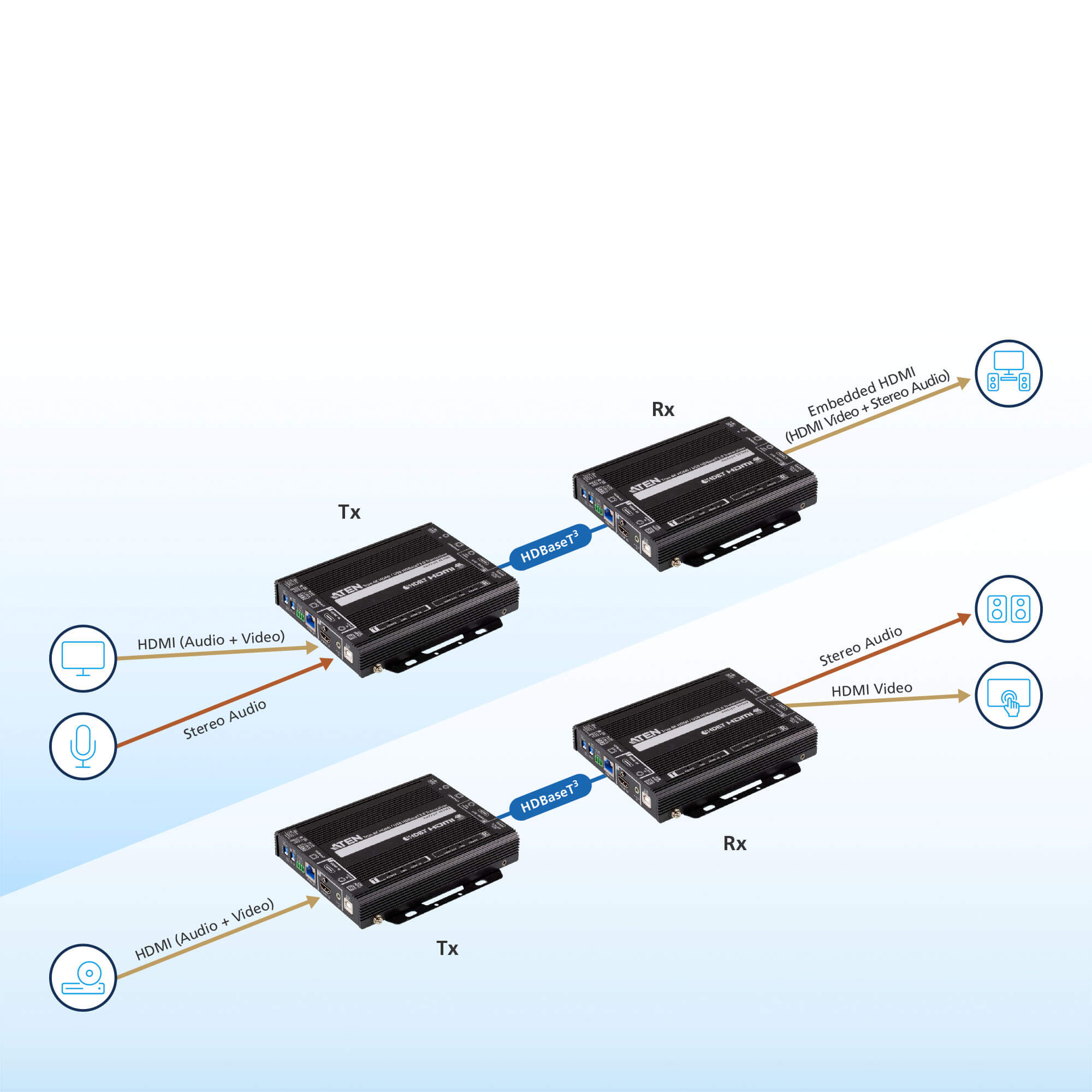

  • Supports HDMI audio embedding / de-embedding functions
  • Supports HDMI local output
  • Compliant with the USB 2.0 standard for a wide range of USB peripherals compatibility
  • LED indication of HDBaseT and HDMI signal status for easier recognition

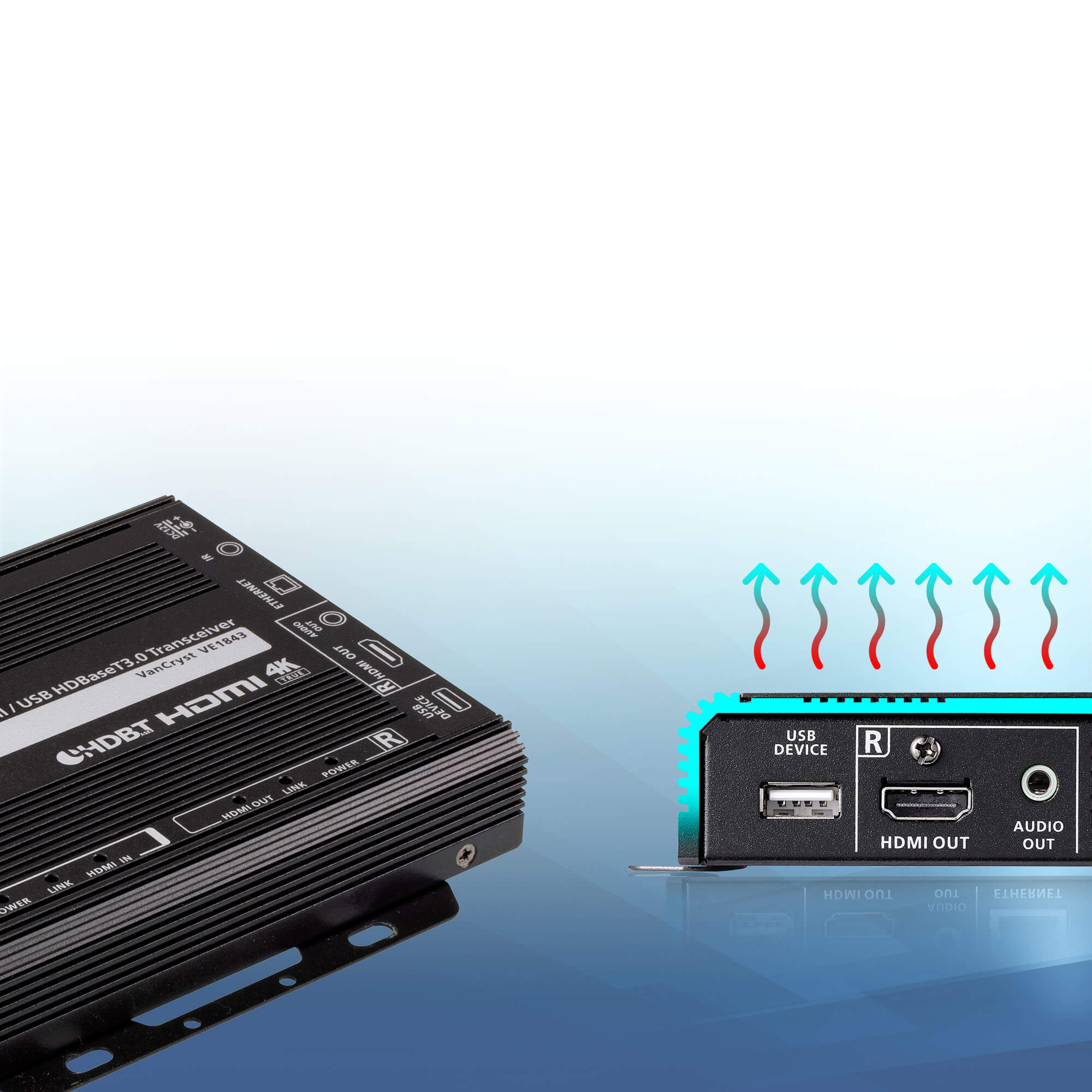

  • Fanless fin heat sink enclosure – elevates durability and reliability by preventing overheating, fan malfunctions, and noises
  • Supports extremely high refresh rates up to 240 Hz for the connected display
  • Firmware upgradable
  • Built-in 8KV / 15KV ESD protection
  • Plug-and-play
  • Rack-mountable
  • * Cat 6a U/FTP is the recommended setting. The skewless nature and inter-pair shielding of FTP provides the better near-end crosstalk (NEXT, source end) and far-end crosstalk (FEXT, receiver end) parameters required to achieve the maximum performance and distance.

Product Properties

  • Model
  • VE1843
  • EAN
  • 4710469341267
  • Bullet points
  • Point
  • Built-in 8KV / 15KV ESD protection
    Compliant with the USB 2.0 standard for a wide range of USB peripherals compatibility
    Firmware upgradable
    HDMI (3D, Deep Color, 4K/60Hz); HDCP 2.3 compliant
    LED indication of HDBaseT and HDMI signal status for easier recognition
    Plug-and-play
    Rack-mountable
    Superior video quality – up to 4096 x 2160 @ 60 Hz (4:4:4); HDR, HDR+, Dolby Vision supported
    Supports extremely high refresh rates up to 240 Hz for the connected display
    Supports HDMI audio embedding / de-embedding functions
    Supports HDMI local output
  • Features
  • 3D
  • Yes
  • Bandwidth
  • 18 Gbit/s
  • Cable types supported
  • Cat6a
  • Firmware upgradeable
  • Yes
  • HDCP
  • Yes
  • HDCP version
  • 2.2
  • Impedance
  • 100 Ω
  • Material
  • Metal
  • Maximum refresh rate
  • 60 Hz
  • Maximum resolution
  • 4096 x 2160 pixels
  • Maximum transfer distance
  • 5 m
  • Product colour
  • Black
  • Type
  • AV transmitter & receiver
  • Operational conditions
  • Operating relative humidity (H-H)
  • 0 - 80%
  • Operating temperature (T-T)
  • 0 - 40 °C
  • Storage relative humidity (H-H)
  • 0 - 80%
  • Storage temperature (T-T)
  • -20 - 60 °C
  • Packaging data
  • Quantity per pack
  • 1 pc(s)
  • Ports & interfaces
  • Audio input
  • 1
  • Audio output
  • 1
  • Connectivity technology
  • Wired
  • DC-in jack
  • Yes
  • HDMI in
  • 1
  • Number of HDMI outputs
  • 1
  • RJ-45 input ports
  • 1
  • USB connector type
  • USB Type-A, USB Type-B
  • USB ports quantity
  • 2
  • Power
  • Operating voltage
  • 12 V
  • Power consumption (typical)
  • 6.45 W
  • Weight & dimensions
  • Depth
  • 150.9 mm
  • Height
  • 30 mm
  • Weight
  • 640 g
  • Width
  • 171.5 mm
